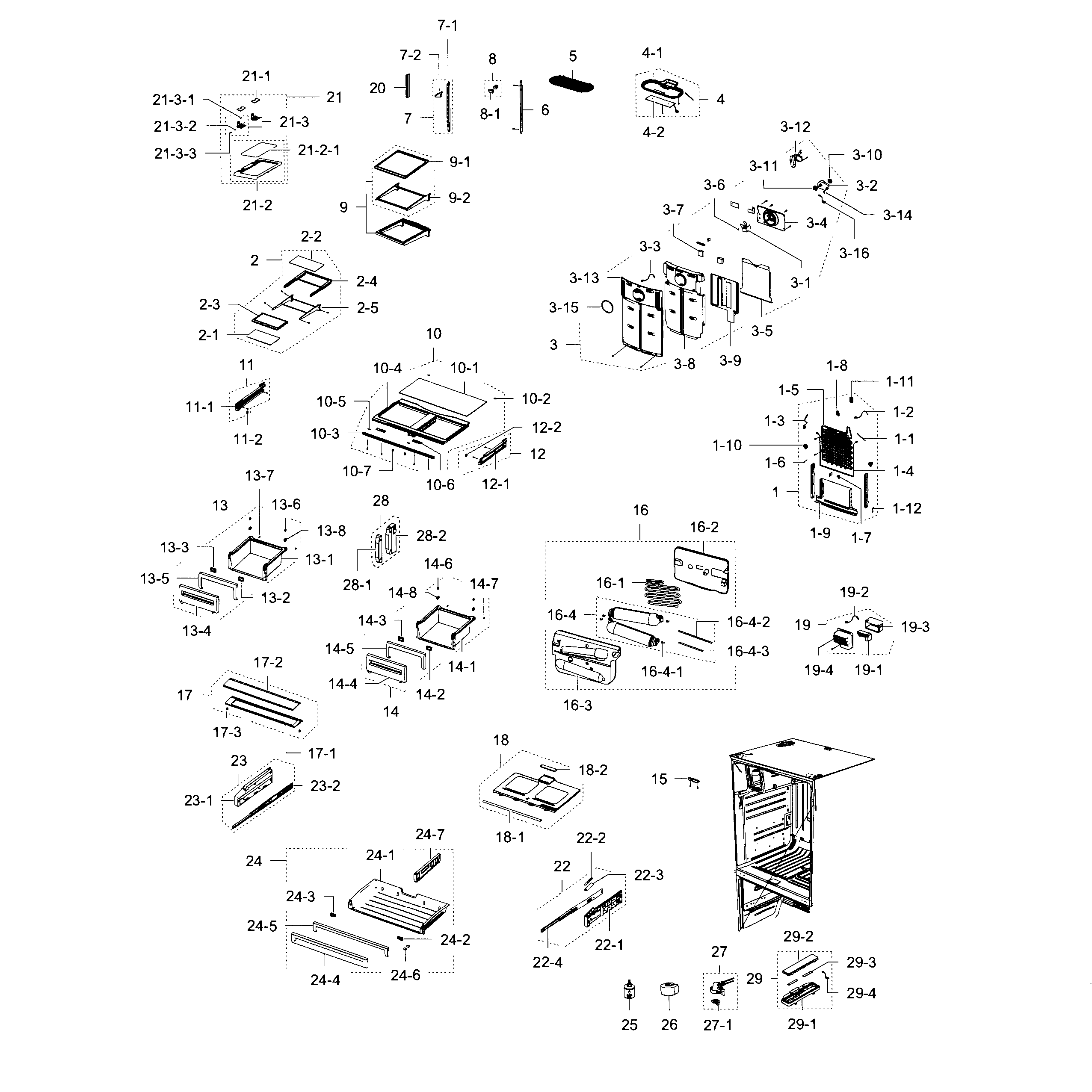

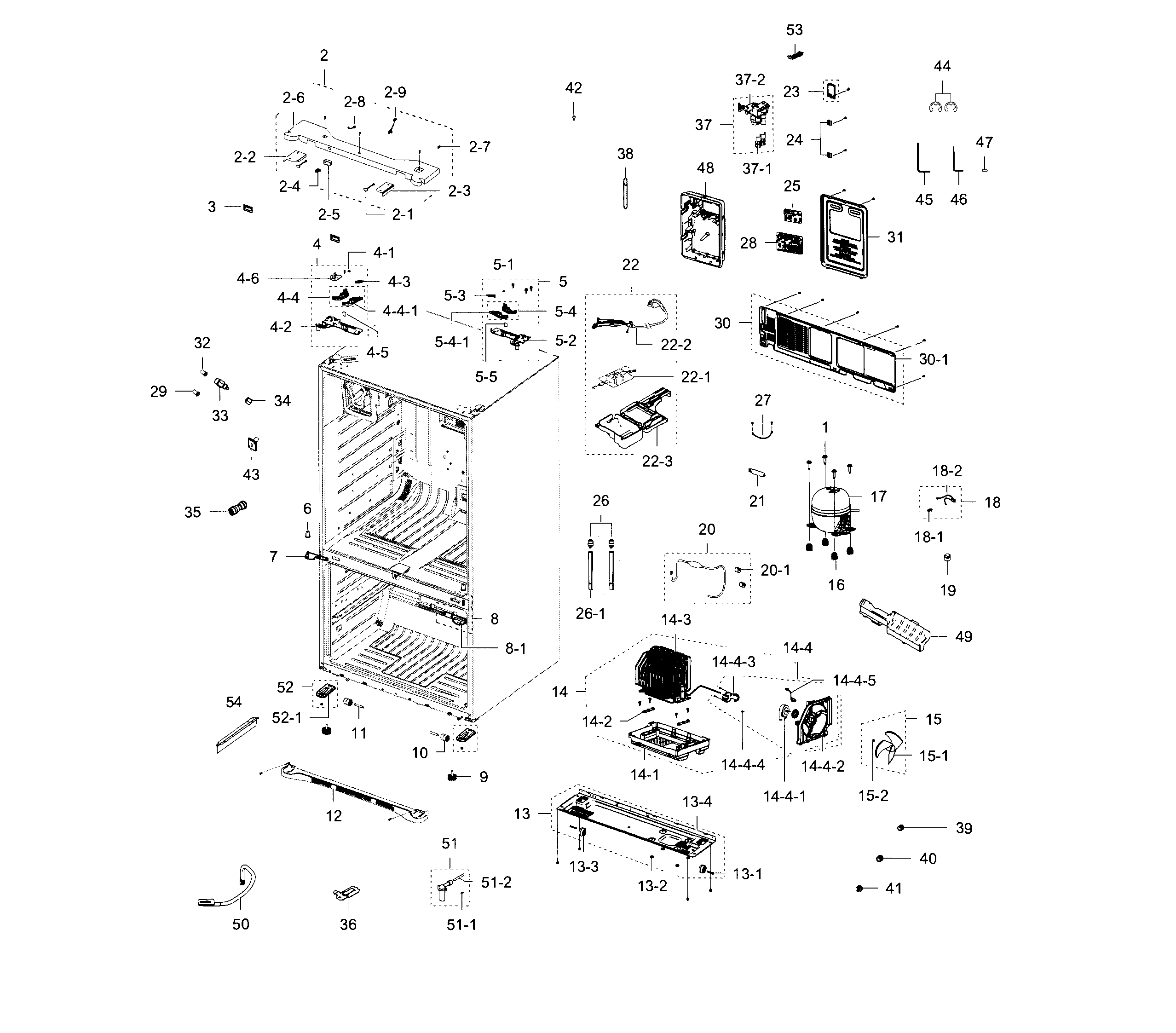

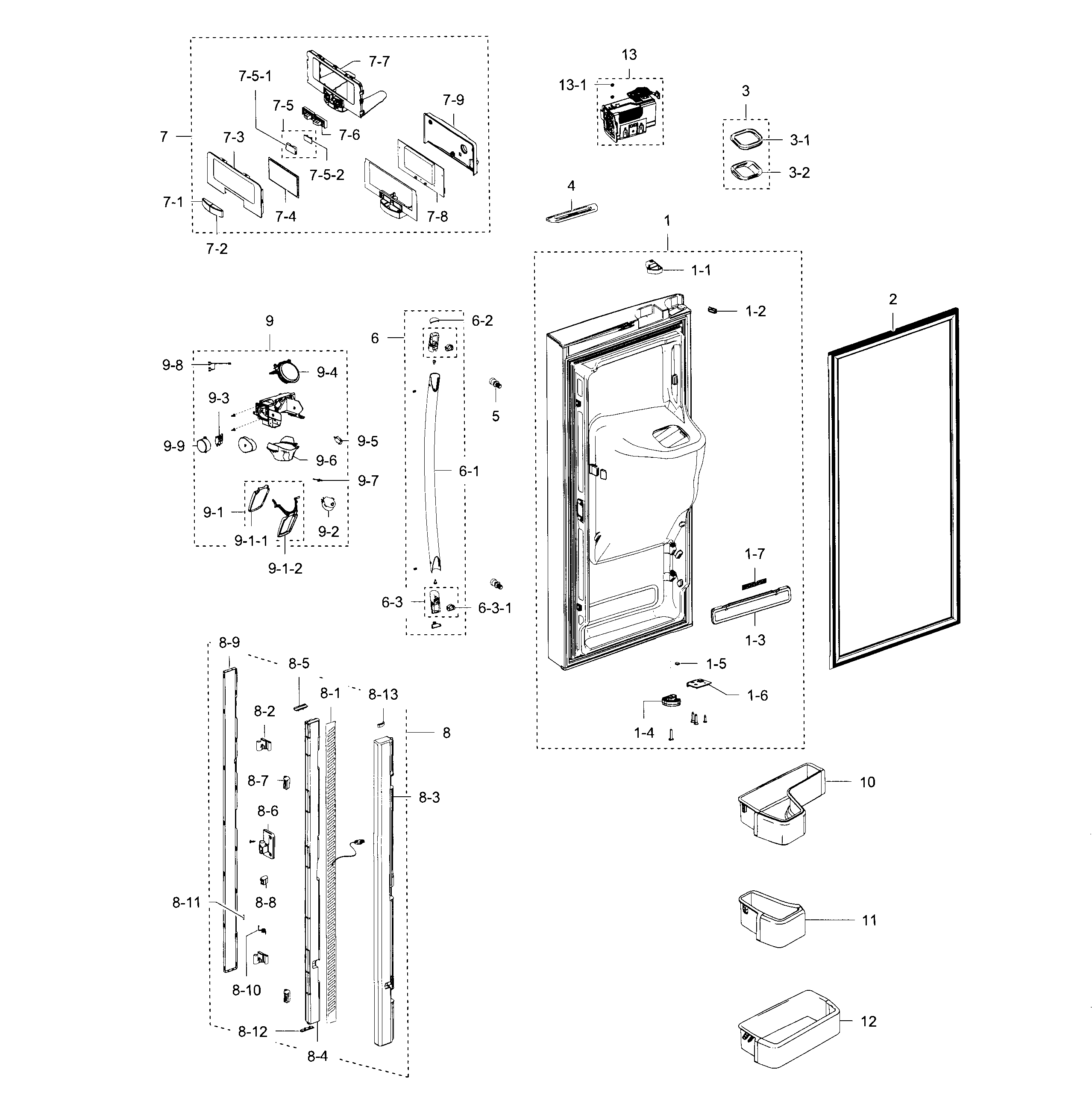

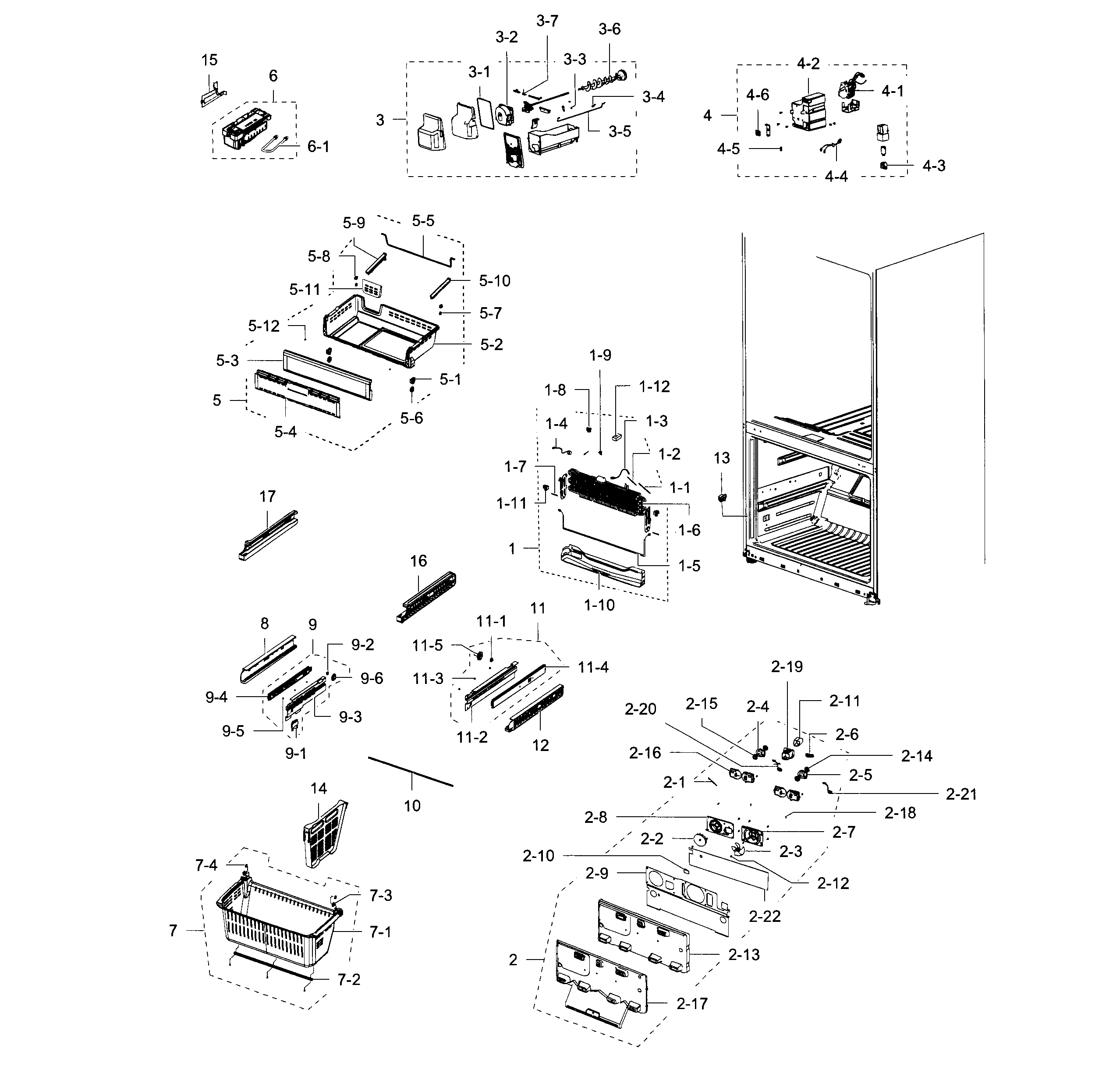

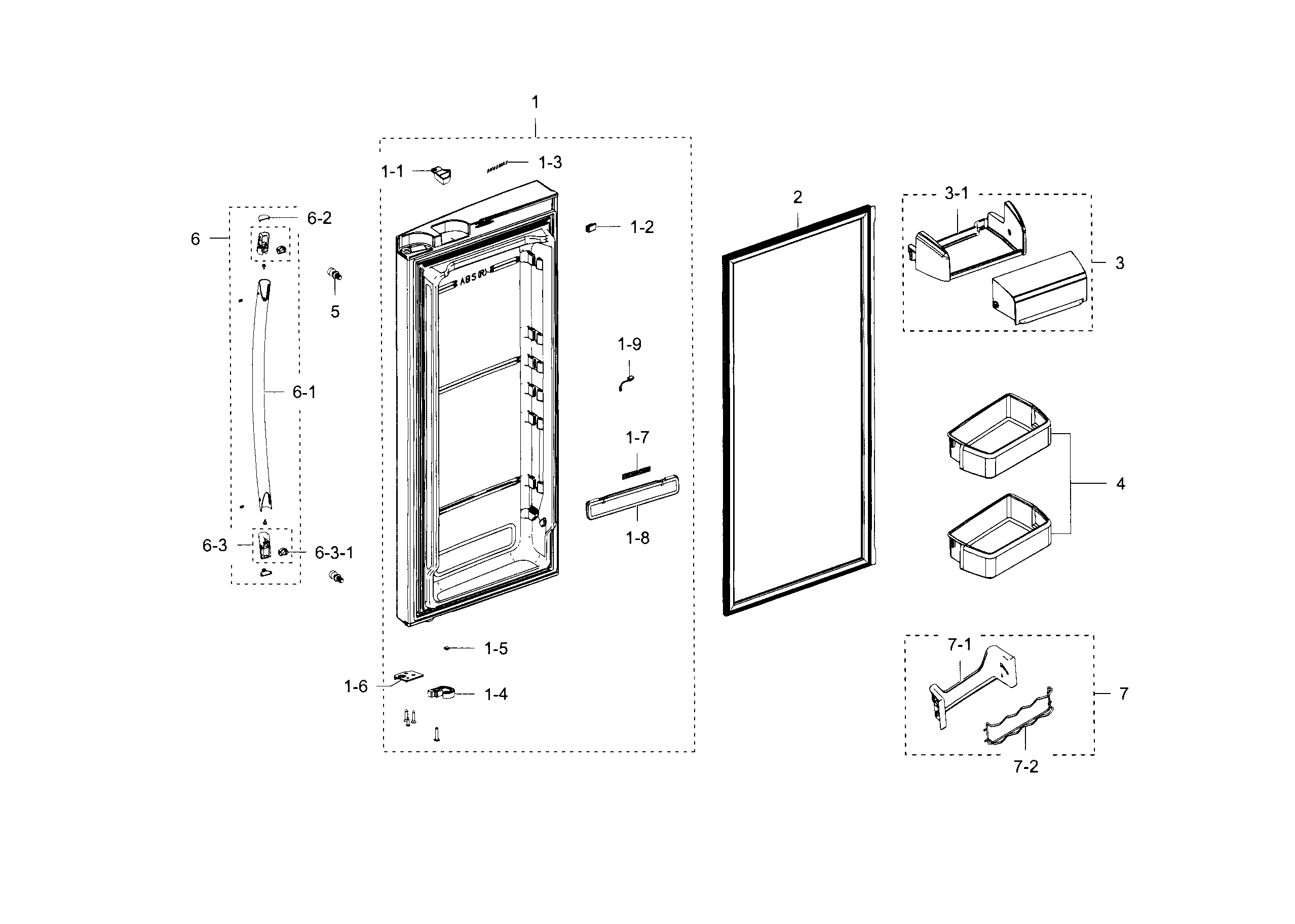

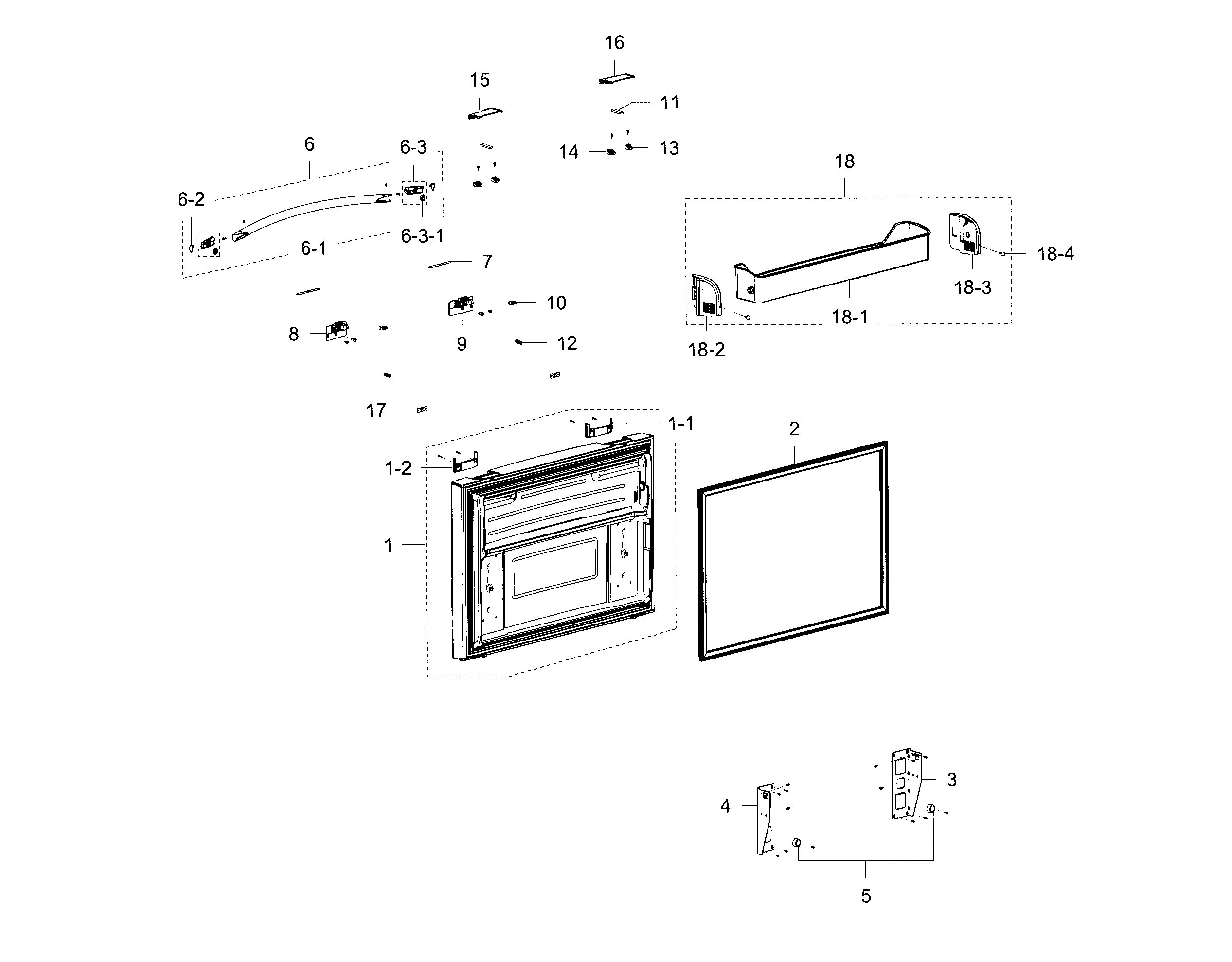

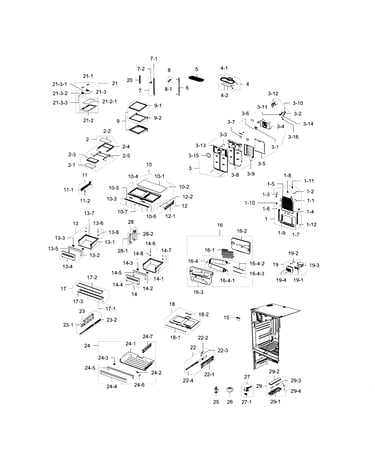

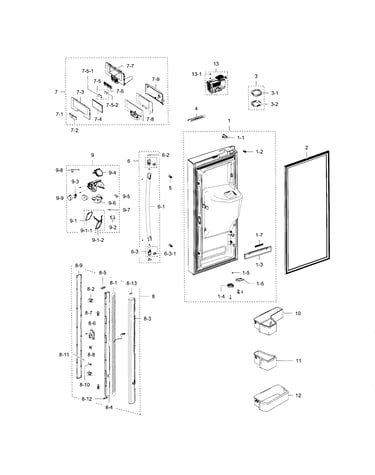

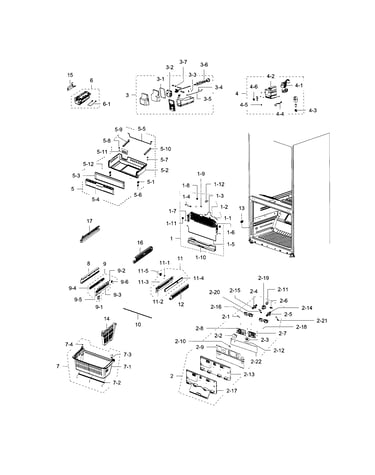

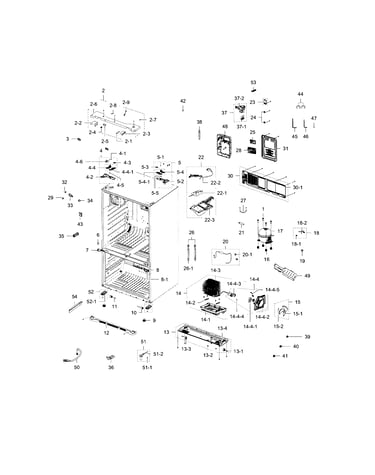

Samsung RFG237AARS/XAA-03 refrigerator Parts

The exact published dimensions for the Samsung RFG237AARS are listed in the product specifications section of the RFG237AARS owner's manual. Use those specs (not estimates) to confirm fit in your opening and to plan door-swing and delivery clearance.

What to look up in the manual (so you get the right numbers)

Refrigerator dimensions are often shown multiple ways; we recommend recording all of these:

• Width of cabinet (overall width)
• Height to top of hinge (overall height)
• Depth without handles
• Depth with handles
• Depth with doors open (clearance)

Quick measuring checklist (match your space to the spec sheet)

Measure your opening and compare it to the manual’s dimensions.

• Measure width at the narrowest point between cabinets
• Measure height from floor to the lowest overhead obstruction
• Measure depth to the front edge of counters (and note handle clearance)
• Allow side clearance for French doors to open fully
• Leave ventilation space above and behind as specified

Dimension types (common labels)

Dimension label	What it means	Why it matters
Width	Side-to-side at widest point	Fit between cabinets and trim
Height	Floor to top of hinge/cover	Fit under cabinets and soffits
Depth (no handles)	Back to door face	Counter alignment
Depth (with handles)	Back to handle front	Walkway clearance

Why it matters

Using the manual’s exact dimensions prevents delivery surprises, doors hitting walls, and restricted airflow that can increase compressor run time and reduce cooling performance.

Last updated: January 2026

The most common issues we see on the Samsung RFG237AARS refrigerator involve ice maker problems, warm temperatures from airflow or defrost faults, water leaking from a clogged drain, and door sealing or alignment issues. Many of these symptoms trace back to a few serviceable parts and basic maintenance.

Common problems and what they usually point to

• Not making ice or slow ice production: ice maker assembly, auger motor, freezer temperature, or water supply restrictions
• Fridge or freezer not cooling well: evaporator fan, condenser fan, temperature sensor, or frost buildup from a defrost failure
• Water pooling inside or under the unit: blocked drain tube or a drain grommet that is not sealing
• Frost buildup on the back wall or noisy fan: defrost heater issue or ice buildup contacting the fan
• Doors not closing or air leaks: gasket wear, hinge alignment, or flipper hinge not sealing the French doors

Parts that commonly resolve these symptoms

If your troubleshooting matches the symptom, these model-compatible parts are often involved:

Symptom	Common part to check	Example part on this model page
No ice / dispenser not moving ice	Ice maker or auger drive	Samsung refrigerator ice maker assembly DA97-07592A or refrigerator auger motor assembly DA97-05246F
Warm temps / poor airflow	Fans and sensors	Refrigerator condenser fan DA31-00146B or refrigerator temperature sensor DA32-00033C
Leaking water	Drain components	refrigerator drain tube DA97-04049D or refrigerator drain tube grommet DA63-00951B
Heavy frost / defrost issues	Defrost heater	Refrigerator defrost heater DA47-00424M

Quick checks we recommend before replacing parts

• Confirm the temperature settings and allow 24 hours after changes.
• Make sure vents are not blocked by food packages.
• Clean dust from the condenser area so the condenser fan can move air.
• Inspect door seals with the paper test (paper should drag when pulled).
• If you see ice buildup, do a controlled manual defrost and then monitor for return of frost.

Why it matters

Cooling, ice making, and leak issues often share the same root causes: restricted airflow, frost from a defrost problem, or a blocked drain path. Catching the pattern early helps prevent food spoilage and repeat icing or leaking.

For model-specific operating details and control settings, use the RFG237AARS owner's manual. For ice maker symptom patterns and fixes, follow why your Samsung fridge stopped making ice and how to fix it.

Last updated: March 2026

The Samsung RFG237AARS bottom-mount refrigerator has a total capacity of about 23 cu. ft., with roughly 15.9 cu. ft. in the fresh food (refrigerator) section and 6.7 cu. ft. in the freezer. For the exact breakdown used for your unit, check the RFG237AARS owner's manual.

Capacity breakdown (what the numbers mean)

Capacity is the usable interior volume; it helps you compare storage space between models and plan shelf and bin organization.

• Total capacity: about 23 cu. ft.
• Refrigerator (fresh food): about 15.9 cu. ft.
• Freezer: about 6.7 cu. ft.
• Capacity can feel smaller if airflow is blocked by overpacking or if bins and shelves are not seated correctly.

Quick reference table

Section	Approx. capacity	Typical use
Fresh food compartment	15.9 cu. ft.	Everyday refrigerated items, produce, beverages
Freezer drawer	6.7 cu. ft.	Frozen foods, ice storage
Total	23 cu. ft.	Overall storage comparison

Why it matters

Capacity affects how the refrigerator performs day to day. When the compartments are packed beyond what airflow can handle, temperatures can swing and the evaporator fan may run longer, which can impact food freshness and ice production.

Tips to get the most usable space

• Leave a little space in front of vents so cold air can circulate.
• Keep taller items toward the back only if they do not block airflow.
• Make sure shelves and door bins are fully snapped into position.
• Set typical targets: 37°F for fresh food and 0°F for freezer.
