What is the upper part of a fridge called?
In a top-mount refrigerator like the Frigidaire FRT21IL4FW4, the upper compartment is the freezer. It’s the section designed to keep foods frozen and, on many models, it also houses the ice maker and freezer temperature control.
The freezer is built to maintain sub-freezing temperatures for long-term food storage and to support ice production when equipped.
Common freezer components and features include:

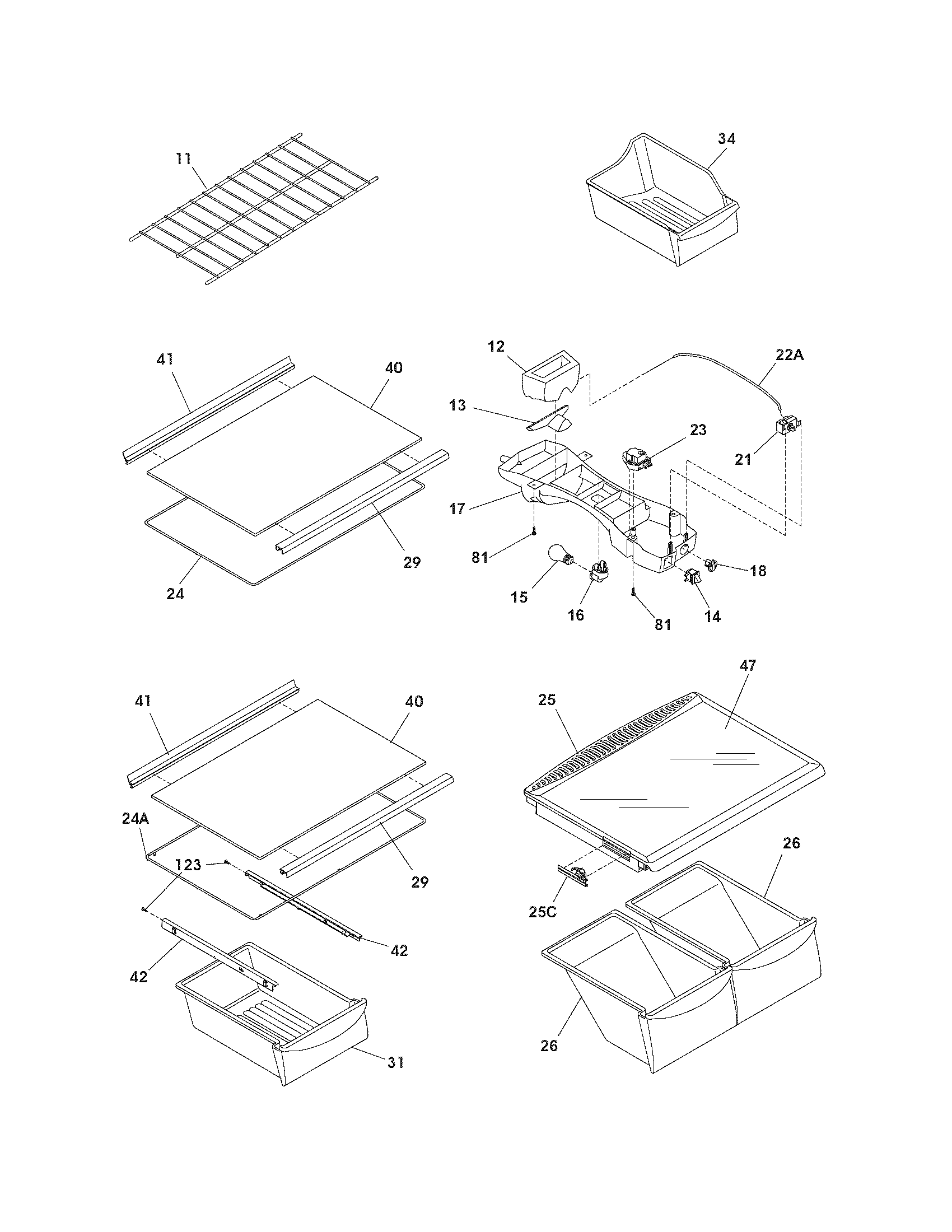

- Freezer shelves or bins for organizing frozen foods

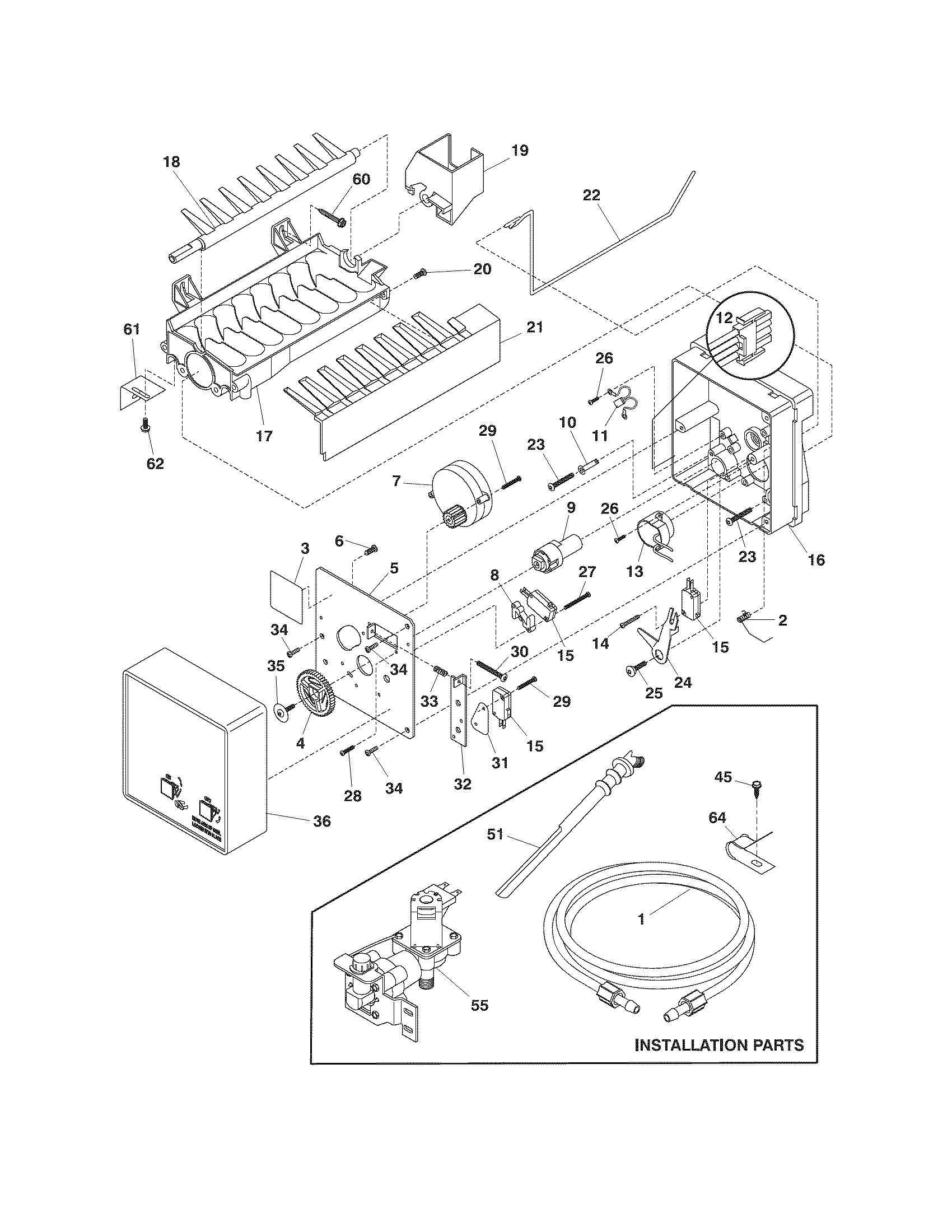

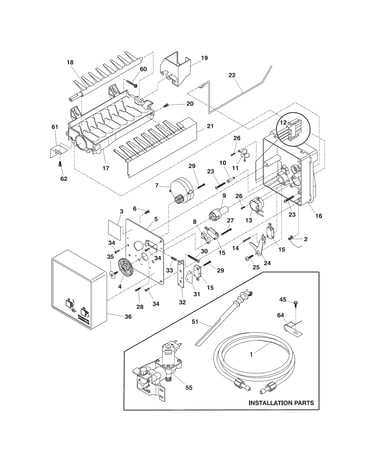

- An ice maker (if installed) and a shutoff arm
- Air vents that circulate cold air to the fresh food section

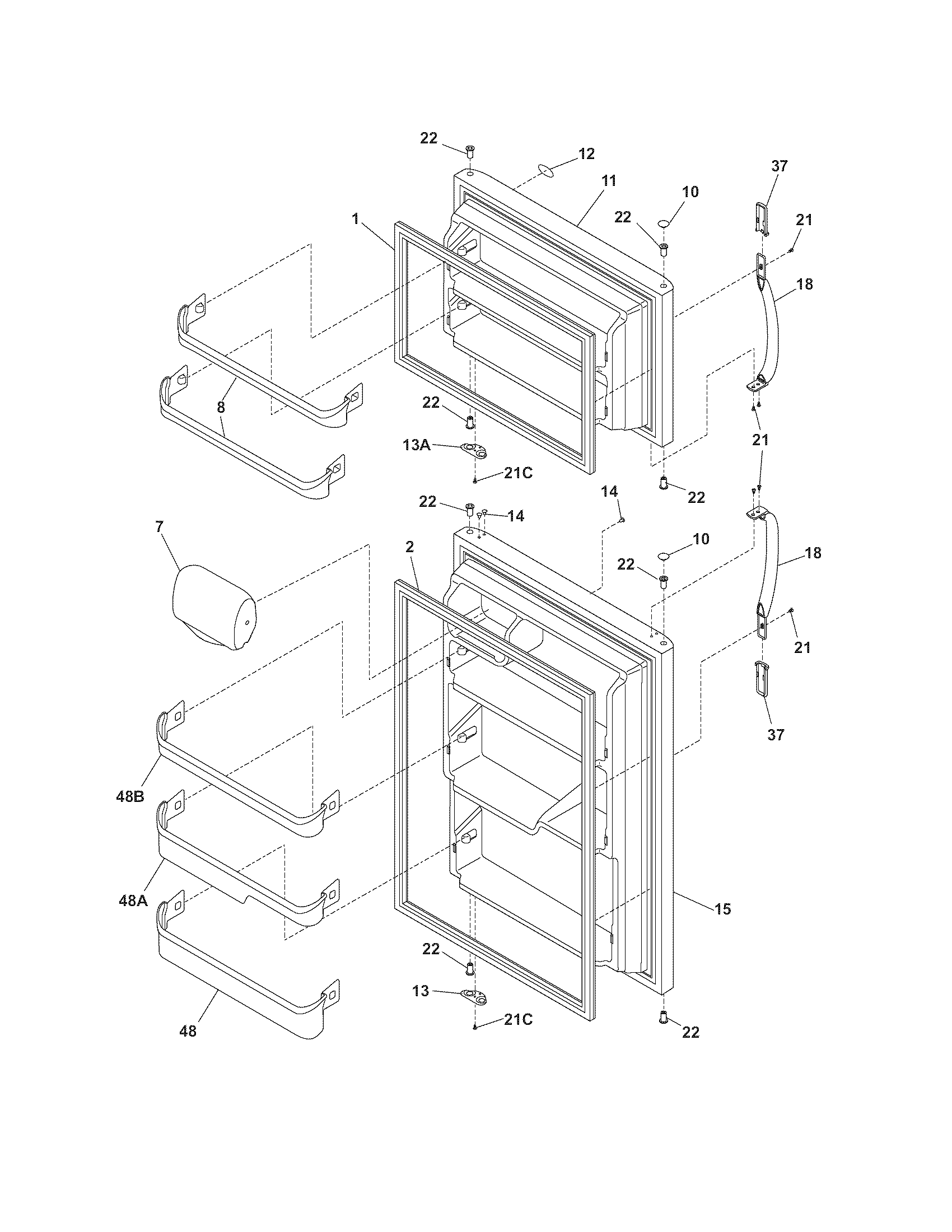

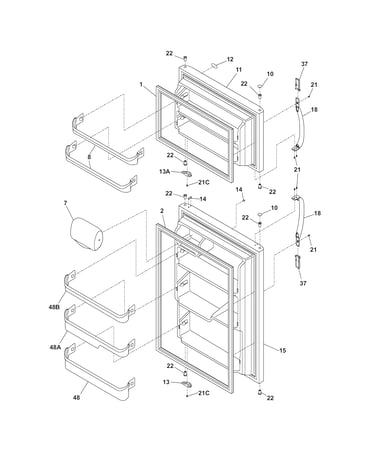

- A freezer door gasket that seals in cold air
- Temperature control settings for freezer and fresh food sections
| Term you might hear | What it means | Where it is on FRT21IL4FW4 |
|---|---|---|
| Freezer compartment | Frozen-food storage area | Upper section |
| Fresh food compartment | Refrigerator section for chilled foods | Lower section |
| Top-mount refrigerator | Freezer on top, fridge below | This design |
Knowing the correct name helps when you’re troubleshooting cooling problems, ordering parts, or following setup steps. For example, the installation checklist calls out that the freezer door should be level across the top and that the door seals completely to the cabinet on all sides, both of which affect temperature and frost buildup.
We recommend these basics for the FRT21IL4FW4:
- Level the cabinet so it’s solid on all corners and slightly tilted back (about 1/4 inch) for good door closing
- Confirm both doors seal fully all the way around
- Set fresh food and freezer controls, then wait 24 hours before making more adjustments
- If you have an ice maker, keep it OFF until the water supply is connected and leak-free
For model-specific leveling, clearances, and door checks, use the FRT21IL4FW4 installation guide.
Last updated: February 2026
What is the most common problem with a Frigidaire refrigerator?
The most common issue we see on Frigidaire top-mount refrigerators like model FRT21IL4FW4 is a cooling complaint: the freezer stays cold but the fresh food section warms up. This is usually caused by restricted airflow (frost buildup or blocked vents), a fan problem, or dirty condenser coils.
- Make sure the refrigerator is level and stable; leveling affects door sealing and airflow (see the FRT21IL4FW4 installation guide).
- Confirm the door seals completely to the cabinet on all sides.
- Set controls, then wait 24 hours before making additional temperature adjustments.
- Do not block air vents with food packages in either compartment.

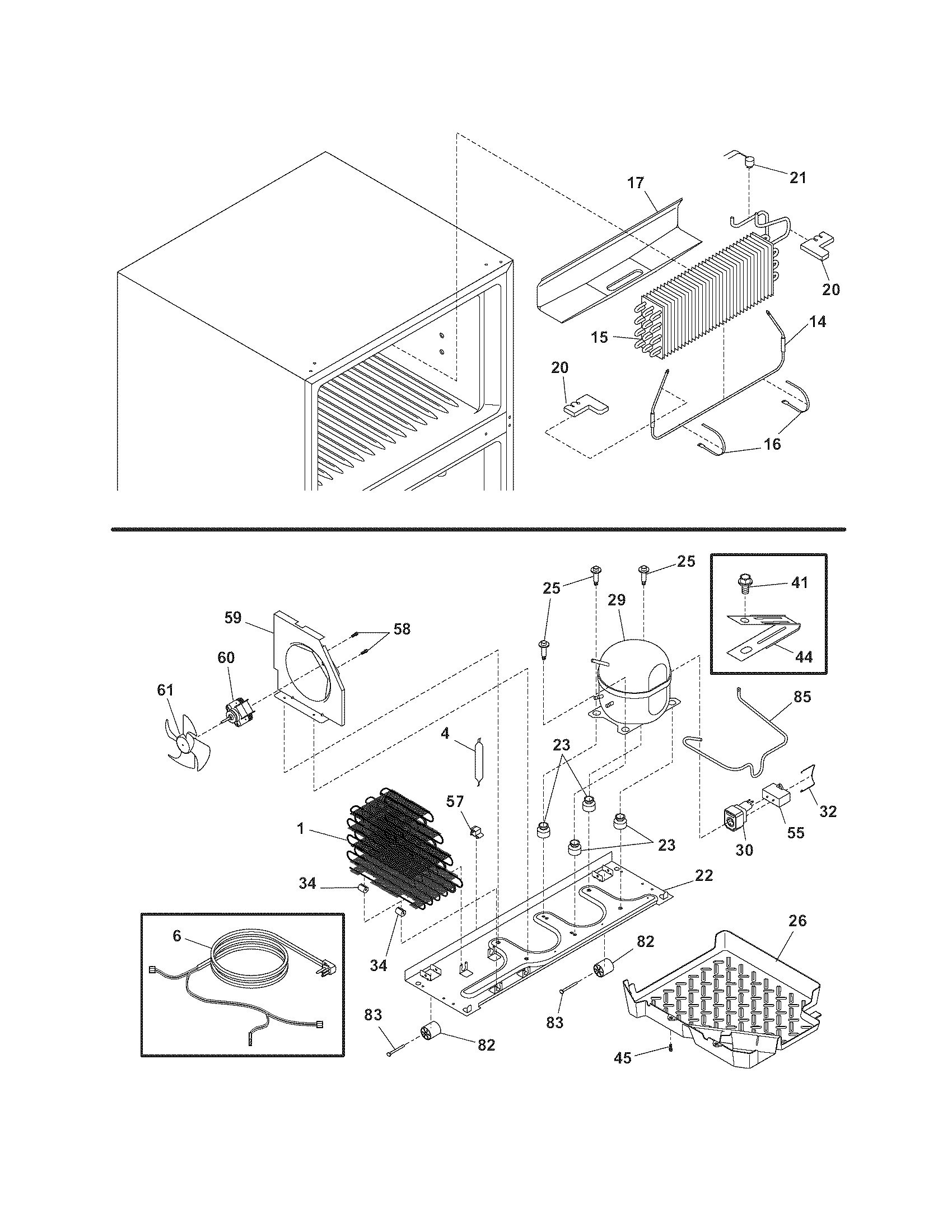

- Clean condenser coils and the area around the condenser fan (unplug first).
- Look for heavy frost on the freezer back wall (a defrost problem sign).
| Symptom | Most likely cause | What to look for |
|---|---|---|
| Freezer OK, fridge warm | Airflow problem | Weak/no air coming from fridge vents |
| Frost/ice on freezer back wall | Defrost system issue | Thick frost, reduced airflow |
| Warm temps and unusual fan noise | Fan/blade issue | Rattling, scraping, or no fan sound |
| Temps fluctuate | Dirty coils or door not sealing | Long run times, warm spots, moisture |
If troubleshooting points to a specific failure, these model-compatible parts are commonly involved:
- Refrigerator evaporator fan blade 5308000010 (air movement through the evaporator)
- Refrigerator defrost bi-metal thermostat 5303918202 (defrost temperature sensing)
- Motor 5303918774 (condenser fan motor assembly for heat removal)
When airflow is restricted or heat cannot be rejected at the condenser, the refrigerator section is usually the first to warm up. Catching it early helps prevent food spoilage and reduces compressor run time.
For display or diagnostic codes on Frigidaire units, use our Frigidaire refrigerator error codes reference.
Last updated: February 2026
What is the top mount refrigerator?
A top-mount refrigerator is a classic refrigerator layout where the freezer compartment is on top and the fresh food (refrigerator) compartment is below. Your Frigidaire FRT21IL4FW4 uses this design to keep everyday refrigerated items at easy reach while still providing a full-width freezer above.
In a top-mount refrigerator like the Frigidaire FRT21IL4FW4:
- The freezer sits above the refrigerator section.
- Cold air is produced in the freezer and circulated to the fresh food section.
- Temperature controls typically adjust overall cooling; allow time for changes to stabilize.
- Door sealing and leveling matter because warm air leaks cause temperature swings and frost.
The installation guidance for this model emphasizes basics that directly affect cooling performance:
- Level the cabinet side-to-side and tilt it about 1/4 inch (6 mm) front-to-back.
- Confirm the door seals close fully on all sides.
- Leave clearance for airflow (typically 3/8 inch at sides and top, and 1 inch at the back).
- If an ice maker is installed, connect the water supply and recheck for leaks after 24 hours.
- After changing temperature controls, wait 24 hours before making additional adjustments.
For the exact leveling points and clearance notes, follow the FRT21IL4FW4 installation guide.
| Feature | Top-mount refrigerator | Bottom-mount refrigerator |
|---|---|---|
| Freezer location | Top | Bottom |
| Most-used section height | Fresh food is mid-to-low | Fresh food is eye-level |
| Typical maintenance focus | Door seals, defrost airflow | Drawer slides, door alignment |
Knowing you have a top-mount design helps with troubleshooting: many “warm fridge” complaints trace back to airflow from the freezer, door gasket sealing, or the unit being out of level. Getting those basics right improves temperature stability and reduces frost buildup.
Last updated: February 2026
Why is my Frigidaire top mount freezer not freezing?
If your Frigidaire FRT21IL4FW4 top-mount freezer is not freezing, the most common causes are incorrect control settings, poor airflow from dirty condenser coils, a door that is not sealing, or a failed evaporator fan or defrost component. Set controls correctly, restore airflow, and check for frost buildup.
- Confirm the freezer control is set to a colder setting; after any change, wait 24 hours before adjusting again (this is normal for this design).
- Make sure the freezer door seals completely to the cabinet on all sides.
- Verify the refrigerator is level and tilted about 1/4 inch front to back; poor leveling can affect door sealing.
- Check that vents inside the freezer are not blocked by food packages.
- Clean condenser coils (dust and pet hair can cause weak cooling).
| What you notice | Most likely cause | What to check next |
|---|---|---|
| Freezer warm and fresh food also warm | Sealed system or airflow problem | Coils, fans, compressor run time |
| Freezer has heavy frost on back wall | Defrost system problem | Defrost thermostat, heater, timer/control |
| Freezer cold near bottom but warm at top | Evaporator fan or blocked vents | Fan noise, airflow at vents |
| Door pops open or gaps at gasket | Leveling or gasket issue | Leveling, gasket condition |
If you find heavy frost buildup (defrost failure) or no airflow (fan issue), these model-matched parts are common solutions:
- Refrigerator defrost bi-metal thermostat 5303918202 (opens/closes during defrost to protect the system)
- Refrigerator evaporator fan blade 5308000010 (moves cold air through the freezer and into the fresh food section)
A freezer that is not freezing is usually an airflow or defrost issue first. Fixing airflow (clean coils, clear vents, good door seal) prevents food loss and reduces strain on the compressor, which is one of the most expensive repairs.
Use the FRT21IL4FW4 installation guide to verify leveling, door sealing, and the “wait 24 hours after changing controls” guidance.
Last updated: February 2026
