Frigidaire
Top-Mount Refrigerator

Model # FRT16NRGD5 Official Frigidaire refrigerator - p5995322285

Here are the diagrams and repair parts for Official Frigidaire FRT16NRGD5 refrigerator - p5995322285, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

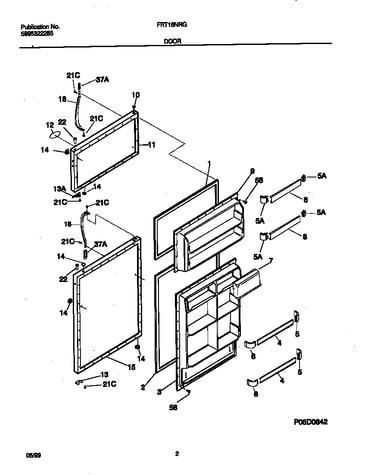

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Drier-r12 218541000
#4

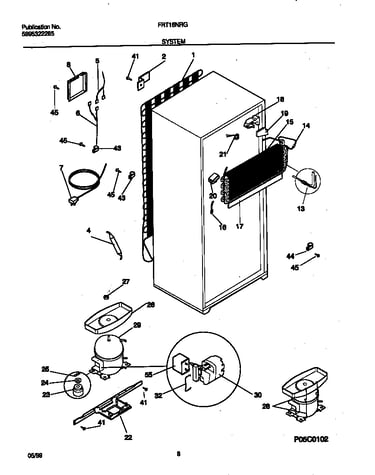

System diagram

Drier-r12

Part #218541000

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218541000. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
22% OFF Was : $16.34
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

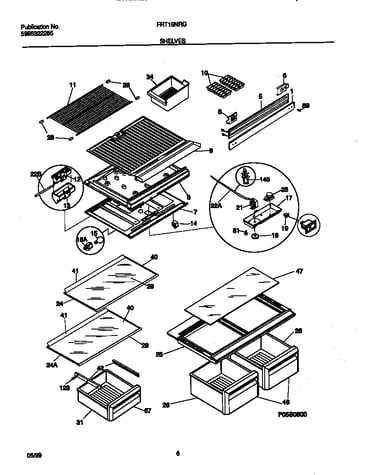

Shelves diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.63 |
12% OFF Phone Price : $16.63
In Stock
Refrigerator Compressor 218846902
#29

System diagram

Refrigerator compressor

Part #218846902

Replaced by #5304511983

?
Manufacturer substitution
This part replaces 218846902. Substitute parts can look different from the original.
BEST SELLER
$493.71 |
$12.00 OFF Phone Price : $505.71
In Stock
Refrigerator Thermostat 5316269001
#21

System diagram

Refrigerator thermostat

Part #5316269001

Replaced by #5303917954

?
Manufacturer substitution
This part replaces 5316269001. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
20% OFF Phone Price : $30.36
In Stock
Refrigerator Evaporator Fan Motor 218878901
#13

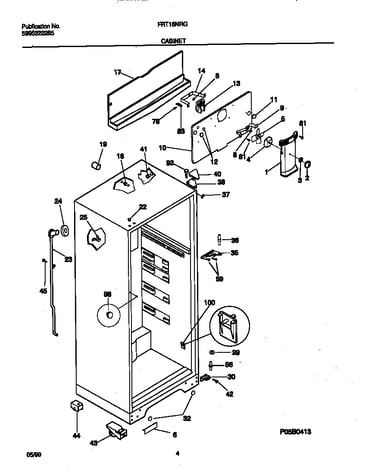

Cabinet diagram

Refrigerator evaporator fan motor

Part #218878901

Replaced by #5300158289

?
Manufacturer substitution
This part replaces 218878901. Substitute parts can look different from the original.
$88.69 |
6% OFF Phone Price : $94.69
In Stock
Refrigerator Start Relay 218721103
#30

System diagram

Refrigerator start relay

Part #218721103

Replaced by #5304491944

?
Manufacturer substitution
This part replaces 218721103. Substitute parts can look different from the original.
$100.68 |
11% OFF Phone Price : $112.68
In Stock
Refrigerator Light Socket 218906801
#16

Shelves diagram

Refrigerator light socket

Part #218906801

Replaced by #218906802

?
Manufacturer substitution
This part replaces 218906801. Substitute parts can look different from the original.
This item is not returnable
$18.49 |
10% OFF Phone Price : $20.49
In Stock
Refrigerator Thermostat Sensor Barrier 5303916855
#22

Shelves diagram

Refrigerator thermostat sensor barrier

Part #5303916855

$47.89 |
11% OFF Phone Price : $53.89
In Stock
Touch Paint 5303305324

#NI

All parts diagram

Touch paint

Part #5303305324

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Refrigerator Evaporator Fan Mounting Bracket Screw 5308016566
#81

Cabinet diagram

Refrigerator evaporator fan mounting bracket screw

Part #5308016566

Replaced by #5304455650

?
Manufacturer substitution
This part replaces 5308016566. Substitute parts can look different from the original.
This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
