Range Hood

Model # JV396SCC Official GE blower

Here are the diagrams and repair parts for Official GE JV396SCC blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Filter WB02X8379
#43

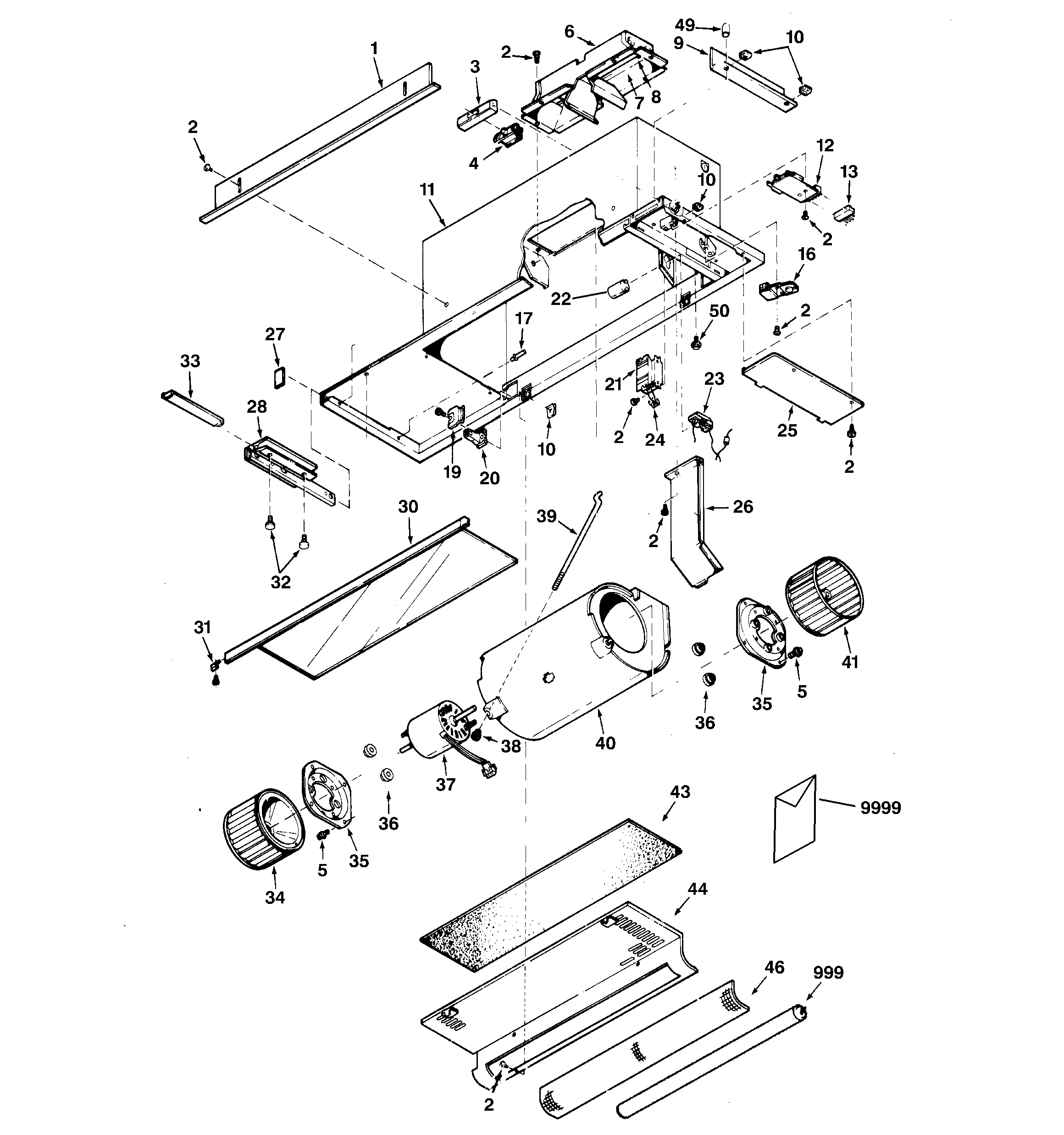

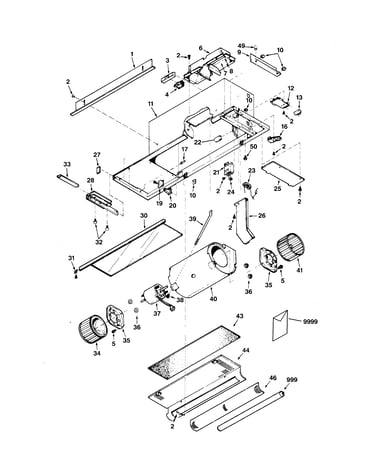

Range hood diagram

Filter

Part #WB02X8379

Replaced by #WB2X8379

?
Manufacturer substitution
This part replaces WB02X8379. Substitute parts can look different from the original.
$35.25 |
12% OFF Phone Price : $40.25
In Stock
Range Hood Blower Wheel WB02X8378
#41

Range hood diagram

Range hood blower wheel

Part #WB02X8378

Replaced by #WB2X8378

?
Manufacturer substitution
This part replaces WB02X8378. Substitute parts can look different from the original.
$35.55
In Stock
Rubber Mtrmt WB02X8376
#36

Range hood diagram

Rubber mtrmt

Part #WB02X8376

Replaced by #WB2X8376

?
Manufacturer substitution
This part replaces WB02X8376. Substitute parts can look different from the original.
$9.07
In Stock
Owner's Manual 49-8905
#9999

Range hood diagram

Owner's manual

Part #49-8905

Replaced by #49-8905-1

?
Manufacturer substitution
This part replaces 49-8905. Substitute parts can look different from the original.
$17.99
In Stock
Drawer Stop WB02X8369
#27

Range hood diagram

Drawer stop

Part #WB02X8369

The manufacturer no longer makes this part, and there's no substitute part

Screw,wsbdrh WB01X5883
#50

Range hood diagram

Screw,wsbdrh

Part #WB01X5883

The manufacturer no longer makes this part, and there's no substitute part

Thumb Screw WB01X10097
#32

Range hood diagram

Thumb screw

Part #WB01X10097

The manufacturer no longer makes this part, and there's no substitute part

Blower Light Switch And Thermostat Assembly WB24X5324
#16

Range hood diagram

Blower light switch and thermostat assembly

Part #WB24X5324

The manufacturer no longer makes this part, and there's no substitute part

Cap WB02X8384
#49

Range hood diagram

Cap

Part #WB02X8384

The manufacturer no longer makes this part, and there's no substitute part

Bushing Damper WB02X3444
#8

Range hood diagram

Bushing damper

Part #WB02X3444

The manufacturer no longer makes this part, and there's no substitute part
