Side-By-Side Refrigerator

Model # GSH22JSCCSS Official GE refrigerator - c series

Here are the diagrams and repair parts for Official GE GSH22JSCCSS refrigerator - c series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

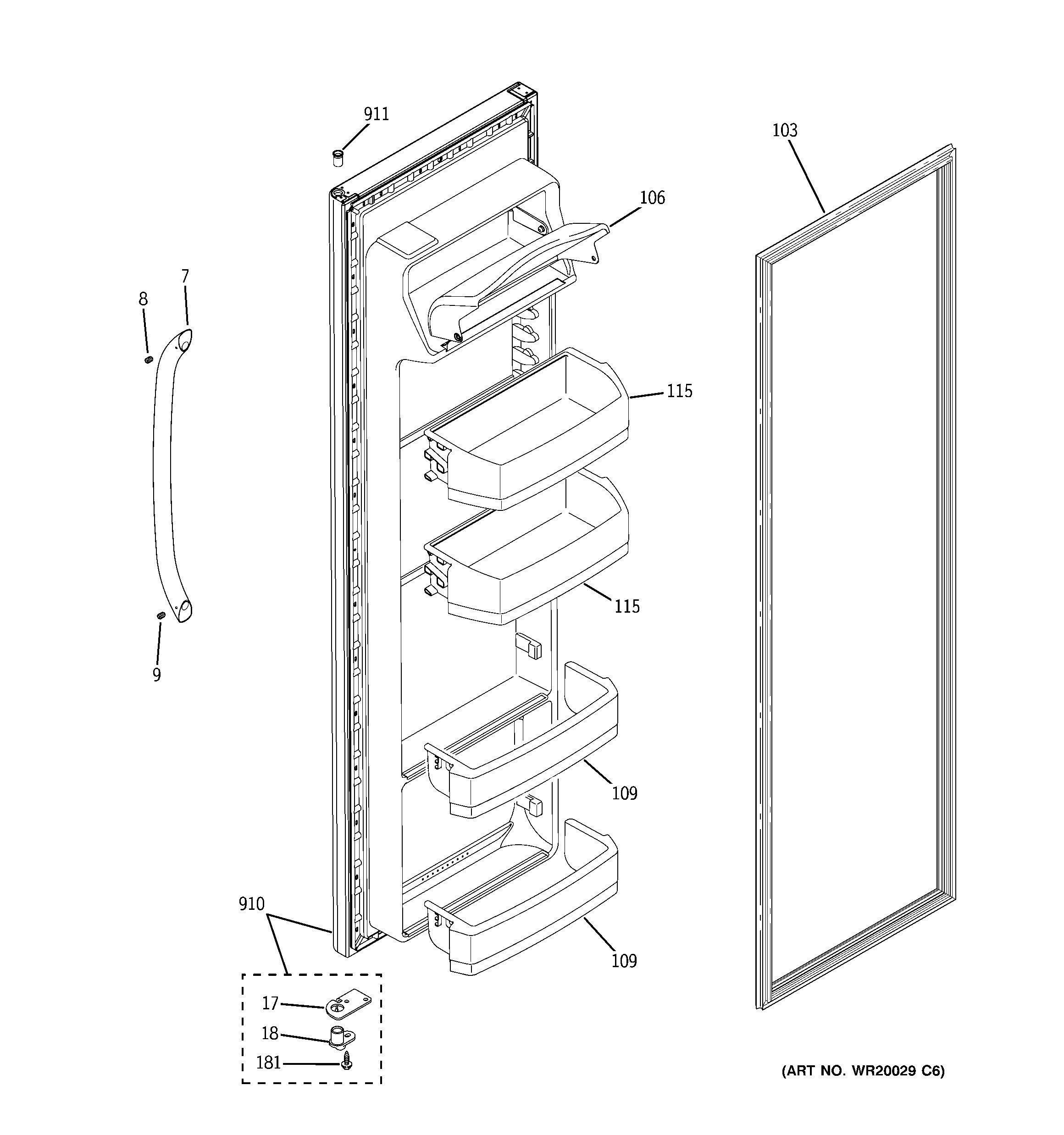

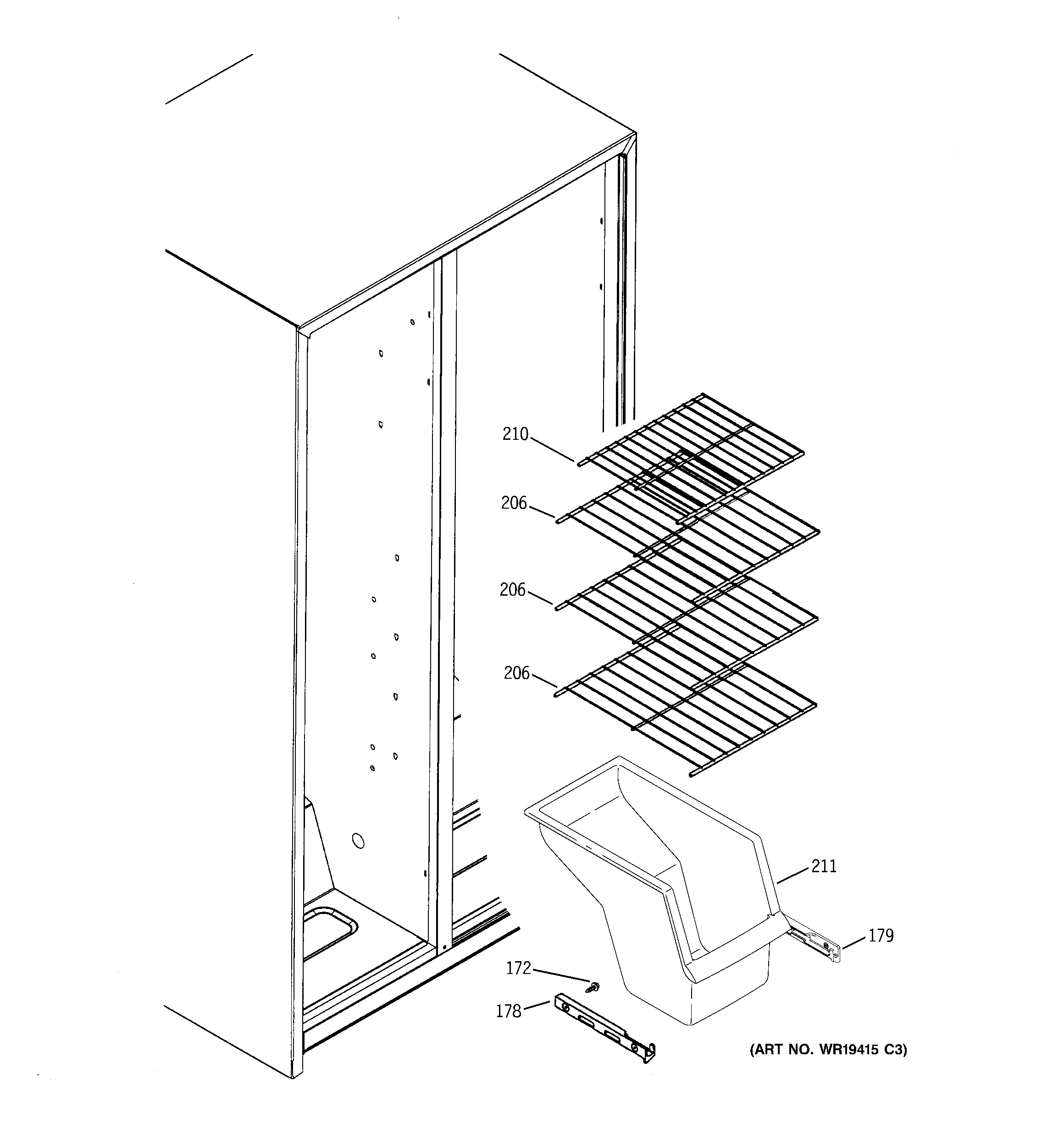

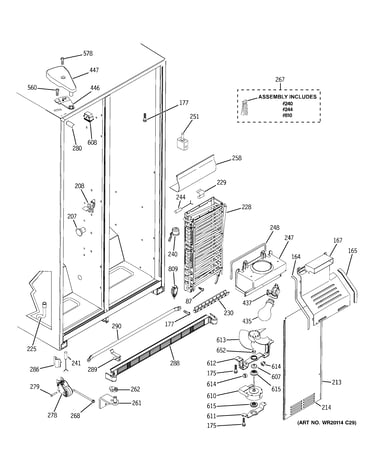

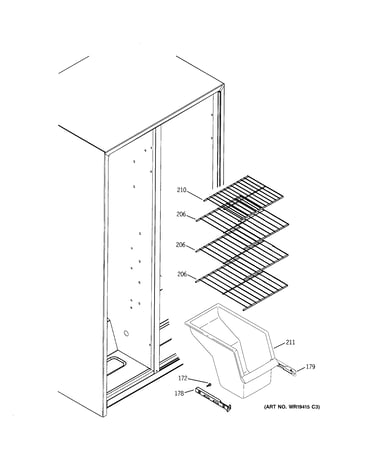

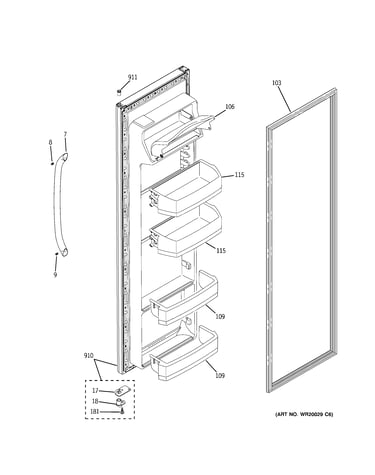

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 244 parts  |

Ge Refrigerator Water Filter (replaces 9970, Mwfpa) MWF
#790

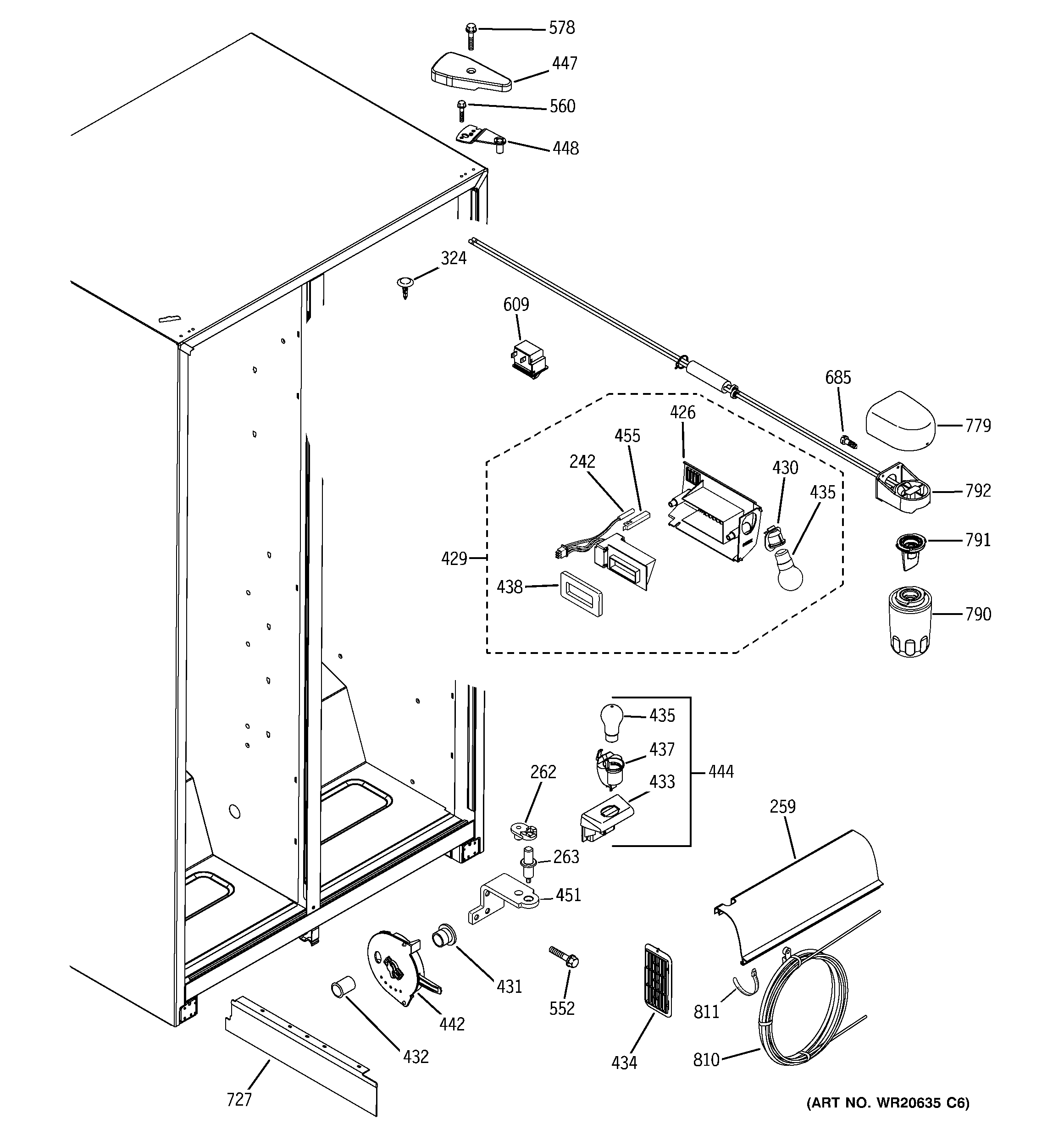

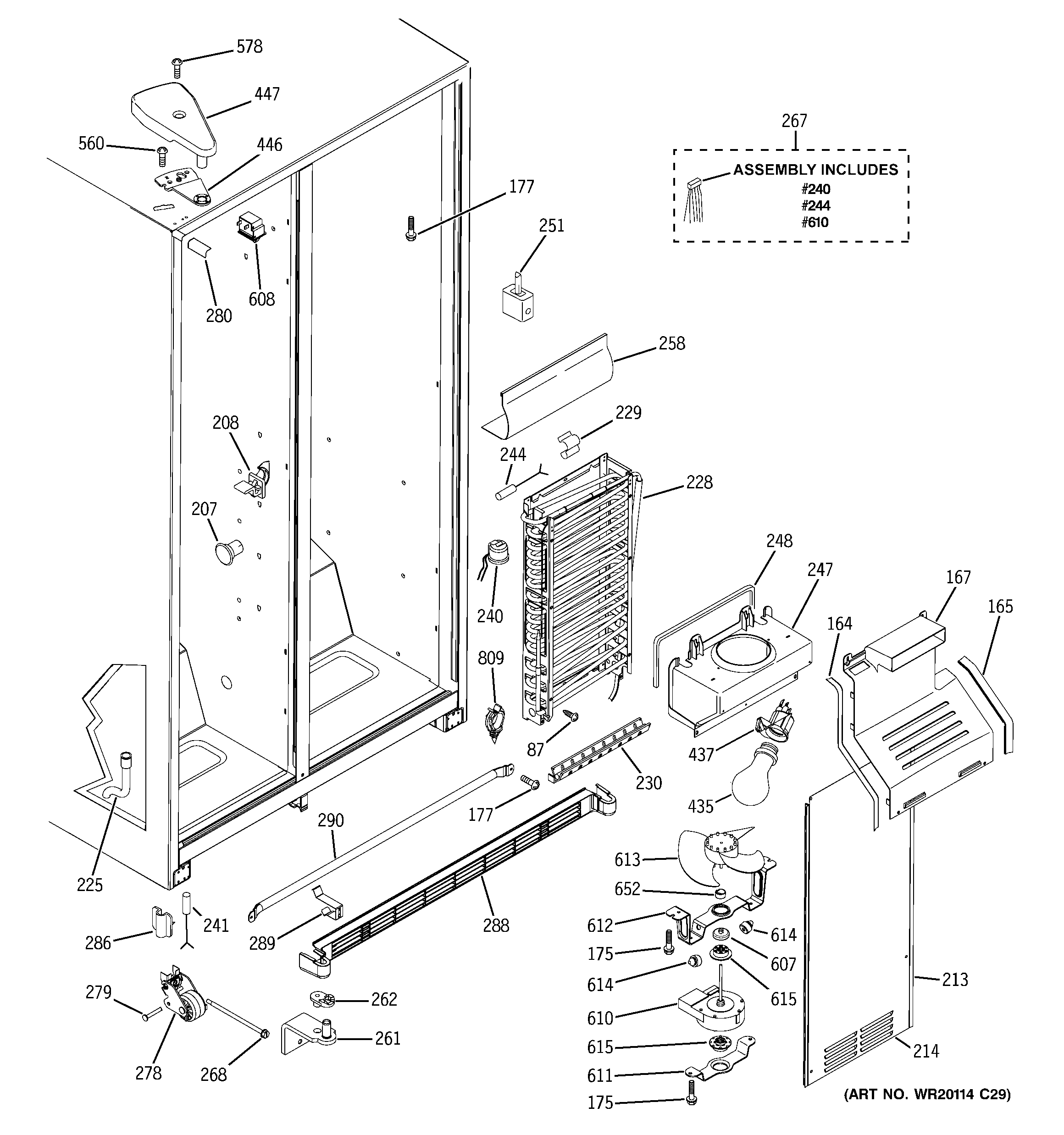

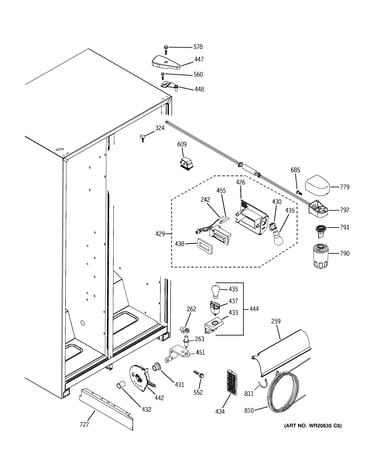

Fresh food section diagram

Ge refrigerator water filter (replaces 9970, mwfpa)

Part #MWF

BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Refrigerator Lamp WR02X12328
Refrigerator lamp

Part #WR02X12328

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12328. Substitute parts can look different from the original.
BEST SELLER
$14.94
12% OFF Phone Price : $16.94
In Stock
Refrigerator Cover WR29X10080
#821

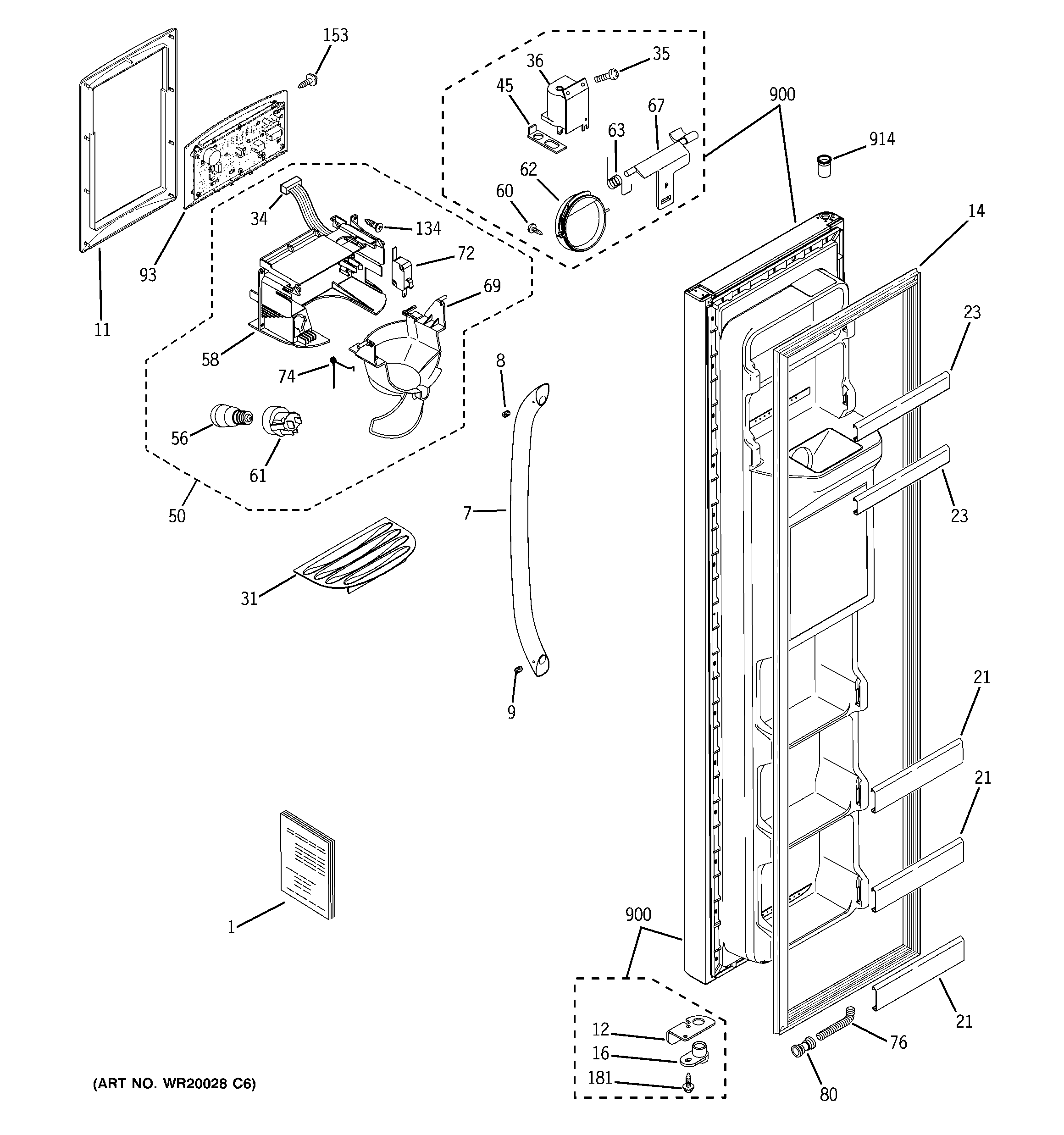

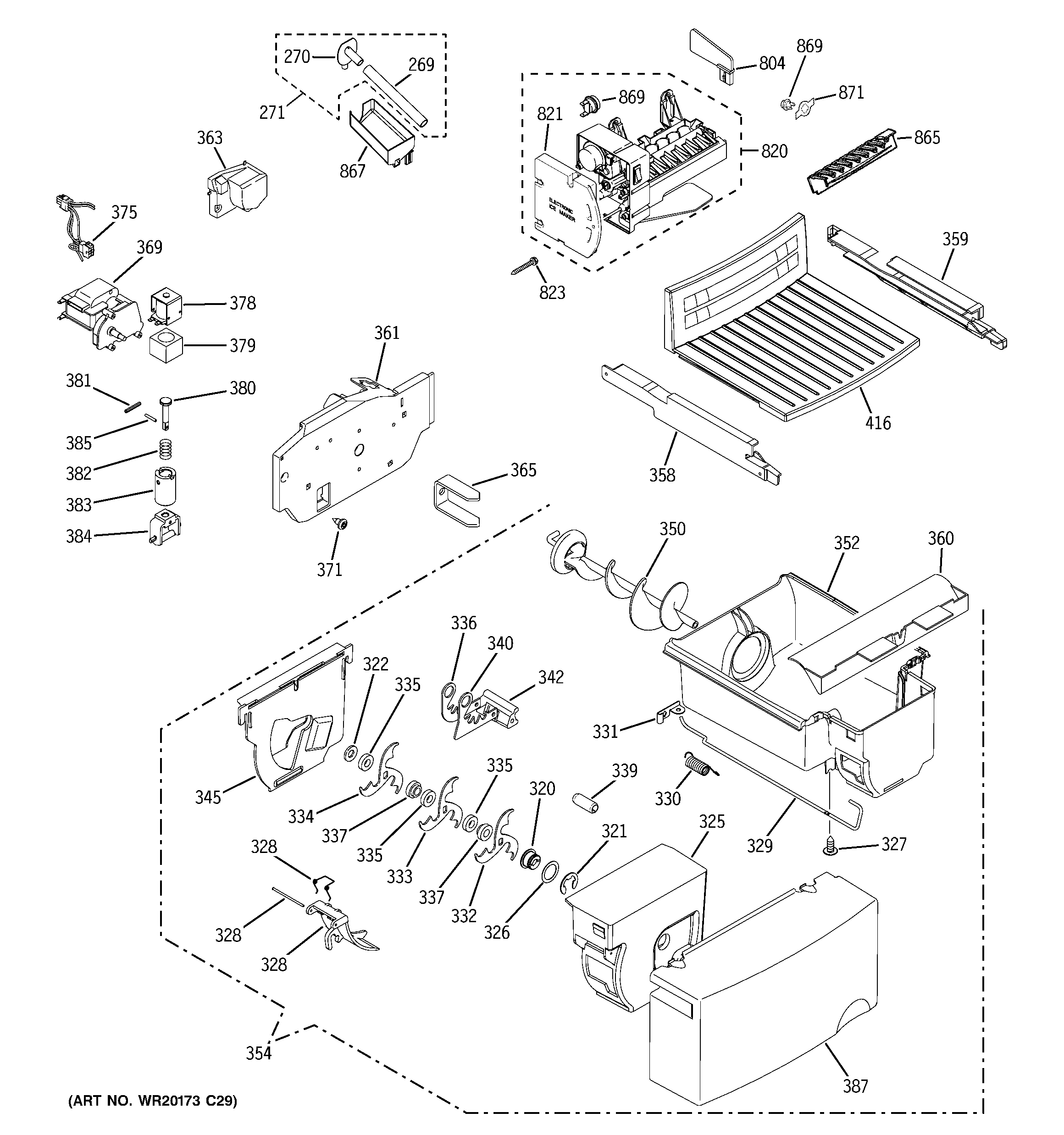

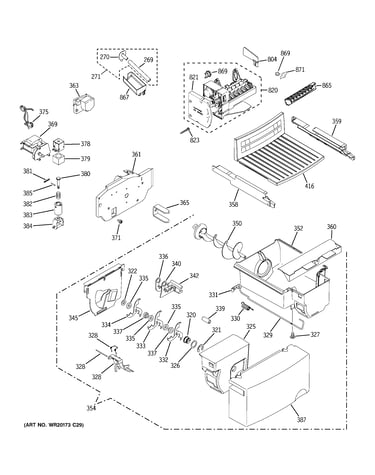

Ice maker & dispenser diagram

Refrigerator cover

Part #WR29X10080

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR29X10080. Substitute parts can look different from the original.
BEST SELLER
$187.55
5% OFF Phone Price : $197.55
In Stock
Thermostat WR29X0157
#869

Ice maker & dispenser diagram

Thermostat

Part #WR29X0157

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR29X0157. Substitute parts can look different from the original.
BEST SELLER
$187.55
5% OFF Phone Price : $197.55
In Stock
Clamp T-stat WR29X0158
#871

Ice maker & dispenser diagram

Clamp t-stat

Part #WR29X0158

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR29X0158. Substitute parts can look different from the original.
BEST SELLER
$187.55
5% OFF Phone Price : $197.55
In Stock
Refrigerator Slide Assembly, Right WR72X0240
#478

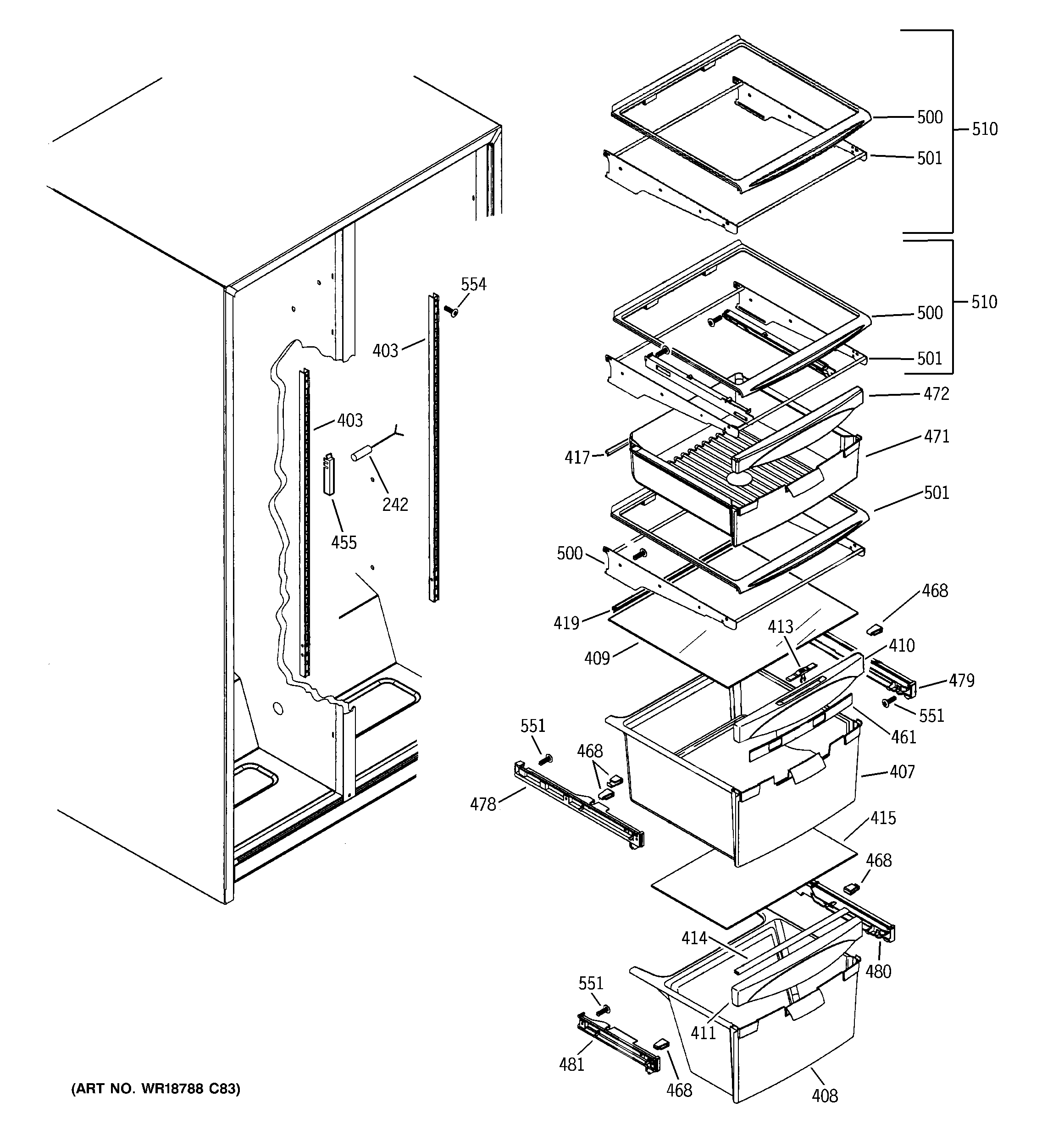

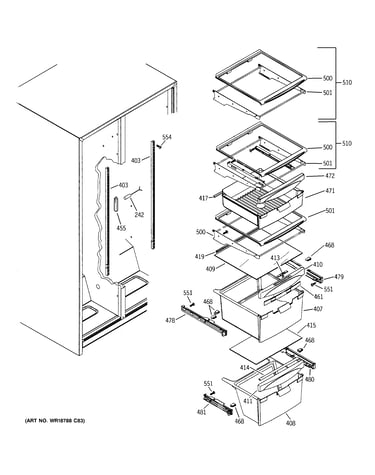

Fresh food shelves diagram

Refrigerator slide assembly, right

Part #WR72X0240

Replaced by #WR72X240

?
Manufacturer substitution
This part replaces WR72X0240. Substitute parts can look different from the original.
BEST SELLER
$37.72
12% OFF Phone Price : $42.72
In Stock
Refrigerator Dispenser Auger WR17X11705
#350

Ice maker & dispenser diagram

Refrigerator dispenser auger

Part #WR17X11705

BEST SELLER
$54.05
8% OFF Phone Price : $59.05
In Stock
Refrigerator Deli Drawer (replaces Wr32x10297) WR32X10836
#471

Fresh food shelves diagram

Refrigerator deli drawer (replaces wr32x10297)

Part #WR32X10836

BEST SELLER
$61.52
8% OFF Phone Price : $66.52
In Stock
Refrigerator Water Valve WR57X10040
#800

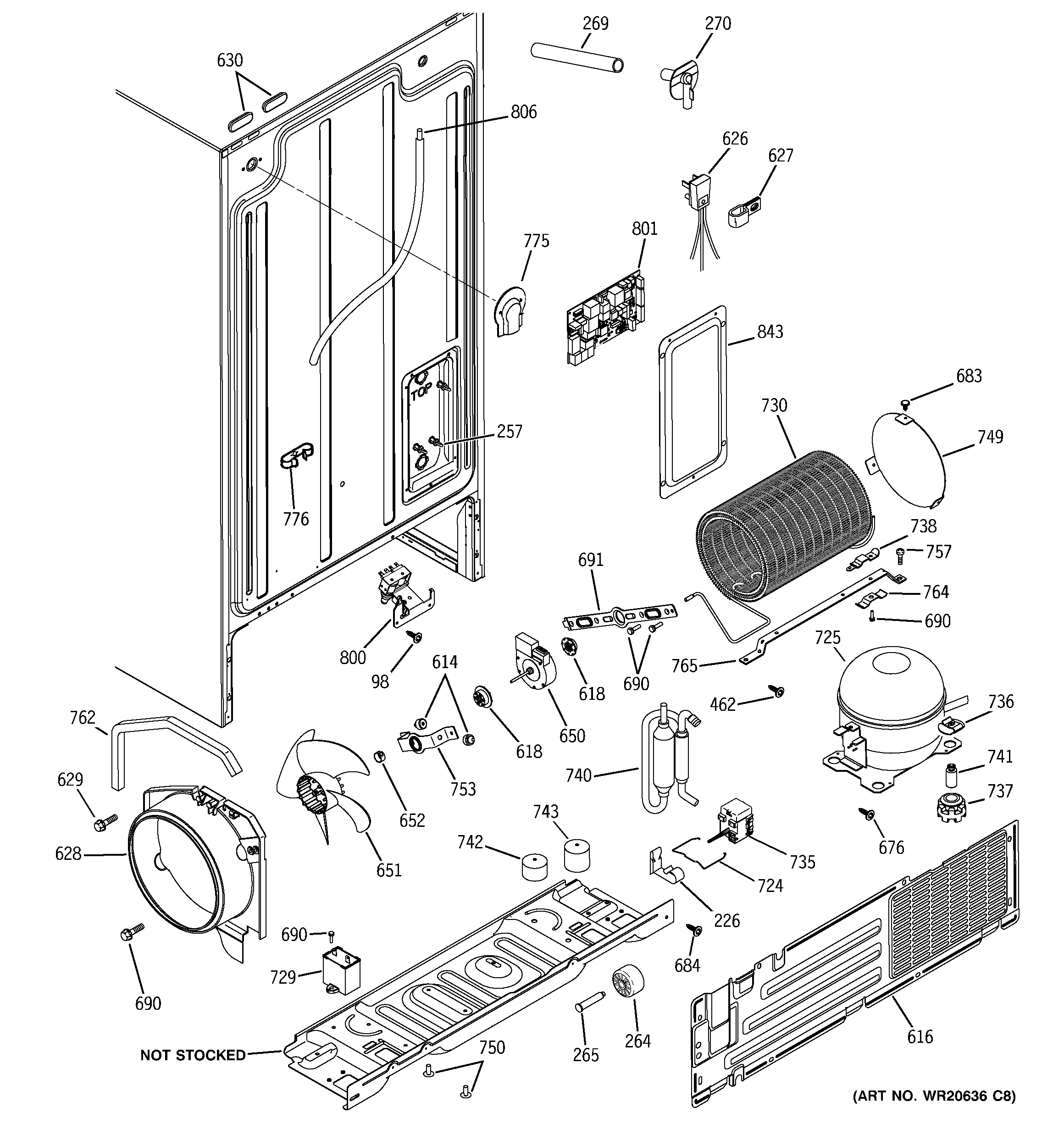

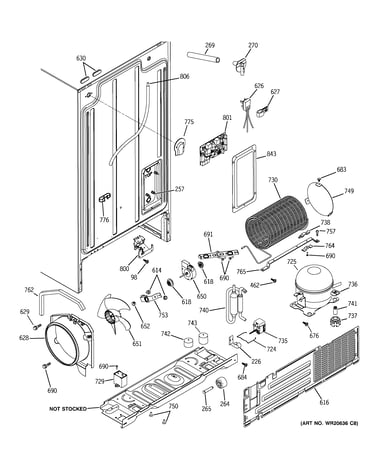

Sealed system & mother board diagram

Refrigerator water valve

Part #WR57X10040

Replaced by #WR57X33326

?
Manufacturer substitution
This part replaces WR57X10040. Substitute parts can look different from the original.
BEST SELLER
$67.20
7% OFF Phone Price : $72.20
In Stock
Refrigerator Dispenser Lever Spring WR02X10585
#63

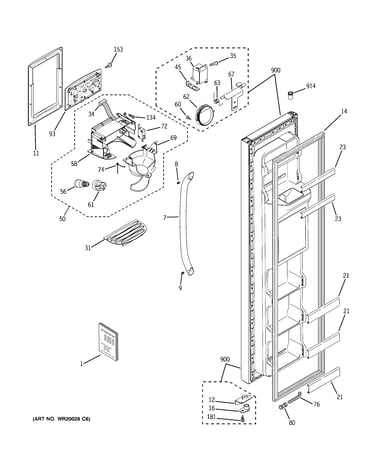

Freezer door diagram

Refrigerator dispenser lever spring

Part #WR02X10585

BEST SELLER
$7.91
11% OFF Phone Price : $8.91
In Stock
