Whirlpool GU2200XTSS3 undercounter dishwasher Parts

For a Whirlpool undercounter dishwasher like model GU2200XTSS3, the most common problems we see are poor cleaning and draining issues caused by clogs (filters, sump area, drain hose) or wash-heating problems that make cycles run long and leave residue. Use the owner's manual troubleshooting checks to narrow it down fast.

Most common symptoms and what usually causes them

• Not cleaning well: blocked spray paths, heavy soil buildup, or water not heating properly
• Not draining: food debris in the sump area, a kinked/blocked drain line, or a failing pump
• Runs too long: dishwasher is heating water to reach target temperature (normal in some cases)
• Won’t start or stops: door not fully latched; controls waiting for the door to be opened and closed after the last cycle
• Clean light flashing: heater circuit problem (often tied to heating components)

Quick checks you can do first (no parts guessing)

1. Confirm the door closes tightly and latches; if START/RESUME flashes, open and close the door, then press START/RESUME.
2. Verify power at the home breaker or fuse.
3. Make sure the water shutoff valve is fully open.
4. If water remains, confirm the cycle is complete; then inspect for drain restrictions.
5. If the unit seems to run long, start with hot water at the sink before starting a cycle (helps the dishwasher reach temperature sooner).

Common fixes and the parts that match those problems

Symptom	What it points to	Model-matched part to consider
Dishes not drying, cycle ends with poor heat	Heating problem	Dishwasher heating element W10518394
Water left in tub, slow drain	Drain restriction or drain path issue	Dishwasher drain hose 8269144A
No fill or weak fill	Water supply issue or valve problem	Dishwasher water inlet valve WPW10158389
Dead/no response or intermittent operation	Power protection issue	Fuse W10258275

Why it matters

Cleaning and draining problems usually start as simple restrictions, but they can strain the pump motor and extend cycle time. Heating issues can also prevent proper sanitizing and leave detergent residue, so catching the symptom early saves time and repeat washes.

Last updated: February 2026

Yes. You can buy replacement parts for your Whirlpool GU2200XTSS3 undercounter dishwasher to fix leaks, restore heating and drying, improve filling and draining, or replace worn rack hardware. Use the parts list for this model and confirm fit using the owner's manual.

Common dishwasher parts people replace

For the GU2200XTSS3, these are some of the most frequently needed repair parts:

• Heating and drying: dishwasher heating element W10518394
• Leaks at the door: dishwasher door seal W10542314
• No fill or slow fill: dishwasher water inlet valve WPW10158389
• Not draining: dishwasher drain hose 8269144A
• Dead or intermittent power: fuse W10258275
• Poor wash performance or motor issues: pump motor WPW10780877

How to make sure you order the right part

We recommend matching by model number first (GU2200XTSS3), then verifying the symptom and location of the part.

• Confirm the model number on the model and serial label
• Compare the part name and part ID to what you are replacing
• Check whether your dishwasher is hard-wired or uses a power cord (installation details vary)
• Review the wiring and grounding guidance before any electrical repair
• Use the correct tools and shut off power and water before servicing

Quick fit-check table

What you see	What it usually points to	Example part for GU2200XTSS3
Dishes not drying, water stays cool	Heating circuit issue	Heating element (W10518394)
Water on floor at front corners	Door sealing issue	Door seal (W10542314)
Tub not filling or fills slowly	Fill valve or supply restriction	Water inlet valve (WPW10158389)
Standing water in bottom	Drain path restriction or hose issue	Drain hose (8269144A)

Why it matters

Using model-matched parts helps your dishwasher maintain proper water temperature, spray pressure, and leak protection. That means better cleaning results and fewer repeat repairs.

Last updated: February 2026

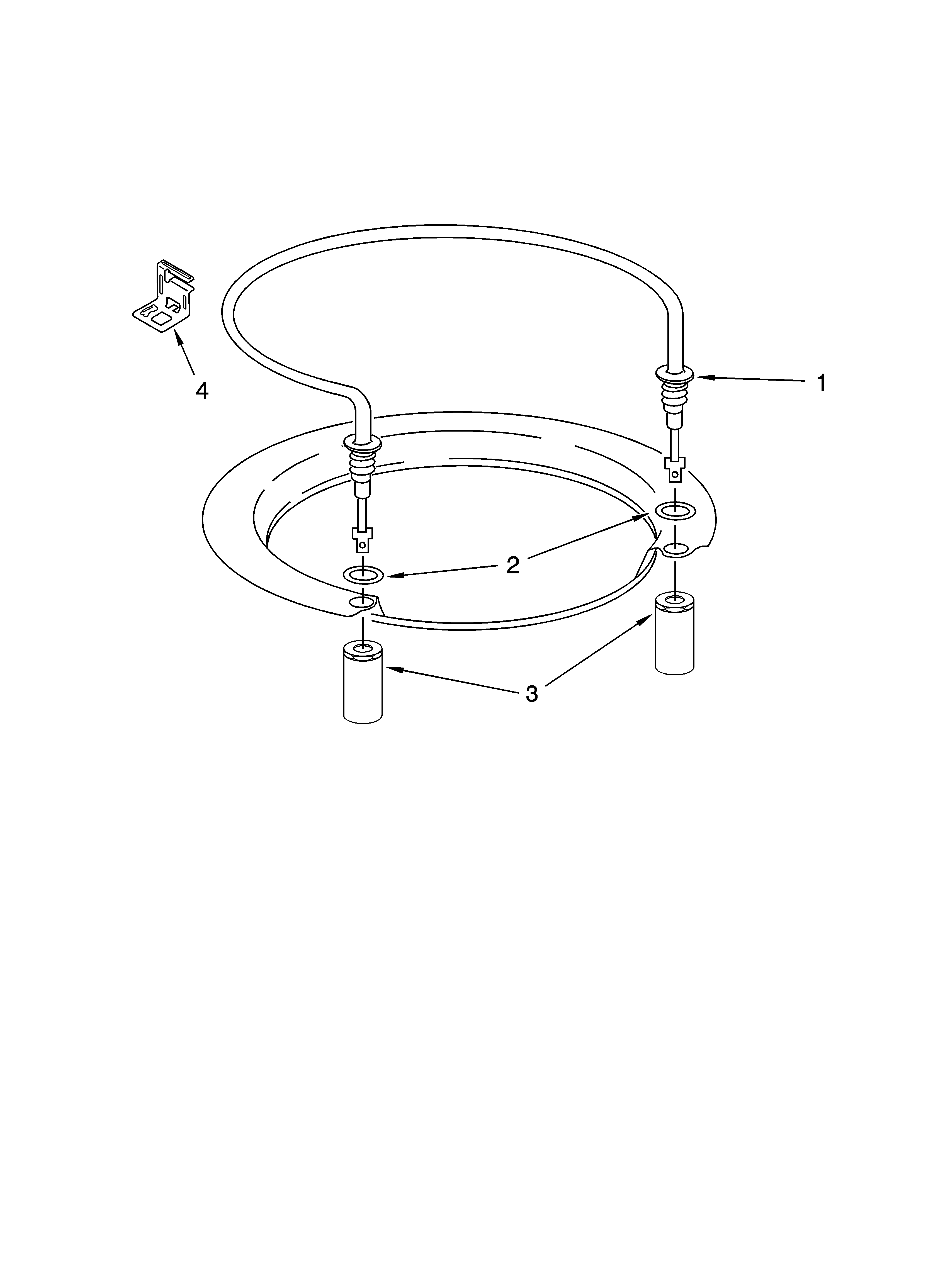

In your Whirlpool GU2200XTSS3 dishwasher, the most common “thing” you’ll notice at the bottom of the tub is the heating element. It helps heat the wash water and can also help with drying, so seeing a metal loop or bar near the base is normal (check the owner's manual for your model’s layout).

What you might be seeing (common bottom-of-tub parts)

Depending on what you’re describing (metal loop, plastic dome, screen, or standing water), it’s usually one of these:

• Heating element: a metal loop/bar used to heat water and aid drying
• Filter or screen area: catches food soil to protect the pump
• Sump area: the low spot where water collects before being pumped

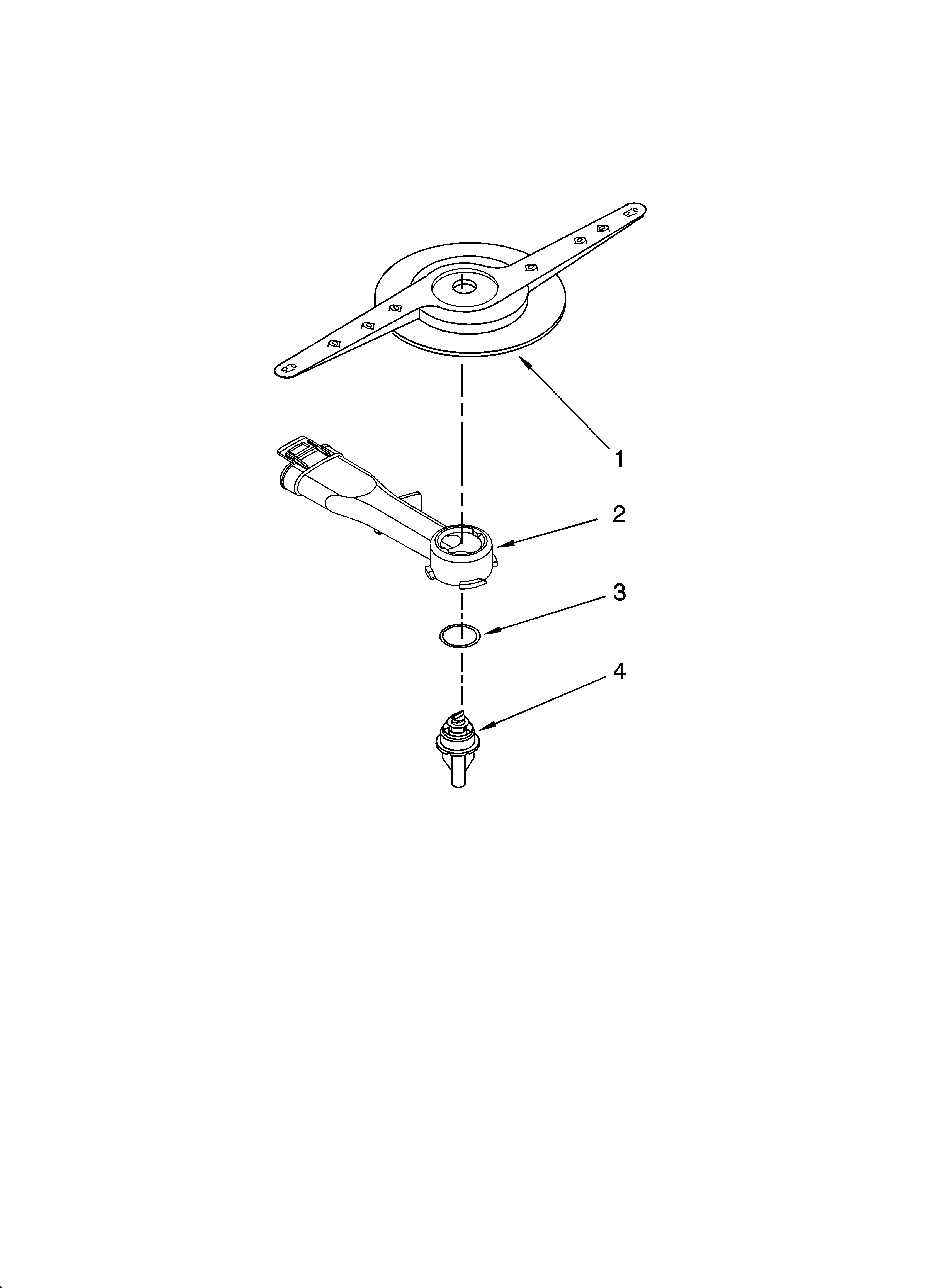

• Spray arm hub: the center mount where the lower spray arm attaches
• A small amount of water: normal after a cycle; the tub can retain some water in the sump

Quick ID guide by what it looks like

What you see	Most likely part	What it does
Exposed metal loop/bar	Heating element	Heats water; supports drying
Plastic cover/dome near center	Sump cover area	Routes water to the pump and spray arms
Mesh/screen area	Filter/screen	Traps debris to prevent clogs
Water sitting in the lowest area	Sump water	Keeps seals from drying out; normal in small amounts

When it’s normal vs. when it’s a problem

These signs are typically normal:

• Heating element is visible and intact (no breaks)
• A small amount of clean water remains in the bottom after a cycle
• No burning smell, leaks, or error symptoms

These signs point to a repair need:

• Dishes are consistently cold or not drying (heater circuit issue)
• Water never heats (possible heater, thermostat, or control issue)
• Standing dirty water or poor draining (drain path restriction)

Parts that commonly relate to “bottom of dishwasher” issues

If your question is really about poor heating, drying, or odd residue, these model-matched parts are often involved:

• Dishwasher heating element W10518394
• Dishwasher thermostat WP661566
• Fuse W10258275

Why it matters

The bottom-of-tub components control heating, circulation, and drainage. Correctly identifying what you’re seeing helps you avoid replacing the wrong part and speeds up troubleshooting.

Last updated: February 2026

In a Whirlpool undercounter dishwasher like model GU2200XTSS3, the most commonly replaced parts are the ones that handle heat, water flow, draining, and sealing. When these parts wear out or clog, you typically see poor cleaning, leaks, no-fill, no-heat drying, or cycles that stop mid-wash; our GU2200XTSS3 owner's manual helps you match symptoms to the right component.

Commonly replaced parts (and what they affect)

• Heating and drying: heating element and thermostat; problems show up as poor drying, cool water, or heater-related faults.
• Filling: water inlet valve and inlet tubing; issues include no-fill, slow fill, or weak wash due to low water level.
• Draining: drain hose and pump components; symptoms include standing water or slow draining.
• Leak prevention: door seal and vent gasket; common causes of drips at the door or moisture near the vent.
• Controls and protection: electronic control board and fuse; can cause no power, no start, or intermittent operation.

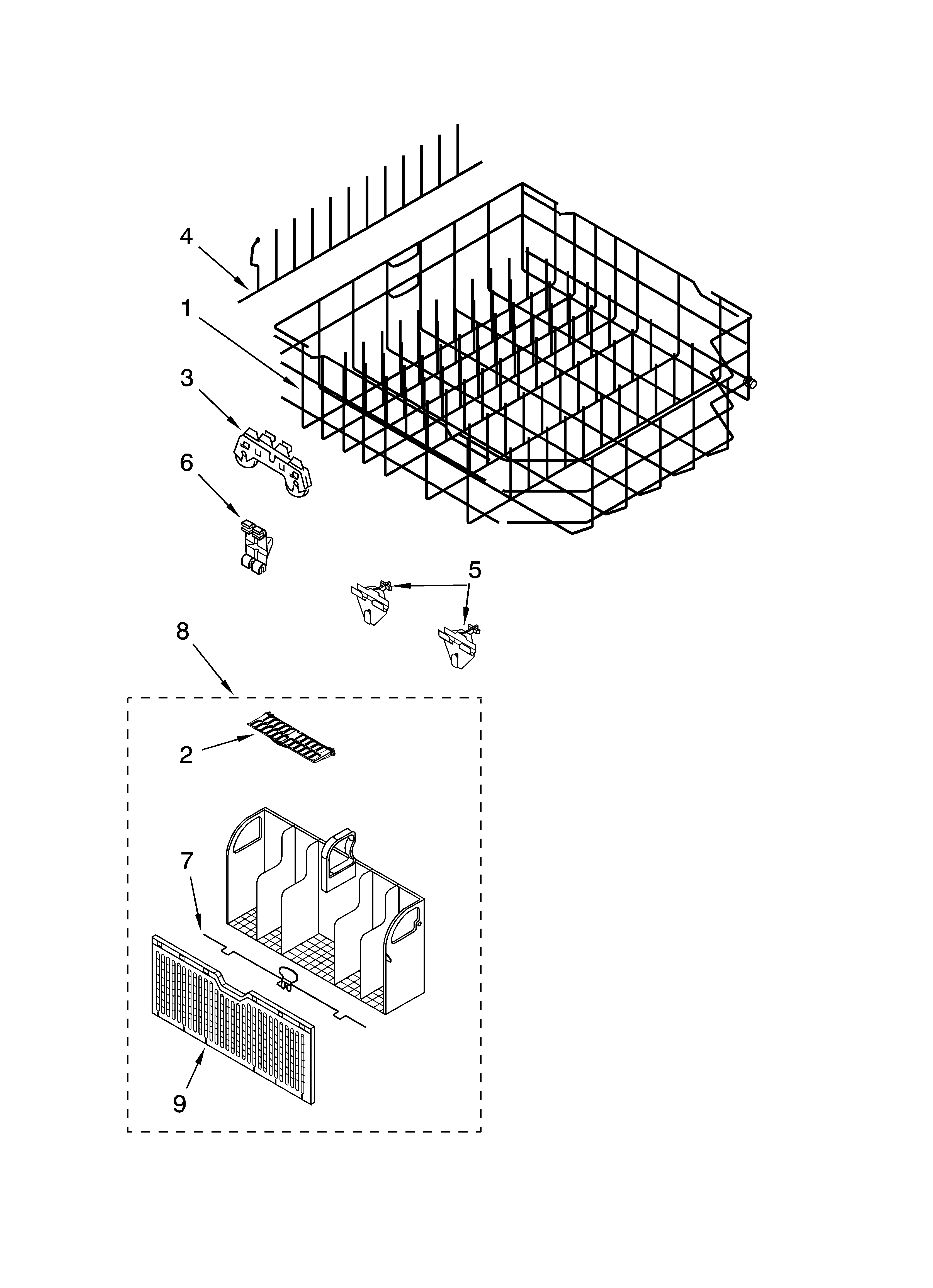

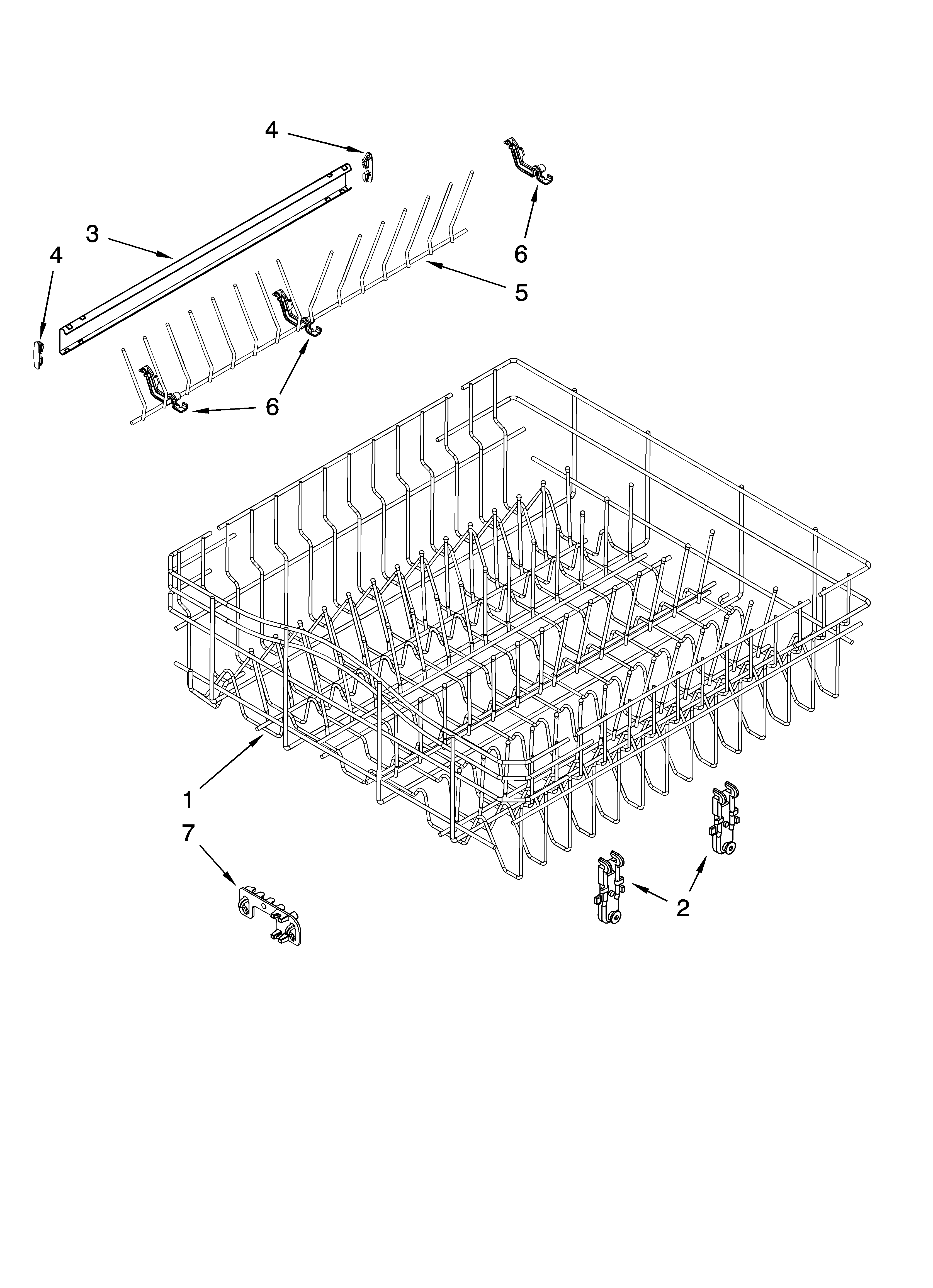

• Loading hardware: rack stops and racks; failures cause rails to pop off, poor rack movement, or rusted rack sections.

Model-matched examples for GU2200XTSS3

These are common replacements we see for this Whirlpool platform:

• Dishwasher heating element W10518394
• Dishwasher door seal W10542314
• Dishwasher water inlet valve WPW10158389
• Dishwasher drain hose 8269144A
• Fuse W10258275

Quick symptom-to-part guide

Symptom	Most likely parts to check first	What to do first
Poor drying or cool wash water	Heating element, thermostat	Confirm hot water supply; then test heater circuit

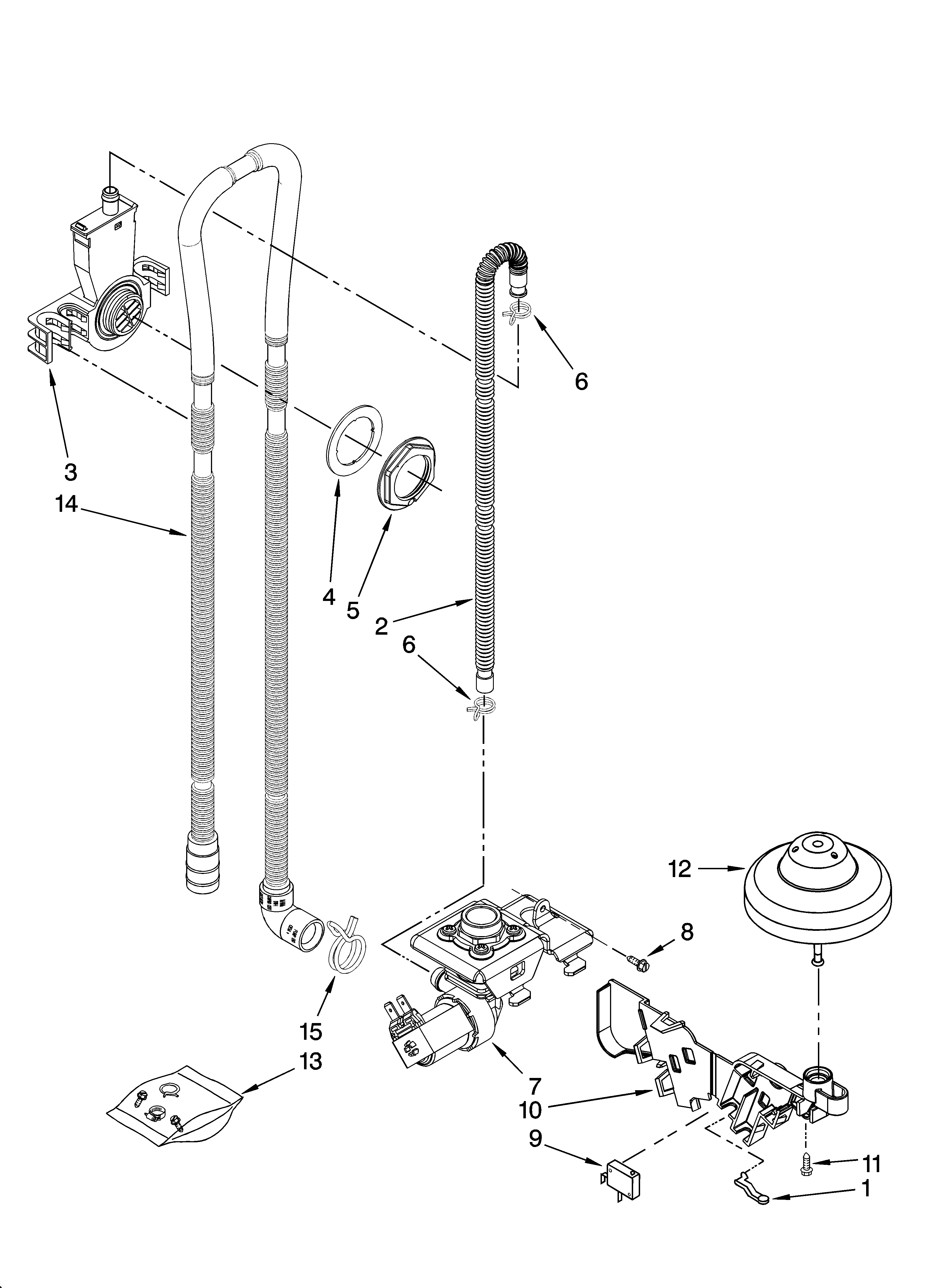

Won’t fill or fills slowly	Water inlet valve, float system	Make sure the overfill float moves freely
Water left in tub	Drain hose, pump/motor	Check for kinks or clogs in the drain path
Leaks at door	Door seal	Inspect for tears, flattening, or debris on sealing surfaces

Why it matters

Dishwashers rely on correct water level, strong circulation, proper heating, and tight sealing. Replacing the right wear part restores cleaning performance and prevents secondary damage (for example, leaks that reach wiring or controls).

Last updated: February 2026
