Model # DV231AGW/XAA-00 Official Samsung dryer

Here are the diagrams and repair parts for Official Samsung DV231AGW-XAA-00 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

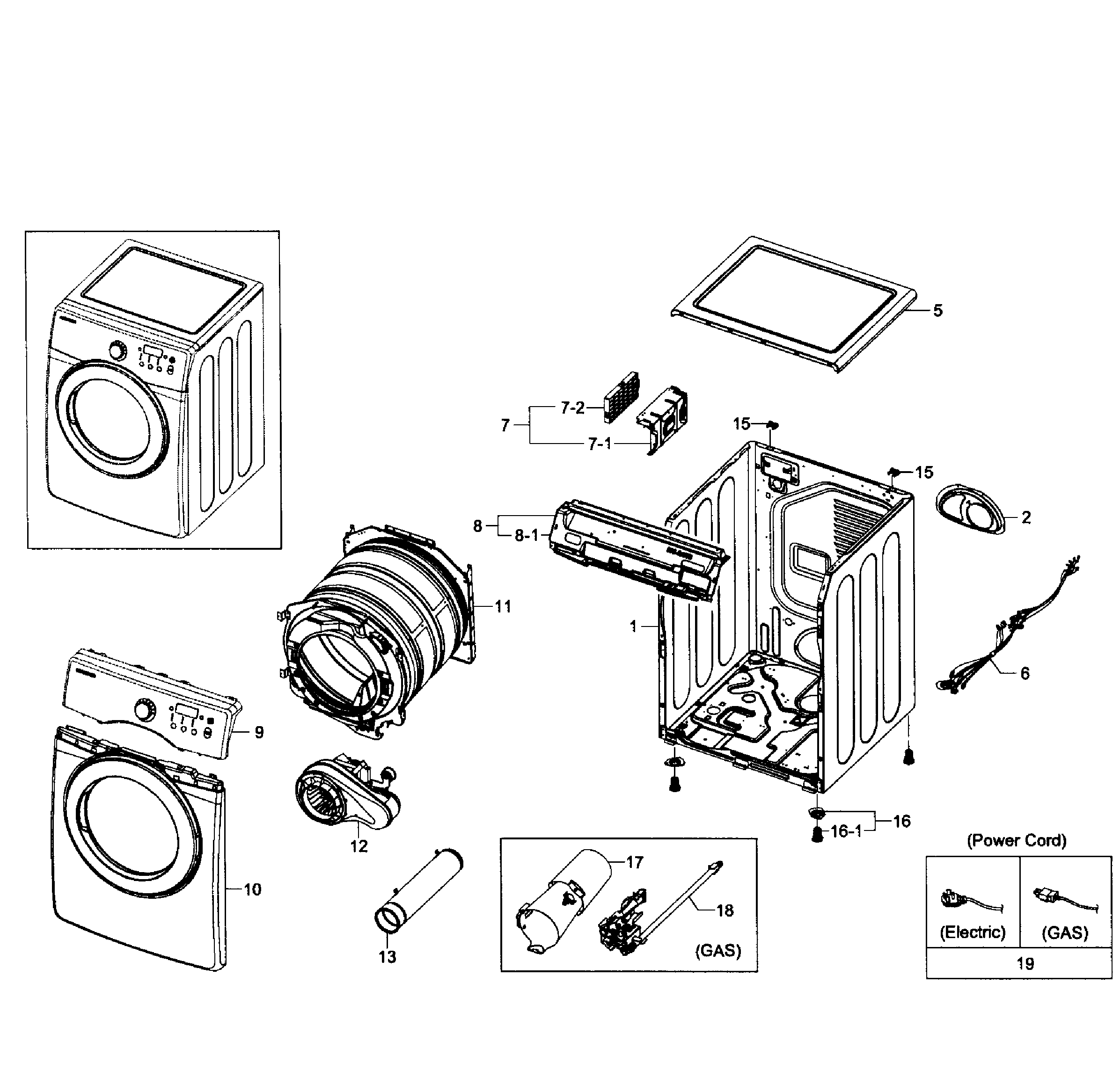

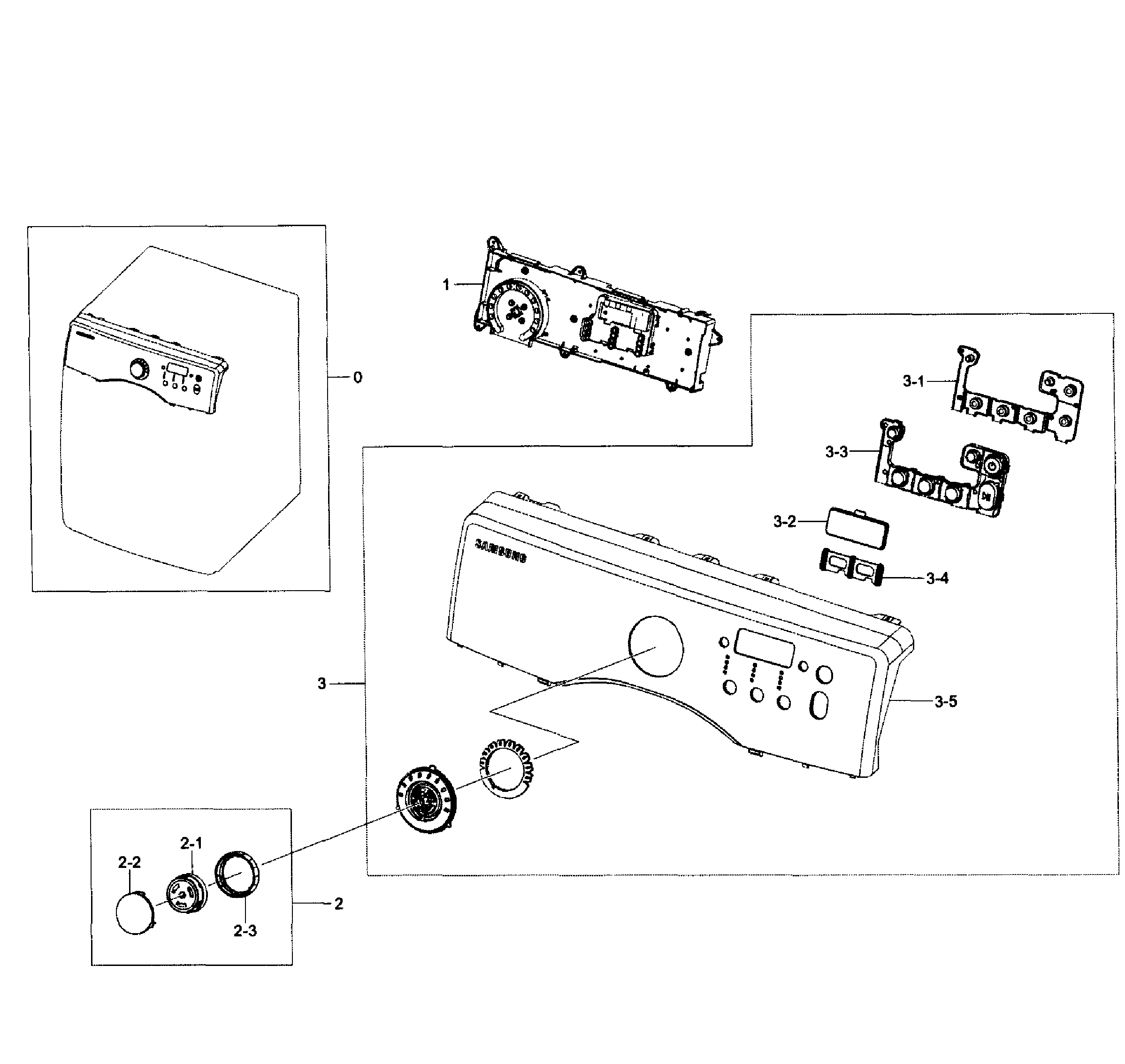

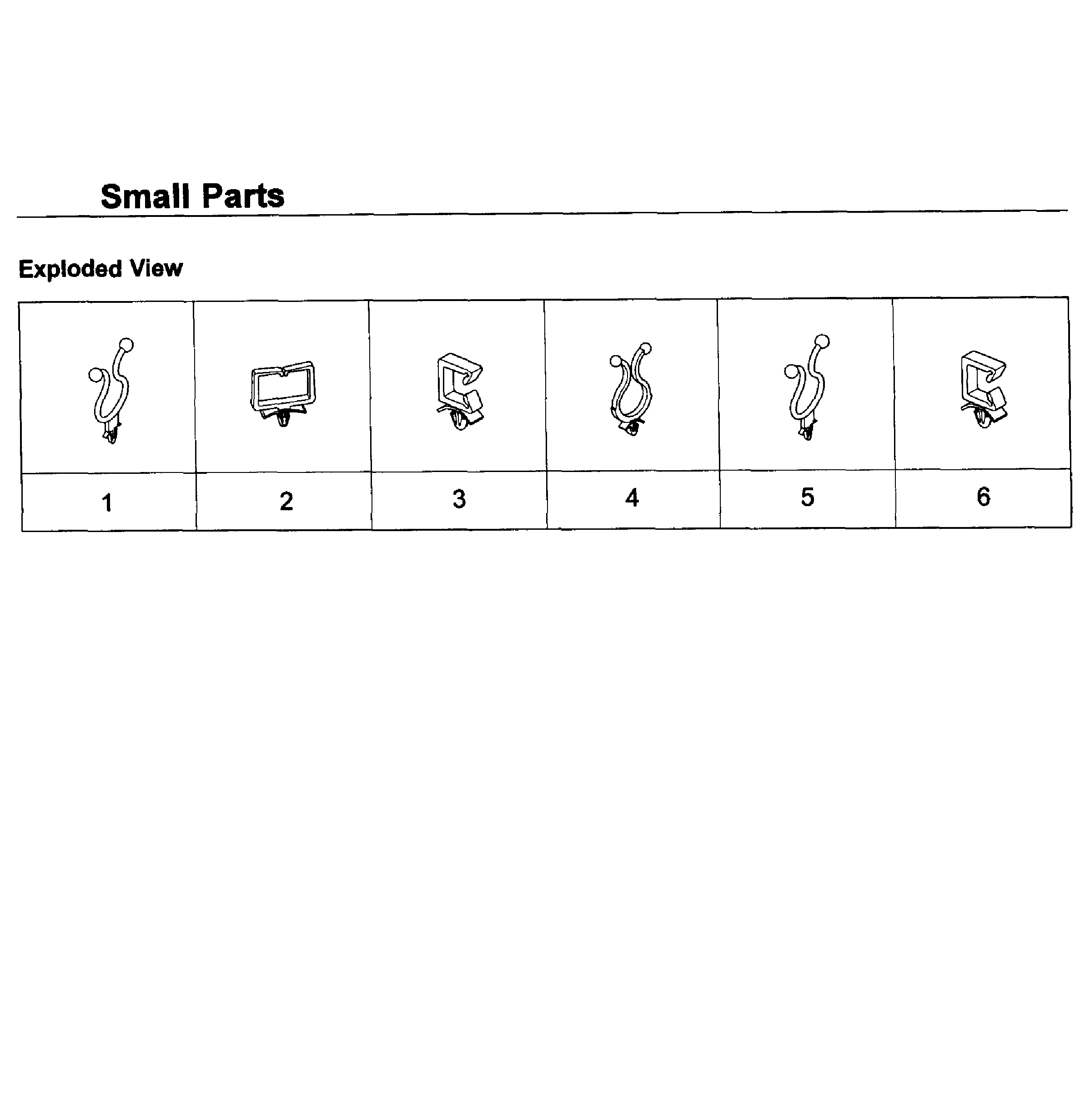

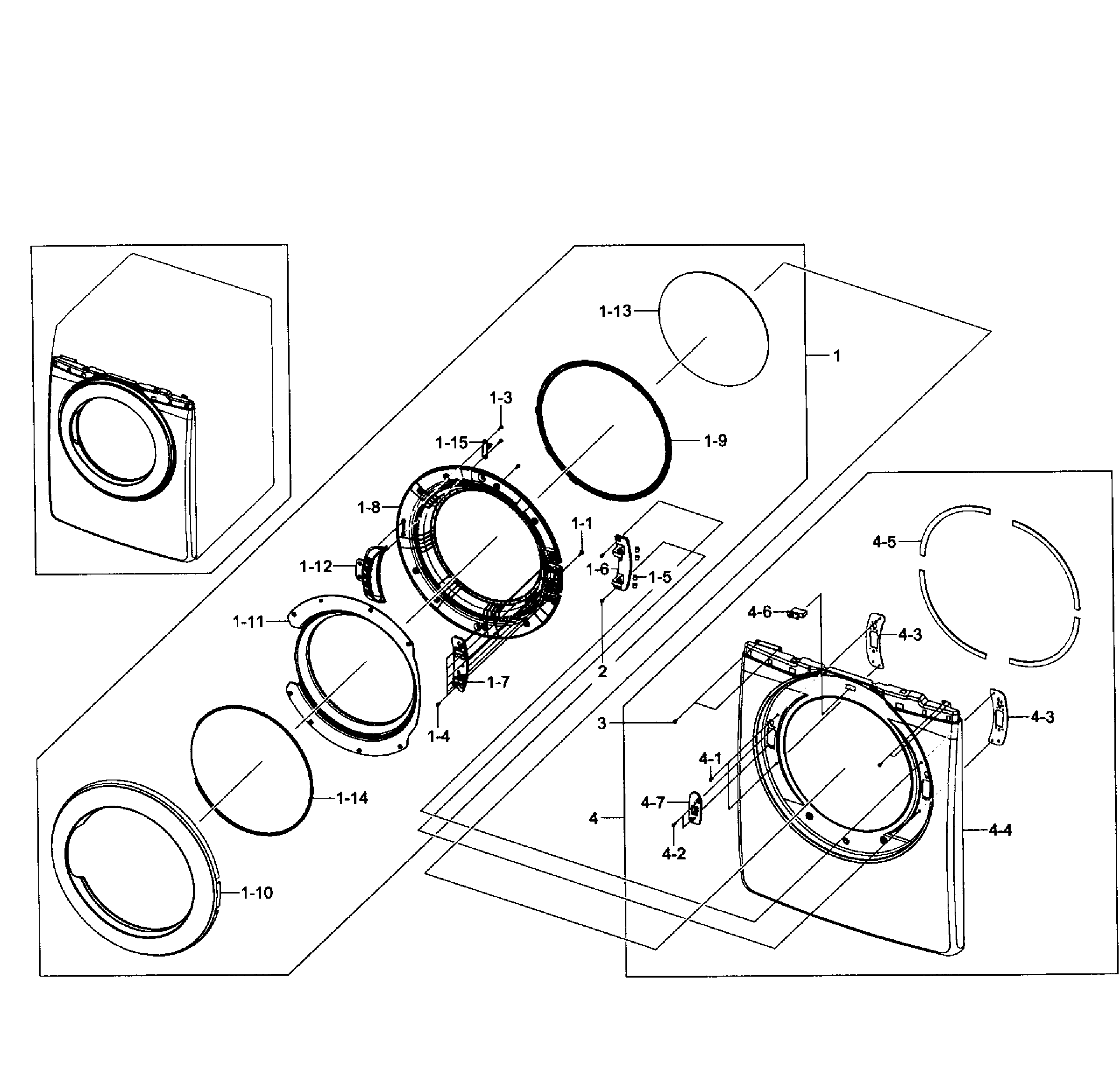

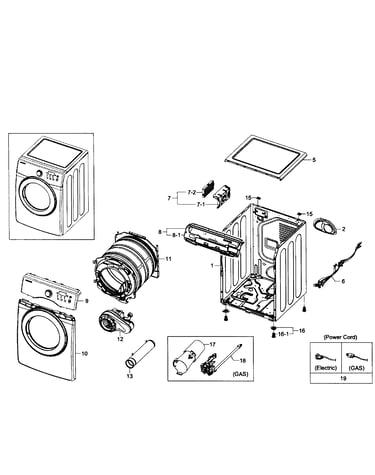

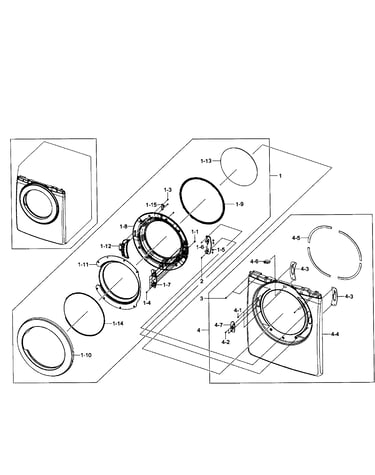

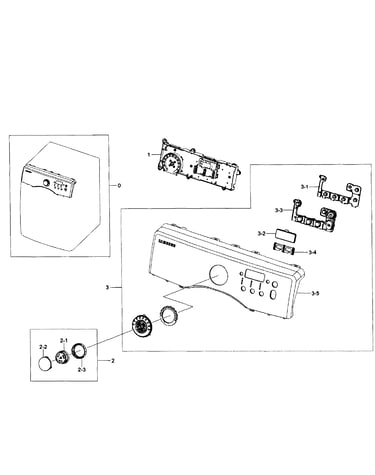

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Dryer Idler Assembly DC96-00882C
#1-56

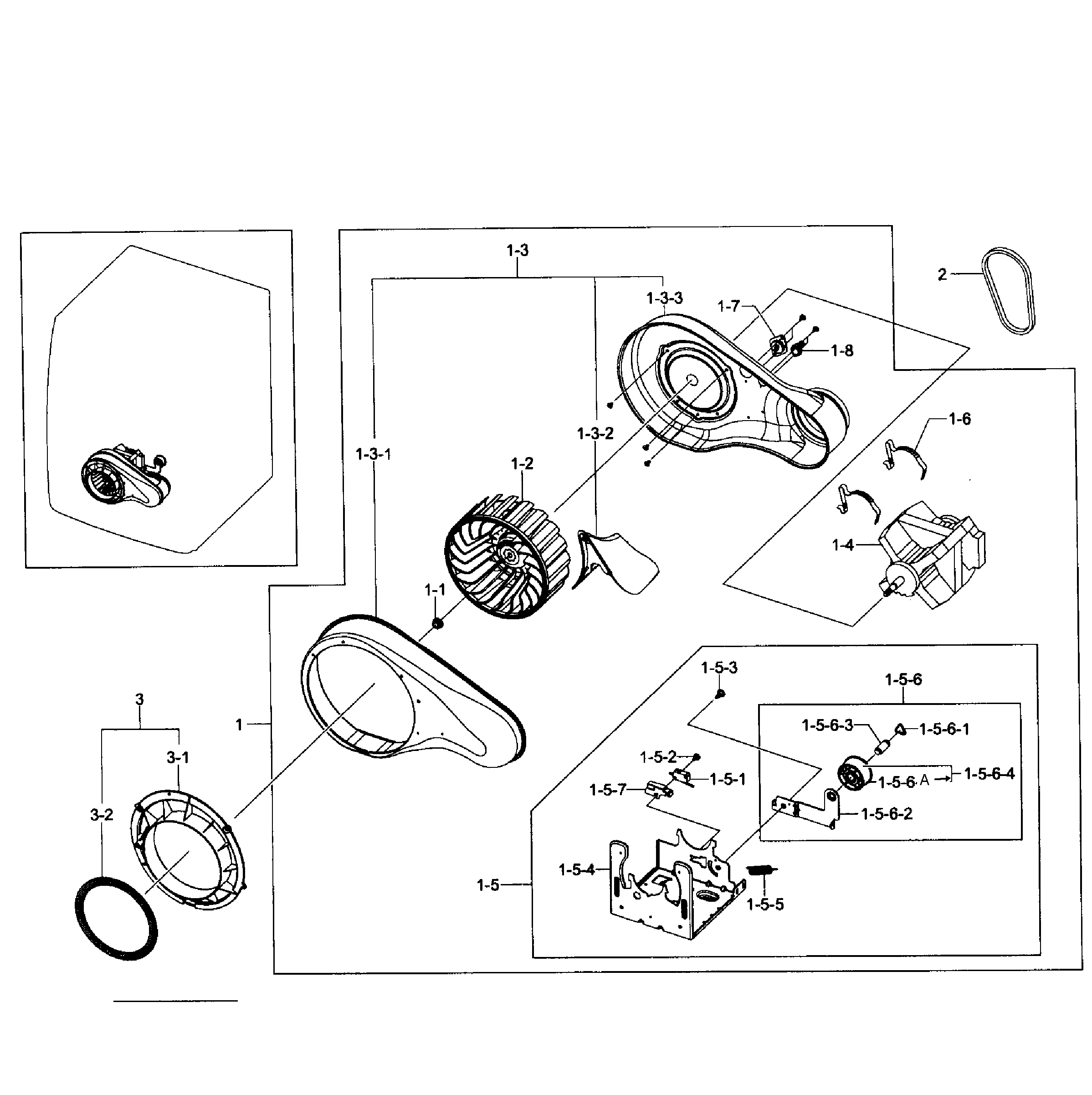

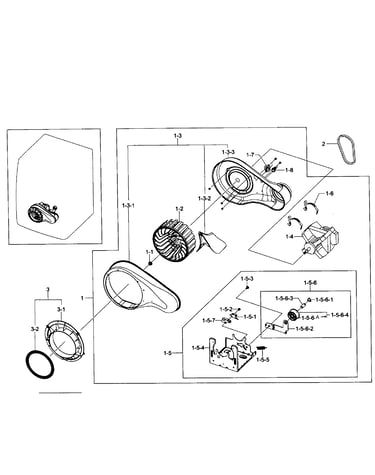

Motor assy diagram

Dryer idler assembly

Part #DC96-00882C

Replaced by #DC93-00634A

?
Manufacturer substitution
This part replaces DC96-00882C. Substitute parts can look different from the original.
BEST SELLER
$53.39 |
10% OFF Phone Price : $59.39
In Stock
Dryer Drum Support Roller (replaces Dc97-07523a, Dc97-07523b) DC97-16782A
Dryer drum support roller (replaces dc97-07523a, dc97-07523b)

Part #DC97-16782A

BEST SELLER
$39.85 |
13% OFF Phone Price : $45.85
In Stock
Dryer Drum Belt (replaces 6602-001314) 6602-001655
#2

Motor assy diagram

Dryer drum belt (replaces 6602-001314)

Part #6602-001655

The manufacturer no longer makes this part, and there's no substitute part

Dryer Thermistor (replaces Dc32-0007a) DC32-00007A
#1-7

Motor assy diagram

Dryer thermistor (replaces dc32-0007a)

Part #DC32-00007A

BEST SELLER
$29.57 |
17% OFF Phone Price : $35.57
In Stock
Dryer Thermal Cut-off Thermostat DC47-00016A
#1-8

Motor assy diagram

Dryer thermal cut-off thermostat

Part #DC47-00016A

BEST SELLER
$25.89 |
19% OFF Phone Price : $31.89
In Stock
Dryer Drive Motor (replaces Dc31-00055h) DC31-00055G
#1-4

Motor assy diagram

Dryer drive motor (replaces dc31-00055h)

Part #DC31-00055G

BEST SELLER
$213.61 |
5% OFF Phone Price : $225.61
In Stock
Dryer Drum Seal DC97-07618A
#4-3

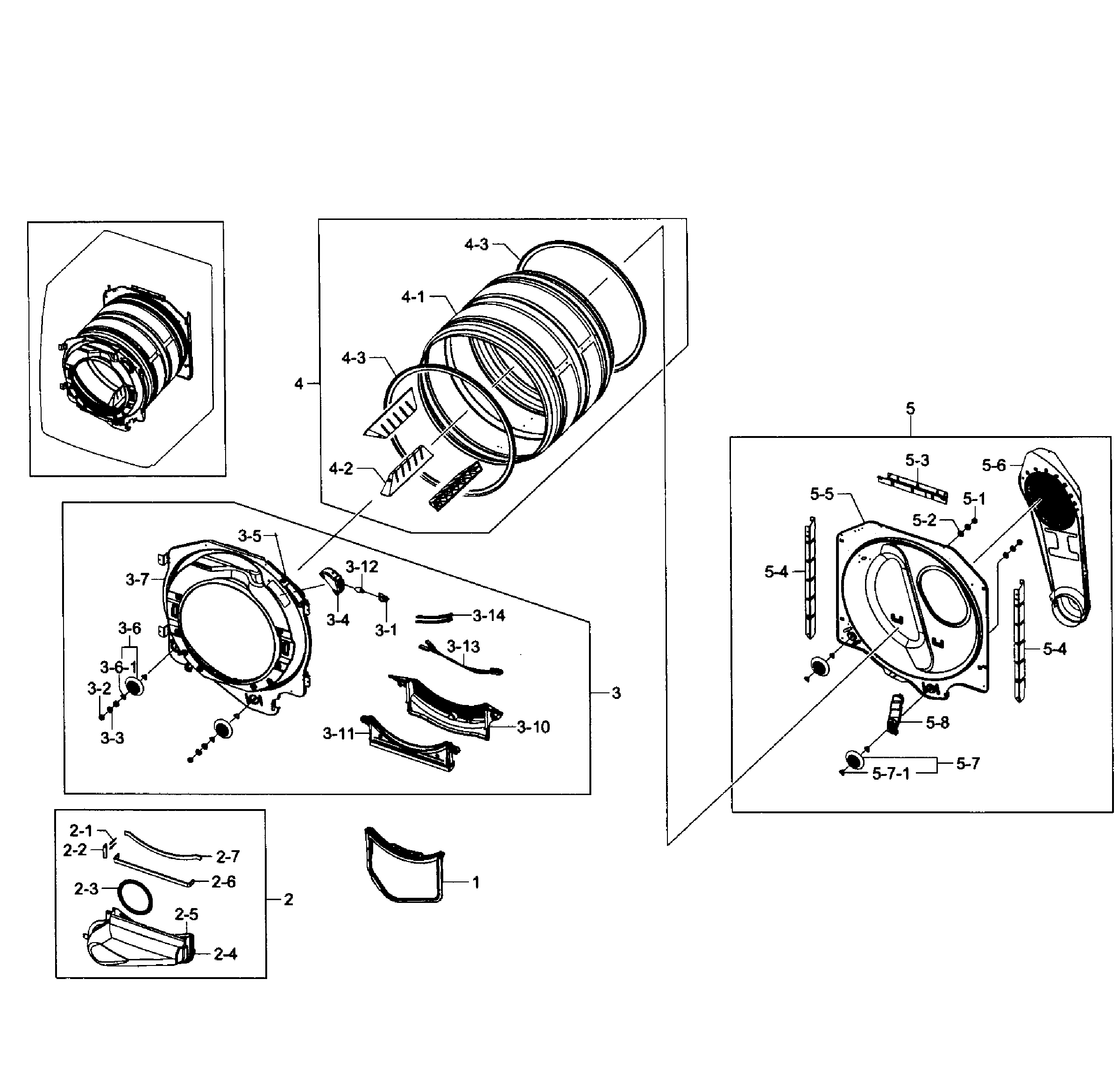

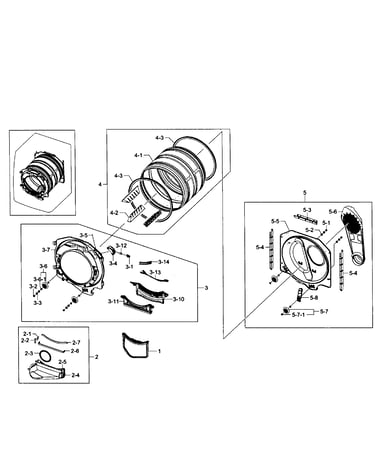

Drum assy diagram

Dryer drum seal

Part #DC97-07618A

BEST SELLER
$120.00
In Stock
Dryer Blower Wheel (replaces Dc67-00180a) DC67-00180B
#1-2

Motor assy diagram

Dryer blower wheel (replaces dc67-00180a)

Part #DC67-00180B

BEST SELLER
$92.59 |
6% OFF Phone Price : $98.59
In Stock
Dryer Gas Valve DC62-00201A
#2-5

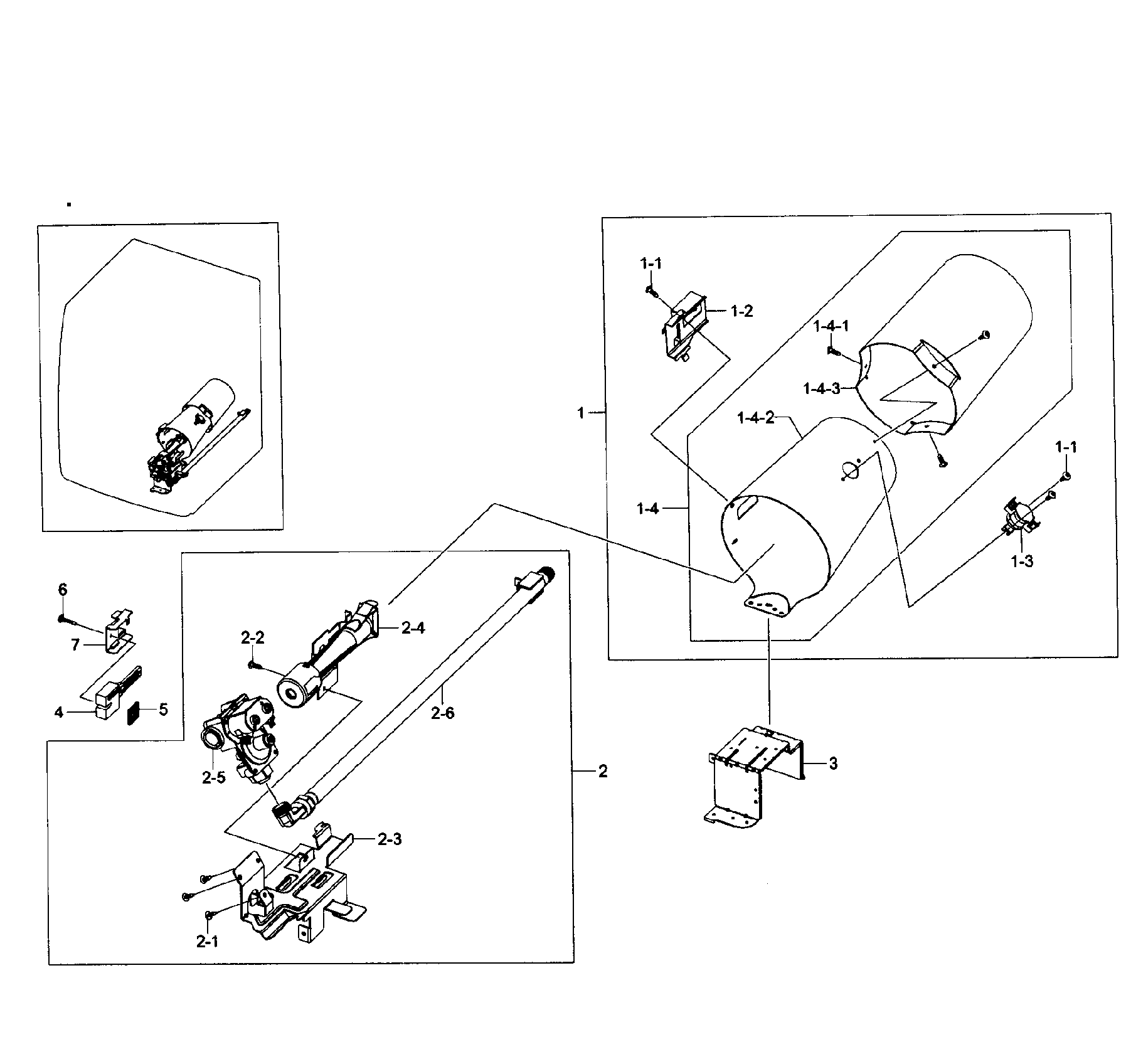

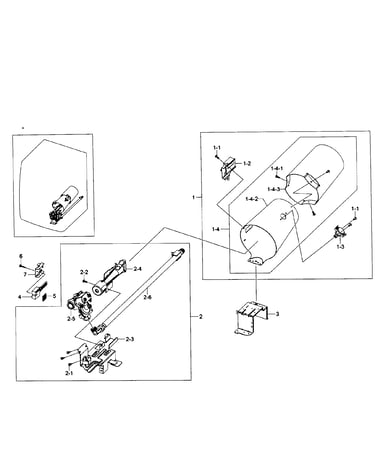

Heater assy diagram

Dryer gas valve

Part #DC62-00201A

BEST SELLER
$191.24 |
10% OFF Was : $212.49
In Stock
Dryer Radiant Sensor DC32-00008A
#1-2

Heater assy diagram

Dryer radiant sensor

Part #DC32-00008A

BEST SELLER
$144.05 |
8% OFF Phone Price : $156.05
In Stock
