Model #CSX20KAXAWH Official Hotpoint non-dispensing refrigerator - 1995
Here are the diagrams and repair parts for Hotpoint CSX20KAXAWH non-dispensing refrigerator - 1995, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 206 parts

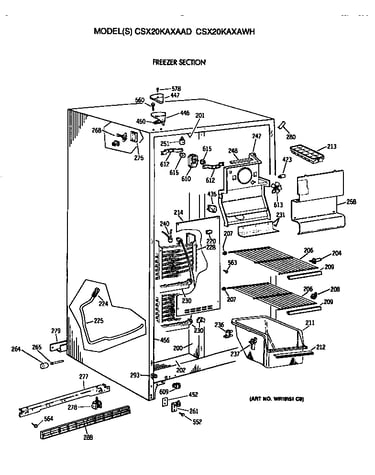

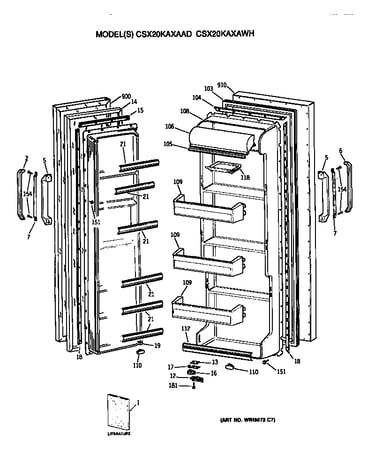

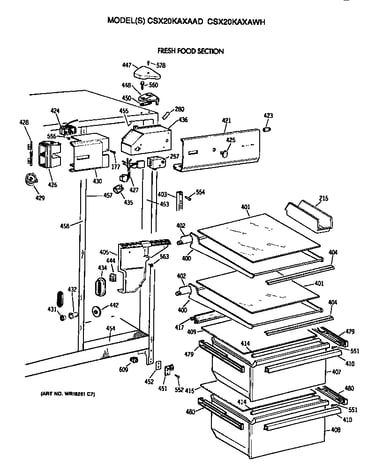

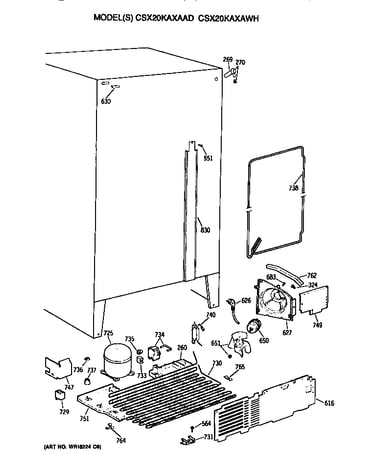

#435
All parts Diagram
40a15/22
Part #STD372402
Replaced by #40A15
?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
Back Order
$11.06 |
15% OFF
Phone Price: $13.06
#261
All parts Diagram
Door hinge pin, lower
Part #WR13X615
Replaced by #WR13X10020
?
Manufacturer substitution
This part replaces WR13X615. Substitute parts can look different from the original.
In Stock
$26.74 |
16% OFF
Phone Price: $31.74
#451
All parts Diagram
Door hinge pin, lower
Part #WR13X614
Replaced by #WR13X10020
?
Manufacturer substitution
This part replaces WR13X614. Substitute parts can look different from the original.
In Stock
$26.74 |
16% OFF
Phone Price: $31.74
#16
All parts Diagram
In Stock
$7.88 |
11% OFF
Phone Price: $8.88
#479
All parts Diagram
In Stock
$35.25 |
12% OFF
Phone Price: $40.25
#609
All parts Diagram
Light switch
Part #WR23X193
Replaced by #WR23X10725
?
Manufacturer substitution
This part replaces WR23X193. Substitute parts can look different from the original.
In Stock
$7.09 |
12% OFF
Phone Price: $8.09
#480
All parts Diagram
In Stock
$17.15 |
10% OFF
Phone Price: $19.15
#230
All parts Diagram
In Stock
$80.66 |
6% OFF
Phone Price: $85.66
#270
All parts Diagram
Refrigerator grommet
Part #WR2X9153
Replaced by #WR2X8474
?
Manufacturer substitution
This part replaces WR2X9153. Substitute parts can look different from the original.
In Stock
$10.24 |
16% OFF
Phone Price: $12.24
#480
All parts Diagram
In Stock
$19.05 |
10% OFF
Phone Price: $21.05
