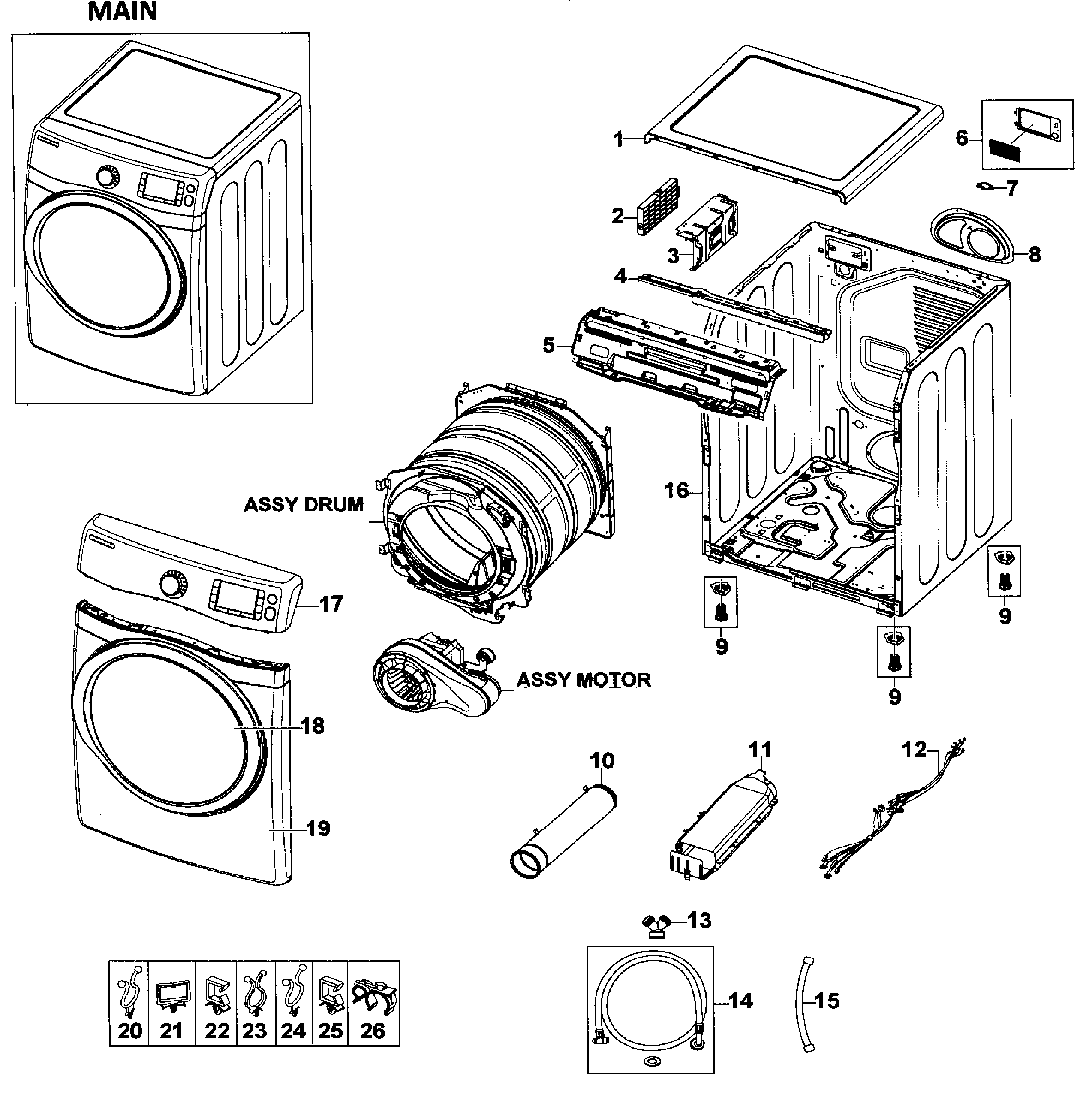

Samsung DV520AEW/XAA-02 dryer Parts

Most Samsung dryers, including the Samsung DV520AEW, typically last 10 to 14 years with normal household use. Consistent airflow maintenance (lint screen and venting) and avoiding overheating are the biggest factors in reaching the high end of that range.

What affects dryer lifespan the most

• Vent restriction (long dry times, higher heat, more wear on the heater and thermostats)
• Lint buildup inside the cabinet or blower housing
• Overloading (stresses the drum belt, rollers, and motor)
• High-heat cycles used constantly (more thermal stress)
• Worn drum support parts (noise and drag that strain the motor)

Maintenance that helps you hit 10 to 14 years

• Clean the lint screen every load.
• Check airflow at the outside vent hood; strong flow helps prevent overheating.
• Clean the vent duct periodically (more often with pets or heavy use).
• Do not overload; the drum should tumble freely.
• If you hear squealing, thumping, or grinding, address it early to prevent motor strain.

Common wear items (and what they usually cause)

Symptom	Common cause	Example part on this model page

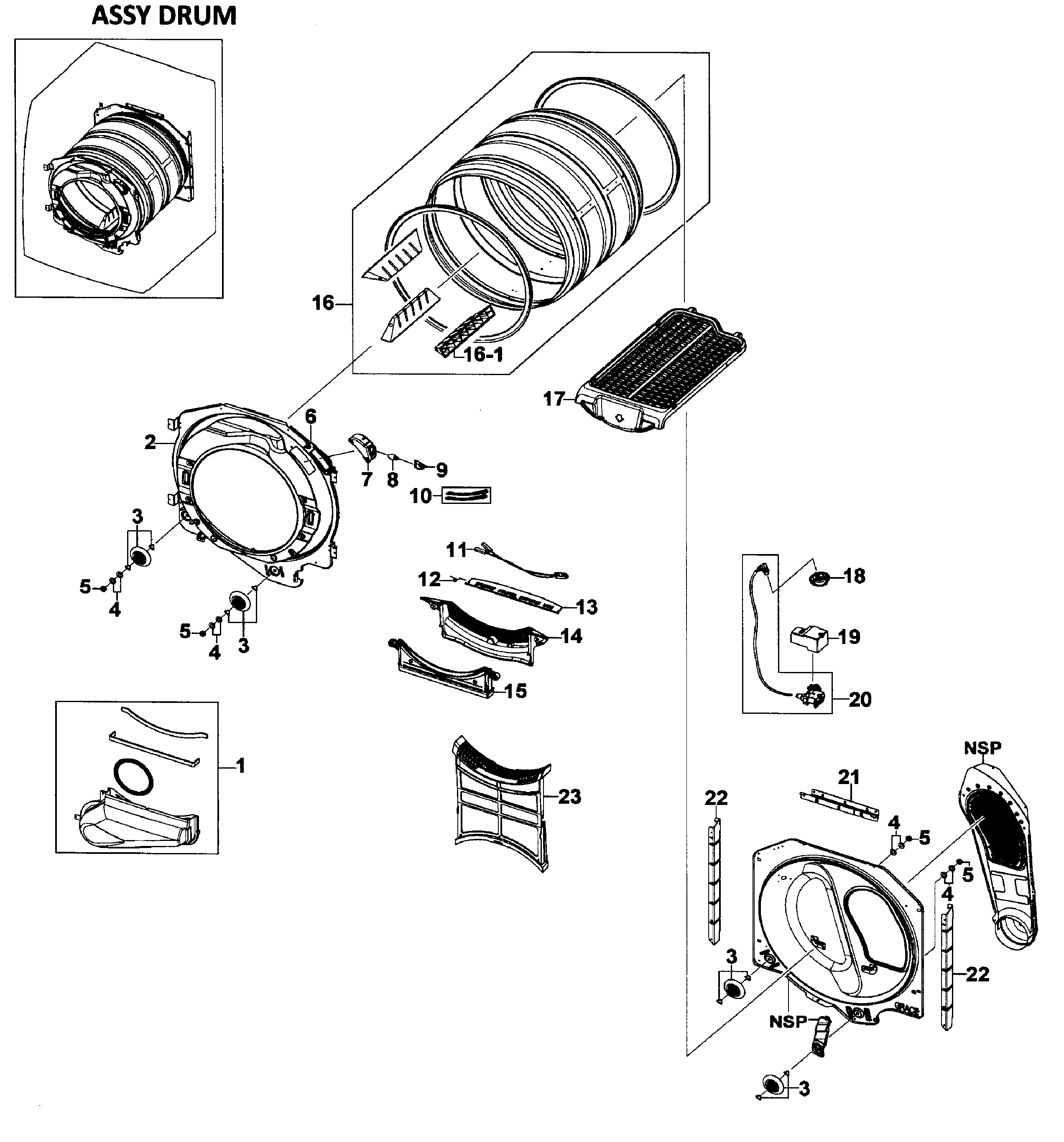

Squealing or rumbling	Worn roller	Samsung dryer drum support roller DC97-16782A
Drum not turning	Worn/broken belt	Samsung dryer drum belt 6602-001655

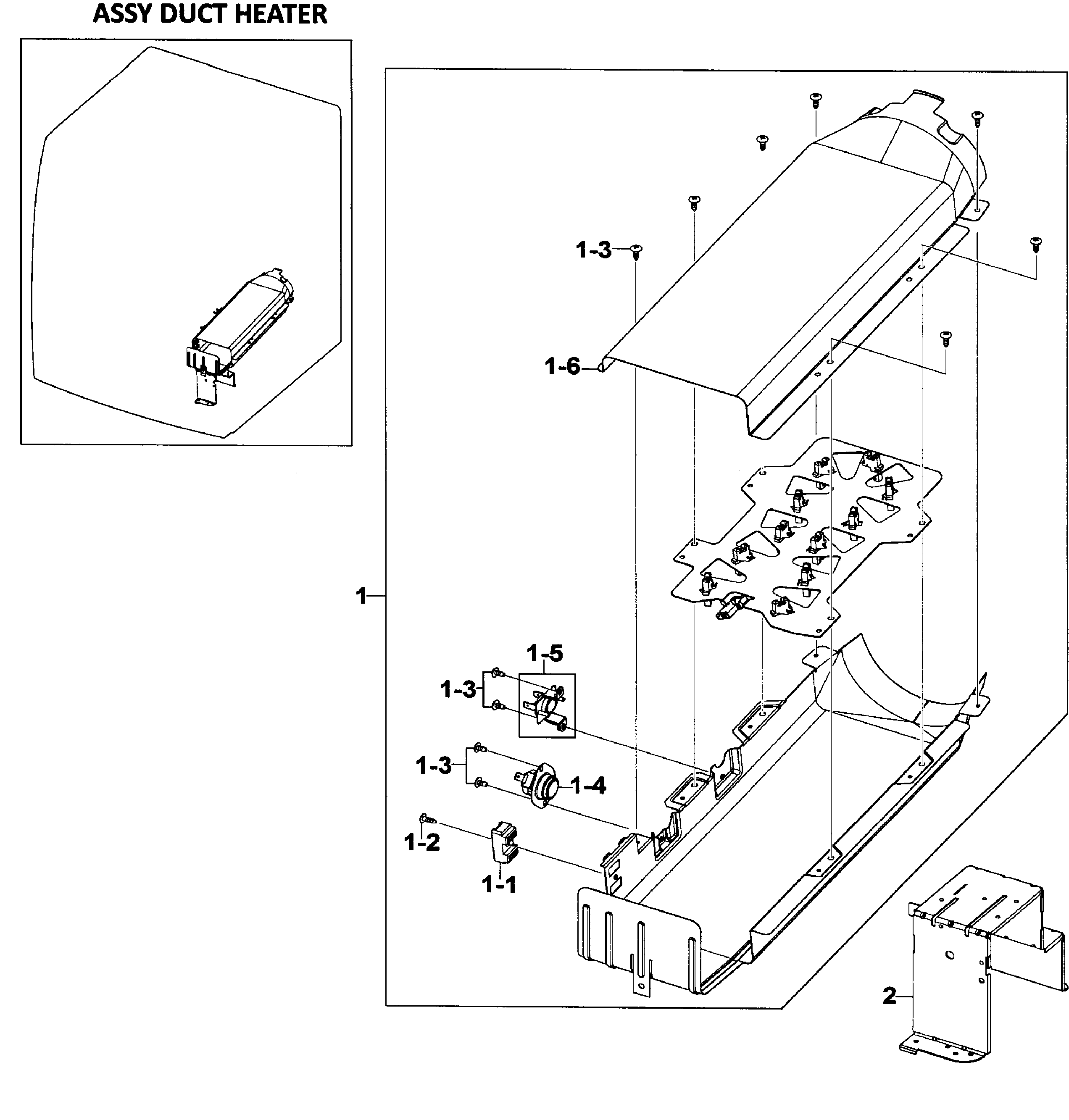

No heat or overheating shutdown	Heater or safety thermostat/fuse issue	Samsung dryer heating element assembly DC93-00154A

Why it matters

A dryer that is forced to run hot or run long cycles wears out the heating system and drive system faster. Keeping airflow strong is the simplest way to reduce repair frequency and extend the service life.

For model-specific care and cleaning guidance, follow the maintenance section in the DV520AEW owner’s manual.

Last updated: February 2026

A bad thermal fuse in your Samsung DV520AEW dryer typically shows up as a dryer that will not start at all, or runs but will not heat (depending on which safety fuse opened). The sure way to tell is a continuity test with a multimeter after unplugging the dryer; an open reading means the fuse is blown.

Quick symptoms to look for

• Dryer will not start (no motor run)
• Dryer runs but has no heat
• Cycle stops early or heat cuts out repeatedly
• Burning smell or unusually hot cabinet (often from restricted airflow)
• Lint buildup in the lint screen housing or vent path

How to test the thermal fuse (continuity test)

1. Unplug the dryer (electric shock hazard).
2. Access the fuse location using the disassembly steps in the owner's manual.
3. Pull at least one wire off the fuse terminal so you are not reading through the circuit.
4. Set your multimeter to continuity or the lowest ohms setting.
5. Touch a probe to each terminal:
   • Good fuse: continuity tone or near 0 ohms
   • Blown fuse: no tone or OL/infinite resistance

What to do if the fuse is blown (fix the cause first)

A thermal fuse usually opens because the dryer overheated. Before installing a new fuse, correct the airflow problem so the new part does not fail again.

• Clean the lint screen and lint screen housing
• Inspect and clear the vent duct all the way to the outside hood
• Confirm strong airflow at the exterior vent while the dryer runs
• Check the blower area for lint buildup or a damaged wheel
• Verify the drum turns freely (a dragging drum can increase heat)

Common related parts for overheating and no-heat issues

What you notice	Common check	Example part on this model page
No heat or overheating	Temperature sensing	Dryer thermistor DC32-00007A
Overheats, shuts down	Safety thermostat	Dryer high-limit thermostat DC47-00018A
No heat after overheat event	Safety cut-off	Dryer thermal cut-off fuse DC96-00887A

Why it matters

The thermal fuse is a one-time safety device. Replacing it without fixing restricted airflow can lead to repeated shutdowns, longer dry times, and additional damage to heating components.

Last updated: February 2026

On the Samsung DV520AEW dryer, “520” is part of the model series name used to identify the dryer’s design family and feature set; it is not an error code or a setting you select during drying. For model-specific identification details, use the owner's manual.

Where you’ll see “520” and what it’s used for

In real-world use, “520” typically shows up in places meant for identification, not operation:

• The model name on the rating label (often inside the door opening)
• Parts listings and diagrams used to match components to your dryer
• Service and troubleshooting references that group similar Samsung dryers
• Online searches where “DV520” narrows results to the correct platform

Why “520” matters when ordering parts

When you’re replacing a part, “DV520” helps narrow the correct platform, but the full model and version (like DV520AEW/XAA-02) is what prevents mismatches.

Common DV520AEW repairs that require exact matching include:

• No heat or overheating (heating circuit parts)
• Long dry times (airflow and temperature sensing)
• Squealing or thumping (drum support and belt drive)

Examples of parts that must match the exact model/version

Symptom	Common part type	Example part for DV520AEW
Squealing/thumping	Drum support roller	Samsung dryer drum support roller DC97-16782A
No heat/weak heat	Heating element assembly	Samsung dryer heating element assembly DC93-00154A
Overheats/shuts off	High-limit safety thermostat	Dryer high-limit thermostat DC47-00018A

Quick check: “520” vs error codes

“520” is not a Samsung dryer error code. If your display is showing an error, use an error-code guide instead of the model number.

• For display errors and what they mean, use Samsung dryer error codes.

Why it matters

Using the correct model identifier prevents ordering the wrong drum belt, thermistor, control board, or door switch; those parts can look similar across Samsung dryers but connect or mount differently.

Last updated: February 2026

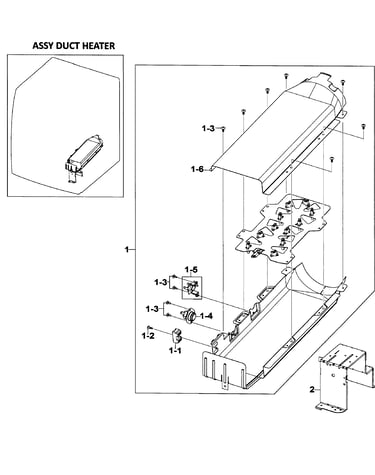

Yes, it’s usually worth replacing the heating element in a Samsung dryer like model DV520AEW when the dryer is otherwise in good shape, because a no-heat problem is often a single-part failure and the repair cost is typically far less than replacing the whole dryer. Confirm the correct disassembly and checks in the DV520AEW owner's manual.

When replacement makes sense

We recommend replacing the heater when the dryer tumbles normally but won’t heat, and airflow is good.

• Dryer runs but clothes stay cold or take much longer to dry
• No burning smell or repeated overheating shutdowns
• Drum turns smoothly (no loud squeal or thump)
• Venting is clear and the lint filter is clean
• You’re not seeing multiple unrelated symptoms (dead display, random shutoffs, etc.)

Parts that commonly get replaced with (or instead of) the heater

On electric dryers, a “no heat” complaint can be caused by the heater or by safety and temperature controls that open when airflow is restricted.

Symptom	More likely cause	Example part on this model page
Runs, no heat	Failed heater or open safety device	Samsung dryer heating element assembly DC93-00154A
Heats briefly, then stops	Overheating from poor airflow or weak blower	Dryer blower wheel DC67-00180B
Overheats or shuts down	High-limit thermostat or thermal cut-off open	Dryer high-limit thermostat DC47-00018A or dryer thermal cut-off fuse DC96-00887A
Temperature seems erratic	Sensor issue	Dryer thermistor DC32-00007A

Quick checks before you buy parts

These steps prevent repeat failures and help you avoid replacing the wrong component.

• Clean the lint screen and the lint screen housing
• Verify strong airflow at the outside vent hood
• Inspect the vent duct for kinks, crushing, or heavy lint buildup
• If the dryer is electric, confirm the outlet has full 240V supply (a half-tripped breaker can cause “runs but no heat”)
• If the drum is noisy or hard to turn, address mechanical drag first (belt or rollers)

Why it matters

A restricted vent can overheat the heater housing and open the thermal cut-off or high-limit thermostat. Fixing airflow at the same time as the heating repair helps the new part last and restores normal dry times.

Last updated: February 2026

To reset your Samsung DV520AEW dryer, disconnect power for 5 to 10 minutes (unplug it or switch the breaker off), then restore power and start a cycle. This clears many temporary control glitches; if the same error returns, troubleshooting the cause is the real fix.

Reset steps (safe and effective)

• Turn the dryer off.
• Unplug the power cord, or switch the dryer circuit breaker OFF.
• Wait 5 to 10 minutes.
• Restore power.
• Select a timed cycle and press Start.
• If an error code returns, write it down before resetting again.

If the problem returns after a reset

A reset does not correct airflow restrictions or failed components. On DV520AEW, repeat errors commonly point to heating or airflow sensing issues.

• Clean the lint screen and lint housing.
• Confirm strong airflow at the outside vent hood.
• Inspect the vent run for kinks, crushed flex duct, or heavy lint buildup.
• If the dryer runs but heat is erratic, check temperature-sensing and safety devices.
• If the dryer squeals or thumps, inspect drum support and drive parts.

Common symptoms and likely next checks

What you notice	What to check first	Parts that often relate
No heat or weak heat	Airflow and heater circuit	Samsung dryer heating element assembly DC93-00154A
Overheats, shuts down, or trips safety	Venting, high-limit protection	Dryer high-limit thermostat DC47-00018A
Long dry times	Vent restriction, blower performance	Dryer blower wheel DC67-00180B
Loud thumping or squeal	Drum support and belt path	Samsung dryer drum support roller DC97-16782A

Why it matters

Resetting clears a temporary electronic fault, but the dryer will keep protecting itself when it senses unsafe temperatures or poor airflow. Fixing venting and replacing failed thermostats, fuses, or sensors prevents repeat shutdowns and improves drying performance.

For model-specific operating steps and any displayed code meanings, follow the DV520AEW owner's manual.

Last updated: February 2026
