Kenmore 10651554101 side-by-side refrigerator Parts

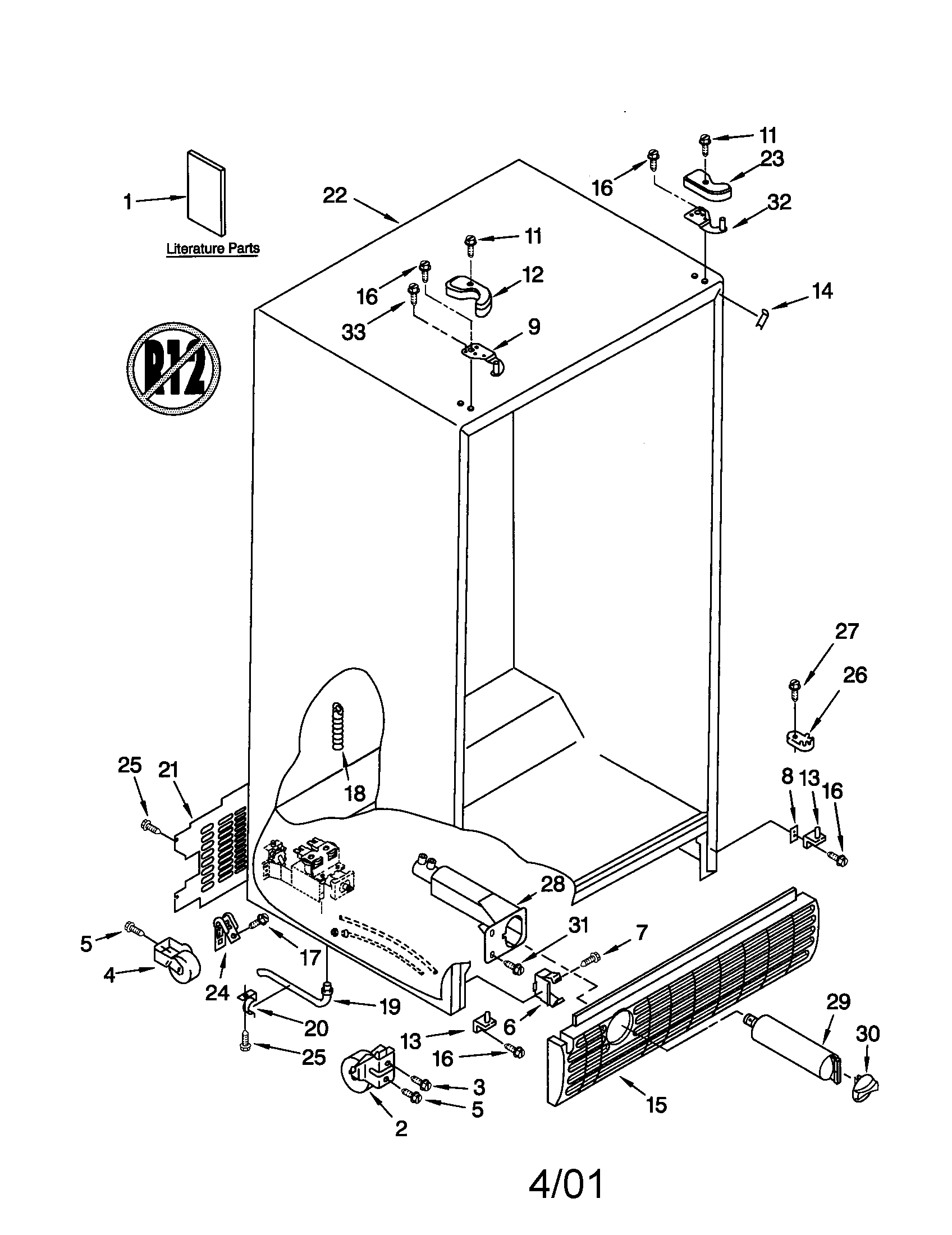

To clean the condenser coils on your Kenmore 10651554101 side-by-side refrigerator, unplug the refrigerator, access the coil area (typically behind the base grille), then gently brush and vacuum away dust so the unit can transfer heat properly and run efficiently. See the owner's manual for model-specific access details.

• Unplug the refrigerator or disconnect power at the breaker.
• Pull the refrigerator straight out enough to work safely (protect the floor).
• Remove the base grille if your model uses one (many 106-series designs place coils behind it).
• Use a coil brush to loosen lint and dust; work along the full length of the coil.
• Vacuum debris as you brush; use a crevice tool to reach tight areas.
• Reinstall the base grille, move the refrigerator back, then restore power.

Most households do best with coil cleaning every 6 to 12 months. Clean more often if you have pets, heavy kitchen dust, or the refrigerator is in a tight alcove.

Dirty condenser coils reduce heat transfer, which makes the compressor run longer. In the troubleshooting guidance for this style of refrigerator, dirty condenser coils are specifically called out as a cause of longer run times and reduced efficiency.

• Confirm both doors close fully and seal well.
• Listen for normal airflow and compressor operation after power is restored.
• If cooling is still weak after coil cleaning, check for airflow issues and consider inspecting the condenser fan (a common companion issue on side-by-side units).

If you need replacement parts while you troubleshoot, you can order parts for Kenmore 10651554101 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

On a Kenmore 10651554101 side-by-side refrigerator, “not cooling” is most often caused by a power issue, controls set to OFF or too warm, blocked air vents that stop airflow between compartments, or the unit being in an automatic defrost cycle. Use the checks below before replacing parts; see the owner's manual for control and airflow details.

• Confirm the power cord is fully plugged into a grounded 3-prong outlet.
• Check the house breaker or fuse; reset or replace if tripped.
• Make sure the refrigerator and freezer controls are not set to OFF and are set cold enough.
• Look for blocked air vents in either compartment; move food packages away from vent openings.
• If the refrigerator was just installed or recently loaded with warm food, allow up to 24 hours to stabilize.
• Wait 30 minutes and recheck if you suspect it is in a defrost cycle (cooling pauses during defrost).

If the basic checks pass and temperatures still climb, these parts are common suspects on side-by-side refrigerators:

• Defrost system components that prevent heavy frost buildup (frost can choke airflow), such as the refrigerator defrost bi-metal WPW10225581 or refrigerator heater WP2323198.

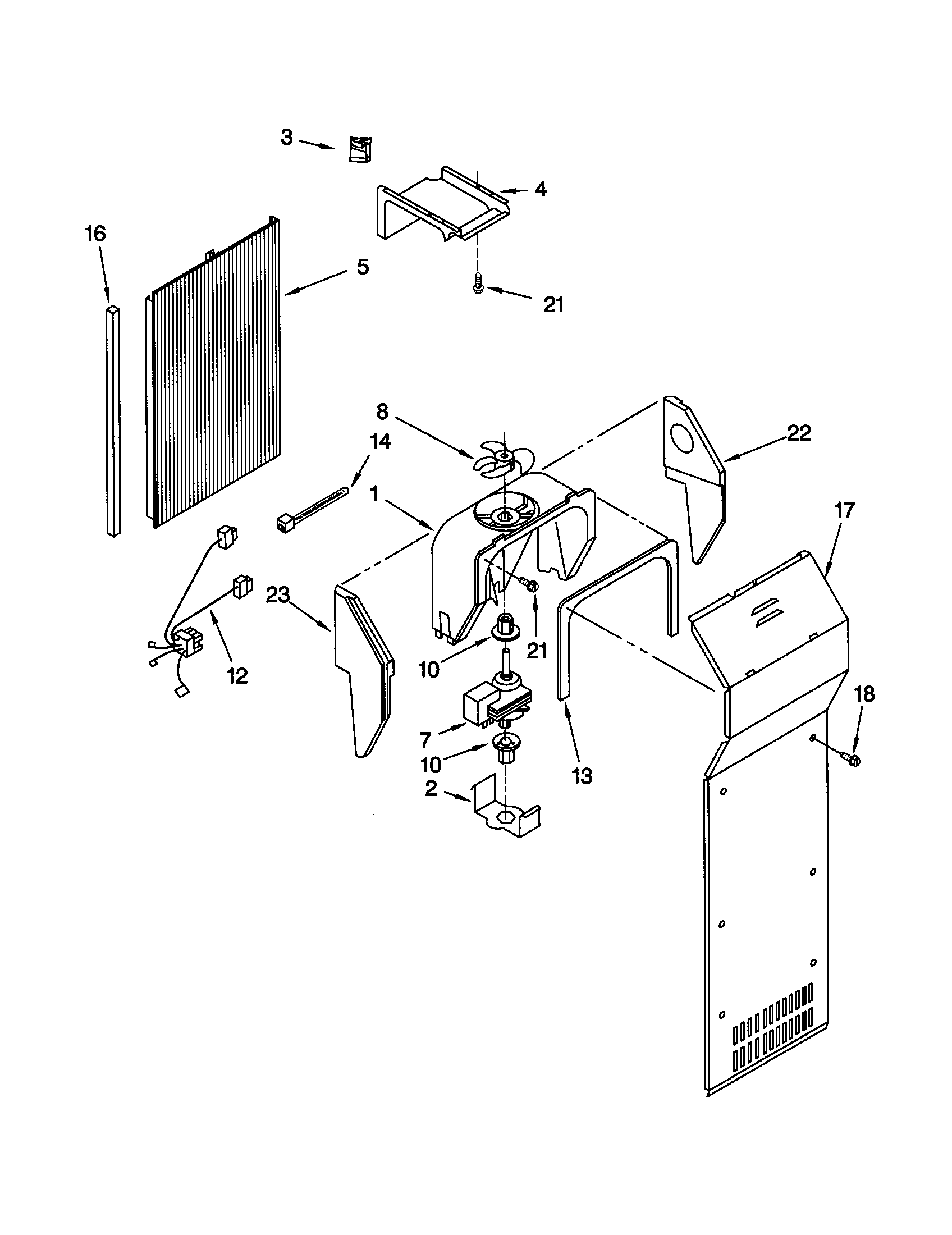

• A failed evaporator fan (you may hear abnormal fan noise or notice weak airflow); the fan blade is refrigerator evaporator fan blade WP2169142.
• A water system issue does not usually stop cooling, but if you are troubleshooting multiple symptoms (no ice plus warm temps), check the refrigerator inlet valve W10408179 and ice maker system.

Cooling problems are often airflow or settings related; fixing those first prevents unnecessary part replacement and helps protect food safety. If you do need parts for Kenmore 10651554101, we list model-matched options on the parts list for this model, and you can also search by model number on Sears PartsDirect.

Last updated: February 2026

For Kenmore model 10651554101, the most accurate way to get cubic feet (total capacity) is to use the model and serial label inside the fresh food compartment and then confirm the listed capacity in the owner's manual. Capacity can vary by configuration, so the label and manual are the best match for your exact unit.

Check these spots in this order:

• Model and serial number label on the inside wall of the refrigerator compartment (this is the quickest, most reliable reference)
• Specifications section in the owner's manual
• If you are comparing fit or replacement, measure your cabinet opening and allow the installation clearances shown in the manual (capacity alone does not guarantee fit)

Cubic feet is the interior storage volume, not the outside size. Two refrigerators can have similar cubic feet but different shelf layout, ice maker space, and door bin capacity.

Knowing the exact cubic feet for 10651554101 helps us match the right storage expectations and avoid fit surprises, especially if you are planning a replacement or troubleshooting temperature and airflow issues (overpacking can restrict circulation).

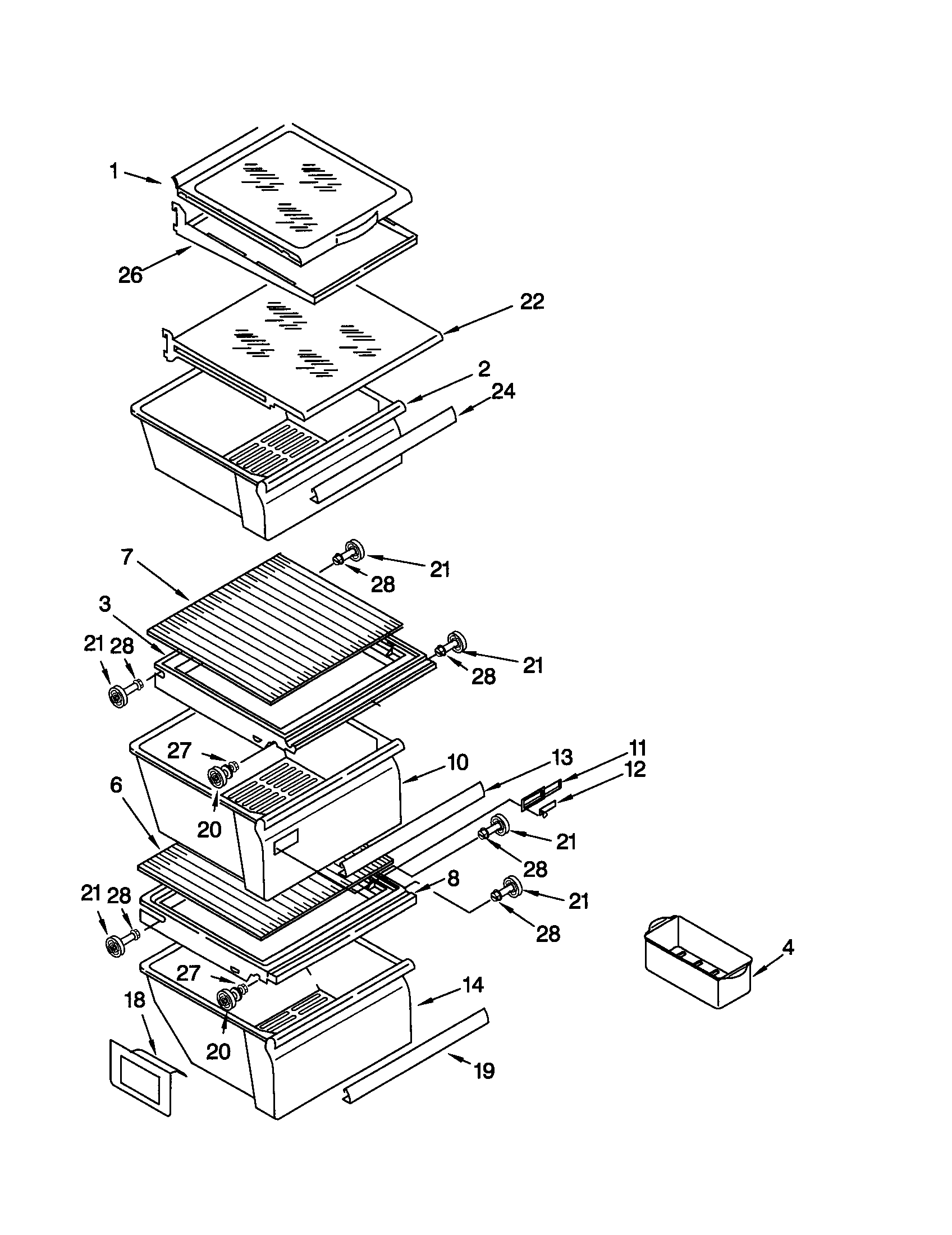

If your “capacity” feels smaller than expected, broken or missing storage components can be the reason. Common space-related replacements for this model include:

• Refrigerator crisper pan WP2188656 (damaged or missing crisper reduces usable produce storage)
• Refrigerator meat pan WP2188664 (restores deli drawer space)
• Refrigerator glass shelf WPW10141748 (restores shelf area and stability)

If you need to order any of these, you can use the parts list for model 10651554101 or search by model number on Sears PartsDirect.

Last updated: February 2026

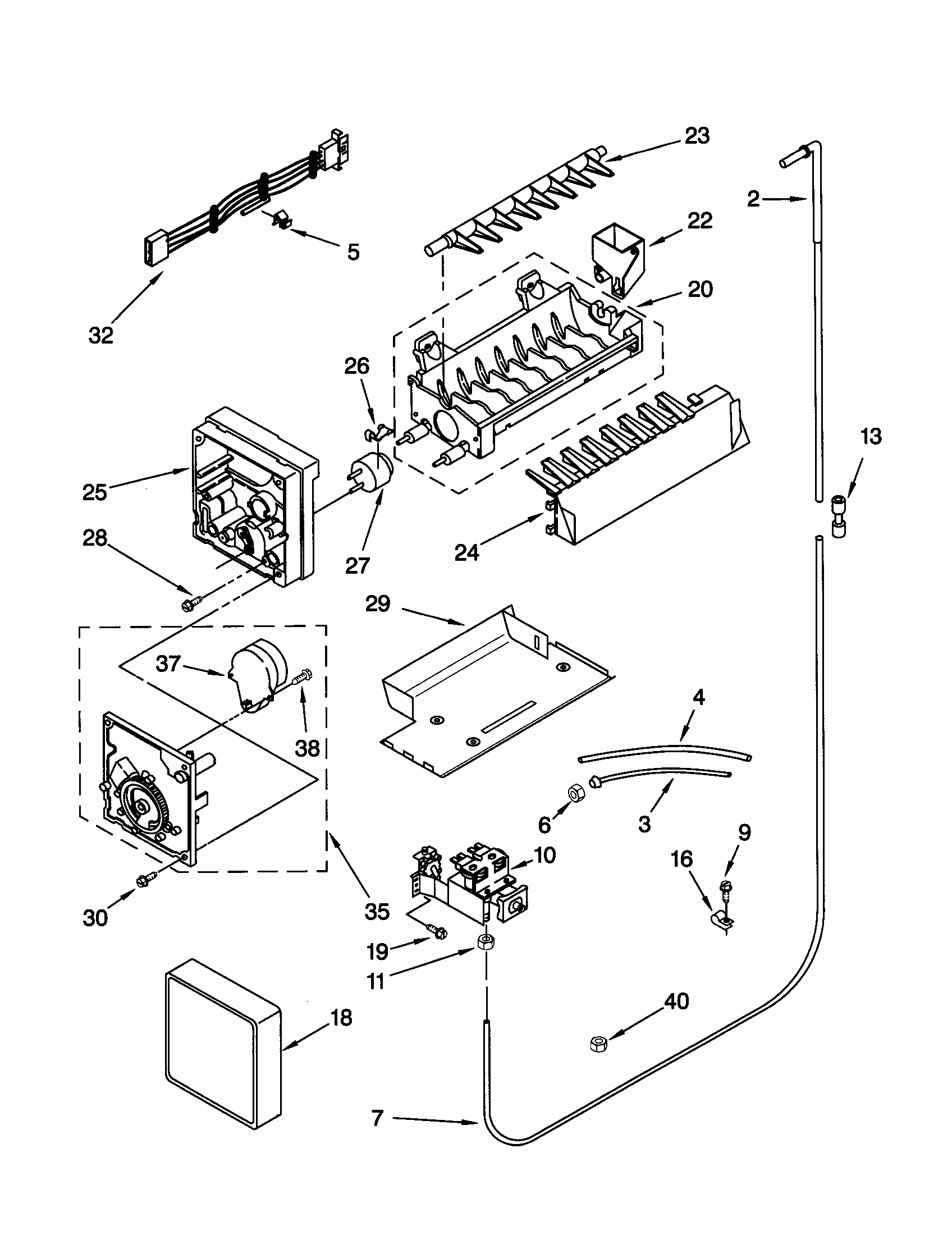

To replace the ice maker in your Kenmore 10651554101 side-by-side refrigerator, we turn ice production OFF, remove the ice bin or bucket, disconnect the ice maker wiring and mounting screws, then install the new assembly and turn ice production back ON. Use the 10651554101 owner's manual to match your ice bin style.

• Unplug the refrigerator or switch off power at the breaker.
• Shut off the water supply to the refrigerator.
• Empty the ice bin or door bucket.
• Keep the freezer door closed as much as possible.

The manual shows two common setups:

1. With ice production OFF, remove the bin or bucket.
2. Remove the ice maker mounting screws.
3. Unplug the wiring harness connector.
4. Lift the ice maker out.
5. Install the replacement, reconnect the harness, and tighten screws.
6. Reinstall the bin or bucket fully (the dispenser will not work if the bin is not seated).
7. Restore water and power; turn the ice maker back ON.

If you are replacing the complete unit, use the model-matched refrigerator ice maker assembly 2198597. For additional parts for this refrigerator, order from the parts list on the model page or search by model number on Sears PartsDirect.

• Normal ice production: 7 to 9 batches in 24 hours.
• Maximum ice production (on some models): 10 to 14 batches in 24 hours.
• If ice is slow, adjust the freezer control colder in small steps and wait 24 hours between changes.

Most “no ice” complaints after a replacement come from the ice maker being left OFF, the bucket removed, or the bin not pushed in all the way.

Last updated: February 2026

Common Kenmore Elite refrigerator problems are loss of cooling, ice maker or water dispenser failures, and water leaks. On Kenmore model 10651554101, these issues most often trace back to airflow restrictions, a defrost problem, a clogged or misinstalled water filter, or a water supply/valve issue; our owner's manual troubleshooting section covers the key checks.

• Not cooling or warm temperatures: dirty condenser coils, blocked air vents, evaporator fan issues, or a defrost system failure
• Ice maker not making ice: clogged filter, low water pressure, frozen fill path, or ice maker component failure
• Water leaking or puddles: blocked/iced drain, loose water line connections, or inlet valve seepage
• Runs too much: hot room temperature, dirty coils, door not sealing, frequent door openings
• Lights not working: loose or burned-out bulb (the manual calls this out directly)

1. Confirm power and controls: the manual notes checking the cord, breaker/fuse, and that the control is not set to OFF.
2. Give it time after a defrost cycle: the manual notes automatic defrost and rechecking operation after about 30 minutes.
3. Check airflow: make sure vents inside the refrigerator and freezer are not blocked by food packages.
4. If ice or water is the issue, inspect the filter: the manual notes a clogged or incorrectly installed filter can reduce water flow.
5. Look for obvious water supply problems: kinked tubing, loose fittings, or a slow fill.

Cooling, ice production, and leak complaints are usually connected. A defrost or airflow problem can warm the fresh food section, while a water flow restriction (filter or valve) can stop ice production and cause dispenser issues.

We list model-matched parts for 10651554101 on this page; for broader model searches and ordering, use Sears PartsDirect.

Last updated: February 2026
