Model #A7500 Maytag washer/dryer

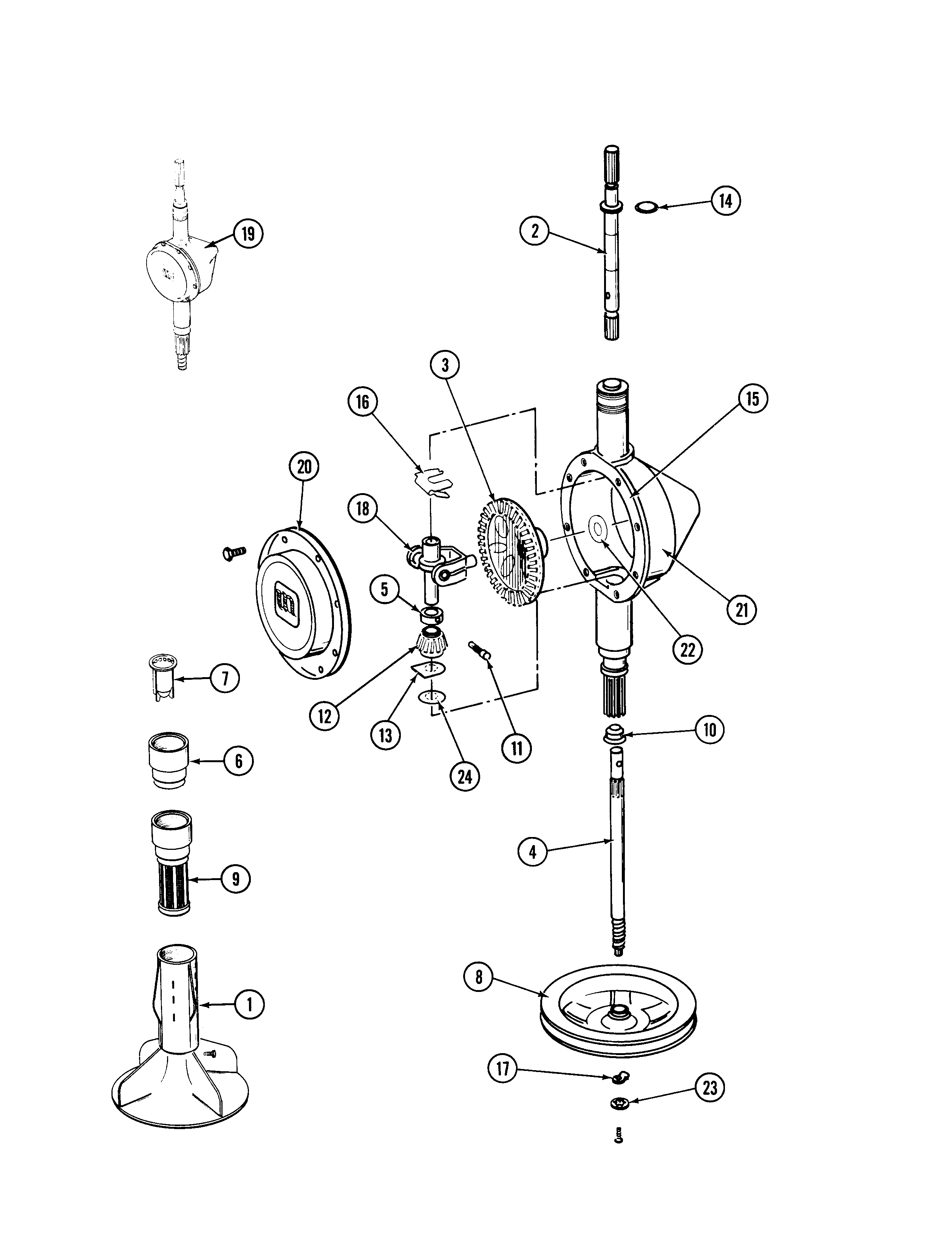

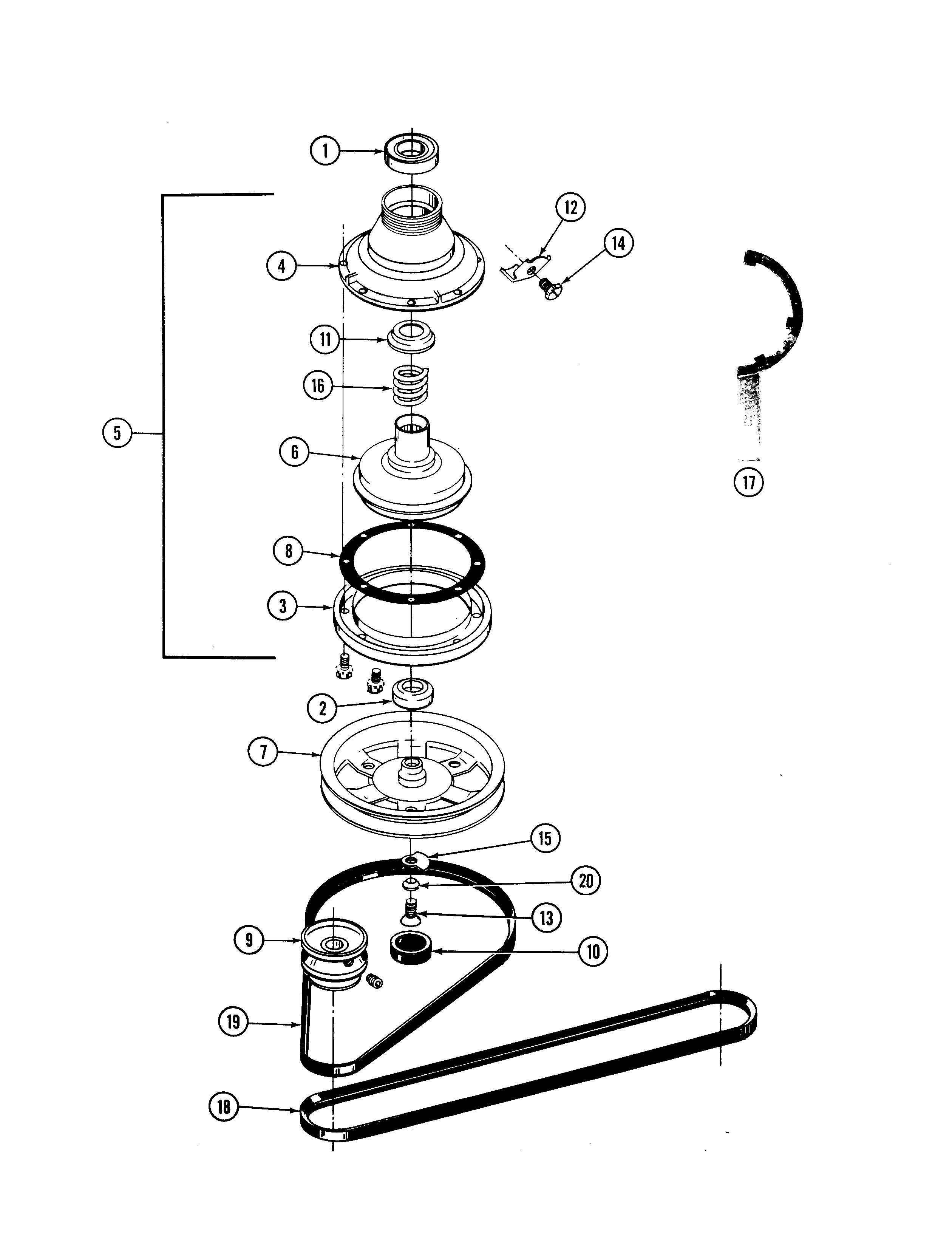

Here are the diagrams and repair parts for Maytag A7500 washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 266 parts

Washer Water Inlet Valve

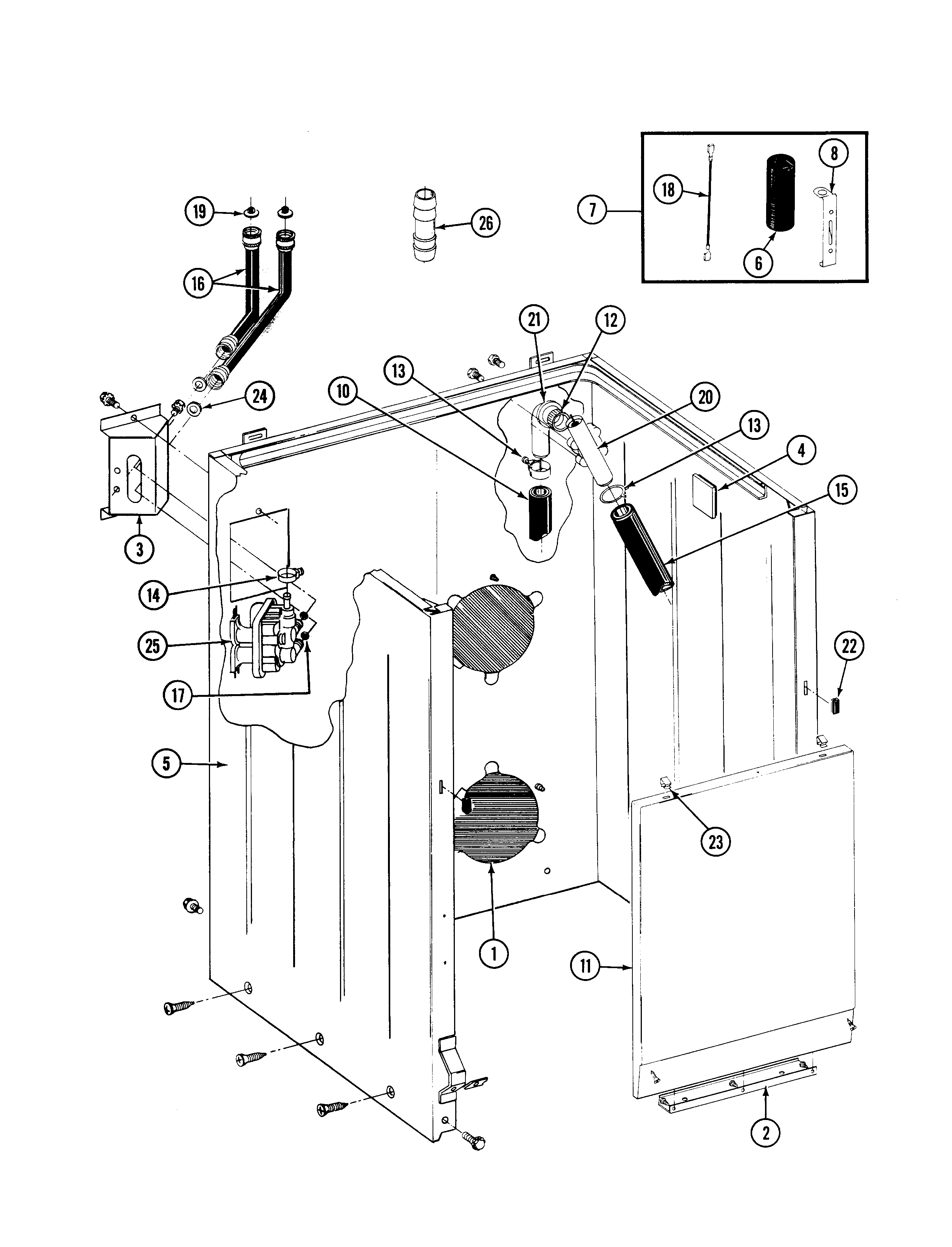

Cabinet, water valve, hoses & frnt panel Diagram


In Stock

Washer Damper Pad Kit

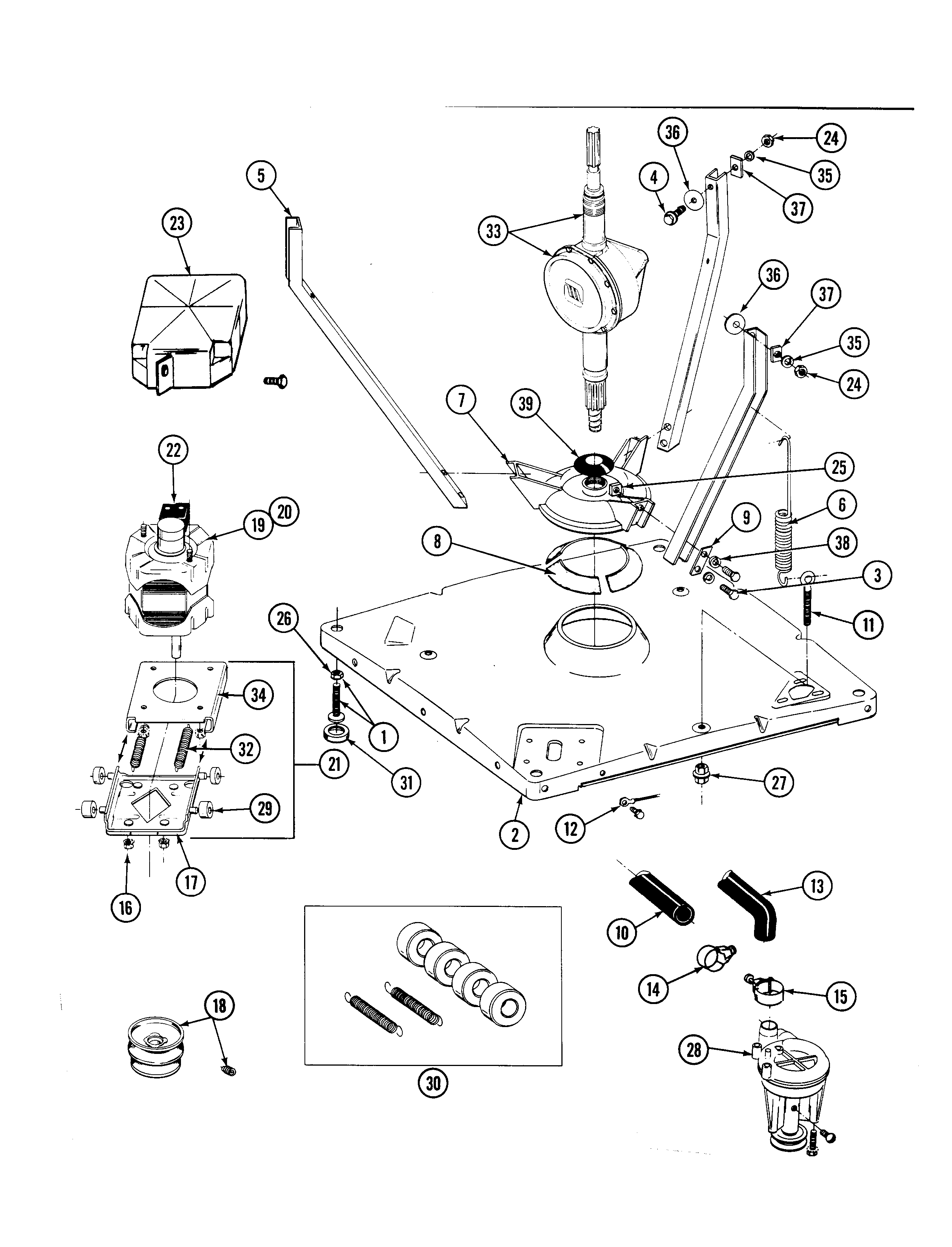

Base, pump, motor & components Diagram


In Stock

Refrigerator Screw

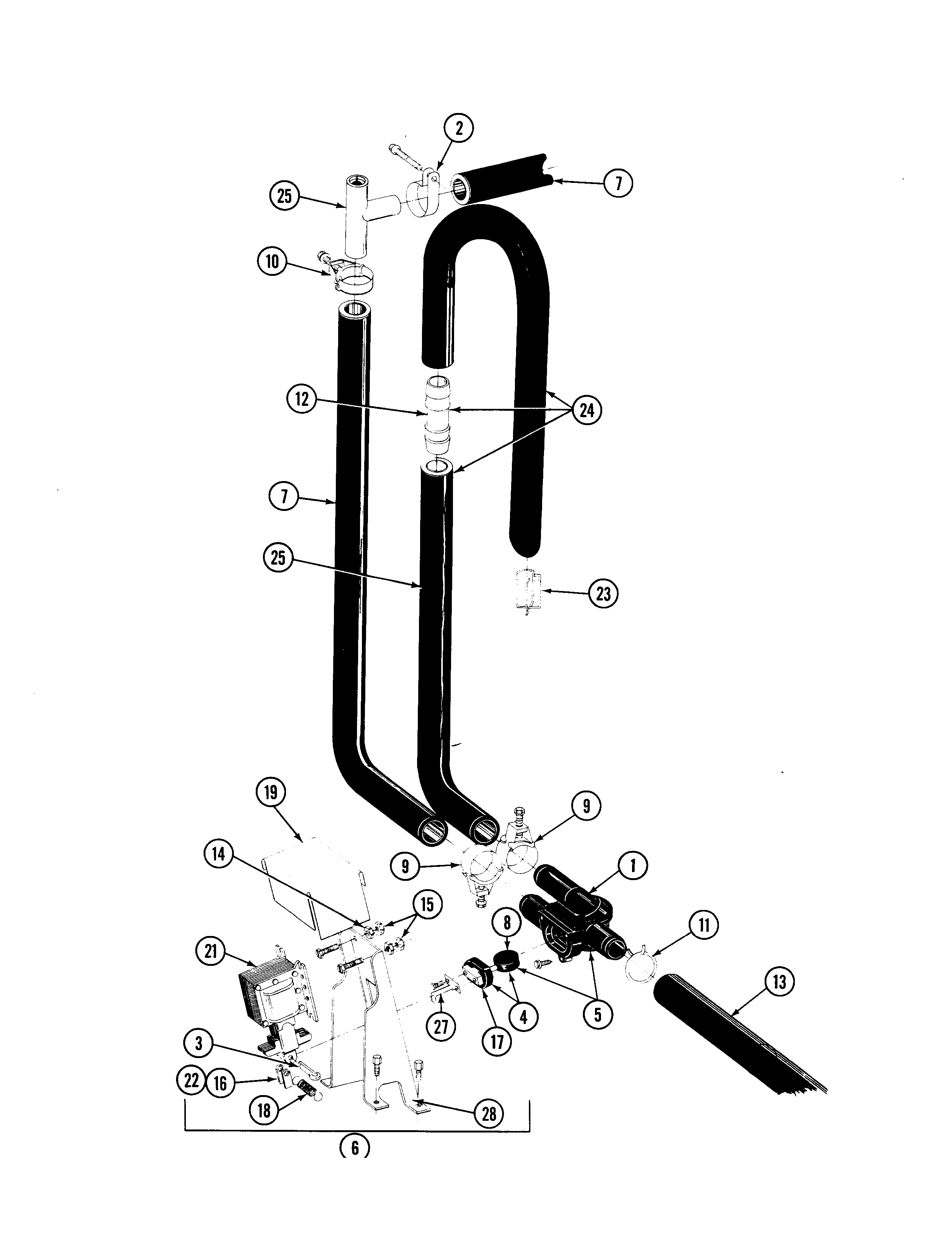

Water saver components Diagram

Refrigerator screw

Part #WP489128
This item is not returnable

In Stock

Washer Motor Tension Spring Set


Base, pump, motor & components Diagram

Washer motor tension spring set

Part #202718
This item is not returnable

In Stock

Timer Knob

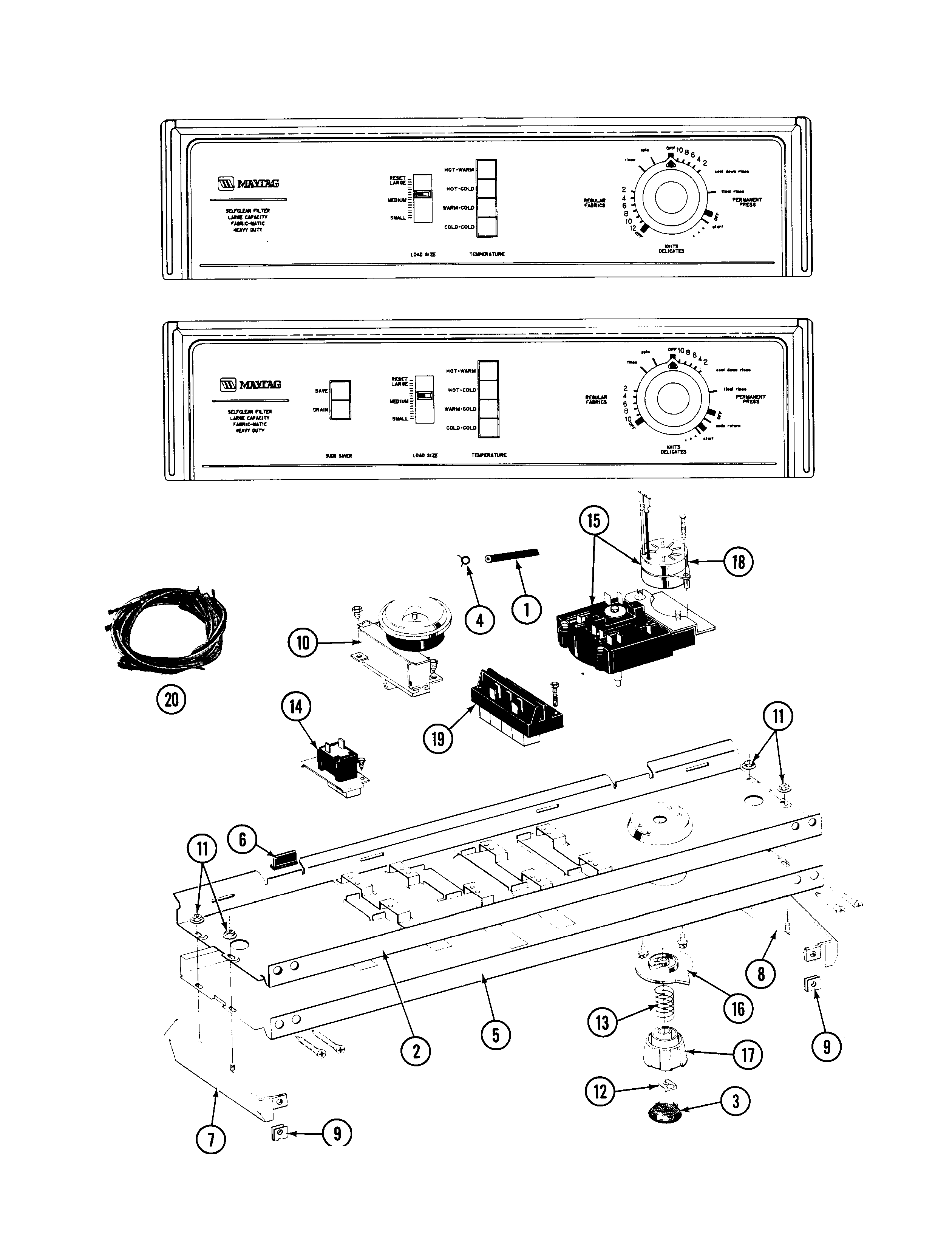

Control panel Diagram

Timer knob

Part #215828

In Stock

Cabinet Screw


Cabinet, water valve, hoses & frnt panel Diagram

Cabinet screw

Part #213007

In Stock

Washer Moter Mount Roller and Spring Kit


Base, pump, motor & components Diagram

29% OFFMSRP:$33.28

In Stock

Washer Siphon Break


Cabinet, water valve, hoses & frnt panel Diagram

Washer siphon break

Part #206638
12% OFFMSRP:$33.00

In Stock

Washer Lint Filter

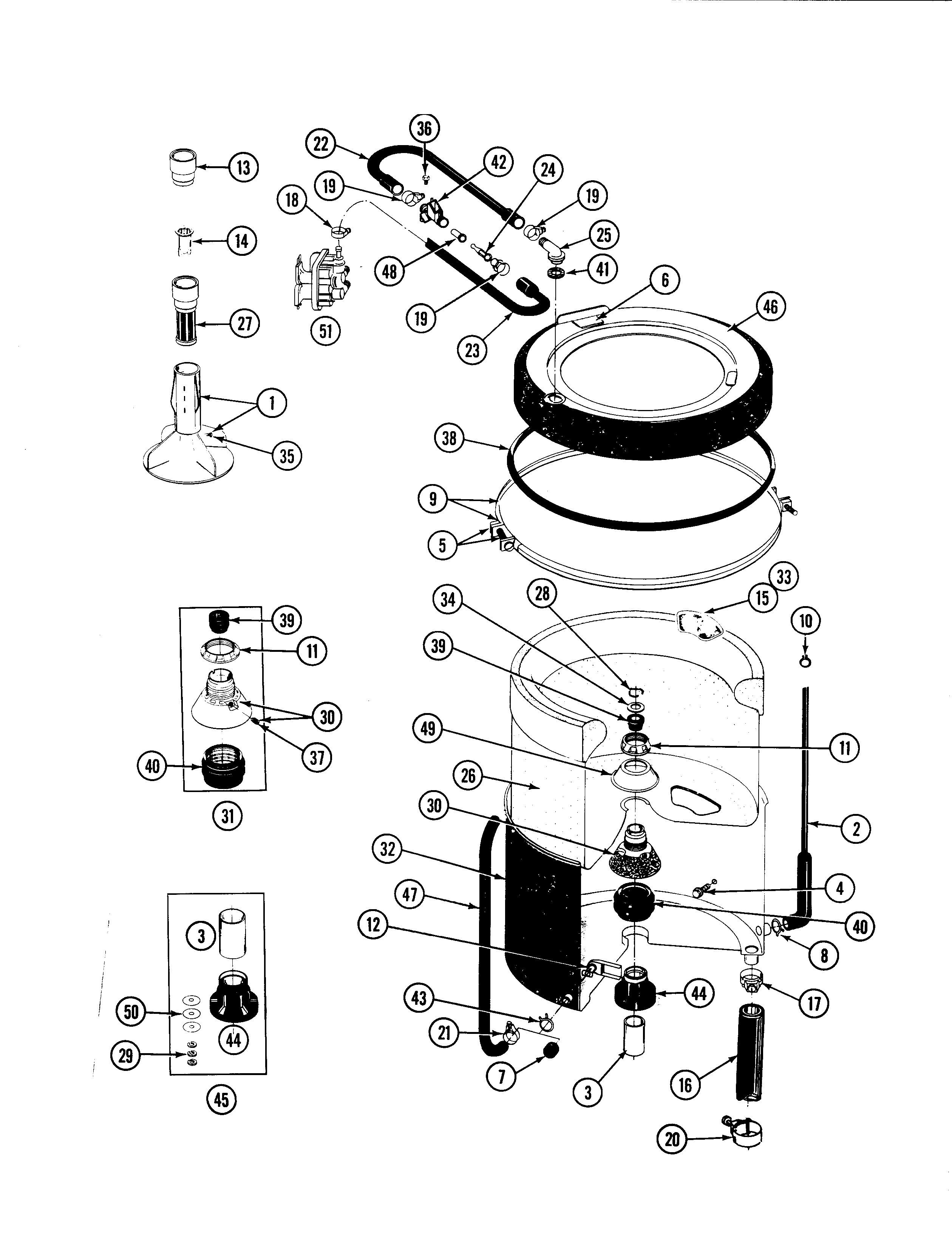

Tub, agitator, mounting stem & seal Diagram

Washer lint filter

Part #207219
16% OFFMSRP:$55.00

In Stock

Washer Fuse Holder

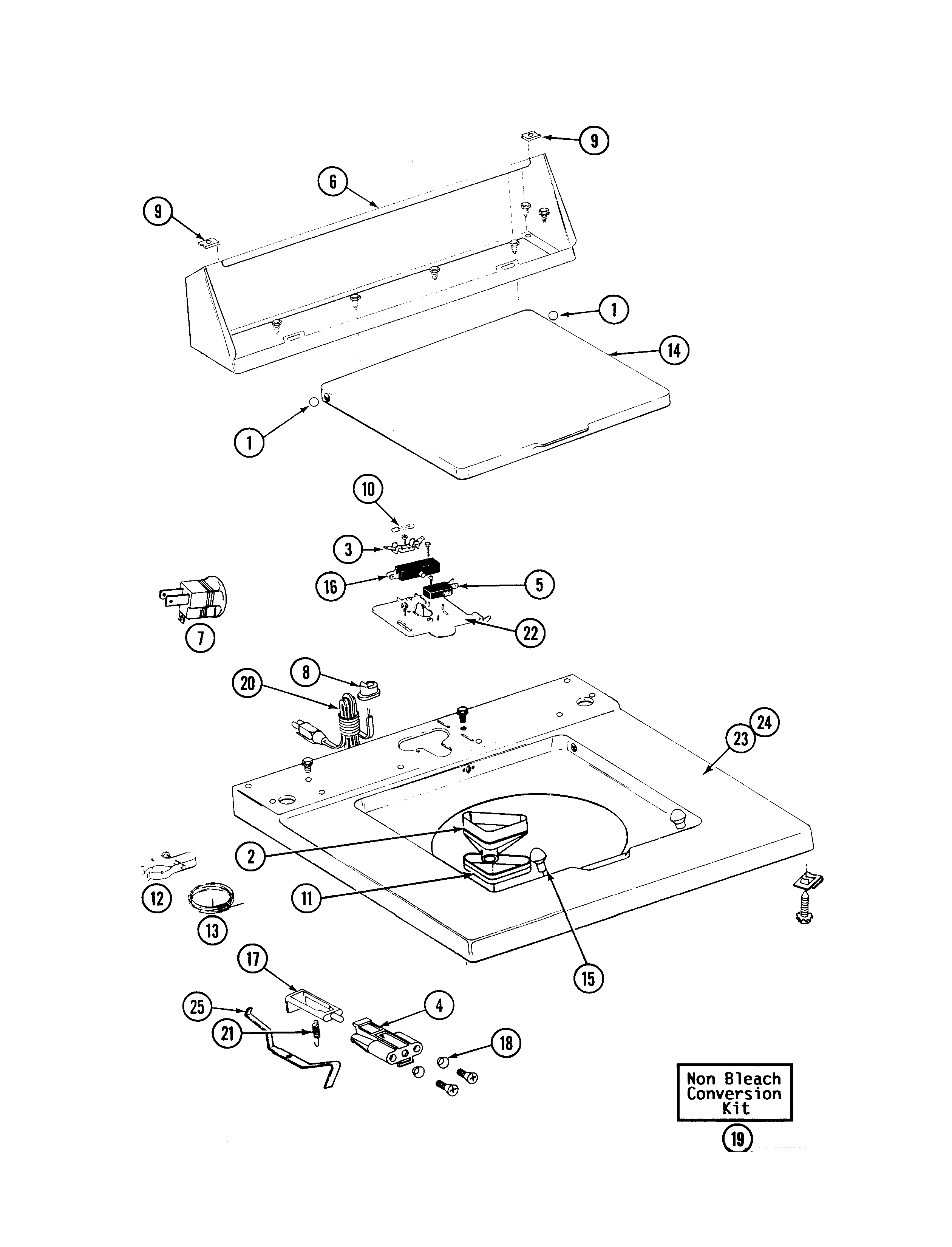

Top cover, console & lid switch Diagram

Washer fuse holder

Part #207167
5% OFFMSRP:$27.00

In Stock

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
