Model # GTDP220GF2WW Official GE gas dryer

Here are the diagrams and repair parts for Official GE GTDP220GF2WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

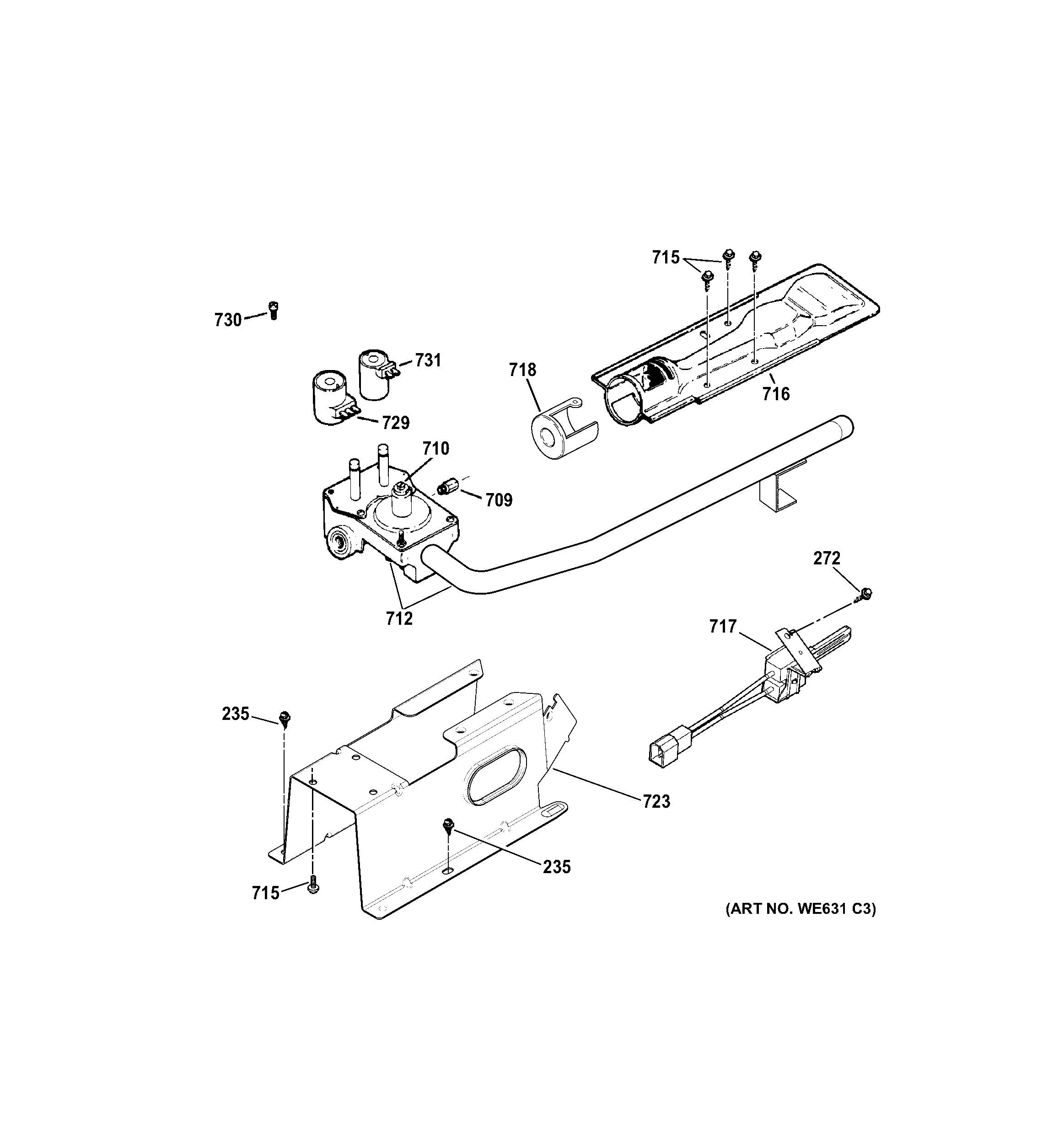

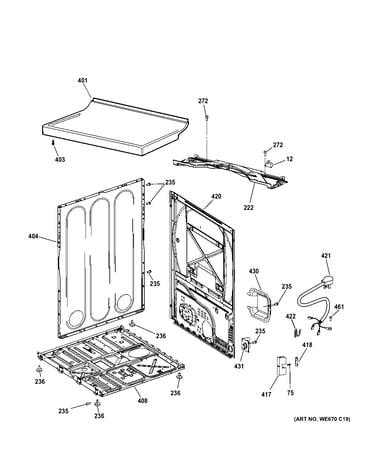

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Dryer Drum Front Glide Pad (replaces We1m333) WE1M504
#317

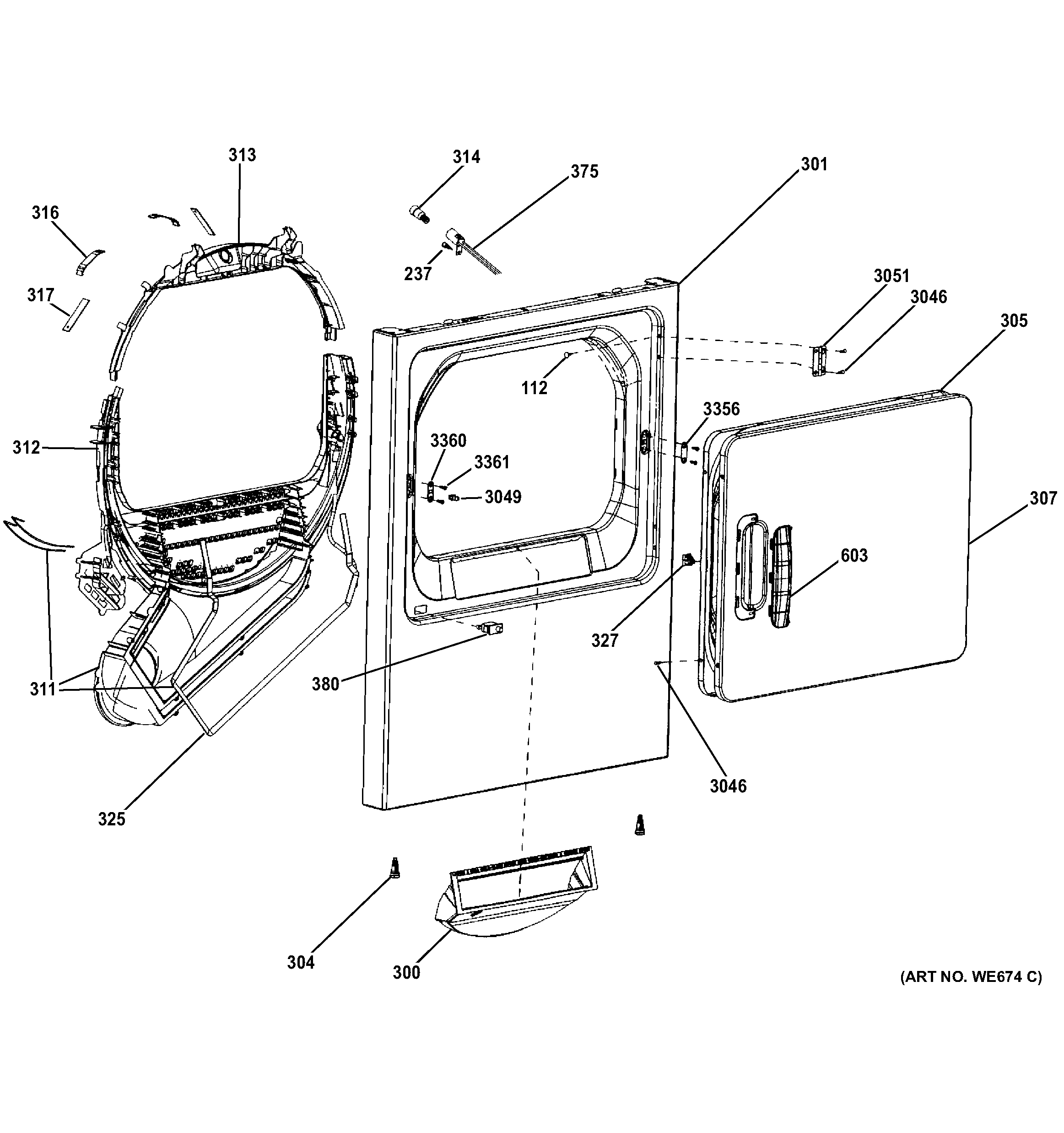

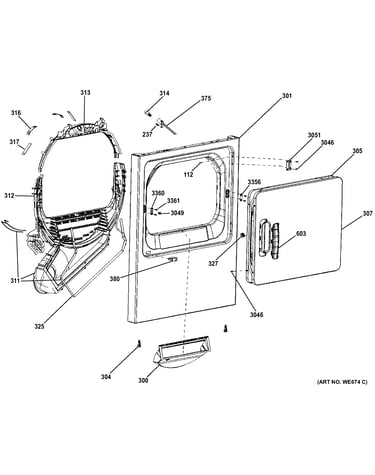

Front panel & door diagram

Dryer drum front glide pad (replaces we1m333)

Part #WE1M504

BEST SELLER
$18.21 |
10% OFF Phone Price : $20.21
In Stock
Dryer Drum Front Glide Pad (replaces We01m1067, We1m507) WE1M1067
#316

Front panel & door diagram

Dryer drum front glide pad (replaces we01m1067, we1m507)

Part #WE1M1067

BEST SELLER
$13.98 |
13% OFF Phone Price : $15.98
In Stock
Felt WE9M30
#312

Front panel & door diagram

Felt

Part #WE9M30

Replaced by #WE09X27634

?
Manufacturer substitution
This part replaces WE9M30. Substitute parts can look different from the original.
BEST SELLER
$7.77 |
11% OFF Phone Price : $8.77
In Stock
Kenmore Dryer Rear Bearing WE1M462
#3106

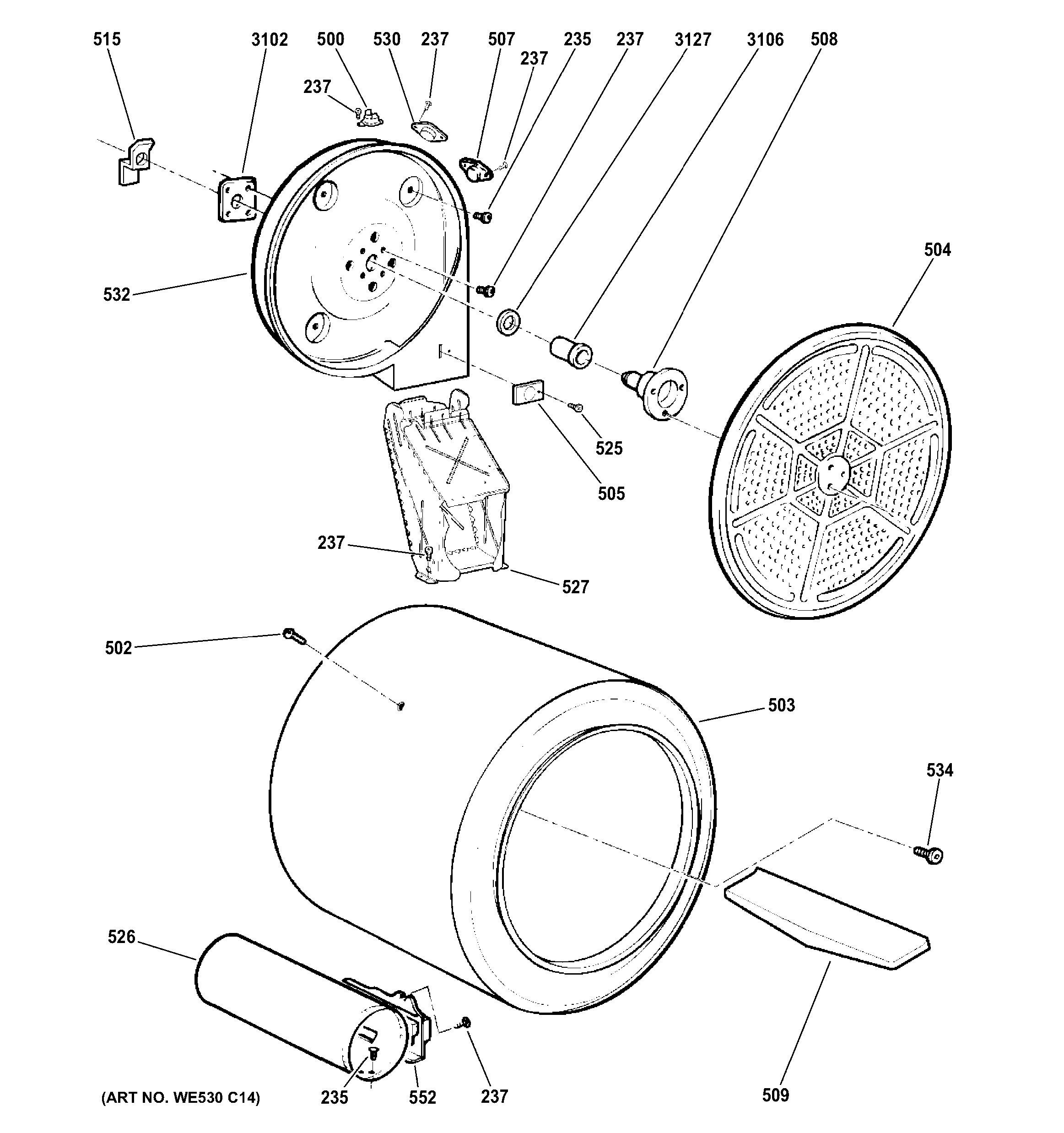

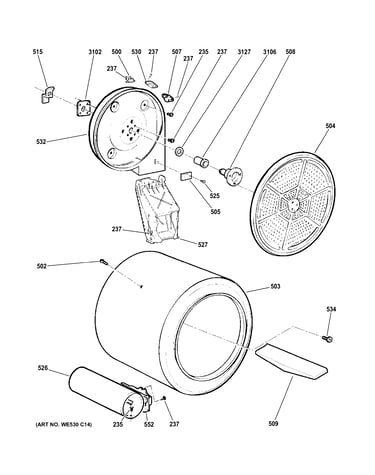

Drum diagram

Kenmore dryer rear bearing

Part #WE1M462

BEST SELLER
$25.54 |
19% OFF Phone Price : $31.54
In Stock
Dryer High-limit Thermostat (replaces We03m0026, We3m20, We4m457) WE4M137
#500

Drum diagram

Dryer high-limit thermostat (replaces we03m0026, we3m20, we4m457)

Part #WE4M137

BEST SELLER
$78.01 |
7% OFF Phone Price : $84.01
In Stock
Idler Pulley WE12M8
#216

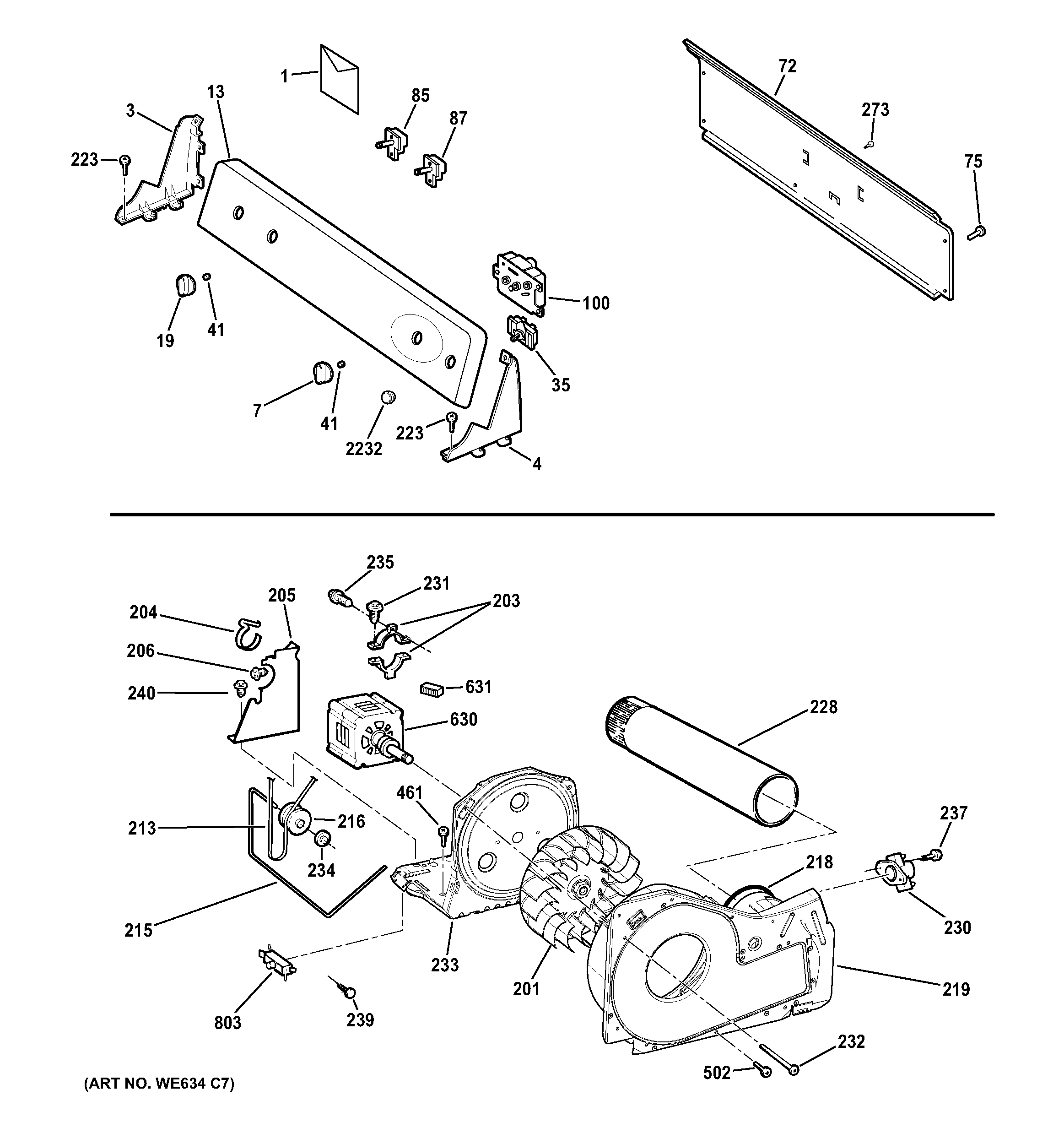

Backsplash, blower & drive assembly diagram

Idler pulley

Part #WE12M8

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12M8. Substitute parts can look different from the original.
BEST SELLER
$27.51 |
18% OFF Phone Price : $33.51
In Stock
Air Duct Assembly WE14M92
#311

Front panel & door diagram

Air duct assembly

Part #WE14M92

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14M92. Substitute parts can look different from the original.
BEST SELLER
$88.65 |
6% OFF Phone Price : $94.65
In Stock
Kenmore Dryer Rear Bearing O-ring WE1M461
#3127

Drum diagram

Kenmore dryer rear bearing o-ring

Part #WE1M461

BEST SELLER
$7.63 |
12% OFF Phone Price : $8.63
In Stock
Dryer Blower Wheel WE16M17
#201

Backsplash, blower & drive assembly diagram

Dryer blower wheel

Part #WE16M17

Replaced by #WE16X20393

?
Manufacturer substitution
This part replaces WE16M17. Substitute parts can look different from the original.
BEST SELLER
$42.32 |
12% OFF Phone Price : $48.32
In Stock
Knob And Cli WE01X20432
#19

Backsplash, blower & drive assembly diagram

Knob and cli

Part #WE01X20432

Replaced by #WE01X20378

?
Manufacturer substitution
This part replaces WE01X20432. Substitute parts can look different from the original.
BEST SELLER
$30.33 |
17% OFF Phone Price : $36.33
In Stock
