What is the most common problem with a Whirlpool refrigerator?
The most common Whirlpool refrigerator problem is a cooling complaint: the fridge is warm, the freezer is warm, or the unit runs constantly. On the Whirlpool GD5SHAXLQ01, the next most common issues are ice maker and water dispenser problems tied to water supply, filtration, or the water inlet valve. See the GD5SHAXLQ01 owner's manual for operating guidelines and specifications.

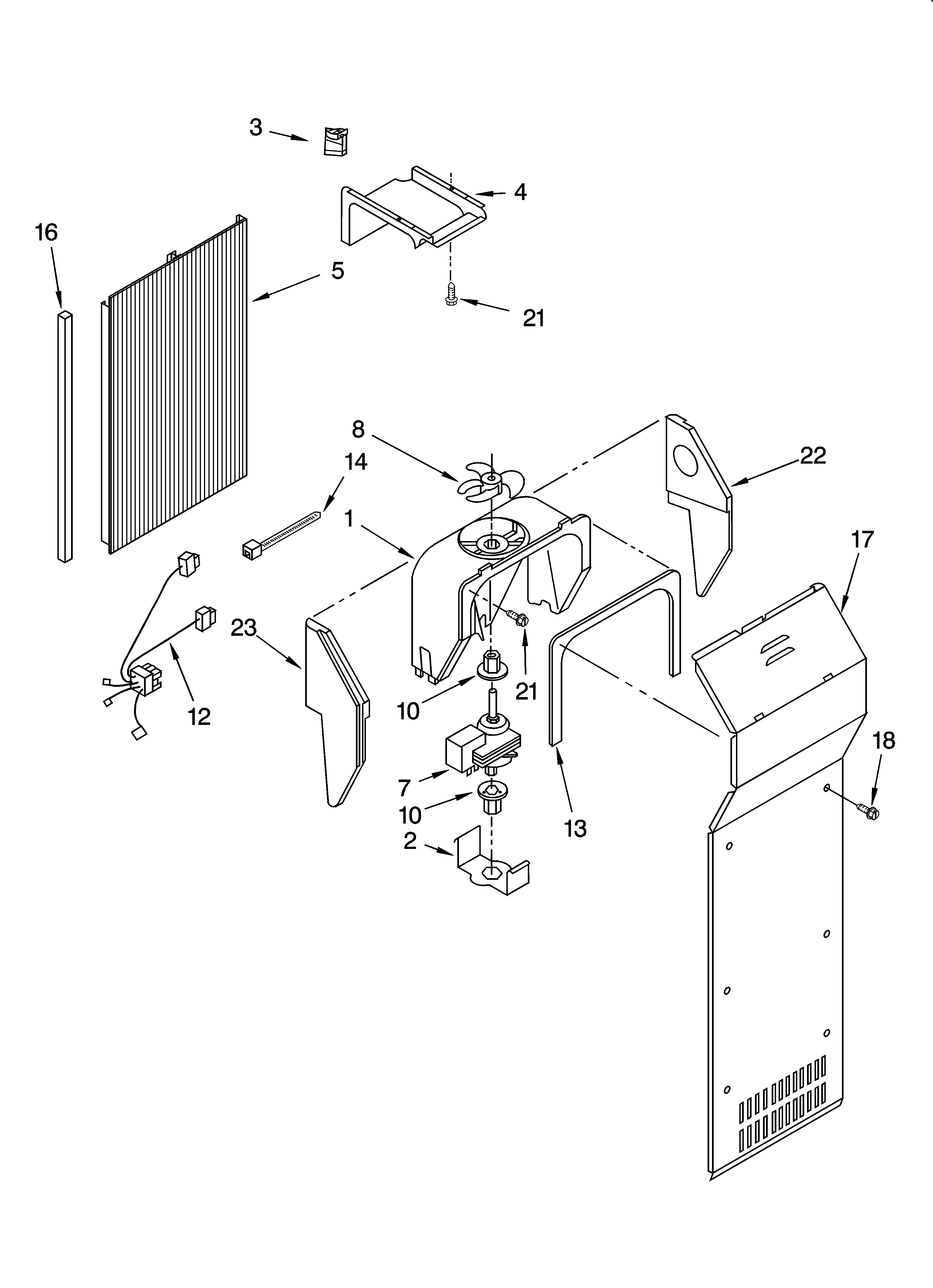

- Not cooling or weak cooling: dirty condenser coils, airflow blocked by food, evaporator fan issue, or a defrost system problem

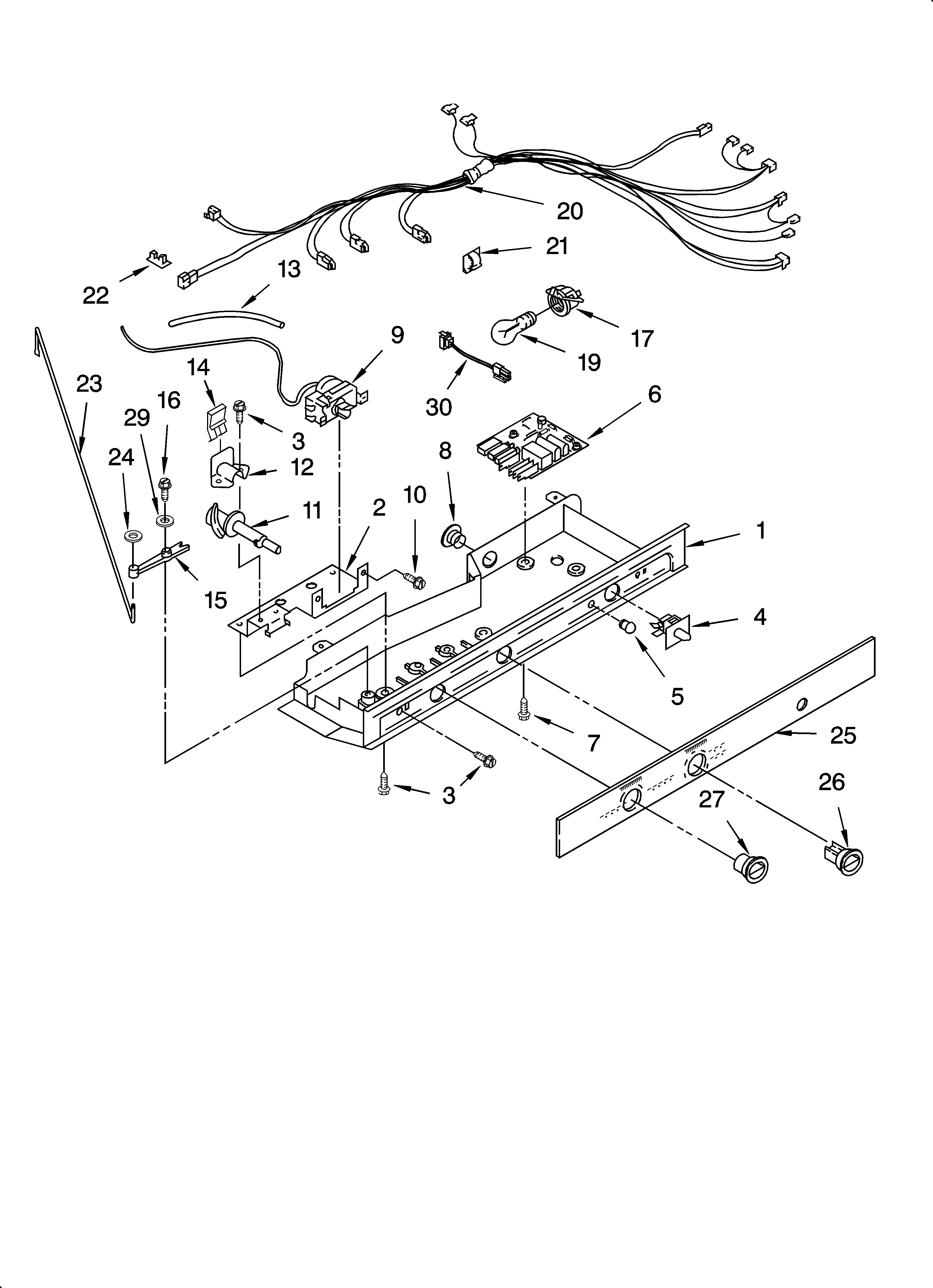

- Runs all the time: coils need cleaning, doors not sealing, thermostat/control issue, or warm room conditions

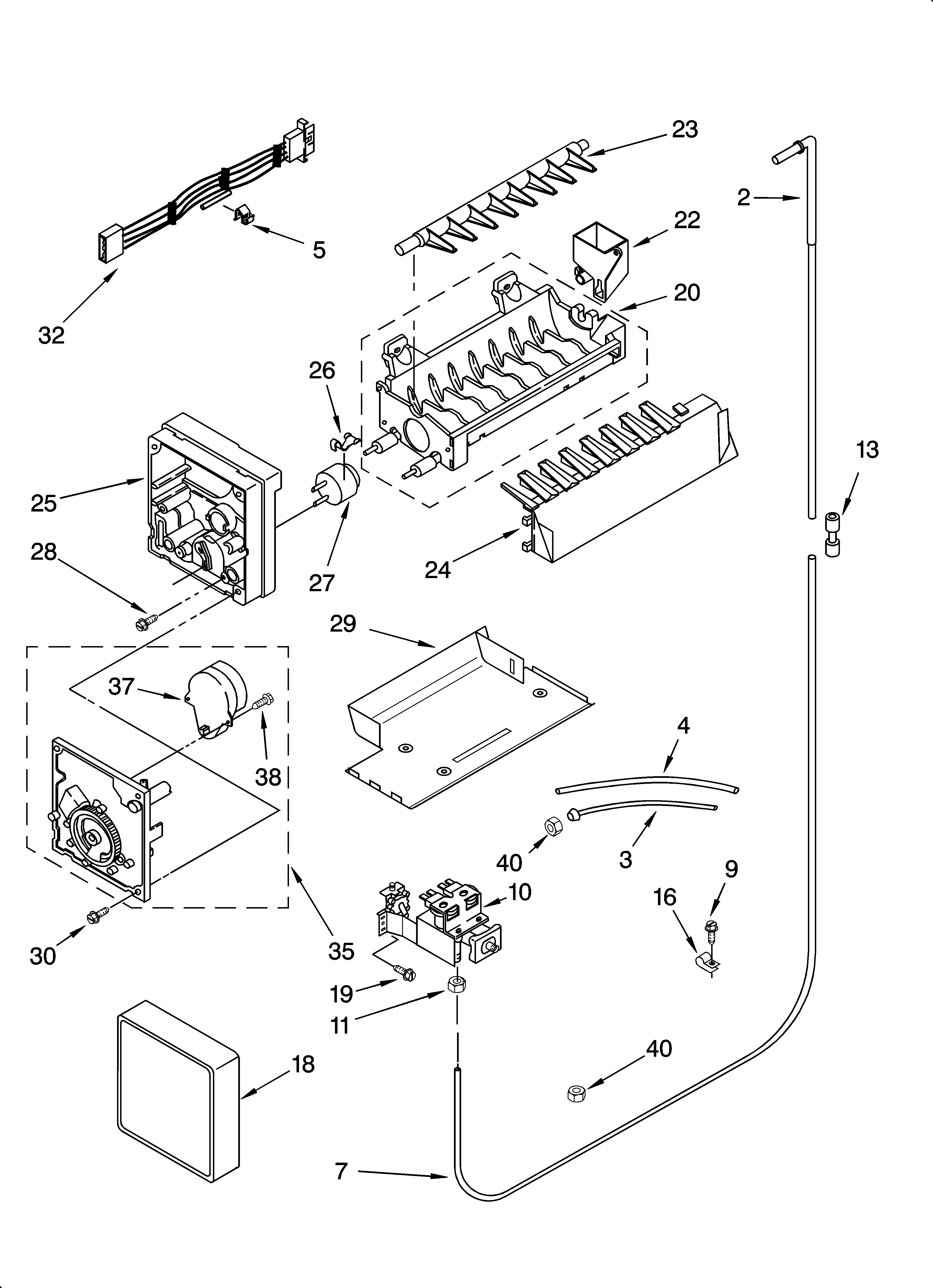

- Ice maker not making ice: low water pressure, frozen fill tube, inlet valve problem, or ice mold issue

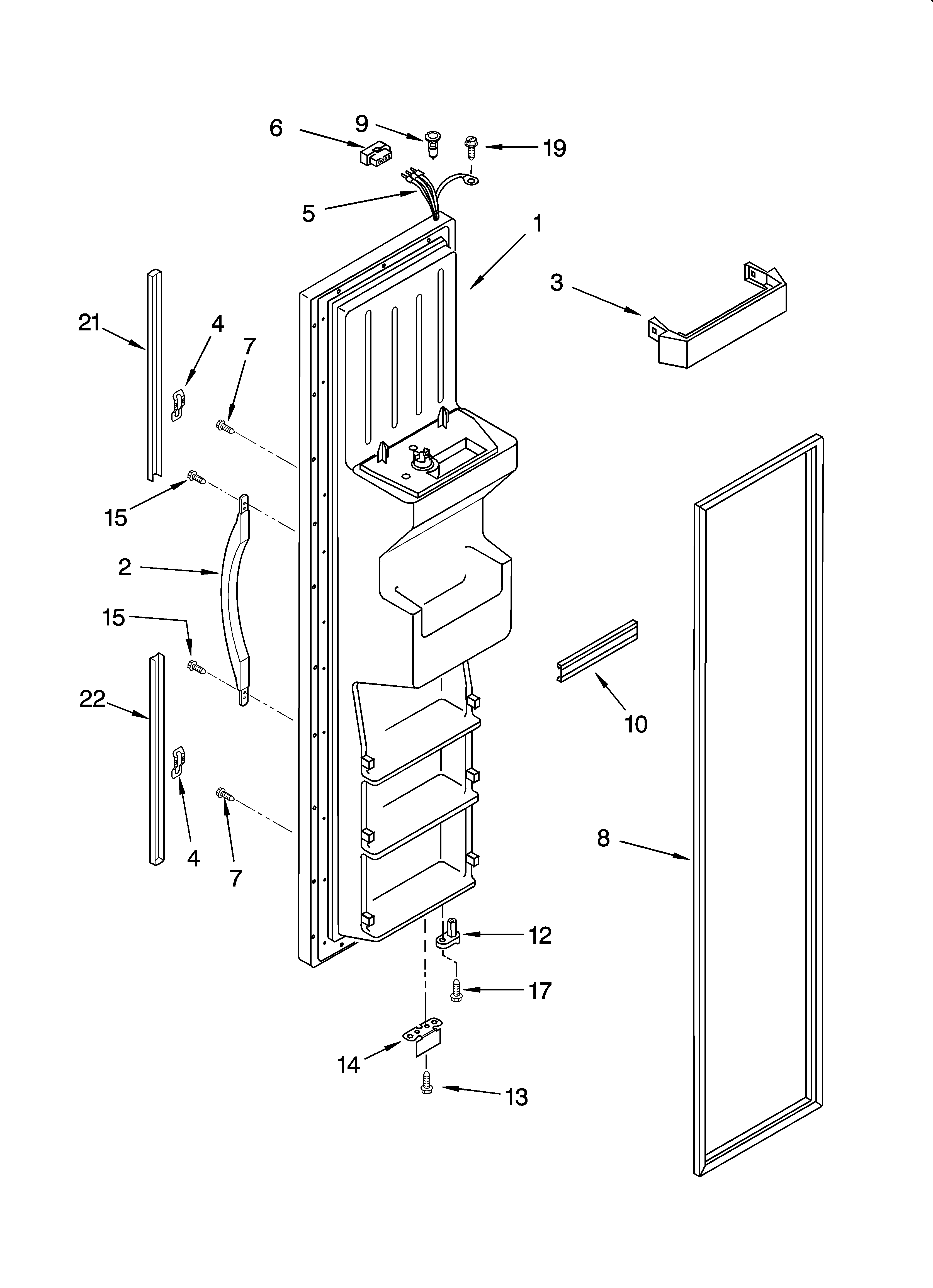

- Water dispenser slow or not dispensing: restricted filter/housing, air in the line, or inlet valve issue
- Frost buildup on freezer back wall: defrost heater or defrost bi-metal problem
- Confirm temperature settings and allow 24 hours after any adjustment.
- Make sure vents inside both compartments are not blocked.
- Clean condenser coils and verify the unit has proper airflow around it.
- For dispenser/ice issues, confirm household water supply meets typical requirements.

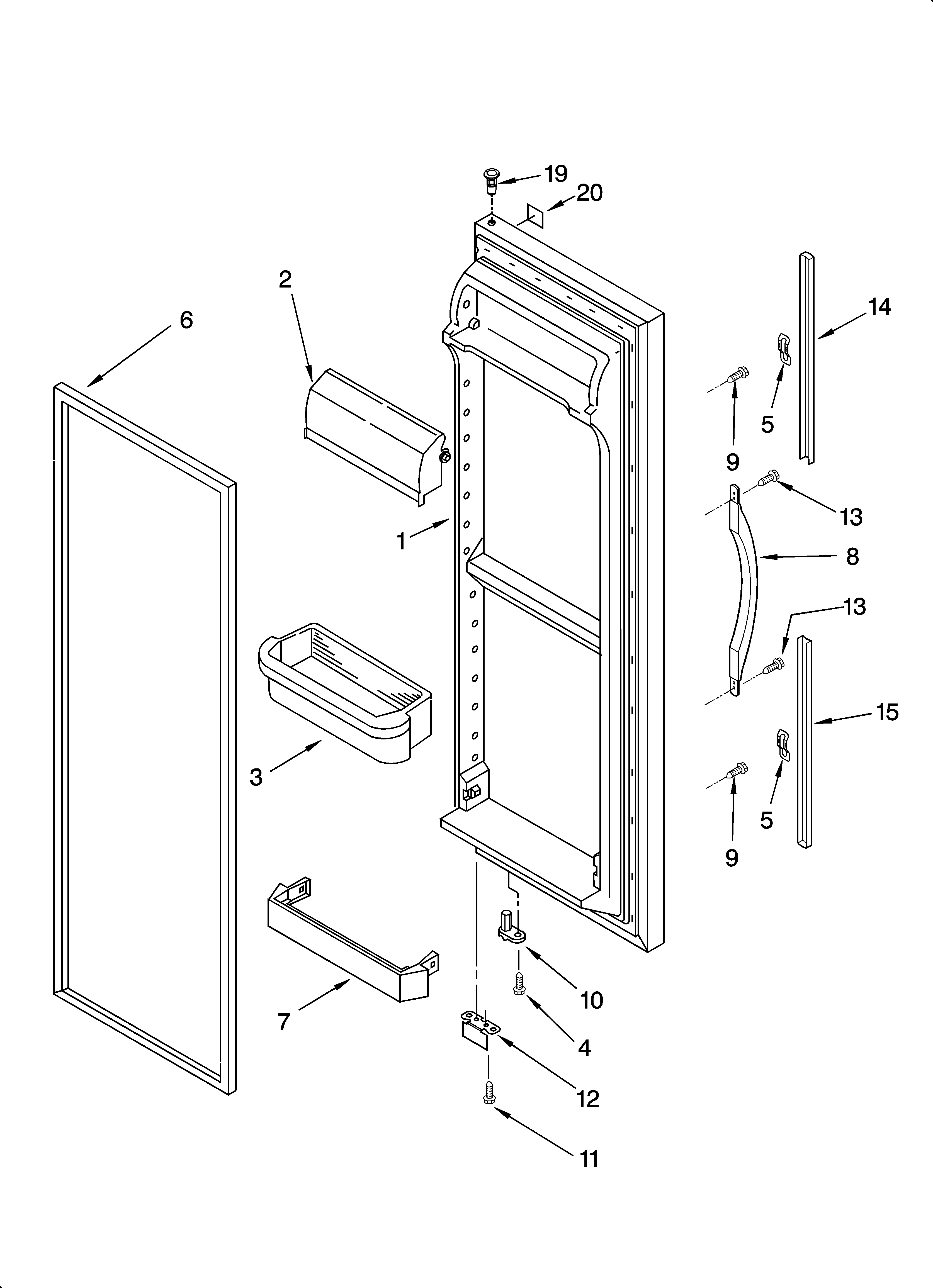

- Inspect door closing and sealing; a poor seal can cause long run times and warm temps.
Your GD5SHAXLQ01 water system is designed to operate within these common ranges:
| Item | Typical operating range |
|---|---|
| Water pressure | 30 to 120 psi |
| Water temperature | 33°F to 100°F |
| Rated service flow | 0.5 gpm |
If pressure is low or the filter path is restricted, the ice maker and dispenser can act up even when the refrigerator is cooling normally.
| Symptom | Part that often fixes it |
|---|---|
| No water to dispenser or ice maker | Refrigerator inlet valve W10408179 |
| Frost buildup, warm fridge section | Refrigerator defrost bi-metal WPW10225581 or refrigerator heater WP2323198 |
| Water filter area leaking or restricted | Refrigerator water filter housing WP2186443 |
Cooling and water-system problems can look similar at first (warm temps, slow ice production, odd noises). A few quick checks help you avoid replacing the wrong part and get your Whirlpool side-by-side refrigerator back to stable temperatures and normal ice and water flow.
Last updated: January 2026
What is the disadvantage of a side-by-side fridge?
A common disadvantage of a side-by-side refrigerator like the Whirlpool GD5SHAXLQ01 is reduced usable width in each compartment, which makes it harder to store wide items (pizza boxes, party trays, large platters) and can make fresh-food organization feel more cramped than wider-shelf designs.

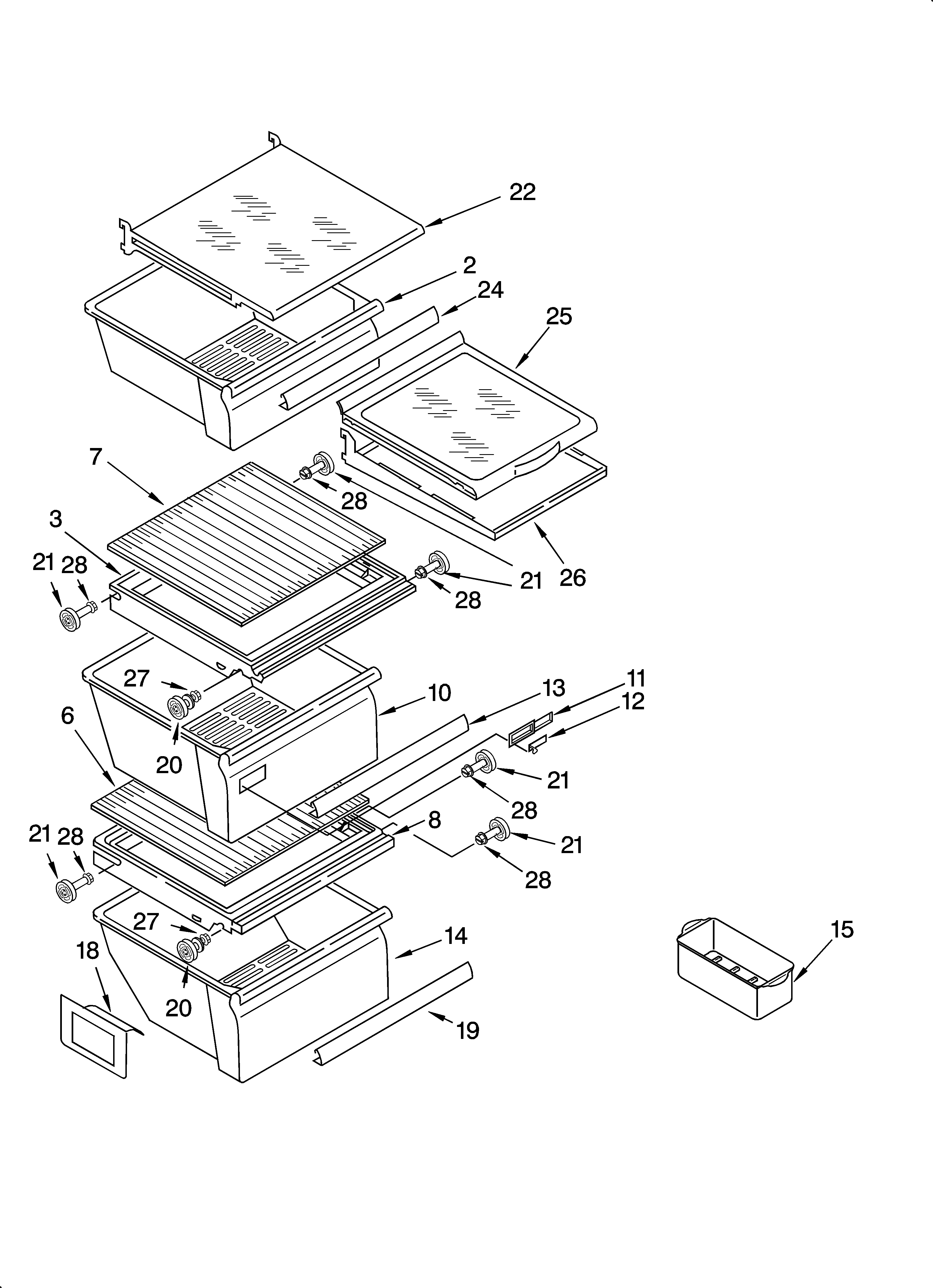

- Narrower shelves in both the refrigerator and freezer sections limit wide or bulky items
- More bending and reaching for fresh-food items stored lower in the refrigerator side

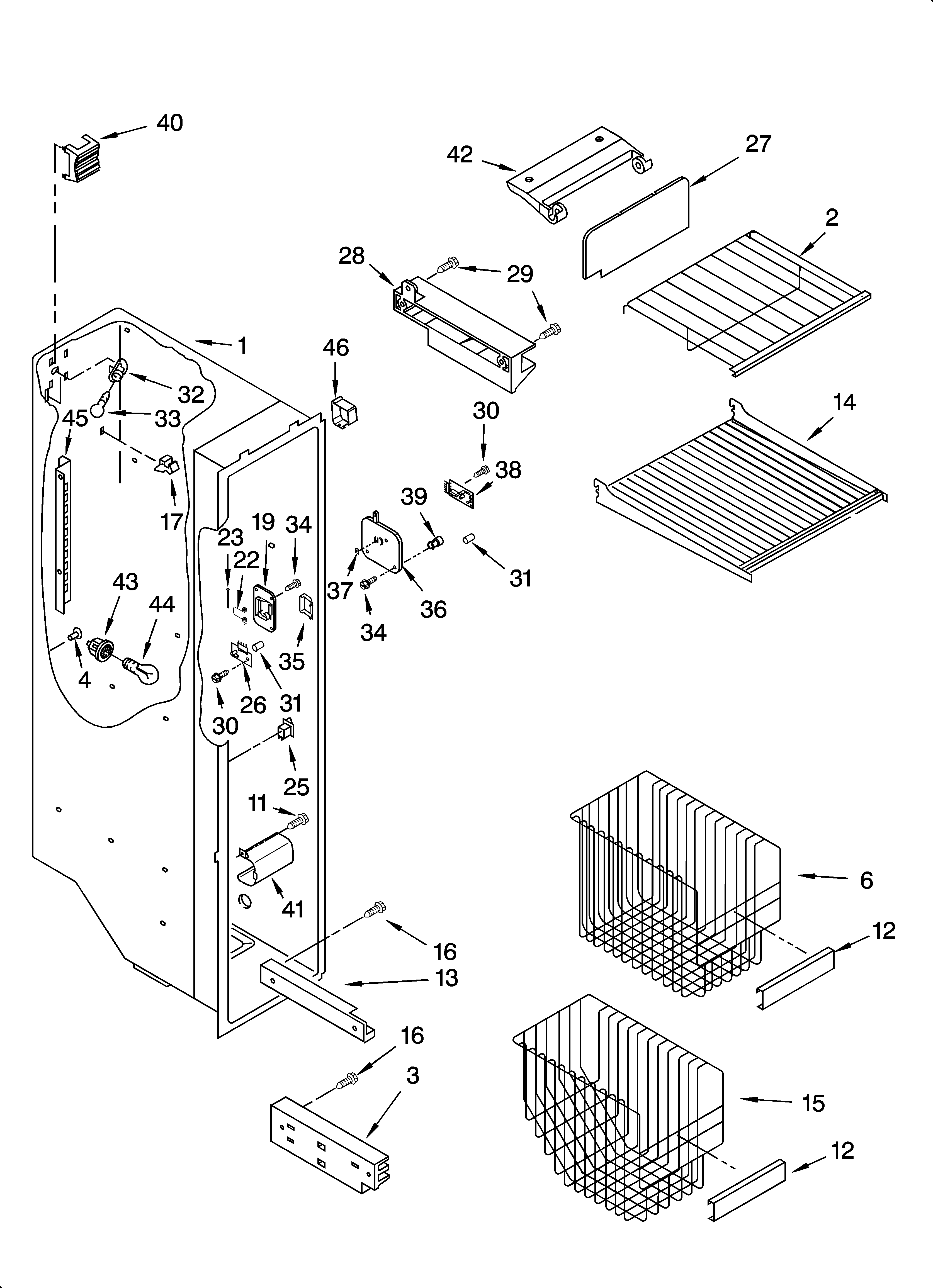

- Freezer side can feel tight for large bags or oversized containers
- Door bins can become the “default storage,” which can reduce airflow if overpacked
- More door openings across two tall compartments can make temperature stability more sensitive to frequent use
| Feature | Side-by-side (GD5SHAXLQ01 style) | Wider-shelf styles (typical) |
|---|---|---|
| Shelf width | Narrower | Wider |
| Best at | Frozen-food organization, door storage | Large platters, wide fresh-food storage |
| Access to fresh foods | Often lower shelves require more bending | Often more eye-level fresh-food space |
- Store wide items on adjustable shelves when possible; keep one shelf area “open” for platters
- Use slim bins to group snacks, deli items, and condiments so you can pull one bin instead of hunting
- Keep high-use items at eye level; move rarely used items to lower shelves
- Avoid overpacking door bins so cold air can circulate properly
Side-by-side refrigerators trade shelf width for vertical storage and easy freezer access. If your household regularly stores wide containers or meal-prep trays, the narrower compartment design is the main day-to-day limitation.
For layout and shelf adjustment guidance specific to your unit, follow the storage and safety notes in the GD5SHAXLQ01 owner's manual.
Last updated: January 2026
How big is the Whirlpool model GD5SHAXLQ01?
The Whirlpool GD5SHAXLQ01 is a full-size side-by-side refrigerator in the about 25 cu. ft. class. For the exact cubic-foot capacity, height, width, depth, and required installation clearances for your unit, use the specifications section in the GD5SHAXLQ01 owner's manual.
Customers usually mean one (or more) of these measurements:
- Total capacity (cu. ft.) for storage planning
- Overall dimensions (W x H x D) for fit in the opening
- Depth with handles vs. without handles for counter alignment
- Clearances for airflow and door swing
Most Whirlpool side-by-side refrigerators like GD5SHAXLQ01 commonly fall in these ranges:
- Capacity: 24 to 26 cu. ft.
- Width: about 33 to 36 inches
- Height: about 66 to 71 inches
- Depth: about 32 to 35 inches (often deeper with handles)
| Measurement you need | Why you need it | Where to confirm it |
|---|---|---|
| Capacity (cu. ft.) | Storage and replacement shopping | GD5SHAXLQ01 owner's manual |
| Width x height x depth | Cabinet opening fit | GD5SHAXLQ01 installation guide |
| Depth with handles | Counter and walkway clearance | Measure your unit plus manual specs |
| Clearance space | Prevents overheating and poor cooling | GD5SHAXLQ01 installation guide |
Use a tape measure and record both “with” and “without” protrusions:
- Measure width at the widest point (often hinge side)
- Measure height floor to top (include hinge cover if present)
- Measure depth to the front of doors, then add handle depth
- Plan extra space for rear airflow and door swing
Correct dimensions and clearances prevent fit problems during a remodel, keep condenser airflow unobstructed (better cooling and efficiency), and help you choose compatible accessories such as shelves, bins, and water system components.
