Kenmore Elite 11045872401 washer Parts

To force your Kenmore Elite washer model 11045872401 to drain, use the control-panel manual drain: press PAUSE/CANCEL, select DRAIN & SPIN, then press and hold START for about 1 second. When the cycle finishes, the door unlocks so you can remove items (see the owner's manual).

Fast steps to drain it now

• Press PAUSE/CANCEL once to stop the current cycle.
• If needed, press PAUSE/CANCEL again to fully cancel.
• Turn the cycle selector to DRAIN & SPIN.
• Press and hold START (about 1 second) to begin draining.
• Wait for the cycle to complete; the door unlocks at the end.

If the washer will not drain (common causes)

A drain problem is usually a restriction in the drain path or a drain pump issue.

• Check the drain hose for kinks, crushing, or a clog.
• Make sure the drain hose is not shoved too far down the standpipe (it needs an air gap).
• Confirm the standpipe or laundry tub drain is flowing freely.
• If you recently moved the washer, re-check drain hose routing and securing.

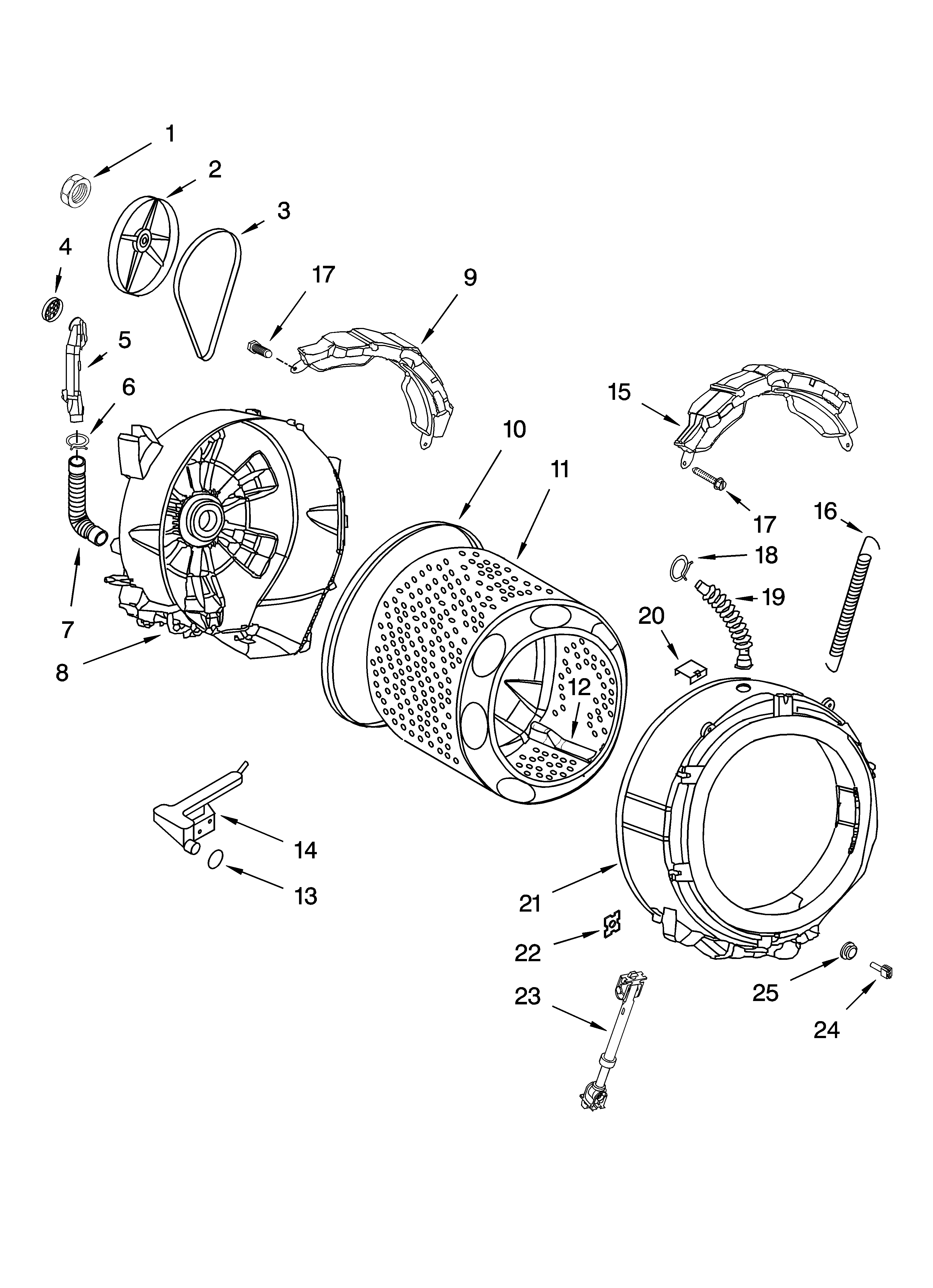

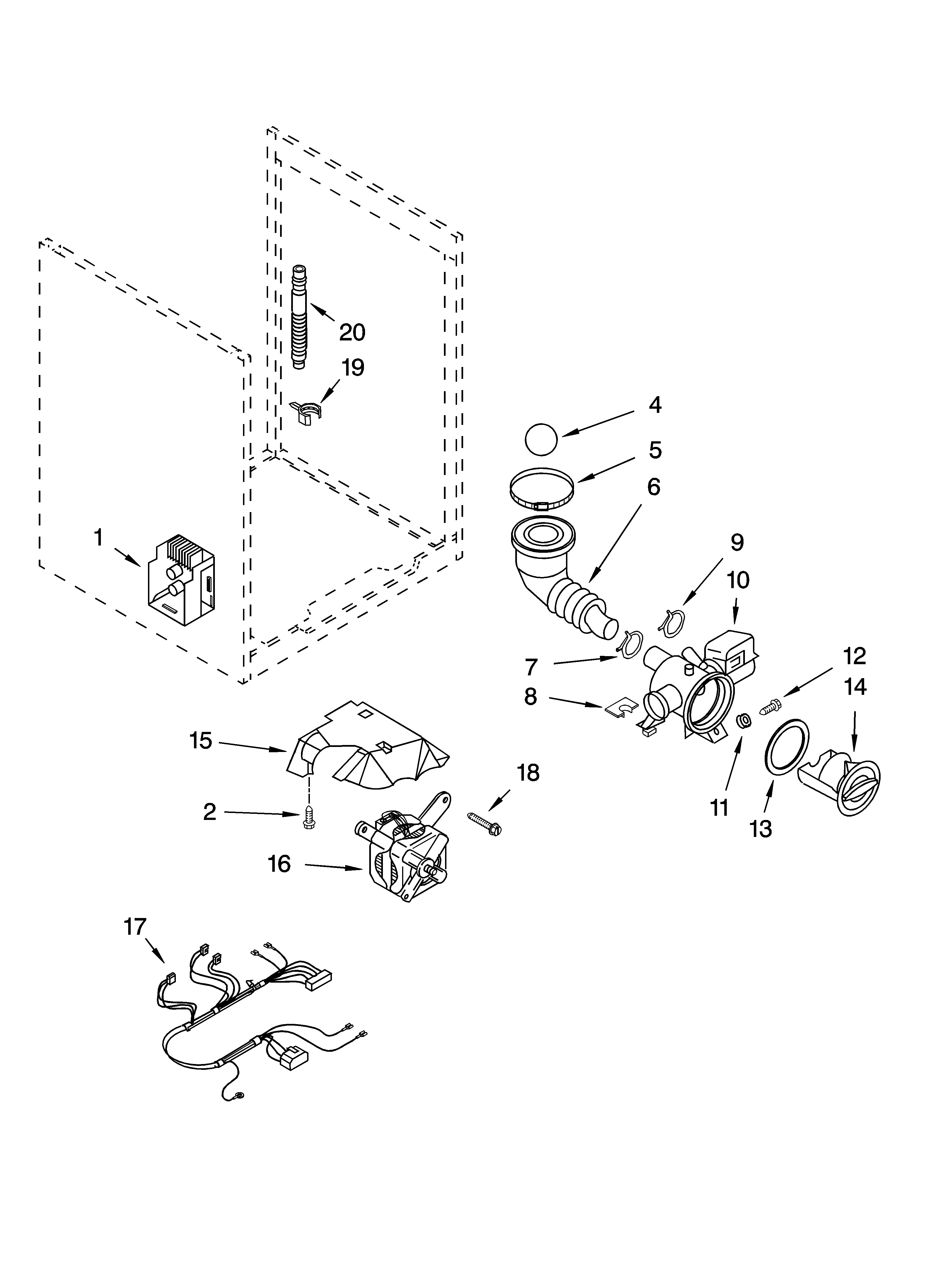

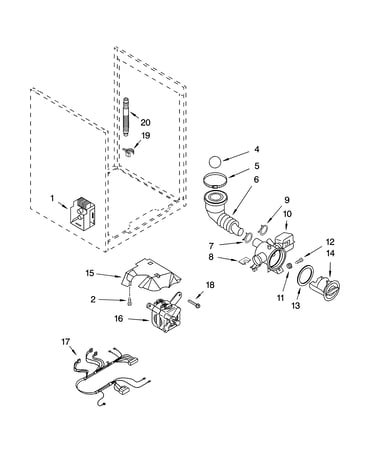

• If you hear the pump hum but water does not move, inspect the tub-to-pump hose for blockage (the washer tub-to-pump hose WPW10467168 is the common connection in that drain path).

Drain hose setup guidelines (to prevent backflow)

Proper drain hose routing helps the washer drain and helps prevent water from siphoning back into the tub.

Setup item	What to do	What to avoid
Standpipe insertion	Keep hose secure but with an air gap	Do not force excess hose into the standpipe
Excess hose	Keep it supported and routed neatly	Do not lay extra hose in the bottom of the laundry tub
Securing	Strap to tub leg or standpipe	Do not straighten the corrugated hose flat

Why it matters

If the washer cannot drain, it can stop mid-cycle, leave clothes soaking wet, and keep the door locked until the water level drops. Correct drain hose routing and a clear drain path protect floors from leaks and help the drain pump work efficiently.

Last updated: February 2026

Kenmore washer model numbers are structured so you can identify who built the washer and which design family it belongs to. For Kenmore Elite washer model 11045872401, the 110 prefix identifies the manufacturer, and the remaining digits narrow down the series and feature variations; confirm the exact series details in the 11045872401 owner's manual.

How the Kenmore model number is typically organized

Most Kenmore washer model numbers follow this pattern:

• 3-digit prefix: manufacturer code (for example, 110)
• Middle digits: base design or series family
• Ending digits: feature package, engineering revision, and color or trim variation (varies by model line)

Example breakdown (using your model)

Section	Example	What it tells you
Prefix	110	Manufacturer code used by Kenmore
Remainder	45872401	Series and configuration details for parts matching

Why it matters when ordering parts

Using the full model number helps us match the correct parts list and avoid look-alike parts that do not fit.

Common part categories where the exact model number matters include:

• Door and seal parts such as the washer door boot WP8182119
• Door latch components such as the washer door lock assembly WP8182634
• Fill components such as the washer water inlet valve WP8181694
• Suspension and vibration parts such as the washer shock absorber WP8182703

Quick tips to avoid model-number mix-ups

• Use the entire model number, not just the first 3 digits.
• If your manual lists a model range (example: 110.4586#, 4587#), match your exact digits and any color code.
• When searching parts, keep the model number format consistent: 11045872401.

Why it matters

Kenmore used the same prefix across many washers, so the prefix alone is not enough. The full model number ensures the right fit, correct electrical connectors, and proper door-lock and boot alignment.

Last updated: February 2026

Yes, repairing a Kenmore Elite washer like model 11045872401 is worth it when the fix restores reliable operation for less than the cost of replacement, especially for common wear items (door boot leaks, door lock issues, filling problems) that have straightforward part replacements. See the 11045872401 owner's manual for care, troubleshooting, and maintenance guidance.

Quick way to decide (repair vs. replace)

We use these practical checkpoints:

• What failed: single-part failures (seal, valve, lock, hose, shock) are usually good repair candidates.
• Total repair cost: parts plus labor should stay well below the price of a comparable new washer.
• Age and condition: if the tub, bearings, or multiple systems are failing, replacement becomes more attractive.
• Leak or safety risk: active leaks should be addressed immediately to prevent floor damage.
• Downtime: if you need a fast fix, in-stock parts can shorten turnaround.

Common repairs that are often worth doing on 11045872401

These are frequent, targeted fixes for this Kenmore front-load design:

Symptom	Likely area	Example part for this model

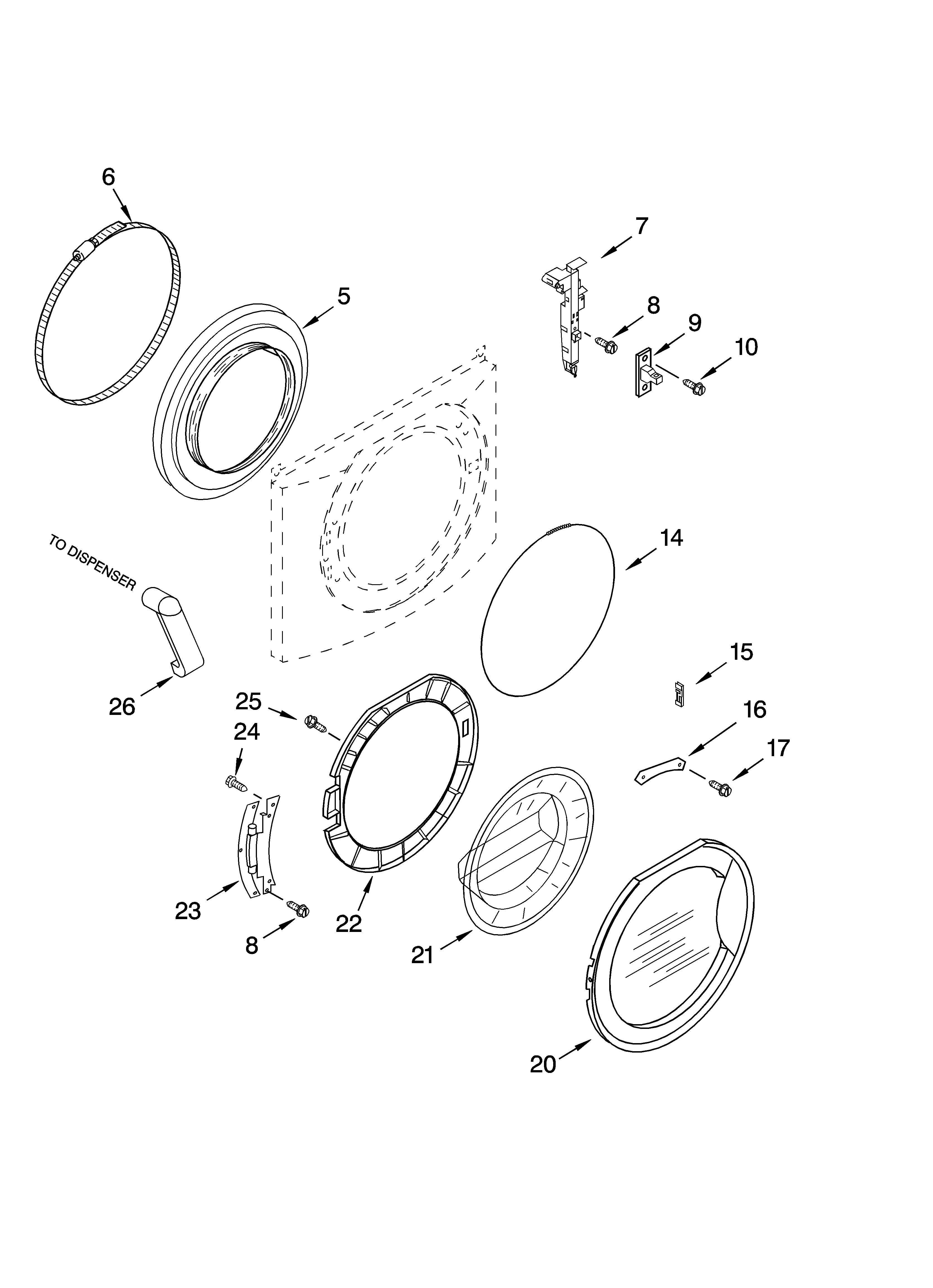

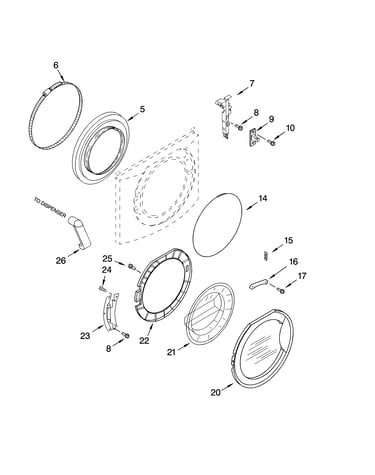

Water leaking at the door	Door seal and clamps	Washer door boot WP8182119, washer door boot spring clamp WP8182210
Door will not lock or start	Door latch system	Washer door lock assembly WP8182634, washer door strike WP8181651
Slow fill or no fill	Water inlet system	Washer water inlet valve WP8181694
Excessive shaking or banging	Suspension/damping	Washer shock absorber WP8182703

Why it matters

A well-chosen repair can extend the useful life of your washer and keep performance consistent. Your Kenmore Elite washer was designed for years of dependable operation, and routine care plus timely part replacement helps you get that value.

Tips to make the repair last

• Follow the cleaning and washer-care steps in the 11045872401 owner's manual.
• Replace related wear items together when it makes sense (for example, a door boot and its clamp).
• After any leak repair, run a rinse cycle and inspect for drips around the door and hoses.

Last updated: February 2026

The Kenmore Elite washer model 11045872401 is a front-load washer; its exact rated capacity (cubic feet) is listed in the specifications for your specific color-code variant in the 11045872401 owner's manual. This model family is commonly sold in the larger-capacity range for front-load washers.

How to find the exact capacity for your washer

Use the model and serial information on the machine to match the correct spec listing.

• Open the door and check the model/serial tag around the door opening.
• Confirm the model format shown in the manual (for example, 110.4586# / 110.4587#, where # is the color number).
• In the manual, look for sections labeled “Specifications”, “Features”, or “Product dimensions and capacity.”
• If you are comparing two similar model numbers, match the full model number including the color code.

Quick guide: what “capacity” means for a front-load washer

Capacity is the drum volume (cubic feet). It helps you choose load size so the washer can tumble clothing properly.

Capacity type	What it describes	What you should use day to day
Rated capacity (cu. ft.)	Drum volume	A guide for load sizing, not a “fill to the top” target
Practical load size	How full the drum should look	About 3/4 full with dry laundry so items can tumble

Why it matters

Using the right load size improves cleaning and rinsing, reduces vibration during spin, and helps prevent wear on suspension and door sealing components.

Related issues that can look like “wrong capacity” loading

If loads seem too tight, the washer shakes, or the door area leaks, check these common causes:

• Overfilling the drum so items cannot tumble
• Too many heavy items in one load (towels, jeans, bedding)
• Worn suspension components such as a washer shock absorber WP8182703
• Door sealing problems such as a torn washer door boot WP8182119

Last updated: February 2026

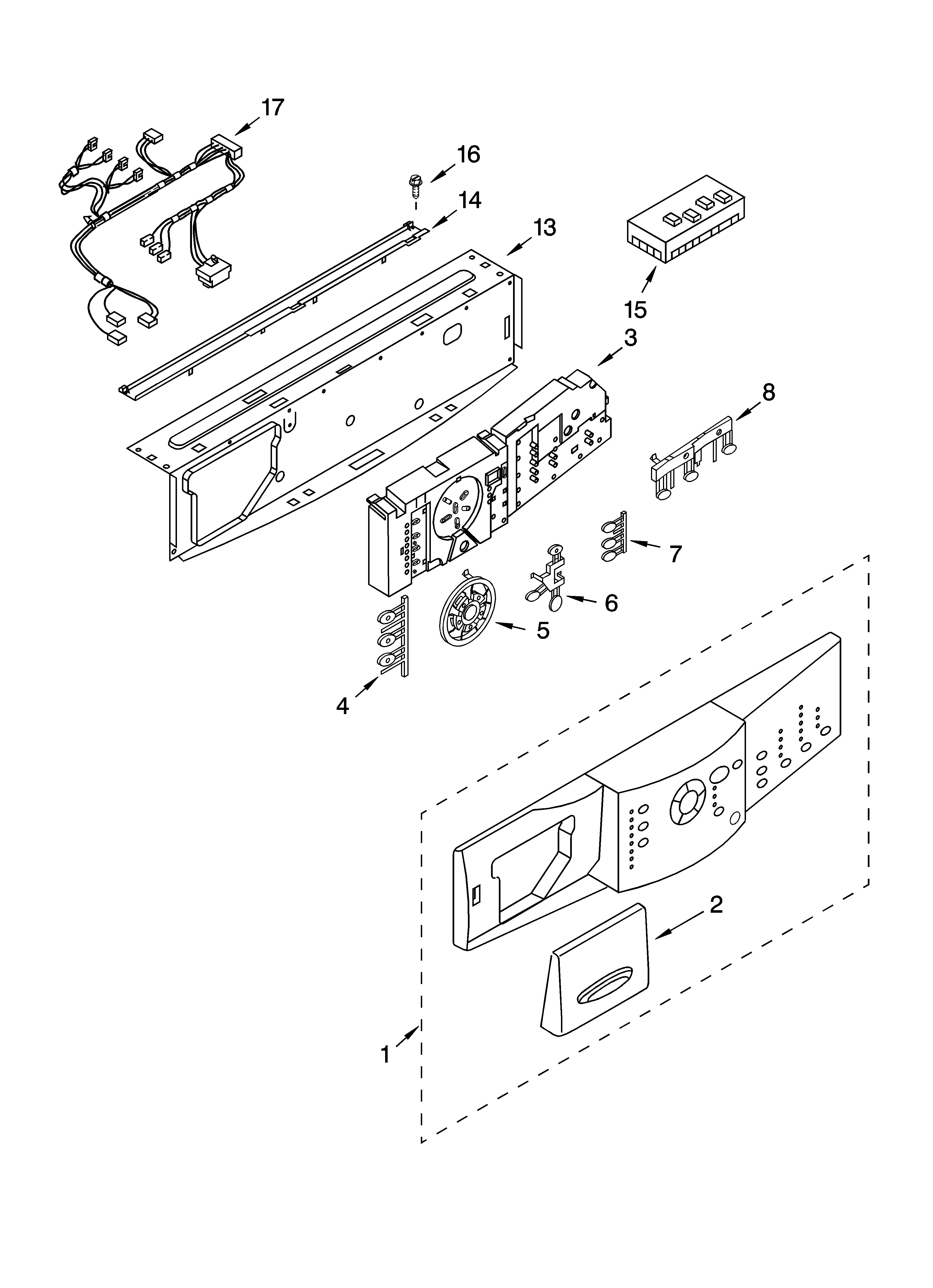

Kenmore Elite washer model 11045872401 is a front-load washer; the correct “reset” is to cancel the cycle and restart the controls. Press PAUSE/CANCEL twice, then select a new cycle and press and hold START for about 1 second. Steps are shown in the 11045872401 owner's manual.

Reset options that work on this model

• Cancel and restart: Press PAUSE/CANCEL twice, reselect cycle, then hold START about 1 second.
• Power reset: Unplug the washer (or switch off the breaker) for 2 to 5 minutes, then restore power and start a cycle.
• Manual drain reset (if it is stuck full): Select DRAIN & SPIN, then hold START about 1 second.

Step-by-step: control reset (most common)

1. Press PAUSE/CANCEL twice.
2. Wait for the washer to power down; the door unlocks (it may drain first if water level or temperature is high).
3. Select the desired cycle.
4. Choose any options/modifiers.
5. Press and hold START for about 1 second.

If the door will not unlock after canceling

Symptom	What to do next	Why it works
Door locked and water visible	Run DRAIN & SPIN, then hold START about 1 second	Drains water so the lock can release
Door locked, no water visible	Power reset for 2 to 5 minutes	Clears a stuck control state
Repeated fill errors	Check faucets, hose kinks, inlet screens	Restores proper water flow

Why it matters

Resetting the controls clears a stuck cycle, lets the door lock system complete its safety checks, and helps you tell the difference between a one-time control glitch and a repeatable problem.

When a “reset” turns into a repair

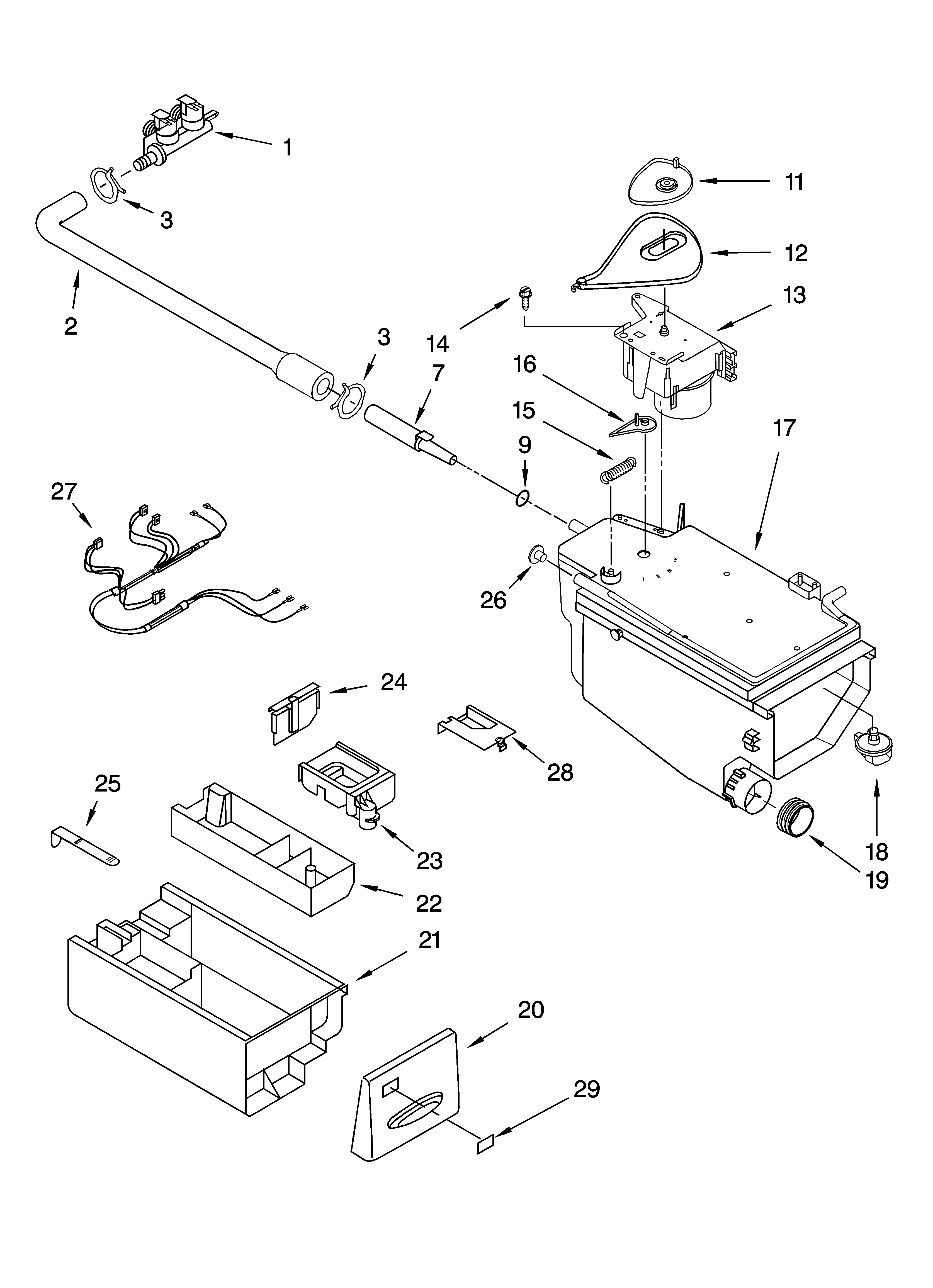

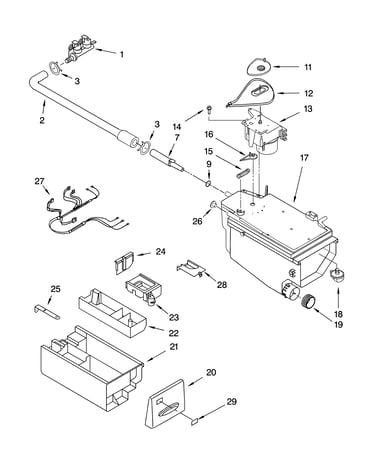

If the washer repeatedly fails to fill after resetting and your faucets and hoses are good, the fill system is the next place to check; the washer water inlet valve WP8181694 is the common part that controls incoming water.

Last updated: February 2026
