Jenn-Air JDB8200AWP3 undercounter dishwasher Parts

For the Jenn-Air JDB8200AWP3 dishwasher, a hard reset is done by removing power long enough for the control to fully shut down, then restoring power. If you only need to stop a cycle and restart it, use the built-in Cancel/Drain reset steps instead.

Hard reset (power reset)

• Turn the dishwasher off.
• Unplug the power cord (or switch the dishwasher circuit breaker off).
• Wait 30 seconds.
• Restore power (plug back in or turn the breaker on).
• Start a new cycle and press Start/Resume.

Control reset from the keypad (Cancel/Drain)

If the dishwasher is running and you want to reset the control without cutting power:

• Open the door slightly to stop the cycle; wait for spraying to stop.
• Press Cancel/Drain (some models use one press to drain; to fully reset, press Cancel/Drain twice).
• Close the door and allow the drain to complete (the Cancel/Drain light typically turns off after about 2 minutes).
• Select a new cycle and press Start/Resume.

Which reset should I use?

Situation	Best option	What it does
Control is frozen or unresponsive	Hard reset (power reset)	Reboots the electronic control
You chose the wrong cycle or want to restart	Cancel/Drain reset	Stops the cycle, drains if needed, then lets you restart
Water remains in the bottom	Cancel/Drain	Runs a drain cycle

Why it matters

Using Cancel/Drain first prevents unnecessary power cycling and safely stops spraying before you open the door fully. A hard reset is most helpful when the control panel is not responding.

For model-specific button names and cycle behavior, follow the steps in the JDB8200AWP3 owner's manual.

Last updated: January 2026

Yes. Jenn-Air dishwashers are built as premium machines, and the JDB8200AWP3 is designed for strong cleaning performance and long-term home use when it is installed correctly and maintained (especially the filtration system and door sealing surfaces). Like any dishwasher, reliability improves with routine care and timely part replacement.

What “good quality” looks like in real use

We judge dishwasher quality by how consistently it cleans, drains, dries, and seals over time.

• Consistent wash results with proper loading and detergent use
• Quiet, stable operation without frequent stopping mid-cycle
• Reliable draining and no standing water after cycles
• Drying performance that stays steady as the unit ages
• A door that closes and latches smoothly every time

Maintenance that protects quality (and reduces service calls)

Your JDB8200AWP3 manual emphasizes using troubleshooting guidance first and keeping the dishwasher in good operating condition; we recommend following the care and filtration guidance in the JDB8200AWP3 owner's manual.

• Clean the filter area regularly to prevent poor wash and drain performance
• Keep the door sealing surfaces clean to help prevent leaks
• Avoid overloading; large items can interfere with the wash system and door closure
• If the dishwasher will sit unused for extended periods, shut off water and power
• Protect the water supply line from freezing conditions

Parts that commonly affect performance

If performance drops, these are common “quality drivers” because they directly impact washing, draining, and sealing.

Symptom	Common area	Example part for this model
Poor drying or water not heating	Heating circuit	Heater W10703867
Standing water after cycle	Drain system	Dishwasher drain pump WPW10531320
Door won’t stay shut or cycles stop	Door closure	Dishwasher door latch WPW10653840
Cloudy results or debris left behind	Filtration	Dishwasher filter cup assembly W10872845

Why it matters

A premium dishwasher like the Jenn-Air JDB8200AWP3 delivers its best “quality” when water flow, heat, and sealing are all working together. Small issues (a clogged filter, weak drain pump, or worn latch) can make a good dishwasher seem unreliable even though the core machine is still solid.

Last updated: January 2026

If your Jenn-Air JDB8200AWP3 dishwasher is not draining and you do not see a clog, the problem is usually in the drain path components (air gap, hose routing, drain pump) or in the controls that power draining. Start with the drain air gap and drain hose connection checks in the JDB8200AWP3 owner’s manual.

What to check first (fast, no-parts checks)

• Drain air gap (if your home has one): Clean it; a dirty air gap can stop draining even when the dishwasher filter area looks clear.
• Cancel and restart: Use the control reset steps in the manual, then try a drain again.
• Drain hose routing: Make sure the hose is not kinked, crushed, or routed in a way that traps water.
• Sink/disposer connection: Confirm the dishwasher drain connection at the sink or disposer is open and not restricted.
• Water left after cycle: A small amount of water can be normal; standing water above the filter area points to a drain problem.

Likely failed parts when there is no visible clog

If the checks above look good, these are the most common component-level causes:

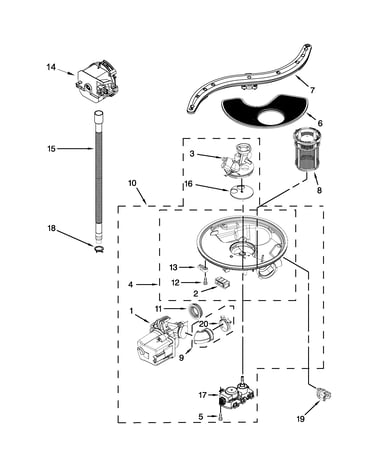

• Drain pump not running or weak: The pump can fail electrically or mechanically and still show no “blockage.” Consider the dishwasher drain pump WPW10531320.

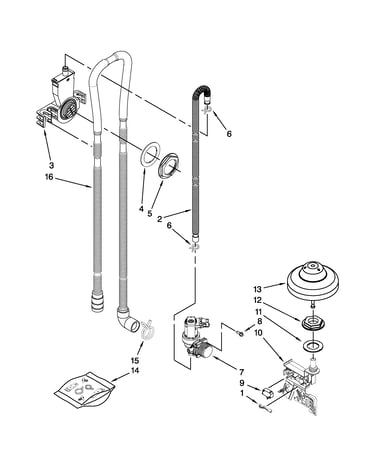

• Drain hose leaking or collapsing internally: A hose can look fine outside but restrict flow; consider the dishwasher drain hose 8269144A.
• Control not sending power to drain: A failed control can prevent the drain portion of the cycle; consider the electronic control board W10866118.

Installation details that can cause “no blockage” drain problems

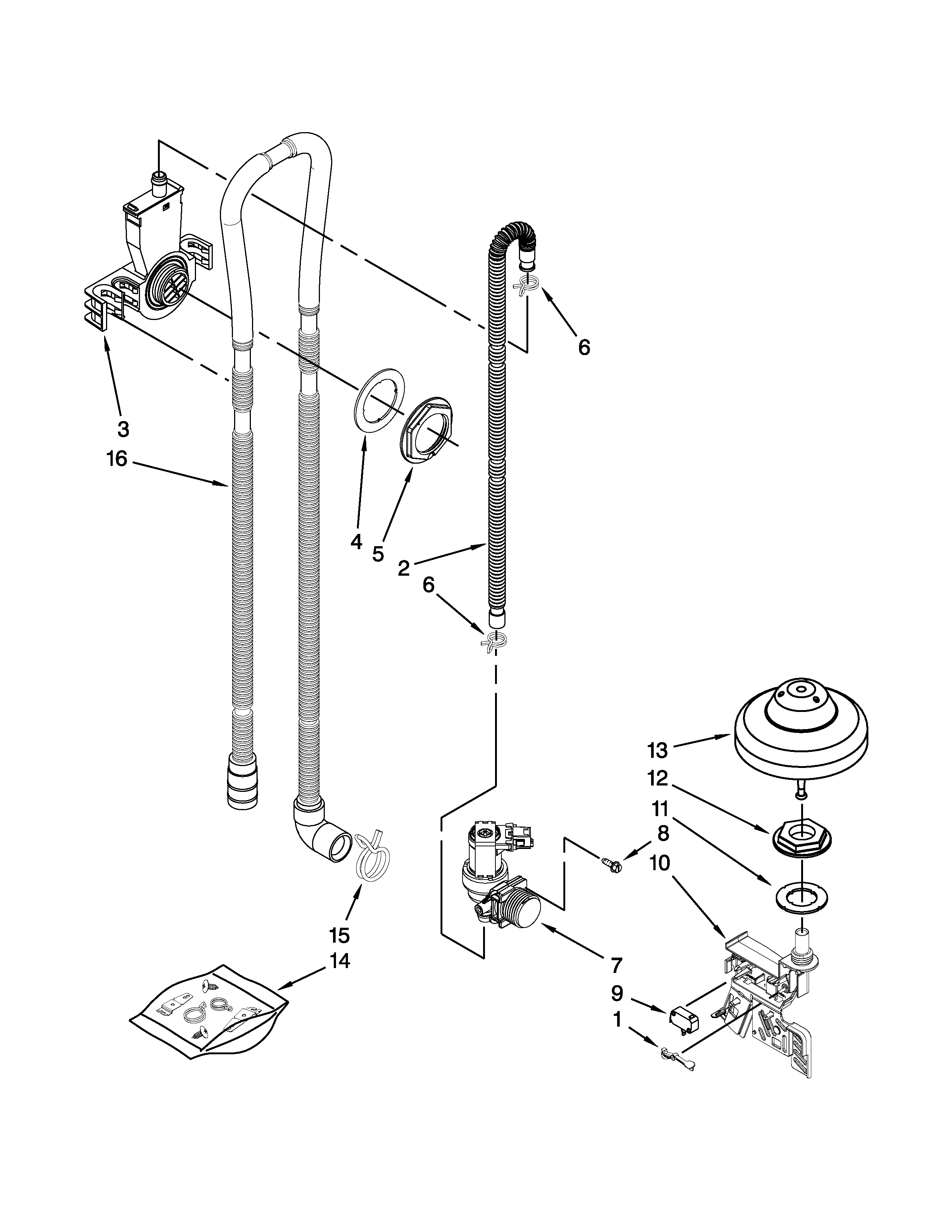

The JDB8200AWP3 installation steps emphasize a fully seated hose connection and correct clamp placement at the black drain hose connector.

Symptom	Most likely area	What it points to
Hums but does not drain	Drain pump	Pump impeller jammed or pump failing
Drains slowly	Hose routing or air gap	Kink, high loop issue, or air gap restriction
Intermittent draining	Control or wiring	Drain command not consistent

Why it matters

A dishwasher that cannot drain can leave dirty water in the tub, reduce cleaning performance, and cause odors. Fixing the drain path early also helps prevent strain on the pump and motor system.

Last updated: January 2026

Most Jenn-Air dishwashers typically last 10 to 15 years with normal home use, good loading habits, and routine cleaning. For your JDB8200AWP3, repairs such as replacing a drain pump, heater, or latch often make sense when the tub and racks are still in good shape.

What affects how long a dishwasher lasts

• Water quality (hard water speeds up mineral buildup)
• Detergent type and amount (too much can cause suds and poor operation)
• How often you run it (daily use wears pumps and seals faster)
• Filter and sump cleanliness (clogs strain the wash system)
• Door sealing and alignment (leaks can damage components)

Quick “repair vs. replace” guide

If your JDB8200AWP3 is cleaning poorly, not draining, or not drying, a targeted repair is often the best first step.

Situation	Usually worth repairing?	Common part areas
Won’t drain but otherwise runs	Yes	Drain pump, drain hose
No heat or poor drying	Yes	Heater, controls
Door won’t latch or starts then stops	Yes	Door latch
Tub is damaged or heavily corroded	No	Tub/liner

Parts that commonly extend service life

These are frequent wear items on many dishwashers and are available for this model:

• Dishwasher drain pump WPW10531320 (draining problems, standing water)
• Heater W10703867 (poor drying, water not heating)
• Dishwasher door latch WPW10653840 (won’t start, stops mid-cycle)
• Dishwasher filter cup assembly W10872845 (recirculating debris, poor cleaning)

Why it matters

Knowing the typical 10 to 15 year lifespan helps you decide whether to invest in a repair. If the dishwasher is within that range and the stainless tub and inner door liner are in good condition, replacing a single failed component can restore reliable performance.

For operating and care tips that help maximize lifespan (including detergent and suds guidance), use the JDB8200AWP3 owner's manual.

Last updated: January 2026
