Craftsman
Front-Engine Lawn Tractor

Model # 502255640 Official Craftsman 10-hp riding lawn mower

Here are the diagrams and repair parts for Official Craftsman 502255640 10-hp riding lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

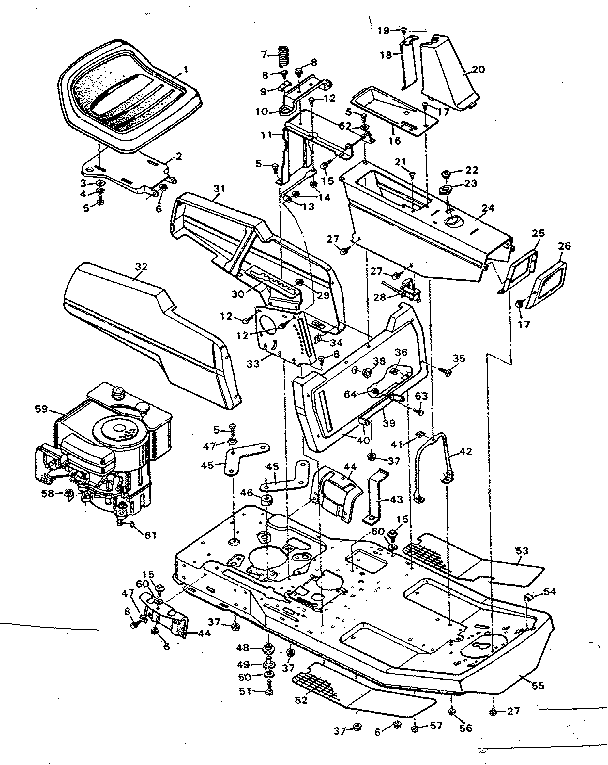

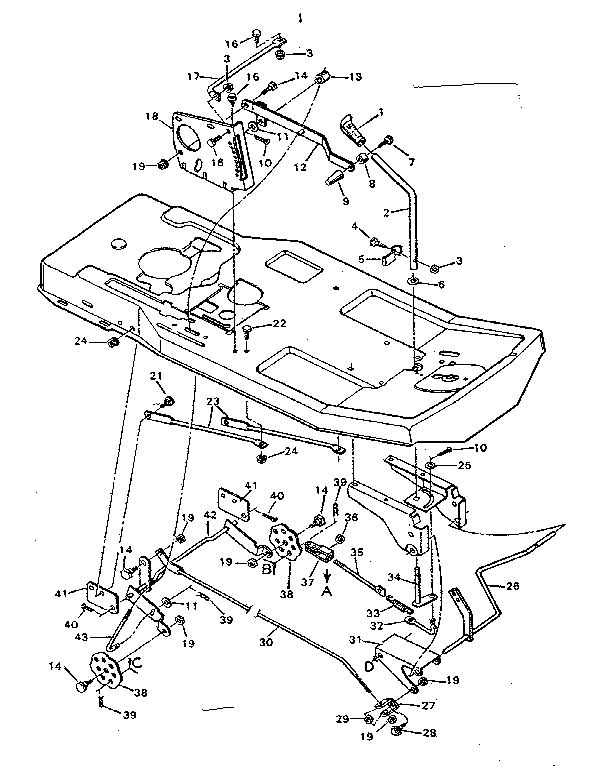

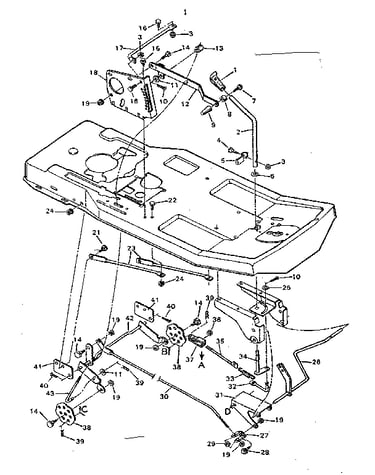

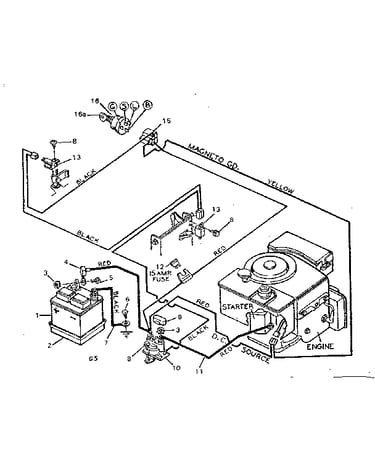

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 278 parts  |

E-ring STD581075
#49

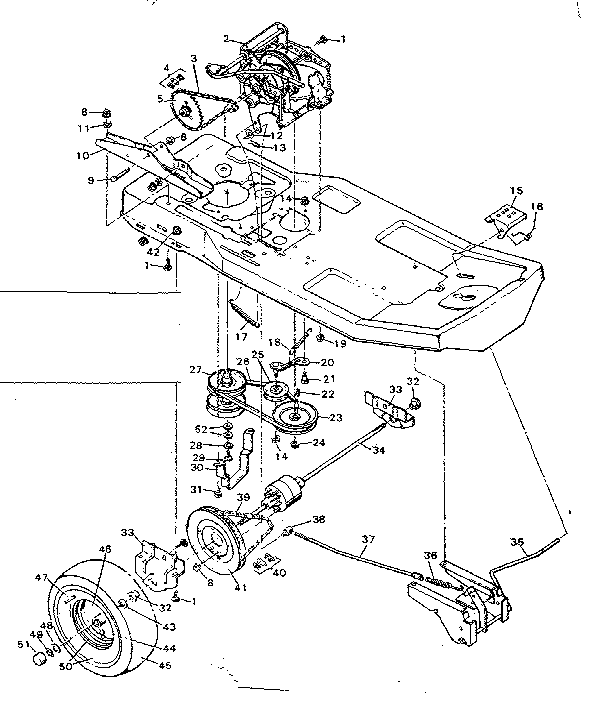

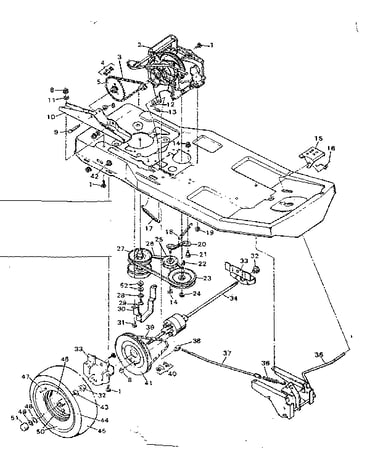

Drive system diagram

E-ring

Part #STD581075

Replaced by #812000029

?
Manufacturer substitution
This part replaces STD581075. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50
22% OFF Phone Price : $4.50
In Stock
Belt 37X50
#1

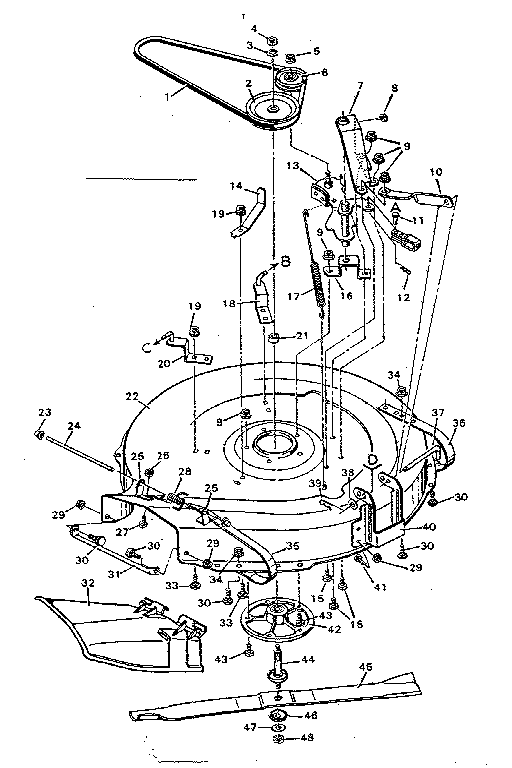

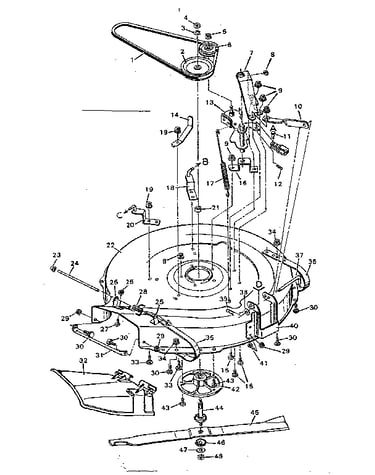

Mower deck diagram

Belt

Part #37X50

Replaced by #37X57MA

?
Manufacturer substitution
This part replaces 37X50. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$36.81
12% OFF Phone Price : $41.81
In Stock
Wheel Tire 90599
#46

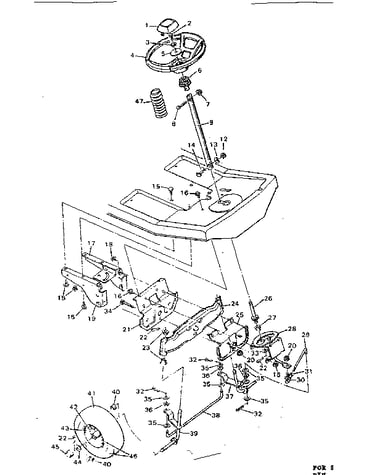

Steering system diagram

Wheel tire

Part #90599

Replaced by #092303601MA

?
Manufacturer substitution
This part replaces 90599. Substitute parts can look different from the original.
$103.09
9% OFF Phone Price : $113.09
In Stock
Idler Pulley 20613
Idler pulley

Part #20613

Replaced by #420613MA

?
Manufacturer substitution
This part replaces 20613. Substitute parts can look different from the original.
This item is not returnable
$23.49
18% OFF Phone Price : $28.49
In Stock
Spring 165X43
#18

Drive system diagram

Spring

Part #165X43

Replaced by #165X43MA

?
Manufacturer substitution
This part replaces 165X43. Substitute parts can look different from the original.
In Stock
Sector Assembly 55041
#28

Steering system diagram

Sector assembly

Part #55041

Replaced by #56236E701MA

?
Manufacturer substitution
This part replaces 55041. Substitute parts can look different from the original.
In Stock
Push-on-cap 28X23
#23

Mower deck diagram

Push-on-cap

Part #28X23

Replaced by #703948

?
Manufacturer substitution
This part replaces 28X23. Substitute parts can look different from the original.
This item is not returnable
$7.29
12% OFF Phone Price : $8.29
In Stock
Switch 24273
Switch

Part #24273

Replaced by #5021451SM

?
Manufacturer substitution
This part replaces 24273. Substitute parts can look different from the original.
This item is not returnable
In Stock
Washer 17X36Z
#13

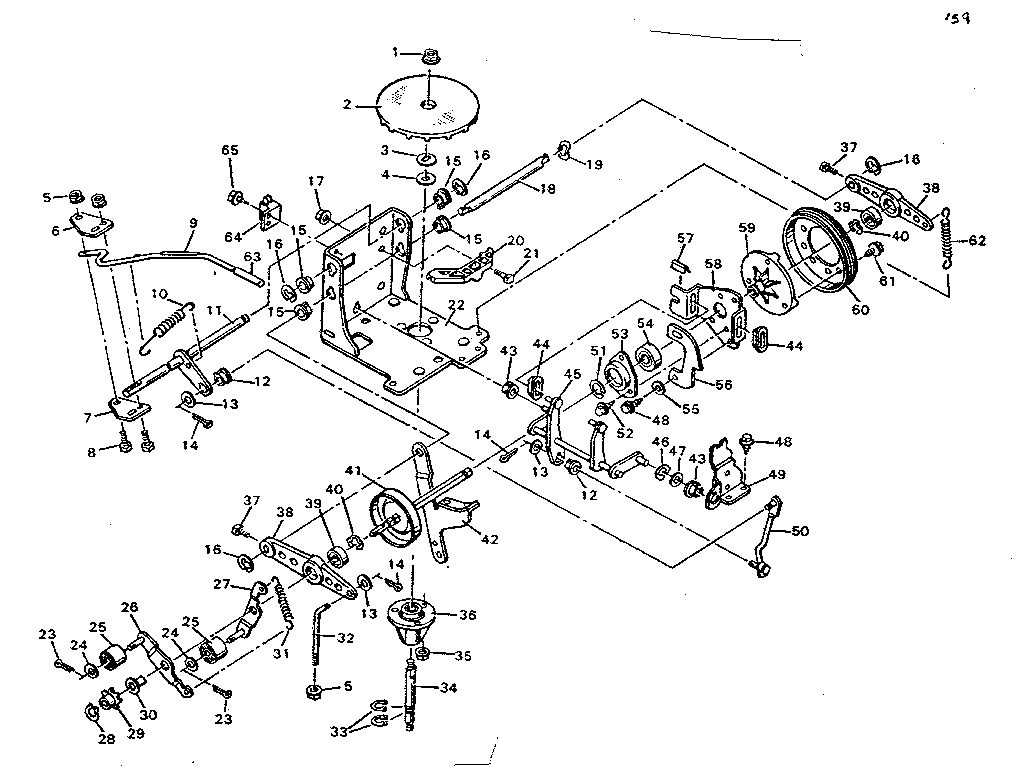

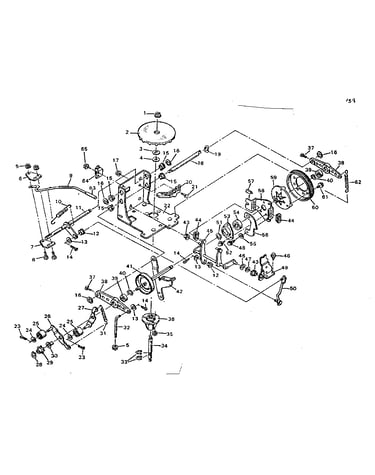

Idler assembly diagram

Washer

Part #17X36Z

The manufacturer no longer makes this part, and there's no substitute part

Bolt 6X73Z
#14

Steering system diagram

Bolt

Part #6X73Z

Replaced by #1X98MA

?
Manufacturer substitution
This part replaces 6X73Z. Substitute parts can look different from the original.
This item is not returnable
In Stock
