Model #KGCC766RSS00 KitchenAid gas counter unit

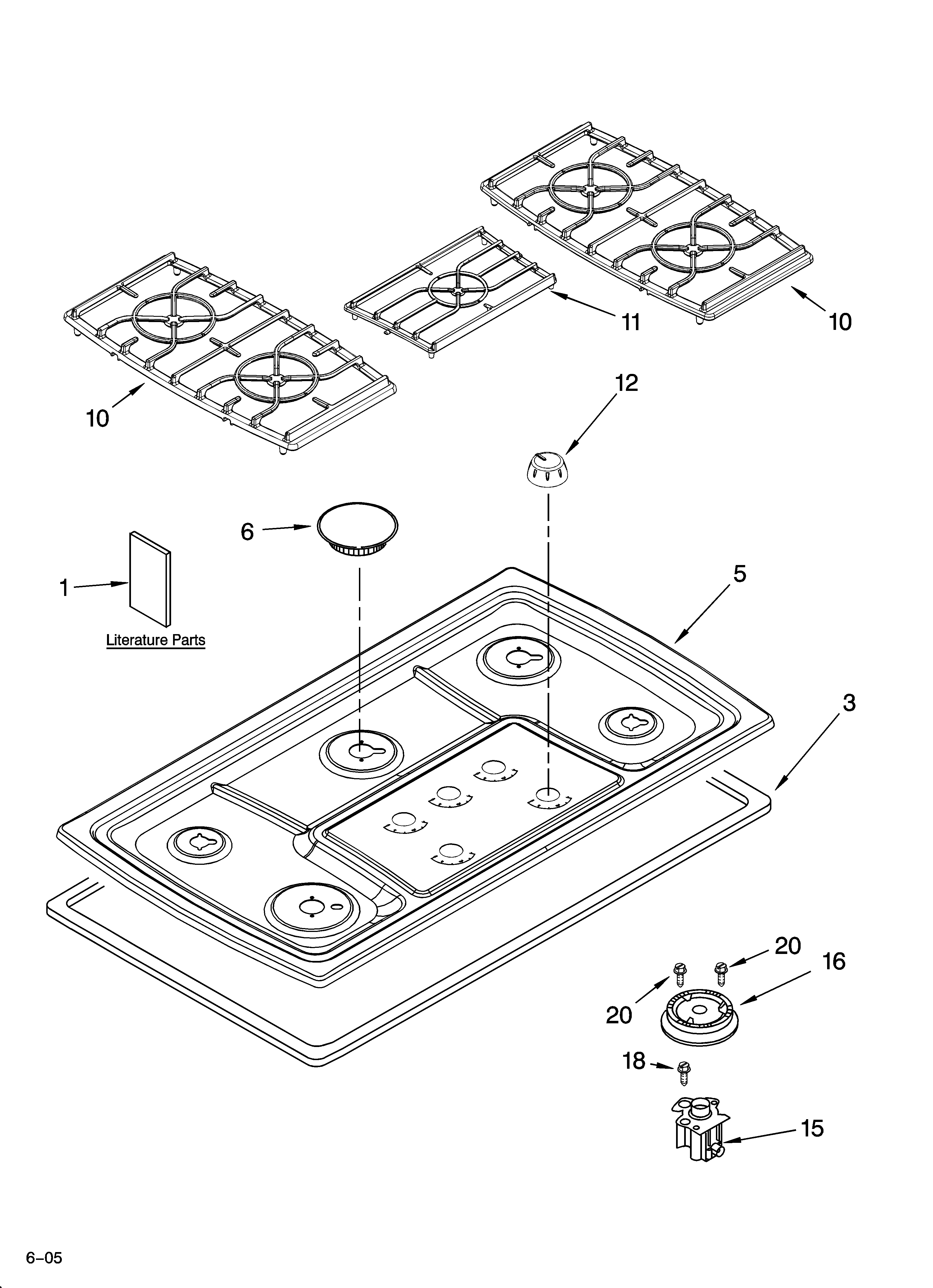

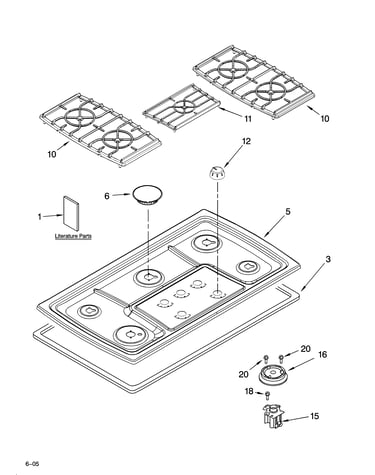

Here are the diagrams and repair parts for KitchenAid KGCC766RSS00 gas counter unit, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 58 parts

Cooktop Igniter Wire Harness, 15-in

#NI

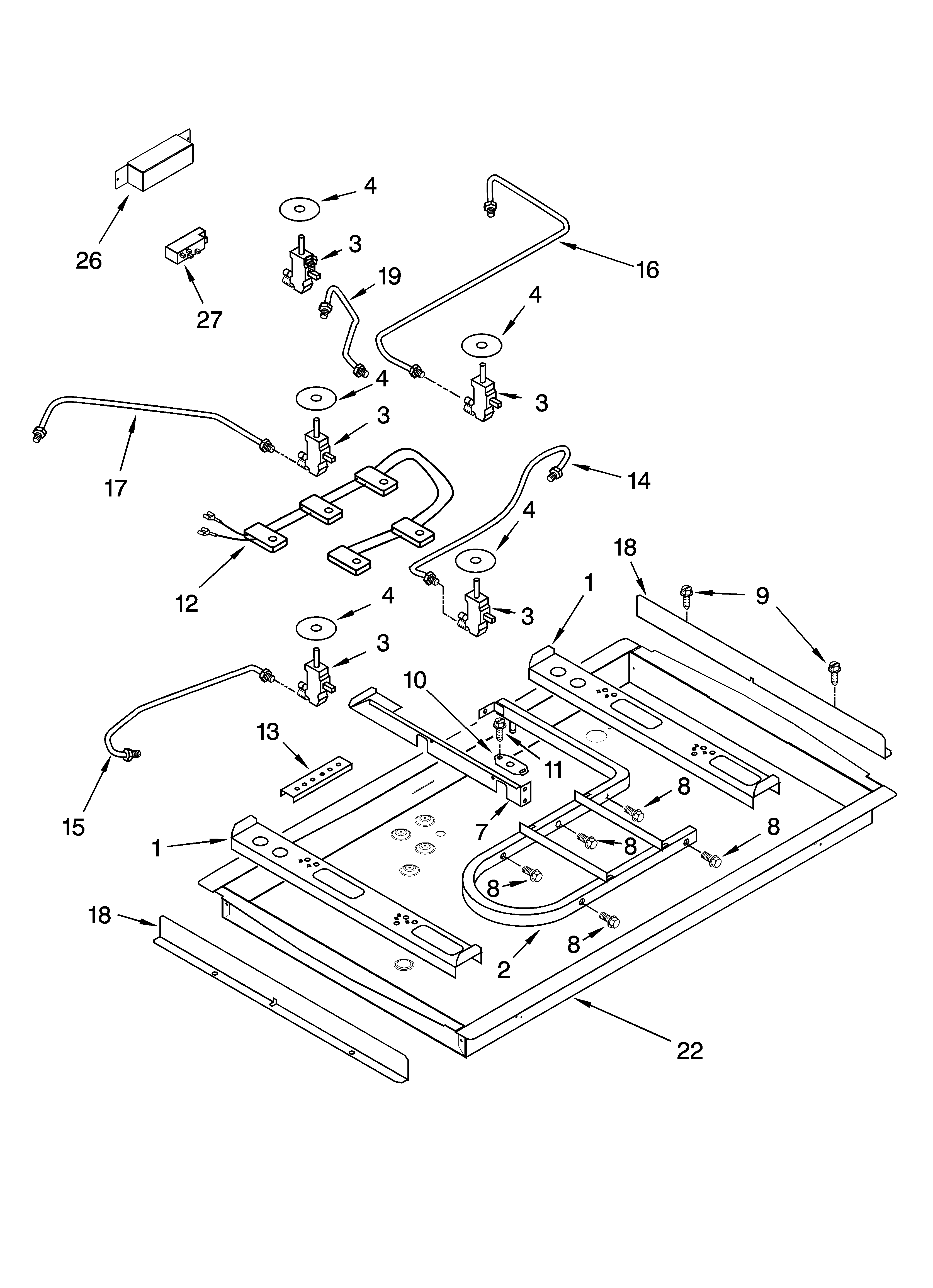

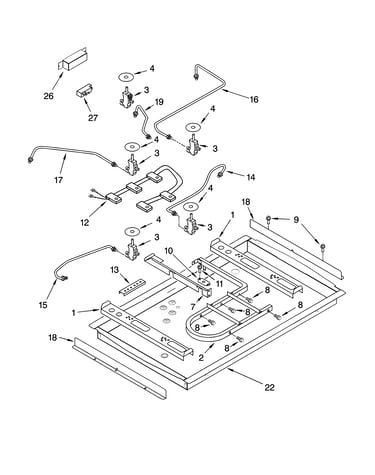

Burner box, gas valves, and switches, optional parts Diagram

$28.28 |
6% OFF MSRP:$30.00

In Stock

Manifold Bracket

#10

Burner box, gas valves, and switches, optional parts Diagram

Manifold bracket

Part #3192491
$7.80

In Stock

Manifold Pipe

#2

Burner box, gas valves, and switches, optional parts Diagram

Manifold pipe

Part #8285751
$219.96

In Stock

Gas Tubing

#15

Burner box, gas valves, and switches, optional parts Diagram

Gas tubing

Part #8285766
$77.93

In Stock

Cooktop Grounding Strap

#NI

Burner box, gas valves, and switches, optional parts Diagram

$24.71 |
8% OFF MSRP:$27.00

In Stock

Heat Shield

#26

Burner box, gas valves, and switches, optional parts Diagram

Heat shield

Part #8285789
$70.74

In Stock

Support

#1

Burner box, gas valves, and switches, optional parts Diagram

Support

Part #8285796
$52.74

In Stock

Gas Tubing

#19

Burner box, gas valves, and switches, optional parts Diagram

Gas tubing

Part #8285770
$70.48

In Stock

Shield

#18

Burner box, gas valves, and switches, optional parts Diagram

Shield

Part #3191462
$14.29

In Stock

Gas Tubing

#14

Burner box, gas valves, and switches, optional parts Diagram

Gas tubing

Part #8285768
$75.38

In Stock
