Maytag
Gas Wall Oven

Model #CWG4100AAB Maytag gas wall oven

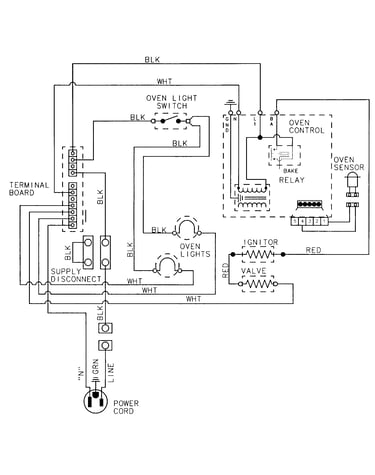

Here are the diagrams and repair parts for Maytag CWG4100AAB gas wall oven, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 115 parts

Wall Oven Door Glass Retainer Clip

#8

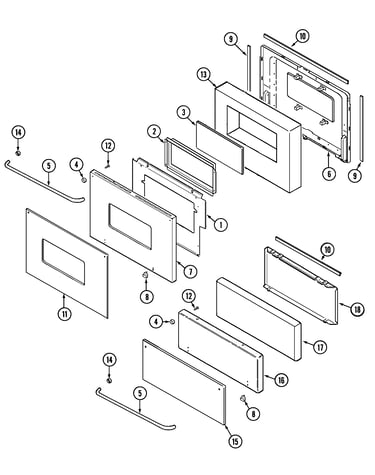

Door (upper & lower) Diagram

$14.45

In Stock

Extrusion

#7A

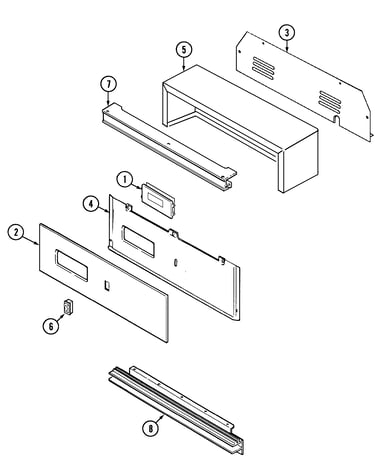

Control panel Diagram

Extrusion

Part #74001953
$23.80

In Stock

Range Oven Door Hinge

#7

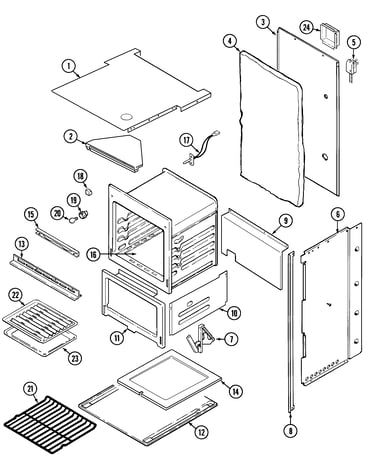

Oven/body Diagram

Range oven door hinge

Part #74001856
$41.26 |
50% OFF MSRP:$83.00

In Stock

Appliance Screw

#1B

Control panel Diagram

Appliance screw

Part #WP59002061
?
Manufacturer substitution
This part replaces 7101P077-60. Substitute parts can look different from the original.
This part replaces 7101P077-60
This item is not returnable
$3.33

In Stock

Washer Screw, #10-24 x 3/8-in

#5A

Gas controls Diagram

Washer screw, #10-24 x 3/8-in

Part #WP3351614
?
Manufacturer substitution
This part replaces 7101P328-60. Substitute parts can look different from the original.
This part replaces 7101P328-60
This item is not returnable
$4.49

In Stock

Extrusion

#13

Oven/body Diagram

Extrusion

Part #7754P003-60
?
Manufacturer substitution
This part replaces 74001846. Substitute parts can look different from the original.
This part replaces 74001846
$44.01

In Stock

Range Oven Burner Igniter

#5

Gas controls Diagram

Range oven burner igniter

Part #12400035
?
Manufacturer substitution
This part replaces 7432P076-60. Substitute parts can look different from the original.
This part replaces 7432P076-60
$31.72 |
26% OFF MSRP:$42.95

In Stock

Range Oven Light Rocker Switch

#6

Control panel Diagram

Range oven light rocker switch

Part #7403P067-60
?
Manufacturer substitution
This part replaces 7403P102-60. Substitute parts can look different from the original.
This part replaces 7403P102-60
$37.80

In Stock

Range Gas Tube Brass Nut

#2C

Gas controls Diagram

Range gas tube brass nut

Part #WP4157867
?
Manufacturer substitution
This part replaces 74003034. Substitute parts can look different from the original.
This part replaces 74003034
This item is not returnable
$3.29

In Stock

Brlr-bottm

#14

Oven/body Diagram

Brlr-bottm

Part #2205M028-19
?
Manufacturer substitution
This part replaces 2205F005-19. Substitute parts can look different from the original.
This part replaces 2205F005-19
$82.54

In Stock
