How to identify a lawn mower engine?
On a Craftsman rear-engine riding mower model 502255020, the engine identification is typically found on the engine itself, not on the mower deck. We look for the engine’s model/type/code stamping or tag on the blower housing (shroud) near the muffler, air cleaner, or recoil starter area; confirm the exact location in the 502255020 owner's manual.
Where to look on the engine
Check these common spots first (wipe off grass and oil so you can read the stamp):
- On the sheet metal shroud directly above or near the muffler
- On the front of the engine near the air cleaner housing
- Near the recoil starter (pull-start) housing, if equipped
- On a small metal tag or sticker on the blower housing
- Near the spark plug area (sometimes on the side of the block)
What numbers you need (and why)
Most small engines use a set of identifiers. Write them down exactly as shown.
| What you see on the engine | What it helps with | Example use |
|---|---|---|
| Model / type | Correct tune-up and service parts | Spark plug, air filter, carb settings |
| Code / date | Production date and revisions | Matching the right replacement parts |
| Spec number | Exact configuration | Governor, charging system, starter type |
Quick tips to get a readable ID
- Clean the area with a rag and mild degreaser; avoid soaking electrical parts.
- Use a flashlight and take a phone photo, then zoom in.
- Copy letters and numbers exactly (including dashes).
Why it matters
The mower model 502255020 identifies the tractor, but the engine ID identifies the engine build. That engine information is what we use to match ignition, fuel, and starting-system parts and to troubleshoot issues like hard starting or loss of power.
Last updated: January 2026
Is it worth replacing a lawn mower engine?
Yes, replacing the engine on your Craftsman rear-engine riding lawn mower model 502255020 is worth it when the mower deck, steering, and drive components are still solid and you want more years out of the machine. If the total engine swap cost approaches about half the price of a comparable new mower, replacement usually makes more sense.
Quick decision checklist

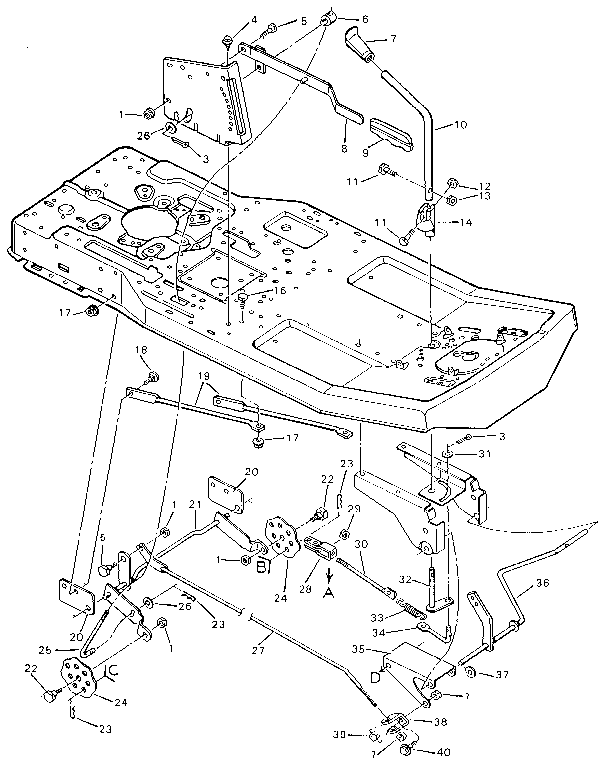

- The mower deck is not rusted through and still cuts evenly.

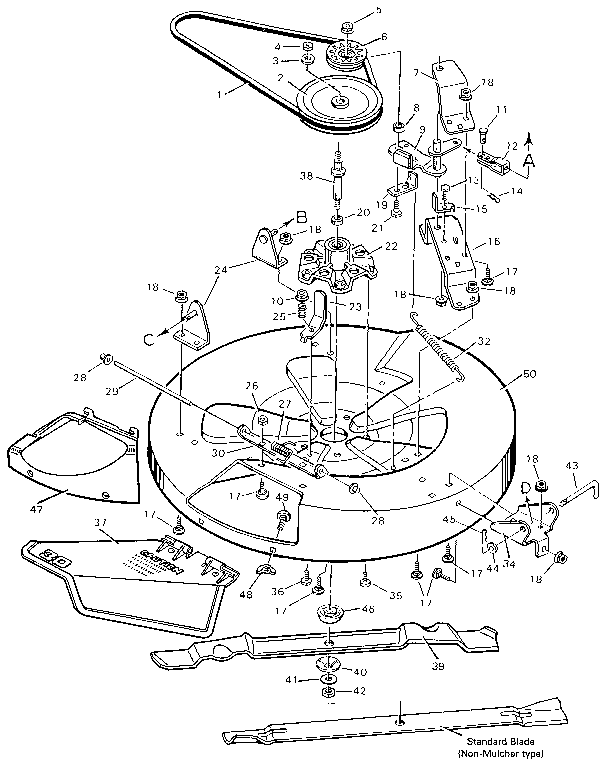

- The mower housing stays clean enough to avoid belt issues (debris buildup can affect belt operation).

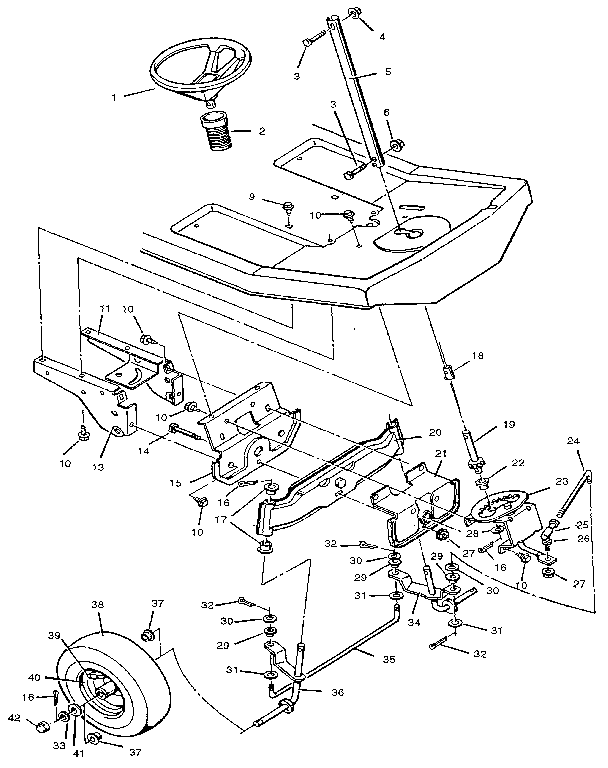

- The chassis, steering, and brakes are in good condition.
- You are comfortable doing a moderate DIY project (or paying labor).
- The engine failure is internal (low compression, thrown rod) versus a tune-up issue.
Cost and effort: replace engine vs buy new

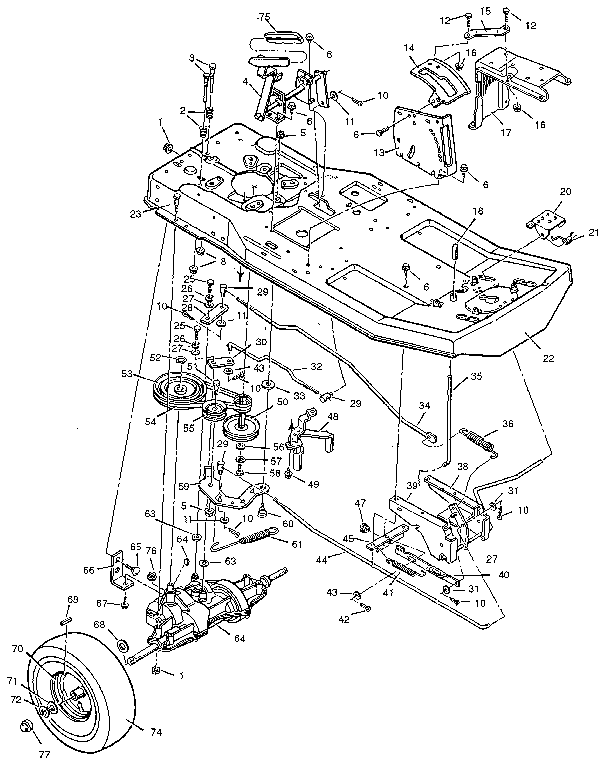

| Option | Upfront cost | Time/effort | Best when |
|---|---|---|---|
| Replace engine | Medium to high | High | Deck and drivetrain are strong; you want to keep the mower |
| Repair existing engine | Low to medium | Medium | Problem is carburetor, fuel, ignition, or wiring |
| Buy new mower | High | Low | Multiple systems are worn (deck, steering, transmission) |
Before you commit: rule out common “no-start” causes
Many “bad engine” symptoms are actually electrical or fuel related. Use the troubleshooting steps in the 502255020 owner's manual and check these first:
- Battery connections and the fuse (a blown fuse can prevent starting; the manual notes a 15-amp automotive fuse near the battery).
- Starter solenoid operation on electric-start models.
- Spark plug condition and fuel quality.
- Air filter and air screen cleanliness (a hot engine can lose power when airflow is restricted).
- Wiring damage or loose connections (especially around the start circuit).
If the start circuit is the issue, replacing the ignition switch 532365402 or the solenoid 7701100MA is often far cheaper than an engine swap.
Why it matters
A rear-engine riding mower is a system: engine, deck, belts, pulleys, and safety interlocks all work together. The manual also emphasizes keeping the machine free of grass and debris to reduce fire hazards and prevent belt problems, so overall condition is a strong predictor of whether an engine investment pays off.
Last updated: January 2026
How to find riding lawn mower model number?

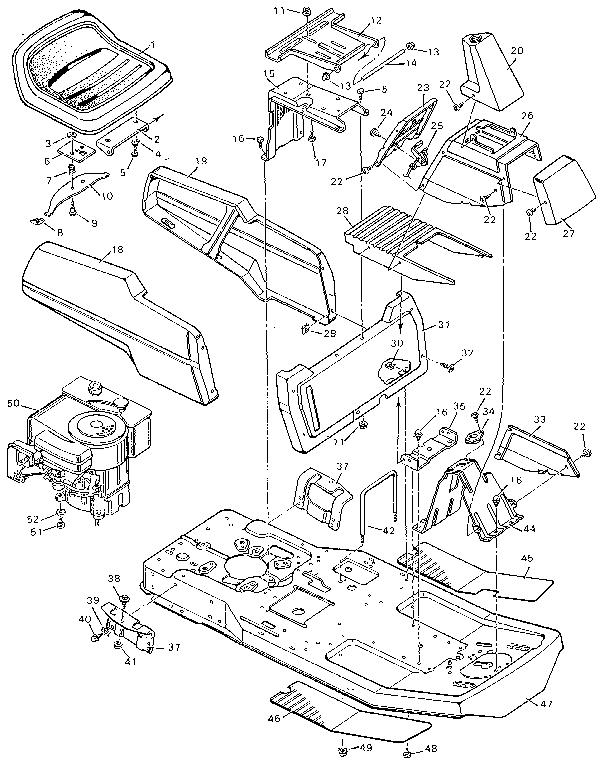

On the Craftsman rear-engine riding lawn mower model 502255020, the model number and serial number are located under the seat on a decal attached to the seat support. Tilt the seat forward to access the decal and record both numbers for parts and service. See the 502255020 owner's manual.
Where to look (fast checklist)
- Park on a flat surface, set the parking brake, and turn the key off
- Tilt the seat forward (this model is designed for easy access under the seat)
- Look for a decal on the seat support under the seat
- Write down both the model number and serial number
- Use those numbers when ordering parts or requesting service
Model number vs. engine model number
Your mower has more than one identification label. Use the right one depending on what you are ordering.
| What you need | Which number to use | Where to find it |
|---|---|---|
| Mower chassis, deck, steering, electrical parts | Mower model number (502255020) | Under the seat on the seat support decal |
| Engine-specific parts (tune-up items, carburetor parts) | Engine model number | On the blower housing above the spark plug |
Why it matters
Using the exact model number helps us match the correct diagrams and parts for your 30-inch deck, 5-speed transaxle, and electric-start configuration. It also prevents ordering the wrong ignition, wiring, or blade components.
Tip for ordering the right electrical parts

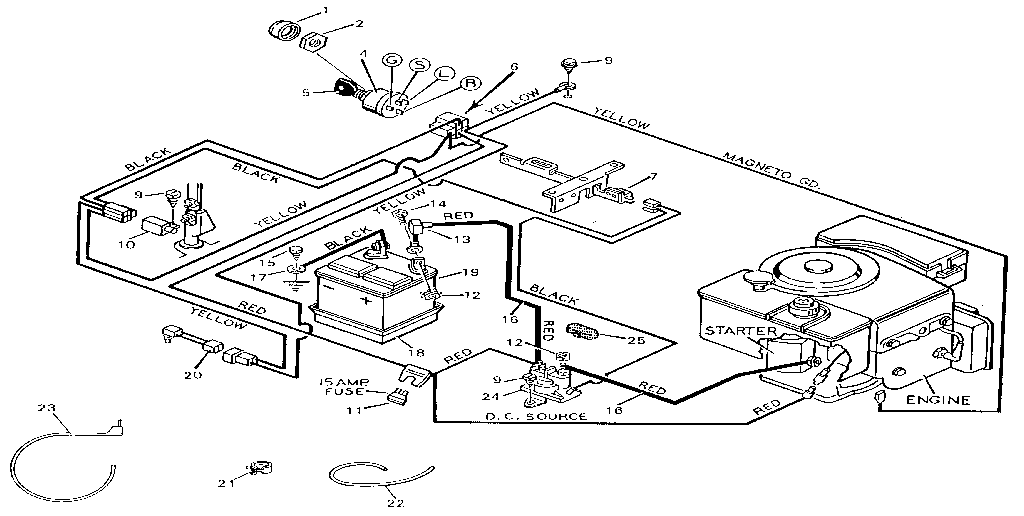

If you are troubleshooting a no-start condition after confirming the model number, common starting-circuit parts include the ignition switch 532365402 and the starter solenoid. Always compare your original part and wire positions to the wiring schematic in the manual.
Last updated: January 2026
How to read Craftsman serial number?
On Craftsman rear-engine riding mower model 502255020, the serial number is primarily used to identify your exact production run for parts and service. We recommend recording the serial number exactly as shown on the decal under the seat and using it alongside the model number when ordering parts.
Where to find the serial number on model 502255020
The model and serial number are on a decal attached to the seat support, located under the seat.
- Park on a level surface and set the parking brake
- Turn the key off and remove it
- Lift or tilt the seat forward to access the seat support area
- Locate the decal and write down the full serial number (do not skip letters or dashes)
- Keep the serial number with your purchase date for future reference
How to interpret the serial number (what to expect)
Craftsman serial-number formats vary by production era and manufacturer, so the safest approach is to match the format shown on your decal and confirm it against the documentation for your mower.
| What you see on the decal | What it usually means | What to do with it |
|---|---|---|
| Model number (502255020) | Identifies the mower design | Use it to find diagrams and parts lists |
| Serial number (varies) | Identifies the specific unit/build | Use it to confirm the correct parts and revisions |
| Purchase date (your note) | Helps with maintenance history | Keep it with your records |
Why it matters
Serial numbers can affect parts fitment when a mower has mid-year changes (wiring, switches, brackets, or deck hardware). Using the serial number helps us narrow to the correct diagrams and avoid ordering the wrong ignition or safety-interlock components.
Helpful tip when ordering electrical parts
If you are troubleshooting a no-crank or no-start condition, confirm the serial number first, then compare wiring and switch style before replacing parts such as the ignition switch 532365402 or the switch lmt 91032MA. For wiring identification and safety notes, follow the 502255020 owner's manual.
