Whirlpool
Bottom-Mount Refrigerator

Model # G25EFSB23S9 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool G25EFSB23S9 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

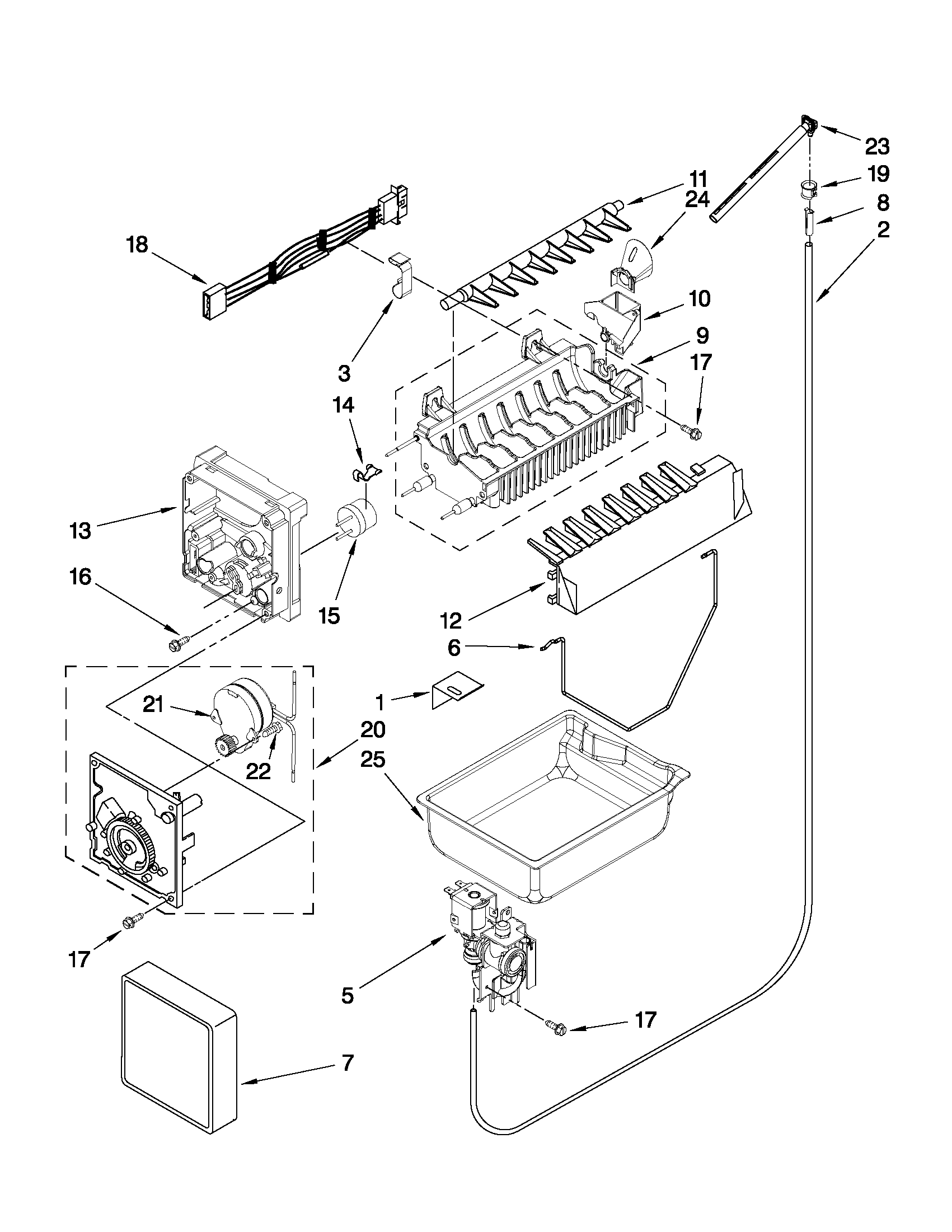

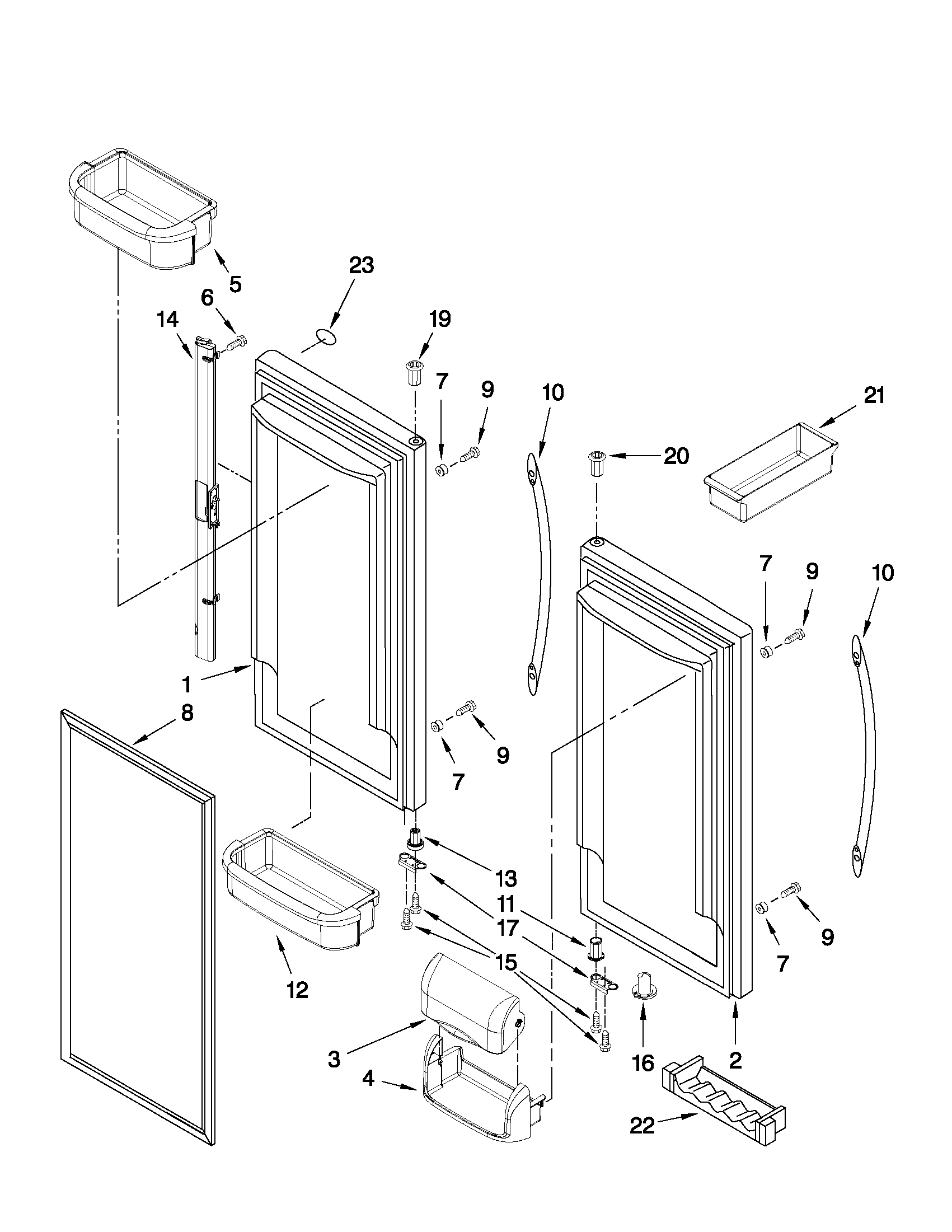

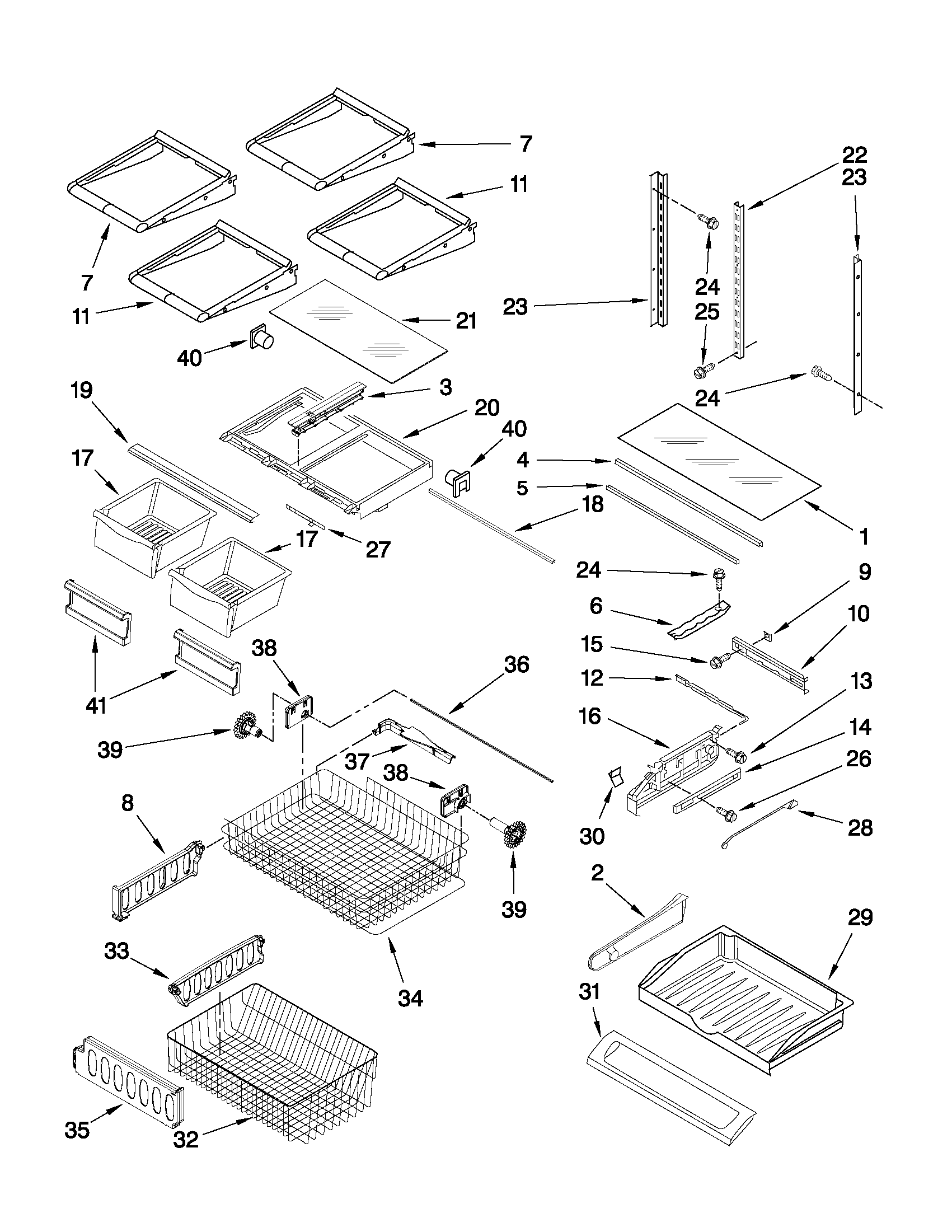

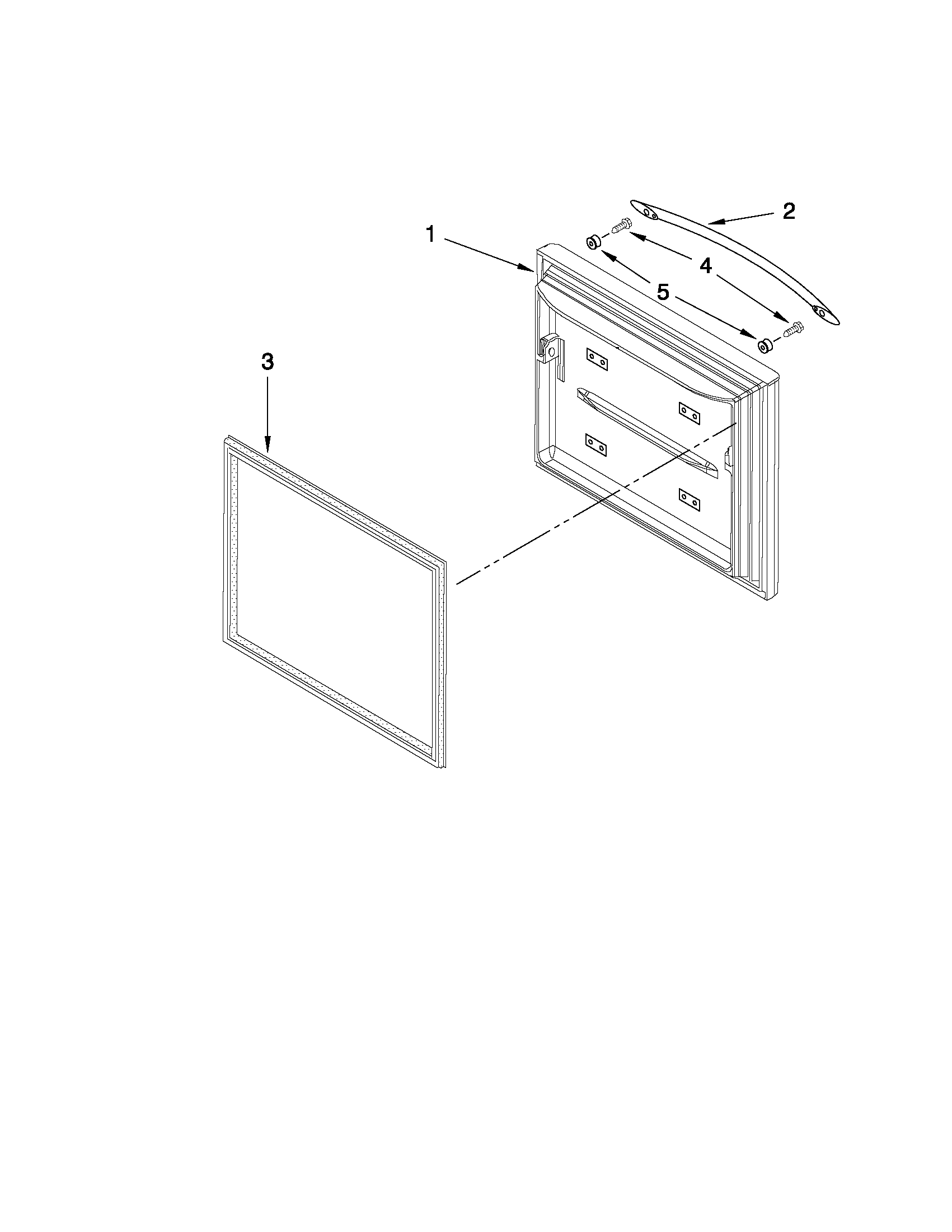

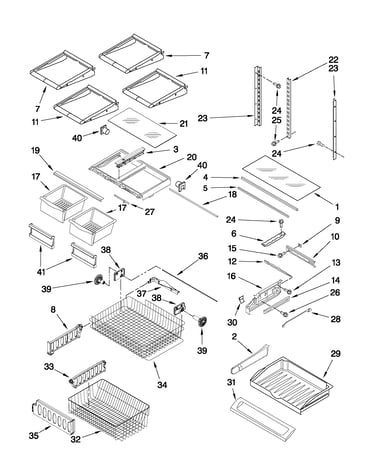

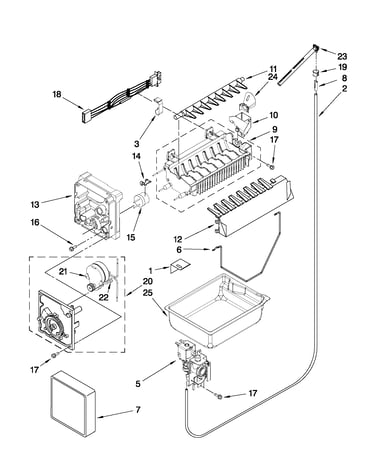

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 245 parts  |
Refrigerator Filter 13040214
#19

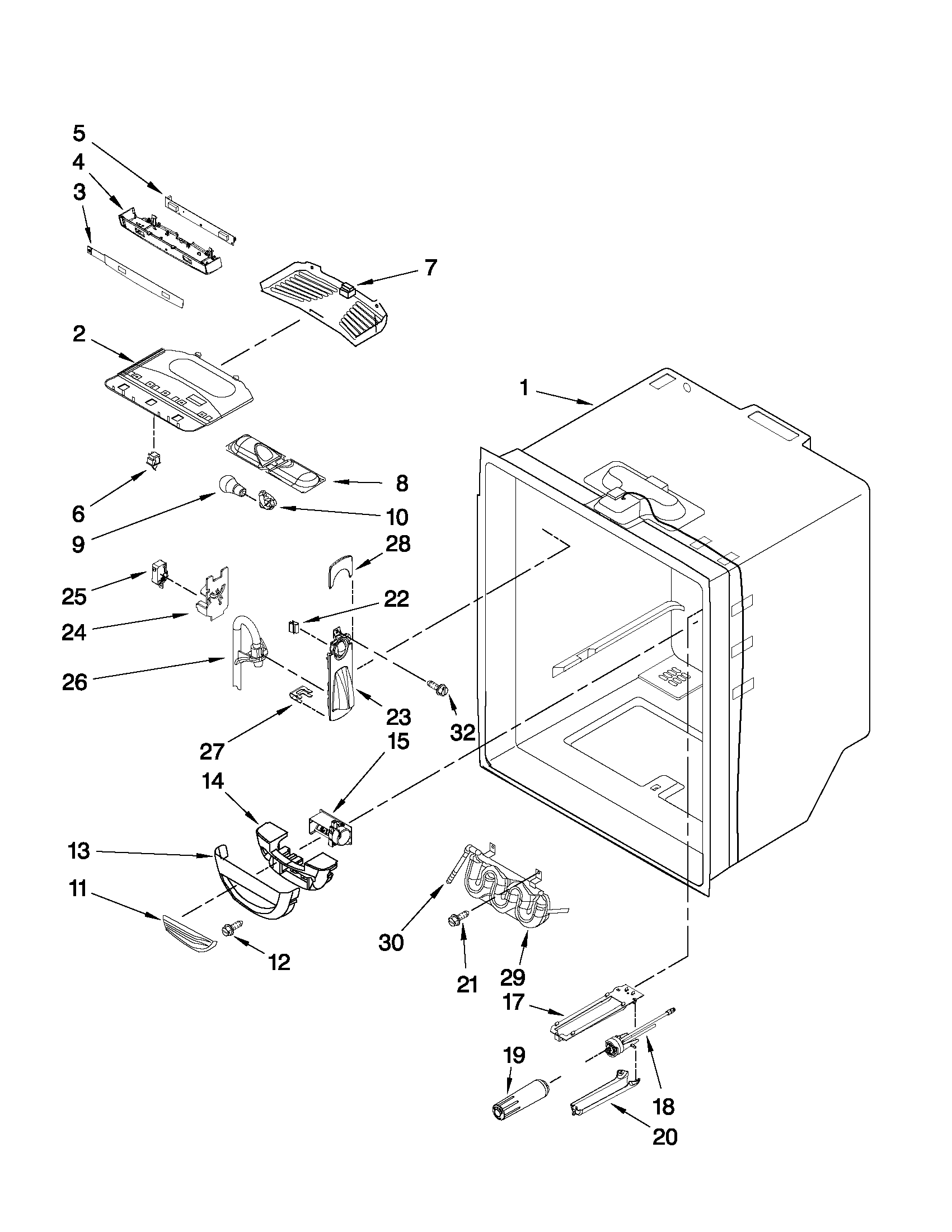

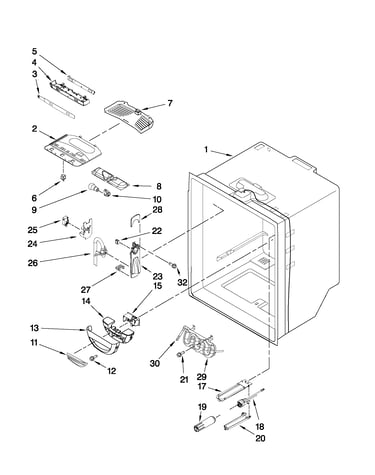

Refrigerator liner parts diagram

Refrigerator filter

Part #13040214

Replaced by #EDR4RXD1

?
Manufacturer substitution
This part replaces 13040214. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Uv Filter Dryer W10143759
#27

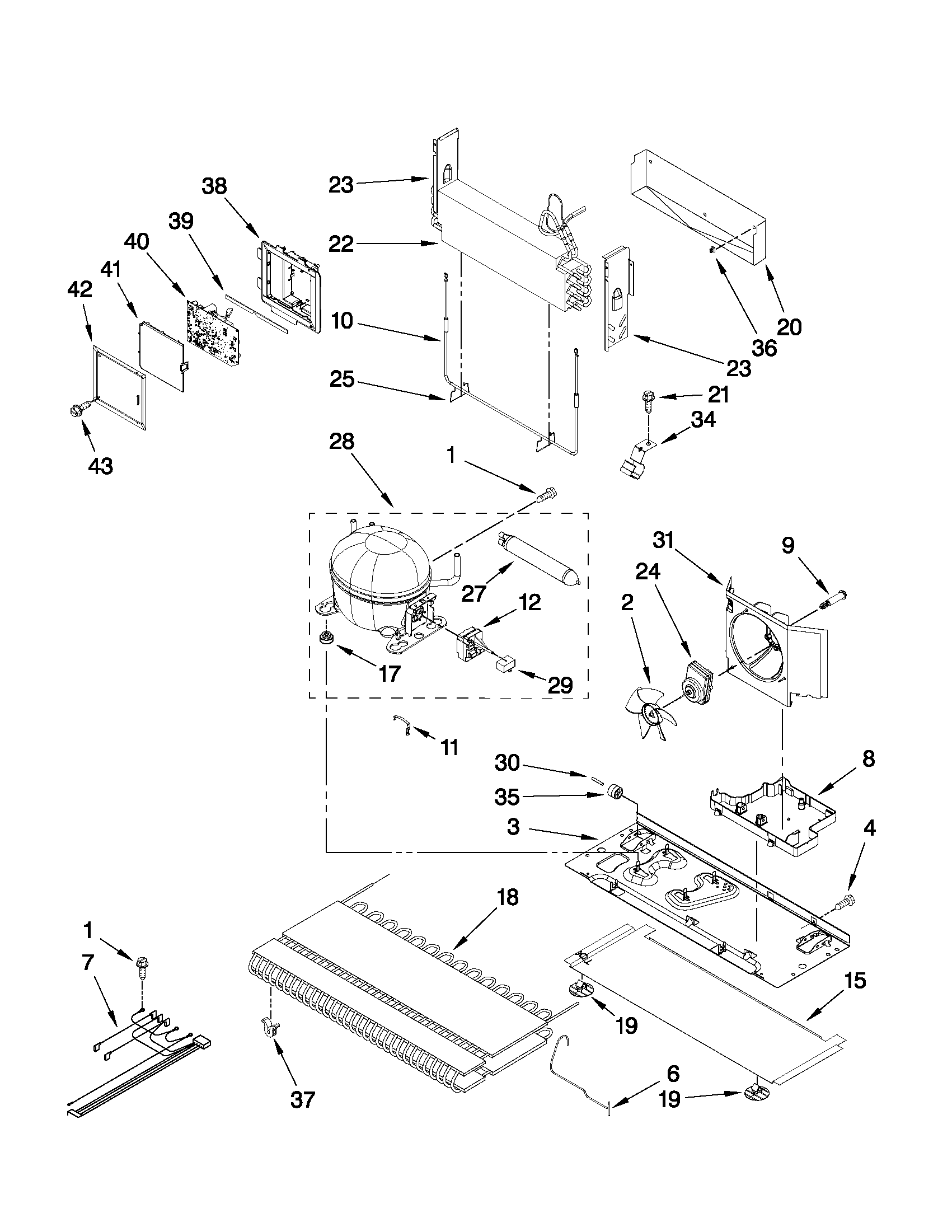

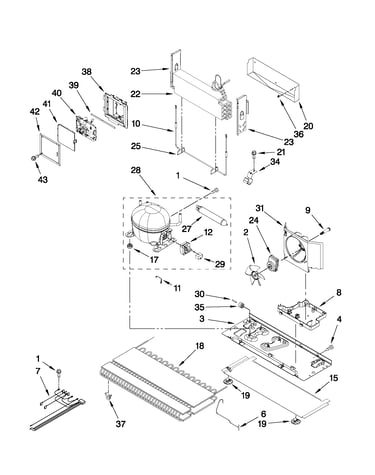

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
33% OFF Was : $31.00
In Stock
Refrigerator Push-button Switch C3680314
#6

Refrigerator liner parts diagram

Refrigerator push-button switch

Part #C3680314

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680314. Substitute parts can look different from the original.
BEST SELLER
$24.54 |
23% OFF Was : $32.00
In Stock
Refrigerator Evaporator Fan Blade 2169142
#24

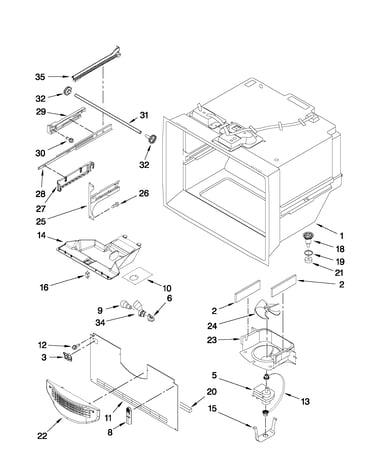

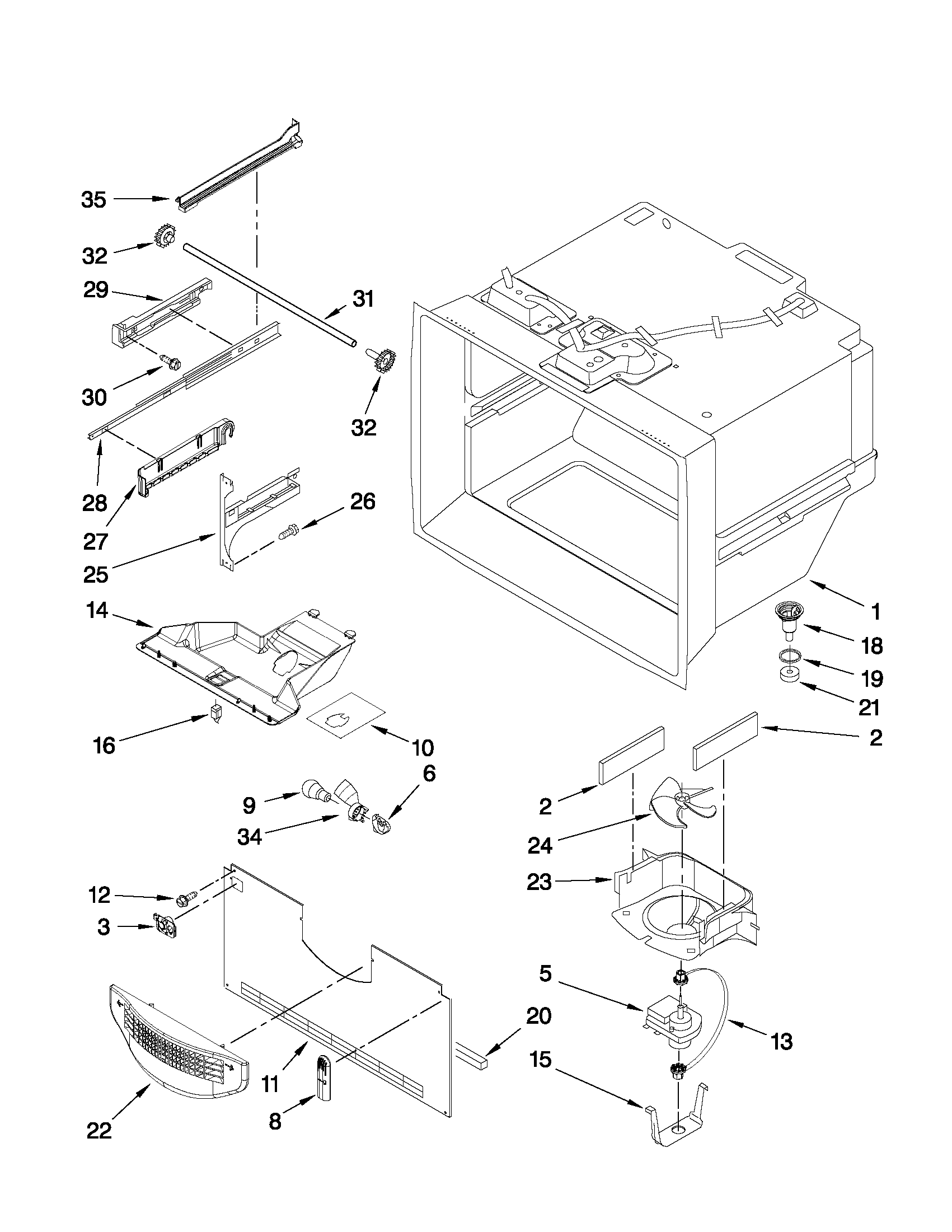

Freezer liner parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$31.47 |
19% OFF Was : $39.00
In Stock
Refrigerator Housing 12590622
#18

Refrigerator liner parts diagram

Refrigerator housing

Part #12590622

Replaced by #W11346623

?
Manufacturer substitution
This part replaces 12590622. Substitute parts can look different from the original.
BEST SELLER
$58.75 |
28% OFF Was : $82.00
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764
#NI

Unit parts diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
44% OFF Was : $47.00
In Stock
Refrigerator Drain Tube W10210988
#36

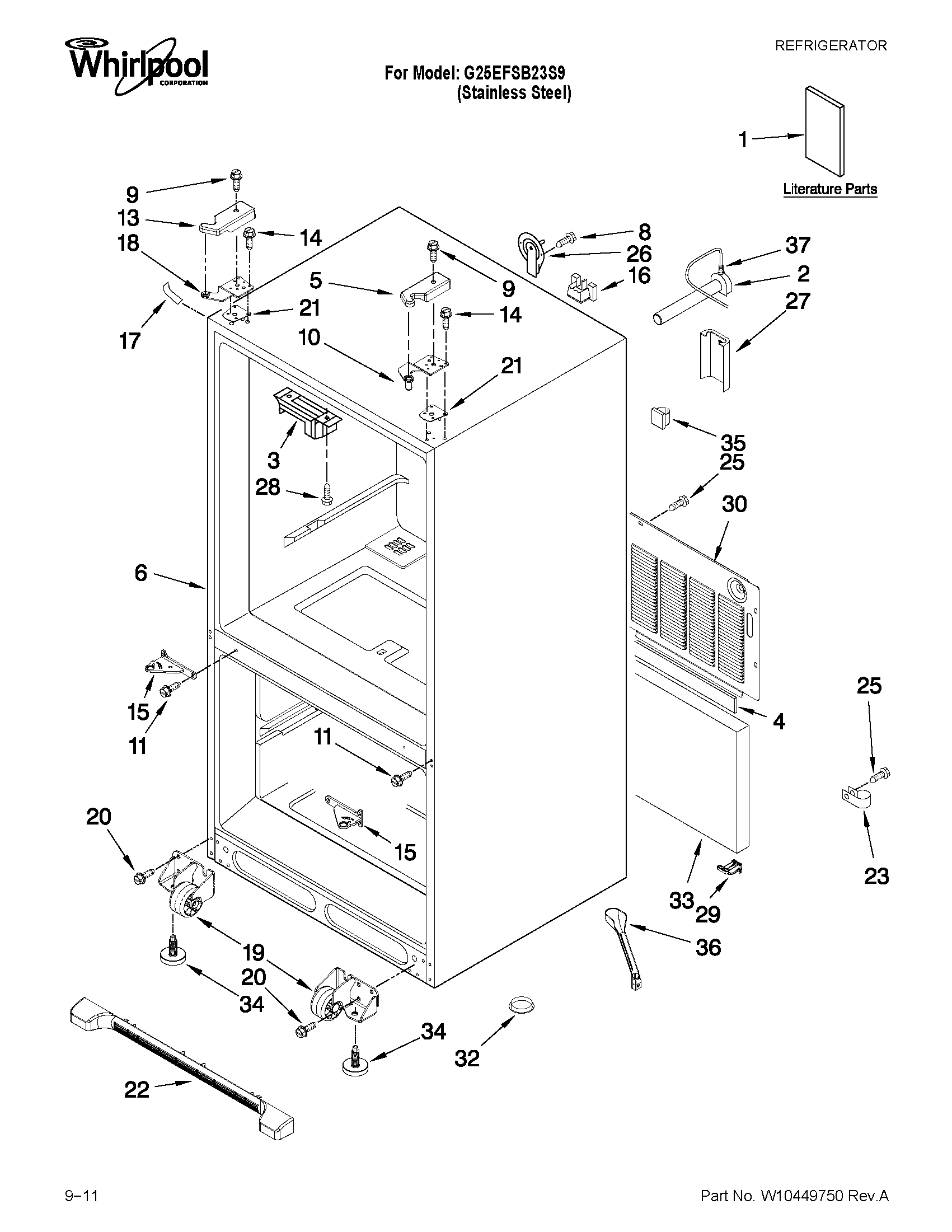

Cabinet parts diagram

Refrigerator drain tube

Part #W10210988

Replaced by #W10619951

?
Manufacturer substitution
This part replaces W10210988. Substitute parts can look different from the original.
BEST SELLER
$26.33 |
46% OFF Was : $49.00
In Stock
Refrigerator Screw 3196181
Refrigerator screw

Part #3196181

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 3196181. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Spray Paint (white) 350930
#NI

Optional parts (not included) diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Refrigerator Socket W10134764V
Refrigerator socket

Part #W10134764V

Replaced by #W11447232

?
Manufacturer substitution
This part replaces W10134764V. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.99 |
56% OFF Was : $18.00
In Stock
