Whirlpool RB770PXBB1 27" electric built-in double oven Parts
Here are the diagrams and repair parts for Whirlpool RB770PXBB1 27" electric built-in double oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

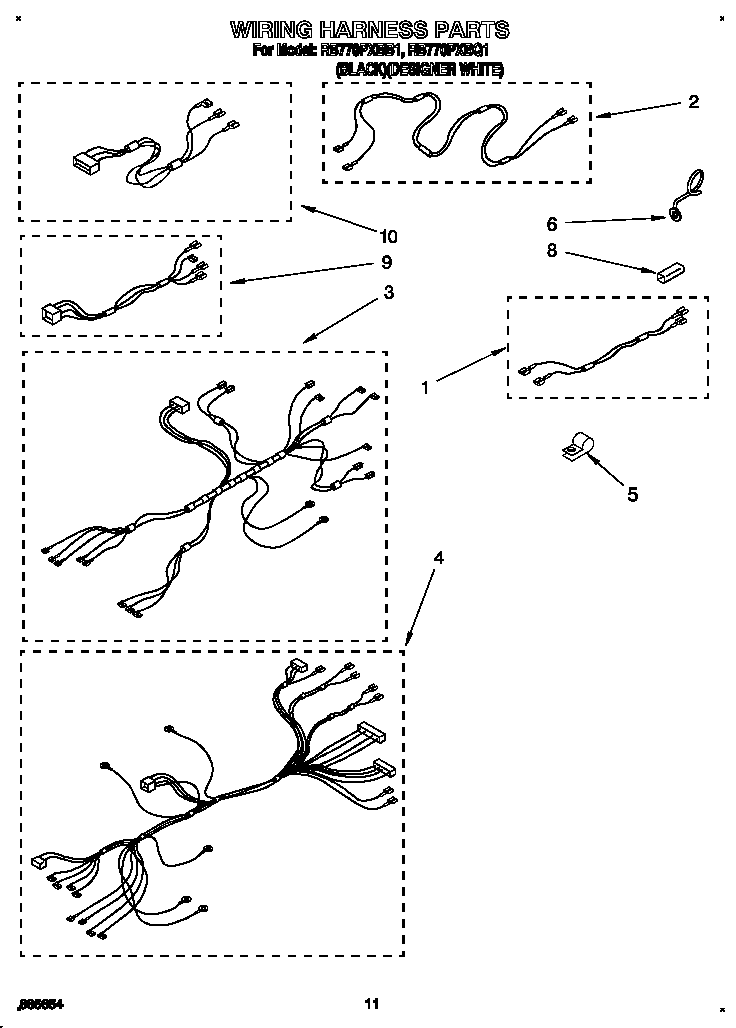

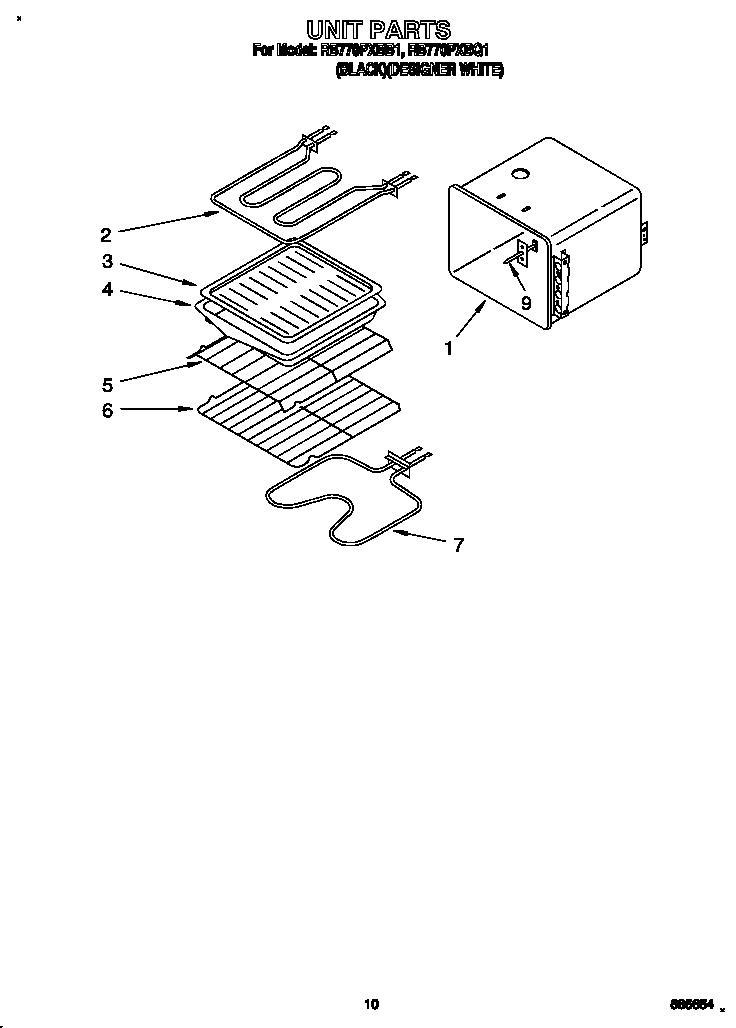

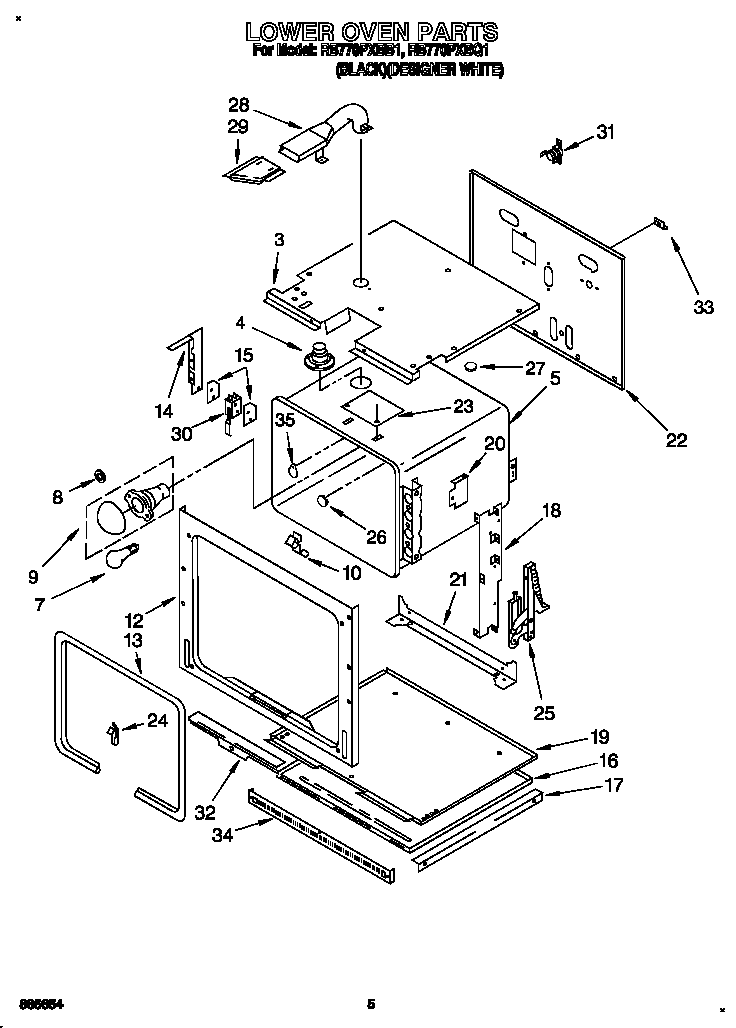

Browse Parts for RB770PXBB1 Ranges
Control panel diagram
Oven Control (black)
Part #3169256
The manufacturer no longer makes this part, and there's no substitute part
Oven Main
Part #3185562
The manufacturer no longer makes this part, and there's no substitute part
Oven Door Gasket
Part #3179813
The manufacturer no longer makes this part, and there's no substitute part

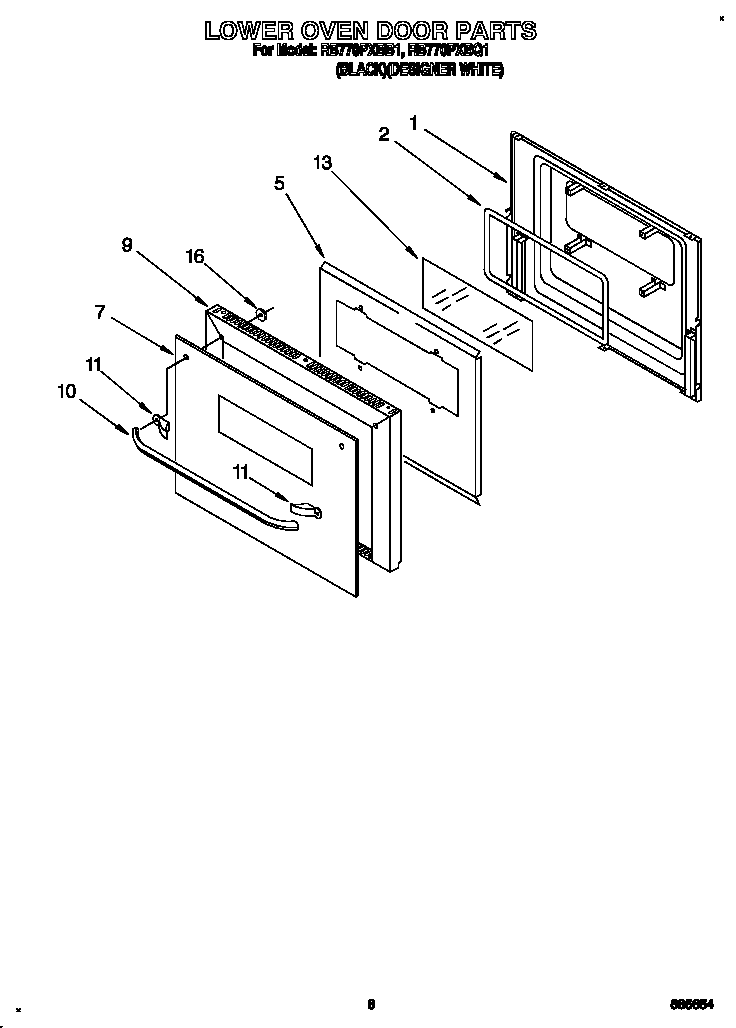

Door Frame
Part #3187852
The manufacturer no longer makes this part, and there's no substitute part
Control panel diagram
Oven Knob
Part #3183110
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Insulation
Part #3177872
The manufacturer no longer makes this part, and there's no substitute part
Screw
Part #3185648
The manufacturer no longer makes this part, and there's no substitute part

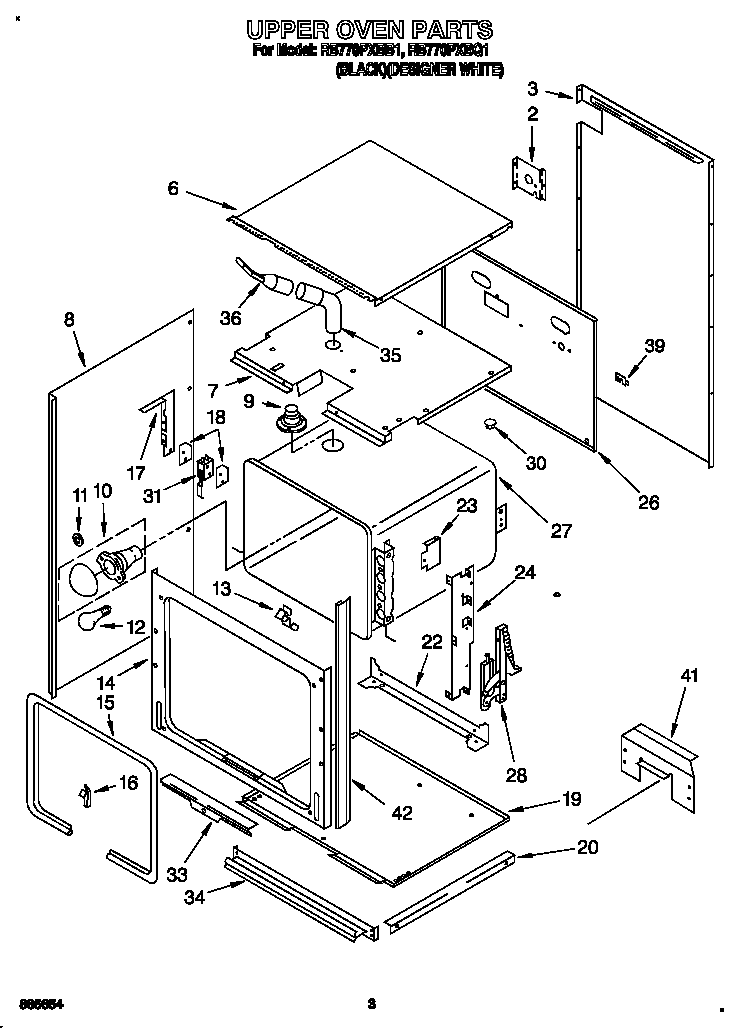

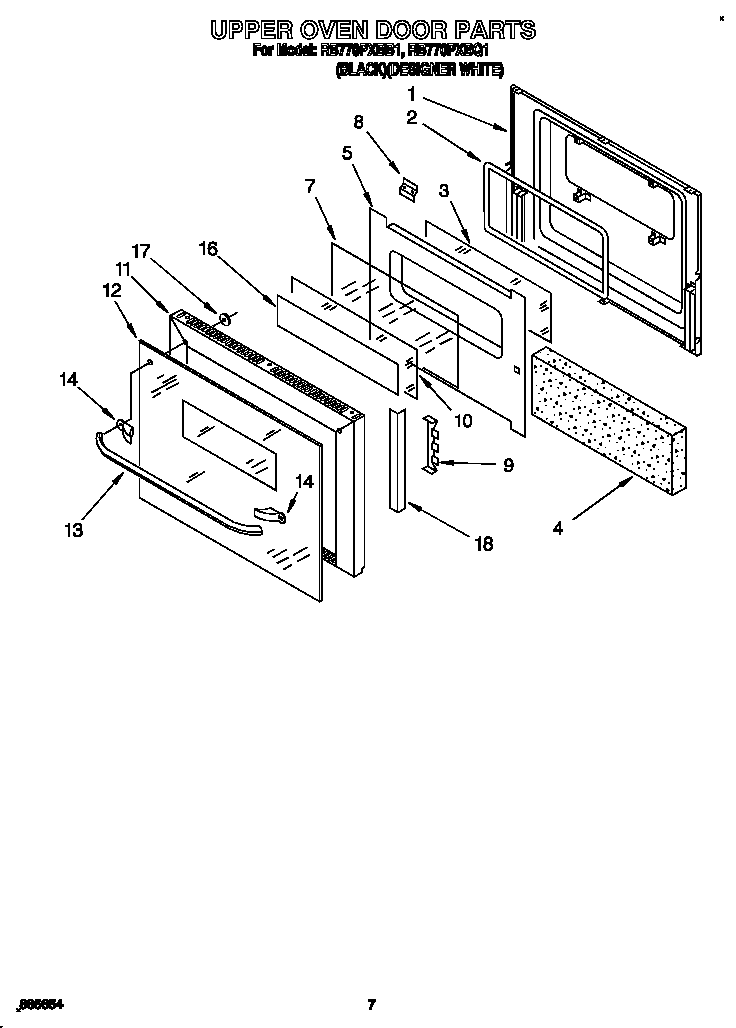

Upper oven diagram
Support
Part #3183752
The manufacturer no longer makes this part, and there's no substitute part

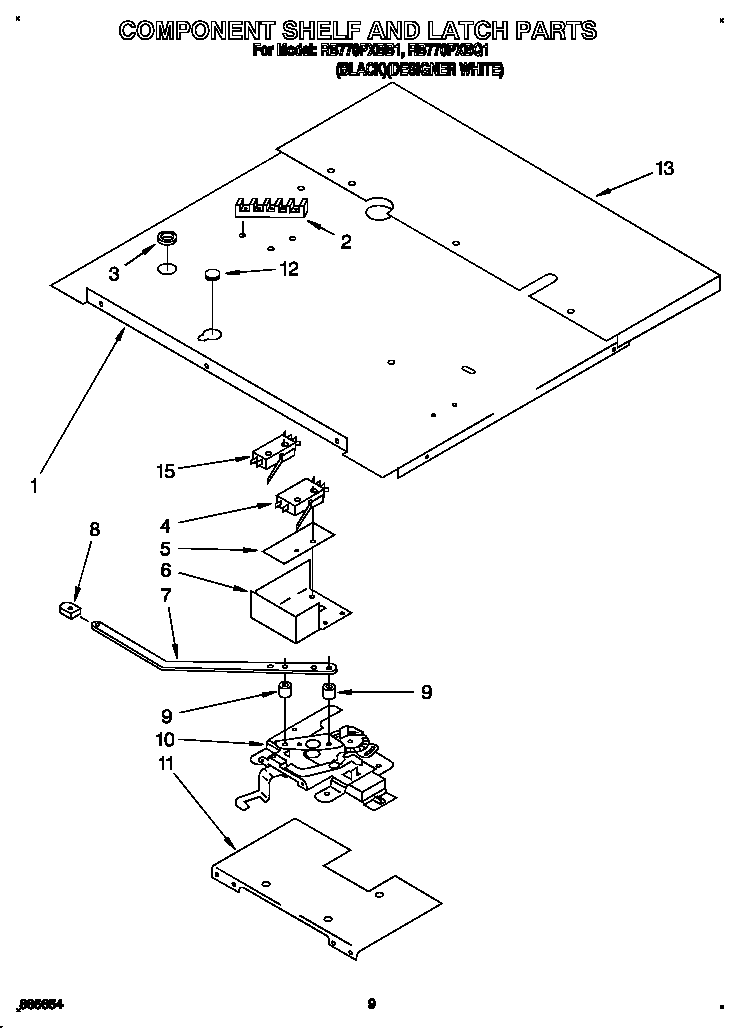

Component shelf and latch diagram
Panel
Part #3184592
The manufacturer no longer makes this part, and there's no substitute part
Control panel diagram
Vent Trim
Part #3184589
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
