Kenmore 66514572N611 dishwasher Parts

No. Built-in dishwashers are not all 33 inches tall; most are designed to fit a standard cabinet opening around 34 1/2 inches high. For Kenmore 66514572N611, the installation guide shows height adjustments to fit openings from about 33 1/2 inches to 34 1/2 inches. See the installation guide for the exact adjustment chart.

Typical dishwasher height ranges

Most built-in 24-inch dishwashers are made to fit under a countertop, so the cabinet opening height matters more than the dishwasher’s “box” height.

• Common cabinet opening target: 34 1/2 in.
• Minimum openings are sometimes 33 1/2 in. with adjustments
• Height is adjusted using leveling legs and rear wheel position
• Built-up floors (tile not extending under the unit) can change the effective opening
• Handles can protrude forward, but they do not change the required opening height

Kenmore 66514572N611 height adjustment (what the install guide shows)

The 66514572N611 install instructions include a “Dishwasher Height Adjustment Chart” that uses wheel position, front leg height, and insulation blanket changes to match the cabinet opening.

Cabinet opening height (approx.)	Typical adjustment approach
34 1/2 in.	Factory preset; level with front legs as needed
34 in. to 34 1/4 in.	Adjust wheel position and front legs
33 1/2 in.	Remove rear wheels and cut/remove perforated insulation section (harder to move)

Why it matters

If the dishwasher is too tall for the opening, it can bind under the countertop and be difficult to level. If it sits too low, the door may not seal correctly and the unit can vibrate or shift during operation.

Quick measuring checklist

• Measure from the lowest point under the countertop to the highest point on the floor in the opening
• Check for protrusions (screws, brackets, plumbing) that block installation
• Account for built-up floors; use securely attached shims if needed

Last updated: February 2026

For Kenmore dishwasher model 66514572N611, a hard reset is done by canceling the current cycle and restoring power so the control clears and restarts cleanly. If the keypad is responsive, use the control-panel cancel/reset sequence first; if it is not, power-cycle the dishwasher.

Quick reset methods (try in this order)

• Cancel/Drain reset: Press Cancel/Drain (or Cancel) and wait about 2 minutes for the drain and reset to finish.
• Heated Dry + High Temp sequence (common on many Kenmore 665 models): Press Heated Dry, then High Temp; repeat that pair once (4 presses total), then close the door and wait about 3 minutes.
• Power-cycle reset: Turn the dishwasher OFF at the breaker (or unplug it) for 3 to 5 minutes, then restore power.
• Door reset: Open the door, wait 10 seconds, close it firmly, then try starting a cycle again.

What to check if the reset does not “stick”

A reset helps only if the dishwasher can latch, fill, and drain normally. Check these common causes:

• Door not fully latched or a worn latch
• Standing water from a drain restriction
• No fill due to a closed shutoff valve or a fill problem
• Stuck keys or moisture in the console

Symptom after reset	Most likely area	What to do next
Won’t start, lights act odd	Door latch or control	Confirm door closes firmly; inspect latch alignment
Hums but won’t drain	Drain system	Check filter area and drain path; run Cancel/Drain
Runs but no water enters	Water supply / inlet valve	Verify hot water shutoff valve is ON under the sink

Parts that commonly relate to “won’t start” or “won’t reset”

If the door will not latch consistently, the control may not allow a cycle to begin.

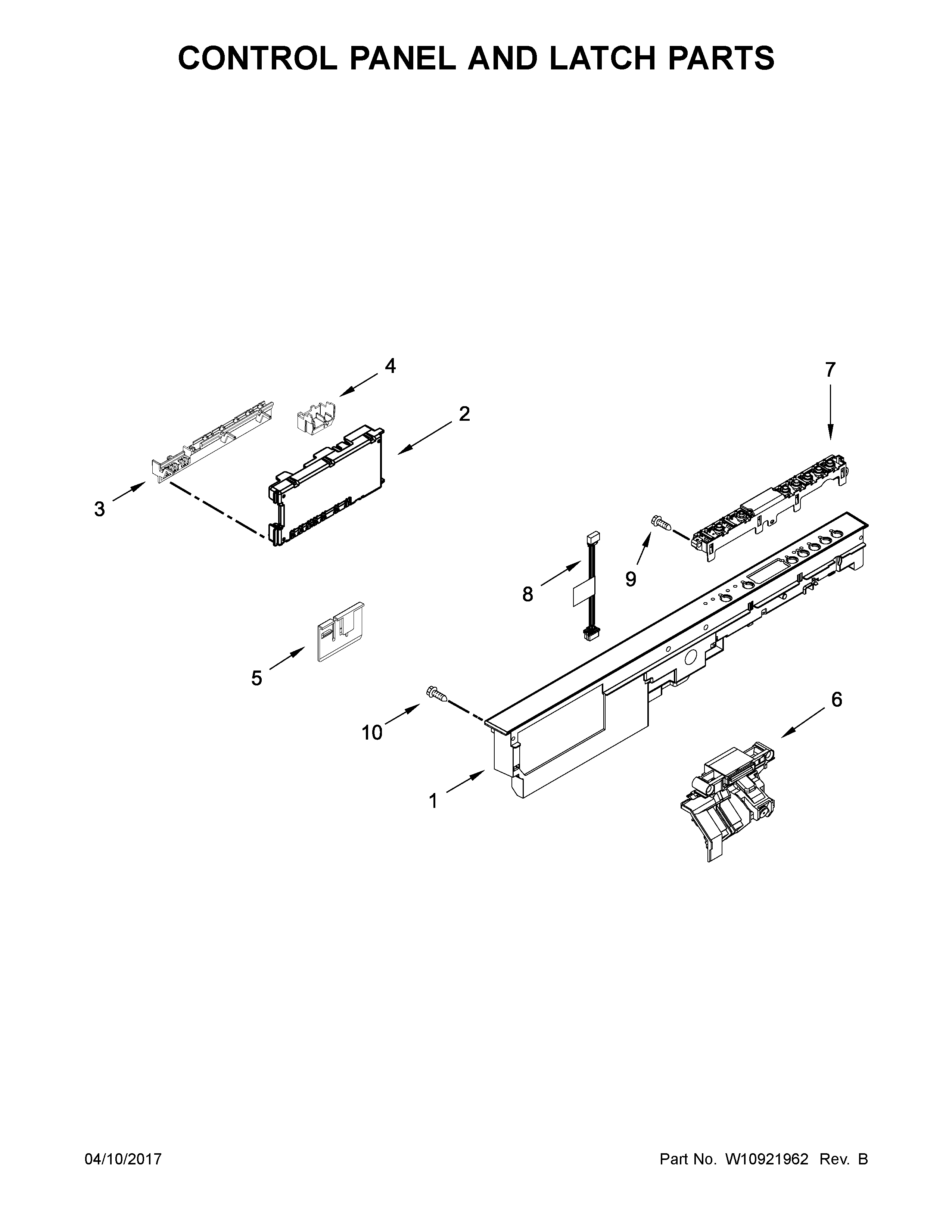

• Dishwasher door latch WPW10653840

Why it matters

A proper hard reset clears a stuck cycle and reboots the electronic control, but it will not overcome a mechanical issue (like a door that will not latch) or a basic utility issue (no power, no water, or a drain blockage). For model-specific button sequences and indicator behavior, follow the 66514572N611 owner's manual.

Last updated: February 2026

Yes. We still support replacement parts for many Kenmore dishwashers, including model 66514572N611; the key is matching parts by the full model number so you get the correct fit for items like racks, pumps, valves, seals, and controls. Use the 66514572N611 installation guide to confirm installation requirements and compatible connection types.

How to make sure you order the right part

Use your model number (66514572N611) and then match the part by name and ID. For this model, common, high-wear items include:

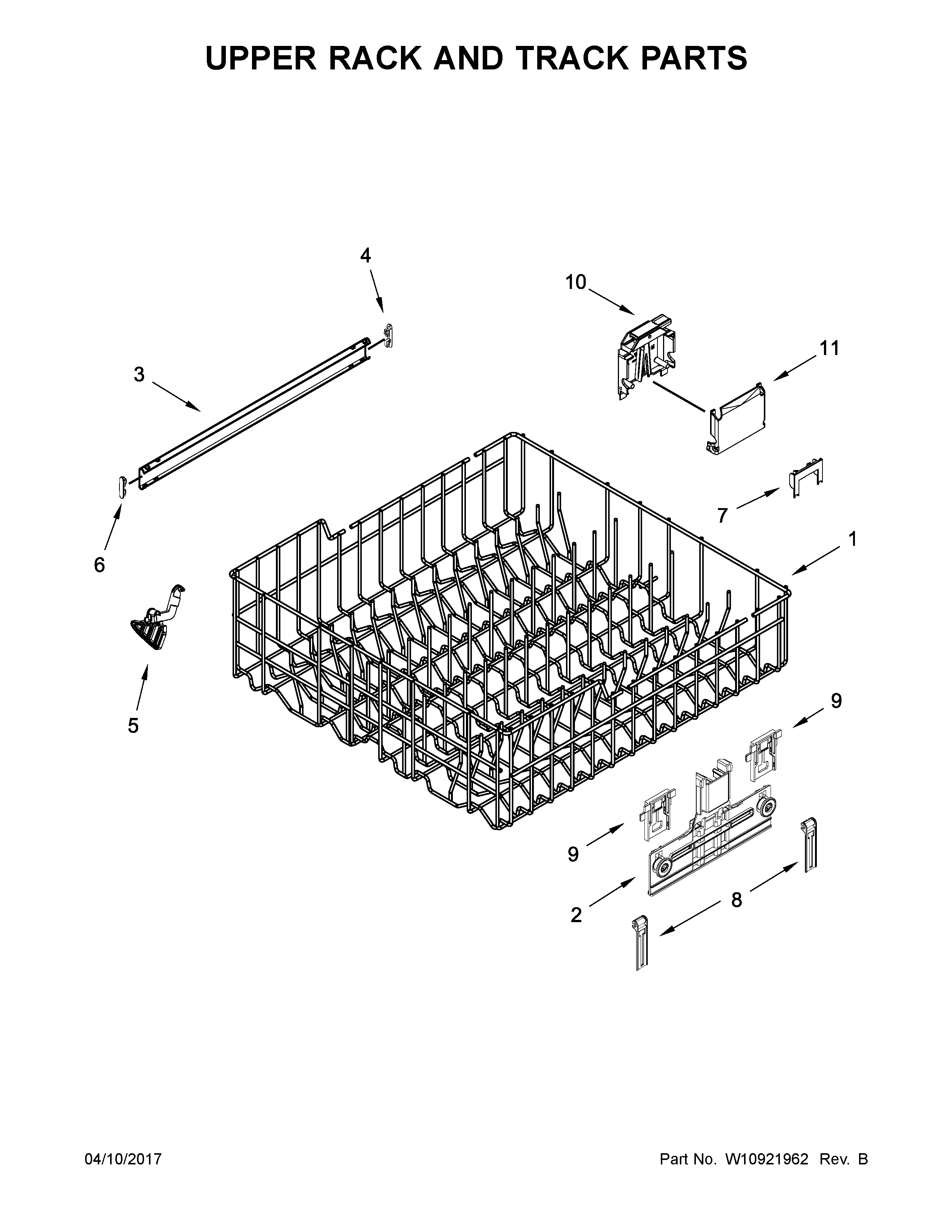

• Upper rack adjusters and rack wheels (for smooth rack movement)

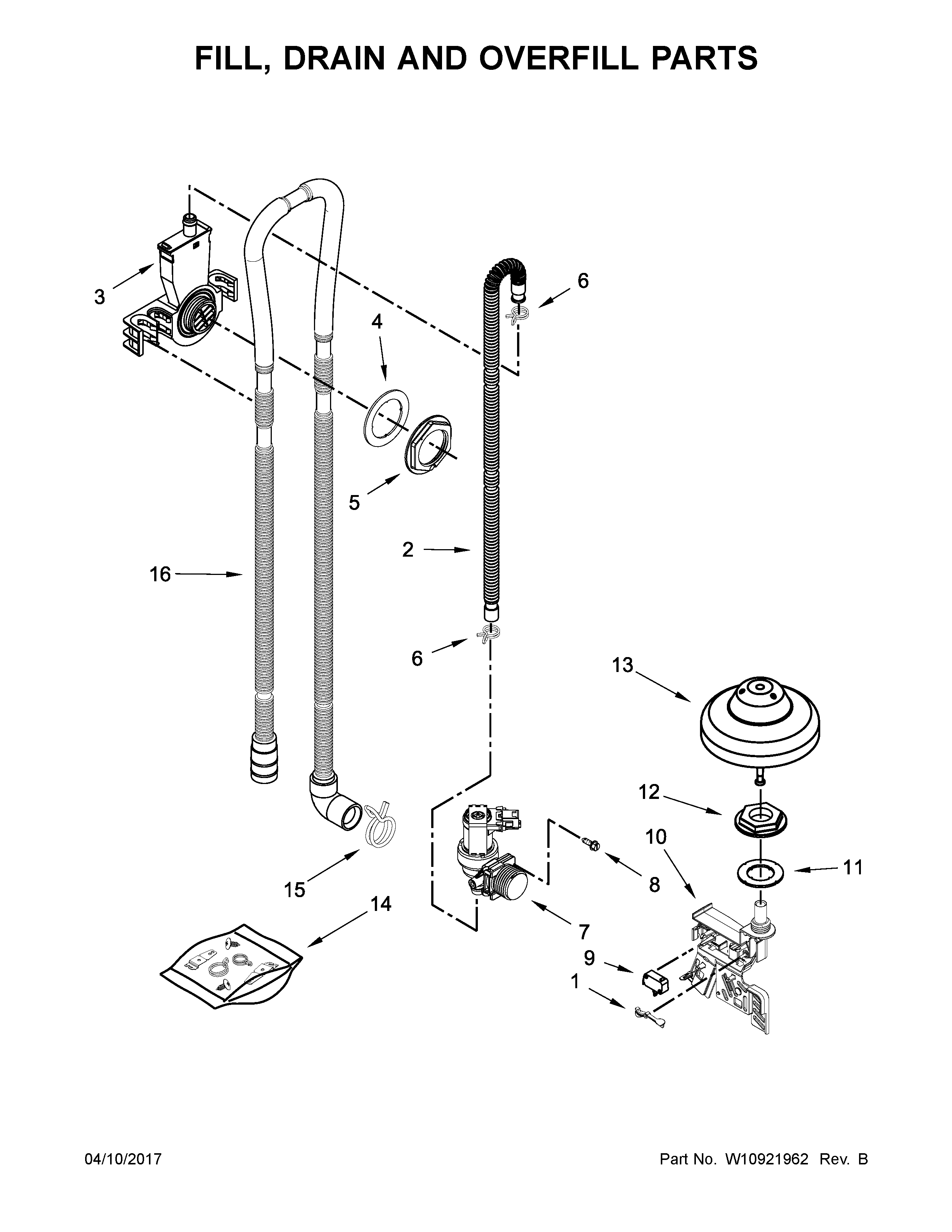

• Drain components (for standing water and slow draining)
• Water inlet valve (for no-fill or weak fill symptoms)
• Door latch and door seals (for leaks and door-closed errors)

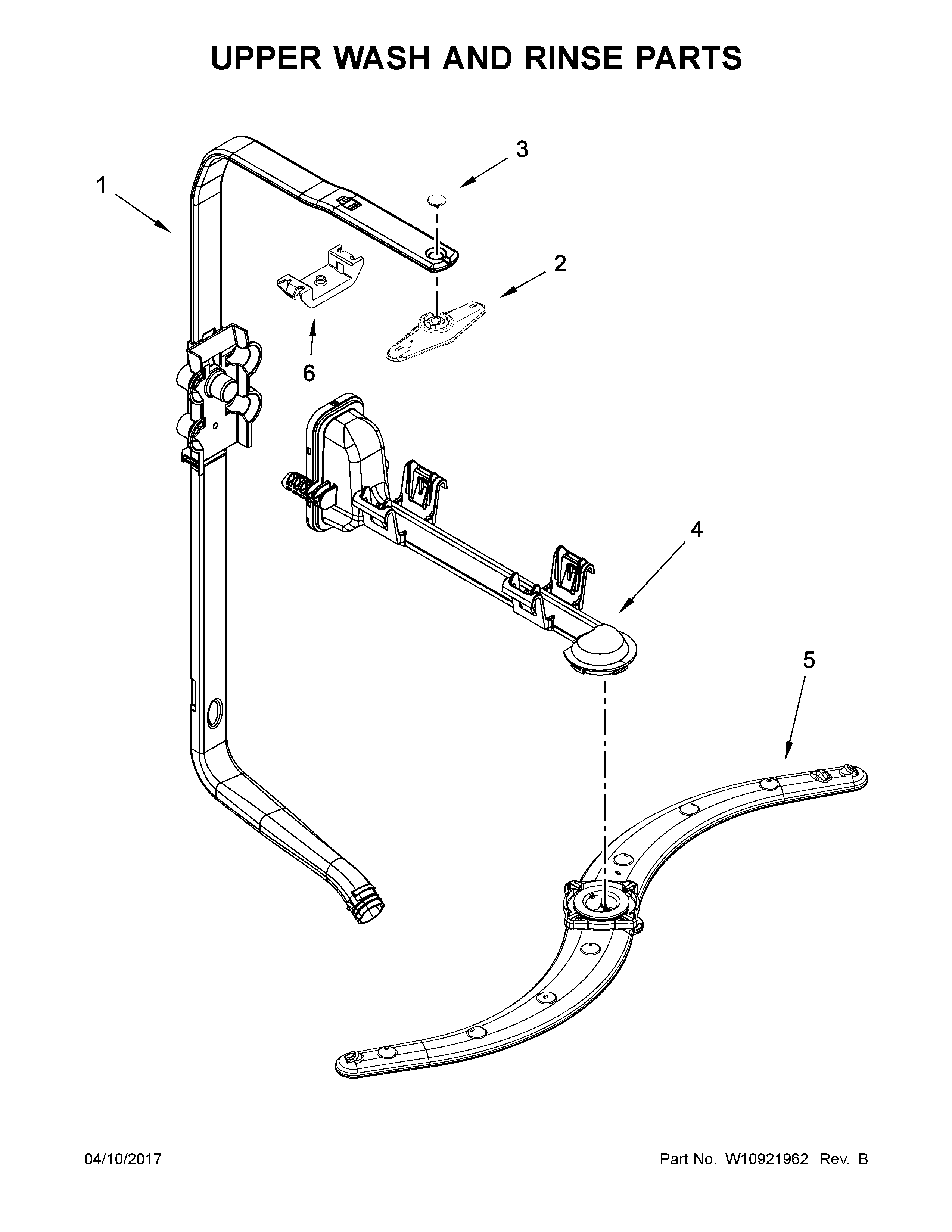

• Heating element and spray arms (for poor drying and poor cleaning)

Examples of parts available for this model

Repair need	Example part (name + ID)	What it affects
Upper rack won’t stay level or adjust	Dishwasher rack adjuster W10712395	Rack height, stability, smooth sliding

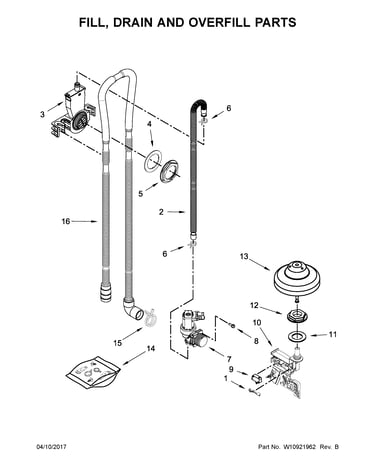

Dishwasher won’t drain well	Dishwasher drain pump WPW10348269	Draining, end-of-cycle water
Dishwasher won’t fill or fills slowly	Dishwasher water inlet valve W11175771	Water entering the tub

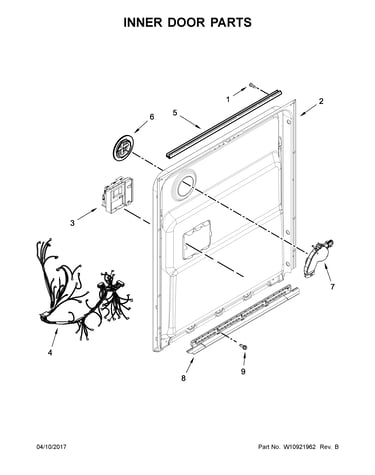

Door won’t latch or cycle won’t start	Dishwasher door latch WPW10653840	Door-closed detection, starting

Why Kenmore parts are still widely available

Kenmore dishwashers are commonly built by major manufacturers, and many service parts remain available for years. Ordering by the exact model number keeps you from getting a similar-looking part that mounts differently or uses a different electrical connector.

Why it matters

A dishwasher part that is “close” can still cause leaks, poor wash performance, or installation problems. Confirming the model number and following the wiring, water supply, and drain guidance in the 66514572N611 installation guide helps the repair go smoothly and safely.

Last updated: February 2026

Your Kenmore dishwasher’s model number is usually printed on a label around the door opening. Open the door and look along the inner door frame (top edge and sides) and the tub rim; for this page, the model number format looks like 66514572N611.

Where to look first (fastest checks)

• Open the door and inspect the top edge of the door opening.
• Check the left and right inner door frame.
• Look on the tub wall near the front (just inside the door).
• Wipe the area with a damp cloth; soap film can hide the print.
• Use a flashlight and view from an angle; labels can be low-contrast.

What the model number helps us match

Having the exact model number lets us match the correct Kenmore parts list, diagrams, and troubleshooting steps, including the right rack hardware, pumps, and door components.

What you find	What it means	What to do next
Full model number (example: 66514572N611)	Exact parts compatibility	Use it to select parts and follow procedures in the 66514572N611 owner’s manual
Model number is worn or missing	Label damage or heavy wear	Check your purchase paperwork, or follow label-location guidance in the 66514572N611 installation guide
Only a partial number	Not enough for exact match	Keep looking for the full string; one missing digit can change parts

If you still cannot find the label

• Check the side of the door itself (near the hinges).
• Look for a second label on the kickplate area (behind the lower access panel).
• If the unit was recently installed, confirm the model on the installation paperwork.

Why it matters

Kenmore dishwashers often share similar styling across series, but parts like the dishwasher door latch, water inlet valve, or rack adjusters can vary by model. Using the exact model number prevents ordering the wrong part and saves time on repairs.

Last updated: February 2026

On Kenmore dishwasher model 66514572N611, the Start/Resume button usually will not start a cycle if the door is not fully latched or if the door is not closed within 3 seconds after pressing Start/Resume. Power issues (tripped breaker) and a failed door latch are the next most common causes; see the 66514572N611 installation guide for the basic “does not operate” checks.

Quick checks (most common fixes)

• Make sure the door is closed tightly and latched; push firmly at the latch area.
• Press Start/Resume, then close the door within 3 seconds (or the Start/Resume light can flash until you press it again).
• Check the home circuit breaker or fuse for the dishwasher.
• Confirm the cycle is actually selected correctly (a cycle must be set before Start).
• Verify the water supply is turned on under the sink.

Parts that commonly cause a “won’t start” symptom

If the quick checks do not fix it, these parts are the most likely culprits on this style of Kenmore dishwasher:

Symptom you notice	Most likely area	What to inspect first
Button beeps/lights but won’t run	Door not proving “closed”	Door latch and strike alignment
Starts sometimes, then stops	Loose connection or control issue	Console wiring, control connections
Door must be slammed to start	Worn latch mechanism	Latch assembly and mounting

A failed latch is common; if the latch does not reliably “prove” the door is shut, the control will not allow the wash motor to run. If you need the replacement, match it to your model using the dishwasher door latch WPW10653840.

Why it matters

The dishwasher is designed to prevent operation with the door unlatched. That safety interlock is why a small door-latch problem can look like a bad Start button, even when the console lights still work.

Last updated: February 2026

Common Kenmore dishwasher problems include not starting, not draining, not filling, poor cleaning, and door issues. On Kenmore model 66514572N611, these symptoms often trace back to the door latch, drain system, water inlet, spray circulation, or the control.

Most common symptoms and what usually causes them

• Won’t start: door not fully latched, failed latch switch, power supply issue, control problem
• Won’t drain: clogged filter/sump area, kinked drain hose, failed drain pump
• Won’t fill or fills slowly: closed water shutoff, clogged inlet screen, failed inlet valve
• Poor cleaning: blocked spray arm holes, overloaded racks, low water temperature, detergent issues
• Leaks: door seal wear, loose hose connections, misloaded items preventing a full seal

Quick checks we recommend first (fast, no parts)

1. Confirm the door closes firmly and the cycle is started correctly.
2. Check the breaker and that the dishwasher has a grounded electrical supply (no extension cord).
3. Verify the water shutoff valve is fully open.
4. Inspect the drain hose routing for kinks and make sure it is not contacting the motor/legs.
5. Clean obvious debris from the sump area and check spray arm holes for blockage.

Parts that commonly fix these problems on 66514572N611

Symptom	Common fix	Example part for this model
Won’t start or stops mid-cycle	Door latch not engaging	Dishwasher door latch WPW10653840

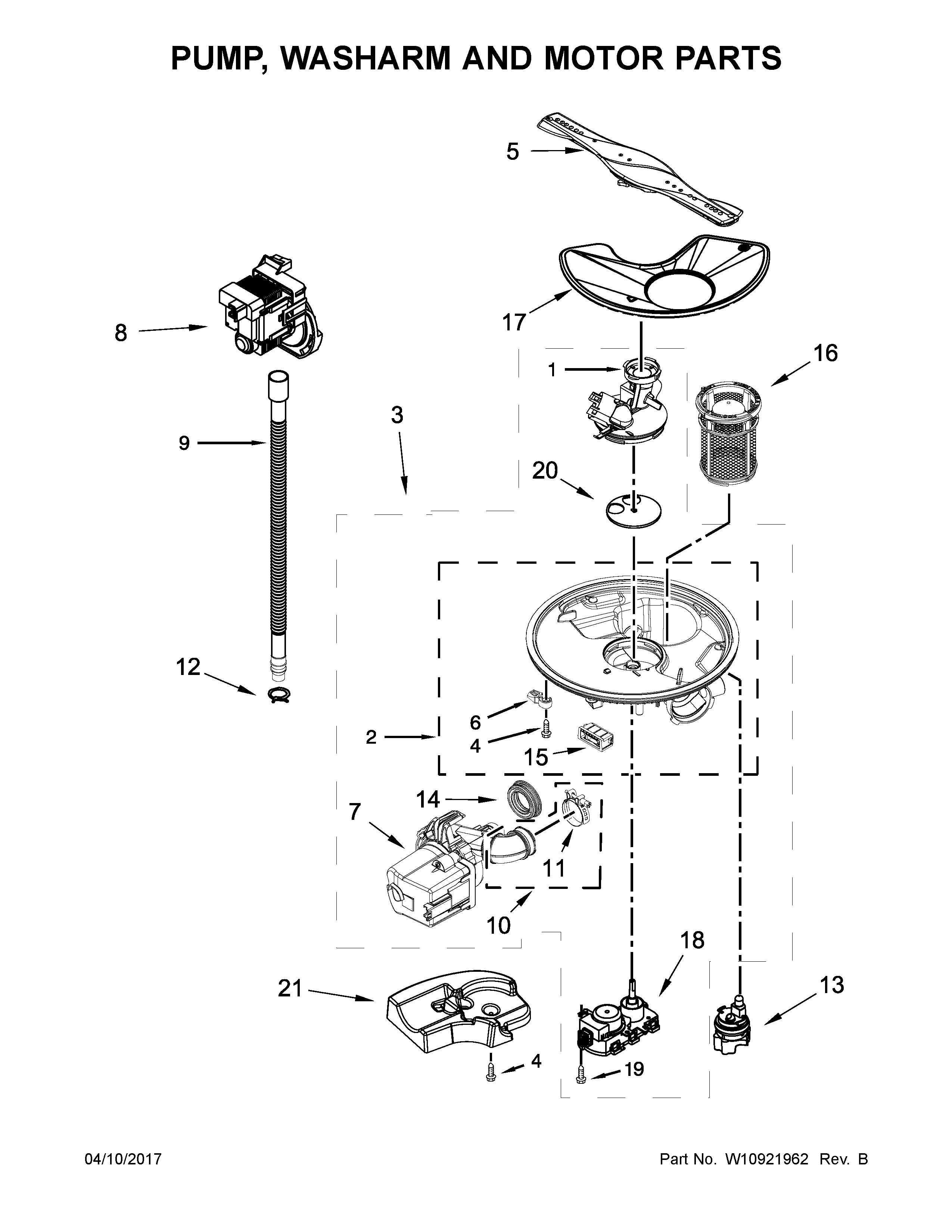

Standing water after cycle	Drain pump not running	Dishwasher drain pump WPW10348269
No water entering	Inlet valve not opening	Dishwasher water inlet valve W11175771
Poor drying or water not heating	Heater circuit issue	Element assembly W10703867
Weak wash on lower rack	Lower spray arm issue	Dishwasher spray arm, lower W10849471

Why it matters

Catching the root cause early prevents repeat failures. For example, a kinked drain hose can mimic a bad pump, and a door that is slightly out of balance can lead to intermittent “won’t start” complaints.

Helpful model-specific references

• Use the 66514572N611 installation guide for utility placement, grounding requirements, and door spring tension adjustment.
• If you’re seeing a flashing code, match it using Kenmore 665 model dishwasher error codes.

Last updated: February 2026

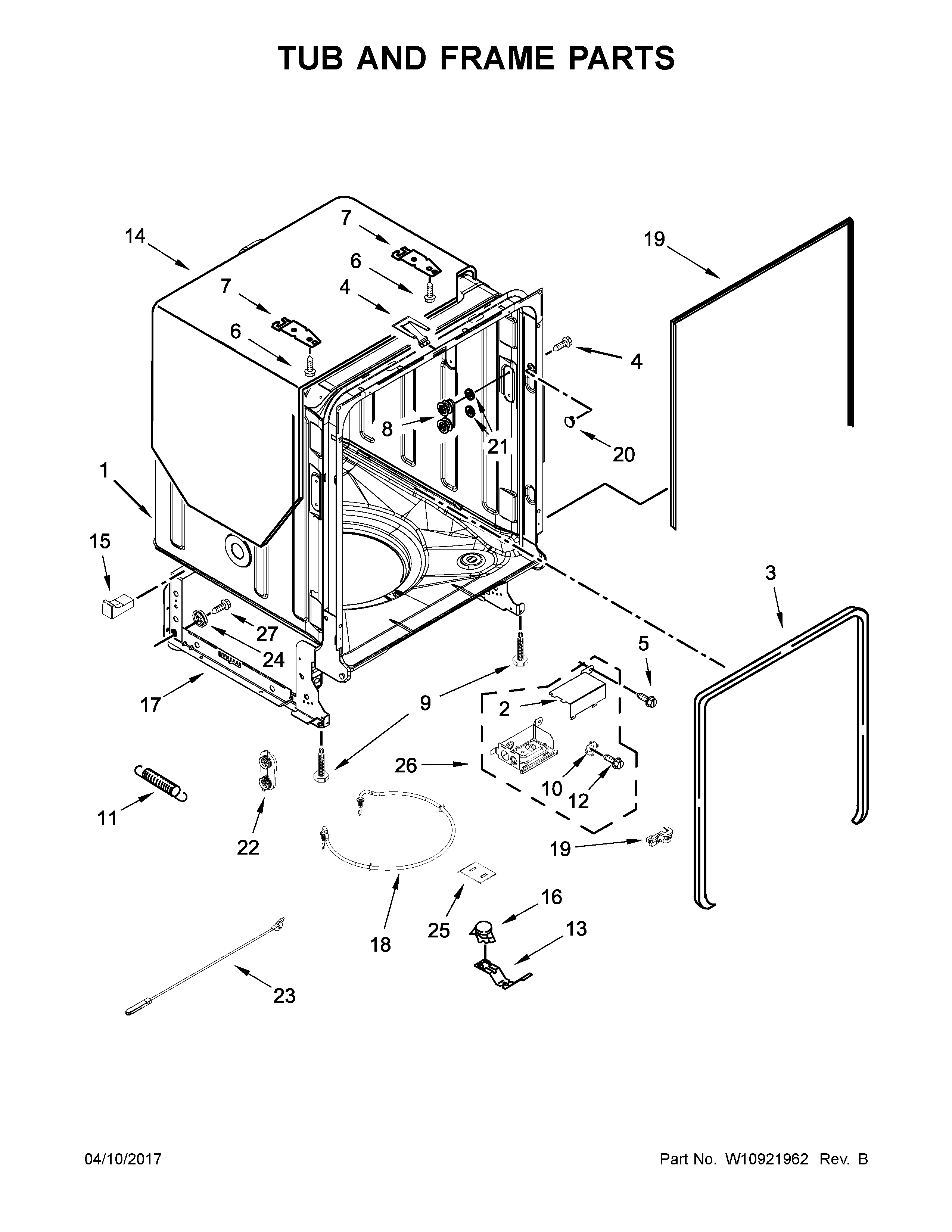

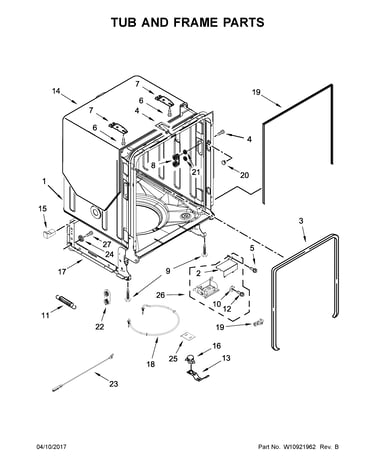

Yes. On the Kenmore 66514572N611 dishwasher, we replace a worn rubber door seal (gasket) by pulling the old seal out of the channel, cleaning the groove, and pressing the new seal in evenly so the door closes without gaps or leaks. See the 66514572N611 installation guide for safe access and handling.

Before you start (safety and access)

• Turn off power at the breaker; dishwashers use line voltage.
• Shut off the water supply valve under the sink.
• Let the unit cool if it recently ran a heated dry cycle.
• Pull out the upper and lower racks for clear access to the tub opening.
• Avoid leaning on the open door; it can tip the dishwasher if it is not fully secured.

How we replace the door seal

1. Open the door and locate the rubber gasket around the tub opening.
2. Starting at a top corner, gently pull the old seal straight out of the channel.
3. Clean the channel with a damp cloth to remove detergent residue and debris.
4. Press the new seal into the channel, working from the top center outward, then down both sides.
5. Close the door and check for uniform contact all the way around.

Quick fit check

• The seal should sit fully in the groove with no twists.
• Corners should be snug, not bunched.
• The door should latch normally without needing extra force.

If it still leaks after replacing the seal

• Check the dishwasher is level and centered in the cabinet opening.
• Inspect the lower door area for damage or warping.
• Confirm the door closes squarely; if the door feels too “heavy” or drops, adjust spring tension.
• Look for oversudsing from non-dishwasher detergent.

Symptom	Most common cause	What we do next
Leak at one corner	Seal not seated or twisted	Reseat that section of gasket
Leak at bottom center	Door alignment or lower seal area issue	Inspect lower edge and alignment
Door won’t latch easily	Seal bunched in channel	Reinstall seal evenly

Why it matters

A properly seated door gasket keeps wash water inside the tub, protects the door latch area, and helps the dishwasher maintain correct wash pressure for better cleaning and drying.

Last updated: February 2026

Yes, repairing a Kenmore dishwasher like model 66514572N611 is usually worth it when the problem is a common wear item (rack parts, seals, hoses, valves) and the repair cost stays well below the price of a replacement. It becomes less cost-effective when multiple major components fail at once.

Quick way to decide (cost vs. age)

Use this simple rule of thumb for Kenmore 665-series dishwashers:

• Worth repairing: under ~10 years old and the repair is a single, straightforward part
• Maybe: 10 to 12 years old, depending on overall condition and how often it’s used
• Usually replace: 12+ years old with recurring leaks, poor cleaning, or multiple electrical issues

Dishwasher age	Typical recommendation	Why
0 to 9 years	Repair	Parts fixes usually restore full performance
10 to 12 years	Compare costs	Efficiency and reliability start to drop
13+ years	Replace	Major repairs often stack up

Repairs that are commonly cost-effective

These are the types of fixes that often make sense because they’re targeted and don’t require rebuilding the whole wash system:

• Upper rack problems (broken adjusters, wheels, stops)
• Door not latching or starting due to a latch issue
• Slow fill or no fill caused by a water inlet valve
• Drain issues caused by a drain hose restriction or a failing drain pump
• Minor leaks from a lower door seal

Model-matched examples for 66514572N611 include the dishwasher rack adjuster W10712395, dishwasher drain pump WPW10348269, and dishwasher water inlet valve W11175771.

Repairs that can push you toward replacement

These repairs can still be done, but they tend to be higher cost and higher labor, especially on older units:

• Control or user interface problems (intermittent power, dead panel)
• Pump and motor or sump and motor assembly replacement
• Repeated leaking that returns after seal and hose repairs
• Multiple symptoms at once (won’t drain, won’t heat, and won’t start)

Why it matters

A dishwasher repair is “worth it” when it restores reliable washing and drying without creating a cycle of repeat service. If you’re already pulling the unit out, it’s smart to confirm the installation basics (drain routing, water supply, electrical) in the installation guide so a simple setup issue doesn’t look like a parts failure.

Last updated: February 2026
