Model # DDSR475GT4WW Official GE gas dryer

Here are the diagrams and repair parts for Official GE DDSR475GT4WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

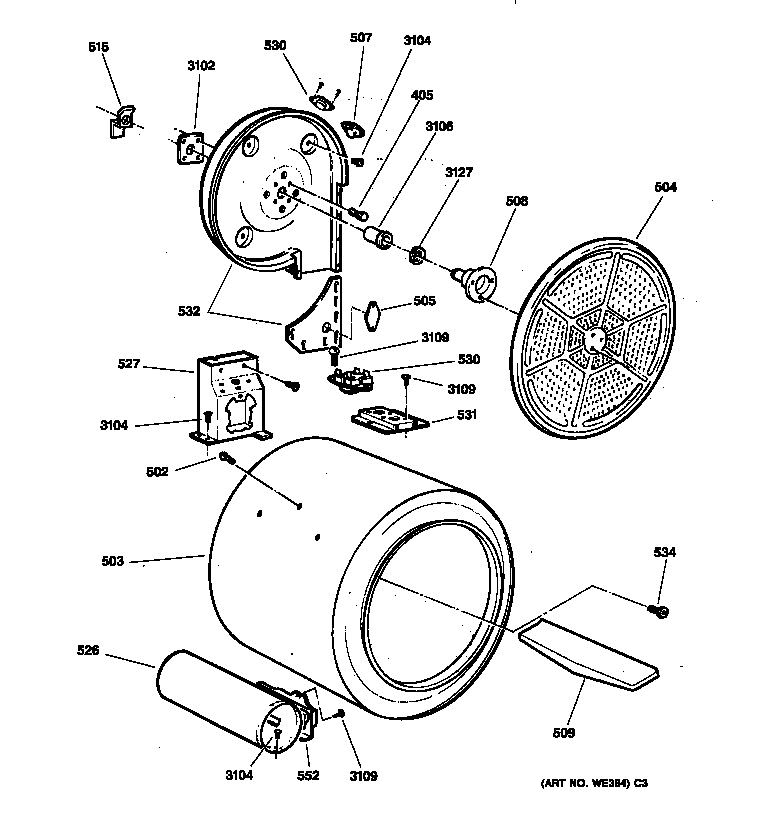

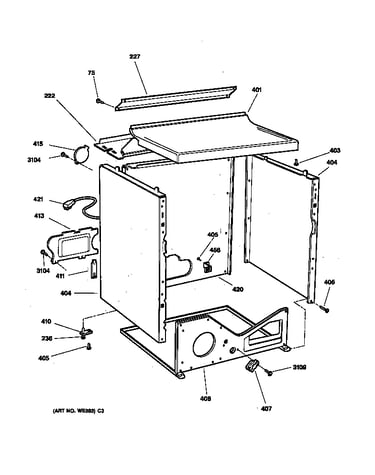

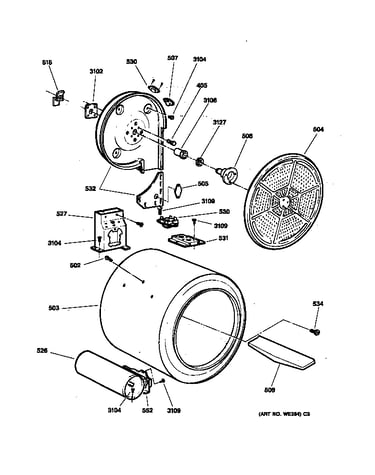

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |

Drive Belt WE12M22
#213

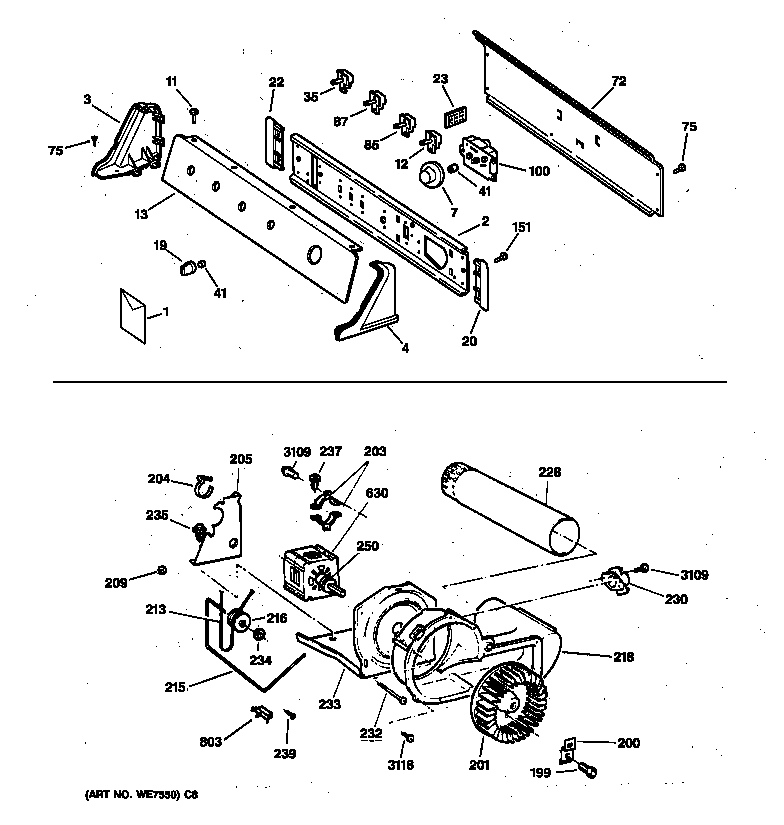

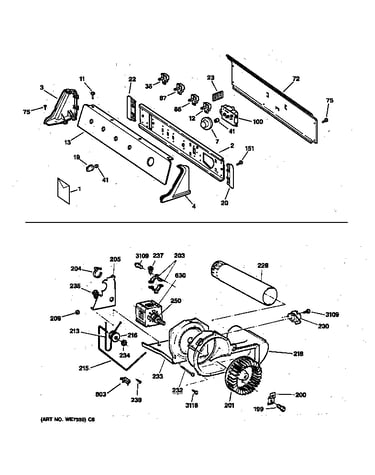

Backsplash, blower & drive assembly diagram

Drive belt

Part #WE12M22

Replaced by #WE03X29897

?
Manufacturer substitution
This part replaces WE12M22. Substitute parts can look different from the original.
BEST SELLER
$24.42
17% OFF Phone Price : $29.42
In Stock
Felt WE9M15
#312

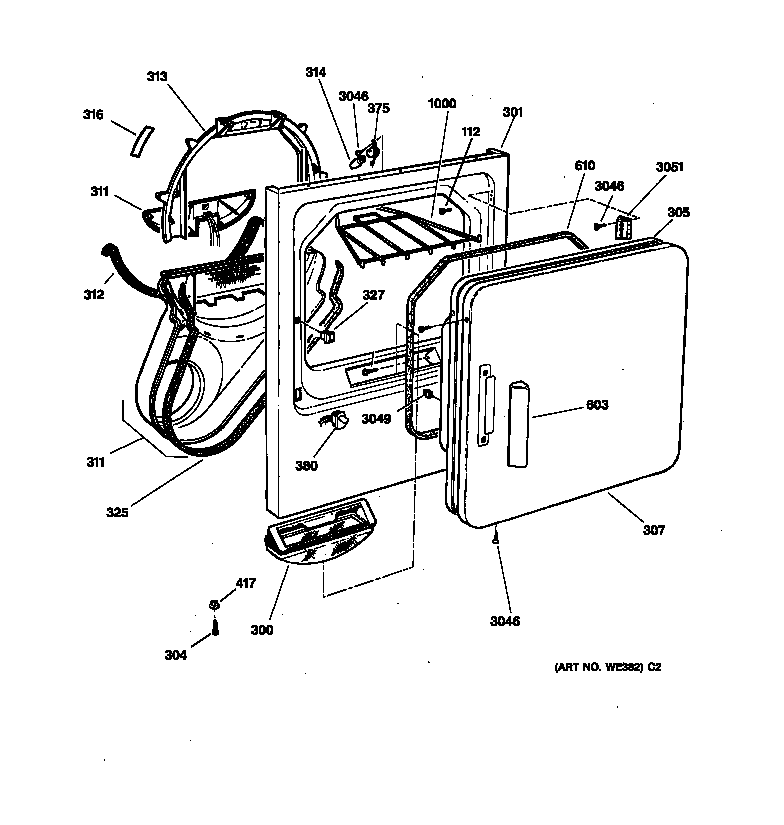

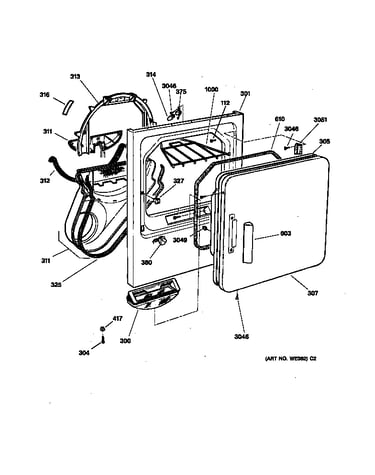

Front panel & door diagram

Felt

Part #WE9M15

Replaced by #WE09X27634

?
Manufacturer substitution
This part replaces WE9M15. Substitute parts can look different from the original.
BEST SELLER
$7.92
11% OFF Phone Price : $8.92
In Stock
Drum Bearing WE3M20
#313

Front panel & door diagram

Drum bearing

Part #WE3M20

Replaced by #WE3M26

?
Manufacturer substitution
This part replaces WE3M20. Substitute parts can look different from the original.
BEST SELLER
$31.21
14% OFF Phone Price : $36.21
In Stock
Air Duct WE14M79
#311

Front panel & door diagram

Air duct

Part #WE14M79

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14M79. Substitute parts can look different from the original.
BEST SELLER
$95.12
10% OFF Phone Price : $105.12
In Stock
Washer Control Knob (replaces We01x10033, We01x10156, We01x2721, We1x1207, We1x1208, We1x2721, Wh01x2721) WH1X2721
Washer control knob (replaces we01x10033, we01x10156, we01x2721, we1x1207, we1x1208, we1x2721, wh01x2721)

Part #WH1X2721

BEST SELLER
This item is not returnable
$5.40
16% OFF Phone Price : $6.40
In Stock
Timer Knob WE1X1208
#19

Backsplash, blower & drive assembly diagram

Timer knob

Part #WE1X1208

Replaced by #WH1X2721

?
Manufacturer substitution
This part replaces WE1X1208. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.40
16% OFF Phone Price : $6.40
In Stock
Lamp WE4X718
#314

Front panel & door diagram

Lamp

Part #WE4X718

Replaced by #WE05X20431

?
Manufacturer substitution
This part replaces WE4X718. Substitute parts can look different from the original.
BEST SELLER
$13.71
13% OFF Phone Price : $15.71
In Stock
Trap Lint WE18M19
#300

Front panel & door diagram

Trap lint

Part #WE18M19

Replaced by #WE18X25100

?
Manufacturer substitution
This part replaces WE18M19. Substitute parts can look different from the original.
BEST SELLER
$59.70
8% OFF Phone Price : $64.70
In Stock
Dryer Lp Conversion Kit (replaces Wb25x0217, We25m32, We25x0217, We25x10029, We25x190, We25x214, We25x216) WE25X217
#9999A

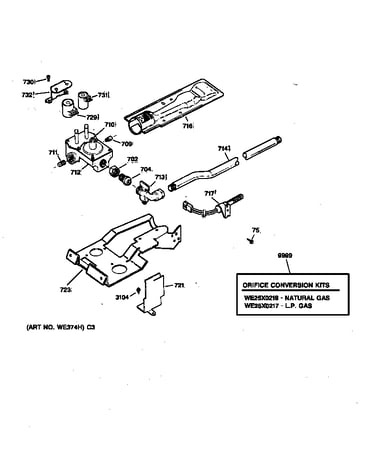

Gas valve & burner assembly diagram

Dryer lp conversion kit (replaces wb25x0217, we25m32, we25x0217, we25x10029, we25x190, we25x214, we25x216)

Part #WE25X217

BEST SELLER
$56.87
8% OFF Phone Price : $61.87
In Stock
Dryer Timer Knob (white) (replaces We01x10036) WE1X1263
#7

Backsplash, blower & drive assembly diagram

Dryer timer knob (white) (replaces we01x10036)

Part #WE1X1263

BEST SELLER
This item is not returnable
$10.89
16% OFF Phone Price : $12.89
In Stock
