A bad Whirlpool oven control board (electronic control) typically shows up as a dead or flickering display, error codes, buttons that do nothing or act on their own, or heating that is erratic (won’t heat, overheats, or shuts off mid-cycle). On the Whirlpool RB260PXYB0 electric wall oven, these symptoms often look like random operation changes or loss of control over bake and broil.

Common symptoms you can expect

• Display is blank, dim, flickers, or resets
• Touchpad or buttons are unresponsive, delayed, or “ghost” press by themselves
• Oven won’t start a cycle, or starts then stops within a few seconds
• Temperature is unstable (underheats, overheats, or swings widely)
• Error codes appear repeatedly, especially after power interruptions or self-clean
• Relays do not click when you select Bake or Broil (or they click rapidly)

Quick checks before blaming the control board

These checks help separate a control problem from a power, wiring, or heating-element problem.

• Verify the oven has full power (a wall oven typically needs 240 VAC; a tripped breaker can leave you with partial power)
• Power reset: turn the breaker off for 2 to 5 minutes, then restore power and retest
• If the oven runs but does not heat, inspect and test the heating elements:
  • Bake circuit: consider the bake element WP308180
  • Broil circuit: consider the range broil element WP660579
• If the cavity light is out, check the simple items first (bulb and socket):
  • Light bulb 8009
  • Light socket W11594027
• Look for heat-damaged or loose connections at the power connection point; a failing connection can mimic control failure (the terminal block WP8203546 is a common service item)

Symptom-to-likely-cause guide

Symptom	More likely control board	More likely another part
Blank display, no response	Yes	Power supply, wiring, terminal block
Heats sometimes, then stops	Often	Loose wiring, overheating connection
No bake but broil works	Sometimes	Bake element, wiring to element
No broil but bake works	Sometimes	Broil element, wiring to element
Light out only	No	Bulb or light socket

Why it matters

A failing control board can cause unsafe temperature control and unreliable cooking results. Ruling out power supply issues and failed heating elements first prevents replacing an expensive electronic part when the real problem is a bake element, broil element, or a burned connection.

If you need to order parts for RB260PXYB0, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

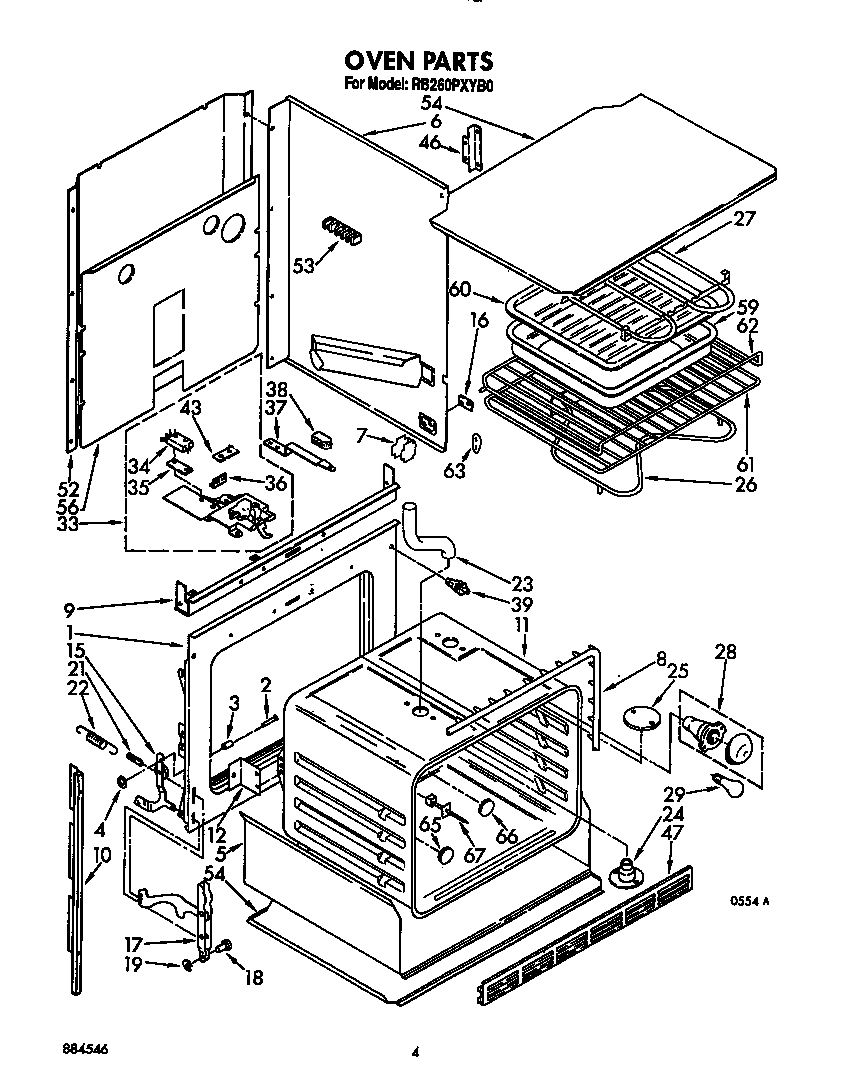

An electric oven like the Whirlpool RB260PXYB0 is built around heating, lighting, and door components that work together to bake and broil safely and evenly. The most common core parts include the bake element, broil element, oven light, door glass, and the power connection parts.

Main parts you will see in most electric wall ovens

• Bake element: the lower heating element used for most baking and roasting (example: bake element WP308180).
• Broil element: the upper heating element used for high-heat broiling (example: range broil element WP660579).
• Oven light system: bulb and socket that illuminate the oven cavity (examples: light bulb 8009, light socket W11594027).

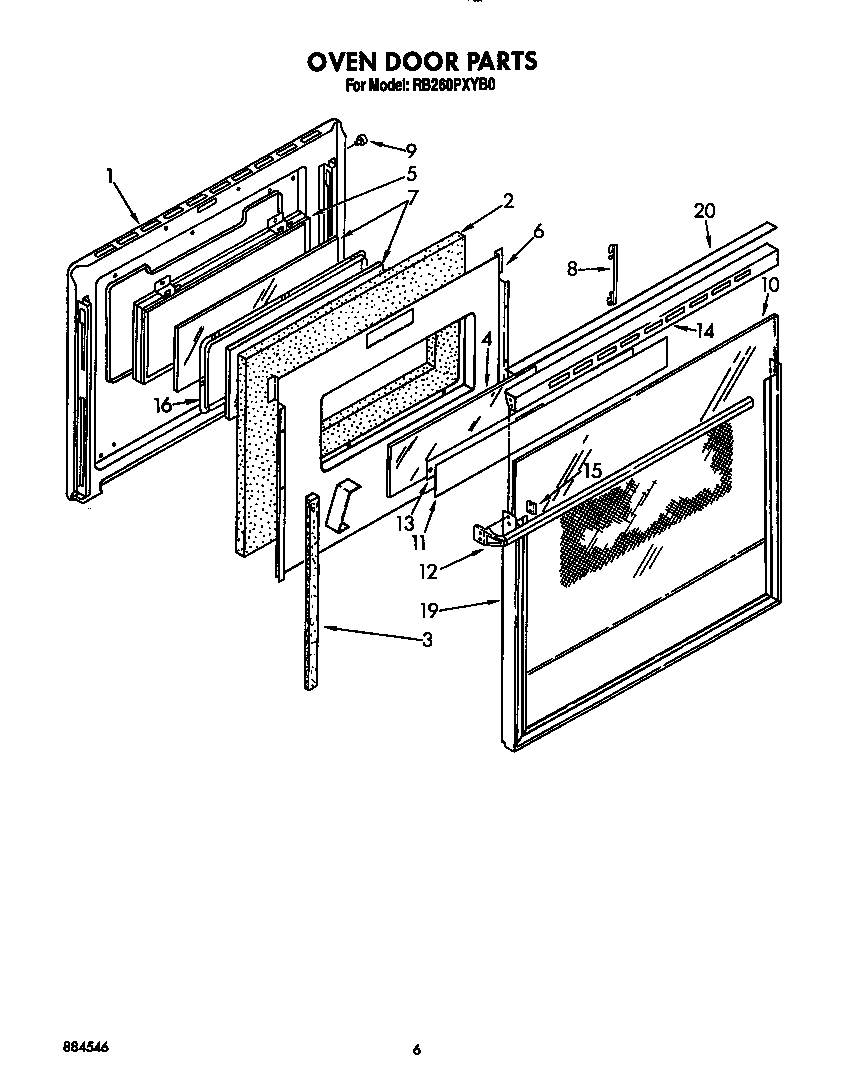

• Oven door assembly: hinges/springs and glass that help the door seal and operate smoothly (example: wall oven door inner glass WP3169203).
• Power connection: wiring and terminal block that bring power into the oven (example: terminal block WP8203546).

Quick “what it does” guide

Part	What it does	Common symptom when it fails
Bake element	Provides steady heat for baking	Slow heating, uneven baking, no bake heat
Broil element	Provides intense top heat	No broil, weak browning
Light bulb/socket	Lights the oven interior	Light out or flickers
Door glass/springs	Helps retain heat and supports door movement	Heat loss, door won’t close right
Terminal block	Connects house wiring to oven wiring	Intermittent power, burning smell at connection

Why it matters

Knowing the major components helps you troubleshoot faster. For example, “no bake but broil works” usually points to the bake element or its wiring, while “light out” is often just the bulb or socket.

Getting the right replacement part

• Match the model number RB260PXYB0 when selecting parts.
• Start with the most common wear items: bake element, broil element, and oven light parts.
• If you are ordering beyond the parts shown here, search by model number on Sears PartsDirect.

Last updated: February 2026

For the Whirlpool RB260PXYB0 electric wall oven, replacing the control panel typically means shutting off power, pulling the oven partially out of the cabinet, then removing the top cover to access the control area. Take photos of every wire connection before you move anything.

Safety first (built-in oven)

• Turn off the breaker(s) for the oven; do not rely on the control being “off”.
• Confirm power is off with a meter before touching wiring.
• Let the oven cool completely.
• Use gloves; sheet metal edges are sharp.
• Support the oven’s weight when sliding it out; built-in units are heavy.

Basic replacement steps (typical for this Whirlpool-style wall oven)

1. Kill power at the breaker.
2. Open the door and remove mounting screws that secure the oven to the cabinet (usually along the side trim).
3. Slide the oven forward onto a sturdy support (a reinforced table or platform at the same height works best).
4. Remove the top cover (commonly several screws) to access the control panel and wiring.
5. Label and photograph connectors, then transfer wires one at a time to the new control panel/control board.
6. Reassemble, slide the oven back, reinstall mounting screws, restore power, and test bake and broil.

Parts you may need while you are in the control area

Control-panel work often disturbs nearby wiring and connections. These parts are commonly involved in safe reassembly:

What you are fixing	What to inspect	Part on this model page
Loose or overheated power connections	Burn marks, melted plastic, loose screws	Terminal block WP8203546
Damaged high-heat wiring	Brittle insulation, darkened copper, loose splices	Cooking appliance 14-gauge splicing wire, 200-degree c (red) 242831
Stripped or missing fasteners	Cover screws, trim screws	Range screw WP308544

Why it matters

A miswired connector or a loose terminal can cause intermittent heating, error symptoms, or overheating at the junction box area. Taking photos and moving one connector at a time prevents crossed wires and repeat failures.

Ordering the right control panel

Control panels and electronic controls vary by revision. We recommend matching by model number RB260PXYB0 and the part listing for your exact unit; you can also search by model on Sears PartsDirect.
