Whirlpool ED5KVEXVB07 refrigerator Parts

The Whirlpool ED5KVEXVB07 is a full-size side-by-side refrigerator with a typical total capacity around 25 cu. ft. (commonly listed as about 25.3 cu. ft. for this style). For the exact capacity and exterior dimensions for your unit, use the ED5KVEXVB07 owner's manual.

What “big” usually means (capacity vs. dimensions)

When customers ask how big a refrigerator is, it usually refers to one of these:

• Total capacity (cu. ft.): how much food it holds
• Exterior width/height/depth: how much space it takes in your kitchen
• Door swing and clearance: space needed to fully open doors and drawers
• Interior layout: shelves, bins, and freezer storage that affect usable space

Typical size ranges for a 25 cu. ft. side-by-side

Most Whirlpool side-by-side refrigerators in the ~25 cu. ft. class fall into these common ranges.

Spec	Typical range	What to measure at home
Width	32 1/2 to 36 inches	Cabinet opening (side-to-side)
Height	65 to 71 inches	Floor to top hinge/cabinet
Depth	30 to 35 inches	Back wall to front of doors/handles

How to confirm the exact size for ED5KVEXVB07

Use these quick checks to match your kitchen opening to the refrigerator:

• Check the model and serial tag inside the fresh food compartment
• Compare the listed overall width/height/depth in the manual
• Measure your opening and leave airflow clearance around the cabinet
• Account for handles and door swing (often the biggest “surprise”)
• If you are moving it, measure doorways and hallways too

Why it matters

Correct size prevents installation headaches like doors that will not open fully, poor airflow that hurts cooling performance, and fit issues when replacing shelves, bins, or door gaskets.

Last updated: January 2026

On a Whirlpool ED5KVEXVB07 side-by-side refrigerator, the model number is printed on the appliance identification label. We typically find it inside the fresh food compartment on a side wall or near the ceiling, or on the door frame. The ED5KVEXVB07 owner's manual shows label locations.

Where to look (most common spots)

• Inside the refrigerator section on the left or right interior wall
• On the door jamb (the frame you see when the door is open)
• Near the top front edge of the fresh food compartment
• Occasionally behind the crisper drawers or on the back exterior panel

What you should write down

• Model number: ED5KVEXVB07
• Serial number: unique to your unit
• Revision or engineering code (if shown): helps match exact parts

Tips to avoid ordering the wrong part

• Copy the model number exactly, including all letters and numbers.
• Use the serial number when a part has multiple revisions.
• Match the part by description and ID, for example the refrigerator water filter EDR3RXD1.

Label item	Why it matters
Model number	Ensures diagrams and parts fit your exact refrigerator
Serial number	Helps narrow down production changes
Color/trim codes	Helps match bins, shelves, and panels

Why it matters

Whirlpool often uses similar-looking platforms across multiple models; the full ED5KVEXVB07 model number is what ensures the correct water filter, ice maker parts, door bins, and control components.

Last updated: March 2026

For your Whirlpool ED5KVEXVB07 side-by-side refrigerator, we troubleshoot fastest by matching the symptom (not cooling, leaking, no ice, no water) to the most likely system: airflow, defrost, water supply, or controls. Use the ED5KVEXVB07 owner's manual for model-specific checks and settings.

Quick symptom checklist (start here)

• Confirm the refrigerator has power and the interior lights turn on.
• Set temps to typical targets: 37°F fresh food, 0°F freezer.
• Make sure vents are not blocked by food packages.
• Listen for the evaporator fan in the freezer; no fan noise often means an airflow problem.
• Check door closing and sealing; warm air causes frost and poor cooling.
• Look for water under the unit or inside the fresh food section.

Common problems and what to check

Not cooling or warm temperatures

• Dirty condenser area and restricted airflow around the cabinet
• Frost buildup on the freezer back panel (defrost issue)

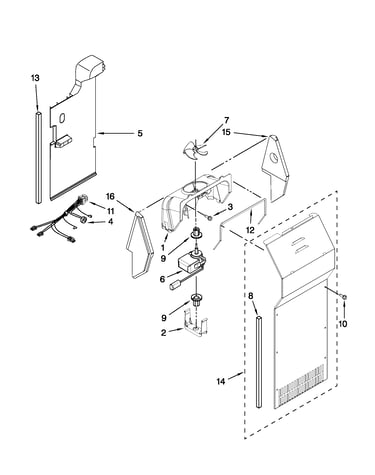

• Failed airflow components (fan, damper) or temperature control

Water dispenser slow or not dispensing

• Replace a clogged filter such as the refrigerator water filter EDR3RXD1
• Purge air after filter changes
• Check household water supply valve is fully open
• If no water reaches the dispenser, test the refrigerator water inlet valve W10408179

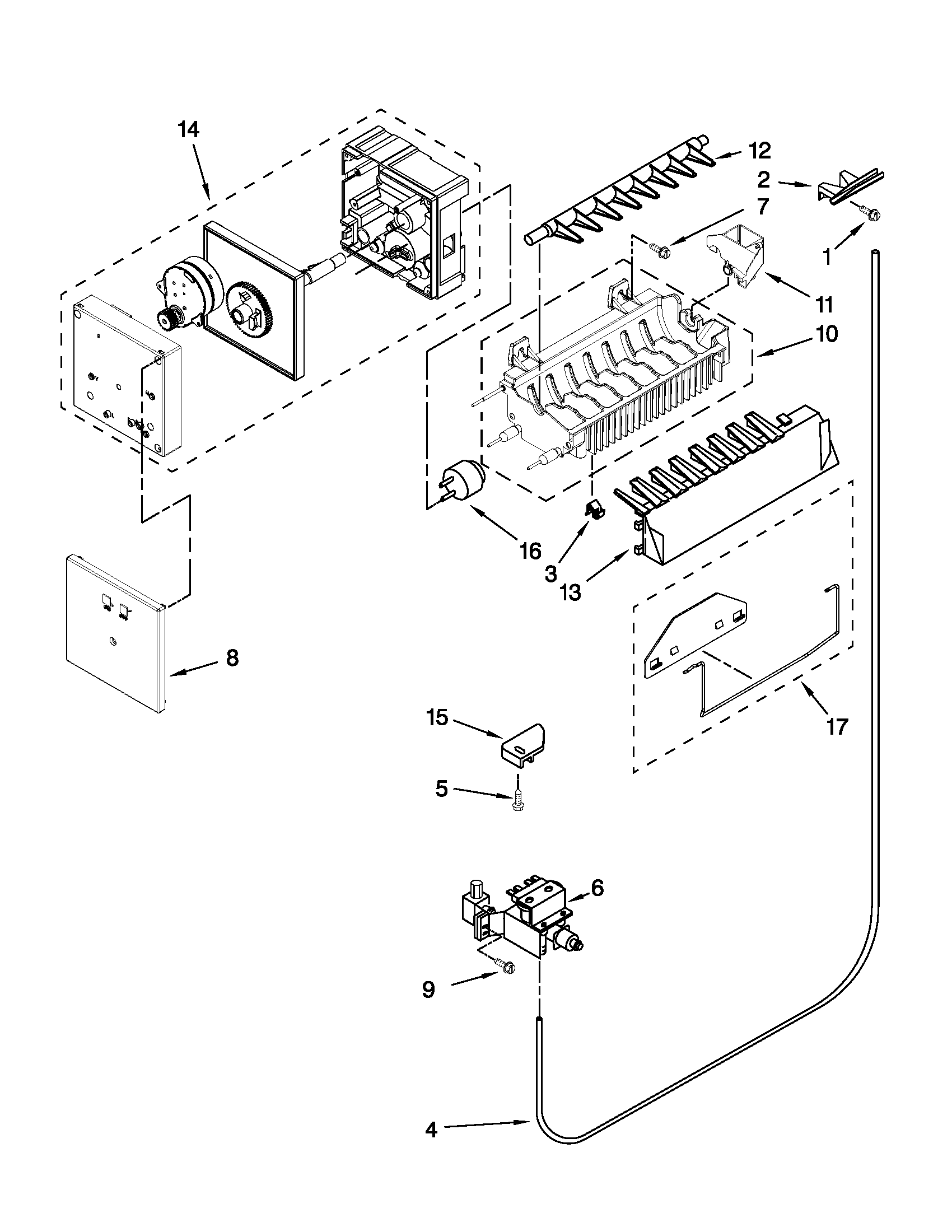

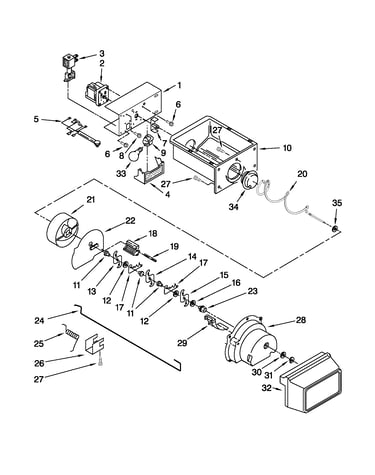

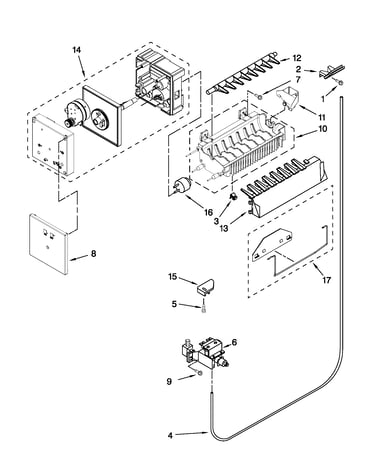

Ice maker not making ice

• Confirm freezer is at 0°F
• Check for a frozen fill tube or low water pressure
• Inspect the ice maker assembly and bin for jams

Helpful “what failed?” guide

Symptom	Most likely area	Parts often involved on ED5KVEXVB07
Frost sheet on freezer panel	Defrost system	Defrost heater, defrost thermostat
No water to door	Water supply system	Water filter, inlet valve, water tube
Temps swing too warm/cold	Temperature control	Thermostat, control board

Why it matters

Troubleshooting by system prevents unnecessary part swaps and helps protect food safety. For example, a clogged filter can mimic a bad valve, and a door seal leak can mimic a cooling failure.

Related DIY help: Whirlpool refrigerator error codes.

Last updated: March 2026
