Model #PCG23YEMHFWW GE refrigerator - m series

Here are the diagrams and repair parts for GE PCG23YEMHFWW refrigerator - m series, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

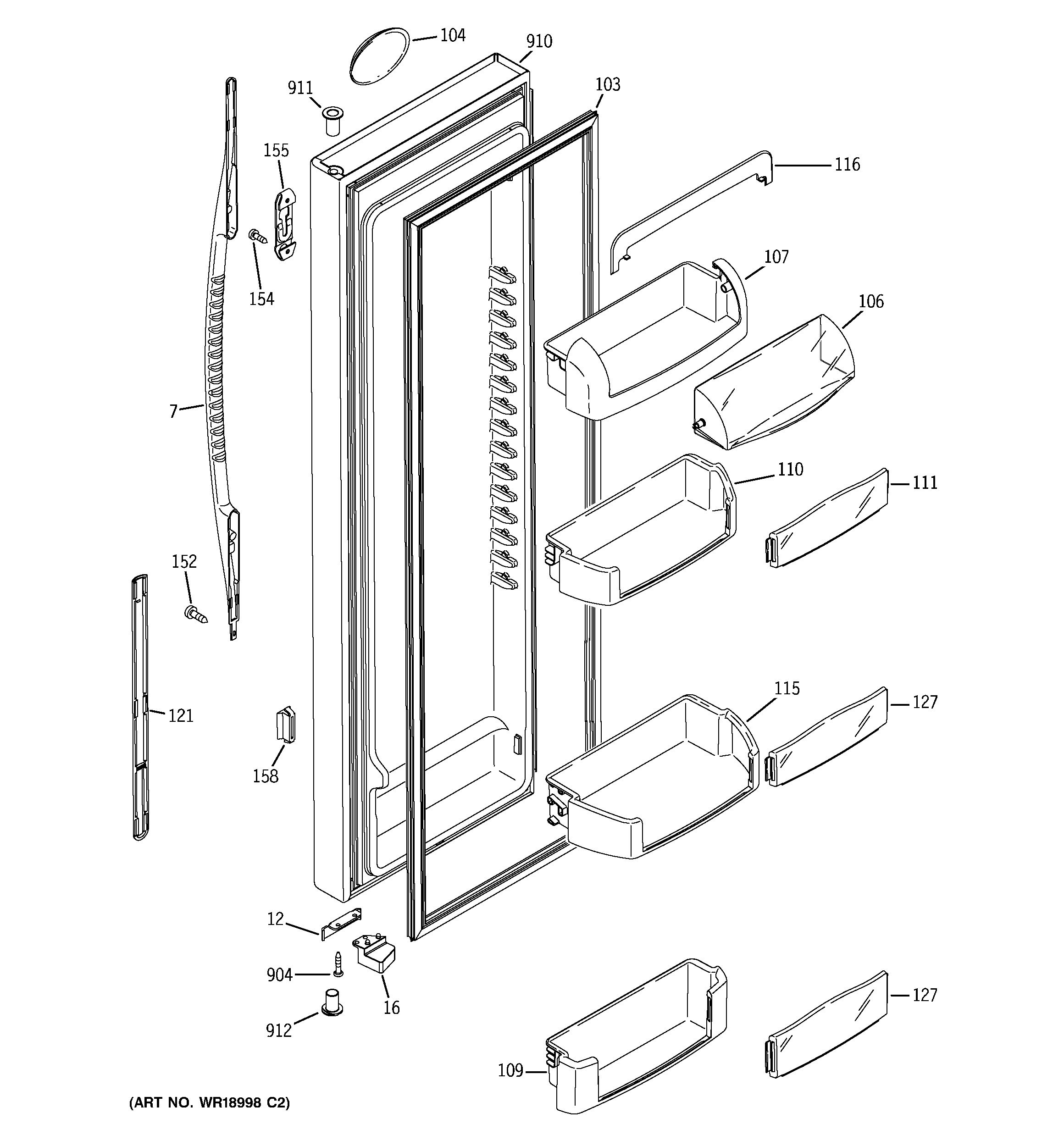

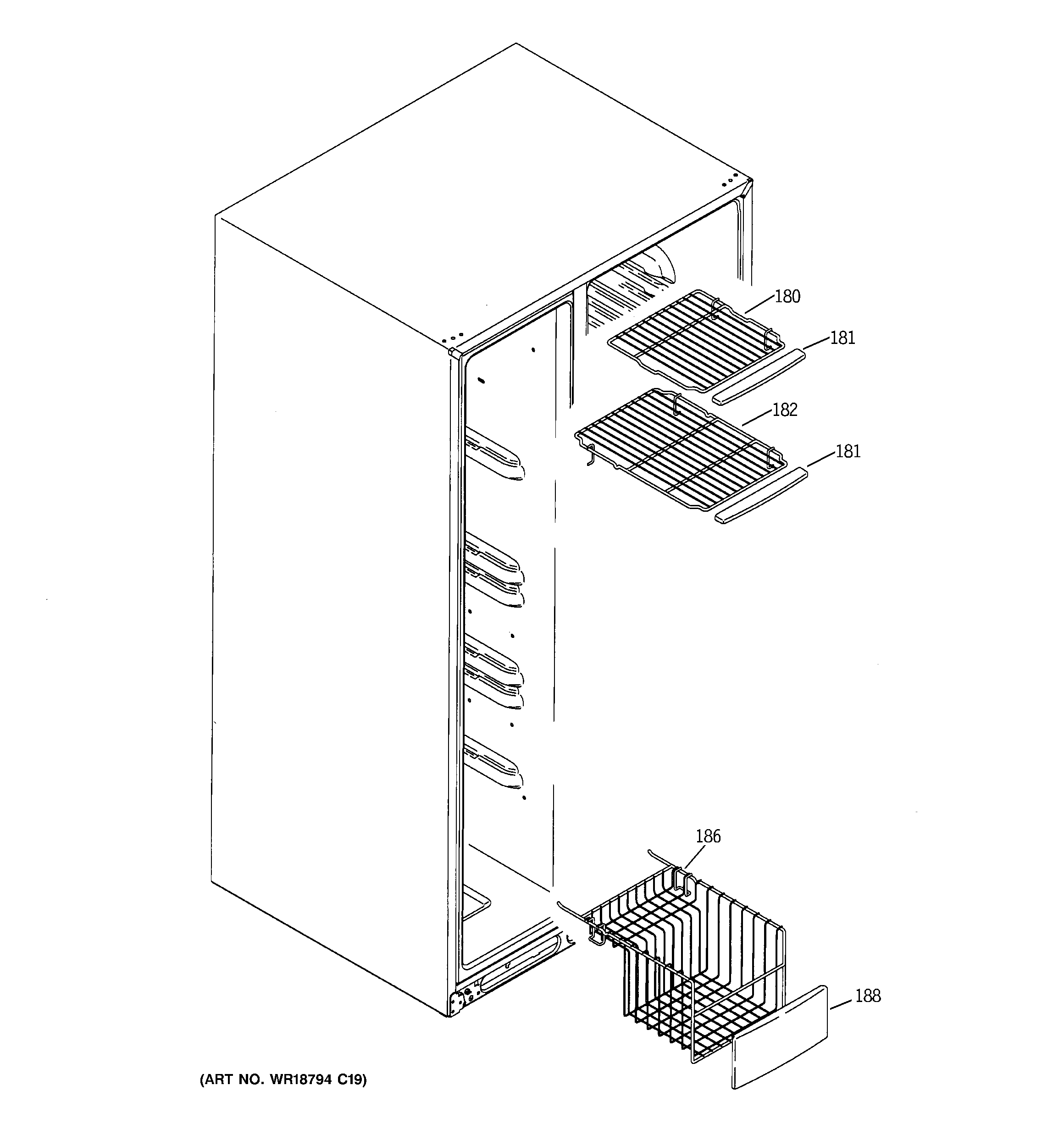

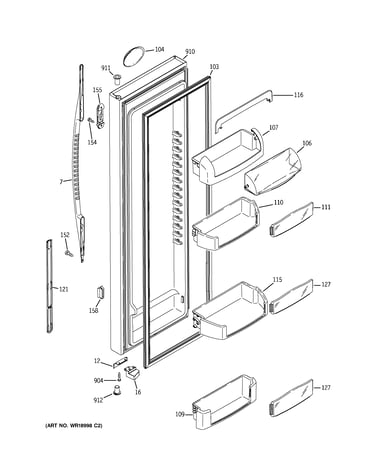

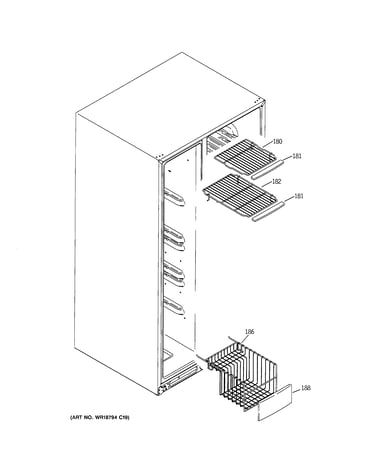

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 272 parts

Refrigerator Water Reservoir Assembly

#810

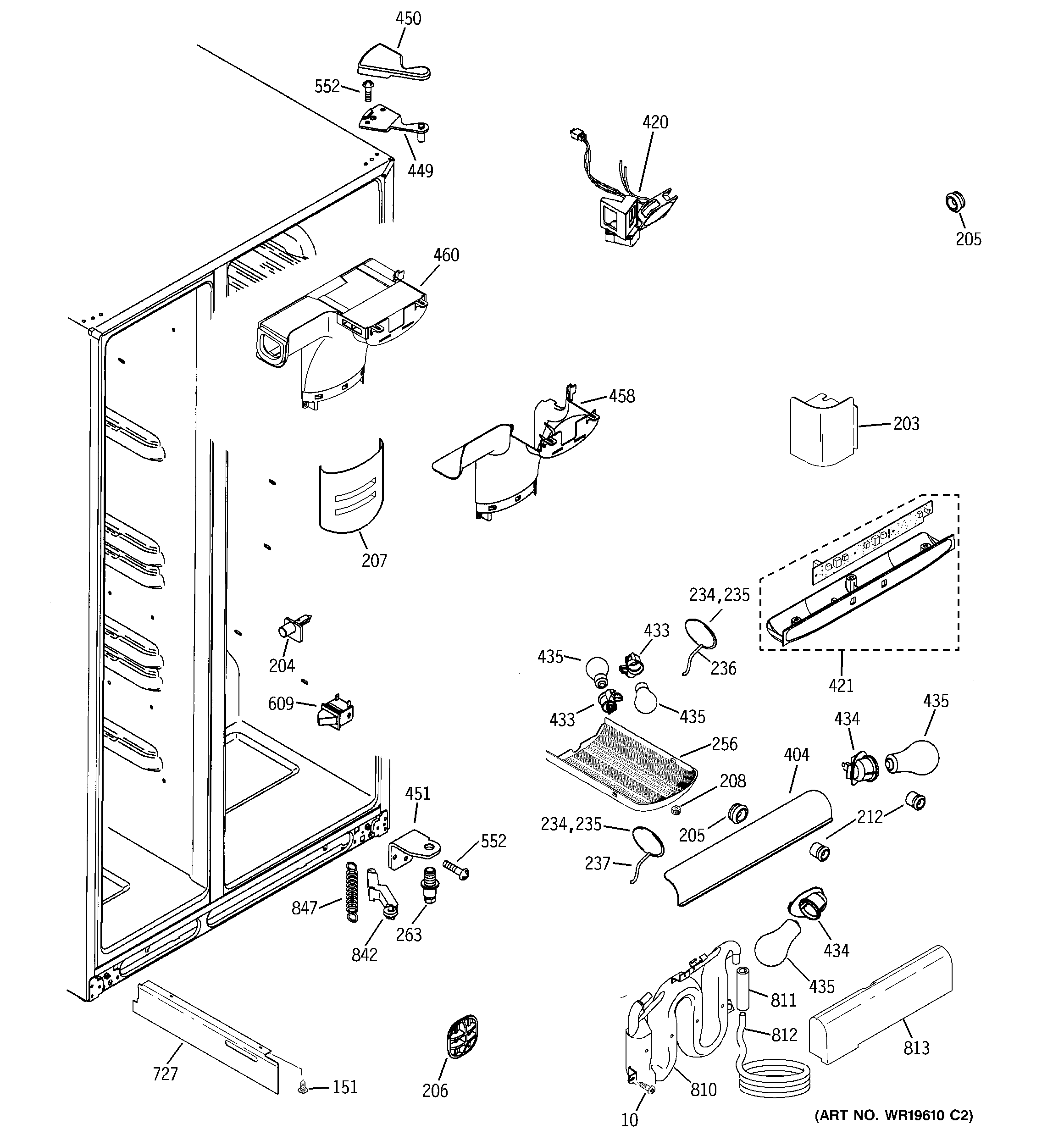

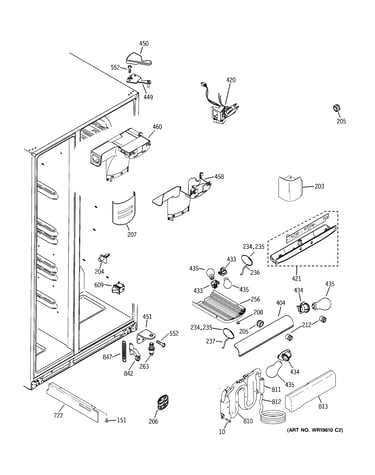

Fresh food section Diagram

$33.34

In Stock

Refrigerator Dispenser Lever Spring

#63

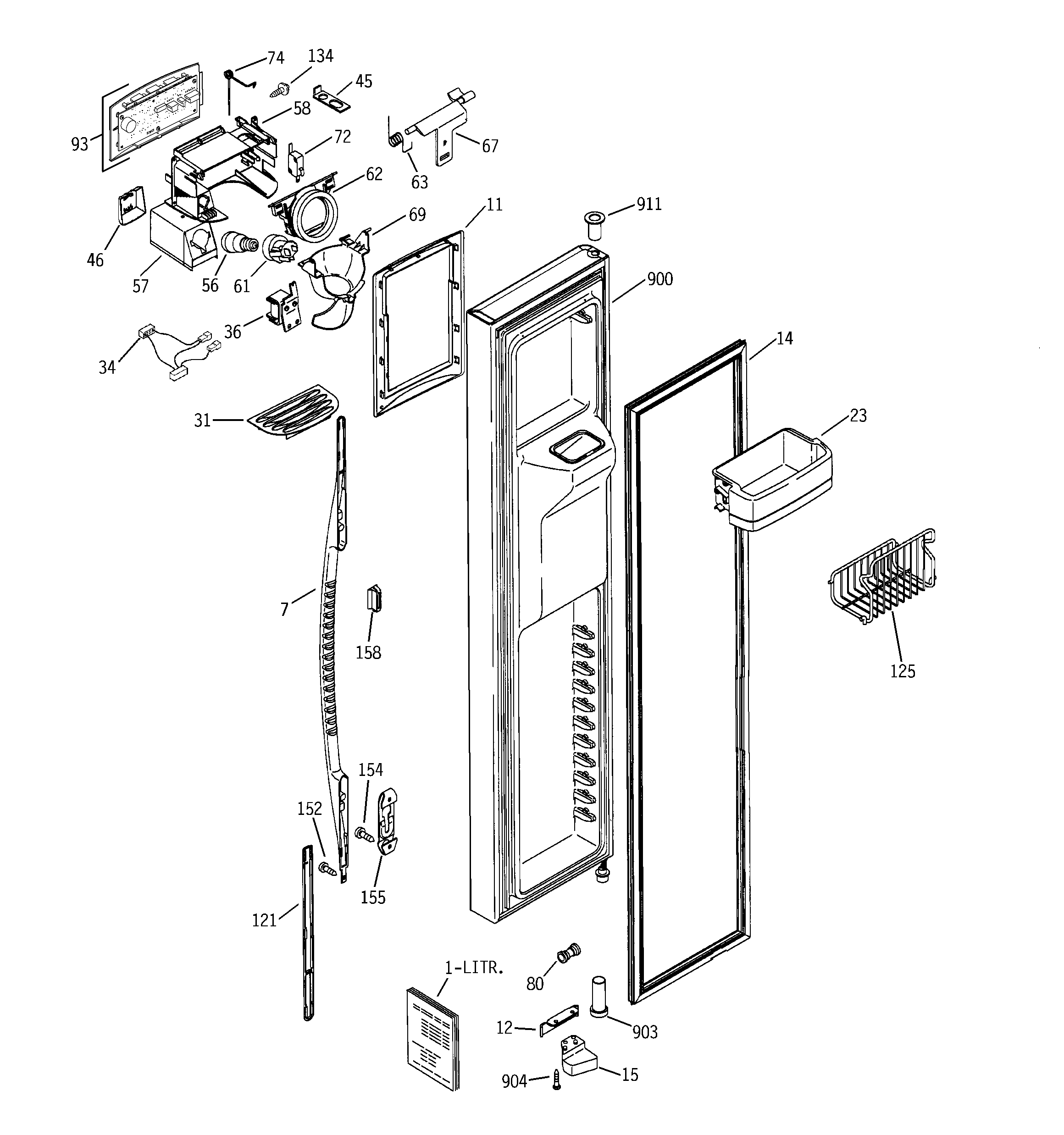

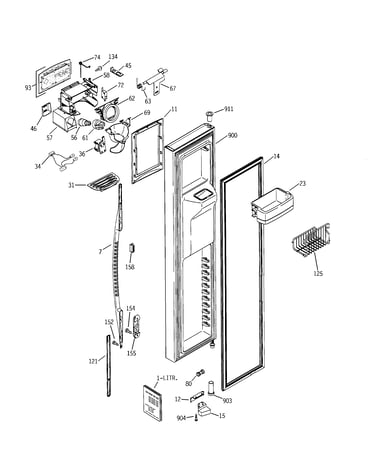

Freezer door Diagram

Refrigerator dispenser lever spring

Part #WR02X10585
This item is not returnable
$6.69

In Stock

Refrigerator Water Tube Fitting, 5/16 x 5/16-in

#80

Freezer door Diagram

Refrigerator water tube fitting, 5/16 x 5/16-in

Part #WR02X11330
This item is not returnable
$5.46

In Stock

Refrigerator Crisper Drawer Humidity Control

#413

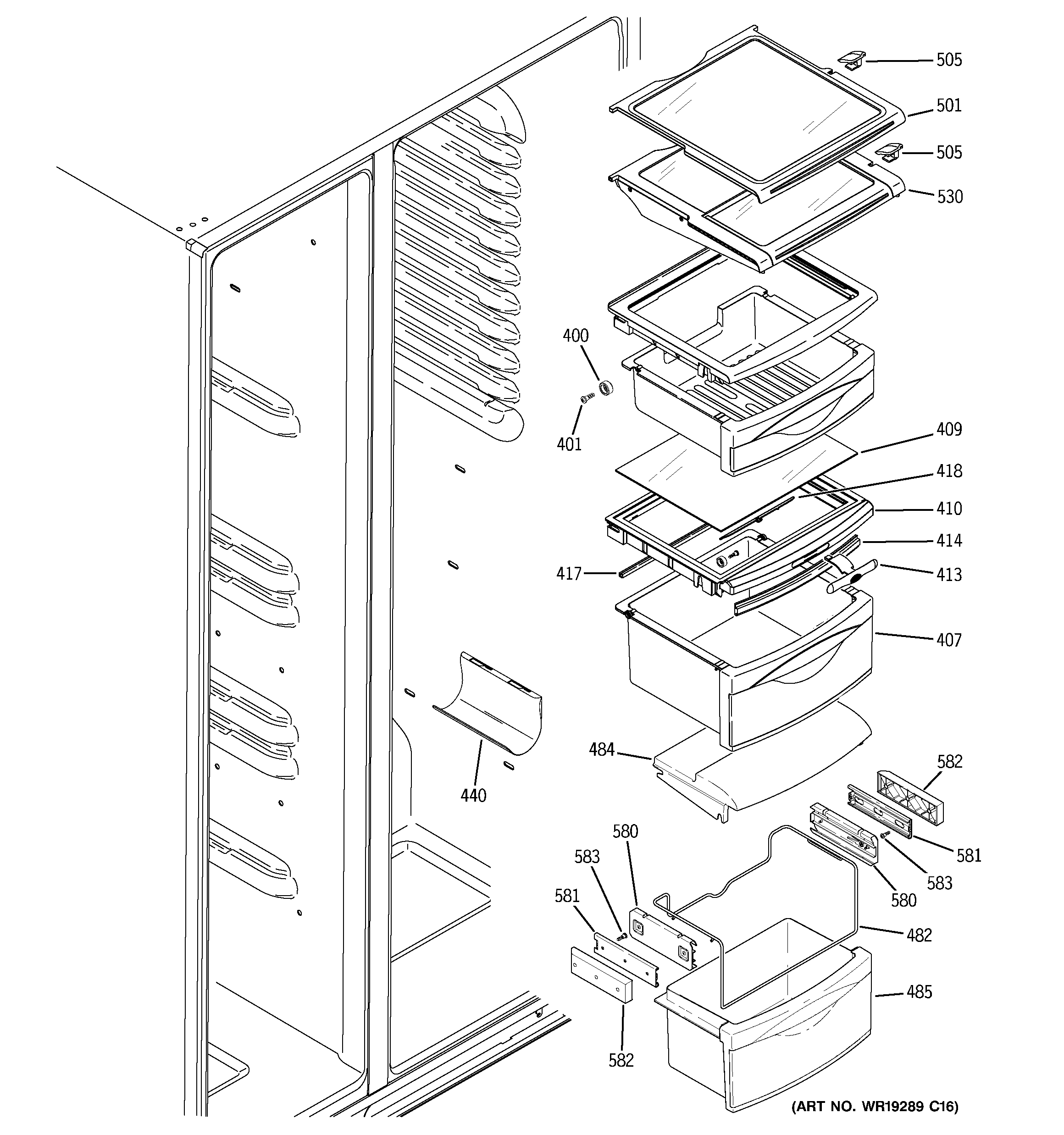

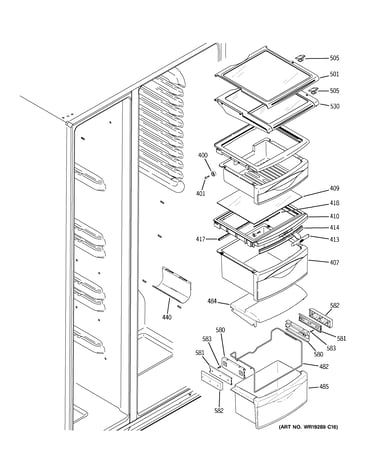

Fresh food shelves Diagram

Refrigerator crisper drawer humidity control

Part #WR02X10821
This item is not returnable
$5.37

In Stock

Refrigerator Auger Motor Coupler

#365

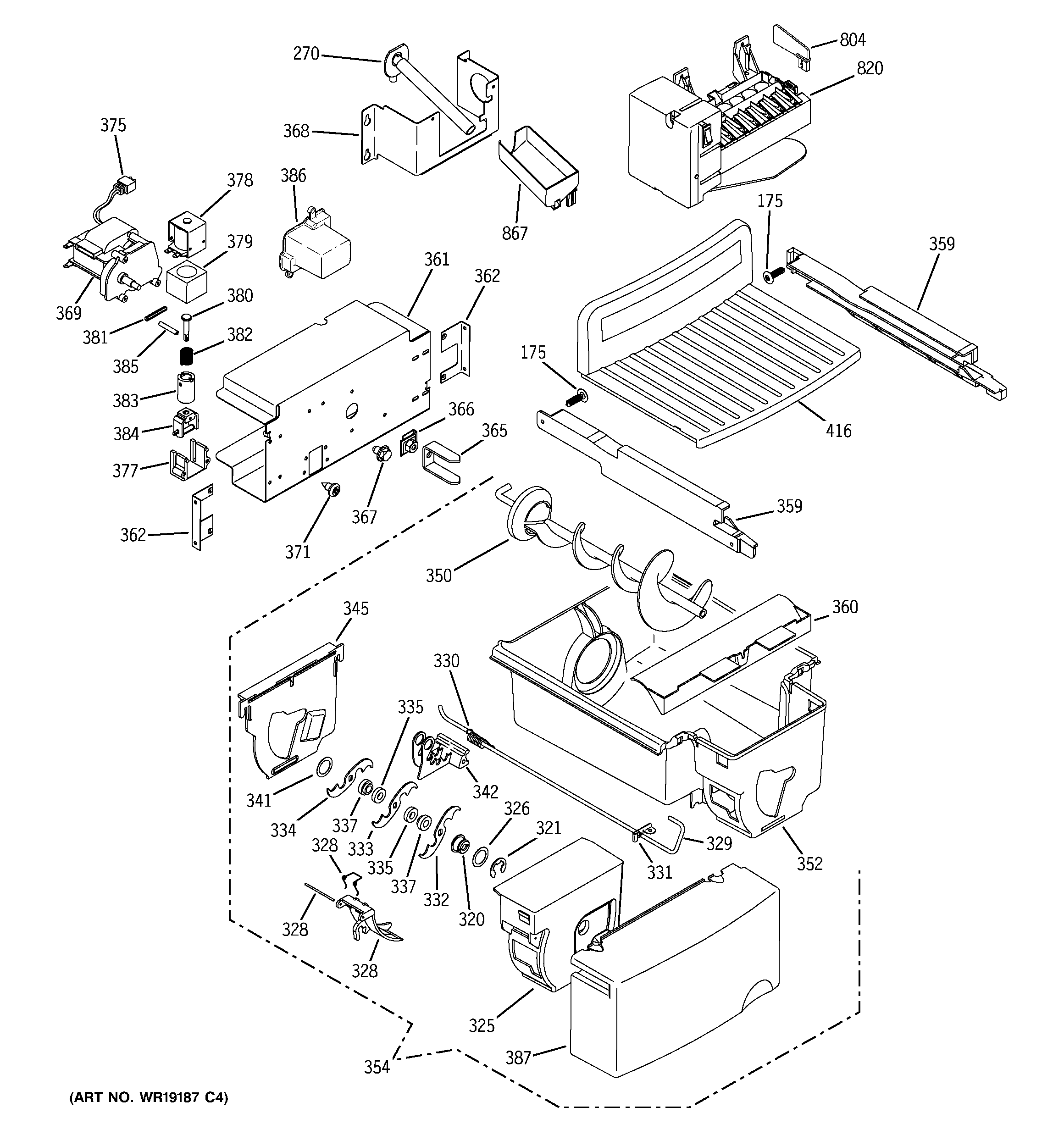

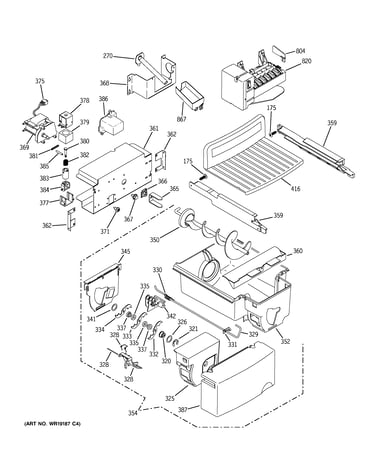

Ice maker & dispenser Diagram

Refrigerator auger motor coupler

Part #WR02X11941
This item is not returnable
$7.48

In Stock

Refrigerator Crisper Drawer Seal

#414

Fresh food shelves Diagram

Refrigerator crisper drawer seal

Part #WR14X10059
This item is not returnable
$7.27

In Stock

Refrigerator Evaporator Fan Motor Grommet

#615

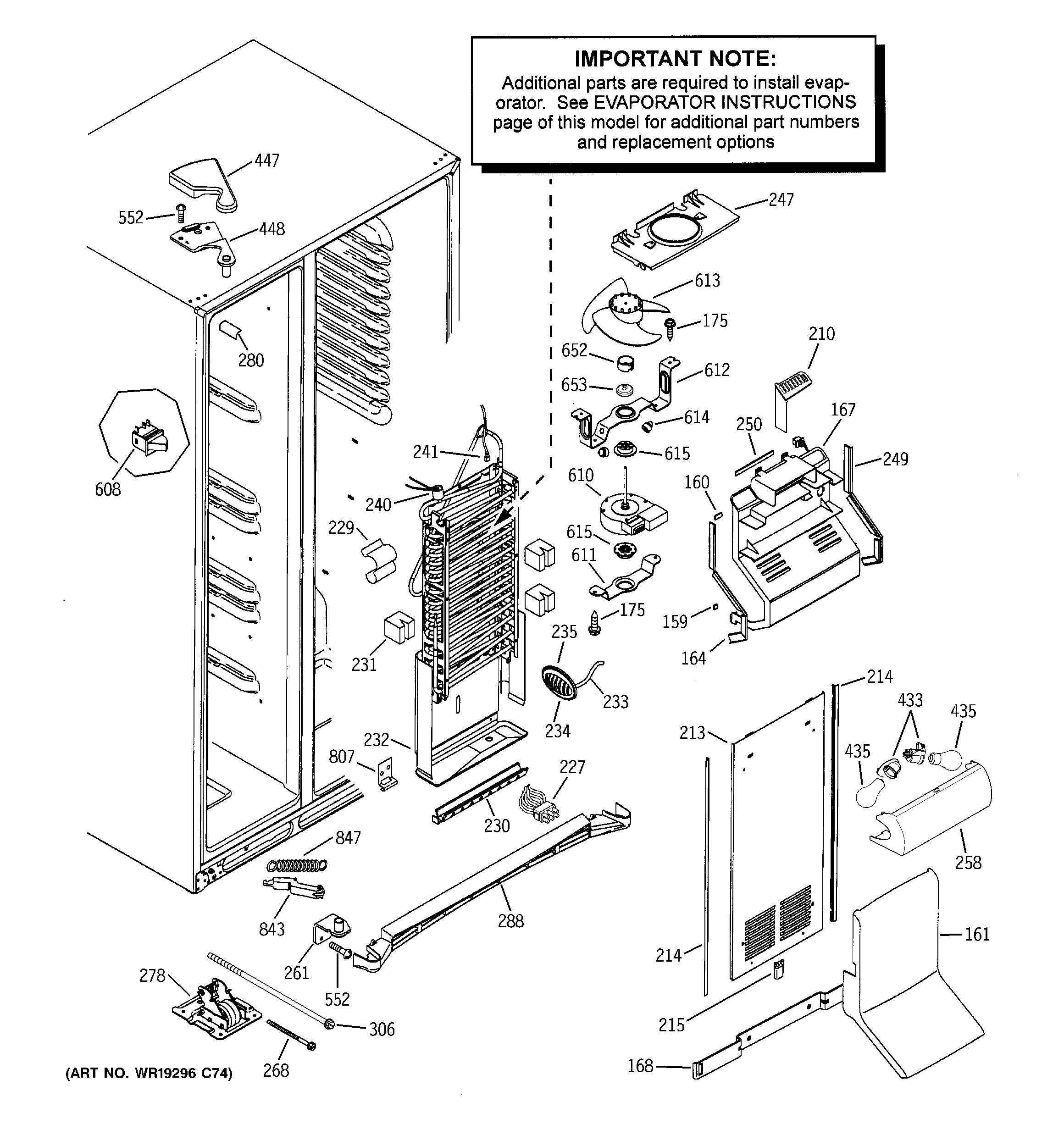

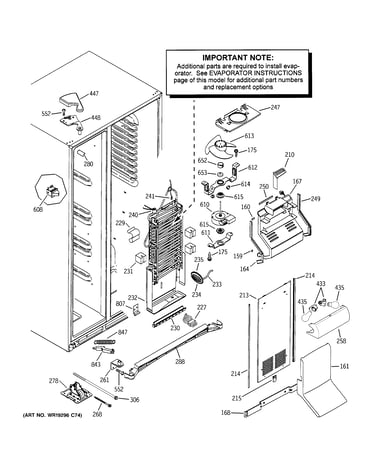

Freezer section Diagram

Refrigerator evaporator fan motor grommet

Part #WR02X10519
This item is not returnable
$2.97

In Stock

Refrigerator Crisper Drawer Humidity Control Slide

#418

Fresh food shelves Diagram

Refrigerator crisper drawer humidity control slide

Part #WR02X10633
This item is not returnable
$6.68

In Stock

Refrigerator Evaporator Fan Motor Grommet

#618

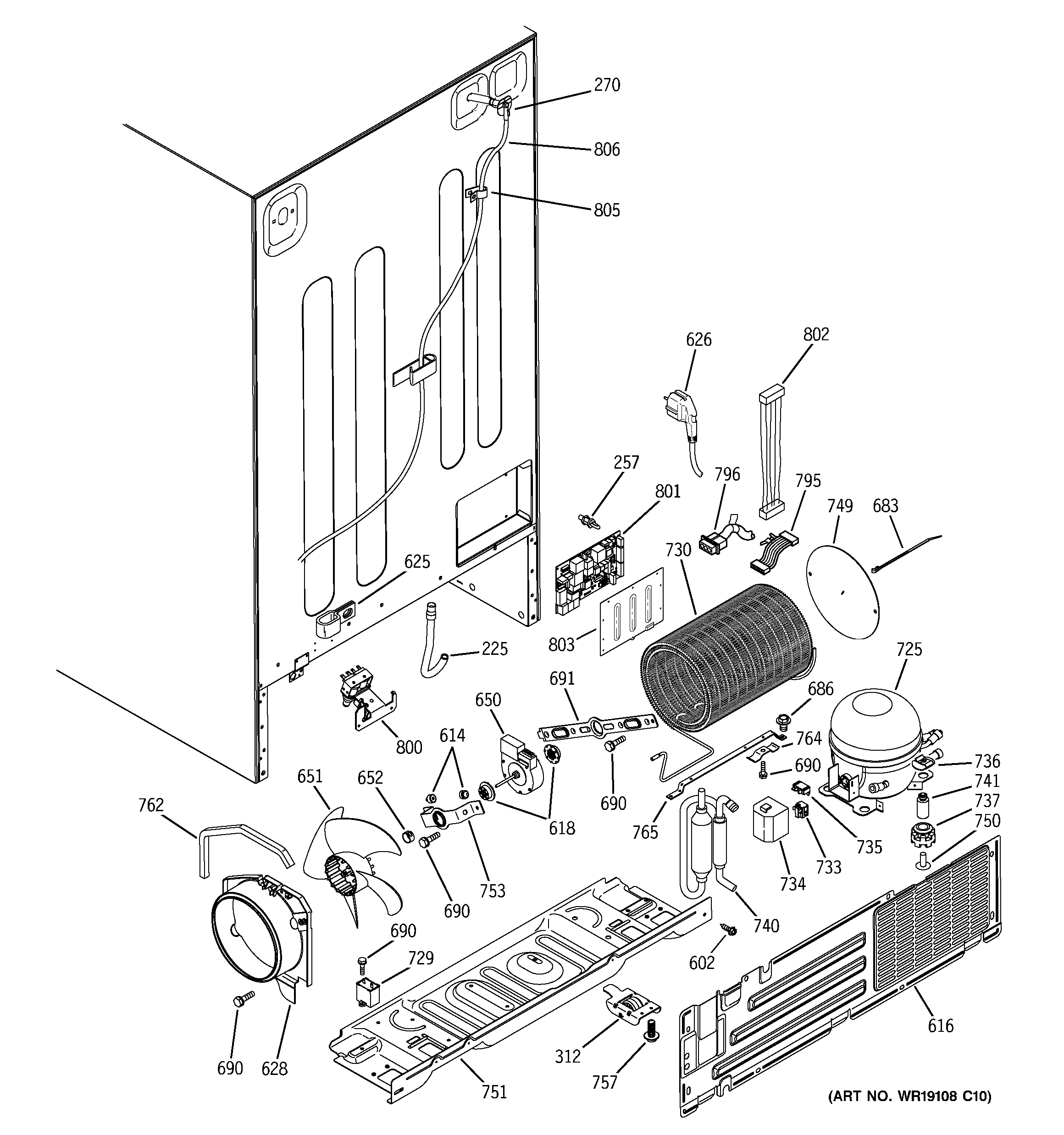

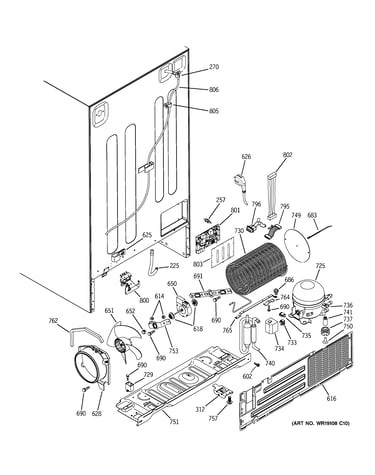

Sealed system & mother board Diagram

Refrigerator evaporator fan motor grommet

Part #WR02X11331
This item is not returnable
$4.78

In Stock

Refrigerator Freezer Door Gasket

#14

Freezer door Diagram

$84.69

In Stock

Symptoms common to all refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
