Whirlpool WRS321SDHW05 refrigerator Parts

The most common Whirlpool refrigerator problem is poor cooling (fresh food too warm, freezer not holding temperature). On Whirlpool model WRS321SDHW05, cooling complaints are often tied to airflow restrictions, dirty condenser coils, or a fan issue; ice maker and water dispenser problems are also frequent.

Most common symptoms we see

• Refrigerator section warm but freezer seems OK
• Freezer temperature swings or soft ice cream
• Loud or unusual fan noise (whirring, pulsating)
• Ice maker not making ice or making small/hollow cubes
• Water dispenser slow, sputtering, or not dispensing
• Water puddles under the refrigerator

Quick checks that fix many “not cooling” calls

Start with these basics before replacing parts:

• Give it time after setup: after a new installation, allow 24 hours for full cooling.
• Confirm power and airflow: make sure vents inside are not blocked by food packages.
• Clean condenser coils: dust buildup reduces heat removal and causes warm temps.
• Check door closing and sealing: a poor seal lets warm air in and forces long run times.
• Listen for normal sounds: buzzing/clicking from the water valve and fan/compressor changes can be normal during operation (details in the owner's manual).

Cooling issue: common causes vs. what you notice

What you notice	Common cause	What to check first
Fresh food warm, freezer OK	Airflow problem	Blocked vents, diffuser stuck, frost buildup
Both sections warm	Heat not being removed	Dirty coils, poor door seal, compressor running a lot
Warm temps plus fan noise	Evaporator fan problem	Fan blade rubbing ice, fan motor failing
Ice maker slow or no ice	Water supply or restriction	Filter, water line kinks, valve cycling

Parts that commonly relate to these problems (for WRS321SDHW05)

If troubleshooting points to a specific failure, these are model-matched parts we often see involved:

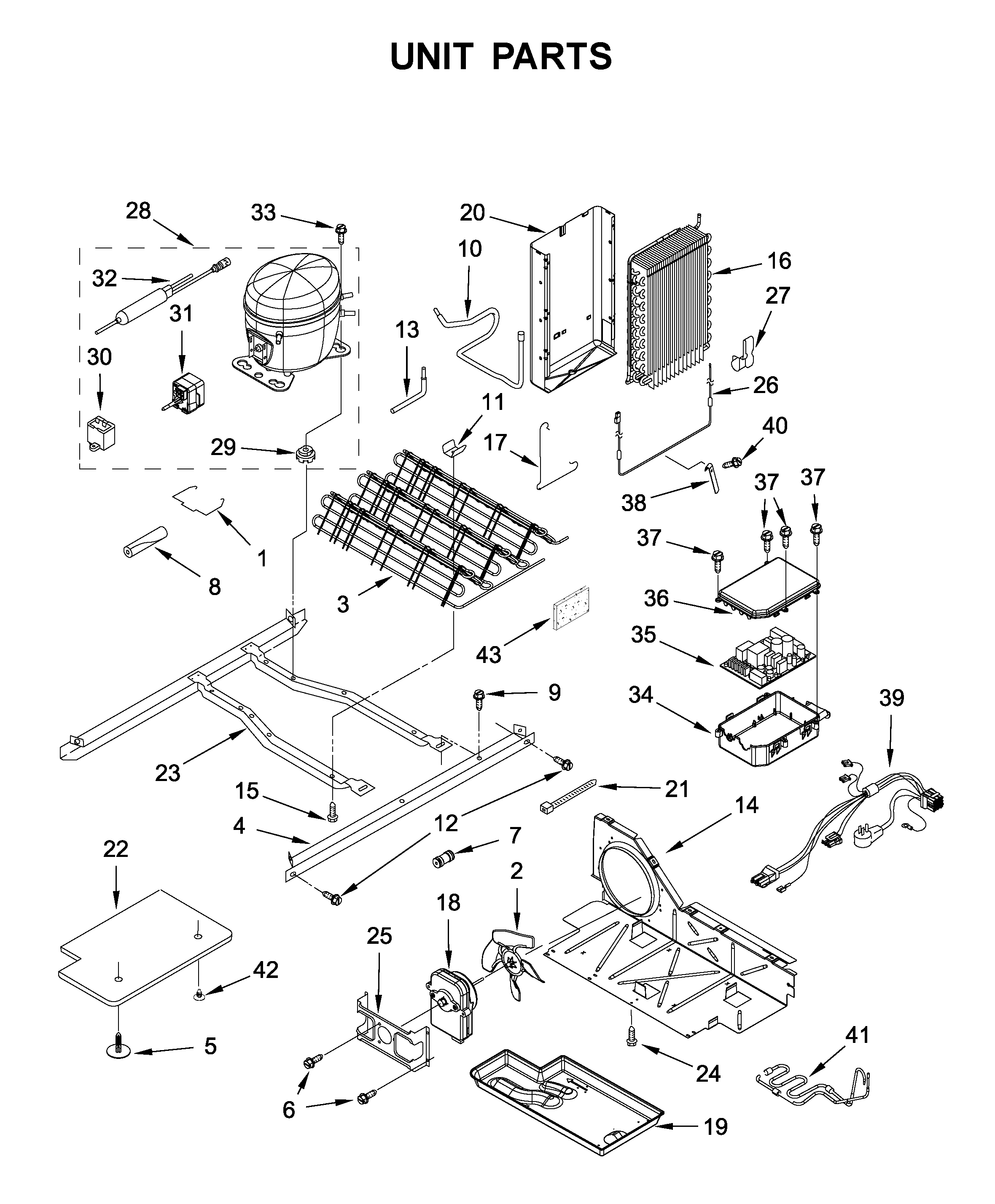

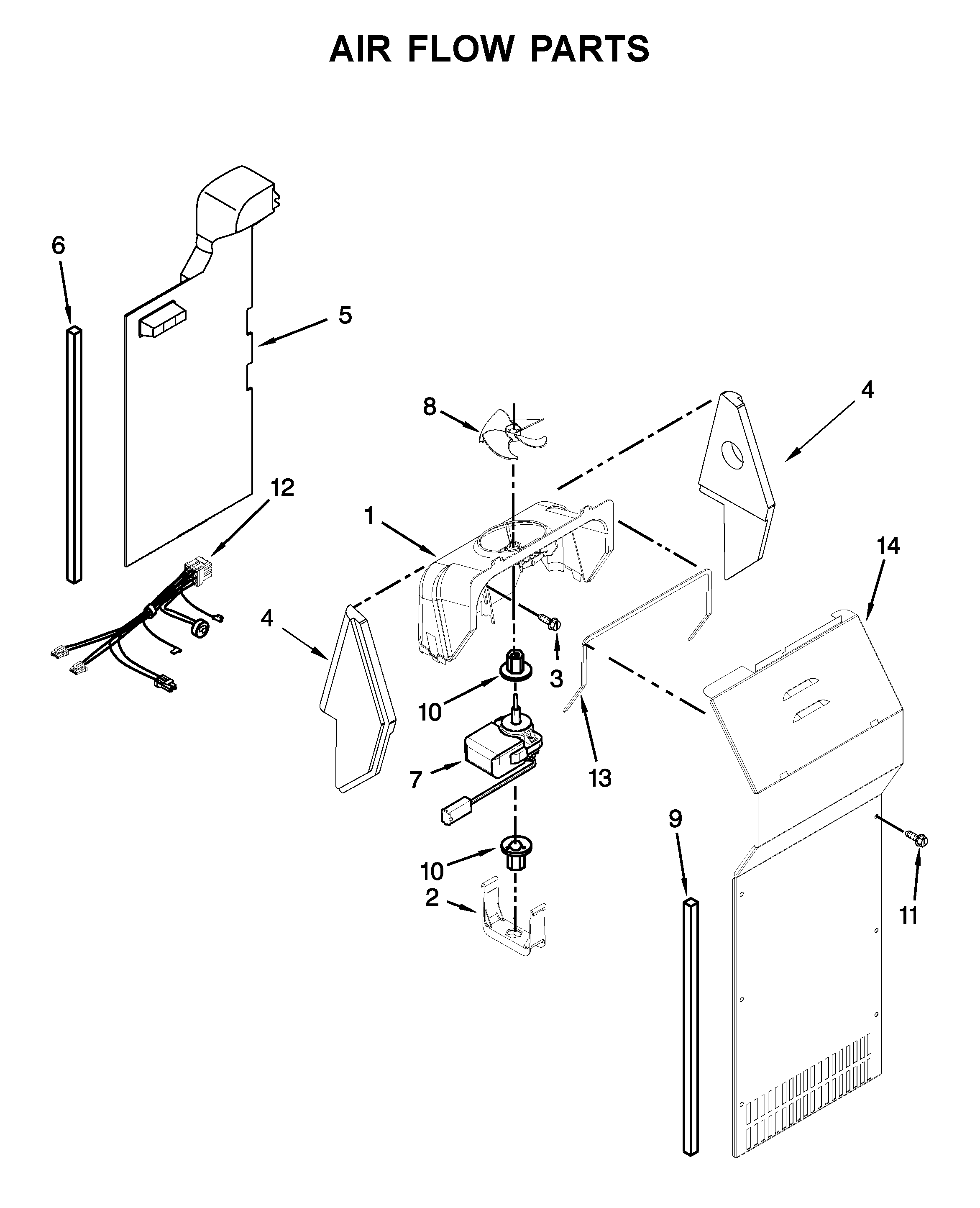

• Airflow and cooling fan: refrigerator evaporator fan motor WP2315549 and refrigerator evaporator fan blade WP2169142

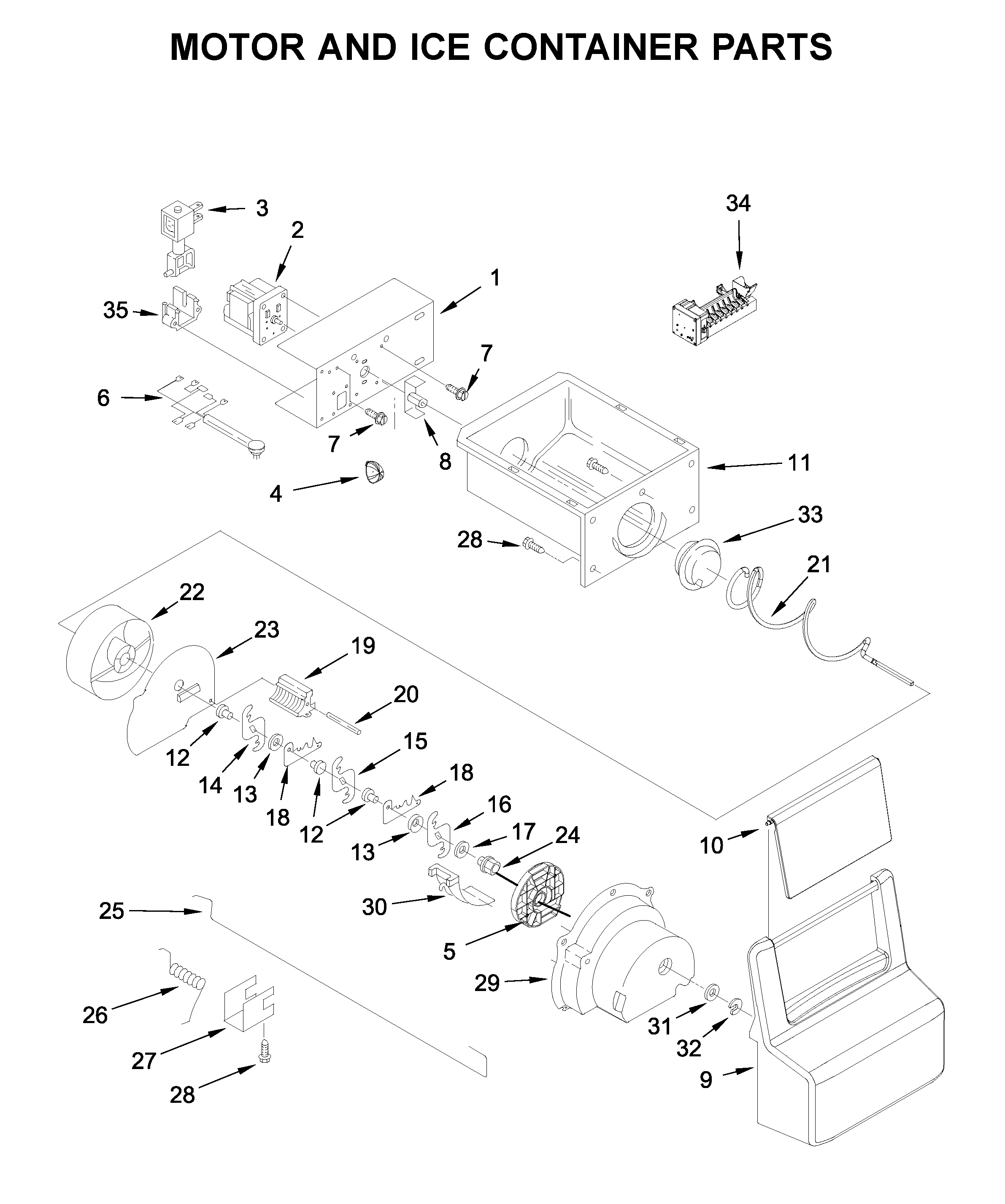

• Ice production: ice maker as W11284458
• Water flow and taste/odor: refrigerator cartridge EDR1RXD1

Why it matters

Cooling and ice maker issues usually get worse over time. Catching airflow restrictions, dirty coils, or a failing evaporator fan early helps protect food, reduce energy use, and prevent temperature swings.

Last updated: February 2026

Whirlpool uses model number WRS321SDHW05; it is a Whirlpool side-by-side refrigerator model. For model identification details (including where to find the model and serial tag), use the owner's manual.

What the model number tells you

Model numbers like WRS321SDHW05 identify the exact Whirlpool refrigerator configuration so you can match the right parts and instructions.

• Brand/company: Whirlpool
• Appliance type: Side-by-side refrigerator
• Best use of the model number: Ordering correct replacement parts and following model-specific procedures
• Where you will use it most: Water filter, ice maker, door switch, LED light, and control board lookups

Common parts customers match to this model

If you are shopping parts for WRS321SDHW05, these are some of the most frequently replaced items listed for this model.

What you are replacing	What it affects	Example part for this model
Water filter cartridge	Water taste, flow, ice quality	Refrigerator cartridge EDR1RXD1
Ice maker assembly	Ice production	Ice maker as W11284458
Door switch	Lights, cooling behavior, dispenser enable	Refrigerator door switch W11396033
Evaporator fan motor	Freezer and fresh food cooling	Refrigerator evaporator fan motor WP2315549

Why it matters

Using the exact model number WRS321SDHW05 prevents ordering the wrong Whirlpool parts. Even small model suffix changes can affect fit, wiring connectors, and dispenser or ice maker configurations.

Last updated: February 2026

Most Whirlpool refrigerators, including the Whirlpool WRS321SDHW05 side-by-side, typically last 12 to 15 years with normal household use. Consistent cleaning, good airflow around the cabinet, and fixing small cooling or ice maker issues early are what most often push a refrigerator to the longer end of that range.

Typical lifespan and what to expect

A refrigerator’s “lifespan” usually means the point where a major repair (compressor, sealed system, control) becomes more likely than minor part replacement.

• Average range: 12 to 15 years
• Common long-life outcome: 15+ years with steady maintenance
• Most common wear items: door switches, lights, ice maker components, door gaskets
• Big-ticket items: compressor, evaporator, electronic control

What you’re seeing	What it often means	What to do first
Runs a lot but temps are OK	Energy-efficient compressor and fans can run longer	Confirm doors seal and vents are clear; avoid overpacking
Warm fridge or freezer	Airflow, defrost, or fan issue	Check for blocked vents; listen for evaporator fan
Ice or water tastes off	Filter overdue or water line issue	Replace filter; flush dispenser

Maintenance that extends life

These steps reduce strain on the compressor and help prevent temperature swings.

• Clean condenser area and keep airflow space around the refrigerator
• Keep door gaskets clean and sealing flat (no gaps)
• Avoid frequent long door openings; let food cool before loading
• Replace the water filter on schedule and purge air after changes
• Level the refrigerator so doors close on their own

Model-specific parts that commonly support longevity

If you’re maintaining water quality, lighting, or door operation on WRS321SDHW05, these are common replacements:

• Refrigerator cartridge EDR1RXD1 (water filter)
• Refrigerator door switch W11396033 (door sensing and light control)
• Refrigerator led light W11602886 (interior lighting)

Why it matters

A refrigerator that is clean, well-ventilated, and sealing properly runs more efficiently; that reduces compressor runtime and helps prevent icing, temperature drift, and premature wear.

For model-specific care and cleaning intervals, use the owner's manual.

Last updated: February 2026

A French door refrigerator is better for wide-item storage in the fresh-food section, while a side-by-side like the Whirlpool WRS321SDHW05 is better when you want easier freezer access at eye level and typically less door-swing clearance. The right choice comes down to your kitchen layout and how you shop and cook.

Quick comparison

Feature	Side-by-side (WRS321SDHW05 style)	French door
Fresh-food storage	Tall, narrower shelves	Wide shelves for platters and pizza boxes
Freezer access	Vertical, eye-level access	Lower drawer, wider but requires bending
Door clearance	Often works better in tighter aisles	Often needs more clearance for wide doors
Best fit for	Frequent freezer use, narrow walkways	Fresh-food heavy households, entertaining

Choose a side-by-side if you want

• Easier access to frozen foods without bending as much
• Better vertical organization (bins and shelves stacked top to bottom)
• A layout that fits well in tighter kitchens
• A clear split between refrigerator and freezer space

Choose a French door if you want

• Wide refrigerator shelves for large trays and platters
• More flexible fresh-food storage at eye level
• A freezer drawer that can hold bulky items side-to-side

Kitchen fit and clearance (why it matters)

Clearance is often the deciding factor. The WRS321SDHW05 owner's manual includes the installation spacing, ventilation, and door-swing guidance you should follow for this model, plus notes about allowing extra room when a water line and dispenser are involved.

Practical decision checklist

• Measure cabinet opening width, depth, and the walkway in front of the refrigerator
• Think about your “largest item” (sheet pans, party platters, pizza boxes)
• Decide whether you access the freezer daily (side-by-side advantage)
• If you have a dispenser, plan for filter access and water line routing

Last updated: February 2026
