Whirlpool W8TXNGMWQ01 refrigerator Parts

The Whirlpool W8TXNGMWQ01 is a top-mount refrigerator; its exact overall dimensions and total cubic-foot capacity depend on the specific configuration listed for this model. For the most accurate “how big” specs (height, width, depth, and capacity), use the W8TXNGMWQ01 owner's manual.

What “how big” usually means

When customers ask how big a refrigerator is, we typically look for these specs:

• Total capacity (cu. ft.): overall storage space
• Width: most top-mount units are around 28 to 33 inches wide
• Height: commonly 65 to 70 inches tall
• Depth: often 30 to 34 inches deep (varies with handles)
• Door swing clearance: space needed to fully open doors
• Cutout/installation clearance: airflow space around the cabinet

Quick size checklist for measuring your space

Use a tape measure and record each number before ordering parts or planning a move:

• Measure width at the narrowest point (cabinet opening)
• Measure height to the lowest overhead obstruction
• Measure depth from the back wall to the front edge of counters
• Add clearance behind and above for ventilation
• Confirm door swing and pathway clearance (hallways, doorways)

Typical size ranges (top-mount refrigerators)

These are common ranges for Whirlpool top-mount refrigerators and help when you need a planning estimate.

Spec	Typical range	Why it varies
Width	28–33 in.	cabinet style, capacity class
Height	65–70 in.	hinge design, leveling legs
Depth	30–34 in.	handle style, door thickness
Capacity	14–22 cu. ft.	interior layout, insulation

Why it matters

Correct size prevents installation problems, improves airflow for cooling performance, and helps you avoid door-clearance issues that can lead to warm temperatures or excess frost.

If you are troubleshooting cooling after a move or reinstall, the W8TXNGMWQ01 owner's manual also points you to the right setup and use guidance.

Last updated: January 2026

For the Whirlpool W8TXNGMWQ01 top-mount refrigerator, the biggest real-world problem we see is loss of proper cooling caused by restricted airflow or a failed cooling-air component. When airflow is blocked, temperatures rise, moisture increases, and the refrigerator may run longer than normal.

Most common “big” problems (and what they look like)

• Airflow blocked by food packages: warm refrigerator section, uneven temps, excess moisture.
• Dirty condenser area: long run times, poor cooling, hot cabinet sides.
• Evaporator fan issue: freezer may get cold but refrigerator warms; little air movement.
• Defrost system trouble: frost buildup on the freezer back wall; airflow drops.
• Ice maker or water supply problems (if equipped): no ice, slow fill, leaking.

Quick checks we recommend first

Use these simple checks before replacing parts; they solve a large share of cooling complaints.

• Make sure no items block the freezer or refrigerator vents (air must circulate between sections).
• Set temps to typical targets: 0°F in the freezer and 37°F in the refrigerator.
• Listen for the evaporator fan when the compressor is running (door switch may need to be held).
• Look for heavy frost on the freezer back panel (points to a defrost issue).
• Review airflow and use guidance in the W8TXNGMWQ01 owner's manual.

Parts that commonly fix the underlying cause

If the quick checks point to a component failure, these model-matched parts are common solutions.

Symptom	Likely area	Example model-matched part
Warm fridge, weak airflow	Evaporator fan system	Evaporator motor WPW10188389
Frosted freezer back wall, warm fridge	Defrost system	Refrigerator defrost bi-metal WPW10225581

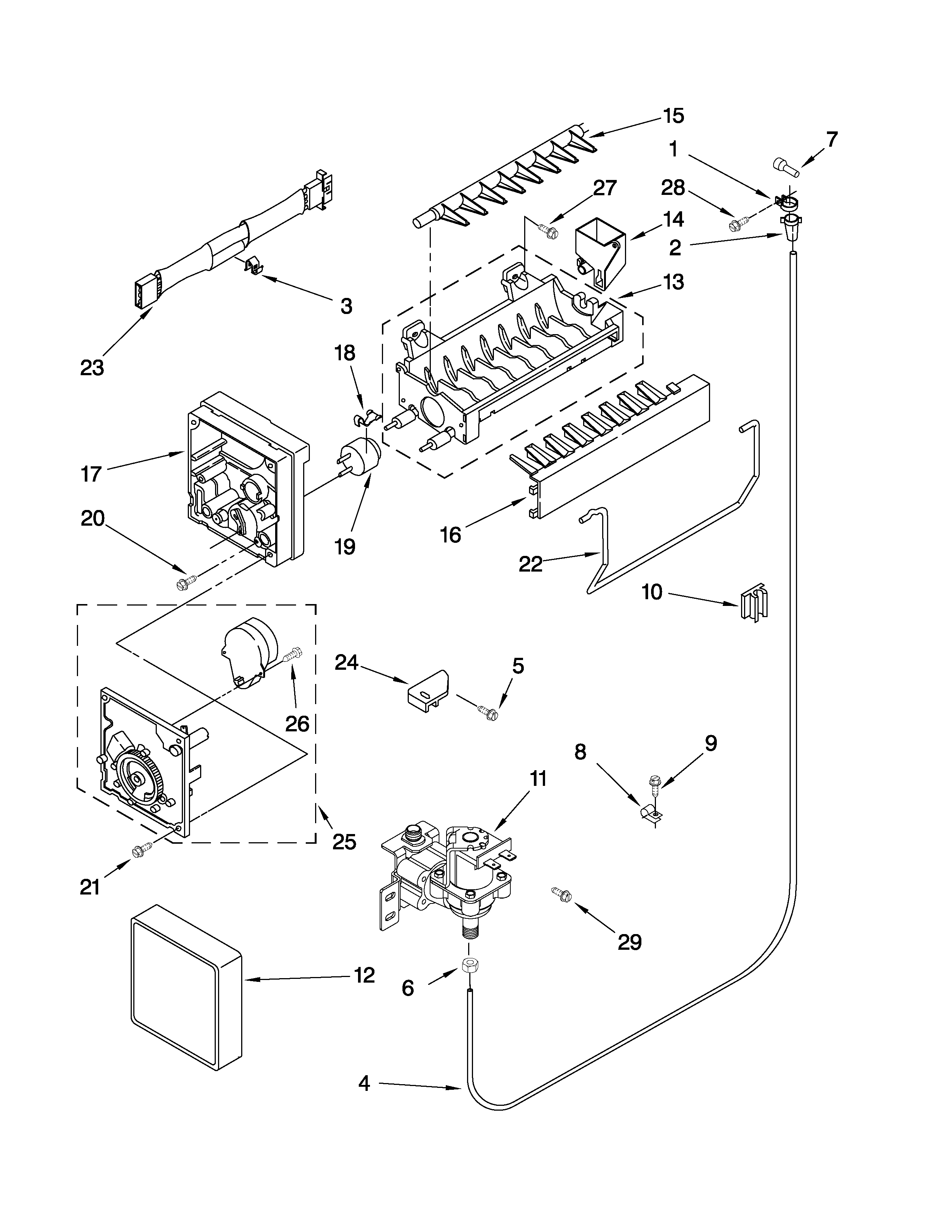

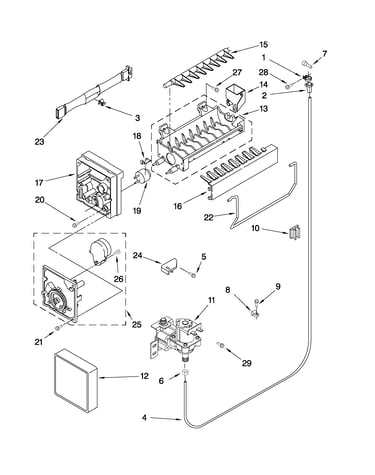

No ice or leaking at rear	Water supply/ice maker	Refrigerator inlet valve WP2315576 or refrigerator ice maker 4317943

Why it matters

This refrigerator moves cold air from the freezer into the fresh-food section through vents. When vents are blocked or a fan/defrost part fails, airflow drops and both temperature and moisture problems follow, even if the compressor still runs.

Last updated: January 2026

A top-mount refrigerator and a top-freezer refrigerator are the same layout: the freezer compartment is on top and the fresh-food (refrigerator) compartment is below. For your Whirlpool W8TXNGMWQ01, “top-mount” is simply another name for “top-freezer.” See the W8TXNGMWQ01 owner's manual for the exact feature and airflow details for this model.

What you get with a top-freezer (top-mount) design

This style is popular because it is simple, efficient, and easy to service.

• Freezer on top; refrigerator section below
• Wide shelves and door bins for everyday groceries
• Straightforward airflow between freezer and refrigerator sections
• Typically fewer complex parts than French door or side-by-side designs
• Often easier access to frozen foods at eye level

How it compares to other common refrigerator layouts

Layout name	Freezer location	What feels different day to day
Top-mount (top-freezer)	Top	Frozen foods are higher; fresh foods are lower
Bottom-mount (bottom-freezer)	Bottom	Fresh foods are higher; frozen foods are lower
Side-by-side	Left or right side	Narrower shelves; freezer and fridge are vertical

Why the wording matters (and why it usually does not)

Manufacturers and retailers often use “top-mount” and “top-freezer” interchangeably. What matters more is the model-specific features (ice maker readiness, shelving, door swing, and ventilation clearances) listed in the W8TXNGMWQ01 owner's manual.

Quick tips to get the best performance from this layout

• Keep air vents clear; blocked vents can cause temperature and moisture problems
• Allow proper installation clearance around the cabinet for ventilation
• Set temperatures to typical targets: about 37°F for fresh food and 0°F for freezer
• If equipped with an ice maker, leave extra space behind the unit for the water line

Last updated: January 2026
