On the GE PFE28KMKEES bottom-mount refrigerator, the bottom grille (base grille/toe grille) typically comes off by removing any retaining screws (if present) and then pulling the grille straight out from the bottom front of the cabinet. Reinstall by aligning the tabs and sliding it back into place.

Quick removal steps

• Unplug the refrigerator (or switch off power at the breaker) for safety.
• Open both fresh food doors for better access to the bottom front.
• Look along the top edge of the grille for screws; remove them with a Phillips screwdriver if your grille uses screws.
• Grip the grille near both ends and pull straight outward to release the clips/tabs.
• If it feels stuck, pull evenly from both sides; do not twist the plastic.
• Set the grille aside where it will not get stepped on or warped.

What you will need

Item	Why it helps
Phillips screwdriver	Removes grille screws (if your version uses them)
Work gloves	Protects hands from sharp edges under the cabinet
Flashlight	Helps you see clips, screws, and wiring near the floor

If the grille will not come off

• Confirm all screws are removed (some models have screws at the ends).
• Pull from the ends first, then the center; clips often release in that order.
• Check for a water line or wiring routed near the grille area; avoid snagging it.
• If you need to pull the refrigerator forward for access, raise the front leveling legs first and pull straight out to prevent floor damage (then lower the legs again after repositioning).

Why it matters

We remove the bottom grille to access the condenser area for cleaning, to inspect for leaks, or to reach leveling legs. A grille that is not seated correctly can rattle and may reduce airflow at the bottom front.

For model-specific diagrams and cabinet access notes, use the owner's manual.

Last updated: February 2026

The most common GE refrigerator complaint (including the GE PFE28KMKEES bottom-mount refrigerator) is not cooling properly. In most cases, the root cause is airflow or heat-exchange related, such as dirty condenser coils, a failed evaporator fan, or a frost/defrost issue that blocks cold air from circulating.

Most common issues we see (and what they look like)

• Not cooling or warm temperatures: food soft, freezer thawing, or fridge section warm
• Ice maker not working: no ice, small cubes, or slow production
• Water dispenser issues: weak flow, no water, or air spurts
• Water leaks/puddles: water under crisper drawers or on the floor
• Door not sealing/closing: door pops open, moisture, or frost buildup
• Unusual noises: buzzing, clicking, rattling, or fan noise
• Lights not working: interior dark even with door open

Quick checks to narrow it down

1. Confirm temperatures: set refrigerator to about 37°F and freezer to about 0°F (typical targets).
2. Check airflow: make sure vents inside the fresh-food section are not blocked by containers.
3. Inspect condenser coils: dusty coils commonly cause poor cooling and longer run times.
4. Listen for fans: the evaporator fan should run when the compressor is running (door switch may need to be pressed to test).
5. Look for frost on the back wall of the freezer: heavy frost points to a defrost problem.
6. Check door seal: gaps or a torn gasket cause warm air leaks and frost.

Common symptoms and likely causes

Symptom	Most likely cause	What to do first
Fridge warm, freezer OK	Airflow restriction or evaporator fan issue	Clear vents; check for fan noise
Both sections warm	Dirty coils, compressor not running, or sealed system issue	Clean coils; verify compressor/fans run
Water dispenser slow	Filter restriction or air in line	Replace filter; purge air
Puddles inside fridge	Defrost drain partially clogged	Clear drain path; check for ice buildup

Why it matters

Cooling problems can quickly lead to food spoilage and can also make the compressor run longer than normal. Catching airflow, coil, filter, or door-seal issues early helps your GE refrigerator cool efficiently and reduces strain on major components.

Model-specific help

For control settings, alarm behavior, and maintenance guidance specific to GE model PFE28KMKEES, use the owner's manual. If your issue involves alarms, we also recommend how to reset the door alarm on a GE refrigerator.

Last updated: February 2026

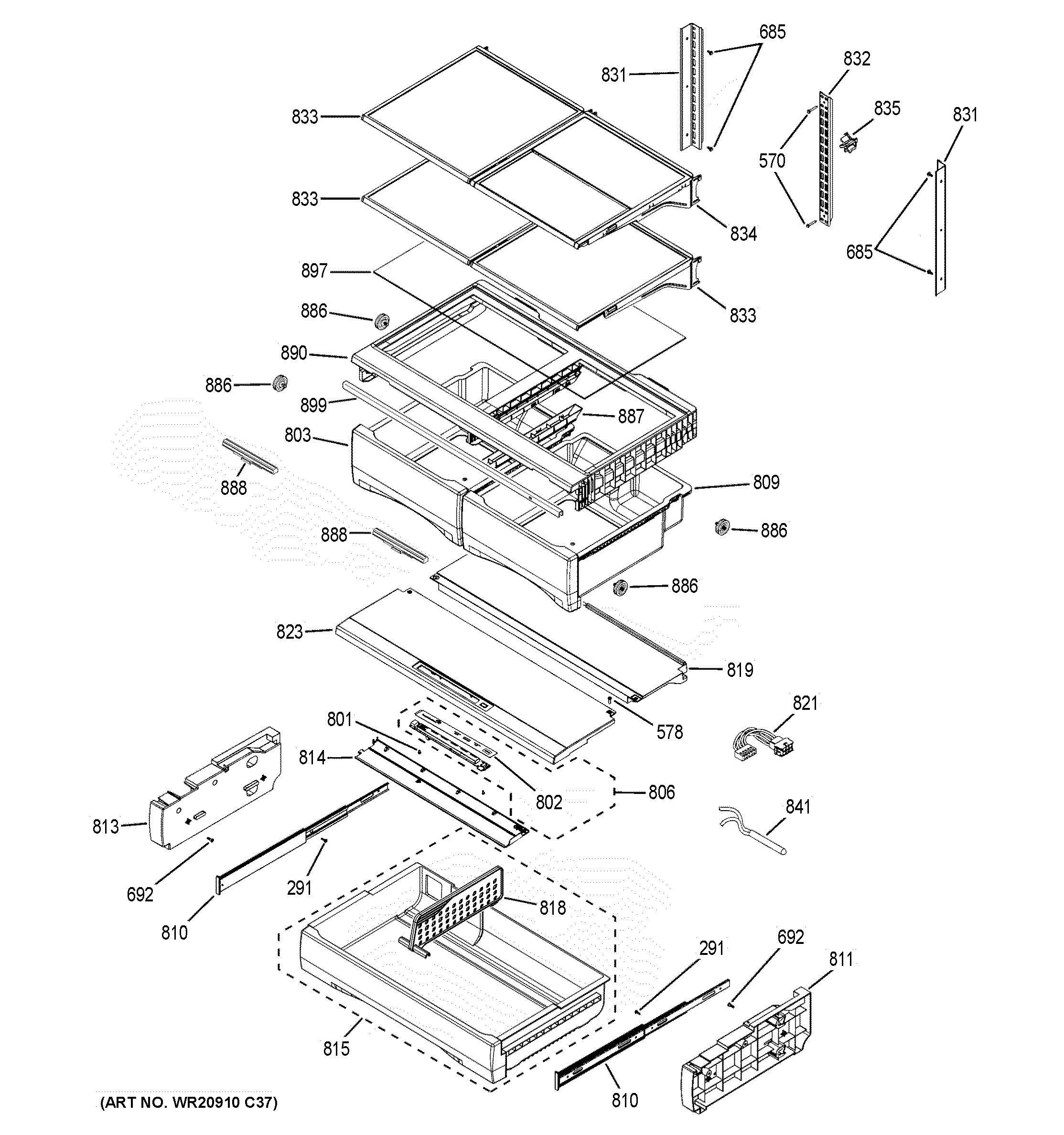

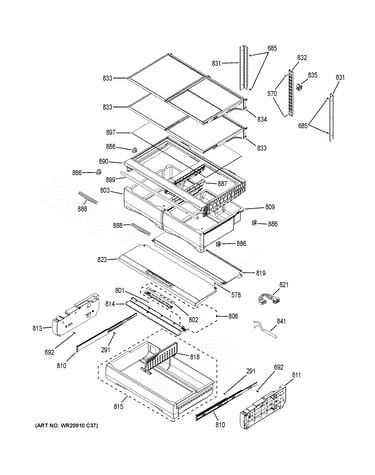

To remove the bottom shelf in your GE PFE28KMKEES refrigerator, take everything off the shelf, tilt the front edge up, then lift the back edge up and pull the shelf straight out. Follow the shelf steps in the owner's manual.

Step-by-step: removing the shelf safely

• Remove all food, bins, and bottles from the shelf.
• Hold the shelf with both hands (glass can be slippery).
• Tilt the shelf up at the front.
• Lift the shelf up at the back to unhook it from the track.
• Pull the shelf out of the refrigerator compartment.

Reinstalling the shelf (so it locks correctly)

• Tilt the shelf up and insert the top hook at the back into a slot on the track.
• Lower the front until the bottom of the shelf locks into place.

Important glass-shelf cautions

Tempered glass is strong, but sudden temperature changes and impacts can break it.

• Do not clean cold glass with warm or hot water.
• Avoid bumping the shelf against side walls or door bins.
• Set the shelf on a flat, padded surface while cleaning.
• Hand-wash plastic shelf parts; do not put plastic refrigerator parts in the dishwasher.

Quick reference

Task	What to do	What to avoid
Remove shelf	Tilt front up, lift back up, pull out	Forcing it while still hooked
Clean glass	Use cool or room-temp water	Warm water on cold glass
Reinstall	Hook back first, then lock front	Leaving the front unlatched

Why it matters

A shelf that is not fully unhooked (or not fully locked back in) can crack, rattle, or spill items. Removing it the right way also prevents damage to the shelf tracks and fresh food compartment liners.

Last updated: February 2026

A GE PFE28KMKEES bottom-mount refrigerator typically lasts 10 to 15 years. With steady maintenance (clean airflow, good door sealing, and on-time filter changes), many units reach the upper end of that range before major sealed-system or control issues become more likely.

Typical lifespan and what affects it

Most refrigerators in this class land in a predictable window; day-to-day conditions determine where yours falls.

• Typical service life: 10 to 15 years
• Longer life is common when: doors seal tightly, condenser area stays clean, and temperatures stay stable
• Shorter life is common when: doors are frequently left ajar, airflow vents get blocked, or the unit runs hot in a tight enclosure
• Water system upkeep matters: filter and dispenser/ice maker maintenance reduces nuisance failures

Quick maintenance checklist (best payoff)

Use these habits to reduce compressor run time and prevent common failures.

• Keep refrigerator set near the recommended 37°F and freezer near 0°F (allow 24 hours after changes to stabilize).
• Avoid blocking interior air vents with food containers.
• Keep door gaskets clean and ensure doors close fully every time.
• Replace the water filter on schedule and reset the filter indicator.
• Address door-alarm beeps promptly so the unit does not warm up.

What “wear-out” looks like by age

Age of refrigerator	What we commonly see	What to do first
0 to 5 years	Minor adjustments, filter and ice/water issues	Filter change, purge air, check door closure
6 to 10 years	Fan noise, gasket wear, intermittent cooling complaints	Clean airflow paths, inspect seals, check temps
11 to 15 years	More frequent repairs, cooling performance drops	Evaluate repair cost vs. overall condition

Why it matters

A refrigerator that runs warmer than intended or runs constantly ages faster. Stable temperatures, clear airflow, and a well-maintained water system reduce strain on the compressor and evaporator fan, which helps you get the full expected lifespan.

Helpful DIY guides

• Use the owner's manual for model-specific care, control settings, and filter reset steps.
• If the alarm is sounding, follow how to reset the door alarm on a GE refrigerator.
