Samsung DV316BGW/XAA laundry Parts
Here are the diagrams and repair parts for Samsung DV316BGW/XAA laundry, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

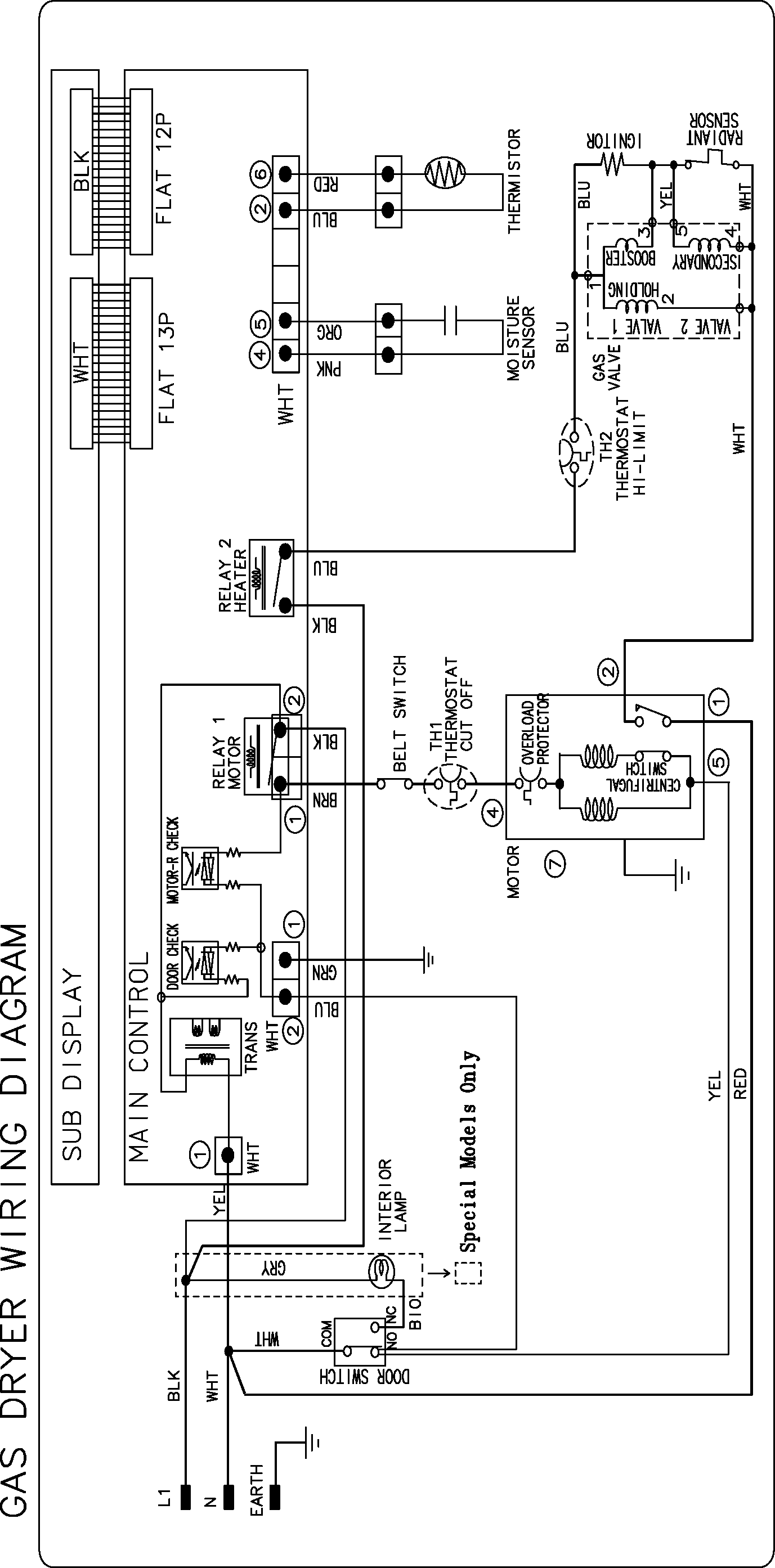

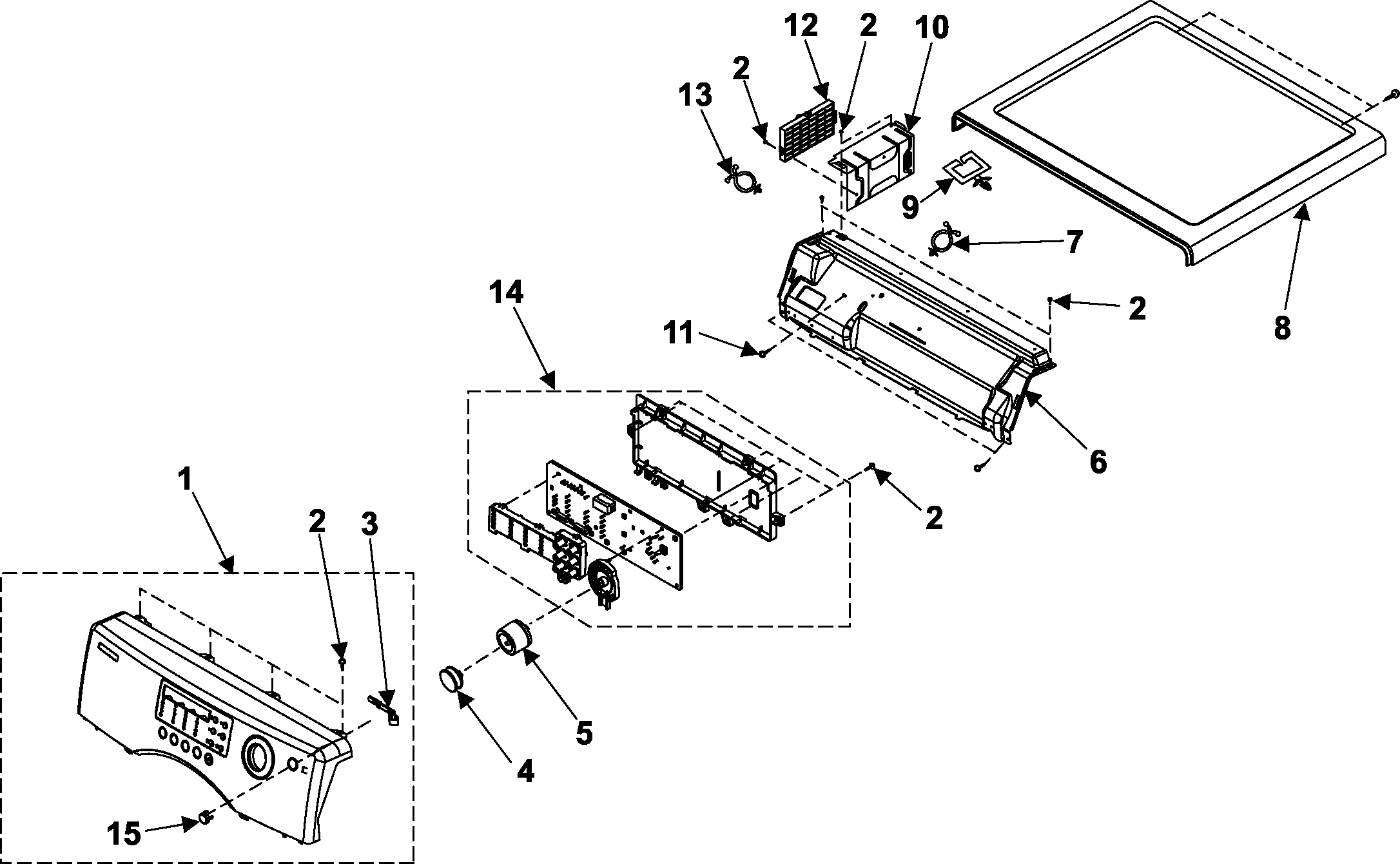

SELECT DIAGRAM
Browse Parts for DV316BGW/XAA Laundry

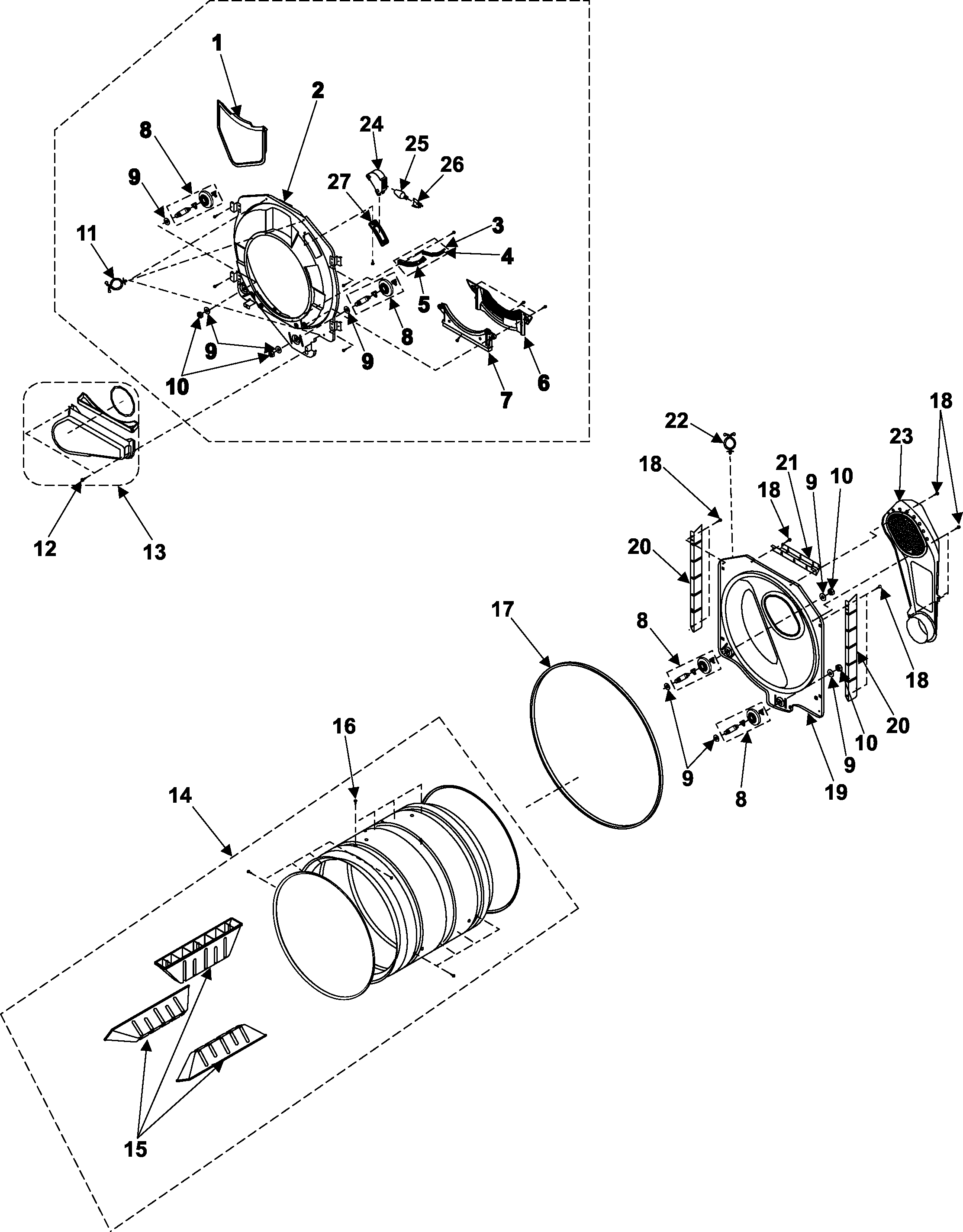

Drum diagram
Roller
Part #DC97-07523AReplaced by #DC97-16782A
Manufacturer substitutionThis part replaces DC97-07523A. Substitute parts can look different from the original.In Stock$33.3115% OFF Phone Price : $39.31
Qty

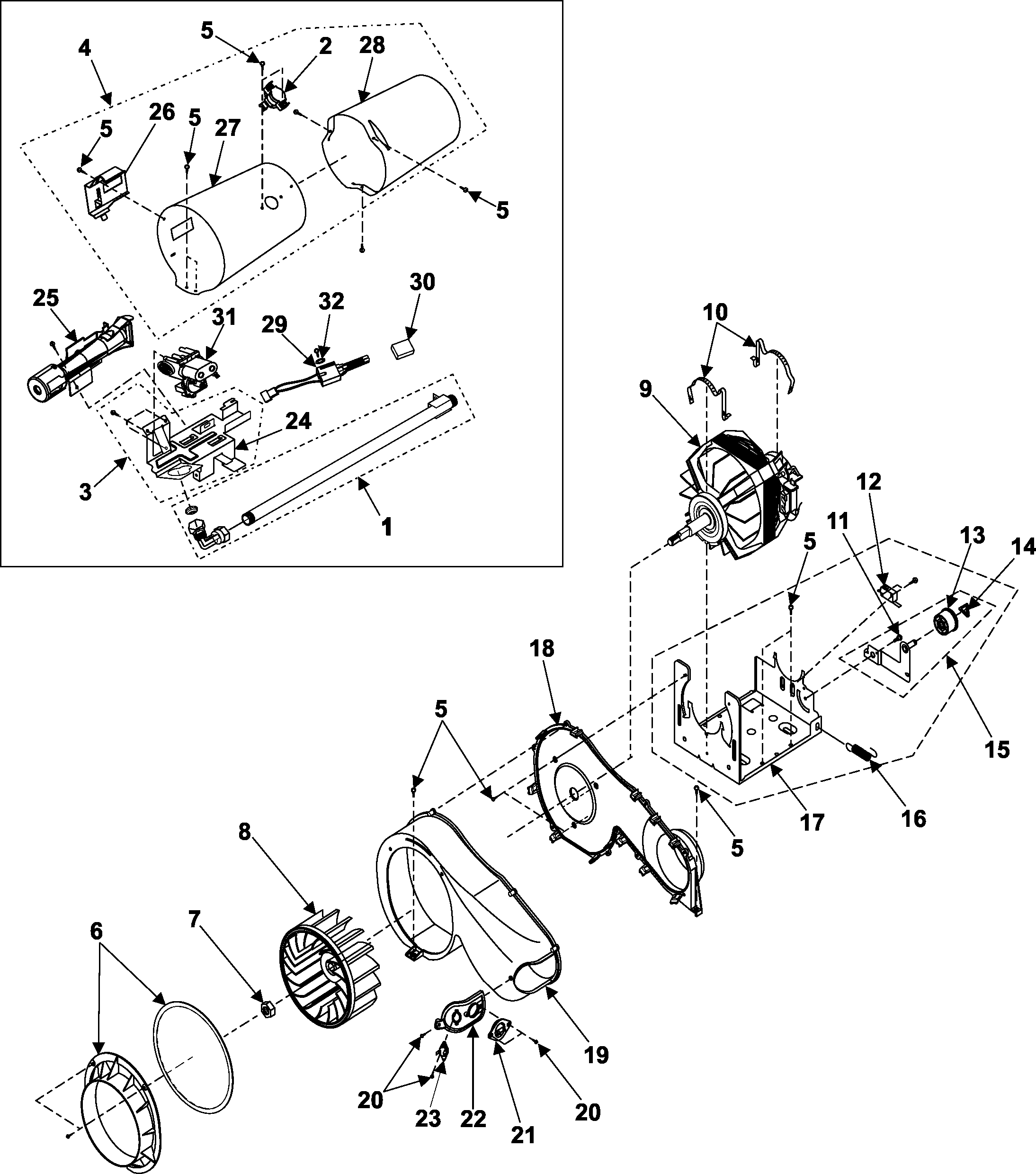

Blower/heater/motor diagram
Bracket
Part #DC96-00882BReplaced by #DC93-00634A
Manufacturer substitutionThis part replaces DC96-00882B. Substitute parts can look different from the original.In Stock$40.5913% OFF Phone Price : $46.59QtyBlower/heater/motor diagram
Dryer Idler Pulley
Part #DC97-07509BReplaced by #DC93-00634A
Manufacturer substitutionThis part replaces DC97-07509B. Substitute parts can look different from the original.In Stock$40.5913% OFF Phone Price : $46.59QtyBlower/heater/motor diagram
Dryer Thermistor
In Stock$52.5010% OFF Phone Price : $58.50QtyBlower/heater/motor diagram
Dryer Thermal Cut-off Thermostat
In Stock$37.8314% OFF Phone Price : $43.83QtyDrum diagram
Belt-timin
Part #6602-001314Replaced by #6602-001655

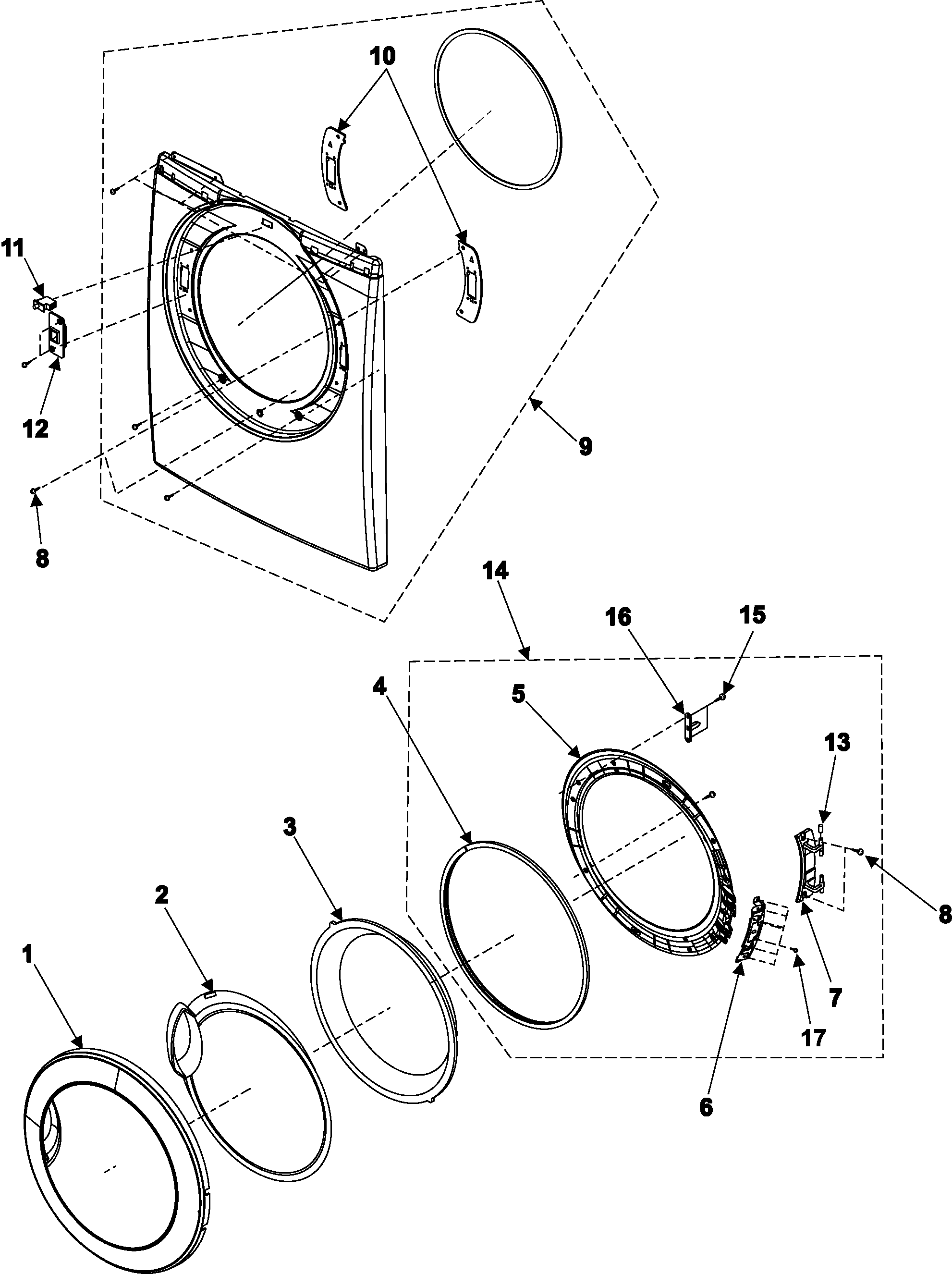

Manufacturer substitutionThis part replaces 6602-001314. Substitute parts can look different from the original.In Stock$52.3110% OFF Phone Price : $58.31QtyDoor diagram
Dryer Door Switch
Part #DC64-00828A
The manufacturer no longer makes this part, and there's no substitute part
Blower/heater/motor diagram
Dryer Burner Igniter
In Stock$123.0627% OFF Was : $169.37QtyBlower/heater/motor diagram
Spring-ten
Part #DC61-01215AReplaced by #DC61-01215B
Manufacturer substitutionThis part replaces DC61-01215A. Substitute parts can look different from the original.This item is not returnableIn Stock$8.6910% OFF Phone Price : $9.69QtyBlower/heater/motor diagram
Dryer Blower Wheel Nut
Part #6021-001201This item is not returnableIn Stock$4.3819% OFF Phone Price : $5.38Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Dryer Exhaust Duct
In Stock
$62.98
9% OFF Phone Price : $68.98
Qty
Leg
In Stock
$27.73
Qty
Dryer Drying Rack
In Stock
$114.10
11% OFF Was : $128.14
Qty
Dryer Burner Duct Assembly
In Stock
$112.81
10% OFF Phone Price : $124.81
Qty
Dryer Exhaust Duct Connector
In Stock
$34.11
40% OFF Was : $56.50
Qty
Dryer Leveling Leg And Bracket
In Stock
$12.89
13% OFF Phone Price : $14.89
Qty
Most common symptoms to help you fix your dryers
Choose a symptom to see related dryer repairs.
Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, c…
Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure…
Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, fau…
Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failur…
Main causes: damaged door strike, worn door catch…
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door s…
Main causes: bad timer or electronic control board, door switch failure…
Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive …
Most common repair guides to help fix your dryers
These step-by-step repair guides will help you safely fix what’s broken on your dryer.
How to replace an electronic control board in an electric dryer
The electronic control board manages the components and controls the cycle times in your electric dryer. Follow these st…
Repair time and Difficulty
45 minutes or less
How to replace an igniter in a gas dryer
The igniter in a gas dryer glows white hot during the to light the gas that heats the air in the dryer. If the dryer air…
Repair time and Difficulty
60 minutes or less
How to replace a dryer thermistor
The thermistor senses the air temperature in the dryer. If your dryer overheats or doesn't heat at all, the thermistor …
Repair time and Difficulty
30 minutes or less
Effective articles & videos to help repair your dryers
Use the advice and tips in these articles and videos to get the most out of your dryer.
Get expert tips on using your dryer efficiently to save energy.…
Find out how to stay safe when repairing your appliances.…
Find out how to protect your smart appliances from malevolent invasions by hackers.…
