Frigidaire FDB658RAC1 dishwasher Parts

The most common issue we see with Frigidaire dishwashers like model FDB658RAC1 is poor cleaning (food soils left on dishes). It is usually caused by blocked spray paths, improper loading, low water temperature, or low water pressure, not a failed control.

• Make sure items are not blocking the spray arms (large pans, tall plates, utensils sticking out).
• Avoid nesting bowls and cups; water must reach every surface.
• Confirm incoming water temperature is at least 120°F (49°C).
• Confirm home water pressure is in the 20 to 120 psi range.
• Use fresh detergent and choose a longer cycle when loads are heavily soiled.
• If your model has it, use a higher-temperature wash option for tough soils.

If the dishwasher is loaded correctly and still leaves soil, these parts are frequent culprits on this model:

Poor cleaning is often a water delivery problem (spray coverage, temperature, pressure). Fixing the root cause improves results and can prevent repeat cycles that waste water, detergent, and time.

1. Review loading and cycle guidance in the owner's manual.
2. Inspect and clean spray arm holes; replace the spray arm if it is cracked, warped, or won’t spin freely.
3. Verify hot water supply temperature at the sink nearest the dishwasher before starting a cycle.

Last updated: February 2026

Yes. For your Frigidaire dishwasher model FDB658RAC1, we can look up compatible replacement parts by using the full model number to match the correct parts list and diagrams, then selecting the exact part you need (such as a spray arm, water inlet valve, or door seal).

• Find the full model number on the dishwasher’s model/serial tag.
• Enter FDB658RAC1 to pull up the correct parts breakdown for this exact dishwasher.

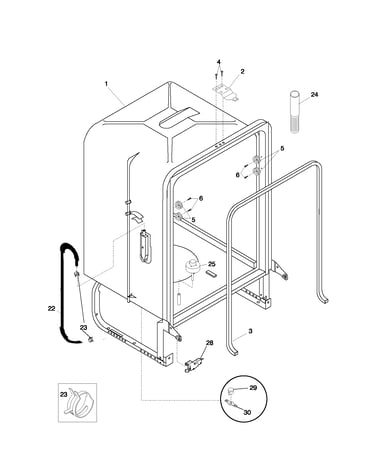

• Use the diagrams to identify the part location and confirm the part description.
• Match the part by name and ID before ordering (this prevents wrong-part returns).
• Cross-check any usage notes in the owner's manual.

If you are troubleshooting a symptom, these are frequent replacements for this model:

Dishwashers often have multiple versions that look similar; using the exact model number FDB658RAC1 ensures the parts you choose fit correctly and work with your dishwasher’s water distribution, heating, and door-latch systems.

Last updated: February 2026

Yes, for the Frigidaire FDB658RAC1 dishwasher, we recommend DIY replacement only for straightforward, low-risk parts (like a spray arm or door strike). For repairs involving wiring, heating, or water connections, shut off power and water first and follow the safety steps in the owner's manual.

Many common dishwasher fixes are very doable with basic hand tools, but anything that mixes electricity, heat, and water needs extra caution.

• Good DIY candidates: spray arms, door strike, some gaskets and seals
• Use extra caution: inlet valve replacement (water line), float switch testing (electrical)
• Better left to a technician: heater circuit diagnosis, motor/pump electrical troubleshooting, internal wiring harness issues

The manual for this model calls out key safety items like grounding and disconnecting power before servicing.

• Turn off power at the breaker (dishwasher must be grounded; 120 V, 60 Hz circuit)
• Shut off the water supply valve under the sink
• Let the heating element cool before touching or cleaning inside surfaces
• Do not run the dishwasher with panels removed
• Keep children away while testing a repair

If your symptoms match, these model-compatible parts are common starting points:

A dishwasher repair that is “almost right” can still cause leaks, nuisance tripping, or overheating. Using the correct Frigidaire FDB658RAC1 parts and following the manual’s shutoff and cool-down steps helps prevent repeat failures and protects surrounding cabinets and flooring.

Last updated: February 2026

In a Frigidaire FDB658RAC1 dishwasher, the most commonly replaced parts are the ones that control water flow, washing action, heating, and sealing. When these parts wear out or clog, you typically see poor cleaning, leaks, no-fill, no-heat drying issues, or the dishwasher not running as expected (see the owner's manual).

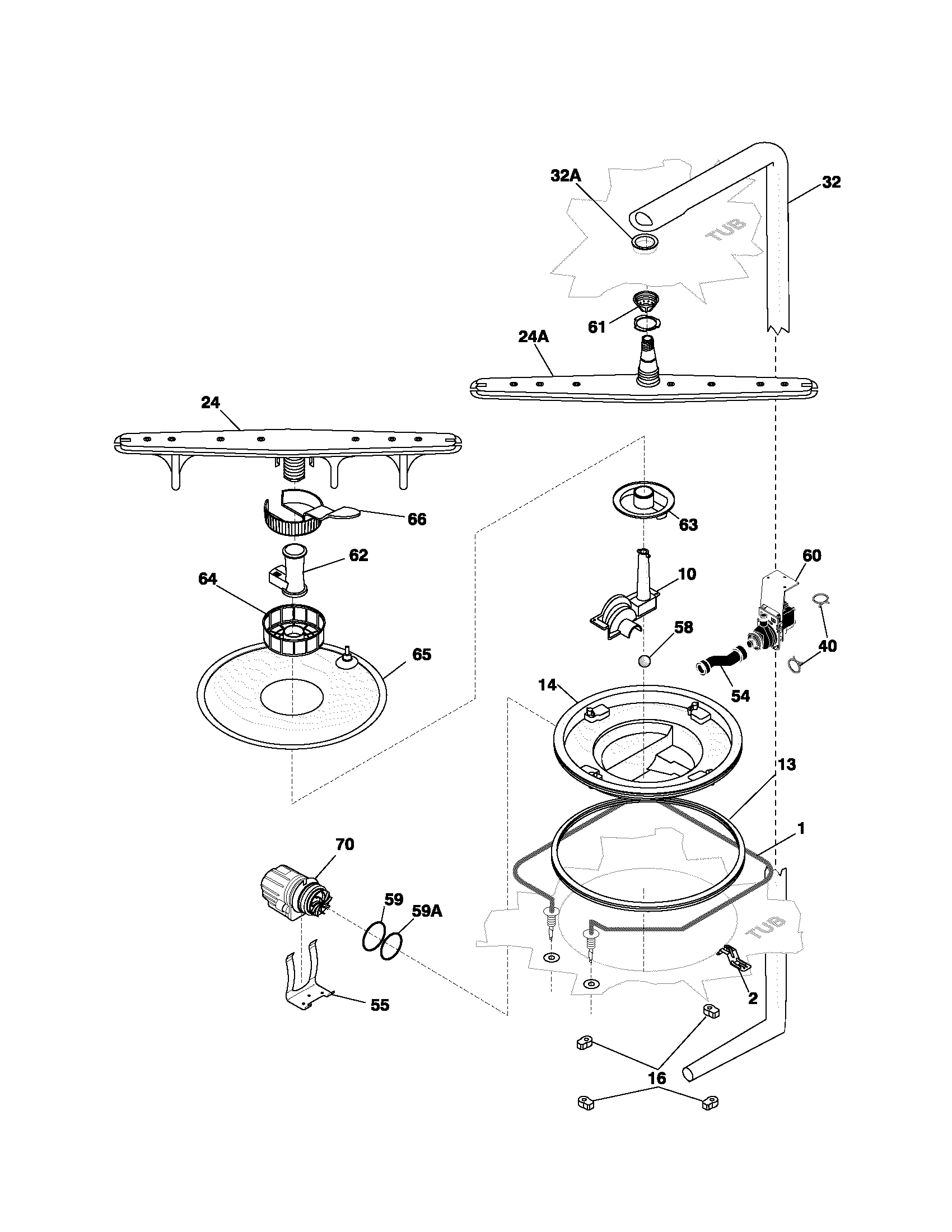

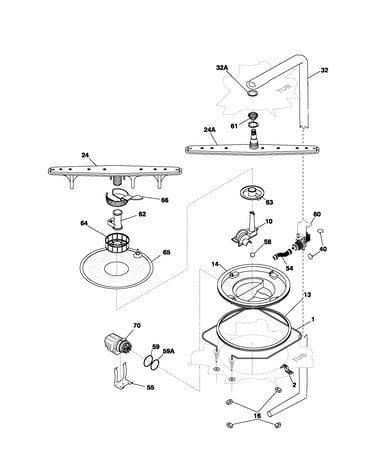

• Spray system parts: spray arms and supports; poor cleaning, weak spray, or dishes left dirty

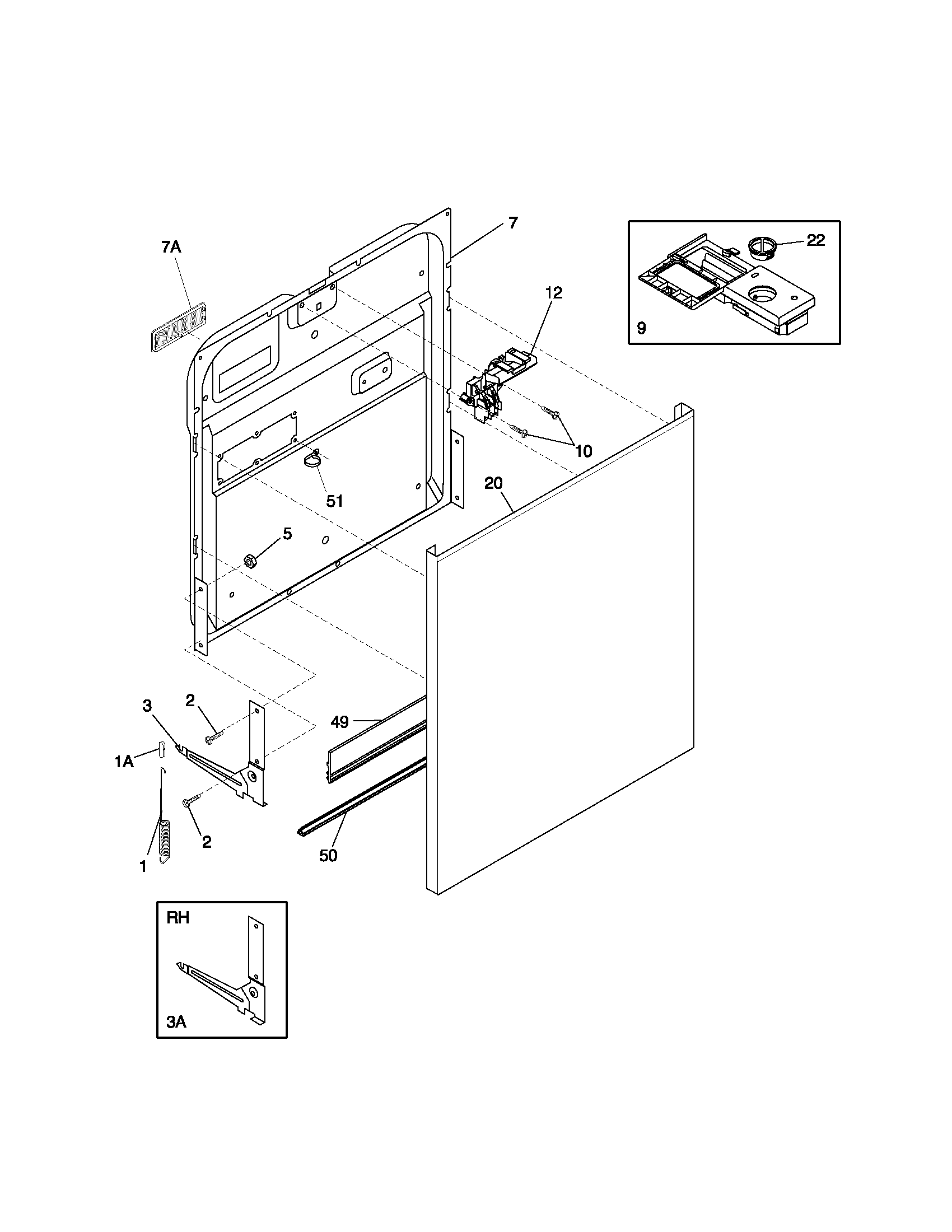

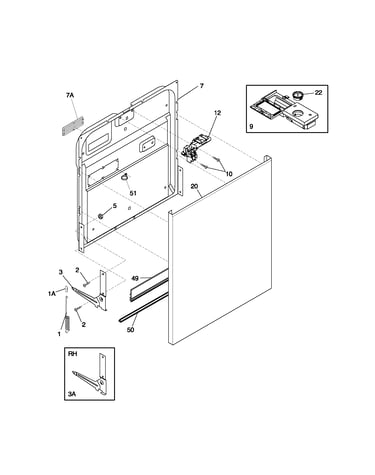

• Seals and gaskets: door seals and sump gaskets; leaks at the door or underneath
• Water fill parts: inlet valve and float/overfill switch; not filling, overfilling, or stopping mid-cycle
• Heating parts: heating element and thermostat; poor drying, cool wash water, or long cycles
• Dispensing parts: detergent dispenser; detergent cup not opening or detergent left in the cup
• Pump sealing parts: pump O-rings; leaks near the pump/sump area

These are examples of commonly replaced parts that match this model:

Dishwashers like the FDB658RAC1 clean by pumping water through a filter and spray arms, then draining and refilling during the cycle. That constant flow means mineral buildup, food debris, and heat cycling naturally stress a few key components over time.

• Confirm hot water to the dishwasher; incoming water should be at least 120°F
• Make sure items are not blocking the spray arms
• Check the overfill protector float moves freely and is clean
• Look for lime deposits if you have hard water
• Inspect for drips around the door gasket and under the unit near the sump

Last updated: February 2026
