Kenmore 66514545N710 dishwasher Parts

Yes. On Kenmore dishwasher model 66514545N710, you can replace the rubber door seal (gasket) when it’s torn, flattened, or leaking. The job is usually straightforward: remove the old seal, clean the channel, and press the new seal in evenly so the door closes without gaps.

Before you start

• Turn off power at the breaker; dishwashers use line voltage.
• Let the tub cool before working around the door area.
• Pull the racks out for clear access to the tub opening.
• Wipe the sealing surface clean; residue can cause leaks.
• Use only mild detergent and a soft cloth; avoid abrasives.

How to replace the door seal (typical steps)

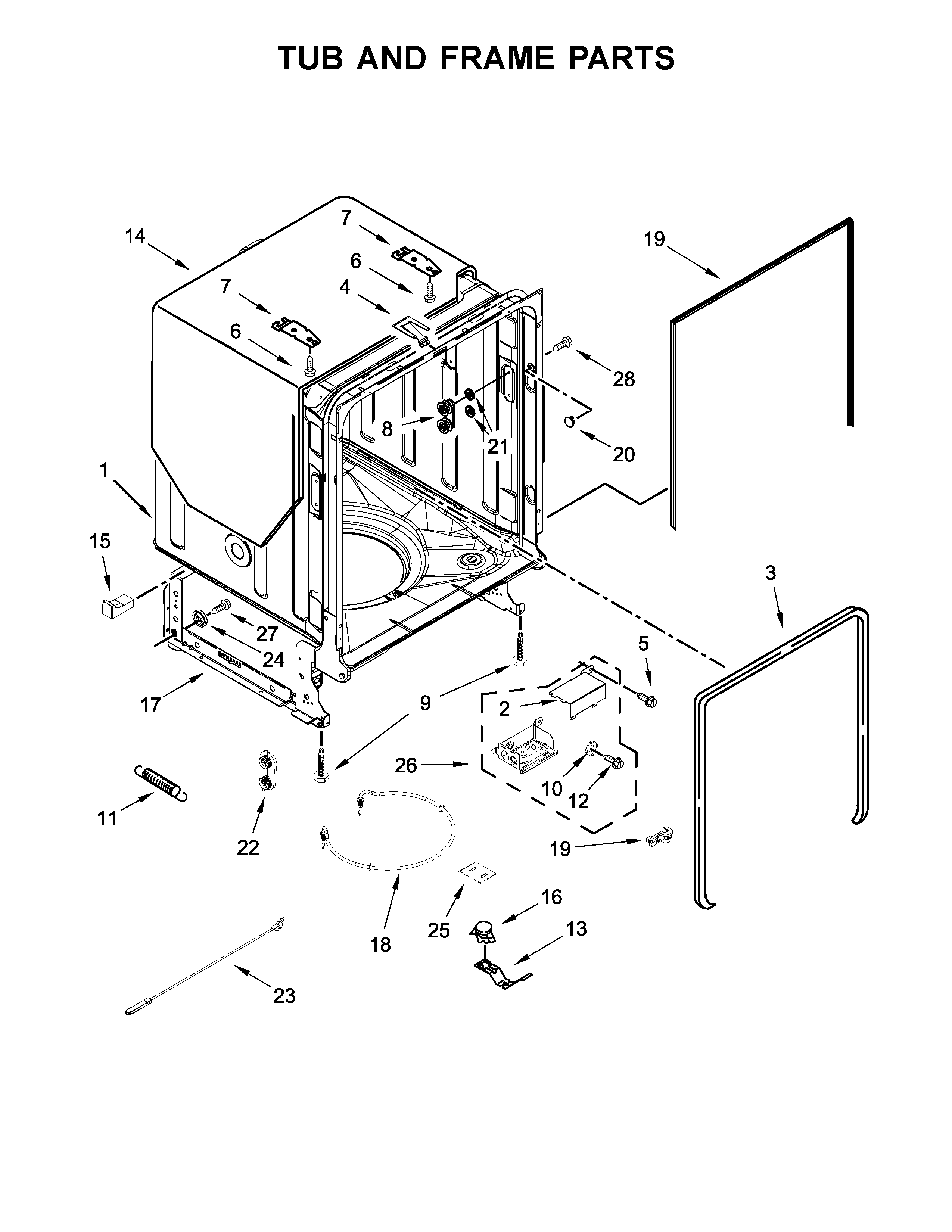

1. Open the door and locate the gasket around the tub opening.
2. Starting at a corner, pull the old gasket straight out of the channel.
3. Clean the channel and the mating surface on the door with a damp cloth.
4. Press the new gasket into the channel a few inches at a time; do not stretch it.
5. Close the door and check for even contact all the way around.

For model-specific diagrams and any special notes for your unit, follow the steps in the 66514545N710 owner’s manual.

Quick checks if it still leaks after replacement

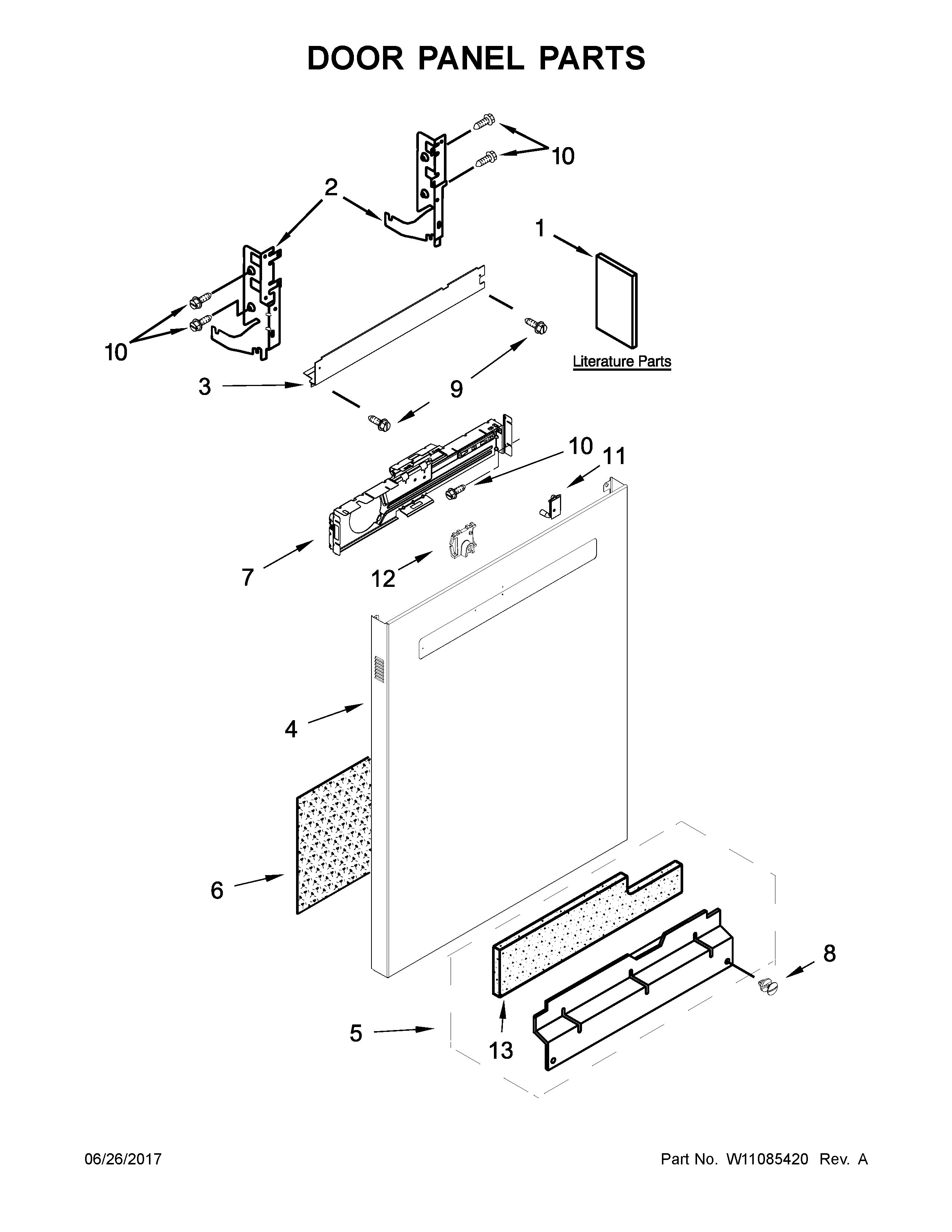

• Door alignment/tension: If the door feels like it drops open or won’t stay in position, adjust spring tension so the door closes correctly. The 66514545N710 installation guide shows how to adjust door spring tension using the tensioner holes.
• Obstructions: Make sure racks or tall items are not preventing a full seal.
• Lower edge leaks: Leaks at the bottom can also involve the lower door seal; for this model, see dishwasher door seal, lower W10909089.

Symptom-to-likely-cause table

What you see	Most likely cause	What to do
Drips at corners	Gasket not seated evenly	Reseat gasket; press fully into channel
Leak at bottom center	Lower door seal issue	Inspect/replace lower seal
Door won’t latch tightly	Latch or alignment issue	Inspect latch and door closing action

Why it matters

A good door seal keeps wash water inside the tub, protects the floor and cabinets, and helps the dishwasher maintain proper wash pressure for better cleaning.

Last updated: February 2026

Yes. We still supply replacement parts for Kenmore dishwashers, including model 66514545N710. The key is matching parts to your exact model number so the fit and electrical or plumbing connections are correct; your 66514545N710 owner's manual helps confirm features and component locations.

How to find the right part for your Kenmore 66514545N710

Use the model number first, then narrow by the symptom (won’t drain, won’t fill, poor cleaning, door won’t latch).

• Confirm the full model number from the model and serial label
• Identify the symptom (drain issue, fill issue, rack problem, leak, no heat)
• Compare the part name and part ID, not just a generic description
• Replace related wear items at the same time when it makes sense (clips, grommets, stops)
• Follow safety steps in the 66514545N710 installation guide before servicing wiring or water lines

Common parts we stock for this model

These are frequent fixes on 665-series Kenmore dishwashers.

Problem you see	Part that often fixes it	Example from this model’s parts list

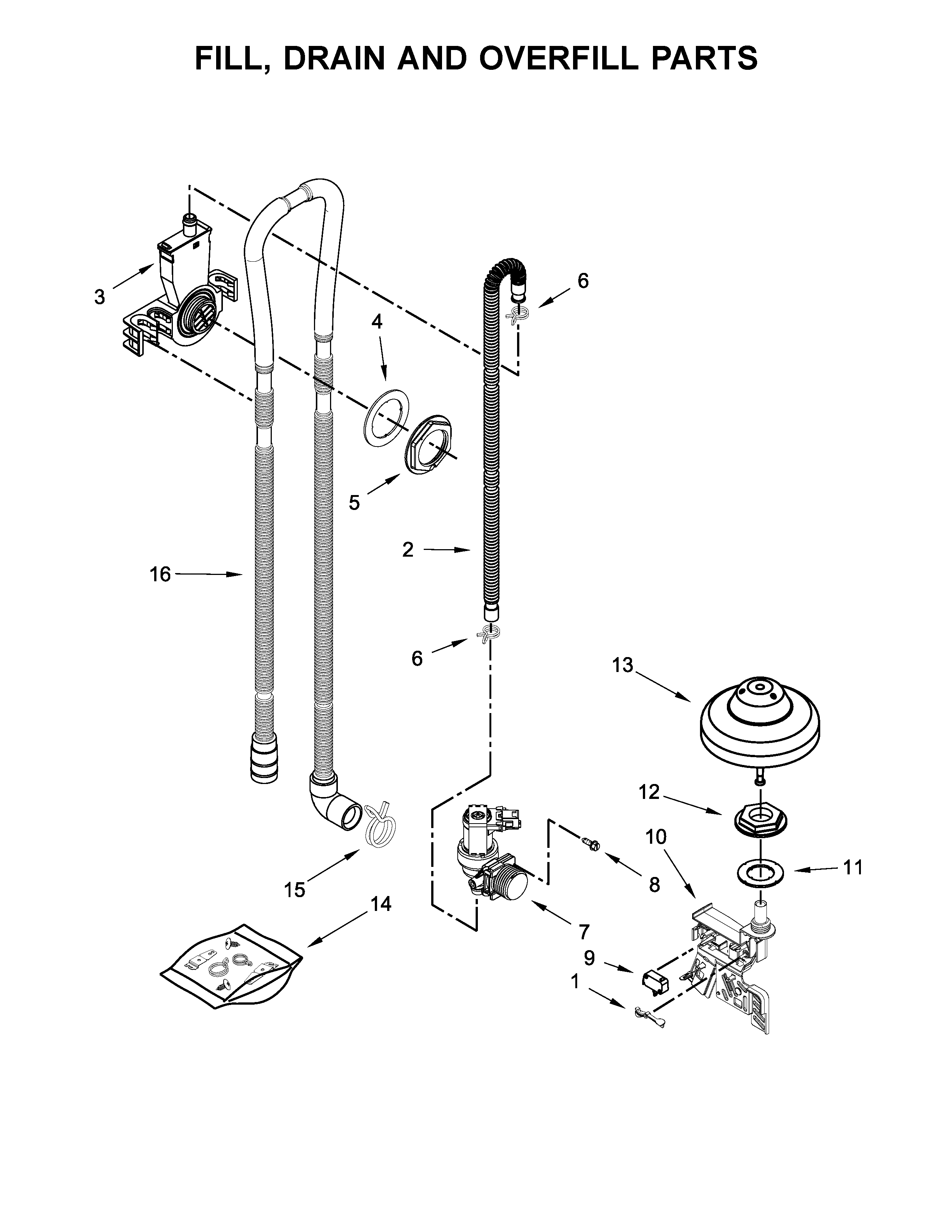

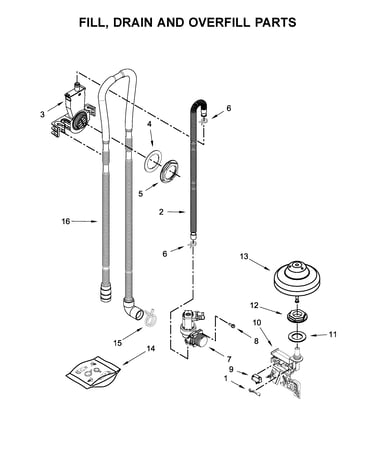

Dishwasher won’t drain or drains slowly	Drain pump or drain hose	Dishwasher drain pump WPW10348269, dishwasher drain hose (8269144A or WPW10545278)

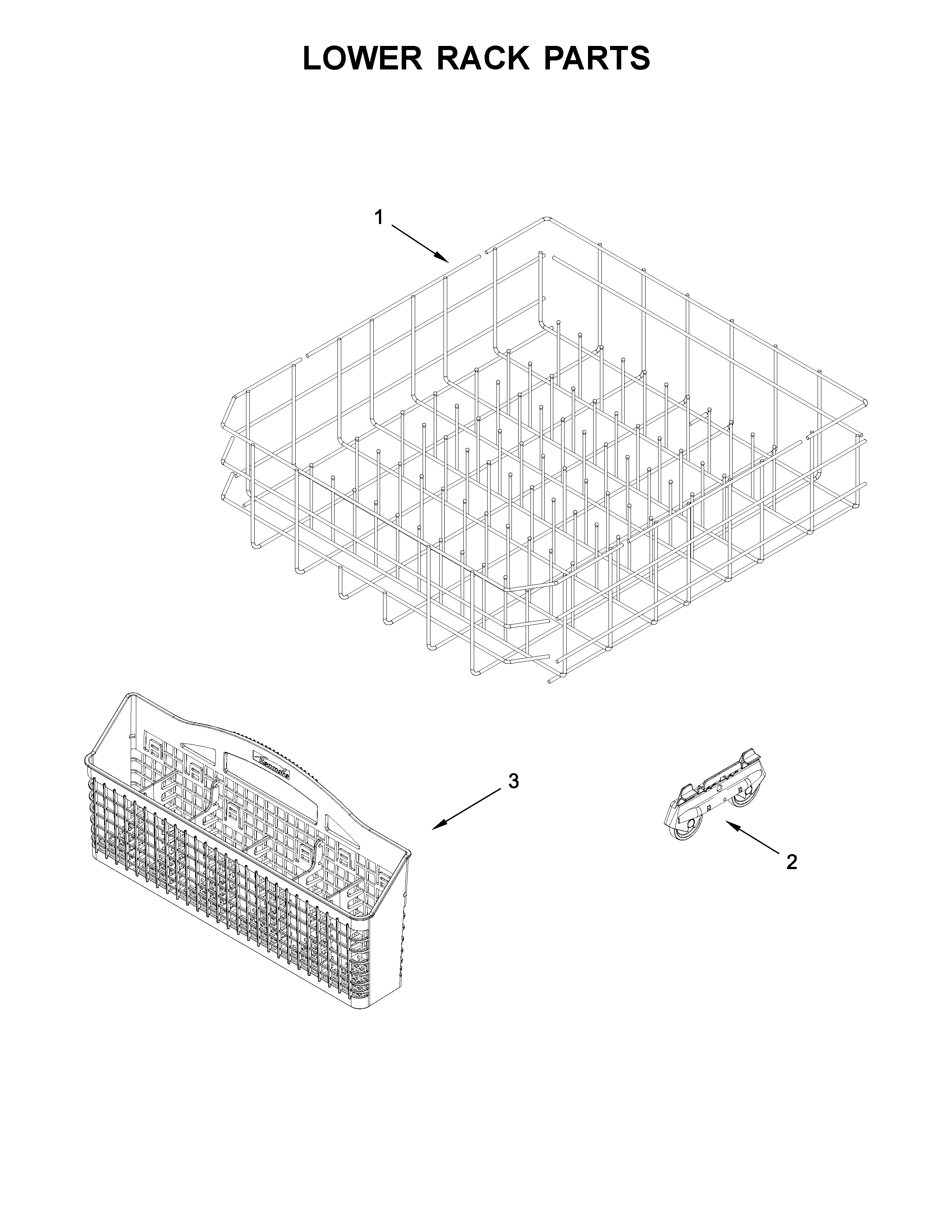

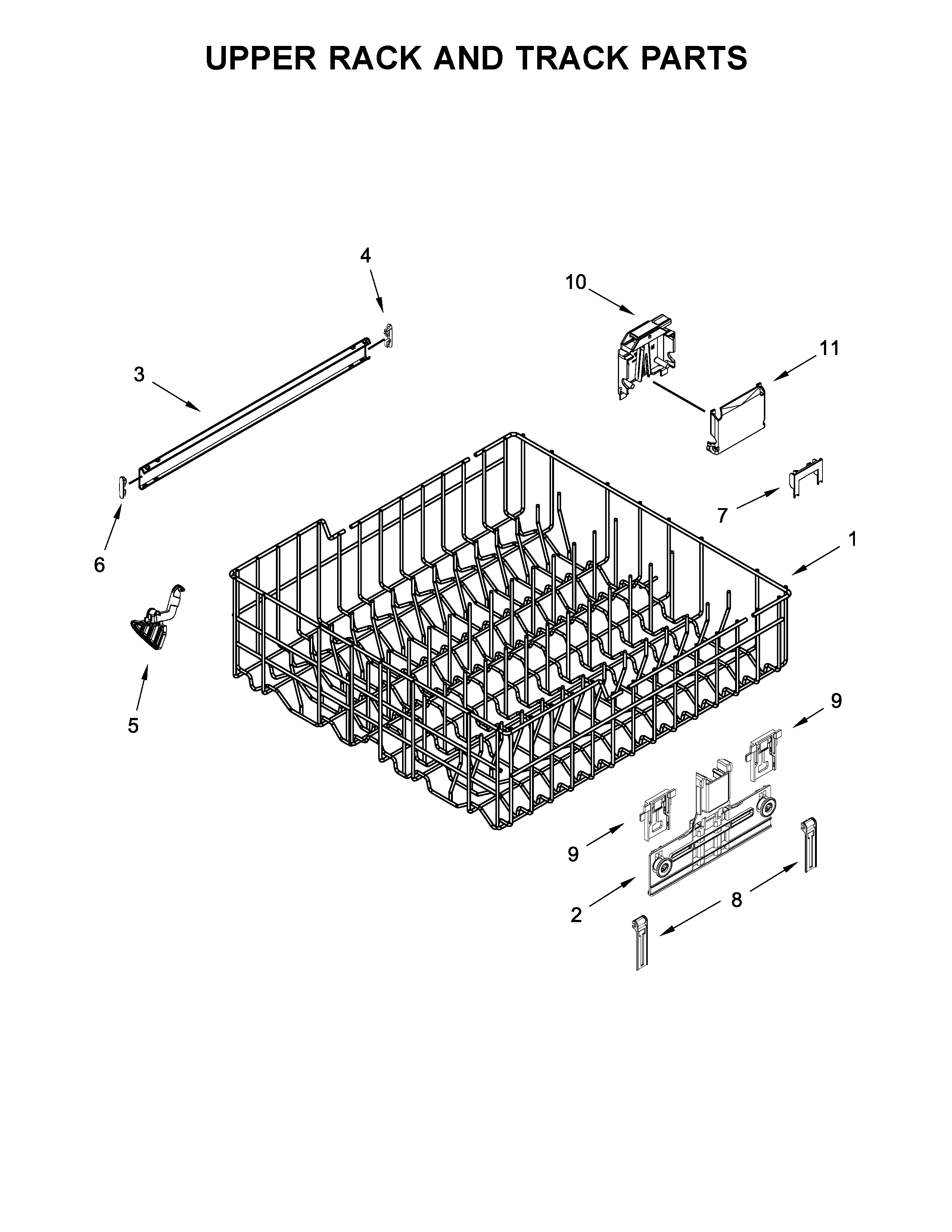

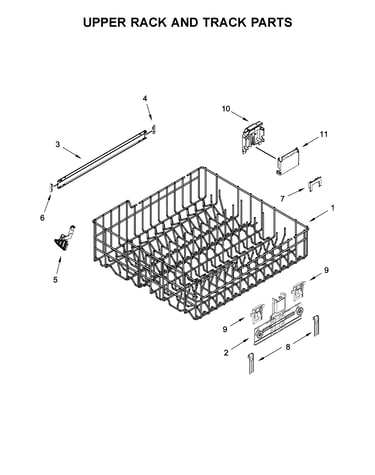

Upper rack won’t adjust or rolls poorly	Rack adjuster or wheels/stops	Dishwasher rack adjuster W10712395, dishrack wheel (W10195416V), upper rail stop (WP8565925)
Not filling or filling slowly	Water inlet valve	Water inlet valve (W11175771)
Poor drying or no heat	Heating element	Element assembly (W10703867)

Why it matters

Kenmore dishwashers are built with model-specific mounting points, seals, and electrical connectors. Using the correct 66514545N710 part helps prevent leaks, repeat failures, and installation problems.

Last updated: February 2026

Yes, repairing a Kenmore dishwasher like model 66514545N710 is usually worth it when the problem is a common wear item (rack hardware, hoses, valves, latches) and the total repair cost stays well below the price of a comparable replacement; major electronic or motor failures on an older unit can shift the value toward replacement.

Quick way we decide: repair vs replace

Use these practical checkpoints before buying parts or scheduling service:

• Age: Under ~10 years old usually favors repair; over ~10 years old depends on the failure.
• Repair cost: If the repair is under ~50% of replacement cost, repair is typically the better value.
• Type of failure: Leaks, draining issues, and rack problems are often straightforward; control and motor issues can be more expensive.
• Condition: If the tub is in good shape and the door seals well, repair makes more sense.
• Performance: If cleaning is poor, confirm the filter and spray arms are clear per the 66514545N710 owner's manual.

Common repairs that are usually cost-effective

These are frequent fixes on Kenmore 665-series dishwashers that often restore normal operation without a major teardown:

• Upper rack not staying level or not adjusting: consider the dishwasher rack adjuster W10712395

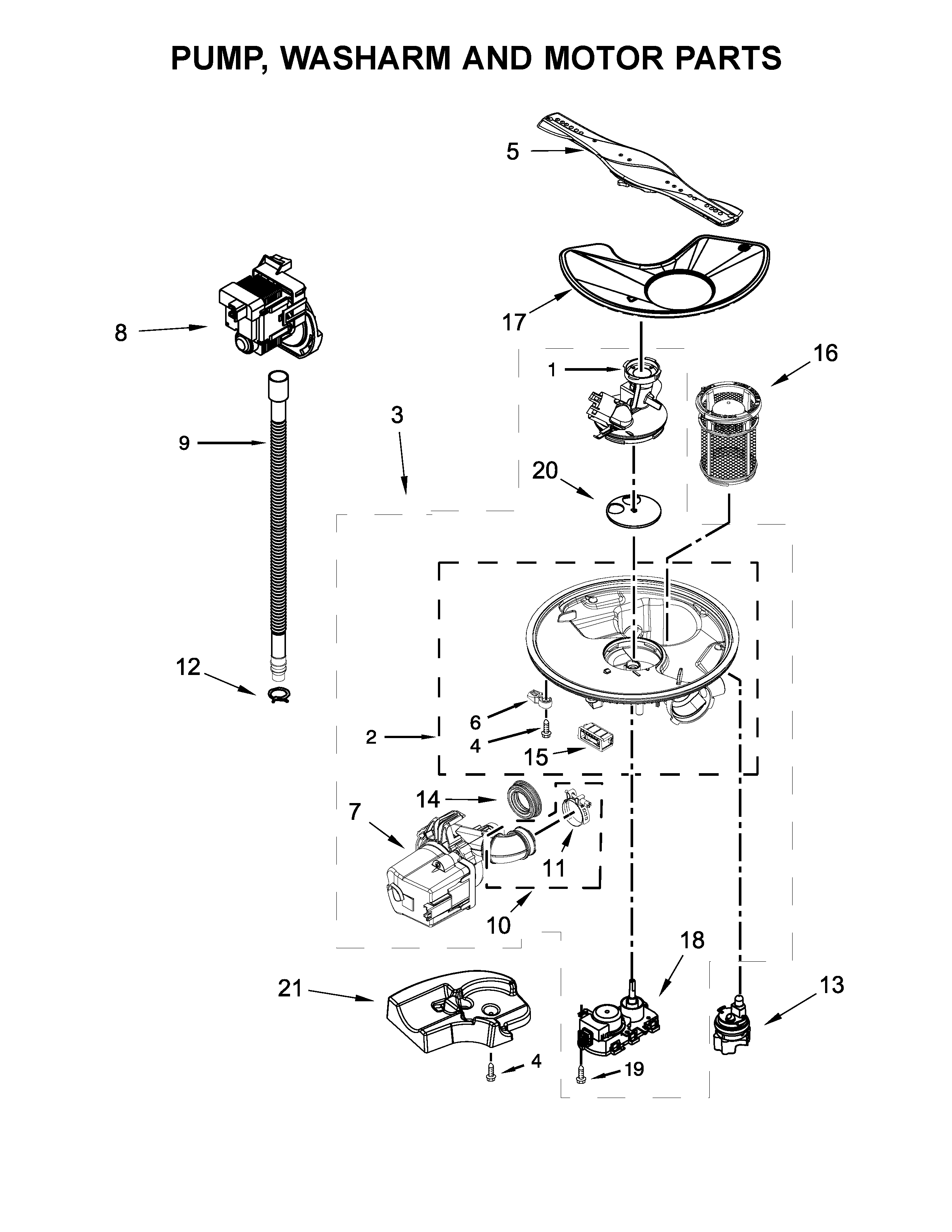

• Won’t drain or leaves water in the bottom: check the drain path and consider the dishwasher drain pump WPW10348269

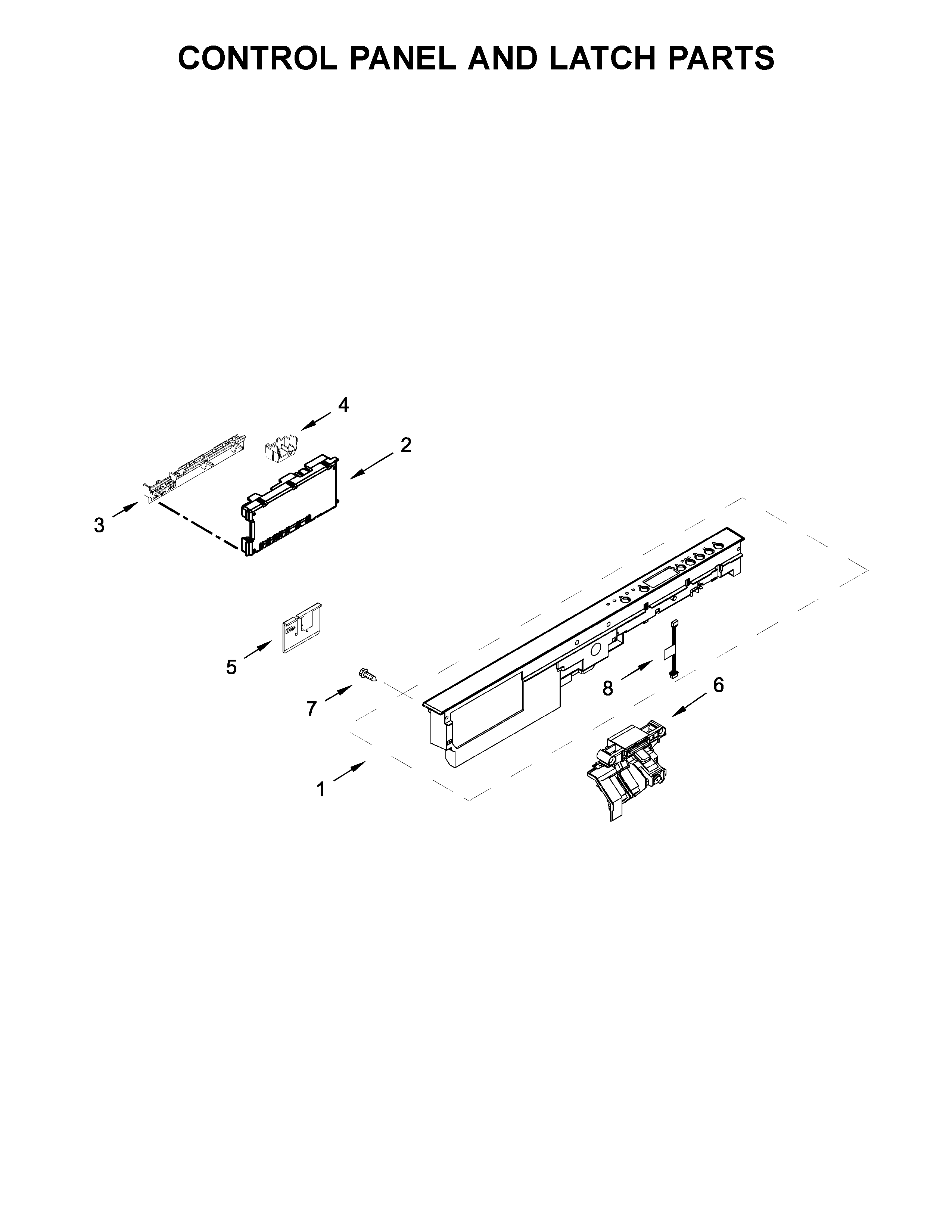

• Door won’t latch or starts then stops: inspect the strike and consider the dishwasher door latch WPW10653840
• Slow fill or no fill: verify water supply, then consider the dishwasher water inlet valve W11175771
• Leaks at the bottom of the door: inspect the sweep and consider the dishwasher door seal, lower W10909089

Cost and complexity comparison

Problem area	Typical DIY difficulty	Typical value call
Rack hardware (adjusters, wheels, stops)	Easy	Repair
Drain/fill components (pump, inlet valve, hoses)	Medium	Repair
Heating/drying issues (element, wiring)	Medium	Repair if otherwise solid
Motor/sump or electronic control	Medium to hard	Depends on age and total cost

Why it matters

A targeted repair can extend the life of your 66514545N710 and keep it cleaning efficiently, especially when the issue is a single failed part (like a latch, valve, or drain pump) rather than a system-wide problem.

Last updated: February 2026
