Kenmore 10653552202 refrigerator Parts

Most Kenmore side-by-side refrigerators are about 32 to 36 inches wide; your Kenmore 10653552202 is in that common range. For the exact cabinet width and required clearances for installation, we recommend checking the dimensions section in the 10653552202 owner's manual.

Side-by-side refrigerator widths vary mainly by capacity and whether the unit is standard-depth or counter-depth.

• Common standard-depth width: 33 in. to 36 in.
• Common counter-depth width: 32 in. to 36 in.
• Narrow models (less common): around 30 in. to 32 in.
• Installation needs: leave space for door swing and airflow, not just cabinet width

Even when the refrigerator fits between cabinets, you still need clearance for ventilation and door swing. The manual for this model family calls out these typical minimums:

• Allow about 1/2 in. on each side and at the top for ventilation
• If installed next to a fixed wall, allow about 2 in. minimum on the hinge side (varies by setup) so the door can swing open
• If the refrigerator has an ice maker, allow extra space at the back for the water line

A refrigerator that is “the right width” can still run hot, make more noise, or have doors that do not open fully if ventilation and swing clearance are tight. Confirming both width and clearance helps avoid installation headaches.

Last updated: February 2026

The most common issues we see on Kenmore refrigerators like model 10653552202 are cooling problems, ice maker and water dispenser troubles, water leaks, frost buildup, and unusual noises. Many are caused by airflow restrictions, a clogged filter, or defrost and fan components that need cleaning or replacement; see the owner's manual for model-specific troubleshooting steps.

• Not cooling or warm temperatures: blocked air vents, dirty condenser coils, evaporator fan issues, or control reset needed.
• Ice maker not making ice: clogged or incorrectly installed water filter, low water supply, or inlet valve problems.
• Water leaking or puddles: clogged defrost drain, loose water line connections, or dispenser tubing issues.
• Excessive frost: door not sealing, frequent door openings, or defrost system problems.
• Noisy operation: normal compressor and fan sounds, rattling from water lines, or a failing fan motor/blade.

1. Check airflow: make sure packages are not blocking interior vents.
2. Reset controls (digital-control models): turn the refrigerator OFF, then ON.
3. Inspect the water filter: confirm it is seated correctly and not clogged.
4. Listen for normal sounds: buzzing during ice maker fill and fan airflow sounds are often normal.
5. Clean and organize: reduce door-open time and keep food wrapped to limit moisture and frost.

Cooling, ice, and leak complaints often trace back to airflow and water delivery. Fixing a blocked vent, a clogged filter, or a failing defrost component early helps protect food temperatures, reduces frost, and prevents water damage.

• Kenmore 106 model refrigerator error codes
• How to prevent water dispenser and ice maker problems

Last updated: February 2026

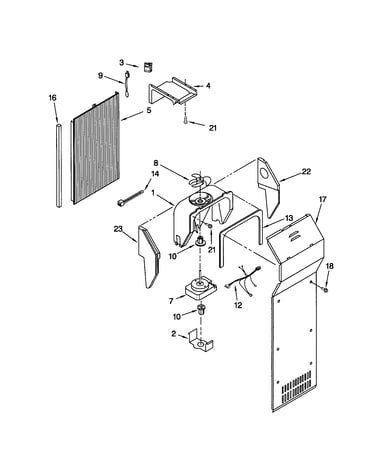

On Kenmore refrigerator model 10653552202, the SY EF code points to a cooling-system airflow problem, most commonly the evaporator fan circuit or a freezer evaporator area issue (like frost buildup restricting airflow). Start by checking for strong airflow in the freezer and clearing any ice blockage per the owner's manual.

• Listen for the evaporator fan: with the freezer door switch held in, you should typically hear the fan running when cooling is called for.
• Look for heavy frost on the freezer back wall: thick frost often means a defrost problem that can trigger airflow-related errors.
• Confirm doors are sealing: a poor seal can cause excess frost and airflow restriction.
• Check for blocked vents: packages pushed against vents can reduce circulation.
• Power reset: unplug the refrigerator for 5 minutes, then restore power and see if the code returns.

SY EF is often tied to airflow across the evaporator. When airflow drops, temperatures drift, food can thaw or spoil, and the compressor may run longer than normal. Fixing the airflow or defrost root cause restores stable freezer and fresh-food temperatures.

For model-family troubleshooting steps and display code meanings, use our Kenmore 106 model refrigerator error codes guide alongside the owner's manual.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10653552202, the model number is printed on the model and serial number label inside the fresh food (refrigerator) compartment. Look for the label on an inside wall; it lists the full model number and the serial number together. See the 10653552202 owner's manual for the exact label location diagram.

• Open the refrigerator (fresh food) door, not the freezer door.
• Check the inside wall near the top front area first.
• Look along the side walls near the crisper drawers if you do not see it up high.
• Use a flashlight; the print can be small.
• Write down both the model number and serial number before ordering parts.

We use the complete model number to match the correct Kenmore parts and revisions for your refrigerator. Even small model number differences can change which items fit, such as a water inlet valve, door gasket, or dispenser components.

Last updated: February 2026
