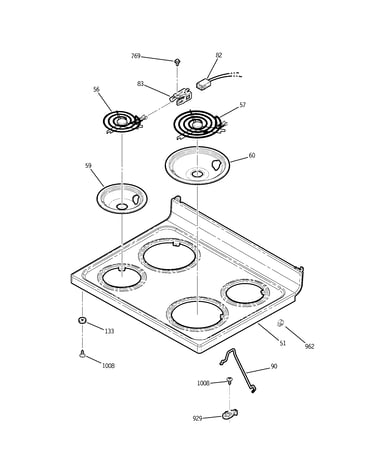

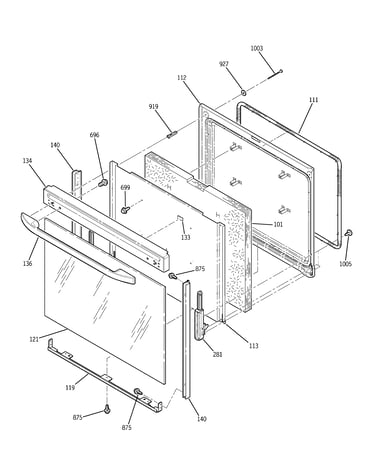

Kenmore 91194404301 electric range Parts

To replace the oven control board on your Kenmore electric range model 91194404301, we disconnect power, access the control area, label and transfer each wire (including any ribbon connector) to the new board, then reassemble and test bake/broil. Use the exact replacement control listed for this model: oven control WB27X45466.

Safety first (before you touch anything)

• Turn off the range breaker (240V) and confirm the display is dark.
• Let the oven cool completely.
• Pull the range forward carefully; protect the floor.
• Avoid pulling on wires; grip connectors by the plug.
• Take a clear photo of the wiring before disconnecting anything.

Replacement steps (typical for this style of control)

1. Shut off power at the breaker.

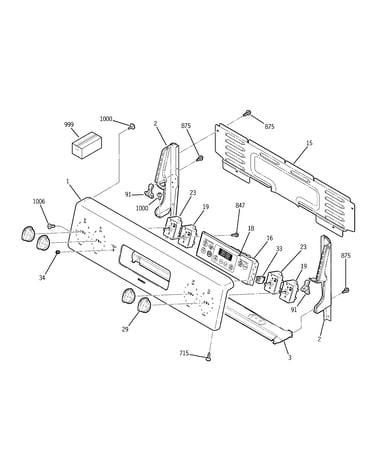

2. Remove the rear control panel cover (backguard) to expose the control board.
3. Label each wire or use your photo as a map.
4. Disconnect wire harness plugs one at a time.
5. If your board uses a ribbon cable, release the connector lock, slide the ribbon out, then move it to the new board and lock it back in.
6. Remove mounting screws, swap in the new board, and reinstall screws.
7. Reconnect all plugs firmly, reinstall the rear cover, restore power, and test.

What to check if the new board still does not work

• Confirm the breaker is fully reset (off then on).
• Check for a loose harness plug or partially seated ribbon cable.
• Inspect the power connection area for heat damage at the range terminal block WB17T10011.
• If the oven heats incorrectly, test the temperature sensor: sensor WB21X22134.

Quick comparison: common symptoms and likely causes

Symptom	Most common cause	Next step
Dead display, no beeps	No power to control or failed control	Verify power, then replace control
F-codes or erratic keypad response	Control board issue	Replace control board
Oven overheats or underheats	Sensor or control issue	Check sensor first

Why it matters

The oven control board manages bake/broil timing and temperature regulation. A correct wiring transfer and fully seated connectors prevent repeat failures, nuisance error codes, and no-heat conditions.

Last updated: February 2026

For Kenmore electric range model 91194404301, an oven that “stops working” is usually caused by a loss of power to the range, a failed heating circuit (bake element or wiring), or a control problem (temperature sensor or electronic control). Start with power and heat checks before replacing parts.

Quick checks we recommend first

• Confirm the range has 240 volts (a tripped double breaker can leave lights working but no heat).
• Make sure the oven is not in a delayed start or locked mode (if your control has those features).
• Try Bake and Broil; note whether neither heats, only one heats, or it heats but won’t reach temperature.
• If the display is blank or resets, inspect the power cord connection area and wiring.
• If the oven heats erratically or shows an error, suspect the sensor or control.

Most common failed parts on an electric range

If power is good, these are the most frequent causes:

Symptom	Likely cause	What to check next
Oven won’t heat at all	Failed control or open safety circuit	Look for error codes; inspect wiring and connections
Bake won’t heat but broil works	Burned/open bake element	Inspect for blisters, cracks; test continuity
Heats but temperature is way off	Temperature sensor out of range	Check sensor resistance and harness
Intermittent heat, clicking, or dead functions	Loose/burned terminal connection	Inspect terminal block and wire ends

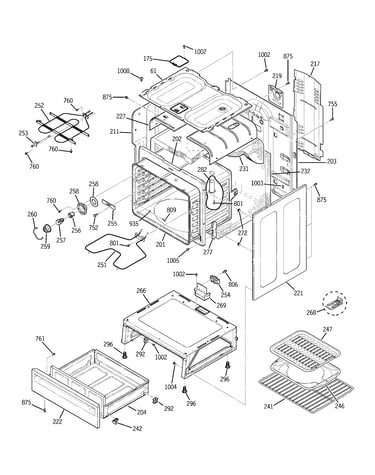

Helpful model-matched parts to consider:

• G.e. range bake element WB44T10010 (common cause of no-bake)
• Sensor WB21X22134 (common cause of inaccurate temps or sensor faults)
• Oven control WB27X45466 (common cause of dead oven functions or control errors)
• Range terminal block WB17T10011 (common cause of power loss or intermittent operation)

Why it matters

An oven can appear “dead” even when the clock and surface burners work because the oven heating system typically needs full 240V power and solid connections. Pinpointing whether the issue is power, heat generation, or control/sensing prevents unnecessary part replacement.

Related troubleshooting help

If your display shows an error code, use Kenmore glass touch module electric range error codes to match the code to the most likely failed circuit and next steps.

Last updated: February 2026

For Kenmore electric range model 91194404301, we typically find the model number on the oven frame behind the door, on the back panel near the vent, or on the frame behind the storage drawer. The label is usually a sticker or metal tag with the full model and serial number.

Most common places to check

• Door jamb/oven frame: Open the oven door and look around the frame opening.
• Behind the storage drawer: Pull the bottom drawer out and look on the frame rails or side panel.
• Back of the range: Check near the upper vent area or rear panel.
• Side panel area: Look along the lower side edges where the frame is exposed.
• Under the cooktop lip (less common): If the cooktop lifts, the tag may be on the frame.

How to read the tag (what to write down)

We recommend copying the information exactly as shown:

Label item	What it’s used for	Example format
Model number	Matching parts to your exact range	91194404301
Serial number	Dating the unit and service history	Letters and numbers
Electrical rating	Confirming power requirements	Volts/amps

Why it matters

Kenmore ranges often have similar-looking versions with different wiring, controls, and oven components. Using the exact model number helps us match the correct parts the first time, such as an oven control WB27X45466 or a range terminal block WB17T10011.

Quick tips if the label is hard to find

• Use a flashlight and check the frame edges, not just the panels.
• Wipe grease and dust off the tag; the print is often faint.
• If the drawer is stuck, remove items and lift slightly while pulling to clear the stops.

Last updated: February 2026
