Eureka
Handheld Vacuum

Model # 3670E-1 Official Eureka handheld vacuum

Here are the diagrams and repair parts for Official Eureka 3670E-1 handheld vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

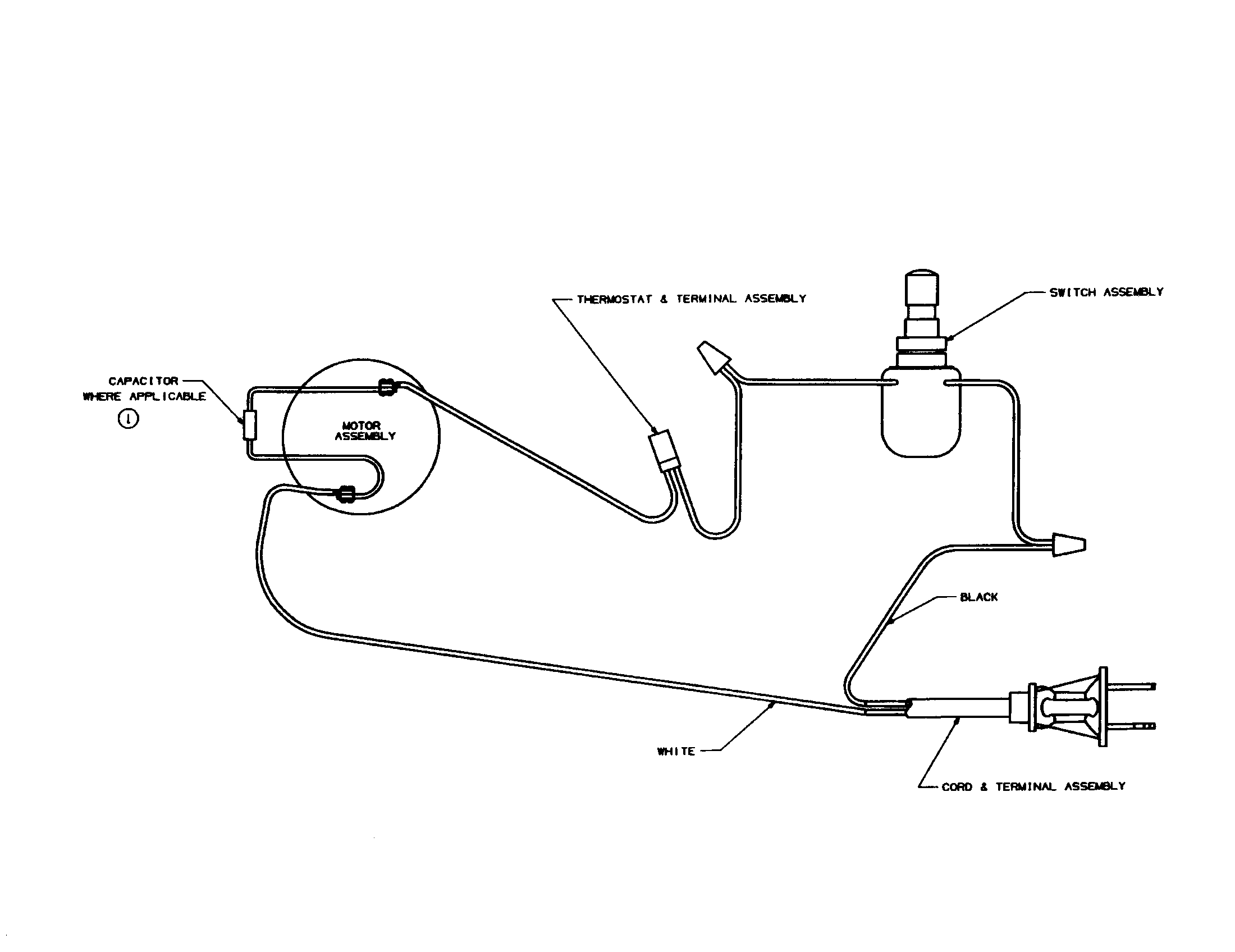

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Vacuum Cover 38956-1SV
#9

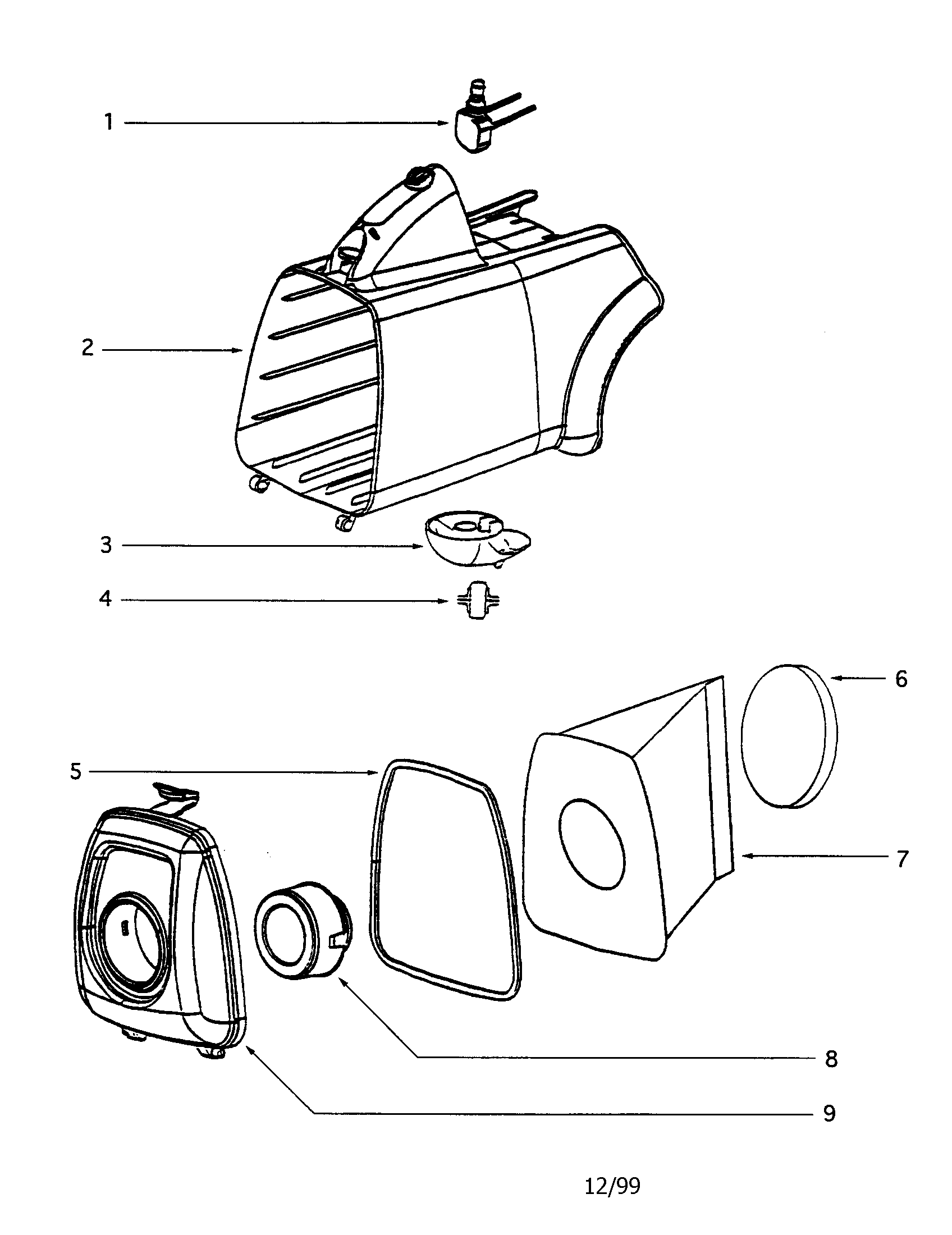

Housing diagram

Vacuum cover

Part #38956-1SV

The manufacturer no longer makes this part, and there's no substitute part

Shield 39028

#NI

All parts diagram

Shield

Part #39028

The manufacturer no longer makes this part, and there's no substitute part

Gasket 28032
#4

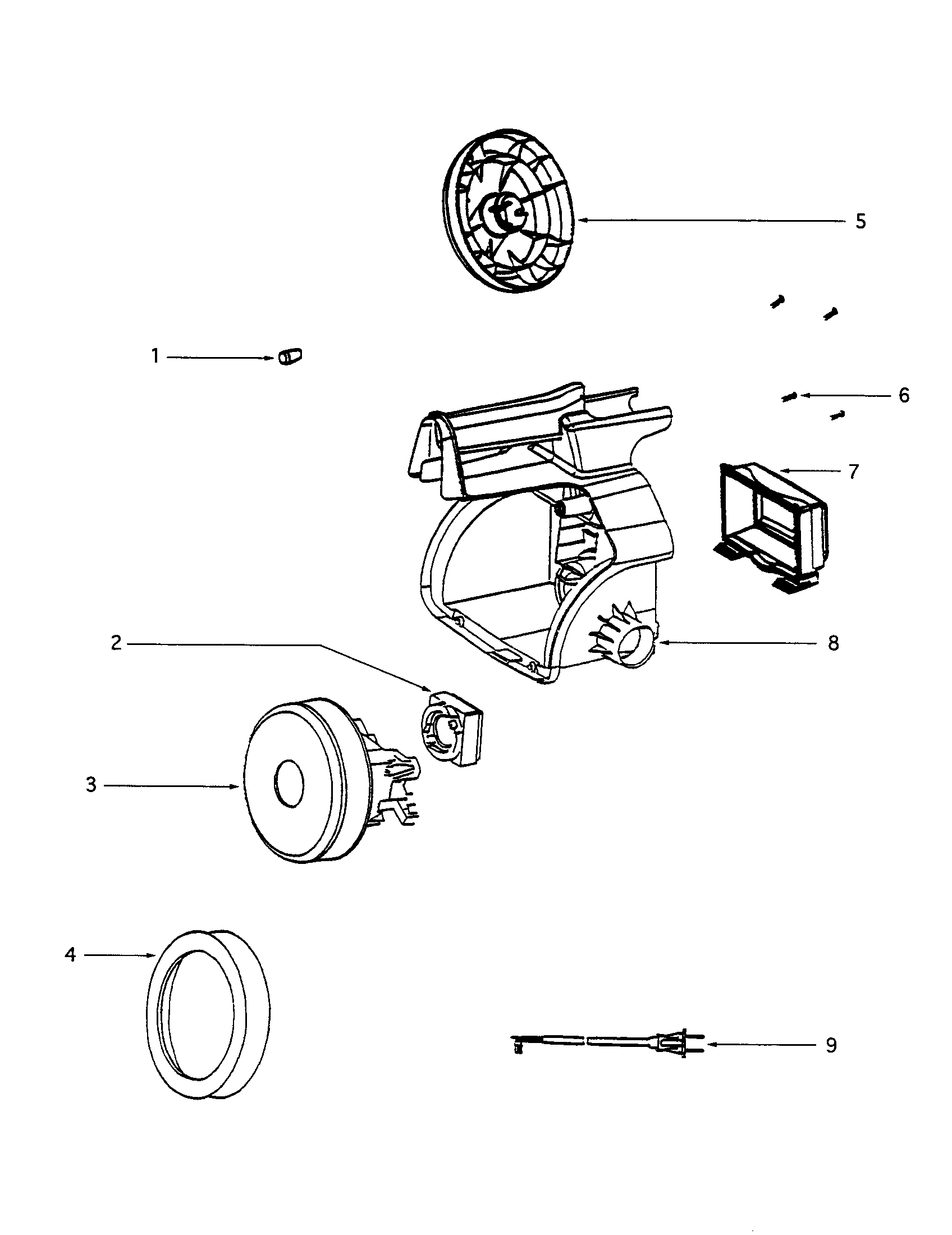

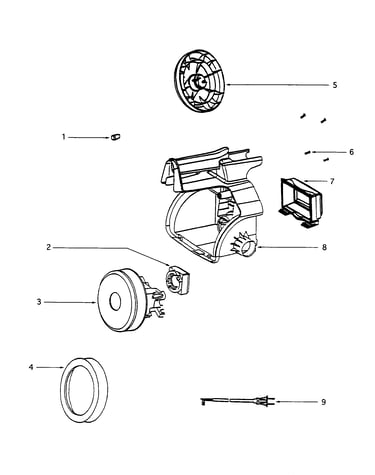

Motor diagram

Gasket

Part #28032

The manufacturer no longer makes this part, and there's no substitute part

Screw 60610
#6

Motor diagram

Screw

Part #60610

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 15409A-119N
#5

Motor diagram

Vacuum wheel

Part #15409A-119N

The manufacturer no longer makes this part, and there's no substitute part

Brush-flr 61037
#8

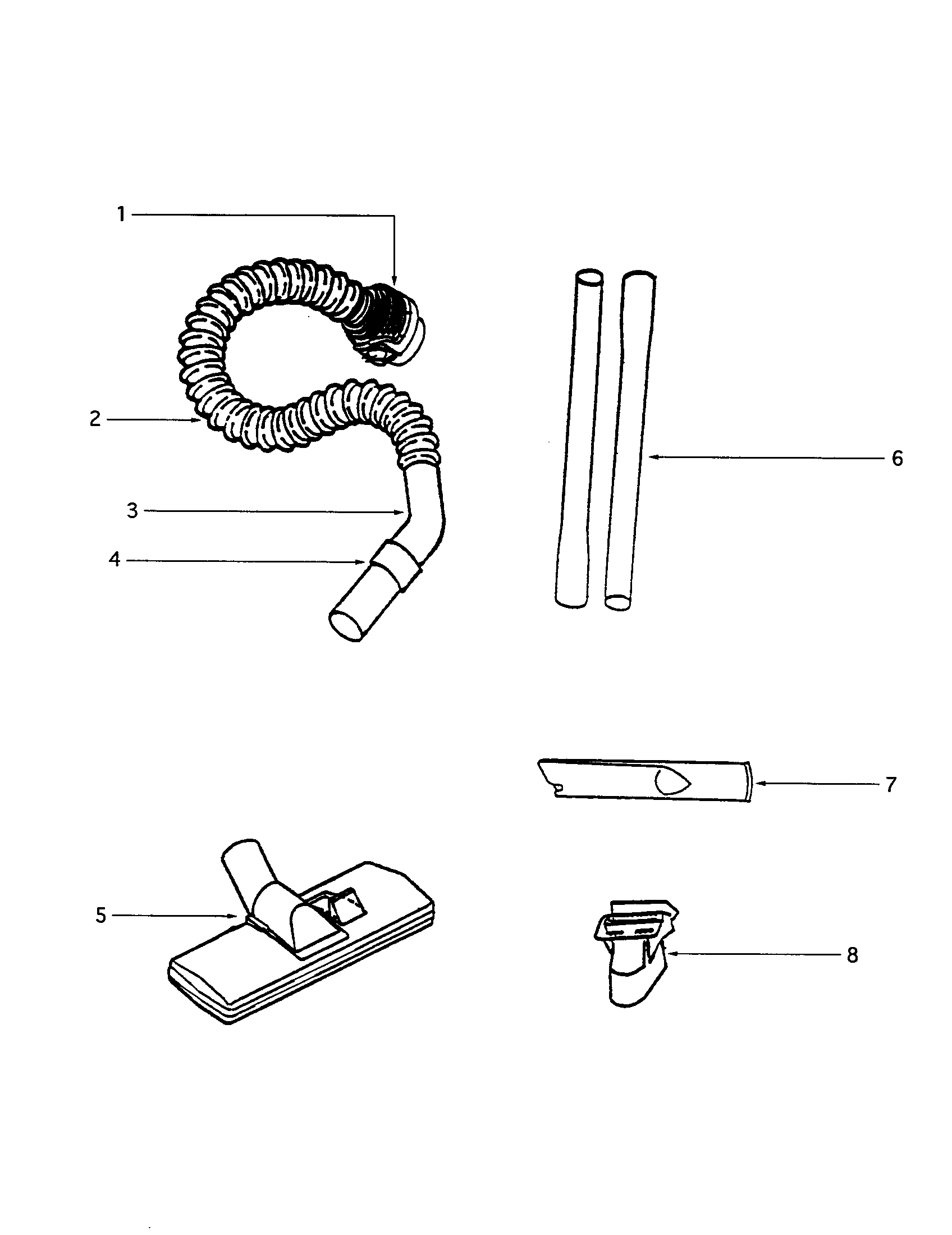

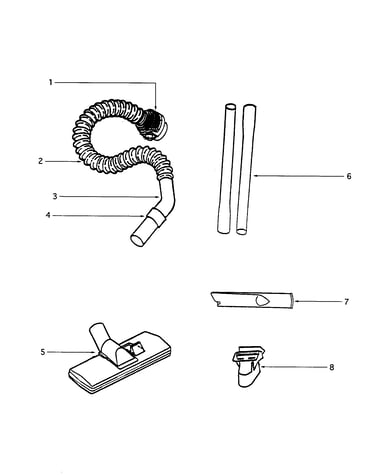

Attachments diagram

Brush-flr

Part #61037

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Safety Filter 38333
#6

Housing diagram

Vacuum motor safety filter

Part #38333

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle 26193-3
#3

Attachments diagram

Vacuum handle

Part #26193-3

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wand 14070-3
#6

Attachments diagram

Vacuum wand

Part #14070-3

The manufacturer no longer makes this part, and there's no substitute part

Gasket 59046-1
#5

Housing diagram

Gasket

Part #59046-1

The manufacturer no longer makes this part, and there's no substitute part
