Model # 22427 Official Hunter ceiling fan

Here are the diagrams and repair parts for Official Hunter 22427 ceiling fan, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
22427 Ceiling Fan
Backing Nut N/P
Backing nut

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

White 63361-01-063
#29A

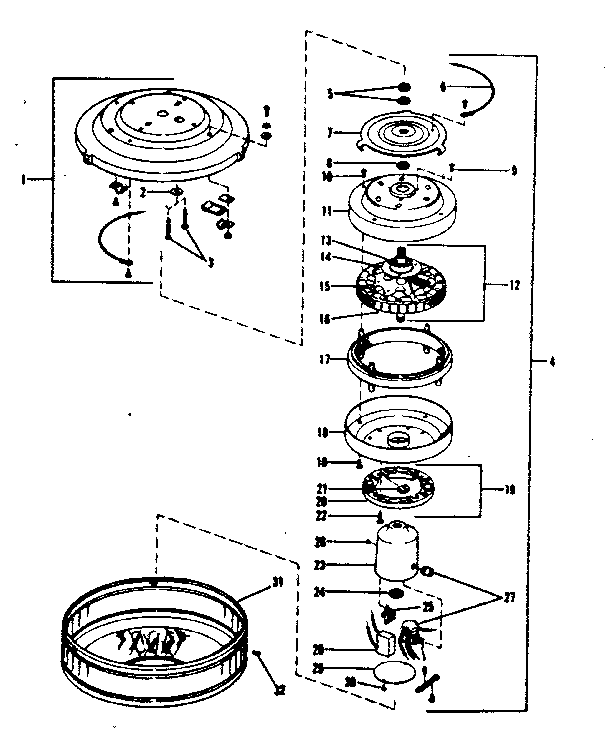

Replacement parts diagram

White

Part #63361-01-063

The manufacturer no longer makes this part, and there's no substitute part

Housing 83127-02-121
#23C

Replacement parts diagram

Housing

Part #83127-02-121

The manufacturer no longer makes this part, and there's no substitute part

Screw 03376-01-116
#30

Replacement parts diagram

Screw

Part #03376-01-116

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 03235-01-000
#24

Replacement parts diagram

Lock nut

Part #03235-01-000

The manufacturer no longer makes this part, and there's no substitute part

Plate Assembly (white) 92306-01-063
#1A

Replacement parts diagram

Plate assembly (white)

Part #92306-01-063

The manufacturer no longer makes this part, and there's no substitute part

Capacitor (6 Mfd) (incl In Sack Parts) 06142-01-000
#28

Replacement parts diagram

Capacitor (6 mfd) (incl in sack parts)

Part #06142-01-000

The manufacturer no longer makes this part, and there's no substitute part

Plate Assembly 92306-01-121
#1C

Replacement parts diagram

Plate assembly

Part #92306-01-121

The manufacturer no longer makes this part, and there's no substitute part

Antique Brass 92307-01-121
#31C

Replacement parts diagram

Antique brass

Part #92307-01-121

The manufacturer no longer makes this part, and there's no substitute part

Screw 03420-01-000
#26

Replacement parts diagram

Screw

Part #03420-01-000

The manufacturer no longer makes this part, and there's no substitute part
