Maytag
Top-Mount Refrigerator

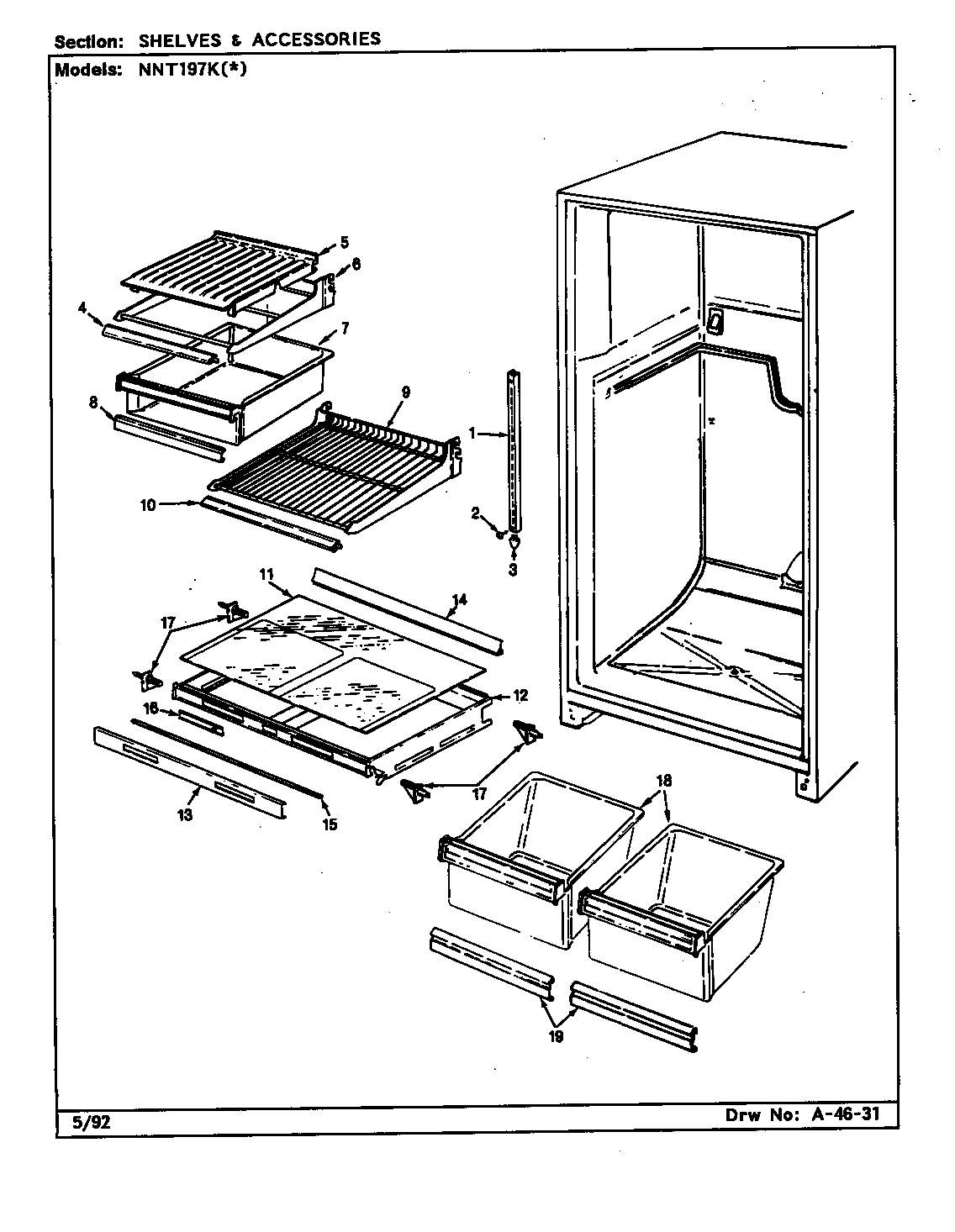

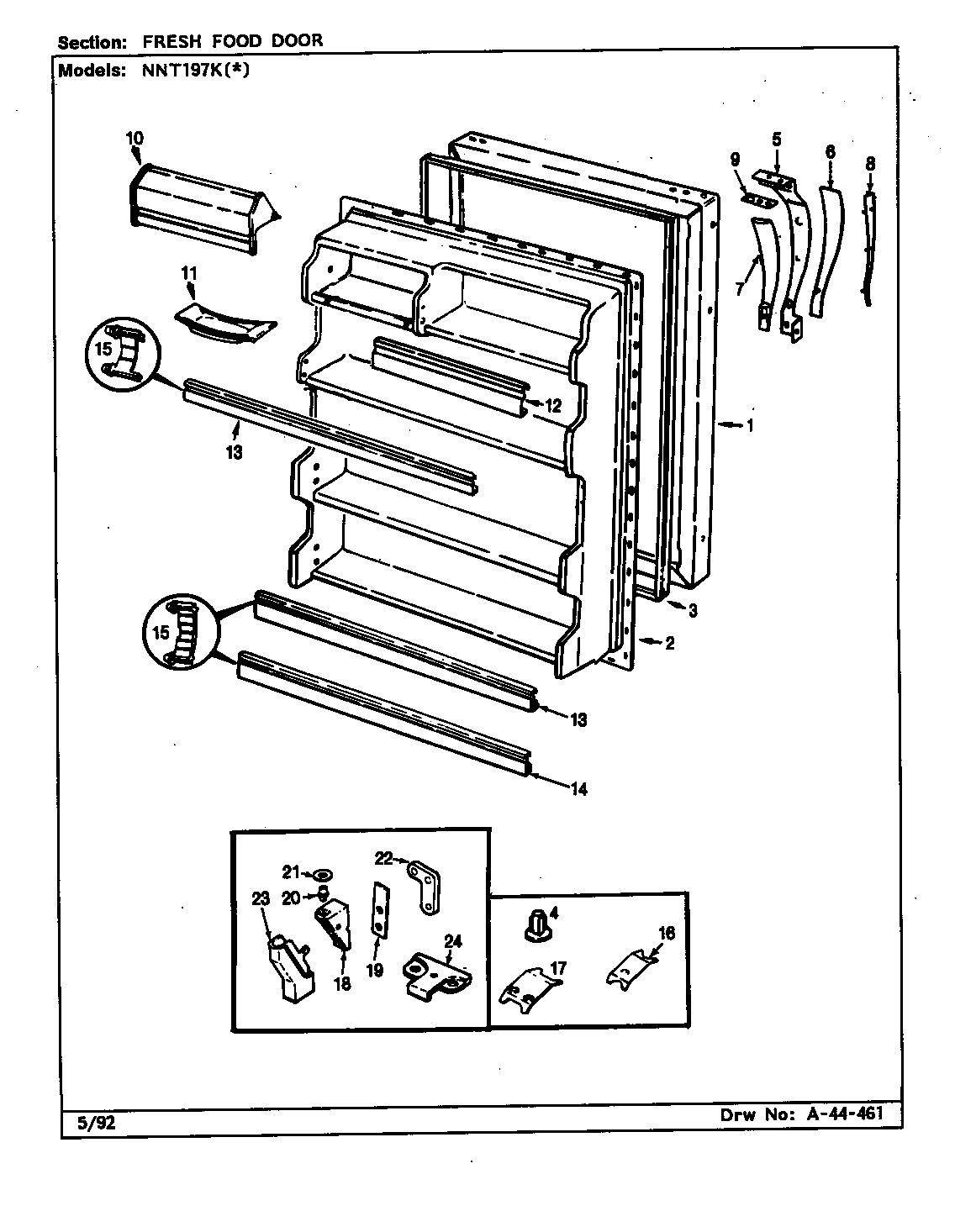

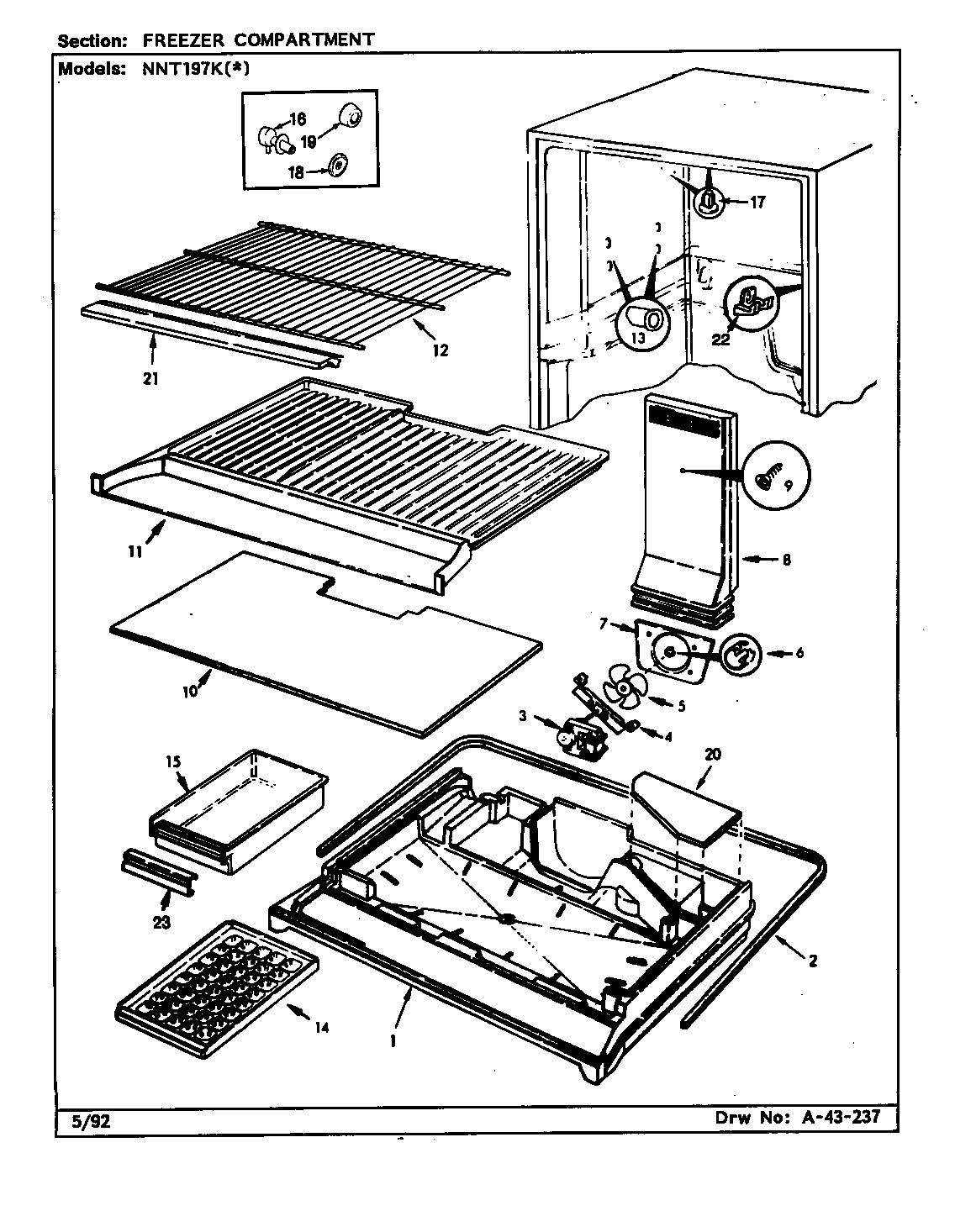

Model #NNT197KA-CC66A Maytag refrigerator

Here are the diagrams and repair parts for Maytag NNT197KA-CC66A refrigerator, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 215 parts

Refrigerator Bracket

#19

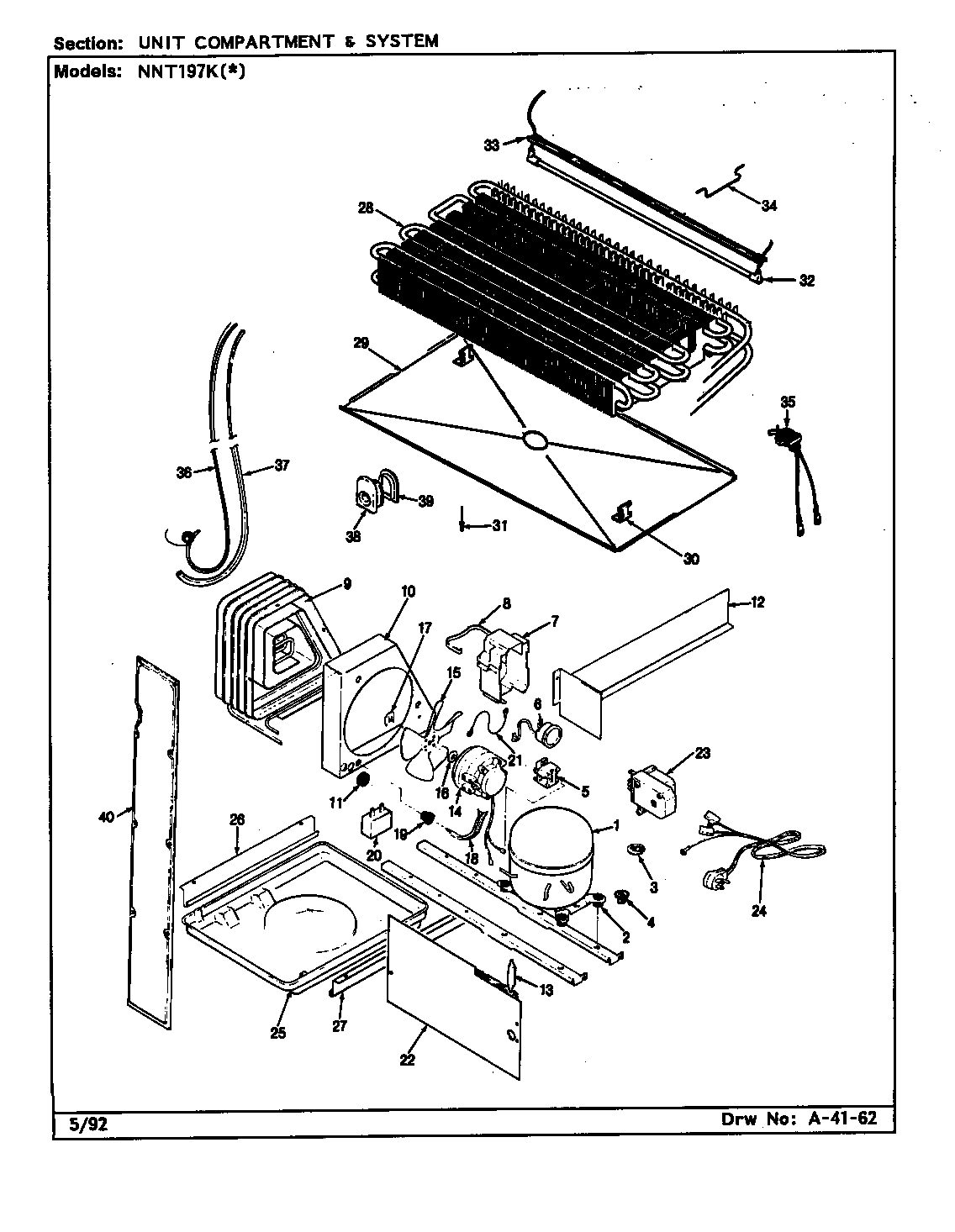

Unit compartment & system Diagram

Refrigerator bracket

Part #WP61004743
?
Manufacturer substitution
This part replaces 56933-1. Substitute parts can look different from the original.
This part replaces 56933-1
This item is not returnable
$4.89

Back Order

Refrigerator Fuse Clip

#22

Optional ice maker kit (imktm1) Diagram

Refrigerator fuse clip

Part #WP628379
?
Manufacturer substitution
This part replaces 68118-1. Substitute parts can look different from the original.
This part replaces 68118-1
This item is not returnable
$6.75

In Stock

Refrigerator Defrost Bi-Metal Thermostat

#35

Unit compartment & system Diagram

Refrigerator defrost bi-metal thermostat

Part #WP52085-28
?
Manufacturer substitution
This part replaces 52085-28. Substitute parts can look different from the original.
This part replaces 52085-28
$47.35

In Stock

Microwave Screw

#9B

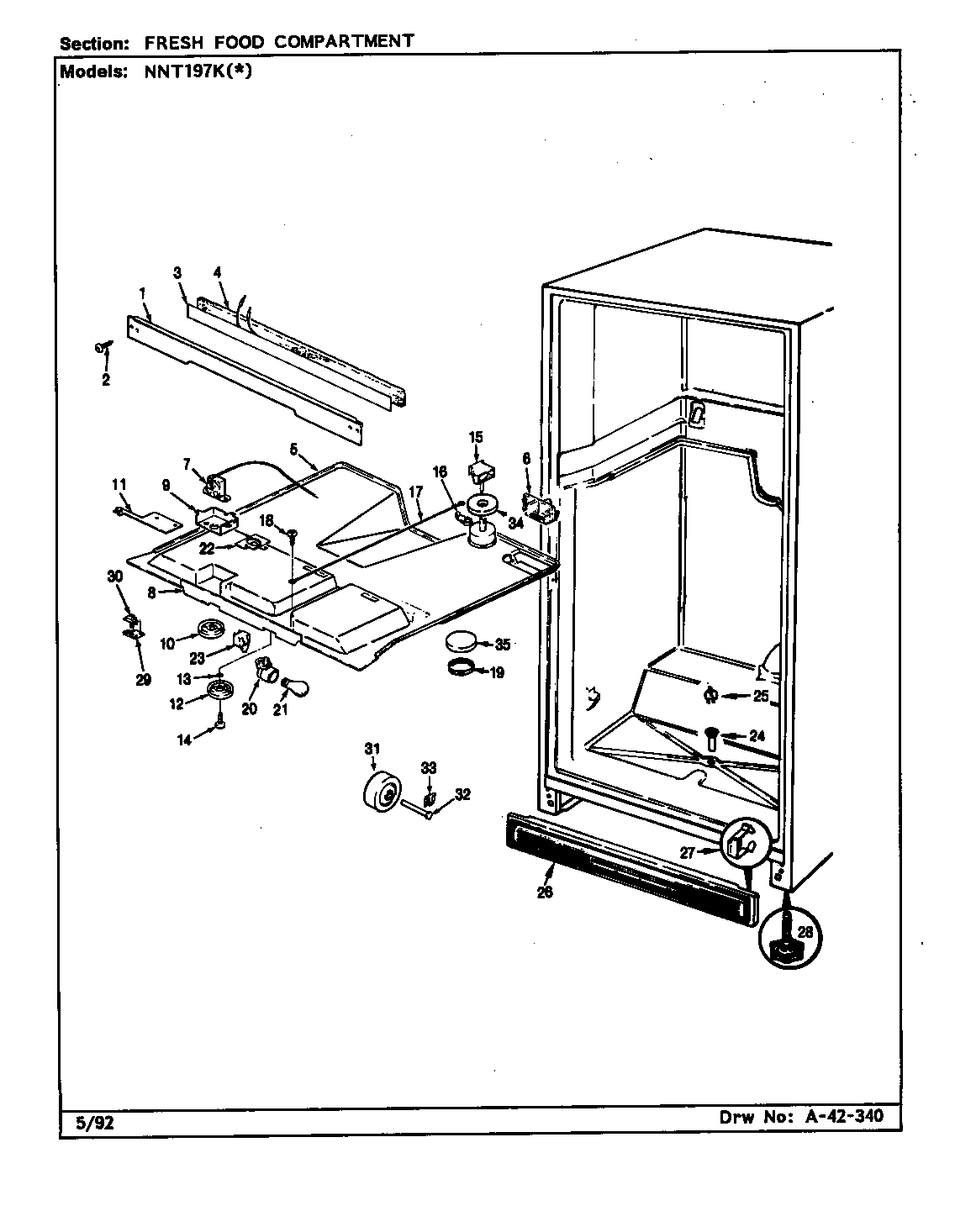

Fresh food compartment Diagram

Microwave screw

Part #W11380570
?
Manufacturer substitution
This part replaces 405012-1. Substitute parts can look different from the original.
This part replaces 405012-1
$8.19

In Stock

Dryer Rivet

#31

Unit compartment & system Diagram

Dryer rivet

Part #WP210720
?
Manufacturer substitution
This part replaces 26397-9. Substitute parts can look different from the original.
This part replaces 26397-9
$12.49

In Stock

Appliance Silicone Lubricant

#1A

Optional ice maker kit (imktm1) Diagram

Appliance silicone lubricant

Part #WP99003172
?
Manufacturer substitution
This part replaces 95099-1. Substitute parts can look different from the original.
This part replaces 95099-1
This item is not returnable
$3.19

Back Order

Refrigerator Screw

#14

Fresh food compartment Diagram

Refrigerator screw

Part #W11233072
?
Manufacturer substitution
This part replaces 405016-103. Substitute parts can look different from the original.
This part replaces 405016-103
$12.49

In Stock

Washer

#21

Freezer door Diagram

Washer

Part #61005628
?
Manufacturer substitution
This part replaces 67483-1. Substitute parts can look different from the original.
This part replaces 67483-1
This item is not returnable
$5.79

In Stock

Refrigerator Ice Maker Fill Cup

#2

Optional ice maker kit (imktm1) Diagram

Refrigerator ice maker fill cup

Part #WP628356
?
Manufacturer substitution
This part replaces 95100-1. Substitute parts can look different from the original.
This part replaces 95100-1
$19.07

Back Order

Refrigerator Connector

#15

Optional ice maker kit (imktm1) Diagram

Refrigerator connector

Part #WPW10296793A
?
Manufacturer substitution
This part replaces 54267-1. Substitute parts can look different from the original.
This part replaces 54267-1
This item is not returnable
$3.79

In Stock
