Model # 72163993303 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72163993303 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

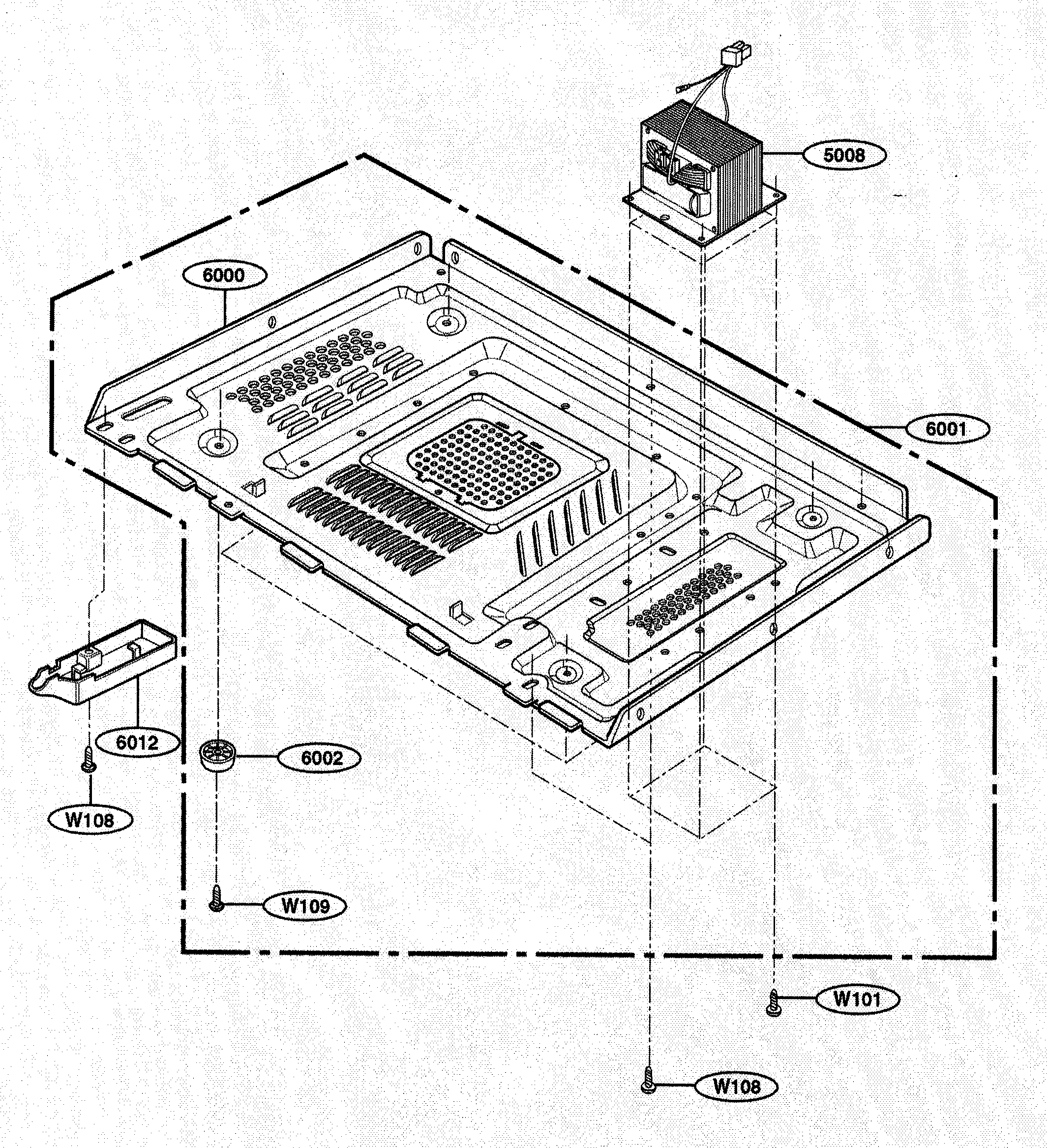

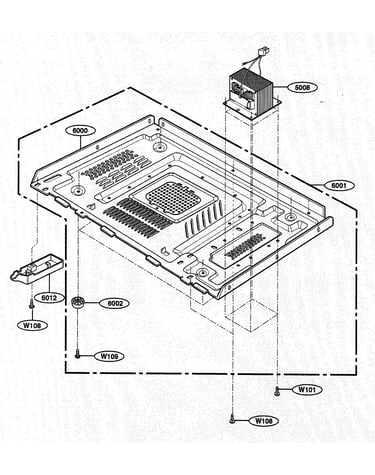

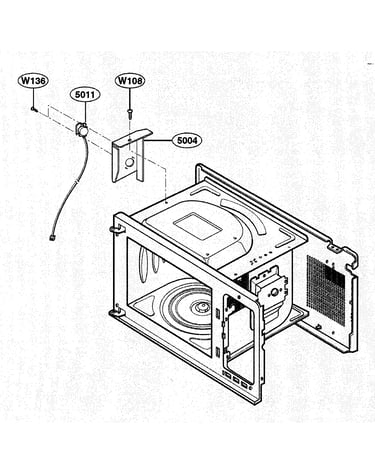

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Microwave Magnetron (replaces 6324w1a001h) 6324W1A001L
#5009

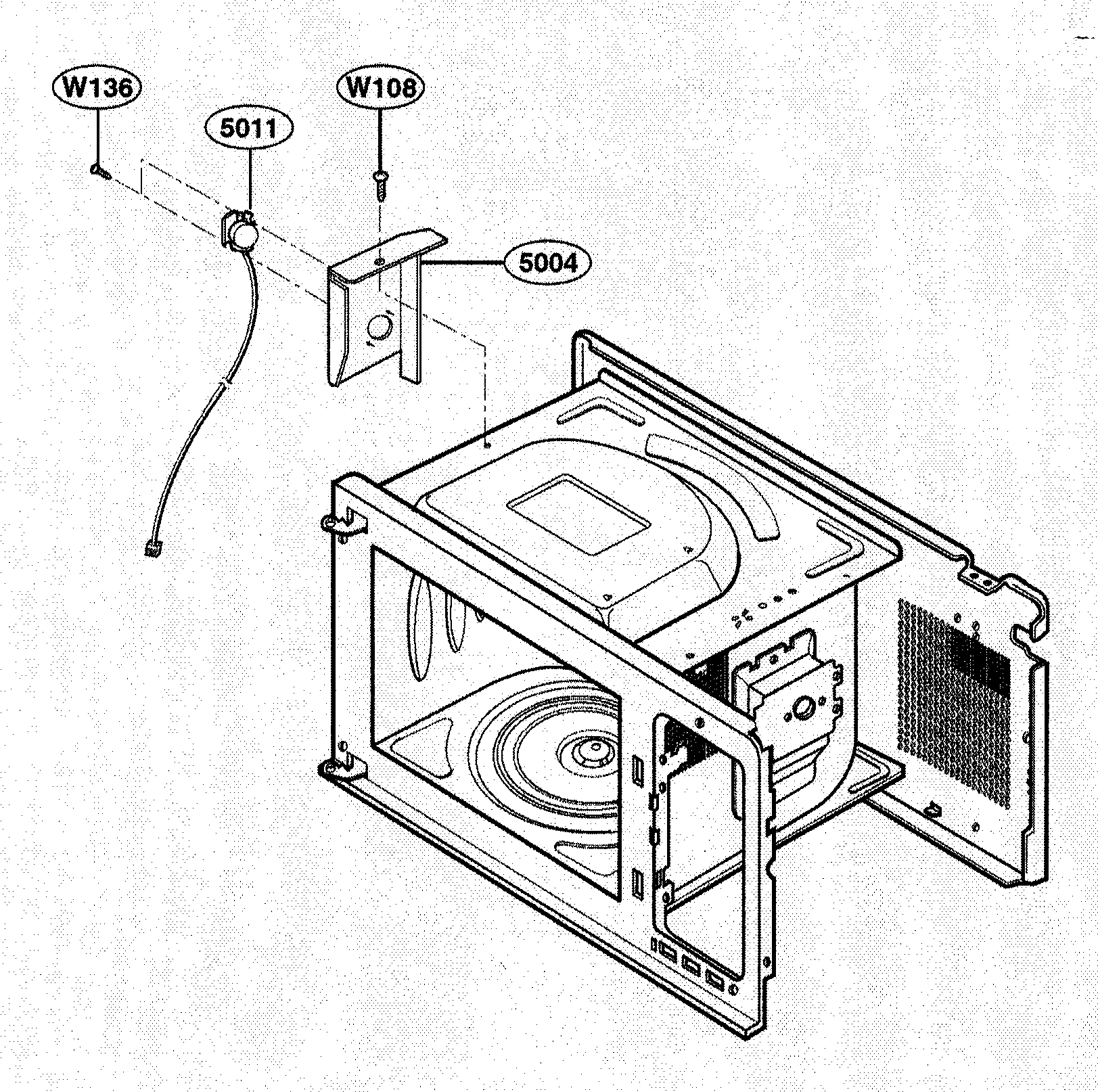

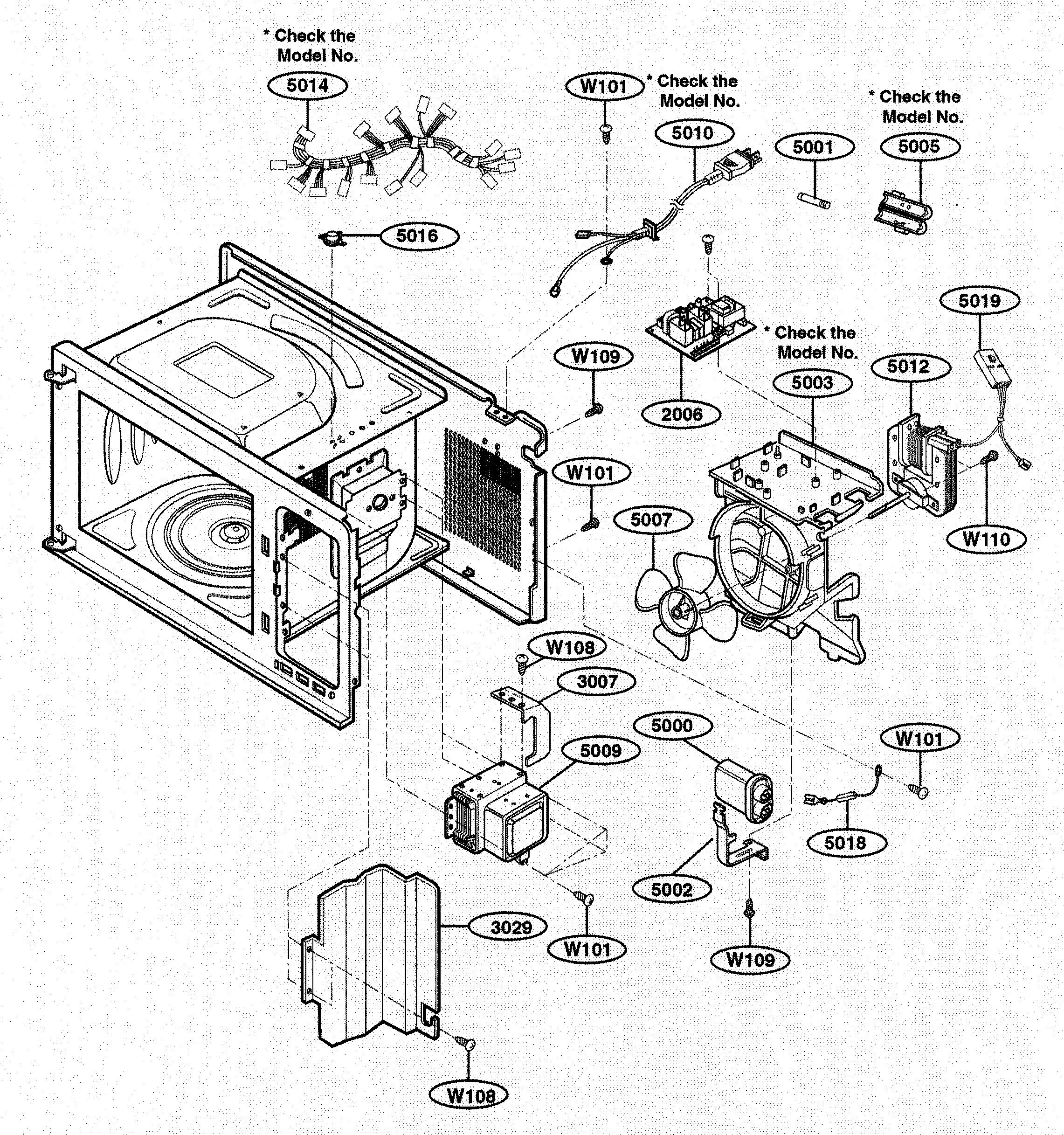

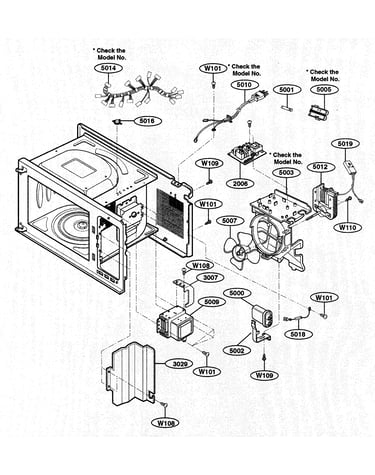

Interior parts diagram

Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

BEST SELLER
$91.94 |
5% OFF Phone Price : $96.94
In Stock
Microwave Door Interlock Switch 6600W1K003D
#4002

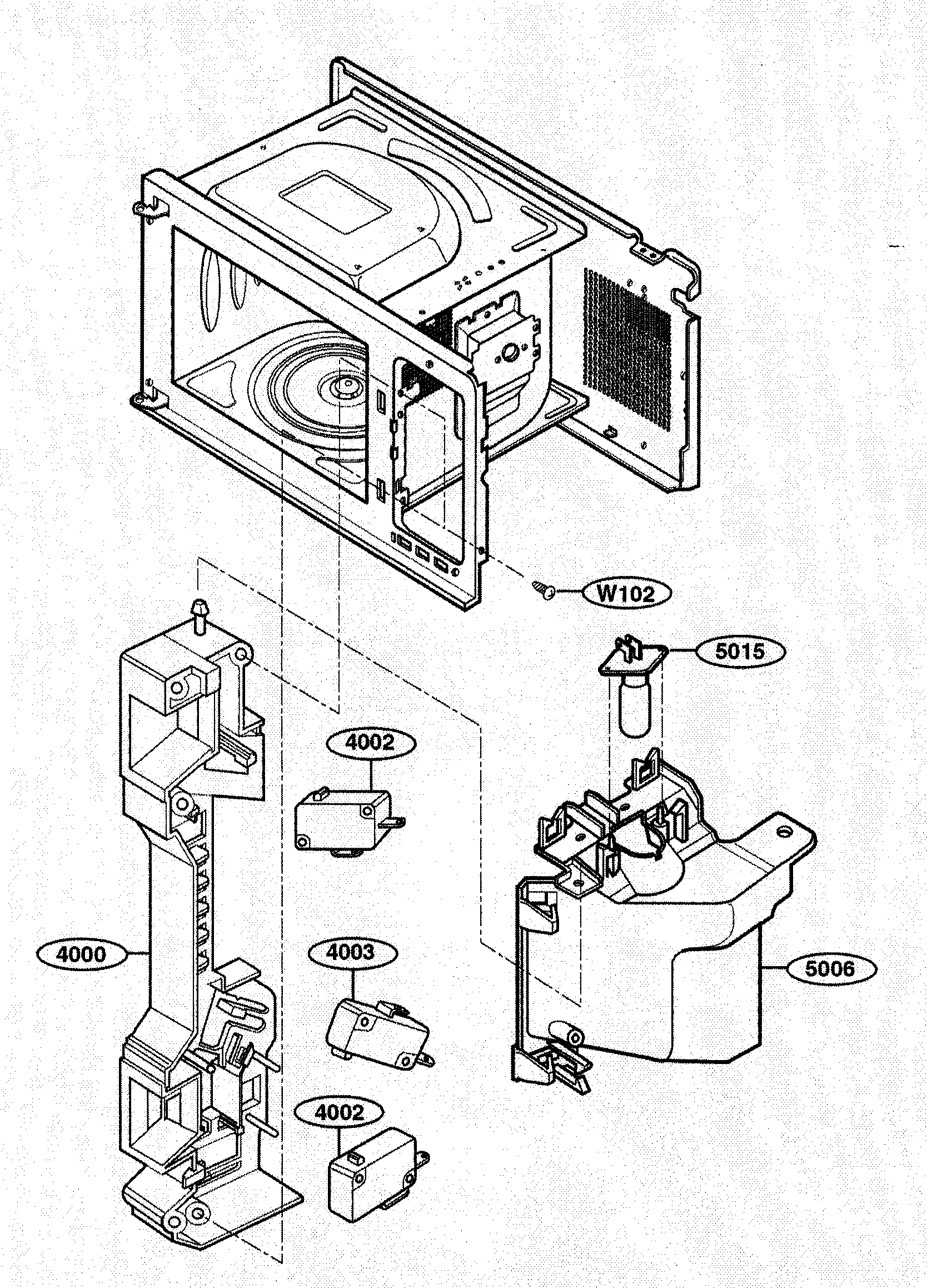

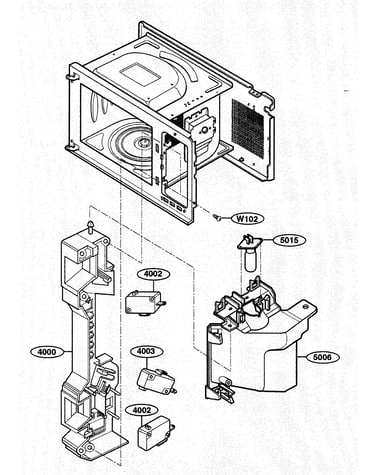

Latch board diagram

Microwave door interlock switch

Part #6600W1K003D

Replaced by #6600W1K001D

?
Manufacturer substitution
This part replaces 6600W1K003D. Substitute parts can look different from the original.
BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Capacitor 0CZZW1H005A
#5000

Interior parts diagram

Capacitor

Part #0CZZW1H005A

Replaced by #0CZZW1H004B

?
Manufacturer substitution
This part replaces 0CZZW1H005A. Substitute parts can look different from the original.
BEST SELLER
$28.54 |
15% OFF Phone Price : $33.54
In Stock
Microwave Screw 1TTG0402422
#W118

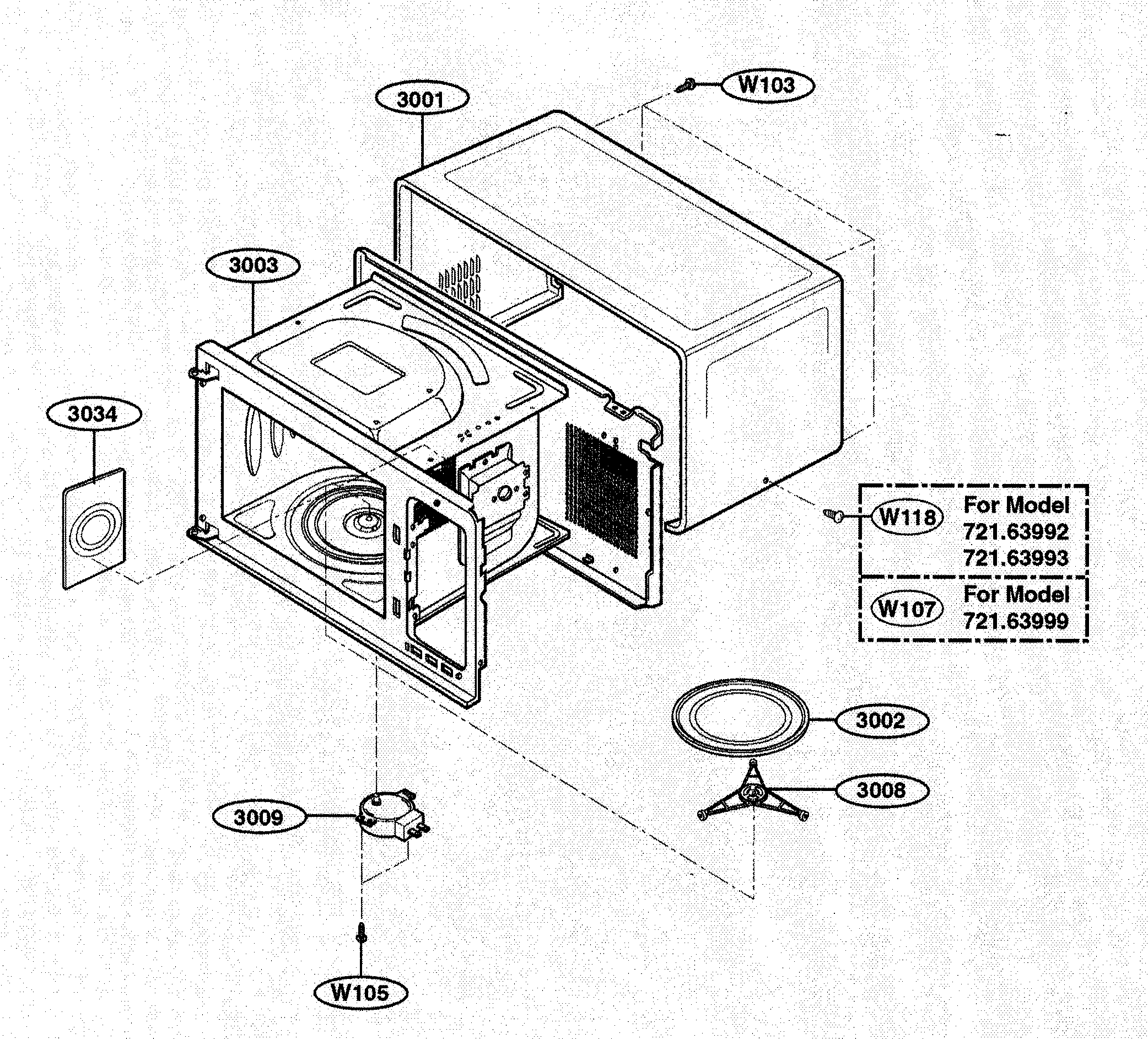

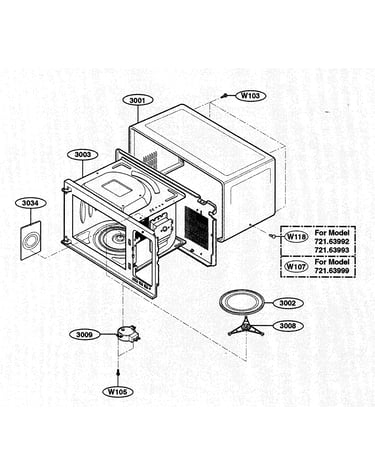

Oven cavity diagram

Microwave screw

Part #1TTG0402422

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Thermostat (replaces 6930wrt002f) 6930W1A003A
#5016

Interior parts diagram

Microwave thermostat (replaces 6930wrt002f)

Part #6930W1A003A

This item is not returnable
$10.03 |
17% OFF Phone Price : $12.03
In Stock
Scoop 5024W1A001B
#8030

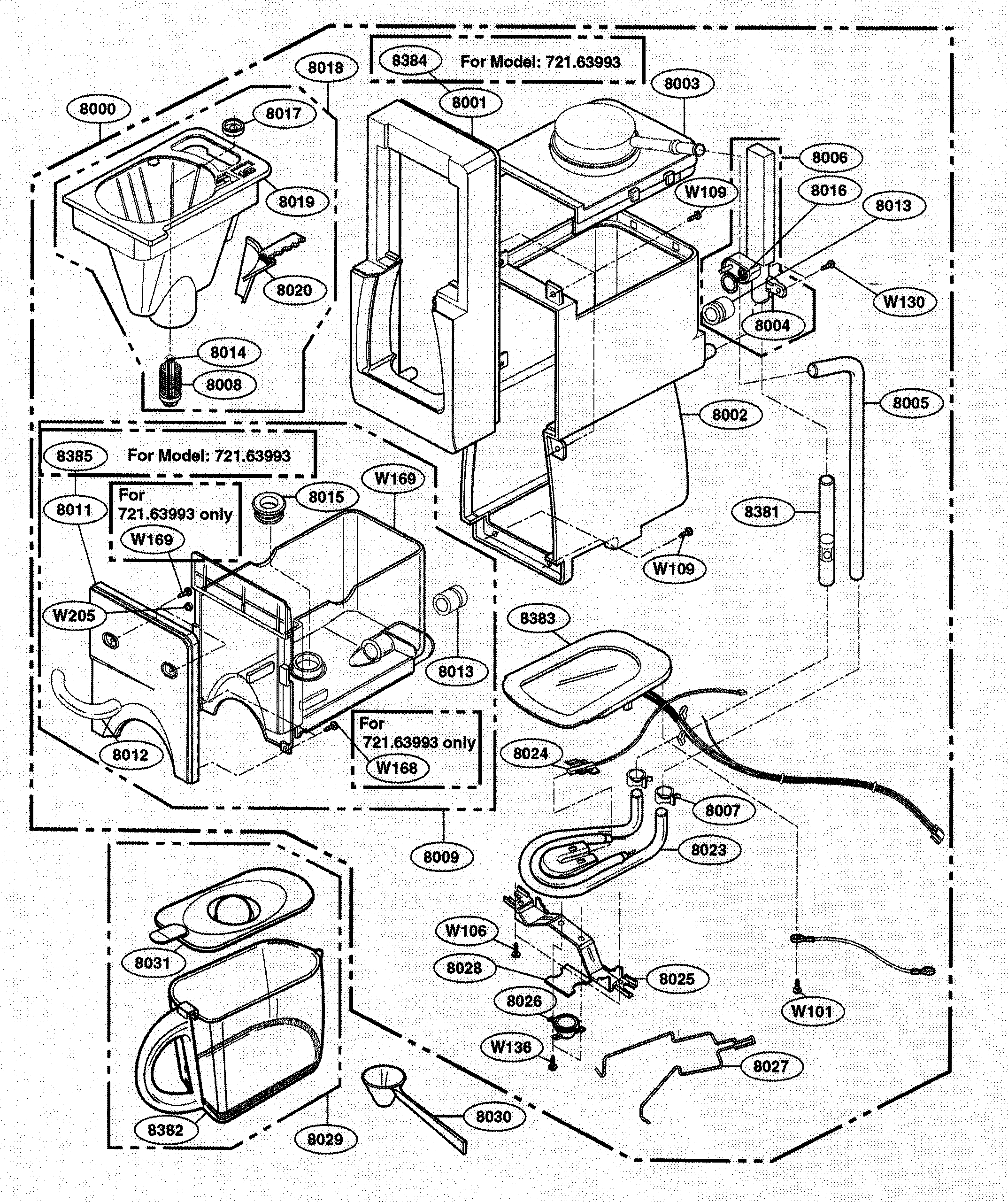

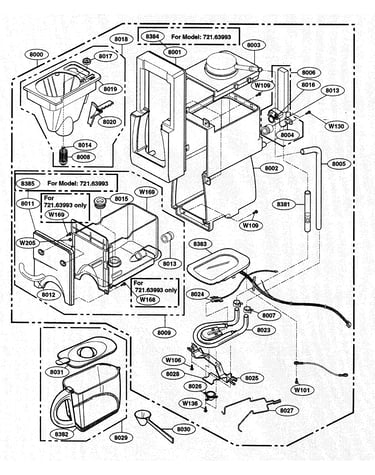

Coffee maker parts diagram

Scoop

Part #5024W1A001B

$45.42
In Stock
Out Drive Frame 3213W1A031P
#1000

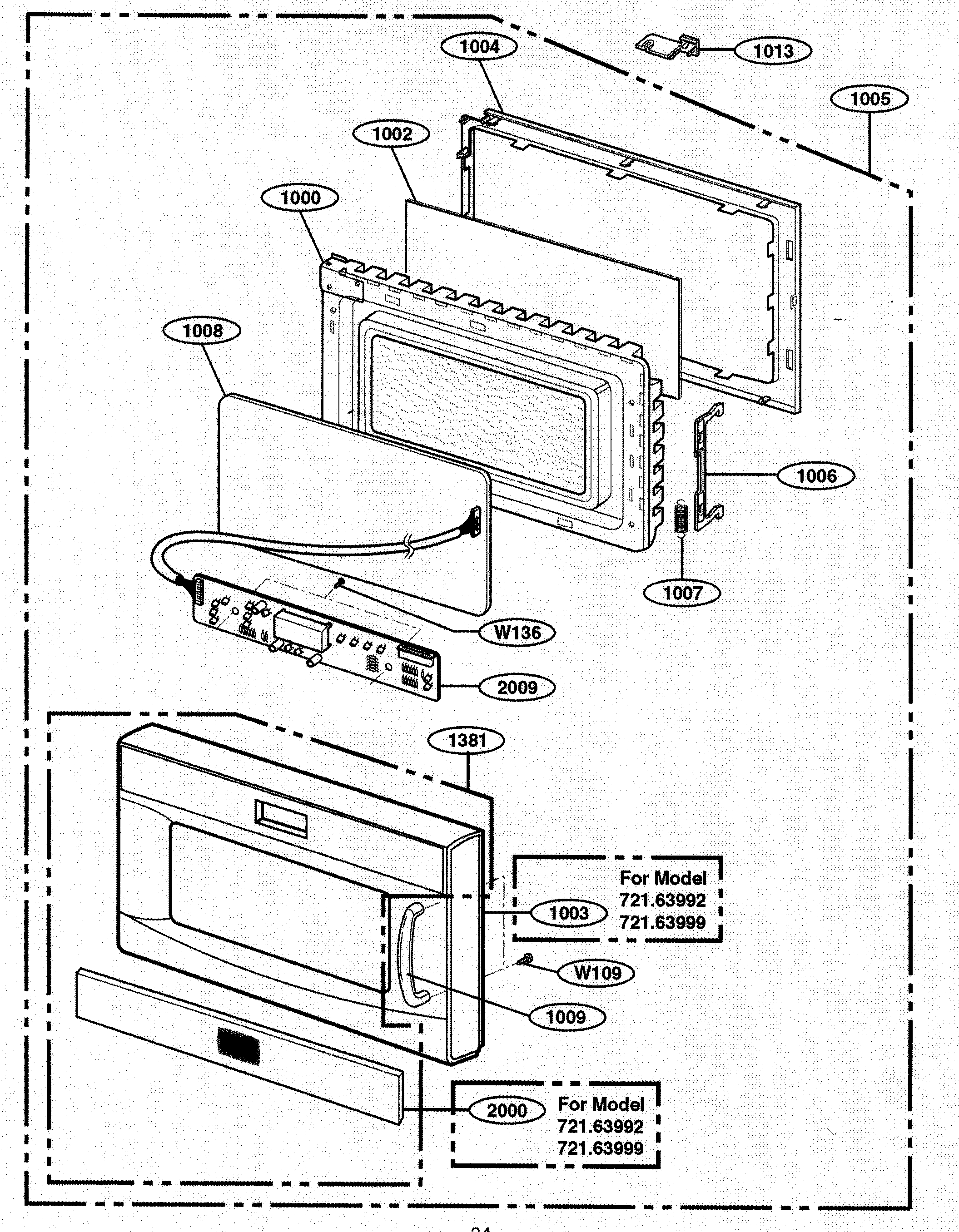

Door/control panel parts diagram

Out drive frame

Part #3213W1A031P

$64.31
In Stock
Packing Seal 3920W1A013B
#8017

Coffee maker parts diagram

Packing seal

Part #3920W1A013B

$7.89
In Stock
Thermistor 6322A00010B
#8024

Coffee maker parts diagram

Thermistor

Part #6322A00010B

$30.76
In Stock
Valve 5220W1A001B
#8014

Coffee maker parts diagram

Valve

Part #5220W1A001B

$7.89
In Stock
