Model # LAT3600AAE Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag LAT3600AAE washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

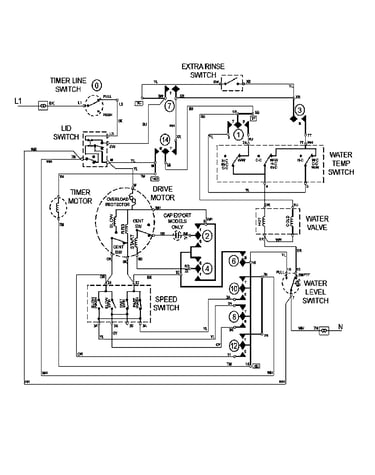

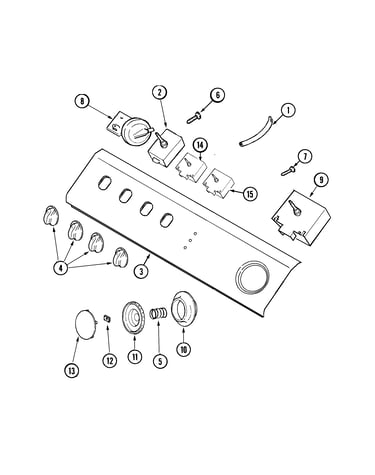

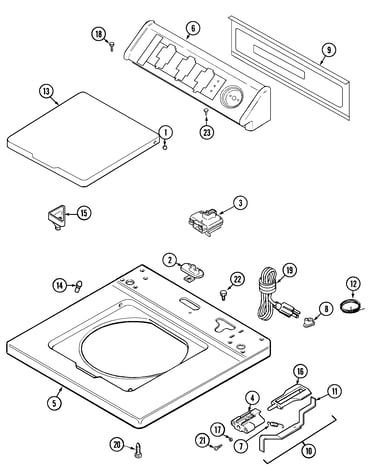

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |

Silastic,adh 058700
#10

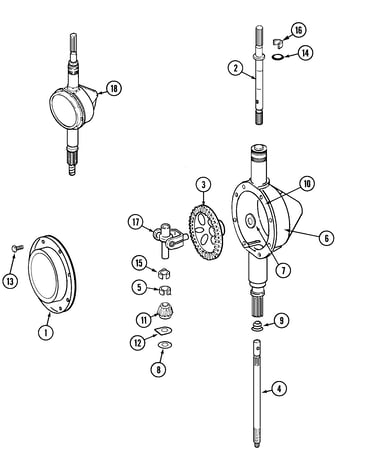

Transmission diagram

Silastic,adh

Part #058700

Replaced by #W10841140

?
Manufacturer substitution
This part replaces 058700. Substitute parts can look different from the original.
BEST SELLER
$14.99
46% OFF MSRP : $28.00
In Stock
Bleach Clamp 22002509
#23

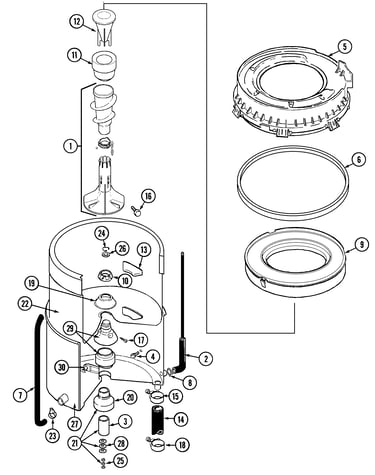

Tub diagram

Bleach clamp

Part #22002509

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 22002509. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
69% OFF MSRP : $14.00
In Stock
Clamp,hose-i 216169
Clamp,hose-i

Part #216169

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 216169. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
69% OFF MSRP : $14.00
In Stock
Washer Drive Belt 211125
#42

Base diagram

Washer drive belt

Part #211125

Replaced by #12112425

?
Manufacturer substitution
This part replaces 211125. Substitute parts can look different from the original.
BEST SELLER
$41.14
11% OFF Phone Price : $46.14
In Stock
Washer Pump Drive Belt 211124
#41

Base diagram

Washer pump drive belt

Part #211124

Replaced by #12112425

?
Manufacturer substitution
This part replaces 211124. Substitute parts can look different from the original.
BEST SELLER
$41.14
11% OFF Phone Price : $46.14
In Stock
Mounting Ste 22001648
#29

Tub diagram

Mounting ste

Part #22001648

The manufacturer no longer makes this part, and there's no substitute part

Tub Bearing 200824
#20

Tub diagram

Tub bearing

Part #200824

Replaced by #6-2040130

?
Manufacturer substitution
This part replaces 200824. Substitute parts can look different from the original.
$55.42
28% OFF MSRP : $77.00
In Stock
Screen, Valve 214337
#7A

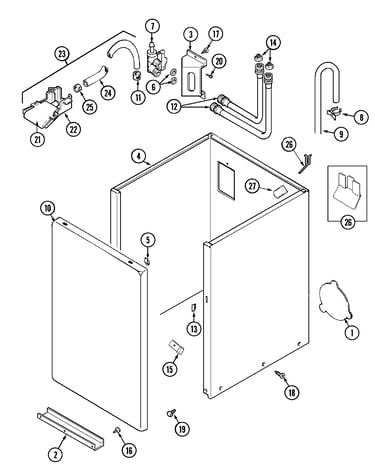

Cabinet diagram

Screen, valve

Part #214337

Replaced by #WP96160

?
Manufacturer substitution
This part replaces 214337. Substitute parts can look different from the original.
This item is not returnable
$8.39
11% OFF Phone Price : $9.39
In Stock
Bracket Screw 22003217
#3A

Cabinet diagram

Bracket screw

Part #22003217

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 22003217. Substitute parts can look different from the original.
This item is not returnable
$7.99
11% OFF Phone Price : $8.99
In Stock
Screw 22002925
#15A

Cabinet diagram

Screw

Part #22002925

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 22002925. Substitute parts can look different from the original.
This item is not returnable
$7.99
11% OFF Phone Price : $8.99
In Stock
