Side-By-Side Refrigerator

Model # TFH22PRRAWW Official GE profile dispensing refrigerator - 1993

Here are the diagrams and repair parts for Official GE TFH22PRRAWW profile dispensing refrigerator - 1993, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

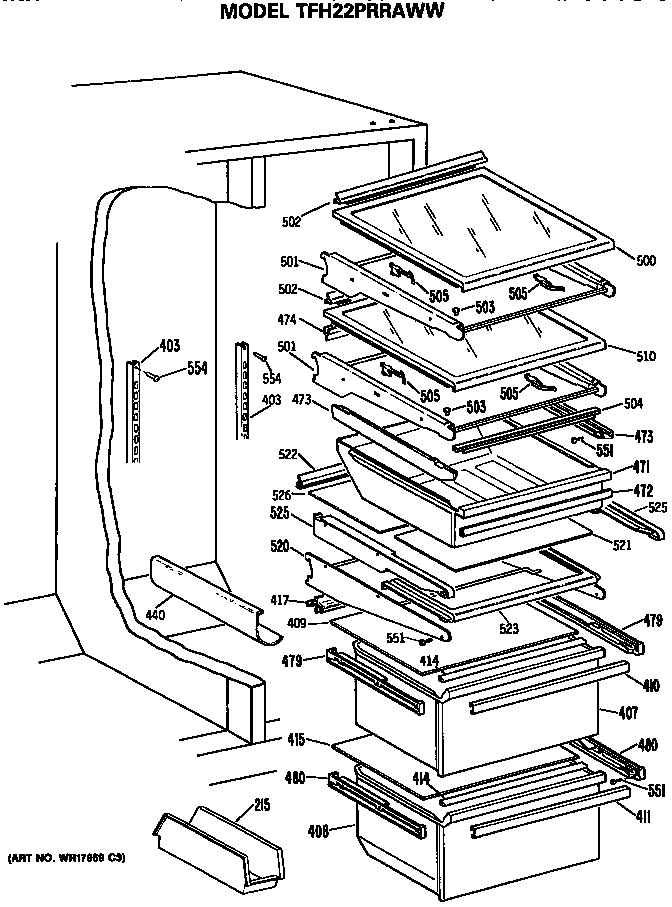

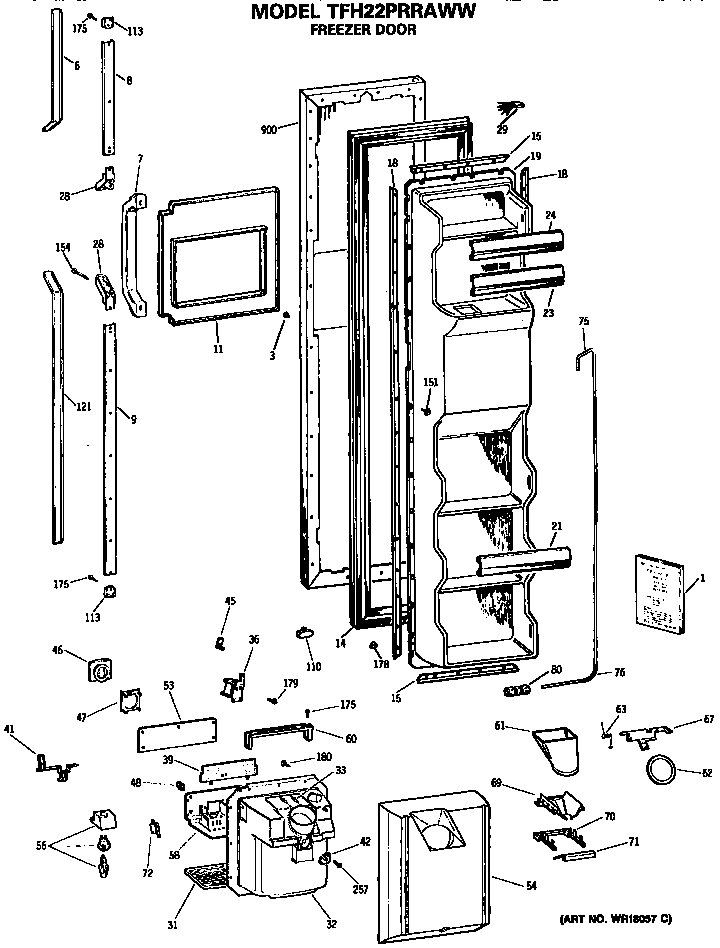

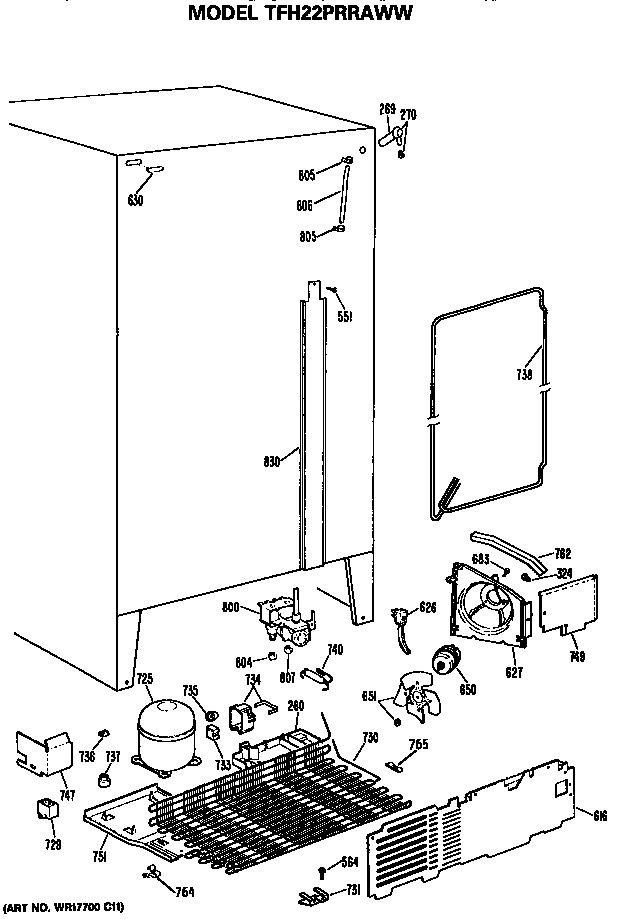

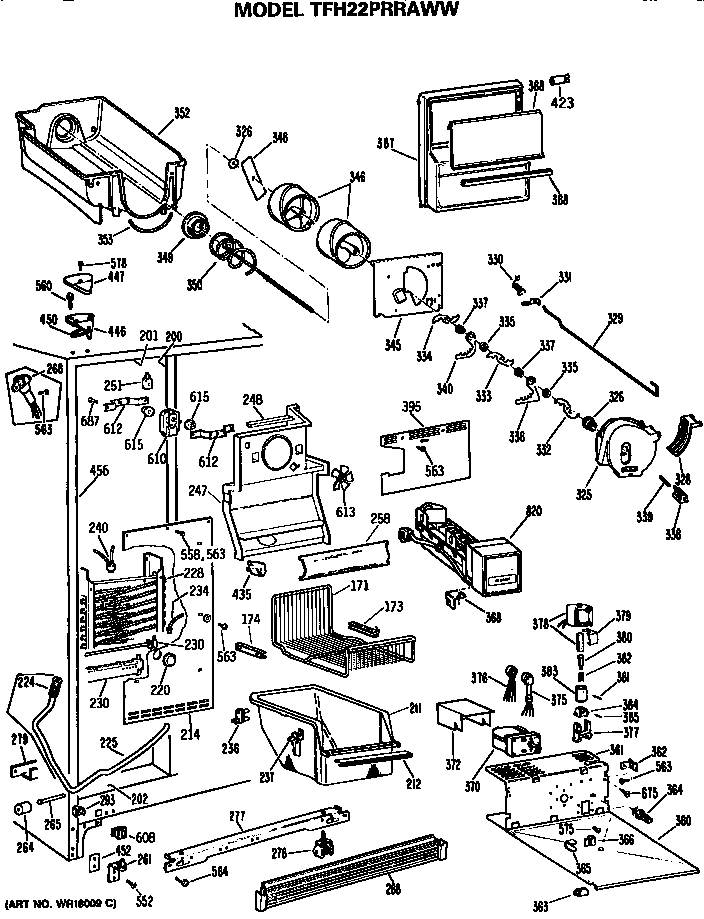

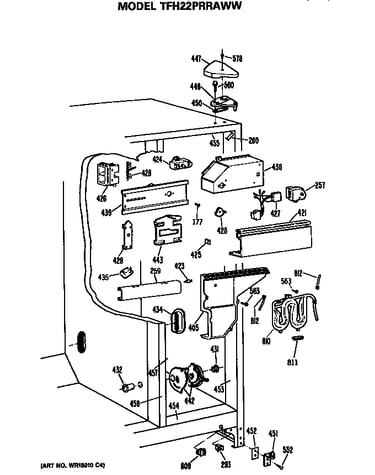

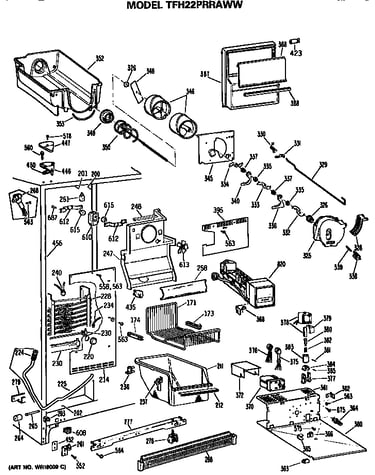

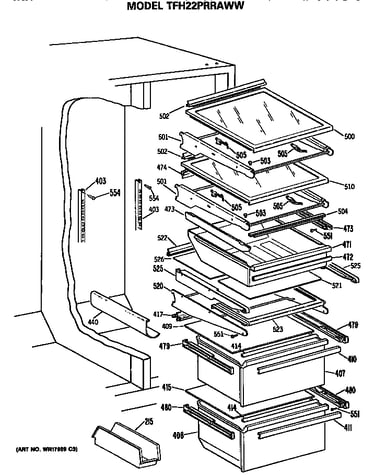

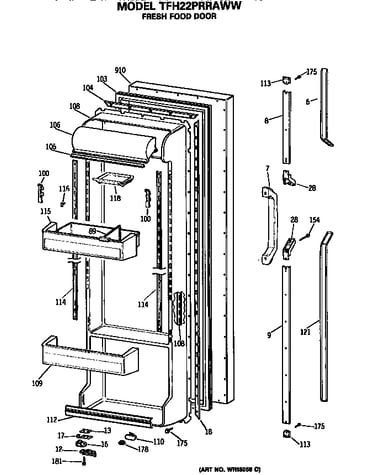

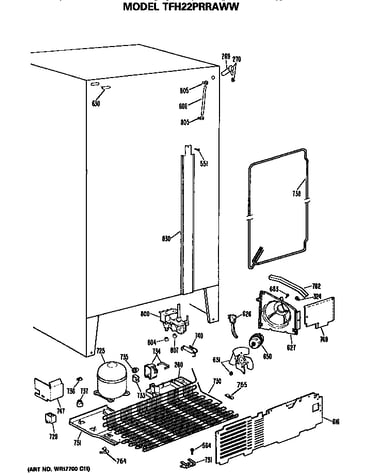

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 338 parts  |

40a15/22 STD372402

#435

All parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$14.94
12% OFF Phone Price : $16.94
In Stock
Refrigerator Ice Maker WR30X289

#820

All parts diagram

Refrigerator ice maker

Part #WR30X289

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X289. Substitute parts can look different from the original.
BEST SELLER
$187.55
5% OFF Phone Price : $197.55
In Stock
Door Hinge Pin, Lower WR13X615

#261

All parts diagram

Door hinge pin, lower

Part #WR13X615

Replaced by #WR13X10020

?
Manufacturer substitution
This part replaces WR13X615. Substitute parts can look different from the original.
BEST SELLER
$33.44
13% OFF Phone Price : $38.44
In Stock
Door Hinge Pin, Lower WR13X614

#451

All parts diagram

Door hinge pin, lower

Part #WR13X614

Replaced by #WR13X10020

?
Manufacturer substitution
This part replaces WR13X614. Substitute parts can look different from the original.
BEST SELLER
$33.44
13% OFF Phone Price : $38.44
In Stock
Refrigerator Door Closer Cam (replaces Swr2x4901, Wr02x4901) WR2X4901

#16

All parts diagram

Refrigerator door closer cam (replaces swr2x4901, wr02x4901)

Part #WR2X4901

BEST SELLER
$7.88
11% OFF Phone Price : $8.88
In Stock
Refrigerator Defrost Timer (replaces Wr09x0489, Wr9x427, Wr9x469, Wr9x488) WR9X489

#257

All parts diagram

Refrigerator defrost timer (replaces wr09x0489, wr9x427, wr9x469, wr9x488)

Part #WR9X489

BEST SELLER
$36.07
12% OFF Phone Price : $41.07
In Stock
Refrigerator Crisper Drawer Slide Rail, Right WR72X208

#480

All parts diagram

Refrigerator crisper drawer slide rail, right

Part #WR72X208

This item is not returnable
$19.05
10% OFF Phone Price : $21.05
In Stock
Bucket Auger WR17X2899

#352

All parts diagram

Bucket auger

Part #WR17X2899

Replaced by #WR17X4310

?
Manufacturer substitution
This part replaces WR17X2899. Substitute parts can look different from the original.
$190.79
5% OFF Phone Price : $200.79
In Stock
Refrigerator Condenser Fan Motor (replaces Swr60x173, Wr60x0187, Wr60x10010, Wr60x165, Wr60x169, Wr60x170, Wr60x173, Wr60x179, Wr60x184, Wr60x233) WR60X187

#650

All parts diagram

Refrigerator condenser fan motor (replaces swr60x173, wr60x0187, wr60x10010, wr60x165, wr60x169, wr60x170, wr60x173, wr60x179, wr60x184, wr60x233)

Part #WR60X187

$223.35
$10.00 OFF Phone Price : $233.35
In Stock
Terminal Socket WR2X8265

#435

All parts diagram

Terminal socket

Part #WR2X8265

Replaced by #WR2X9391

?
Manufacturer substitution
This part replaces WR2X8265. Substitute parts can look different from the original.
This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
