GE GSHL5KGXCCLS refrigerator - x series Parts

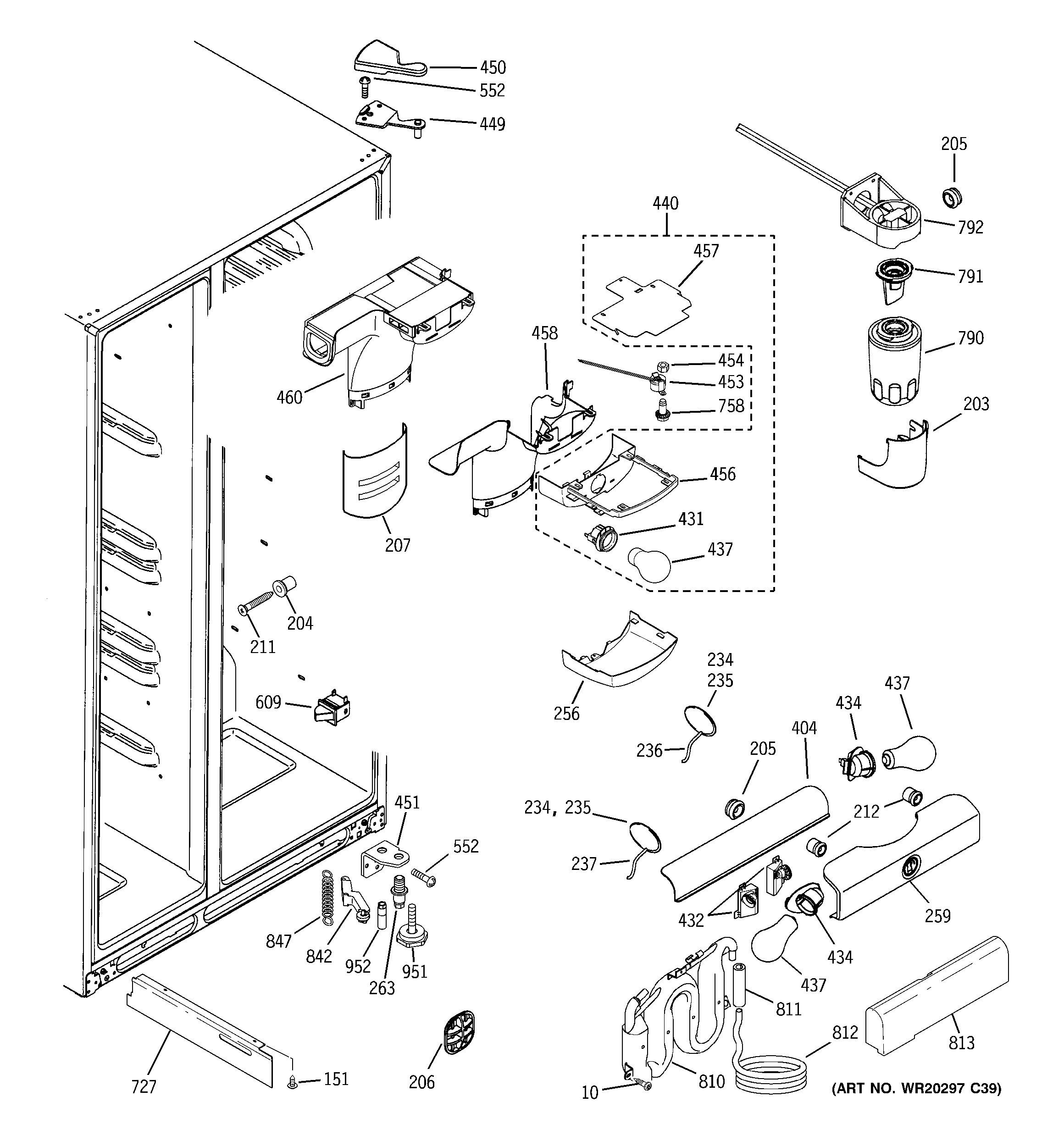

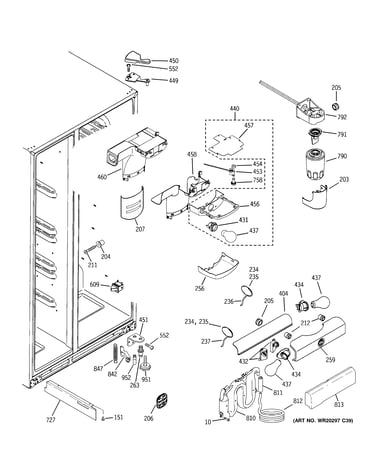

On the GE GSHL5KGXCCLS side-by-side refrigerator, the water filter cartridge is located inside the fresh food (refrigerator) compartment in the back upper right corner. You access it from inside the refrigerator, not from the grille or the freezer door.

How to find it quickly

• Open the refrigerator (fresh food) door.
• Look at the back wall, upper right area.
• Identify the filter cartridge housing (it is typically a short, twist-lock style cartridge).
• Keep a towel handy in case a few drops of water release when you remove it.
• Follow the exact removal and install steps in the owner's manual.

Replacing the filter: what to expect

Most GE side-by-side filters in this location use an align-and-turn (twist) action to unlock and remove, then twist back to lock after the new filter is seated.

What you notice	What it usually means	What to do
Water flow slows at dispenser	Filter is clogging	Replace the filter cartridge
Ice maker output drops	Restricted water flow	Replace the filter cartridge
Dispenser light turns orange/red (if equipped)	Replacement reminder	Replace the filter soon/now

If you need the correct replacement filter for this model, use the GE refrigerator water filter MWFP.

When to replace the water filter

• Replace about every 6 months for normal use.
• Replace sooner if water flow to the dispenser slows.
• Replace sooner if ice production decreases.
• If your dispenser has a filter indicator light, replace when it signals (often orange for soon, red for now).

Why it matters

A properly installed, on-time water filter helps maintain normal water pressure to the dispenser and ice maker, reduces clogs in the water system, and improves taste and odor performance.

Last updated: February 2026

The most common issue we see with GE refrigerators like model GSHL5KGXCCLS is not cooling well (fresh food too warm, freezer warming up, or temperatures swinging). In most cases, the root cause is restricted airflow or heat removal, or a failure in the fan, defrost, or temperature-sensing system; the GSHL5KGXCCLS owner's manual covers basic care and operating checks.

Quick checks that fix many cooling complaints

• Make sure air vents inside both compartments are not blocked by food packages.

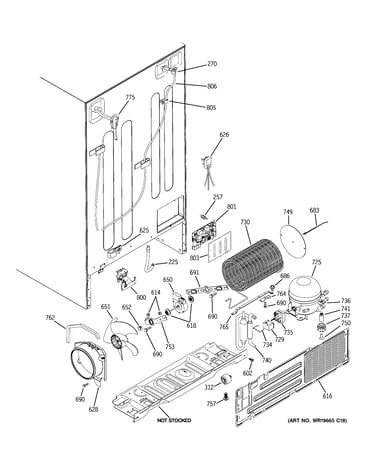

• Clean dust from the condenser area (dirty coils make the compressor run longer and cool less).
• Confirm doors close and seal fully; a door left ajar can quickly cause warm temps and frost.
• Set controls to normal targets: 0°F in the freezer and 37°F in the refrigerator (typical for side-by-sides).
• If you have an icemaker, confirm the water supply is connected before leaving the icemaker switch ON (running it dry can damage the valve).

Common causes and the parts that often solve them

If the quick checks do not help, these are the most frequent repair paths for cooling problems:

Symptom	Likely cause	Part on this model that often applies
Fridge warm, freezer OK	Weak/no airflow from freezer	Refrigerator evaporator motor WR60X10307

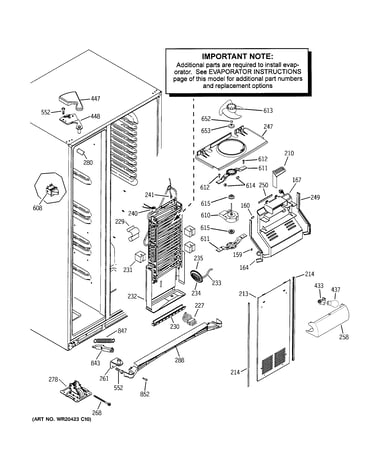

Frost buildup on freezer back wall	Defrost system not clearing ice	Refrigerator defrost heater WR51X10055 or refrigerator defrost bi-metal thermostat WR50X10065
Temps inaccurate or swing widely	Sensor reading wrong	GE profile refrigerator temperature sensor WR55X10025
No water to dispenser/ice, or slow fill	Water supply/valve issue	Refrigerator water valve WR57X33326

Why it matters

When a refrigerator cannot move air or shed heat properly, the compressor runs longer, food temperatures rise, and frost can build up. Catching a fan, defrost, or sensor issue early helps protect food quality and reduces strain on major components.

Safety note before troubleshooting

• Unplug the refrigerator before accessing internal electrical parts.
• Moving the refrigerator straight out (not sideways) helps prevent floor damage and avoids pinching the power cord or water line.

Last updated: February 2026

Yes. GE side-by-side refrigerators like model GSHL5KGXCCLS are a solid choice for everyday reliability and convenience; they typically deliver consistent cooling, easy organization with shelves and bins, and popular features like an ice maker and water dispenser. For the exact features and care guidance for your unit, use the GSHL5KGXCCLS owner's manual.

What “good” usually means for this GE side-by-side

A side-by-side design is built for frequent access and predictable temperatures across both compartments. On GSHL5KGXCCLS, the manual highlights core areas owners care about most:

• Temperature controls and quick-cool features (TurboCool) for recovery after door openings
• Ice maker and ice and water dispenser convenience
• Adjustable shelves and door bins for flexible storage
• Routine care and cleaning guidance to protect shelves, plastics, and finishes
• Troubleshooting tips and normal operating sounds to set expectations

Pros and tradeoffs to expect

Side-by-sides are popular because they balance freezer and fresh-food access, but they do have a few common compromises.

• Pros: narrow door swing, easy access to freezer items, strong dispenser convenience
• Pros: generally stable temperatures when vents are kept clear
• Tradeoffs: freezer side can be narrower for wide boxes and pizza-style items
• Tradeoffs: ice makers can sound loud during harvest cycles (often normal)
• Tradeoffs: water flow can slow when the filter is overdue or the supply is restricted

Quick comparison: side-by-side vs other common layouts

Layout	Best for	Common downside
Side-by-side	Frequent access to both sections; dispenser use	Narrower freezer shelf width
Top freezer	Simple storage; value	Less convenient fresh-food access
Bottom freezer	Fresh food at eye level	Freezer access requires bending

Why it matters (and how to keep it “good”)

Most performance complaints come from airflow blockage, dirty condenser areas, or water system restrictions. Staying on top of basics helps your GE refrigerator cool evenly and dispense properly.

• Keep air vents inside the compartments unblocked
• Clean spills with non-damaging cleaners (avoid harsh petroleum-based products)
• Replace the water filter on schedule; use the correct filter for this model
• If you have slow dispensing or hollow ice, check for a restricted filter or supply issue

If you are maintaining the water system, the correct replacement filter for this model is the GE refrigerator water filter MWFP.

Last updated: February 2026

If you’re shopping for a “top” side-by-side refrigerator, we recommend focusing on the features and reliability that matter most to your kitchen, then comparing models in that class. For your GE GSHL5KGXCCLS, the best match is usually a side-by-side with strong temperature control, dependable ice and water dispensing, and easy-to-service parts; use the GSHL5KGXCCLS owner's manual to confirm which features your current unit has so you can compare accurately.

What to look for in a top side-by-side

A great side-by-side refrigerator is less about a single “best” model and more about the right combination of performance, layout, and serviceability.

• Stable temperatures in both compartments (fewer warm spots, better food life)
• Ice maker and dispenser reliability (consistent ice production, fewer jams)
• Water filtration system that is easy to maintain (filter availability and change interval)
• Efficient airflow (good circulation reduces frosting and uneven cooling)
• Door seal quality (tight gaskets reduce moisture, frost, and energy use)
• Noise level (evaporator fan and compressor sound profile)

Quick comparison: side-by-side vs other styles

Style	Best for	Tradeoffs
Side-by-side	Narrow door swing, easy access to freezer items, through-the-door ice/water	Narrower fresh-food shelves for wide platters
French door	Wide fresh-food shelves, popular layout	Often higher cost; freezer access is lower
Top freezer	Value and simplicity	Fewer premium features; less convenient fresh-food access

Features that most often separate “top” models

These are the areas where we see the biggest real-world difference in customer satisfaction.

• Defrost system design (heater, thermostat, and controls working together)
• Evaporator fan performance for even cooling
• Dispenser components that resist sticking and air leaks
• Filter head and water valve durability (helps prevent slow dispensing and leaks)

Common serviceable parts on the GSHL5KGXCCLS platform

If you like your current GE layout, it helps to know the kinds of parts that are typically maintained on this style:

• GE refrigerator water filter MWFP for taste and flow
• Refrigerator evaporator fan motor WR60X10307 for airflow and temperature balance
• Refrigerator defrost heater WR51X10055 for frost control

Why it matters

Choosing a “top” side-by-side is really choosing fewer temperature swings, fewer ice and water headaches, and lower long-term maintenance. Comparing models using the same checklist you apply to your GE GSHL5KGXCCLS helps you avoid paying extra for features you will not use.

Last updated: February 2026
