GE ZIS48NYB refrigerator - y series Parts

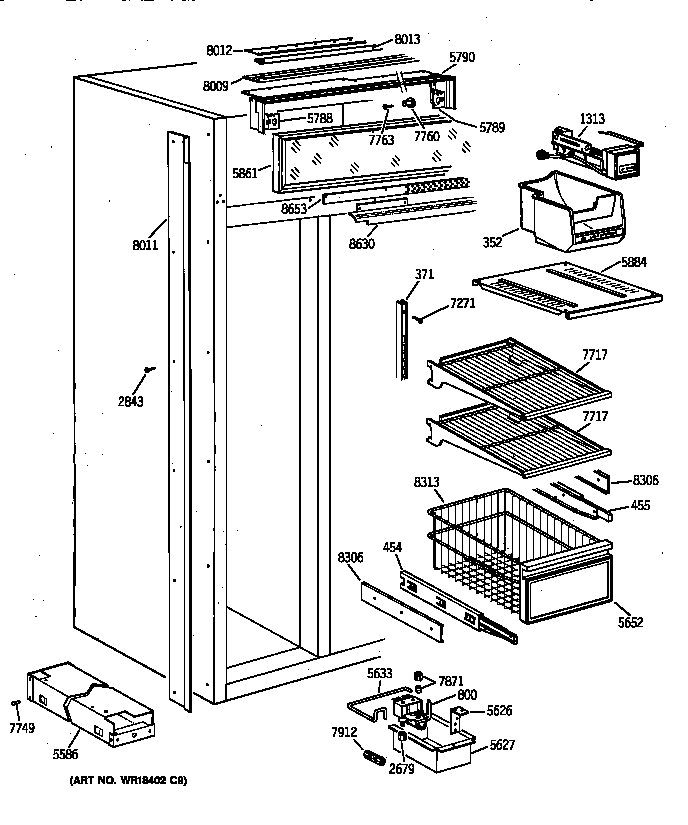

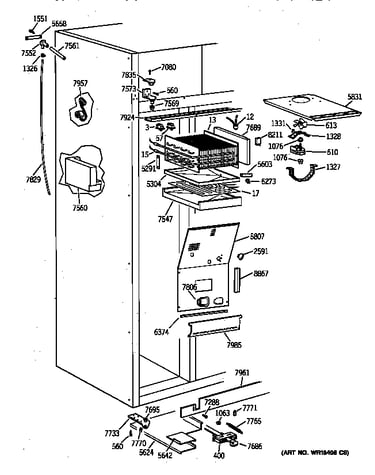

On the GE ZIS48NYB side-by-side refrigerator, the defrost drain is in the freezer compartment on the interior back wall, typically centered just above where the freezer floor slopes up into the back wall. Use the ZIS48NYB owner's manual to confirm the exact access point for your configuration.

How to find it quickly

• Remove the lower freezer bin or shelf so you can see the back wall clearly.
• Look at the lowest section of the rear panel, near the floor-to-back-wall “ramp.”
• Find a small drain opening or trough centered along that lower back wall area.
• If there is ice buildup, melt it with warm water (not boiling) so the drain becomes visible.
• Keep towels handy; a clogged drain often releases water once it opens.

What to do if the drain is clogged

A clogged defrost drain can cause water to pool or freeze on the freezer floor. Clearing it usually restores normal defrost water flow to the drain pan.

• Flush the drain hole with warm water using a turkey baster or squeeze bottle.
• Clear the drain tube with a flexible plastic tube or pipe cleaner (avoid sharp tools).
• Check for ice around the drain opening and remove it with gentle heat.
• Verify the drain path is open by adding a small amount of water and watching it disappear.

Common symptoms and what they point to

Symptom	Most likely cause	What to check next
Sheet of ice on freezer floor	Drain hole frozen or blocked	Clear drain hole and tube
Water dripping into fresh food area	Drain backing up during defrost	Inspect drain opening and rear panel area
Musty odor or standing water	Drain not reaching pan	Confirm water flows to the drain pan

Why it matters

During automatic defrost, meltwater must travel through the defrost drain to the drain pan. When that path is blocked, water refreezes, causes leaks, and can lead to recurring ice buildup and door sealing issues.

Last updated: February 2026

A bottom-freezer refrigerator is better for most households because fresh food sits at eye level and you bend less. A side-by-side (like the GE ZIS48NYB) is better when you want narrow door swing and easy access to frozen items; it trades off wider shelf space.

Quick comparison

Feature	Side-by-side (GE ZIS48NYB style)	Bottom freezer
Fresh-food access	Good, but you reach into a narrower compartment	Best, most-used items are easiest to reach
Freezer access	Very convenient, items at multiple heights	Great for bulk storage, less convenient for frequent grabs
Shelf width	Narrower shelves (pizza platters, trays can be tricky)	Wider shelves in fresh-food section
Door swing clearance	Often better in tight aisles	Often needs more clearance for wide doors

Choose side-by-side if you want

• Frequent freezer use (snacks, ice, frozen meals)
• Better organization by height (less stacking)
• Narrower doors for a tight kitchen walkway
• Built-in look and tall storage zones (common on built-in models)

Choose bottom freezer if you want

• Easier daily access to fresh food (less bending)
• Wider refrigerator shelves for large platters
• Better visibility of fresh items (less food getting lost)
• A freezer drawer that holds bulky bags and boxes well

Why it matters

The “better” layout is the one that matches how you open the doors and what you grab most. Side-by-side designs can be especially practical in tight kitchens, while bottom-freezer designs usually win on everyday ergonomics for fresh food.

Model-specific tip for GE ZIS48NYB owners

If your decision is driven by usability (door swing, shelf positions, basket removal, cleaning), use the ZIS48NYB owner’s manual to confirm storage features and care guidance for this built-in side-by-side platform.

Last updated: February 2026

Yes. GE side-by-side refrigerators like model ZIS48NYB are a solid choice when you want consistent cooling, easy access to both fresh food and frozen items, and built-in styling. Most owners value the roomy layout and convenience features; occasional complaints are usually about normal operating noise or ice maker speed.

What “good” typically means for this GE built-in side-by-side

We judge performance on the things that matter day to day:

• Temperature stability for food safety and longer freshness
• Storage flexibility (shelves, bins, and door storage)
• Ice and water convenience (if equipped)
• Serviceability (parts availability and access)
• Fit and finish for a built-in installation

For operating and care details specific to your unit, use the ZIS48NYB owner’s manual.

Common pros and common tradeoffs

These are the most typical strengths and drawbacks we see with side-by-side designs.

Area	What’s usually good	What to watch for
Layout	Easy access to both compartments	Narrower shelf width than some French-door models
Cooling	Even airflow when vents are clear	Warm spots if vents are blocked by food
Ice maker	Convenient daily ice	Can be noisy, slow, or jam if cubes clump
Built-in fit	Clean, integrated look	Door alignment and leveling matter more

If noise or ice performance is the concern

A few quick checks solve many “not as good as expected” complaints:

• Confirm the refrigerator is level front-to-back and side-to-side (leveling affects door alignment and vibration).
• Keep packages from touching the rear wall/air vents inside the compartments.
• If ice clumps or jams, empty the bin and let it dry; clumped cubes can jam the chute.
• If the ice maker is not filling correctly, inspect the water supply and consider the water inlet valve WR57X10033 if diagnostics point to low or no fill.
• If you hear a steady fan noise or rattling at the back, the condenser area may need cleaning and inspection.

Why it matters

A side-by-side that is level, has clear airflow, and has a healthy water supply system will cool more evenly, waste less energy, and produce more reliable ice. Those basics usually determine whether the refrigerator feels “good” in everyday use.

Last updated: February 2026

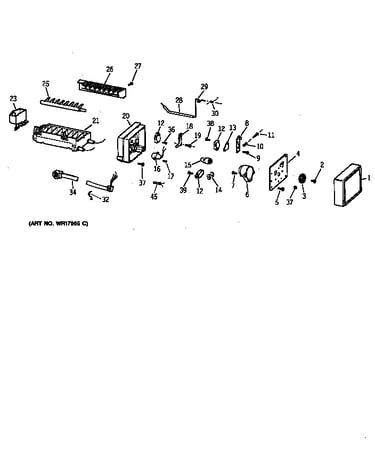

The most common ice maker problem on a GE refrigerator like model ZIS48NYB is no ice or slow ice production. In most cases, the cause is simple: the ice maker is off (feeler arm in STOP/up), the water supply is restricted, or the freezer is too warm to freeze water fast enough (see the ZIS48NYB owner's manual).

Quick checks that fix most “no ice” complaints

• Confirm the feeler arm is in the ON/down position (STOP/up turns the ice maker off).
• Make sure the water supply valve is fully open and the line is connected.
• Verify the freezer is cold enough; a warm freezer slows or stops ice production.
• Look for ice stuck in the mold that can hold the feeler arm up; remove the stuck ice.
• After a new install or reconnecting water, allow 8 to 12 hours to start making ice; discard the first few batches.

Most common causes and what you’ll notice

Symptom	Most likely cause	What to do first
No ice at all	Feeler arm in STOP/up	Move arm to ON/down
No ice at all	Water supply off/not connected	Turn on supply, check connection
Small cubes or slow production	Restricted water flow (often a clogged shutoff/valve)	Check supply flow; inspect valve
Ice maker stops randomly	Cubes jammed in mold holding arm up	Clear the mold and reset arm

Parts that commonly solve water-supply related ice maker issues

If you have good freezer temperature and the ice maker is on, the next most common issue is restricted water flow into the ice maker.

• Water inlet valve WR57X10033: controls water flow to the ice maker; sediment or internal failure can reduce flow.
• Refrigerator fill tube WR2X8612: a blocked or frozen fill tube can prevent the mold from filling.

For step-by-step prevention and maintenance tips, use how to prevent water dispenser and ice maker problems.

Why it matters

An ice maker needs two things to work reliably: cold freezer temperatures and steady water flow. When either one is off, you get the most common complaints (no ice, slow ice, or small cubes) and the problem usually gets worse over time.

Last updated: February 2026

On the GE ZIS48NYB, there is no dedicated “compressor reset” button; the reliable reset is a power reset that reboots the controls. Unplug the refrigerator (or switch off the breaker) for 5 minutes, restore power, then allow up to 24 hours for temperatures to stabilize per the ZIS48NYB owner's manual.

Reset steps (safe and effective)

• Set both temperature controls to 5 (fresh food and freezer) before or right after restoring power.
• Unplug the power cord or turn off power at the circuit breaker for 5 minutes.
• Restore power.
• Confirm the freezer control is not set to OFF (OFF stops cooling in both compartments).
• Wait 24 hours before judging cooling performance.

Quick checks if it still is not cooling

• Make sure the refrigerator has power (outlet, breaker, and cord connection).
• Listen for the condenser fan near the compressor; if it is not running when it should, airflow and cooling suffer.
• Check for warm air leaks at the doors (gasket not sealing, door not closing square).
• Verify controls were not accidentally moved to warmer settings.
• If you have error indicators, use the GE refrigerator error codes reference to narrow the failure.

What to expect after a reset

What you notice	What it usually means	What to do
Compressor starts, temps slowly improve	Normal restart	Leave settings at 5; recheck in 24 hours
Fan runs but no cooling	Sealed system or control issue	Have a qualified technician diagnose
Doors sweating, temps unstable	Air leak or airflow issue	Inspect gaskets and door alignment

Parts that commonly relate to “no cool” symptoms

If airflow or heat removal is the issue, these model-matched parts are common suspects:

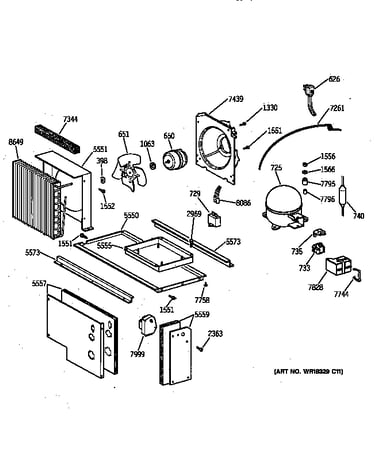

• Refrigerator condenser fan motor WR60X187 (moves air across condenser coils)
• Refrigerator air damper control assembly WR9X513 (controls cold air flow to fresh food)
• Refrigerator defrost heater WR51X322 (helps prevent frost that blocks airflow)

Why it matters

A power reset clears minor control glitches after a power interruption or settings change, but the compressor still needs proper airflow, correct temperature control settings, and time to pull temperatures down.

Last updated: February 2026
