Whirlpool ED5FVGXWS00 refrigerator Parts

A “24.6 cu ft” capacity does not determine an exact width, and we can’t identify the cabinet width for Whirlpool model ED5FVGXWS00 from the model-specific information available here. For most full-size side-by-side refrigerators, the typical installed width is about 36 inches.

What to use for a reliable width measurement

For ED5FVGXWS00, the most reliable approach is to confirm the physical width and required clearances using the installation section in the ED5FVGXWS00 user manual.

• Measure the cabinet (case) width across the front, not the doors or handles
• Measure at the widest point if the doors or hinges protrude
• Confirm door-swing clearance if the unit sits next to a wall
• Verify the cabinet opening width before ordering a replacement refrigerator
• Leave ventilation space at the sides and top as directed in the manual

Typical widths you’ll see (general guidance)

Most 24 to 26 cu ft side-by-side refrigerators are built around a 36-inch cabinet width, but exact dimensions vary by model series, door design, and hinge style.

Refrigerator type	Typical width range
Side-by-side (full size)	33 to 36 inches
French door (full size)	33 to 36 inches
Top freezer (mid size)	28 to 33 inches

Why it matters

Width affects more than “will it fit.” It also impacts door swing, the ability to remove crisper pans, airflow clearance, and whether you can pull the refrigerator out for service or condenser cleaning.

Last updated: January 2026

In a side-by-side refrigerator like Whirlpool ED5FVGXWS00, the freezer typically accounts for about one-third of the total capacity, which commonly works out to roughly 7.5 to 10 cubic feet of freezer space on many full-size models. For model-specific capacity details, check the ED5FVGXWS00 user manual.

What you can expect for freezer capacity

Most full-size side-by-side refrigerators fall into a fairly consistent range for freezer volume.

• Typical total capacity: about 22.5 to 31 cu. ft.
• Typical freezer portion: about 7.5 to 10 cu. ft.
• Typical fresh food portion: about 15 to 21 cu. ft.
• Freezer is narrower but taller; shelf and bin layout affects usable space
• Ice maker and ice bin reduce usable storage volume

Quick capacity breakdown (typical ranges)

Refrigerator style	Total capacity (typical)	Freezer capacity (typical)
Side-by-side	22.5 to 31 cu. ft.	7.5 to 10 cu. ft.

Why it matters

Freezer capacity affects how much you can store long-term and how you organize bulky items (pizza boxes, frozen meals, meat). It also helps when comparing models or deciding whether you need to adjust shelving, bins, or ice storage.

Tip for maximizing usable freezer space

If you feel short on space, the biggest “hidden” space users lose is often to ice storage and bulky packaging.

• Break down large boxes and use stackable freezer bins
• Keep frequently used items at eye level to reduce door-open time
• Avoid overpacking; blocked vents can reduce cooling performance
• If you use the ice maker heavily, keep the ice bin seated correctly

Last updated: January 2026

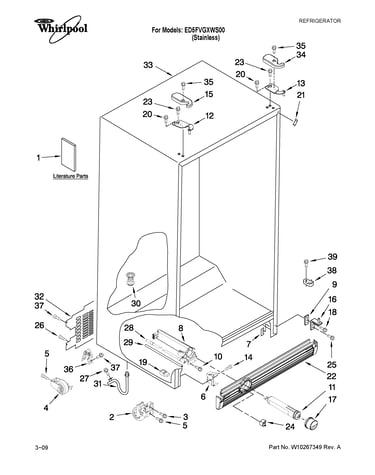

On Whirlpool model ED5FVGXWS00, the water filter is located in the base grille (toe grille) at the bottom front of the refrigerator. You access it from the front at floor level; the removal and cap-transfer details are shown in the ED5FVGXWS00 user manual.

How to find and remove the filter (ED5FVGXWS00)

• Look at the very bottom front of the refrigerator for the base grille.
• Find the filter cartridge opening in that grille area.
• Remove the old cartridge (some housings twist out; others release when you press).
• If your setup uses a small end cap, slide it off the old filter and keep it.
• Install the new filter fully seated, then check for leaks.
• Flush the dispenser to clear trapped air and carbon fines.

Which replacement filter fits ED5FVGXWS00

The use and care information for this model lists a “standard base filter cartridge” and calls out replacement part number 4396841. On our parts list, that same filter is identified as EDR3RXD1.

What you may see	What it means for ED5FVGXWS00	Why it matters
4396841	Whirlpool replacement part number	Confirms compatibility by part number
EDR3RXD1	Filter ID used on the part listing	Confirms the exact item to order

If you need the compatible replacement for this model, use the refrigerator water filter EDR3RXD1.

Why it matters

A correctly fitted base-grille filter helps maintain normal water flow to the water dispenser and ice maker, and it reduces the risk of leaks caused by a mismatched cartridge or incorrect seating.

Related DIY help

• How to replace the water filter in a Whirlpool refrigerator

Last updated: January 2026
