KitchenAid KUDE60FXSS2 undercounter dishwasher Parts
Here are the diagrams and repair parts for KitchenAid KUDE60FXSS2 undercounter dishwasher, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM

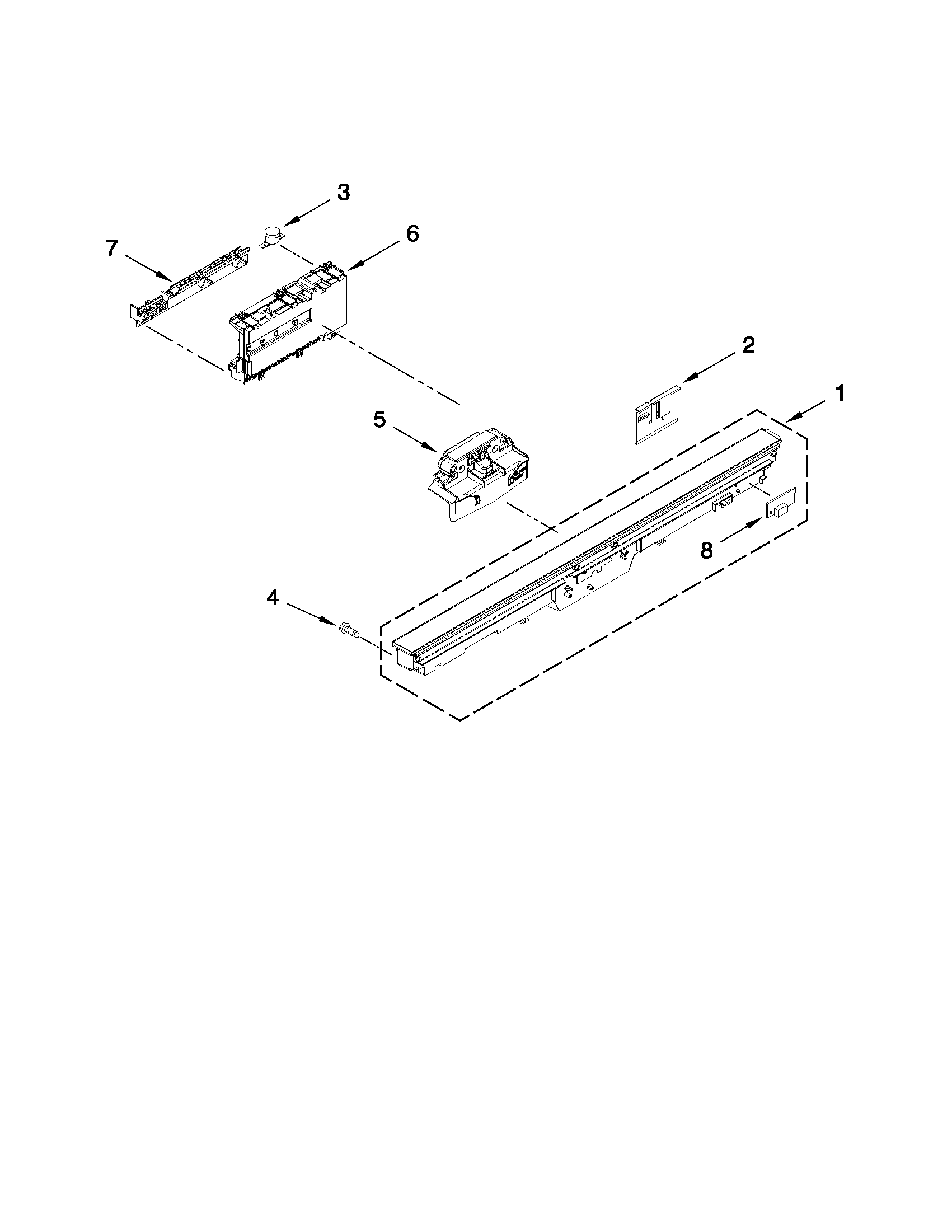

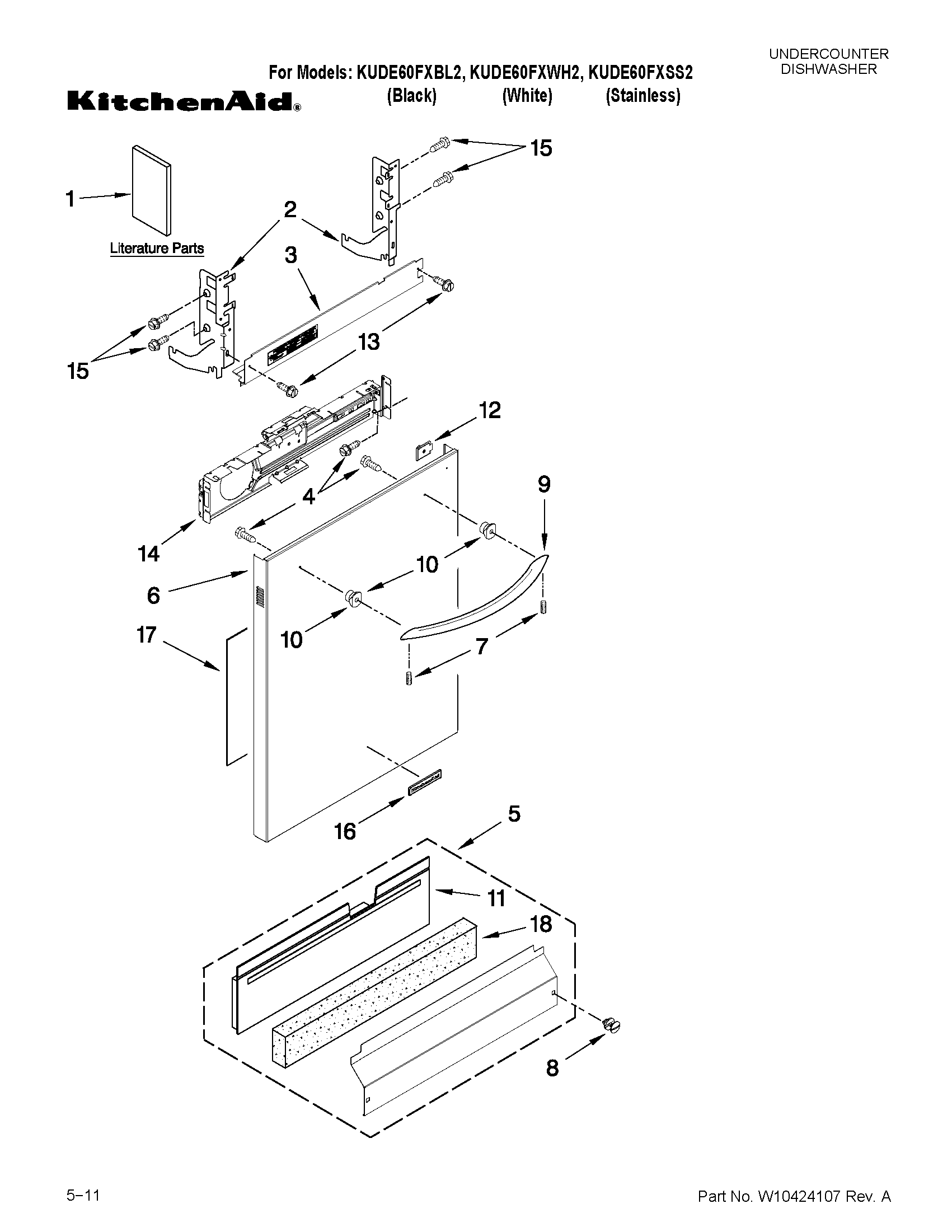

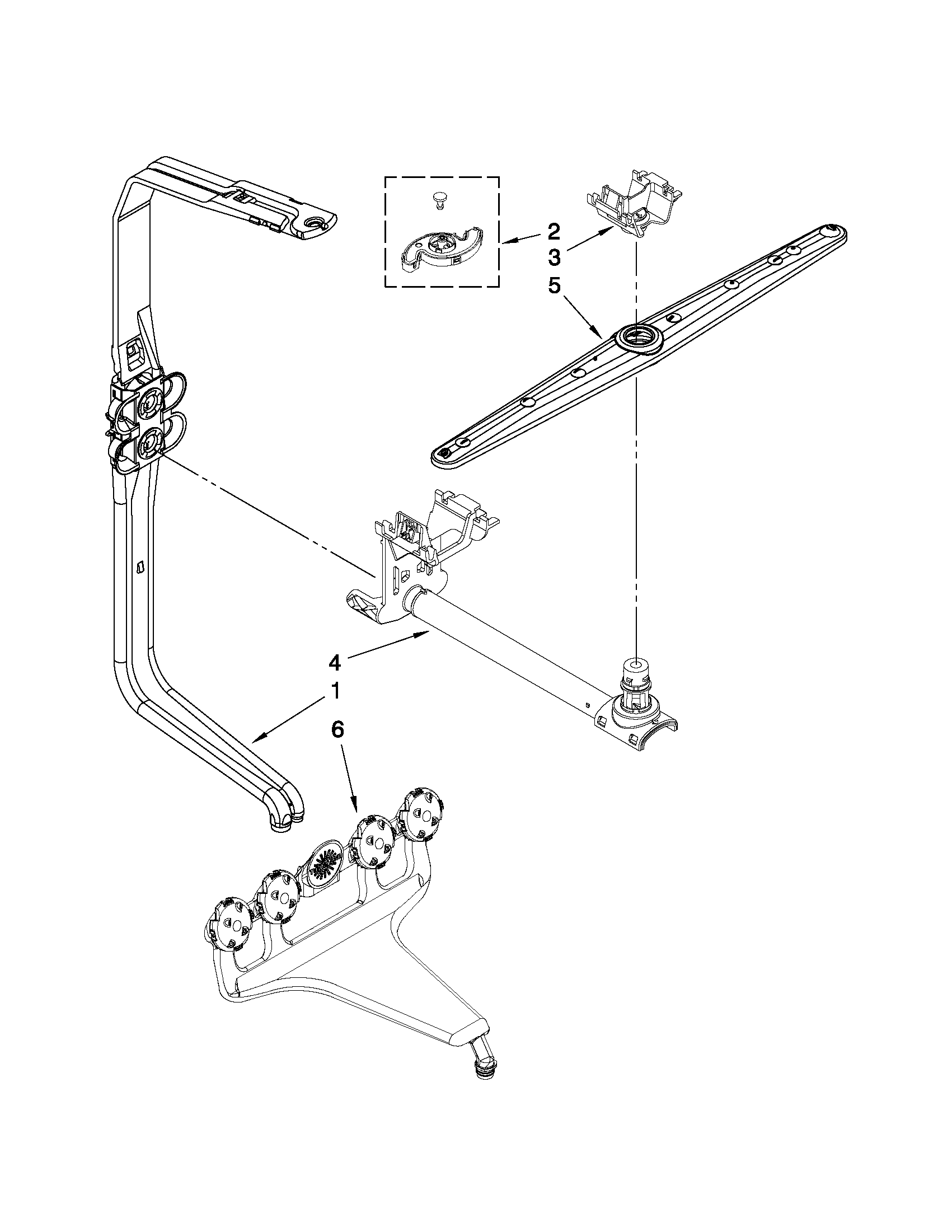

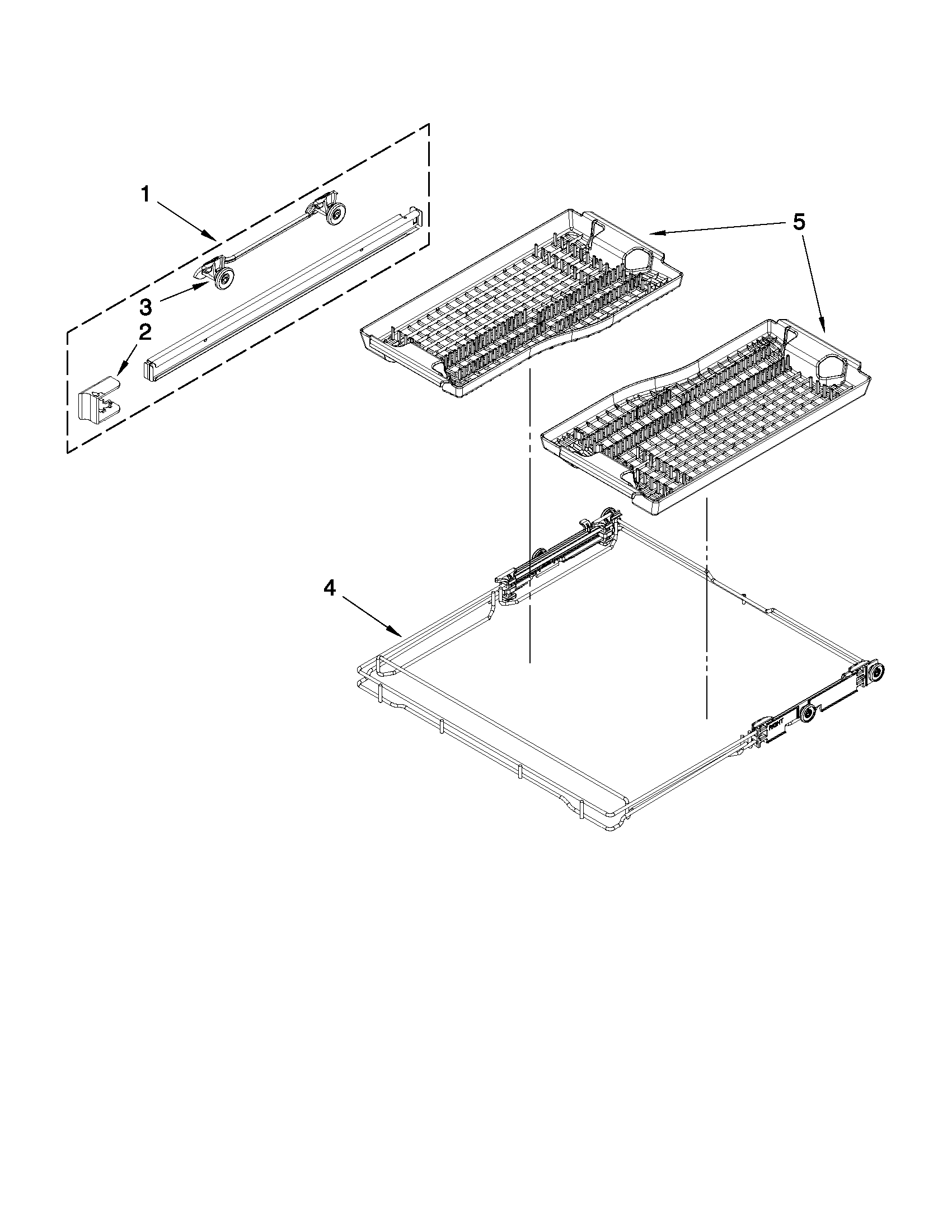

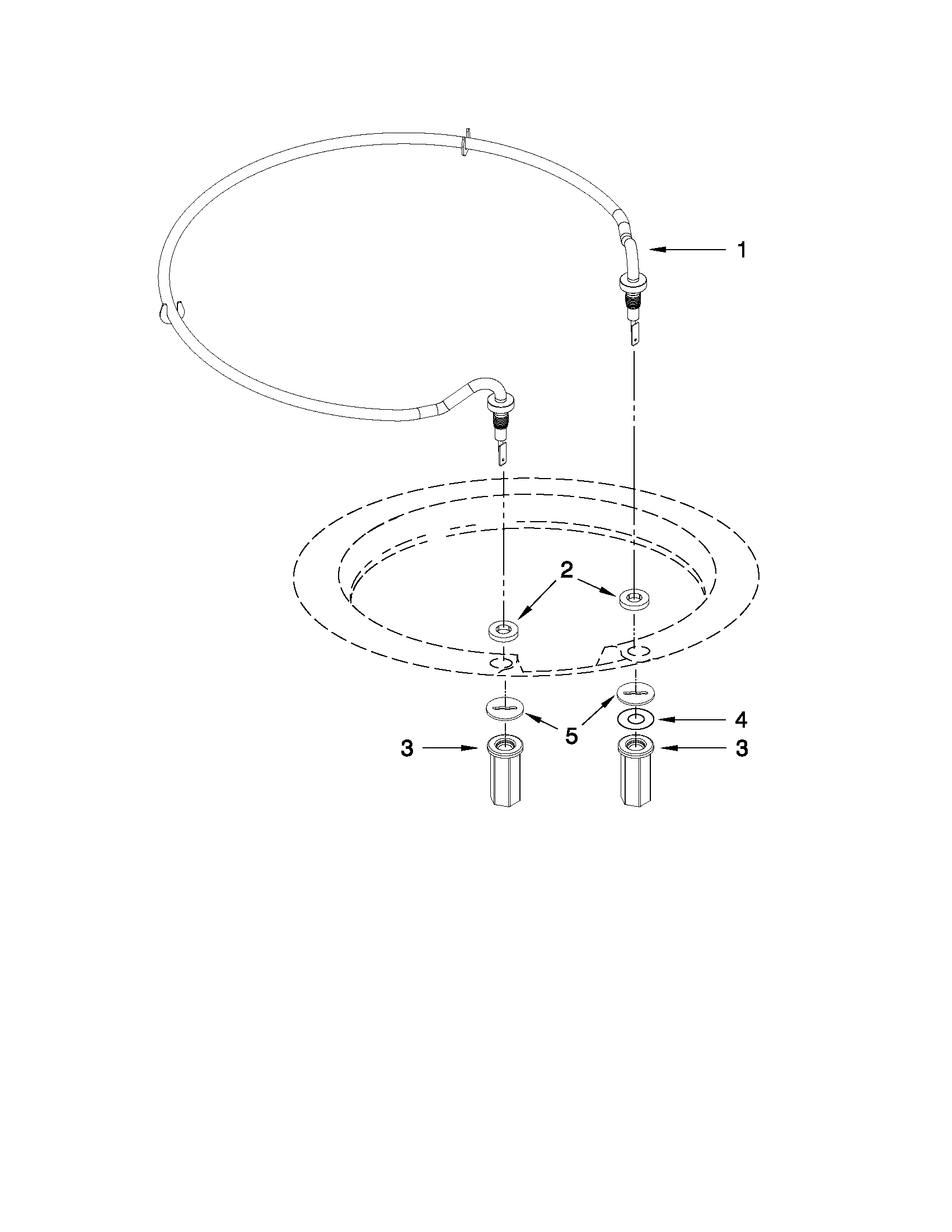

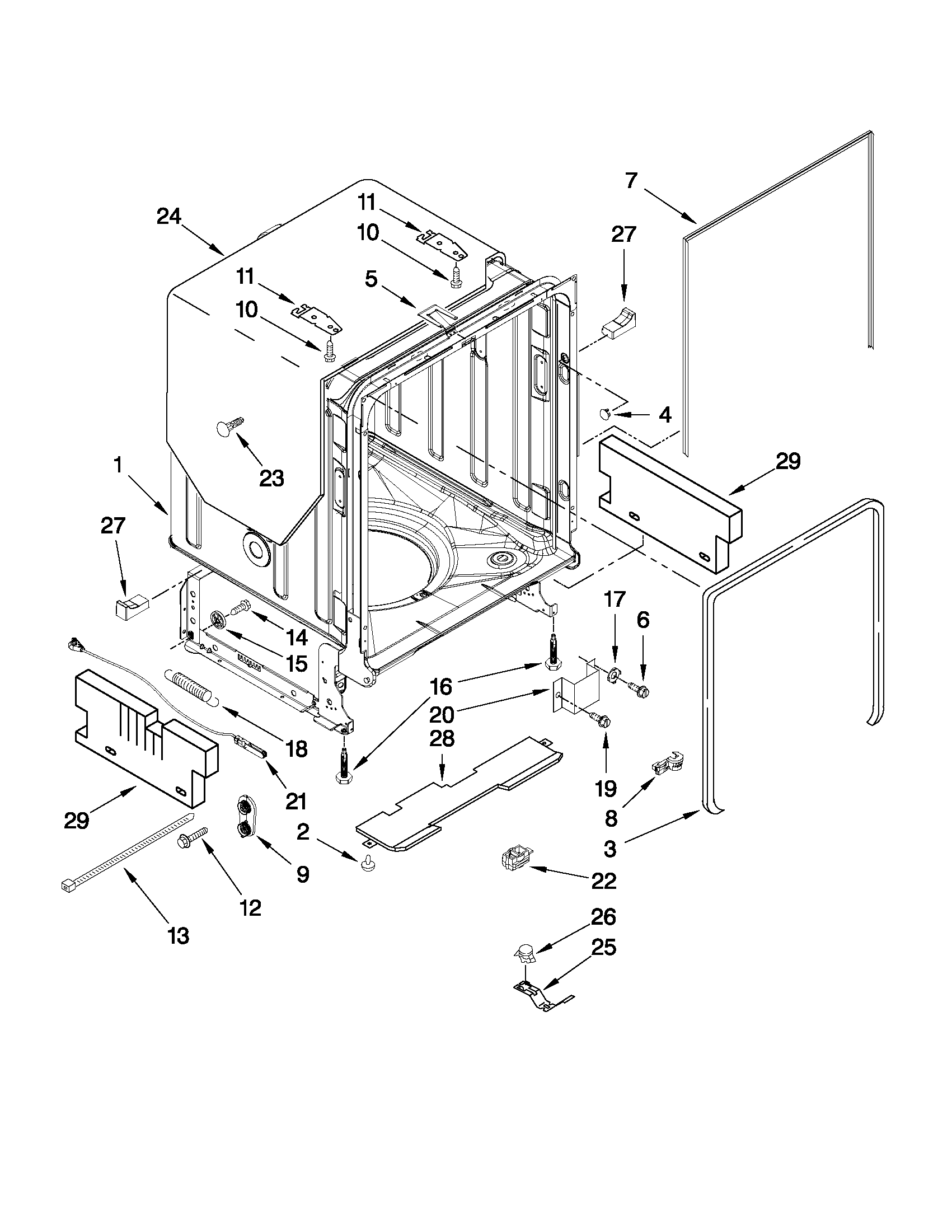

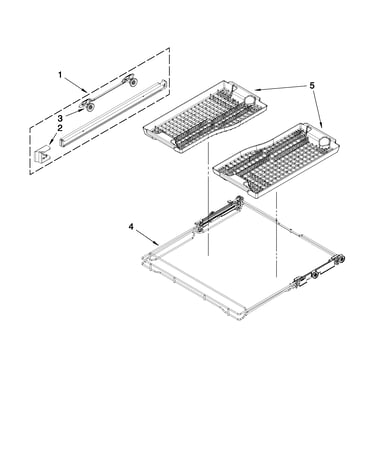

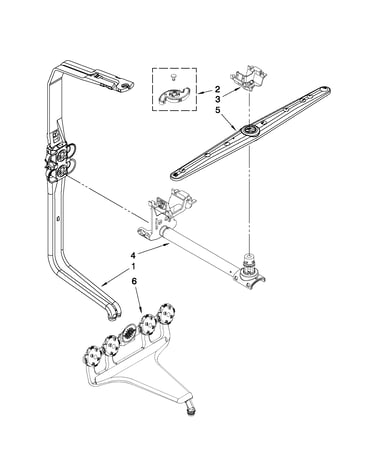

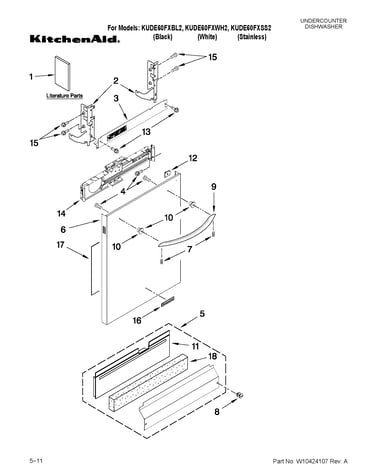

Browse Parts for KUDE60FXSS2 Undercounter Dishwasher

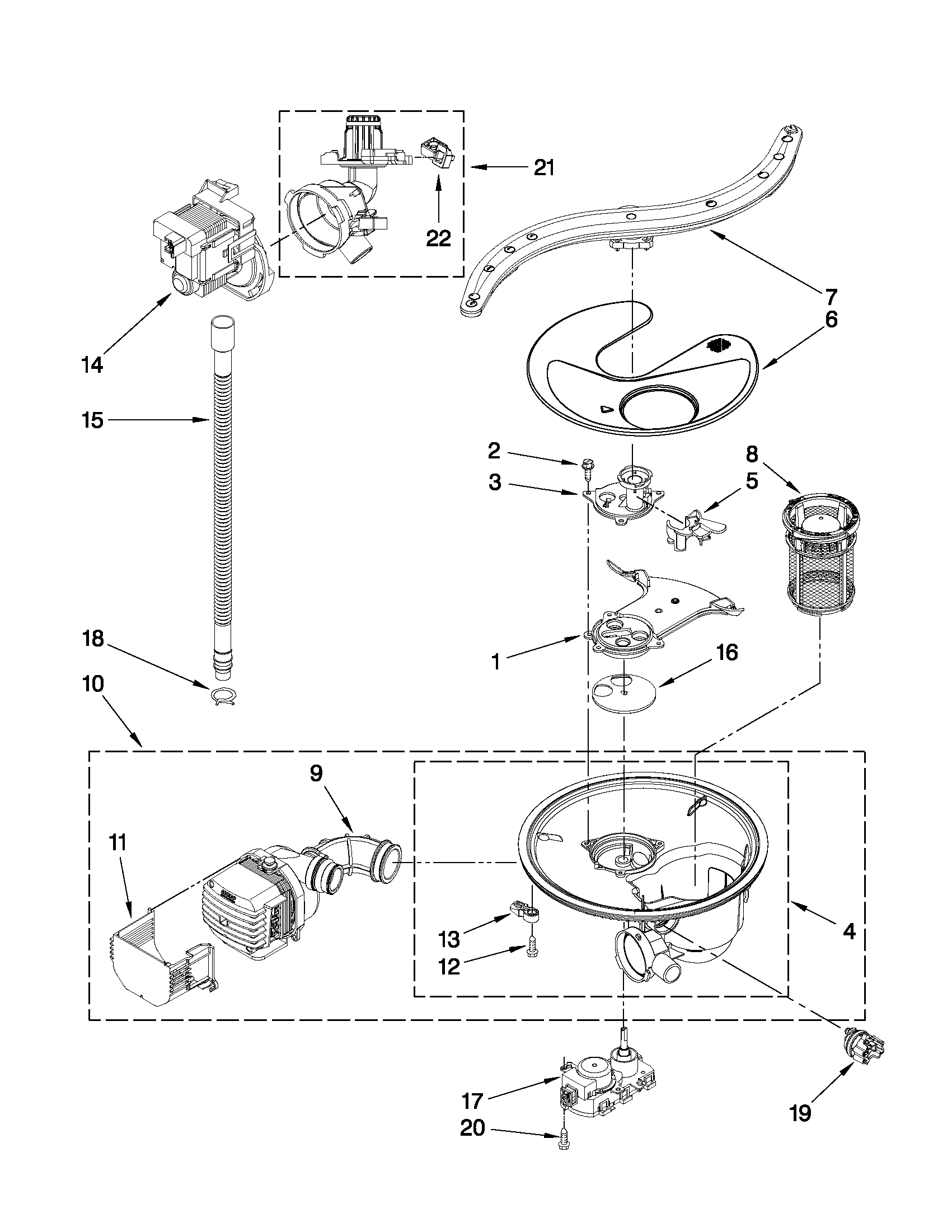

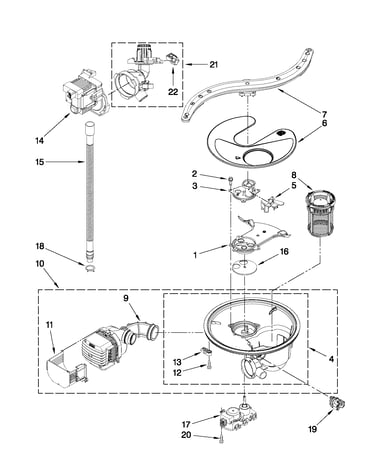

Pump, washarm and motor parts diagram
Dishwasher Drain Pump
Part #W10158351Replaced by #WPW10348269
Manufacturer substitutionThis part replaces W10158351. Substitute parts can look different from the original.In Stock$58.249% OFF Phone Price : $64.24
Qty

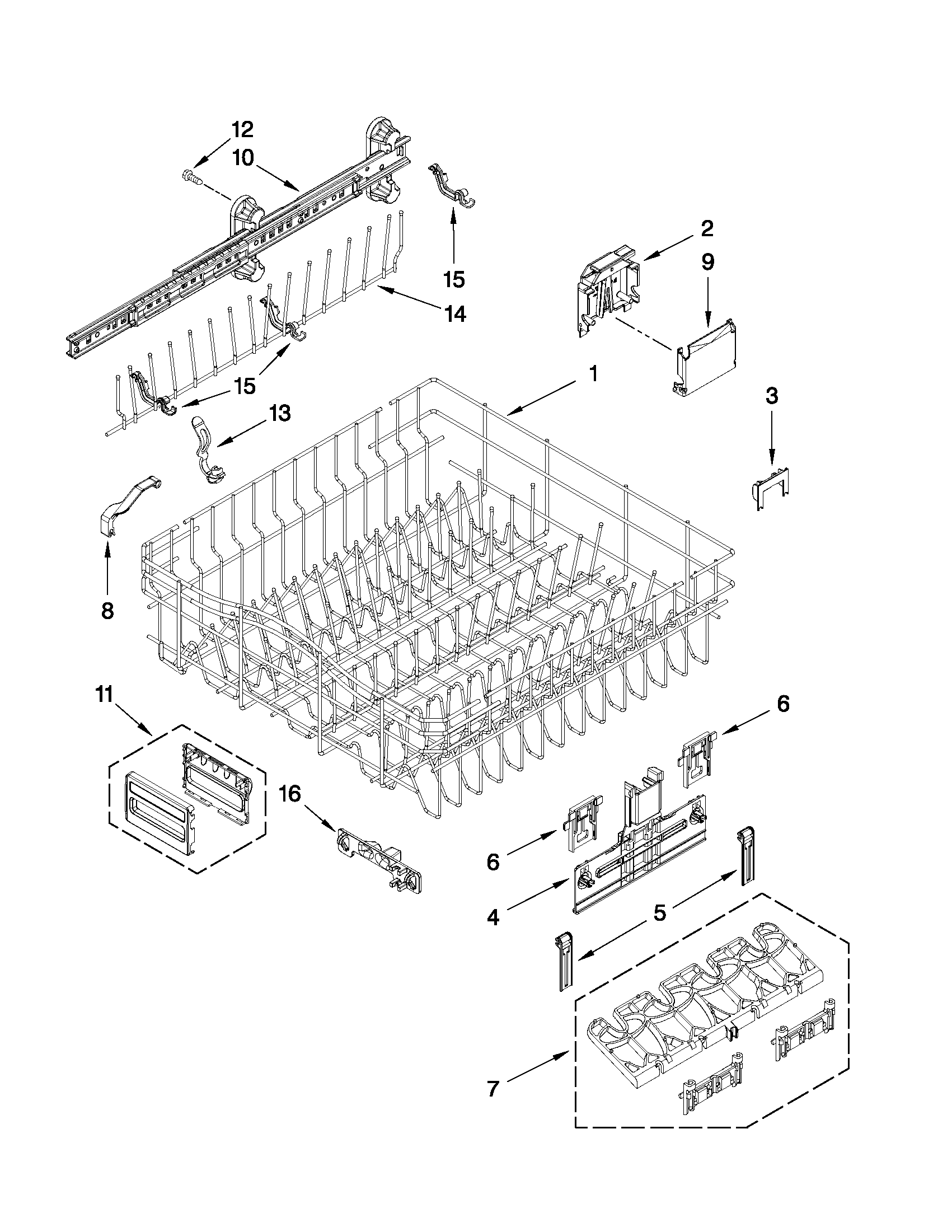

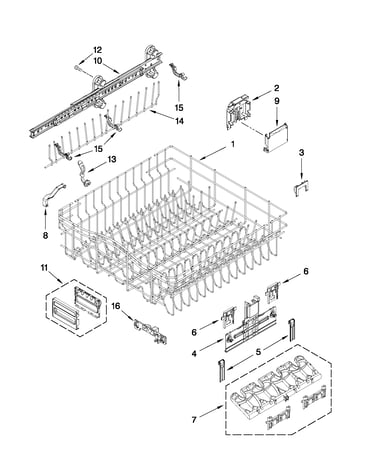

Upper rack and track parts diagram
Adjuster
Part #W10306646Replaced by #WPW10546503

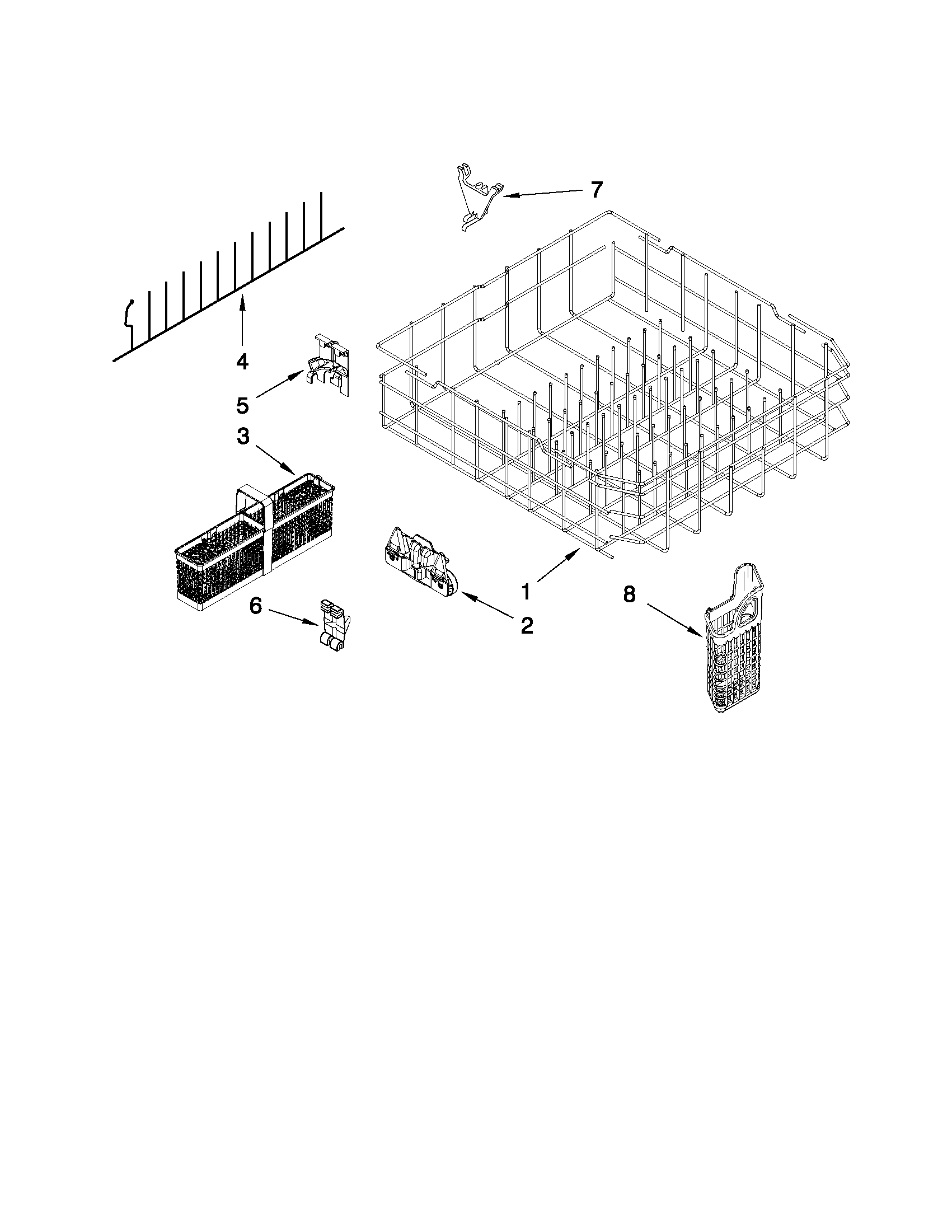

Manufacturer substitutionThis part replaces W10306646. Substitute parts can look different from the original.In Stock$26.9918% OFF Phone Price : $32.99QtyLower rack parts diagram
Whirlpool Dishwasher Dishrack Wheel
Part #W10195416Replaced by #W10195416V

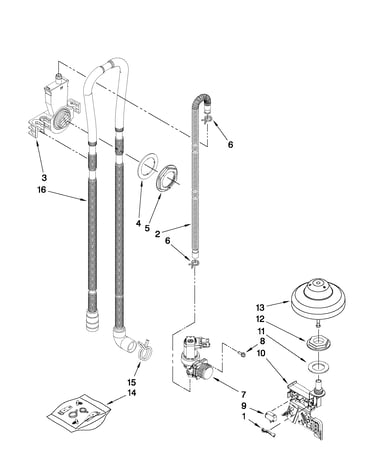

Manufacturer substitutionThis part replaces W10195416. Substitute parts can look different from the original.In Stock$28.3317% OFF Phone Price : $34.33QtyFill, drain and overfill parts diagram
Dishwasher Water Inlet Valve
Part #W10195047Replaced by #W11175771

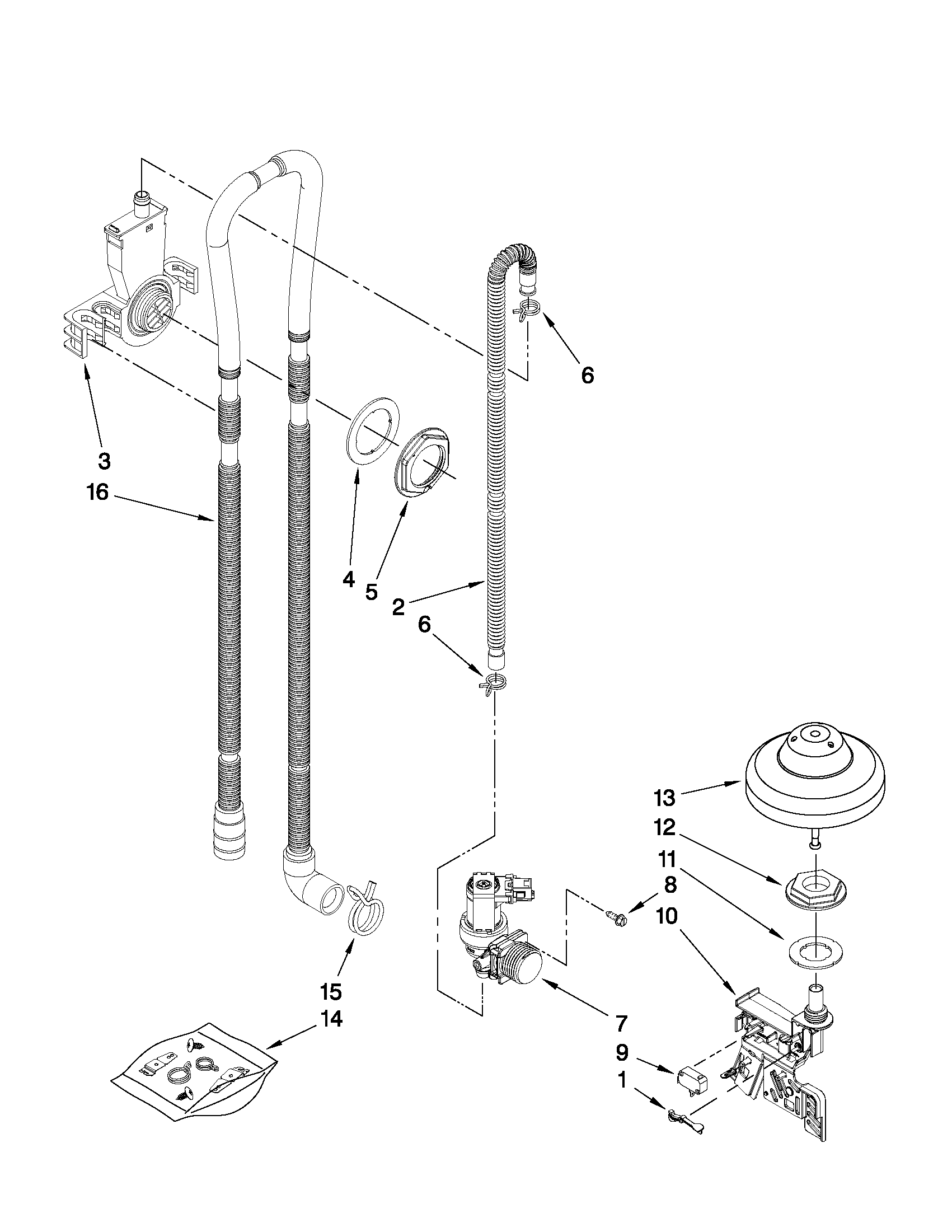

Manufacturer substitutionThis part replaces W10195047. Substitute parts can look different from the original.In Stock$51.9710% OFF Phone Price : $57.97QtyPump, washarm and motor parts diagram
Dishwasher Drain Hose
Part #8269144Replaced by #8269144A
Manufacturer substitutionThis part replaces 8269144. Substitute parts can look different from the original.In Stock$19.779% OFF Phone Price : $21.77QtyUpper rack and track parts diagram
Dishwasher Tine Pivot Clip
Part #W10082853Replaced by #WPW10082853

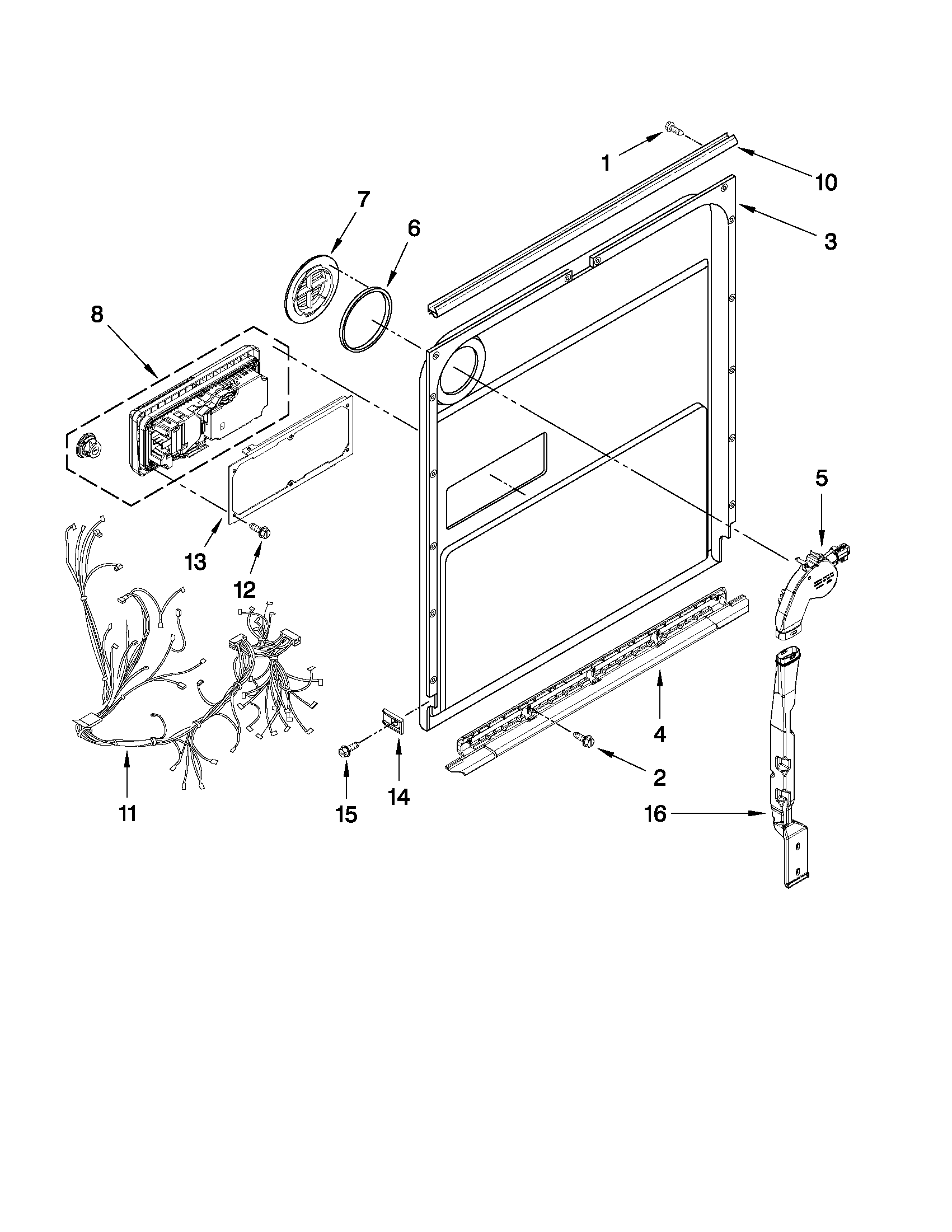

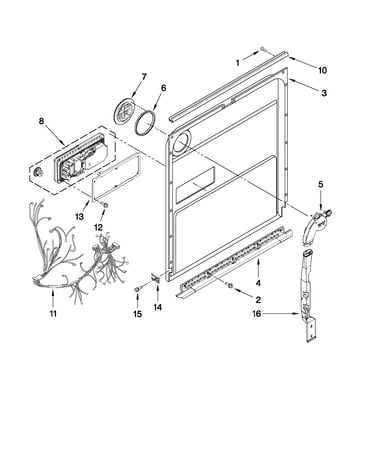

Manufacturer substitutionThis part replaces W10082853. Substitute parts can look different from the original.This item is not returnableIn Stock$6.4613% OFF Phone Price : $7.46QtyInner door parts diagram
Seal
Part #W10195543Replaced by #WPW10497235
Manufacturer substitutionThis part replaces W10195543. Substitute parts can look different from the original.In Stock$6.9113% OFF Phone Price : $7.91QtyUpper rack and track parts diagram
Dishwasher Adjuster Positioner Clip
Part #W10195840Replaced by #WPW10195840
Manufacturer substitutionThis part replaces W10195840. Substitute parts can look different from the original.In Stock$24.9619% OFF Phone Price : $30.96QtyPump, washarm and motor parts diagram
Dishwasher Filter
Part #W10056426Replaced by #W10872845
Manufacturer substitutionThis part replaces W10056426. Substitute parts can look different from the original.In Stock$42.6012% OFF Phone Price : $48.60QtyPump, washarm and motor parts diagram
Dishwasher Turbidity Sensor
Part #W10134017Replaced by #WPW10705575
Manufacturer substitutionThis part replaces W10134017. Substitute parts can look different from the original.In Stock$27.7518% OFF Phone Price : $33.75Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Danby Appliance Touch-up Paint, 0.6-oz (white)
In Stock
$8.46
11% OFF Phone Price : $9.46
Qty
Roper Dishwasher Side Mounting Bracket Kit
In Stock
$27.80
18% OFF Phone Price : $33.80
Qty
Dishwasher Moisture Barrier Kit
Part #4396277
This item is not returnable
In Stock
$22.17
21% OFF Phone Price : $28.17
Qty
Appliance Touch-up Paint, 0.6-oz (black)
Part #72032
This item is not returnable
In Stock
$11.08
15% OFF Phone Price : $13.08
Qty
Most common symptoms to help you fix your dishwashers
Choose a symptom to see related dishwasher repairs.
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…
Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, contro…
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…
Main cause: damaged rack height adjuster…
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure…
Most common repair guides to help fix your dishwashers
These step-by-step repair guides will help you safely fix what’s broken on your dishwasher.
How to replace a dishwasher door latch assembly
If the dishwasher door doesn't click shut, a broken door latch is a likely cause. Follow these instructions to replace i…
Repair time and Difficulty
30 minutes or less
How to replace a dishwasher thermal fuse
A completely dead control panel often indicates that the thermal fuse on the electronic control board is blown; follow t…
Repair time and Difficulty
15 minutes or less
How to replace a dishwasher control panel
Learn how to replace a dishwasher control panel. Learn which tools and parts you need and get step-by-step instructions.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your dishwashers
Use the advice and tips in these articles and videos to get the most out of your dishwasher.
Your dishwasher’s secret weapon? A turbidity sensor. Find out what it does, how it boosts wash quality, and what to do i…
Find out why your dishes are still wet even after the dishwasher cycle has finished.…
It only takes a few minutes to get your dishrack sliding easily again.…
