Model # 6651340591 Official Kenmore compactor

Here are the diagrams and repair parts for Official Kenmore 6651340591 compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

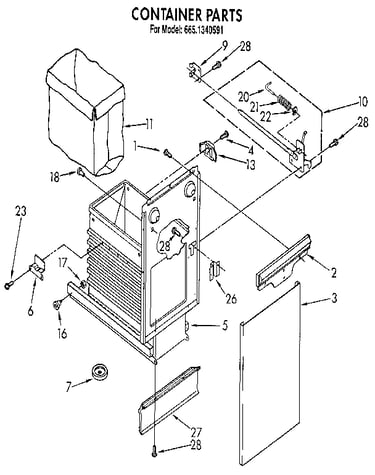

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Drive Gear 4149667
#6

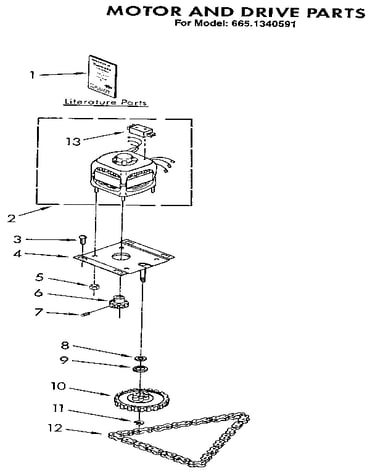

Motor and drive diagram

Drive gear

Part #4149667

Replaced by #882699

?
Manufacturer substitution
This part replaces 4149667. Substitute parts can look different from the original.
BEST SELLER
$55.45 |
8% OFF Phone Price : $60.45
In Stock
Gear 777124
#10

Motor and drive diagram

Gear

Part #777124

Replaced by #882699

?
Manufacturer substitution
This part replaces 777124. Substitute parts can look different from the original.
BEST SELLER
$55.45 |
8% OFF Phone Price : $60.45
In Stock
Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#11I

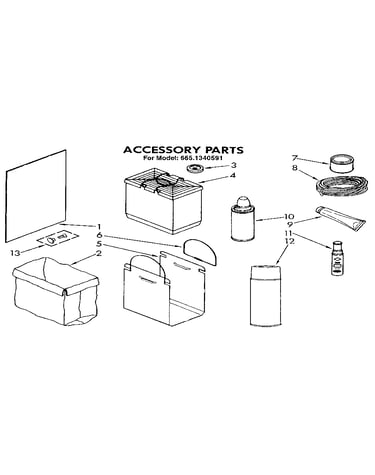

Accessory diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Paint (white) 350930
#12J

Accessory diagram

Paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Motor 780360
#2

Motor and drive diagram

Motor

Part #780360

Replaced by #W10439651

?
Manufacturer substitution
This part replaces 780360. Substitute parts can look different from the original.
BEST SELLER
$181.13 |
14% OFF MSRP : $210.00
In Stock
Switch 777710
#13

Motor and drive diagram

Switch

Part #777710

Replaced by #W10439651

?
Manufacturer substitution
This part replaces 777710. Substitute parts can look different from the original.
BEST SELLER
$181.13 |
14% OFF MSRP : $210.00
In Stock
Carrier 776989
#5

Accessory diagram

Carrier

Part #776989

Replaced by #13030RP

?
Manufacturer substitution
This part replaces 776989. Substitute parts can look different from the original.
This item is not returnable
$28.05 |
15% OFF Phone Price : $33.05
In Stock
Trash Compactor Power Nut 9870163
#12

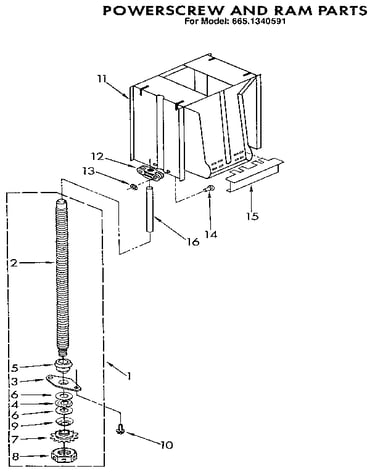

Powerscrew and ram diagram

Trash compactor power nut

Part #9870163

Replaced by #WP9870163

?
Manufacturer substitution
This part replaces 9870163. Substitute parts can look different from the original.
$31.51 |
14% OFF Phone Price : $36.51
In Stock
Bearing 4153788
#4

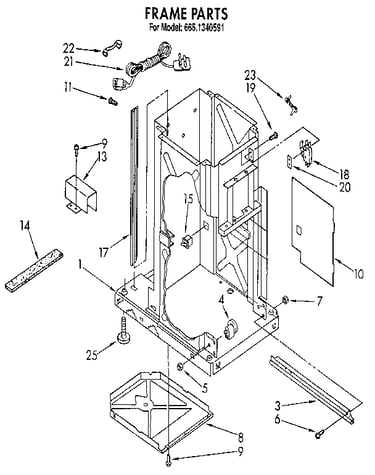

Frame diagram

Bearing

Part #4153788

Replaced by #882688

?
Manufacturer substitution
This part replaces 4153788. Substitute parts can look different from the original.
This item is not returnable
$21.69 |
19% OFF Phone Price : $26.69
In Stock
Control Knob 4154201
#11

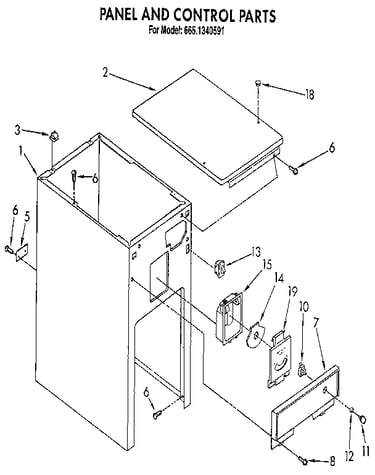

Panel and control diagram
