Is it worth replacing a lawn mower engine?
Yes. Replacing the engine on your Craftsman lawn tractor model 917275023 is worth it when the deck, steering, and transmission are still solid and the total engine-swap cost stays well below the price of a comparable new rider. If multiple major systems are worn out, replacement makes more sense.
Quick decision checklist
- Deck is straight with no rust-through or cracks
- Transmission pulls smoothly (no slipping, no loss of drive on hills)
- Steering and front axle are tight (no excessive play)
- Electrical system is reliable (battery charging, wiring, switches)
- Engine failure is isolated (seized, low compression) rather than one of many problems
Cost and value guide
| What you find | Best move | Why |
|---|---|---|
| Tractor is in good overall condition | Replace the engine | Restores reliability on a known-good chassis |
| Several expensive problems at once | Replace the tractor | Stacked repairs exceed the machine’s value |
| Total repair cost is near 50% of a comparable new rider | Replace the tractor | Avoids putting “new mower money” into an older platform |
What to check before buying an engine
Use the 917275023 owner’s manual for maintenance and safety checks, then focus on these items:
- Safety interlocks: A no-start can be a seat, brake, or PTO interlock issue, not a bad engine.
- Deck and blades: Vibration and poor cut often come from blade issues; the manual specifies 45 to 55 ft-lb blade bolt torque.
- Cooling and fuel basics: Dirty cooling fins or a clogged in-line fuel filter can mimic engine trouble; the manual calls out seasonal fuel filter replacement and keeping cooling shrouds in place.
If it only clicks or won’t crank
Before committing to an engine, follow riding lawn mower engine clicks but doesnt turn over video to rule out battery, cables, solenoid, and starter issues.
Why it matters
An engine swap is a big investment; confirming deck condition, interlocks, and basic fuel and cooling issues prevents replacing an engine when the real problem is elsewhere.
Last updated: February 2026
What is the part number of the oil filter on a Craftsman 917275023?
The oil filter part number for a Craftsman lawn tractor model 917275023 depends on the exact engine installed on the tractor; the correct way to get the right number is to match the oil filter to the engine model and spec shown in the tractor documentation. Use the 917275023 owner's manual to identify the engine and the lubrication parts list.
How we identify the correct oil filter for model 917275023
Use the engine identification information first; oil filters are engine-specific.
- Locate the engine ID label (usually on the blower housing or valve cover area).
- Write down the engine brand (Kohler, Briggs & Stratton, etc.).
- Record the full engine model and spec/type code.
- In the manual, find the engine section and lubrication or maintenance information.
- Match the oil filter by the engine model and spec, then order that exact part number.
What to look for in the manual
The manual for Craftsman 917275023 includes tractor and engine sections that help you confirm the correct filter family.
| What you need | Where to find it | Why it matters |
|---|---|---|
| Engine model | Engine ID label and manual engine section | Determines the correct filter thread and gasket size |
| Spec/type code | Engine ID label | Prevents ordering a filter for a different engine variant |
| Maintenance interval | Manual maintenance schedule | Helps you stock the right filter and oil |
Common mix-ups to avoid
- Ordering a filter using a marketplace listing title instead of an OEM part number.
- Assuming all Craftsman 917 tractors use the same engine.
- Mixing up the oil filter with the air filter or fuel filter.
Why it matters
Using the correct oil filter for the engine on your Craftsman 917275023 prevents leaks, maintains proper oil flow, and protects the engine under mowing load.
Last updated: February 2026
What kind of engine does a Craftsman riding lawn mower have?
The Craftsman lawn tractor model 917275023 is equipped with a 23.0 HP engine (as listed in the owner’s manual). It’s a low-emission design, so it can run a bit differently than older engines; using the correct starting and throttle procedure helps it perform and charge the battery properly. See the 917275023 owner’s manual.
What we can confirm for model 917275023
From the manual for this specific Craftsman riding mower:
- Engine power rating: 23.0 HP
- Starting system: Electric start
- Emissions: Low-emission engine design
- Tractor type: Garden tractor (front-engine riding mower)
- Operating tip: Best performance and battery charging happen at full throttle
What “low-emission engine” means for operation
Low-emission engines often have different carburetion and choke behavior than older designs. For reliable starts and smooth mowing:
- Use the choke for cold starts, then disengage it gradually
- Run at full throttle while mowing for best cut quality
- Avoid extended idling on grass; hot exhaust can brown turf
- Turn the key to STOP when parked to prevent battery drain
Quick reference: common engine-related symptoms
| Symptom | Most common cause | First check |
|---|---|---|
| Clicks but won’t crank | Weak battery or bad connections | Battery charge, terminals |
| Cranks but won’t start | Fuel or ignition issue | Fresh fuel, choke use |
| Battery keeps going dead | Key left on, charging issue | Key position, wiring |
For step-by-step help, use riding lawn mower engine clicks but doesnt turn over video or riding lawn mower engine spins but wont start video.
Why it matters
Knowing the correct engine type and operating method for Craftsman 917275023 helps you start safely, mow with full power, and avoid common issues like poor charging, hard starting, and premature battery drain.
Last updated: February 2026
What model number is a Craftsman 917275023 lawn mower?
The model number for this Craftsman riding lawn tractor is 917.275023 (often written without the dot as 917275023). You’ll find it on the tractor’s model label and on the cover page of the 917275023 owner's manual.
Where to find the model number on the tractor
Check these common locations on Craftsman front-engine lawn tractors:
- Under the seat on the seat pan or frame
- On the rear fender area near the seat
- On the frame rail near the engine
- Under the hood near the dash tower
- Near the transmission area (rear frame)
If the label is dirty or faded, wipe it with a damp rag and read it with a flashlight at an angle.
Why “917.275023” and “917275023” both show up
Craftsman manuals and labels often print the model with a dot (917.275023), while parts listings and searches commonly use the same number without punctuation (917275023). Both refer to the same tractor.
| You might see it written as | What it means |
|---|---|
| 917.275023 | Printed format used in the owner’s manual and some labels |
| 917275023 | Search-friendly format used in parts lookups |
Why it matters (parts and diagrams)
Using the exact model number ensures you get the right diagrams and parts for your tractor’s configuration (engine, mower deck, ground drive, and steering). Even small model-number differences can change items like the mower deck hardware, idler pulleys, or the PTO electrical system.

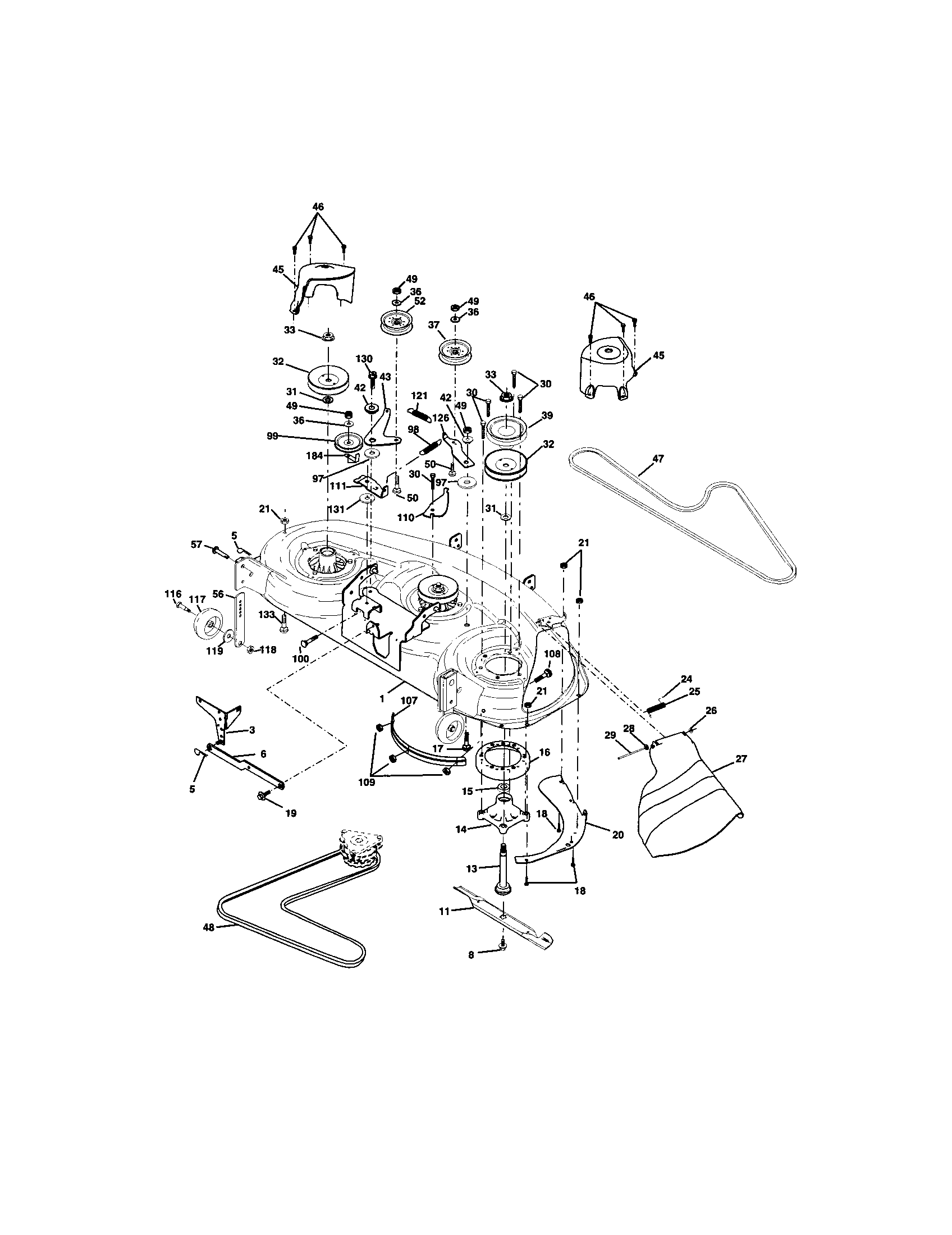

If you’re ordering a common wear part, match it to your diagram callout first. For example, the mower deck section lists a push nut that corresponds to wizard lawn tractor push nut 532110452.
Last updated: February 2026
Where can I find my lawn mower engine model number?

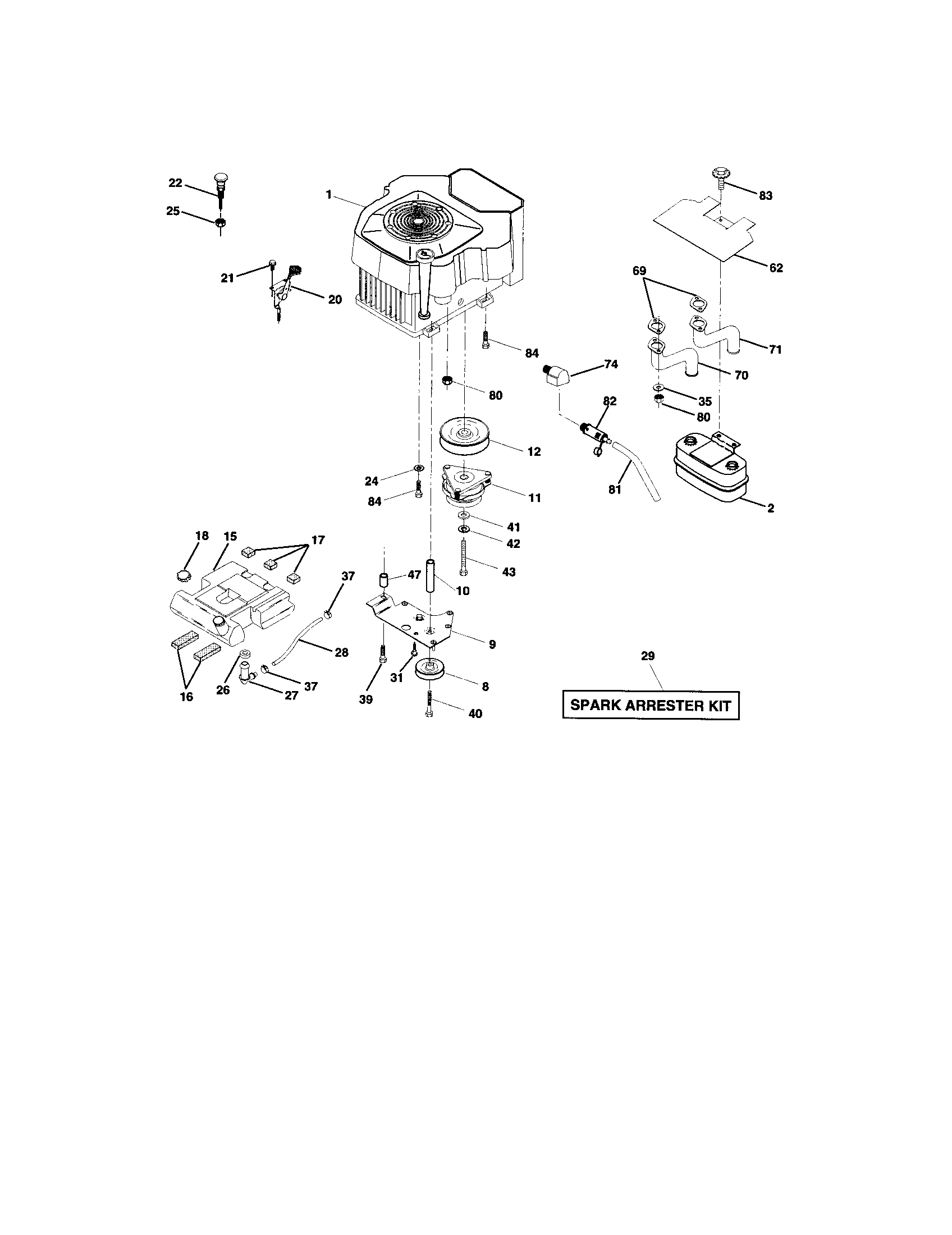

On your Craftsman lawn tractor model 917275023, the engine model number is on the engine identification label or a stamped ID pad on the engine itself. Use the engine ID (not the tractor model) when ordering engine-specific parts; see the 917275023 owner's manual for the engine breakdown and identification details.
Where to look on the engine
Check these common locations on riding mower engines (Kohler and similar):
- On the blower housing/engine shroud (sticker or metal tag)
- On the valve cover area or near the cylinder head
- On the crankcase near the starter or oil filter
- On a flat machined pad on the engine block with numbers stamped in
- Under dirt or oil buildup; wipe clean so the label or stamping is readable
What numbers to record
Write down the full engine identification so parts match correctly:
- Engine model
- Engine type/spec (or “spec”) number
- Engine serial number
| Number you find | What it identifies | What it helps you buy |
|---|---|---|
| Tractor model (917275023) | Tractor chassis and deck | Belts, blades, steering, frame, switches |
| Engine model | Engine family | Filters, ignition parts, gaskets, carburetor kits |
| Engine type/spec | Exact engine build | Correct starter, fuel system, and tune-up variations |
Why it matters
Many Craftsman tractors share similar chassis parts, but engine parts vary by engine model and spec. Using the engine model and type/spec prevents ordering the wrong ignition, fuel, or lubrication components.
Last updated: February 2026
