Model # ZGW124EN5SS Official GE gas cooktop

Here are the diagrams and repair parts for Official GE ZGW124EN5SS gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Cooktop Spark Module WB21X10029
#44

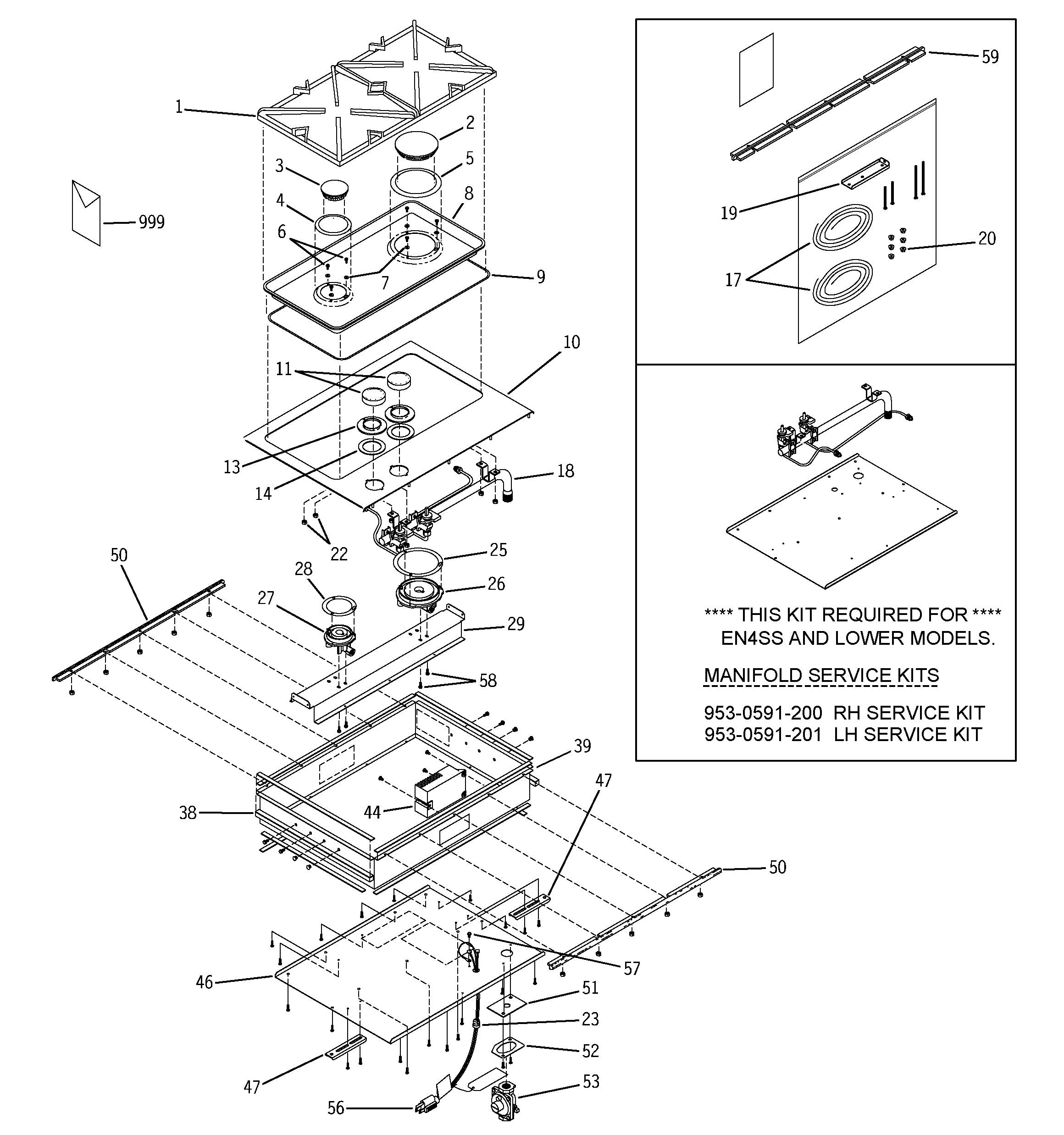

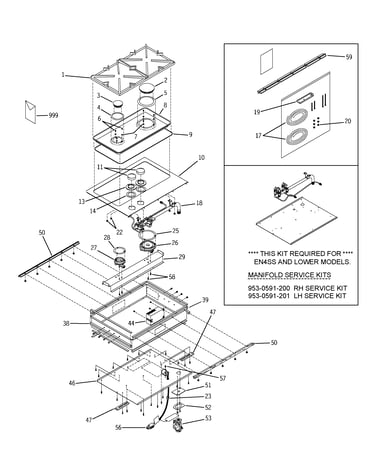

Controls, cooktop & burner diagram

Cooktop spark module

Part #WB21X10029

$192.50 |
5% OFF Phone Price : $202.50
In Stock
Installation 49-8834-1
#999

Controls, cooktop & burner diagram

Installation

Part #49-8834-1

This item is not returnable
$2.99
In Stock
Use And Care Guide 49-8835-1
#999

Controls, cooktop & burner diagram

Use and care guide

Part #49-8835-1

$8.49
In Stock
Screw, #8 WB01X10172
#58

Controls, cooktop & burner diagram

Screw, #8

Part #WB01X10172

$8.11
In Stock
Burner WB28X10048
#27

Controls, cooktop & burner diagram

Burner

Part #WB28X10048

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief WB02X10500
#23

Controls, cooktop & burner diagram

Strain relief

Part #WB02X10500

The manufacturer no longer makes this part, and there's no substitute part

Gasket Skirt WB02X10825
#14

Controls, cooktop & burner diagram

Gasket skirt

Part #WB02X10825

The manufacturer no longer makes this part, and there's no substitute part

Small Burner Gasket WB02X8045
#28

Controls, cooktop & burner diagram

Small burner gasket

Part #WB02X8045

The manufacturer no longer makes this part, and there's no substitute part

Trim Ring WB02X10499
#5

Controls, cooktop & burner diagram

Trim ring

Part #WB02X10499

The manufacturer no longer makes this part, and there's no substitute part

Burner WB28X10047
#26

Controls, cooktop & burner diagram

Burner

Part #WB28X10047

The manufacturer no longer makes this part, and there's no substitute part
