GE
Dehumidifier

Model # AHG25LAG1 Official GE dehumidifier

Here are the diagrams and repair parts for Official GE AHG25LAG1 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Evaporator WK87X10007
#120

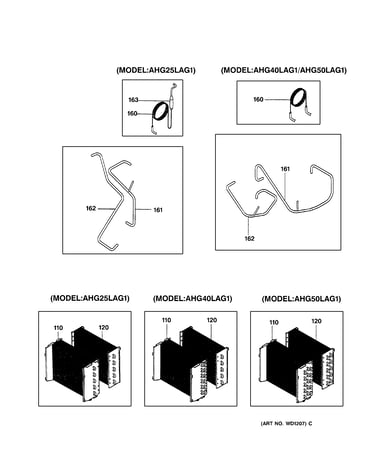

Unit parts diagram

Evaporator

Part #WK87X10007

$58.99
In Stock
Dehumidifier 49-7379-1
#9999

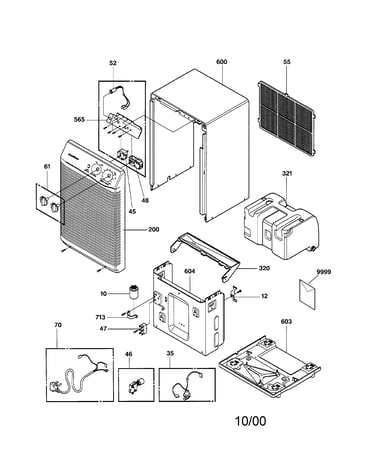

Outer case & control parts diagram

Dehumidifier

Part #49-7379-1

Replaced by #49-7379-2

?
Manufacturer substitution
This part replaces 49-7379-1. Substitute parts can look different from the original.
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Shroud WK76X10004
#605

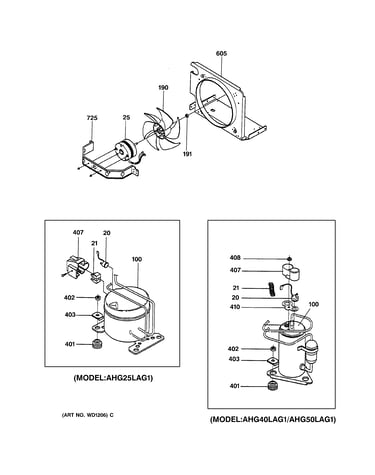

Fan & compressor diagram

Shroud

Part #WK76X10004

The manufacturer no longer makes this part, and there's no substitute part

Evaporator WK87X10005
#120

Unit parts diagram

Evaporator

Part #WK87X10005

The manufacturer no longer makes this part, and there's no substitute part

Washer WJ01X10065
#403

Fan & compressor diagram

Washer

Part #WJ01X10065

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube WK53X10008
#160

Unit parts diagram

Capillary tube

Part #WK53X10008

The manufacturer no longer makes this part, and there's no substitute part

Barrier WK76X10003
#604

Outer case & control parts diagram

Barrier

Part #WK76X10003

The manufacturer no longer makes this part, and there's no substitute part

Discharge Tube WK53X10007
#162

Unit parts diagram

Discharge tube

Part #WK53X10007

The manufacturer no longer makes this part, and there's no substitute part

Grille Assembly WK71X10004
#200

Outer case & control parts diagram

Grille assembly

Part #WK71X10004

The manufacturer no longer makes this part, and there's no substitute part

Power Cord WK35X10004
#70

Outer case & control parts diagram

Power cord

Part #WK35X10004

The manufacturer no longer makes this part, and there's no substitute part
