On the LG LFC20760ST bottom-mount refrigerator, the most common “problem” is not one single defect; it is a set of issues that show up more often in bottom-freezer designs: warm temperatures from poor airflow, water leaks from a clogged defrost drain, and ice maker or dispenser trouble tied to water supply parts. For model-specific checks and settings, use the LFC20760ST owner's manual.

Most common problems we see (and what they usually mean)

• Freezer cold but fresh food warm: restricted airflow, frost buildup on the evaporator cover, or a damper/airflow issue.
• Water pooling under the crisper or on the floor: defrost drain clog or a damaged drain line (often the refrigerator drain tube 5251JA3003D).

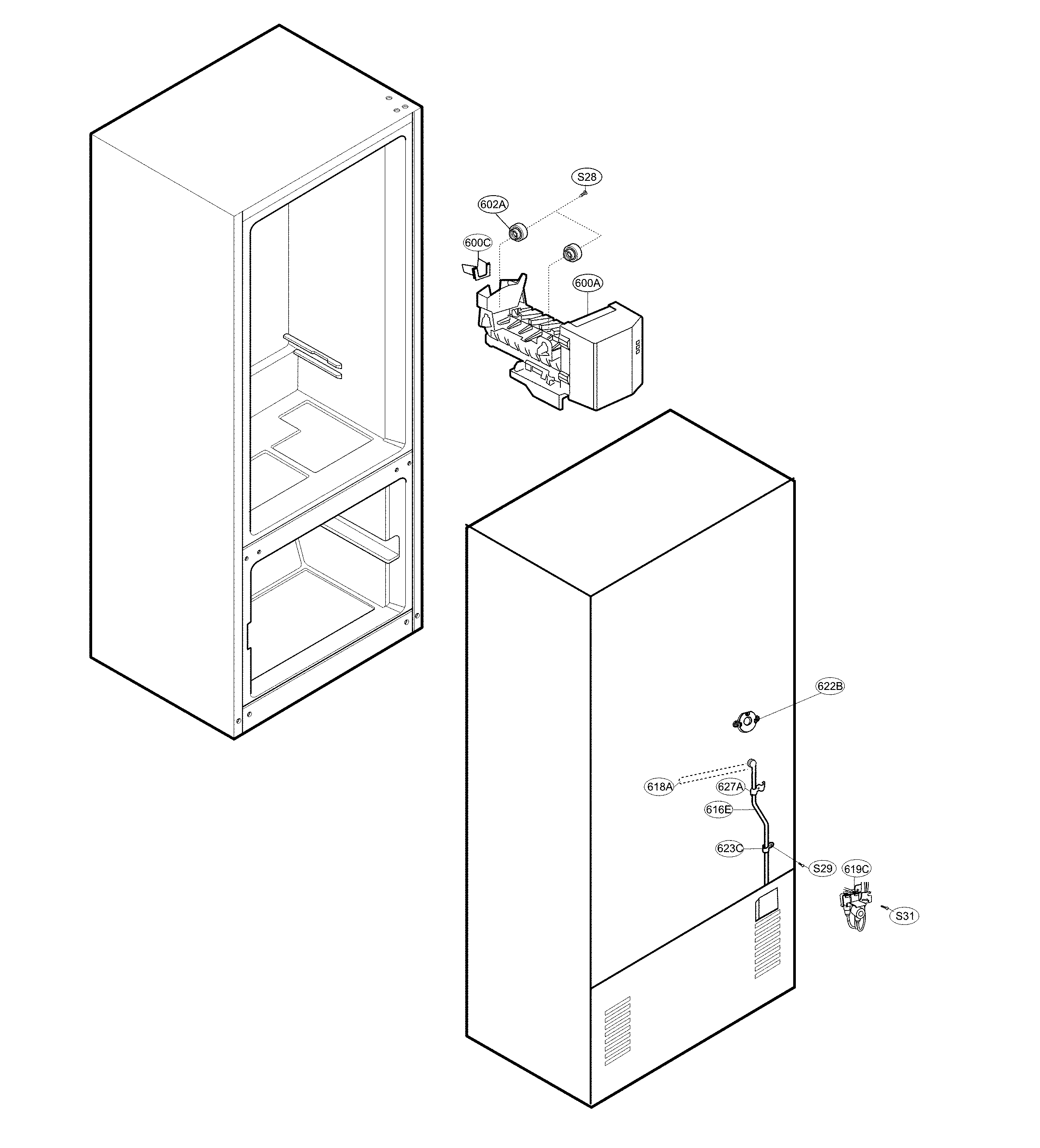

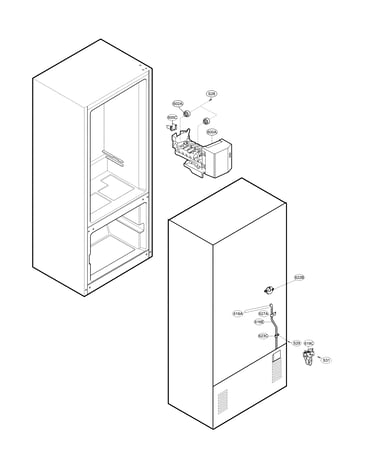

• No ice or slow ice production: low house water pressure, a kinked water line, or a failing inlet valve (such as the LG refrigerator water inlet valve AJU73753101).
• Lights off or fan behavior changes when door opens: a sticking door switch (the LG refrigerator door switch 6600JB1010A is a common fix).
• Clicking, humming, or not cooling at all: start device issues, condenser fan problems, or sealed-system/compressor concerns.

Quick troubleshooting checklist (safe, high-impact steps)

• Confirm temperature settings; typical targets are 37°F fresh food and 0°F freezer.
• Make sure vents are not blocked by food packages.
• Clean condenser coils and verify the condenser fan runs when the compressor runs.
• Check door seals for gaps and confirm doors close without bouncing.
• If you see water, inspect and clear the defrost drain path and drain tube.

Symptom-to-likely-cause guide

Symptom	Most likely cause	What to check first
Fresh food warm, freezer OK	Airflow restriction or frost buildup	Vents, frost behind rear panel, damper area
Water under drawers	Clogged defrost drain	Drain opening, drain tube routing
No ice	Water supply or inlet valve	Shutoff valve open, line kink, valve operation
Interior light issues	Door switch	Switch action and alignment

Why it matters

Bottom-mount refrigerators like the LG LFC20760ST rely on steady airflow between compartments and a clear defrost drain. When airflow is restricted or the drain clogs, temperatures swing and water leaks start, which can also stress the compressor and fans over time.

Related DIY help

• Use how to get rid of refrigerator puddles for step-by-step leak checks.
• If the issue is ice or water related, follow how to diagnose a faulty refrigerator water inlet valve.

Last updated: January 2026

On the LG LFC20760ST bottom-mount refrigerator, ice building up on the freezer floor almost always happens when moisture is getting in (door not sealing or not closing) or when defrost water cannot drain away and refreezes at the bottom. Use the LFC20760ST owner's manual to confirm the exact access points and cleaning steps for your freezer drain.

Most common causes (and what to check first)

• Freezer drawer not fully closing: packages, an overfilled basket, or a misaligned drawer track can hold the drawer open slightly.
• Dirty, torn, or warped door gasket: warm, humid air leaks in and turns into frost and ice.
• Clogged or frozen defrost drain: meltwater backs up, runs to the bottom, then refreezes.
• Door not being sensed as closed: the light can stay on and add heat, increasing melt and refreeze cycles; check the LG refrigerator door switch 6600JB1010A.
• High humidity or frequent openings: normal moisture load increases frost, especially if the drawer is opened often.

Quick fix: clear a frozen or clogged drain

1. Unplug the refrigerator.
2. Remove the freezer drawer/bins and look for a sheet of ice on the freezer floor.
3. Melt the ice with a hair dryer on low (keep it moving) or use warm towels.
4. Flush the drain area with warm water until it flows freely.
5. If the drain tube is cracked, kinked, or won’t clear, replace the refrigerator drain tube 5251JA3003D.

Door seal and closure checks

• Clean the gasket with warm water and mild dish soap; dry fully.
• Do the paper test: close the drawer on a strip of paper; it should resist being pulled out all around.
• Confirm the drawer slides smoothly and sits level; worn hardware can prevent a tight seal.

Symptom	Most likely issue	Best next step
Ice sheet only on freezer floor	Drain frozen/clogged	Defrost and flush drain
Frost on walls and food	Air leak at gasket/door	Clean gasket, check closure
Light stays on or door ajar behavior	Door switch/closure issue	Test/replace door switch

Why it matters

Ice on the freezer bottom can block airflow and cause temperature swings, which leads to soft ice cream, freezer burn, and extra compressor run time.

Last updated: January 2026

For LG model LFC20760ST, a leak from the bottom is usually caused by a clogged defrost drain that overflows into the fresh food section and runs down, or by a water supply issue (valve, line, or connection) if the unit has an ice maker or water dispenser. Use the LFC20760ST manual to confirm access points and safety steps.

Quick checks that solve most bottom leaks

• Look for water under the crisper drawers; this strongly points to a defrost drain clog.
• Check the freezer floor for ice; meltwater can spill forward when the drain is blocked.
• Inspect the water line and fittings behind the refrigerator for drips.
• Check the inlet valve area for seepage or mineral buildup.
• Confirm doors close tightly; warm air can increase frost and overwhelm the drain.

Step-by-step: clear a likely defrost drain clog

1. Unplug the refrigerator.
2. Remove items and drawers as needed to look for standing water.
3. If you see ice at the drain trough, thaw it with warm air (hair dryer on low, kept moving).
4. Flush the drain with hot water using a turkey baster until it flows freely.
5. If the drain outlet or tube is split or loose, replace the drain component.

If the drain tube is damaged or not draining consistently, replacing the refrigerator drain tube 5251JA3003D is a common fix.

If the leak is related to the water system

If the leak only happens when the ice maker fills or after dispensing water, focus on the inlet valve and supply line.

Symptom	Most likely area	What to do next
Slow drip at back, constant	Water line fitting	Tighten compression nut; replace tubing if cracked
Drip only during fills	Inlet valve	Inspect for seepage; replace valve if leaking
Puddle after filter change	Filter not seated	Reinstall filter; purge air and recheck

For valve-related leaks on this model, the LG refrigerator water inlet valve AJU73753101 is a common replacement part.

Why it matters

Bottom leaks can damage flooring and also lead to icing, odors, and temperature swings. Fixing the root cause (drain, valve, or door sealing) prevents repeat leaks and helps the refrigerator cool efficiently.

Related help: how to get rid of refrigerator puddles.

Last updated: January 2026
