Craftsman 917253250 tractor Parts
Here are the diagrams and repair parts for Craftsman 917253250 tractor, as well as links to manuals and error code tables, if available.
Owner’s manual

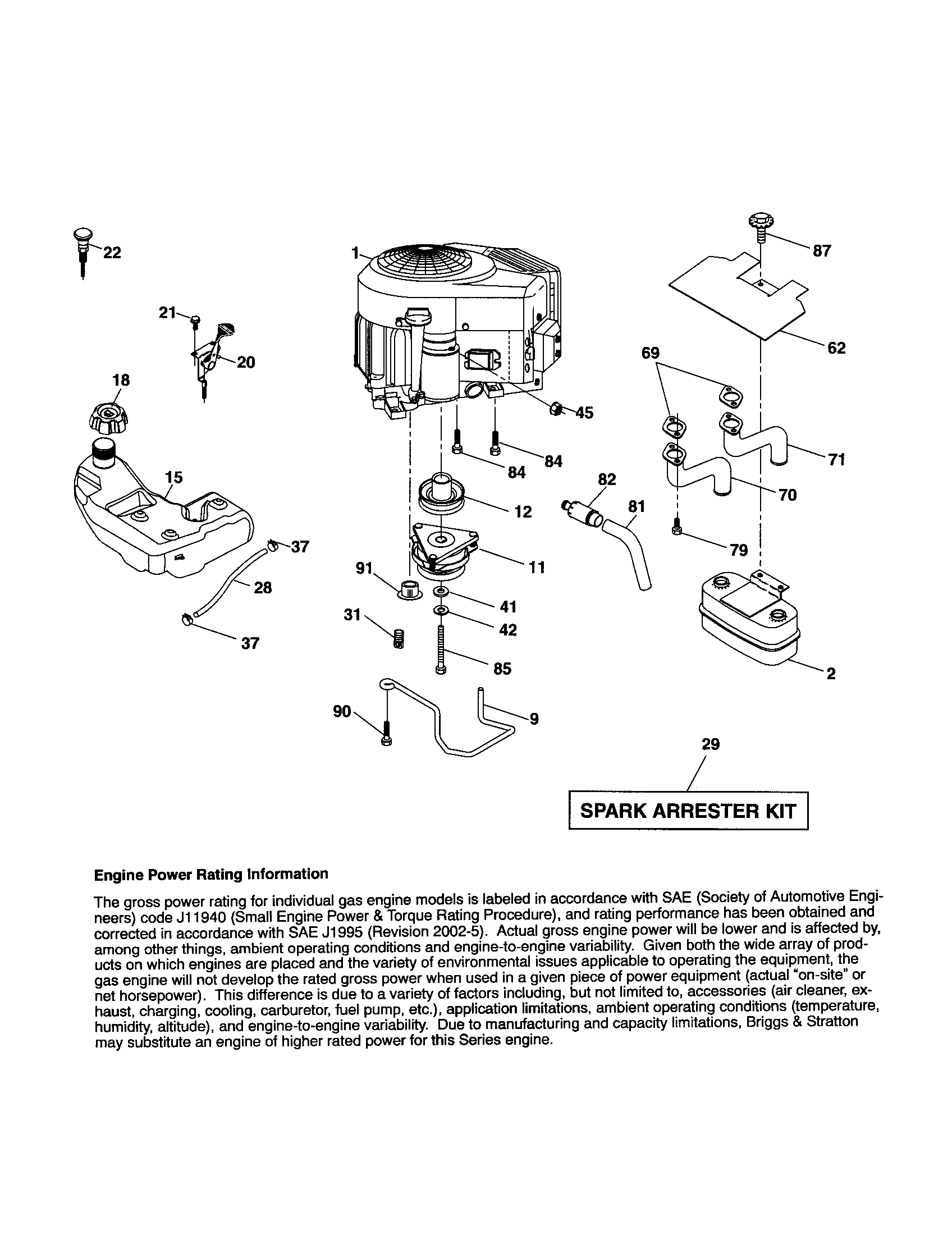

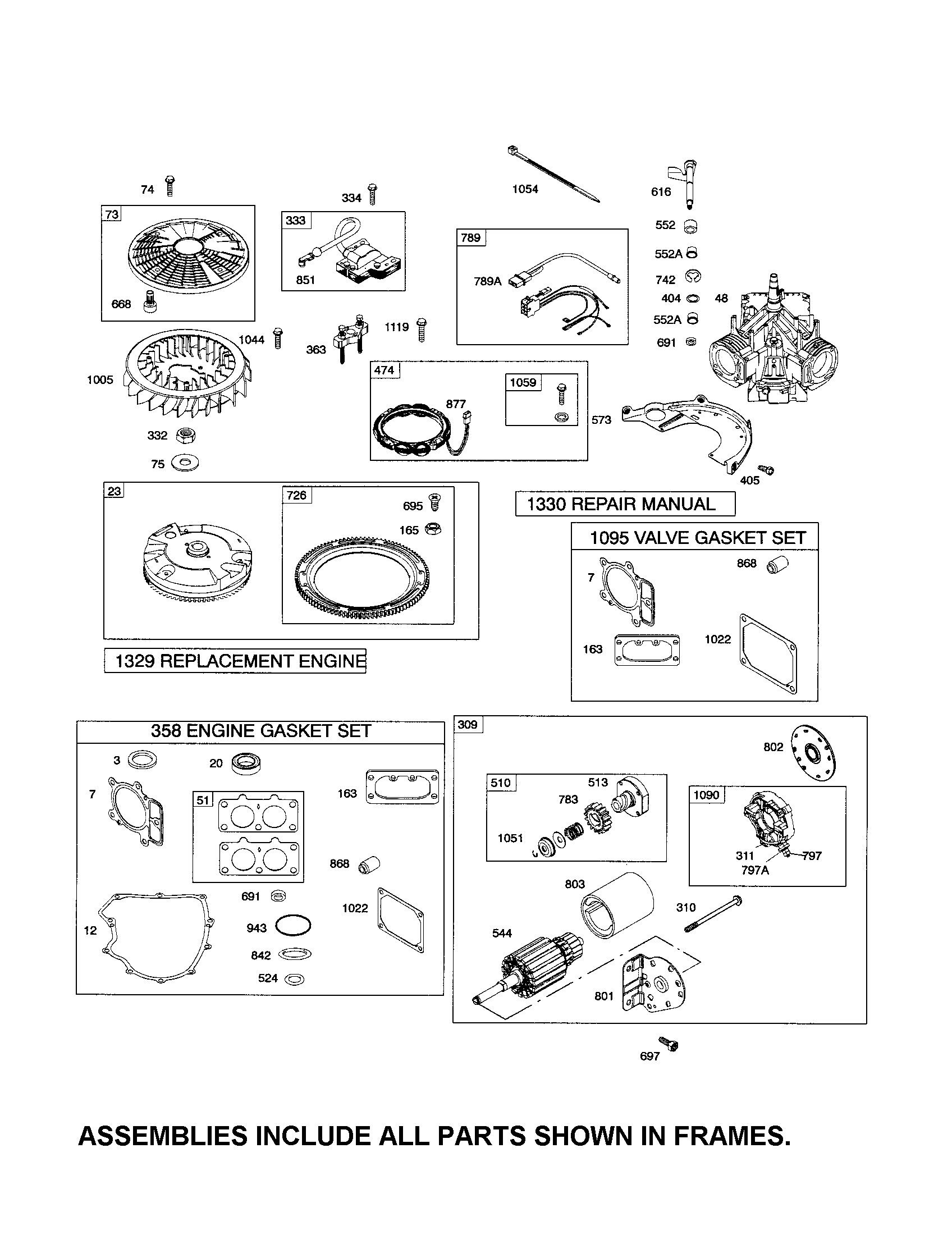

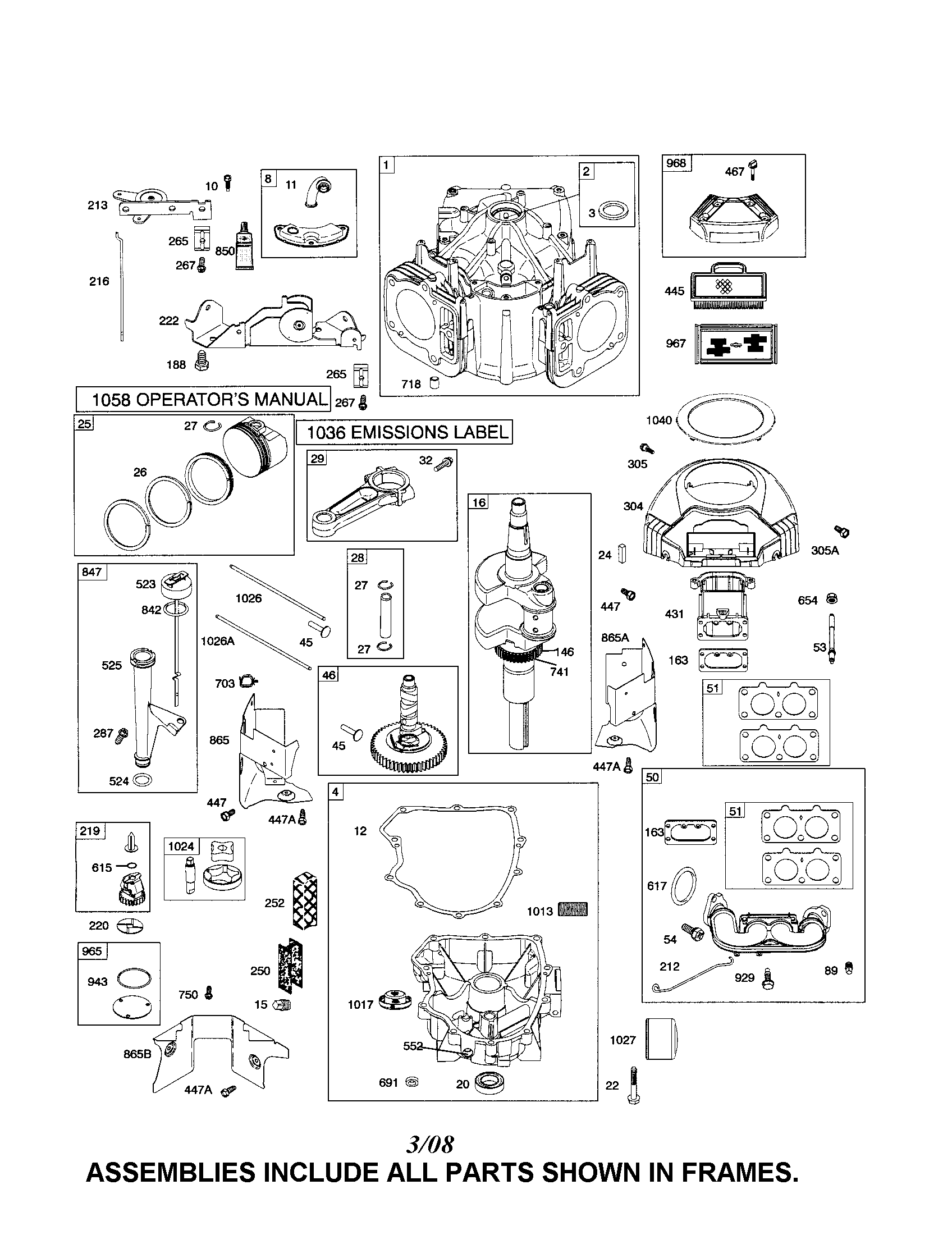

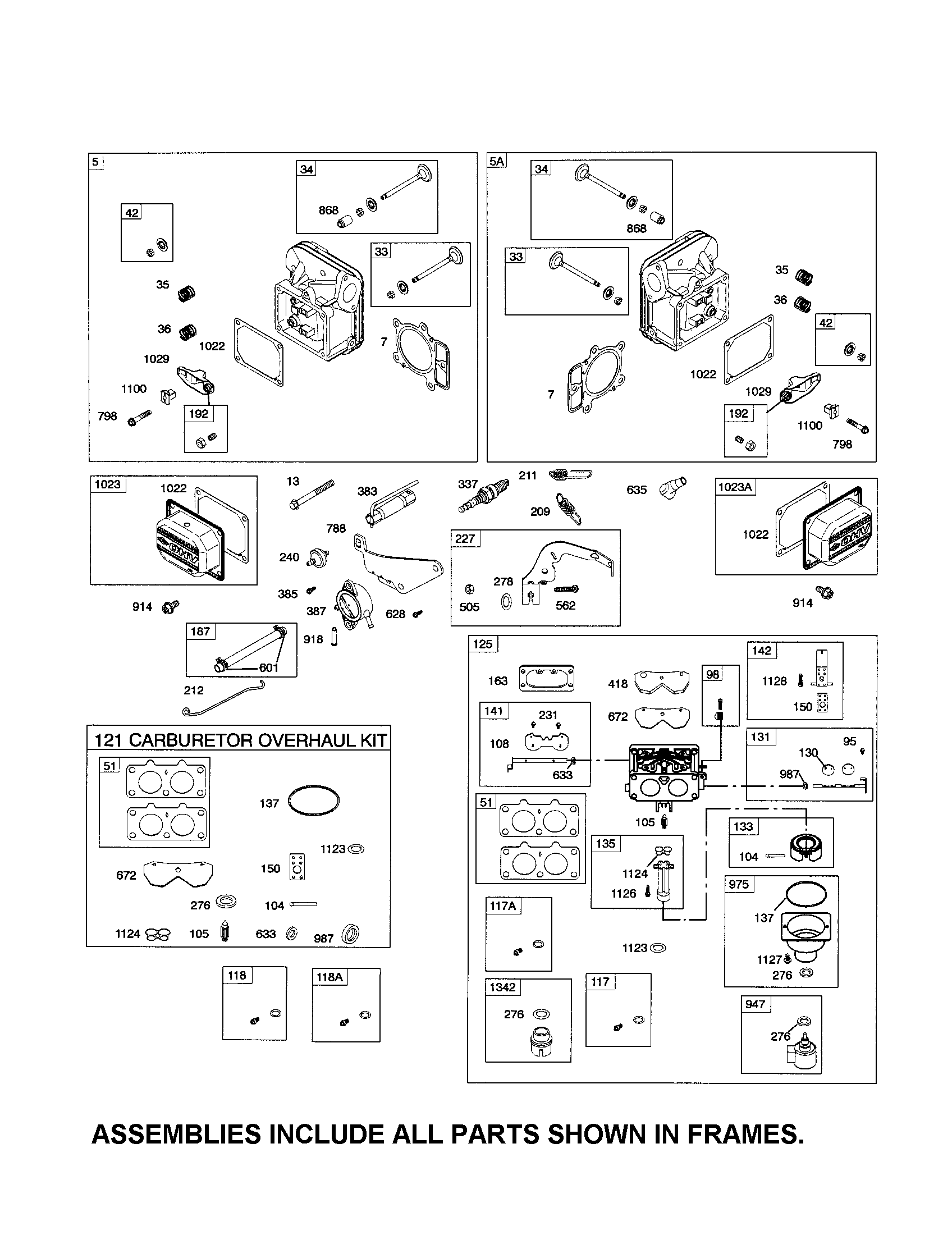

View engineBy Schematic
By Part
SELECT DIAGRAM

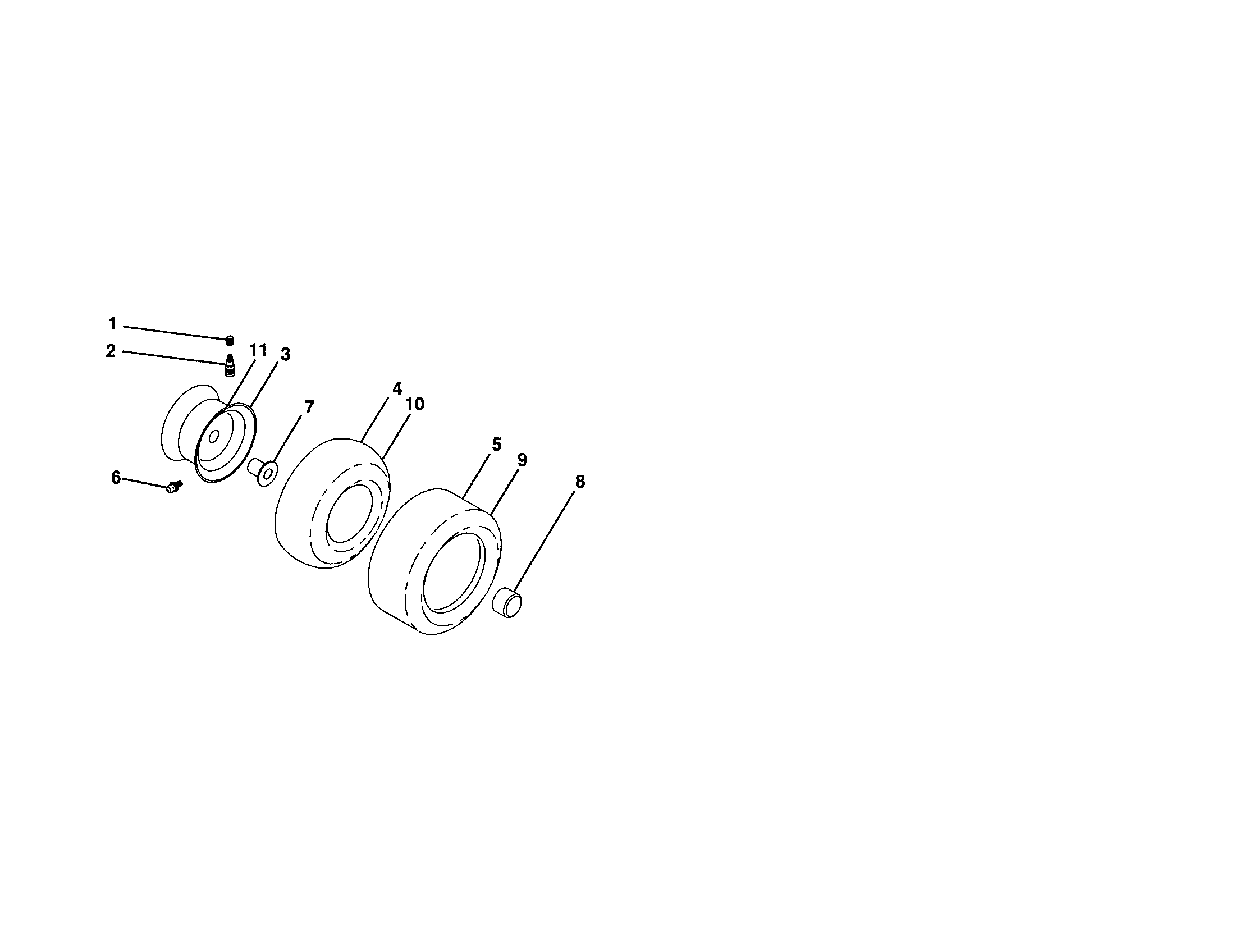

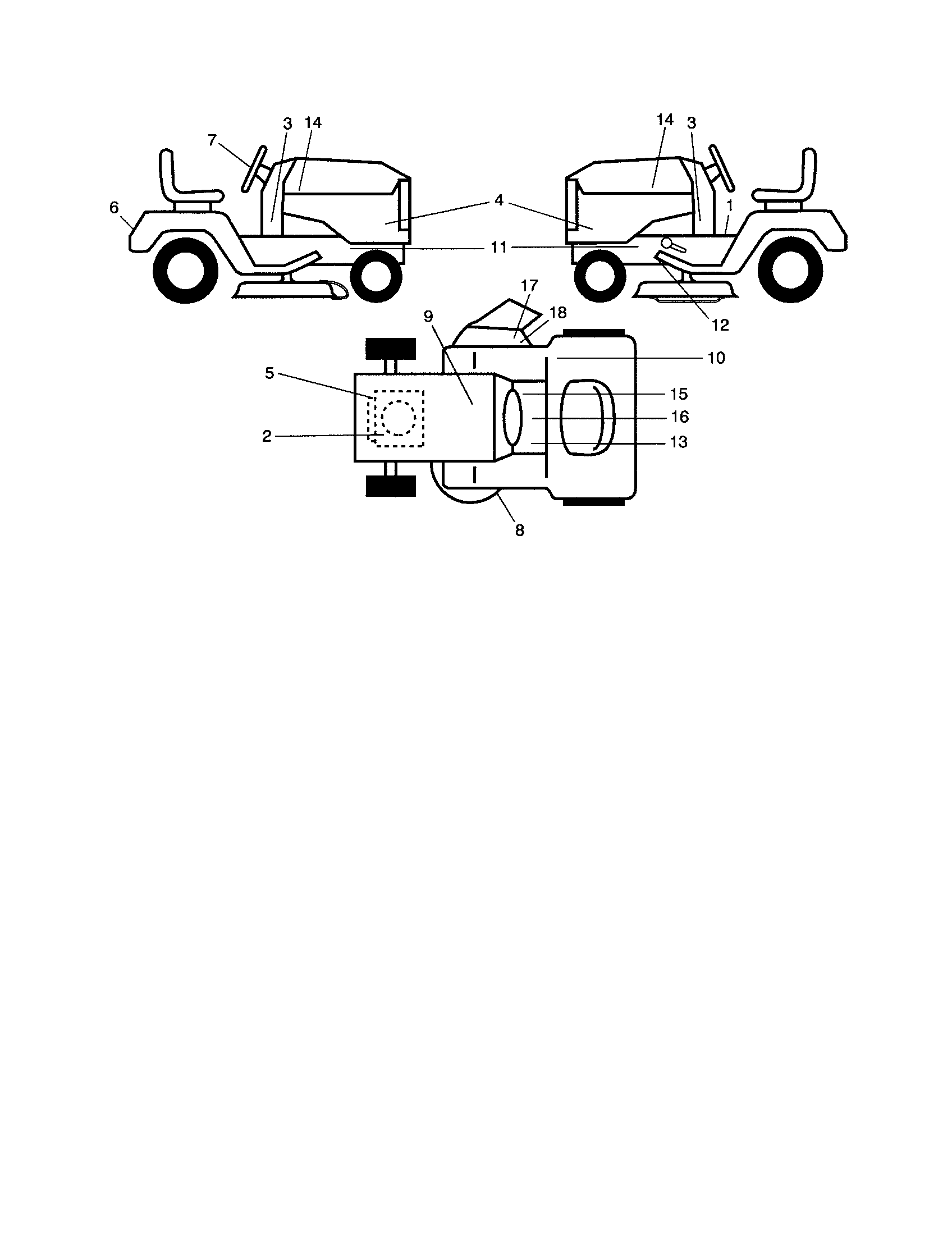

Browse Parts for 917253250 Riding Mowers & Tractors

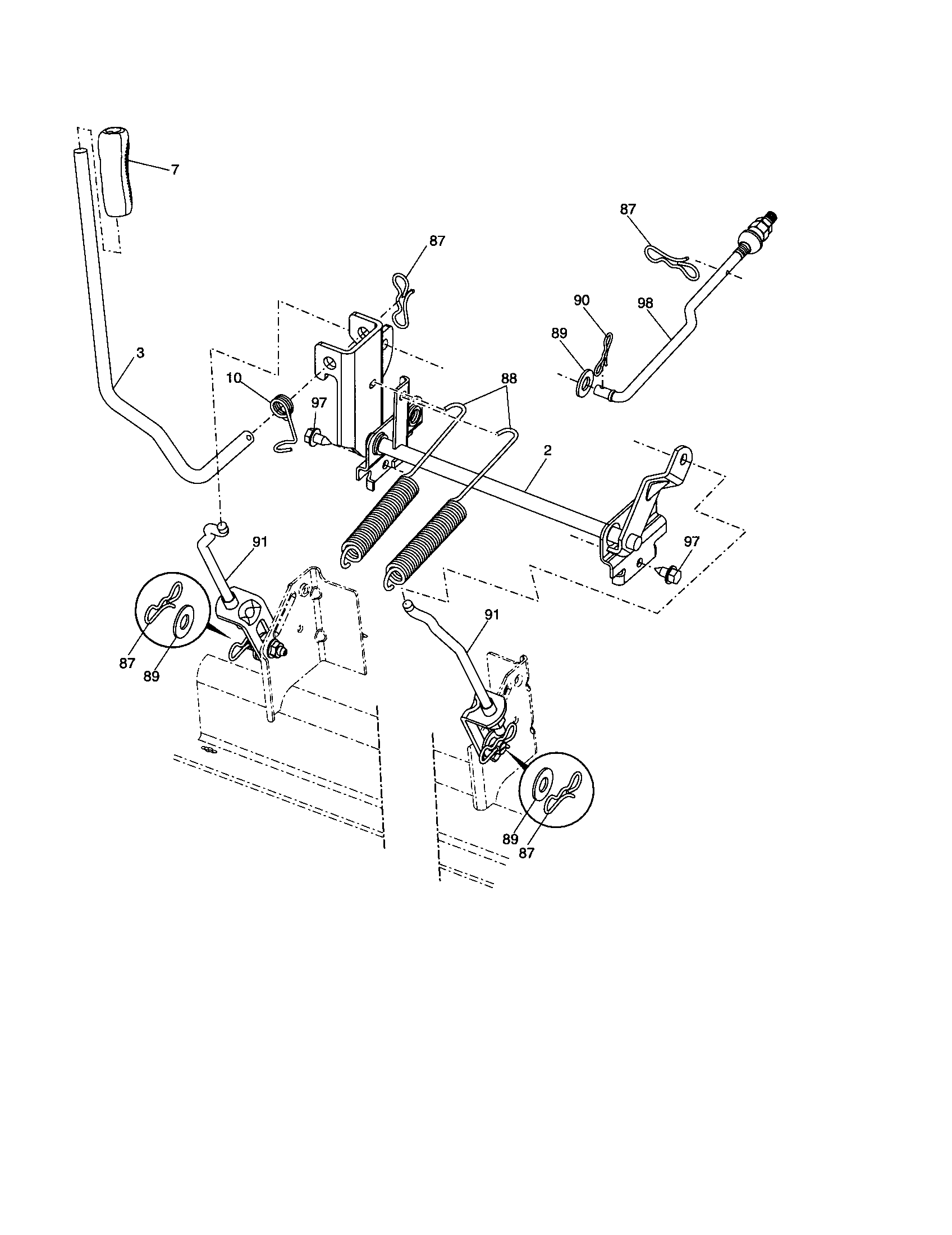

Lift diagram
Husqvarna Lawn Tractor Washer (clear)
Part #19191912Replaced by #819191912
Manufacturer substitutionThis part replaces 19191912. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8717% OFF Phone Price : $5.87
Qty

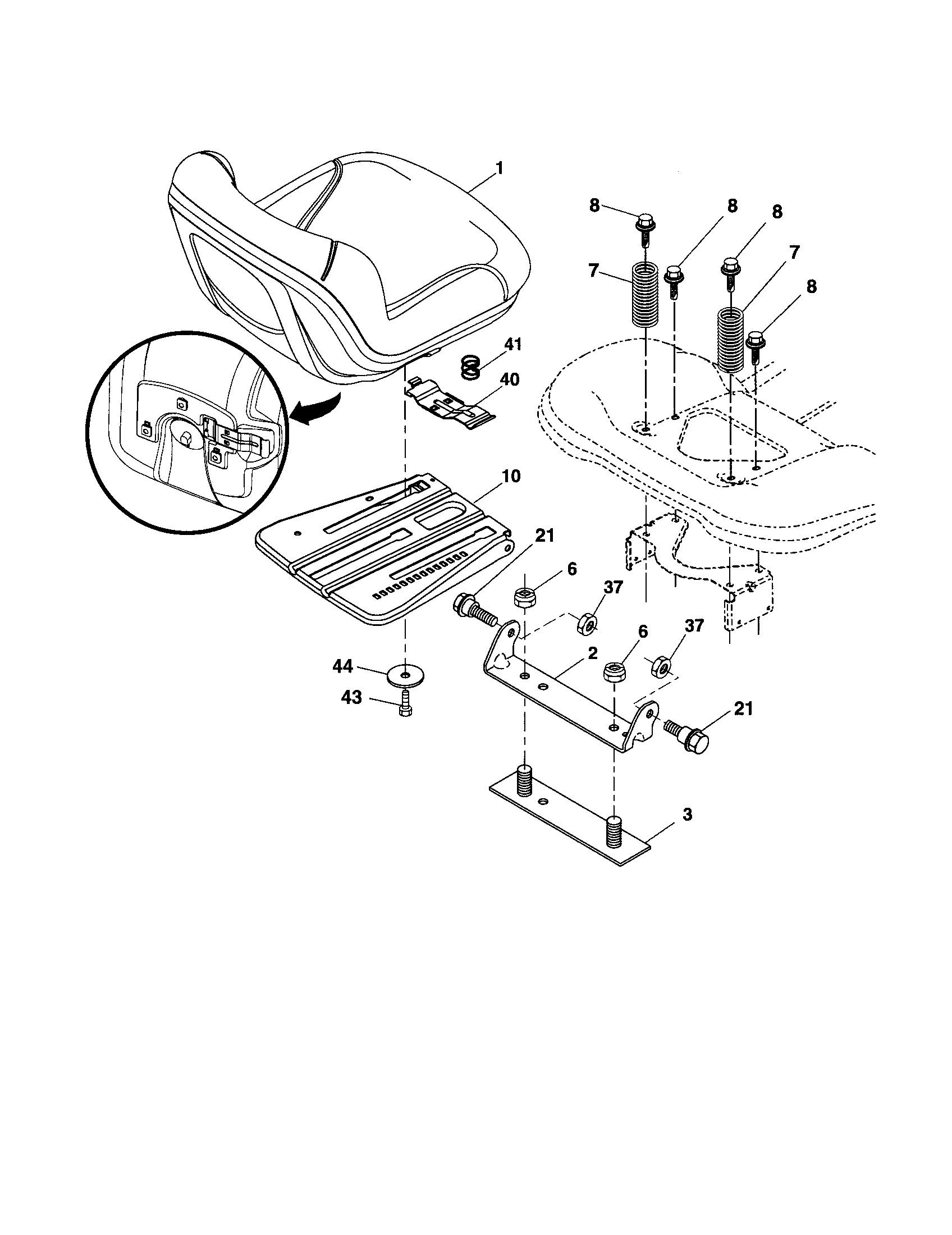

Seat diagram
Seat
Part #418490Replaced by #532411405

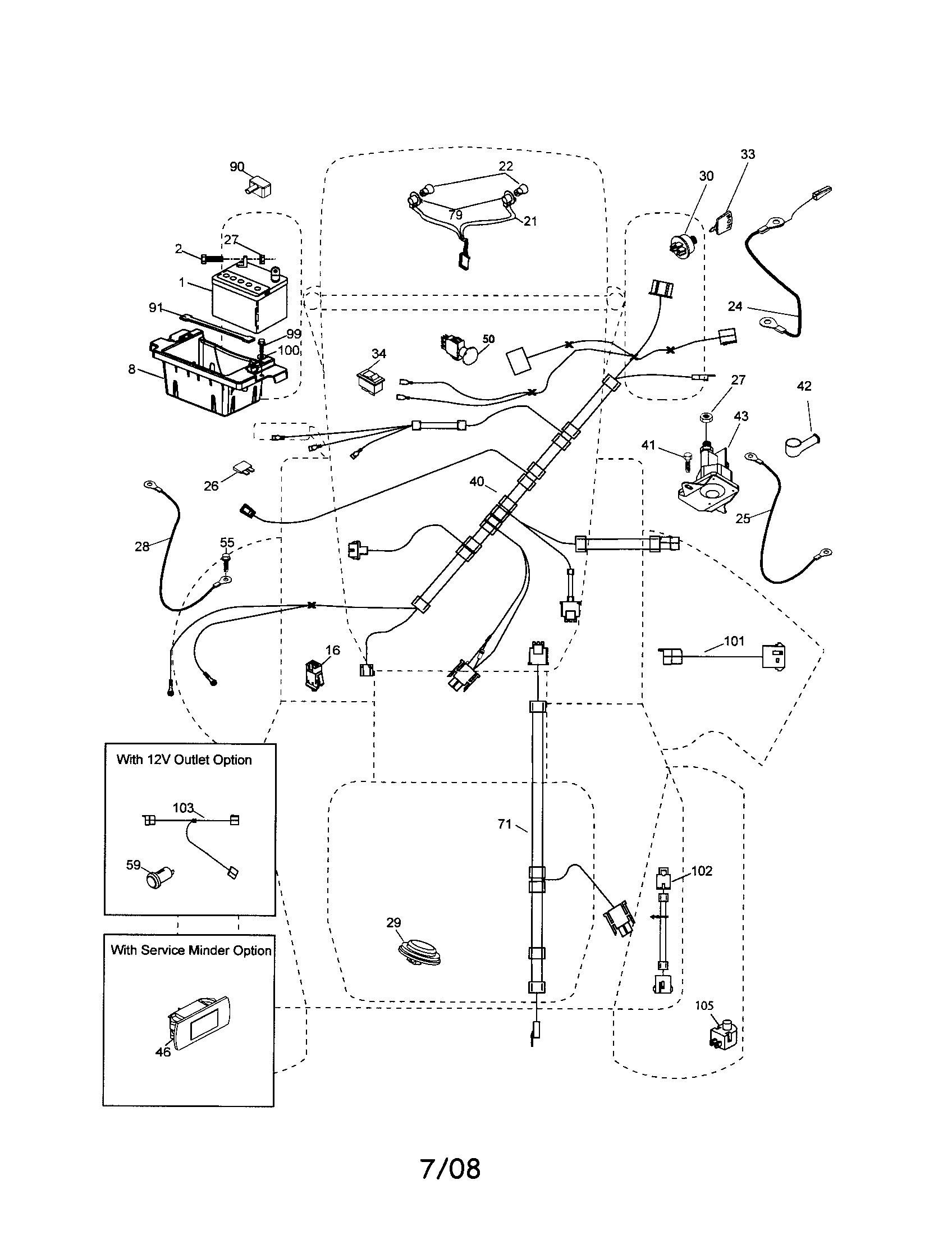

Manufacturer substitutionThis part replaces 418490. Substitute parts can look different from the original.In Stock$300.77$12.00 OFF Phone Price : $312.77QtyElectrical diagram
Husqvarna Lawn Tractor Interlock Switch
Part #176138Replaced by #532176138

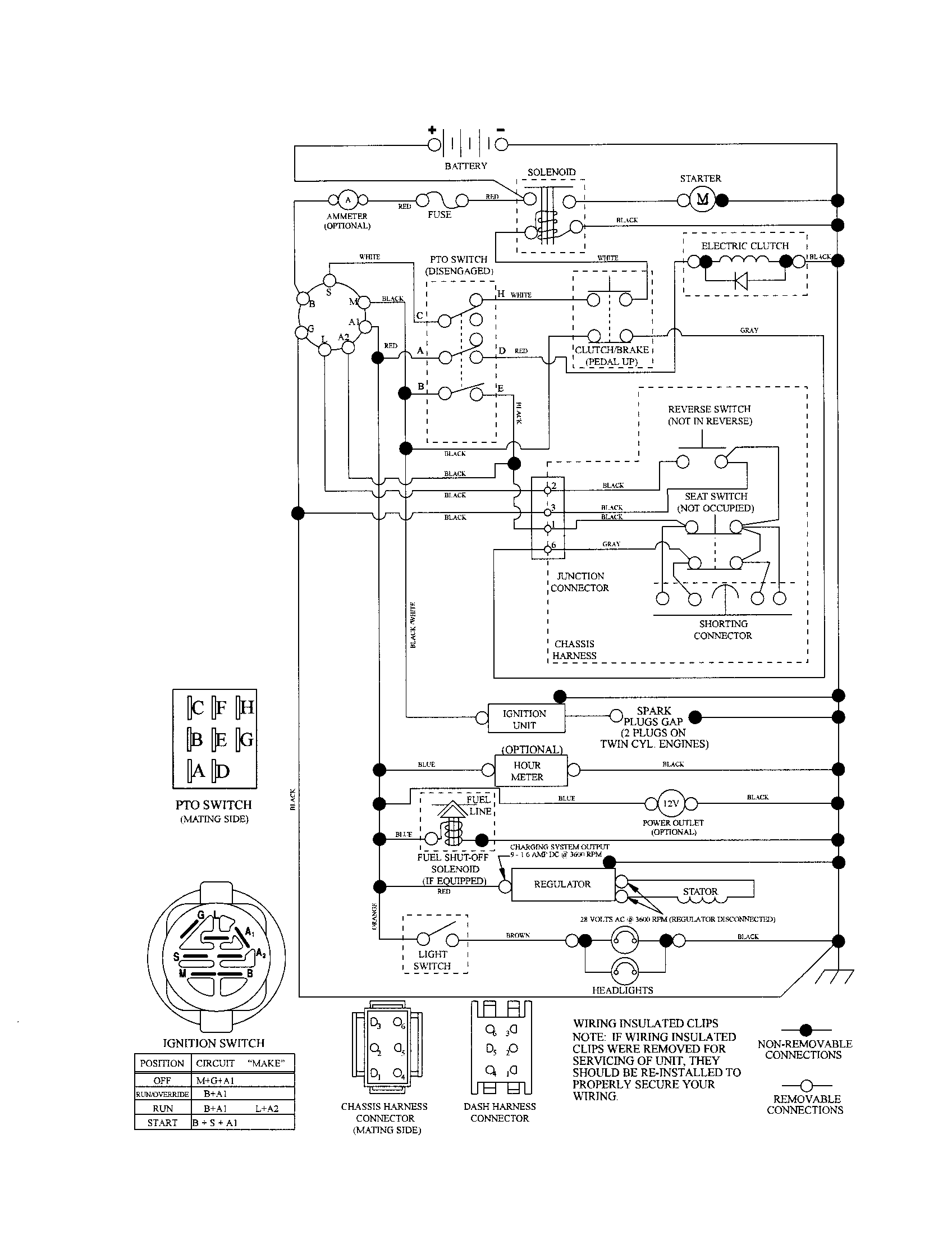

Manufacturer substitutionThis part replaces 176138. Substitute parts can look different from the original.In Stock$35.6514% OFF Phone Price : $41.65QtyGround drive diagram
Husqvarna Lawn Tractor Ground Drive Idler Pulley
Part #407287Replaced by #532407287
Manufacturer substitutionThis part replaces 407287. Substitute parts can look different from the original.In Stock$18.5610% OFF Phone Price : $20.56QtyMower deck diagram
Lawn Tractor Mandrel Guard
Part #174493Replaced by #532174493

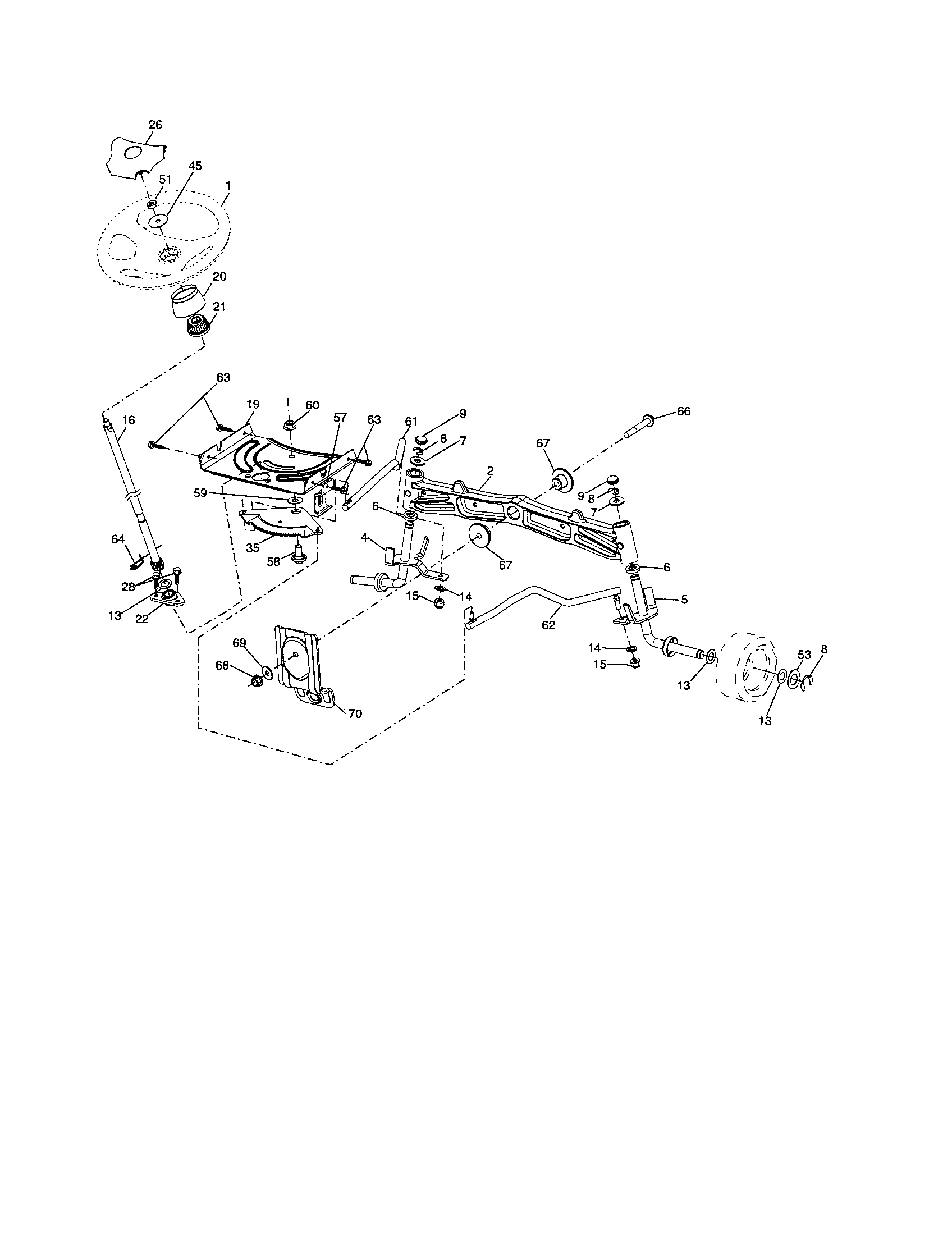

Manufacturer substitutionThis part replaces 174493. Substitute parts can look different from the original.In Stock$10.6916% OFF Phone Price : $12.69QtySteering diagram
Husqvarna Lawn Tractor Sector Gear Plate
Part #194732Replaced by #532194732
Manufacturer substitutionThis part replaces 194732. Substitute parts can look different from the original.In Stock$38.9413% OFF Phone Price : $44.94QtyHusqvarna Lawn Tractor Shoulder Bolt
Part #196539Replaced by #532196539
Manufacturer substitutionThis part replaces 196539. Substitute parts can look different from the original.This item is not returnableIn Stock$2.9925% OFF Phone Price : $3.99QtyElectrical diagram
Husqvarna Lawn Tractor Ignition Key
Part #411934Replaced by #532411935

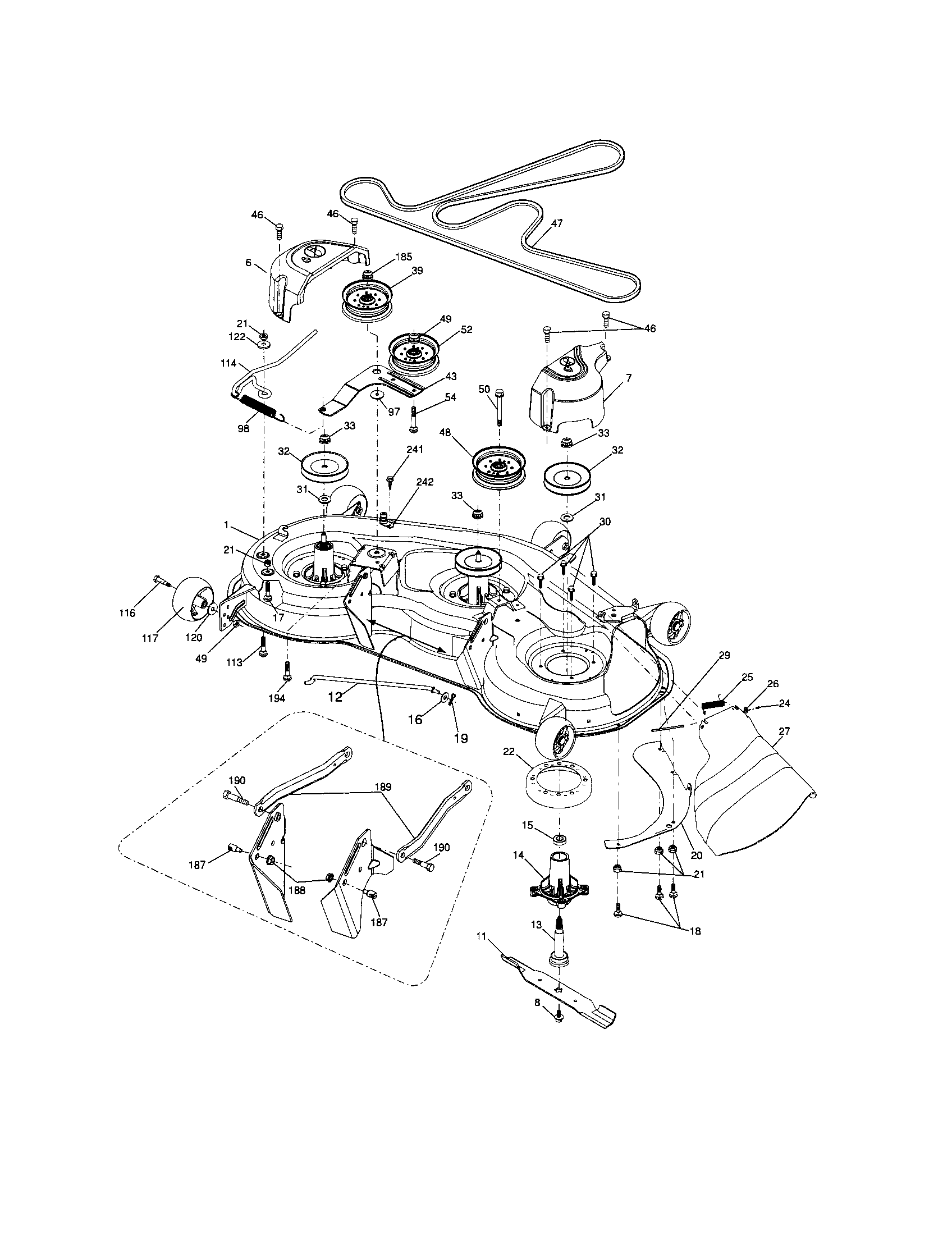

Manufacturer substitutionThis part replaces 411934. Substitute parts can look different from the original.In Stock$30.6116% OFF Phone Price : $36.61QtyMower deck diagram
Lawn Tractor 48-in Deck High-lift Blade
Part #180054Replaced by #532180054
Manufacturer substitutionThis part replaces 180054. Substitute parts can look different from the original.In Stock$38.1014% OFF Phone Price : $44.10QtyMower deck diagram
Husqvarna Lawn Tractor Drive Spring
Part #196105Replaced by #532196105
Manufacturer substitutionThis part replaces 196105. Substitute parts can look different from the original.In Stock$10.0817% OFF Phone Price : $12.08Qty
Most common symptoms to help you fix your riding mowers & tractors
Choose a symptom to see related riding mower and lawn tractor repairs.
Main causes: damaged tie rods, bent or worn wheel spindle, worn front axle, damaged sector gear assembly…
Main causes: dead battery, stale fuel, bad starter solenoid, ignition system problem, bad ignition interlock switch, clo…
Main causes: worn or broken blade belt, broken belt idler pulley, blade clutch cable failure, bad PTO switch, damaged ma…
Main causes: engine overfilled with oil, leaky head gasket or sump gasket, damaged carburetor seals, cracked fuel pump, …
Main causes: punctured tire or inner tube, leaky valve stem, damaged wheel rim…
Main causes: unlevel mower deck, dull or damaged cutting blades, worn mandrel pulleys, bent mower deck, engine needs tun…
Main causes: worn or broken ground drive belt, bad seat switch, transaxle freewheel control engaged, transaxle failure, …
Main causes: faulty battery, bad alternator…
Main causes: shift lever needs adjustment, neutral control needs adjustment…
Most common repair guides to help fix your riding mowers & tractors
These step-by-step repair guides will help you safely fix what’s broken on your riding mower or lawn tractor.
How to replace the starter solenoid on a riding lawn mower
Replace the starter solenoid if it doesn't click when you turn the ignition key.…
Repair time and Difficulty
30 minutes or less
How to replace a riding lawn mower ignition coil
If you're not getting spark from a good spark plug, the problem could be the ignition coil. Follow these step-by-step in…
Repair time and Difficulty
30 minutes or less
How to replace a riding lawn mower fuel filter
Help your mower run better by replacing the fuel filter during your riding mower's annual tune-up.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your riding mowers & tractors
Use the advice and tips in these articles and videos to get the most out of your riding mower or lawn tractor.
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
Learn how to connect cables safely to jump-start your mower’s battery.…
